UNIVERSAL STRIPPING TOOL

Specifications:

Art.-No.: 16 85 125 SB
EAN: 4003773060444
Weight: 79 g
Dimensions: 125 x 86 x 36 mm
REACH: does not contain SVHC
RoHS: not applicable
Single conductor operating range: 0.2 mm2 / 0.3 mm2 / 0.8 mm2 / 1.5 mm2 / 2.5 mm2 / 4.0 mm2
Operating range in mm2: 0.2 - 4 mm2
Operating range (diameter): 8 – 13 mm
Wire type: Round cable, e.g.: 3 x 1.5 mm2 to 5 x 2.5 mm2



With additional slitting blade
Retractable blade retractable inside the body
For stripping from wires with a cross section of 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm2
With integrated slitting cable guide. This makes it easier to remove hard insulation materials (e.g. halogen-free).
For stripping all general round cables with a diameter of Ø 8.0 to 13.0 mm (e.g. NYM 3 x 1.5 mm2 up to 5 x 2.5 mm2)
Also for use in junction and distribution boxes
Two-piece body with retractable blade
With opening spring and opening lock
Fastening latch for secure storage
Body: glass fiber reinforced plastic


**

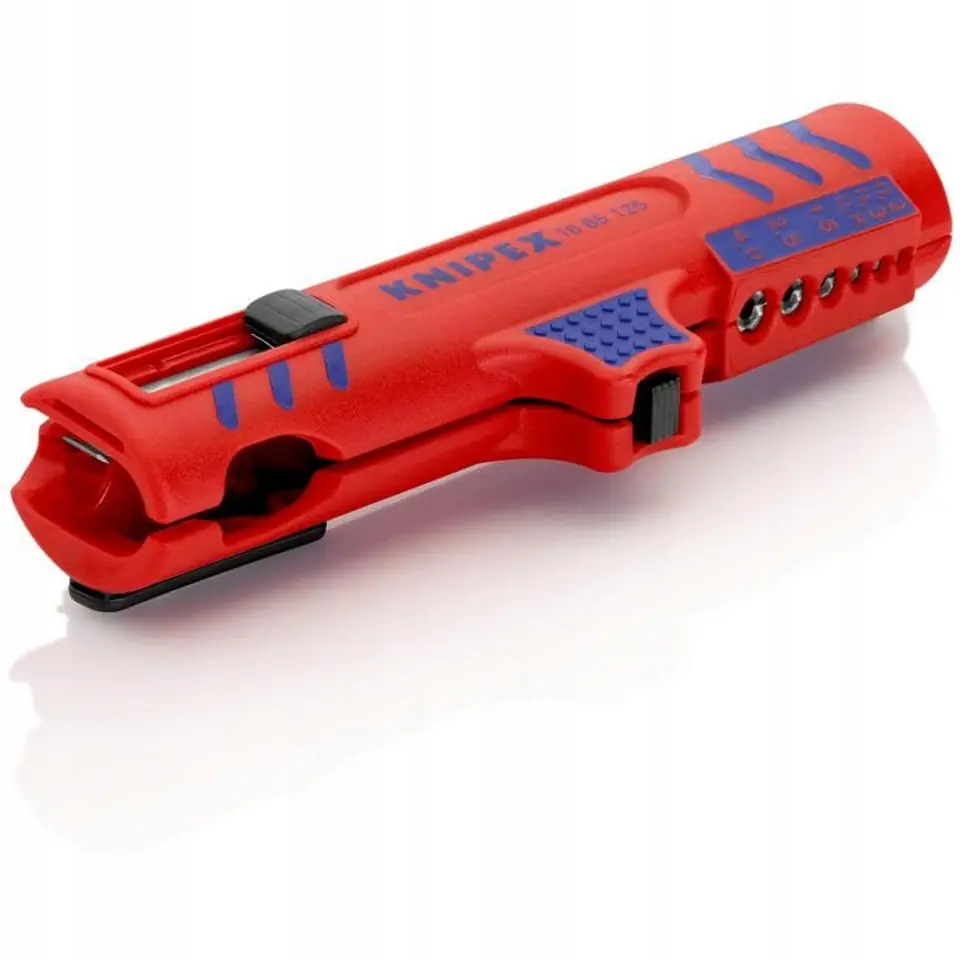

Illustrative photo.
