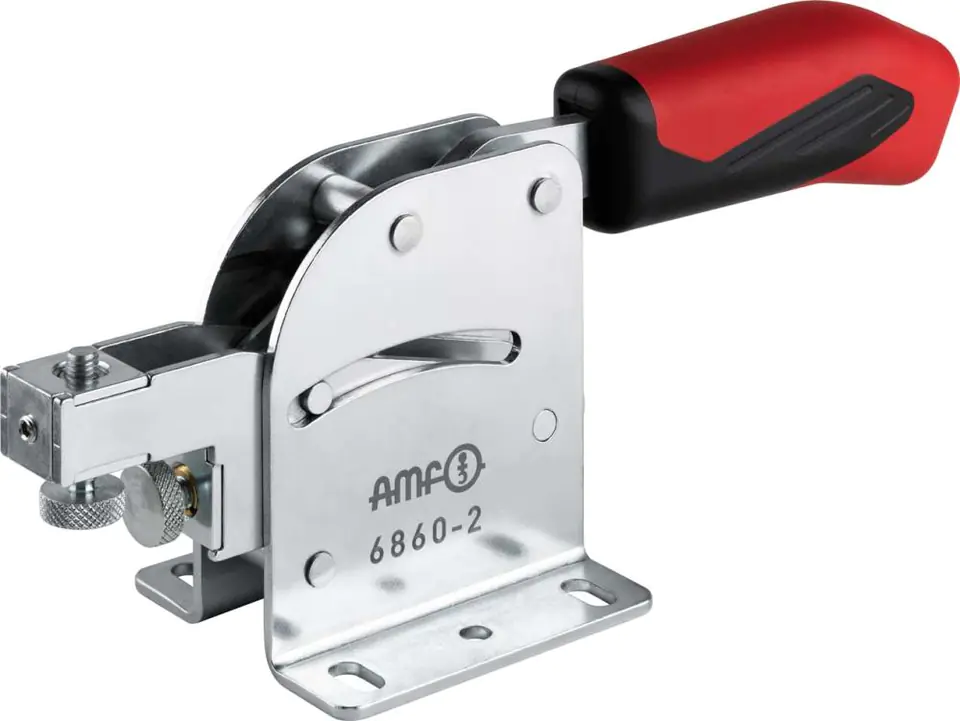

Universal pressure
Material: galvanized and passivated. Stainless steel rivets move in diffusion-hardened bearing sleeves. Lubricated bearing points. Ergonomic oil-resistant handle with large palm bond surface, soft components.
Advantages:
• positioning and fastening in one working movement
• durable and stable construction
• easy removal of the workpiece thanks to the fully retractable clamping arm
• maximum quality, in accordance with AMF standards
Application: when welding devices, the most important thing is the accurate positioning and secure fastening of individual elements. In practice, this is ensured by the simultaneous use of sliding rods in combination with vertical quick-clamping clamps, or by the development of in-house solutions. The AMF universal clamp fulfils these two tasks in a single working movement, eliminating the need for different quick-clamping clamps. The universal clamping guide converts the movement of the lever arm into a horizontal and vertical clamping movement, so that the component is positioned and clamped at the same time. We invite you to familiarize yourself with the potential savings resulting from the use of the new AMF universal clamp!
