MEASURING RANGES
-----------
DC voltage: 600 V ±(0.8%+1)
AC voltage: 600 V ±(1.2%+3)
Resistance: 40 MOhm ±(1 %+2)
Capacity: 100 μF ±(4%+3)
Frequency: 100 kHz ±(0.5%+3)
Diode test
Circuit Continuity Test
Duty cycle measurement
-----------
GENERAL FEATURES
-----------
Automatic change of measuring ranges
Housing with protective flap
Freezing of the last indication
Low battery indicator
Polarization: automatic
Sampling rate: 3 times per second
Maximum reading: 3999
Operating Temperature: 0°C~40° at <80% Humidity
Storage Temperature: -10°~50°C at <85% Humidity
Power Supply: CR2032 Battery
Dimensions: 109 x 8.2 x 10.8 mm
Weight: 76 g
Included: meter, manual

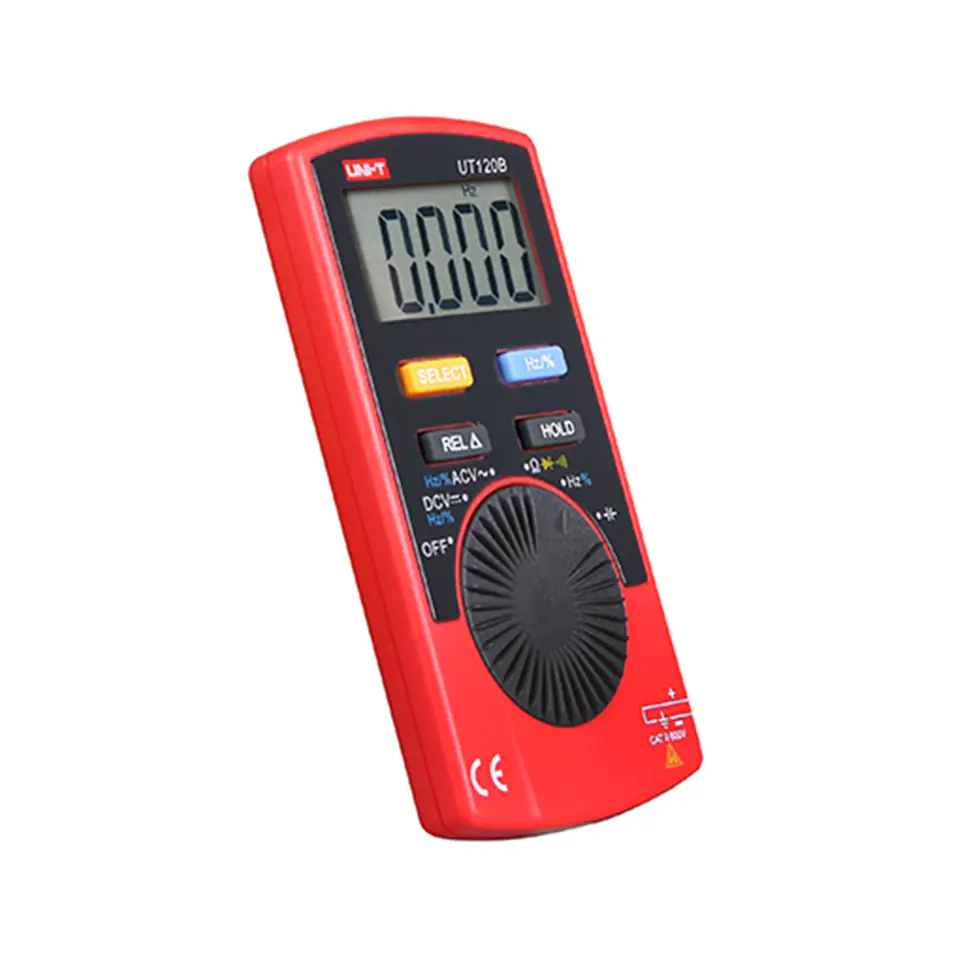

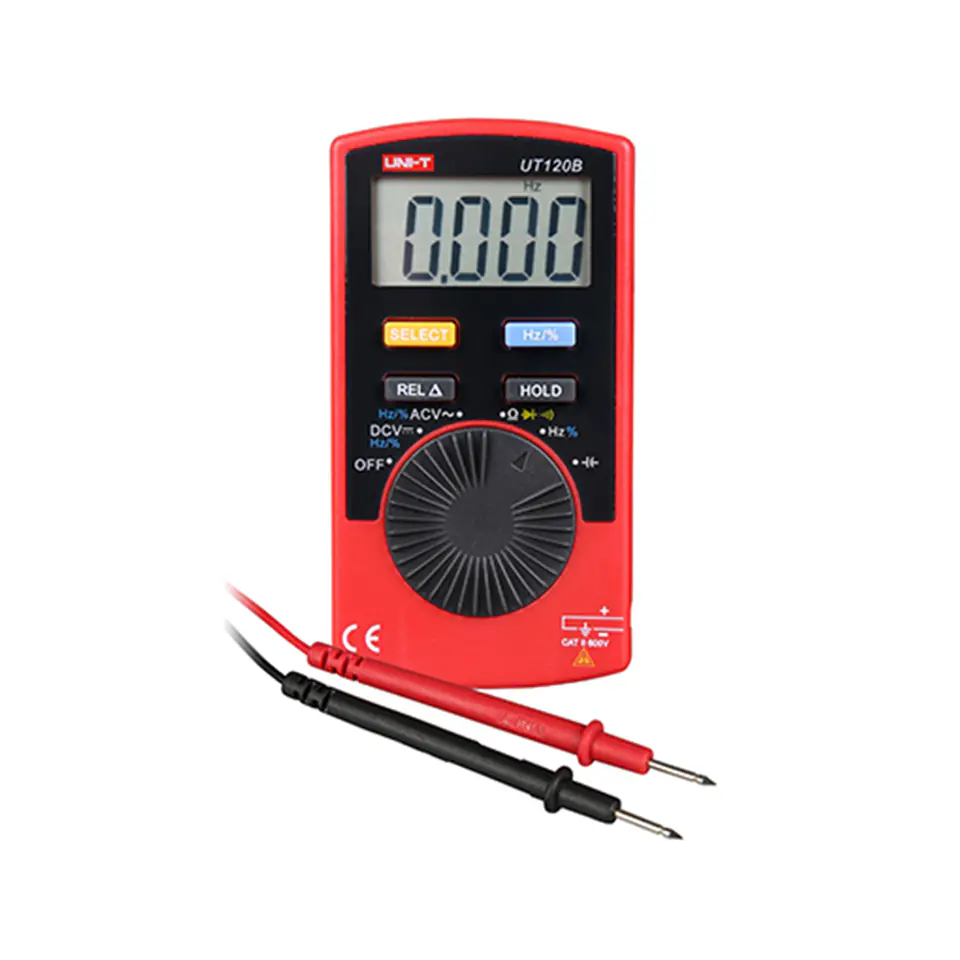

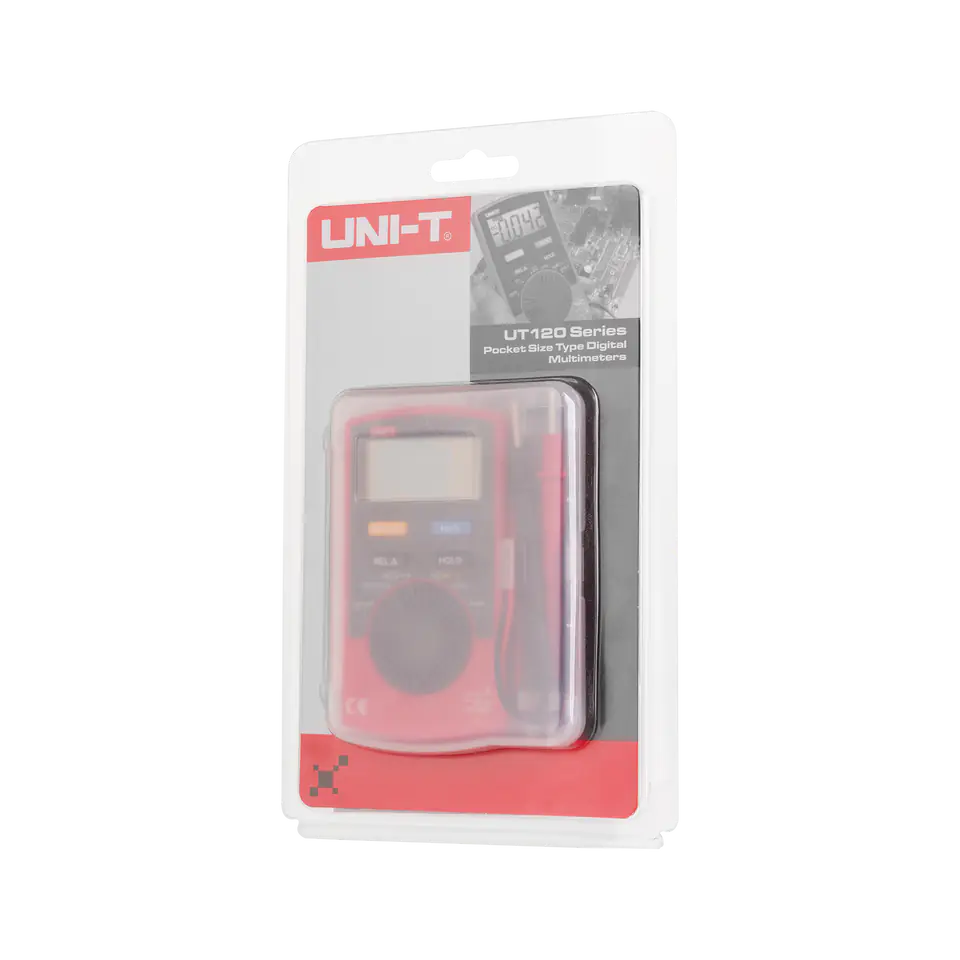

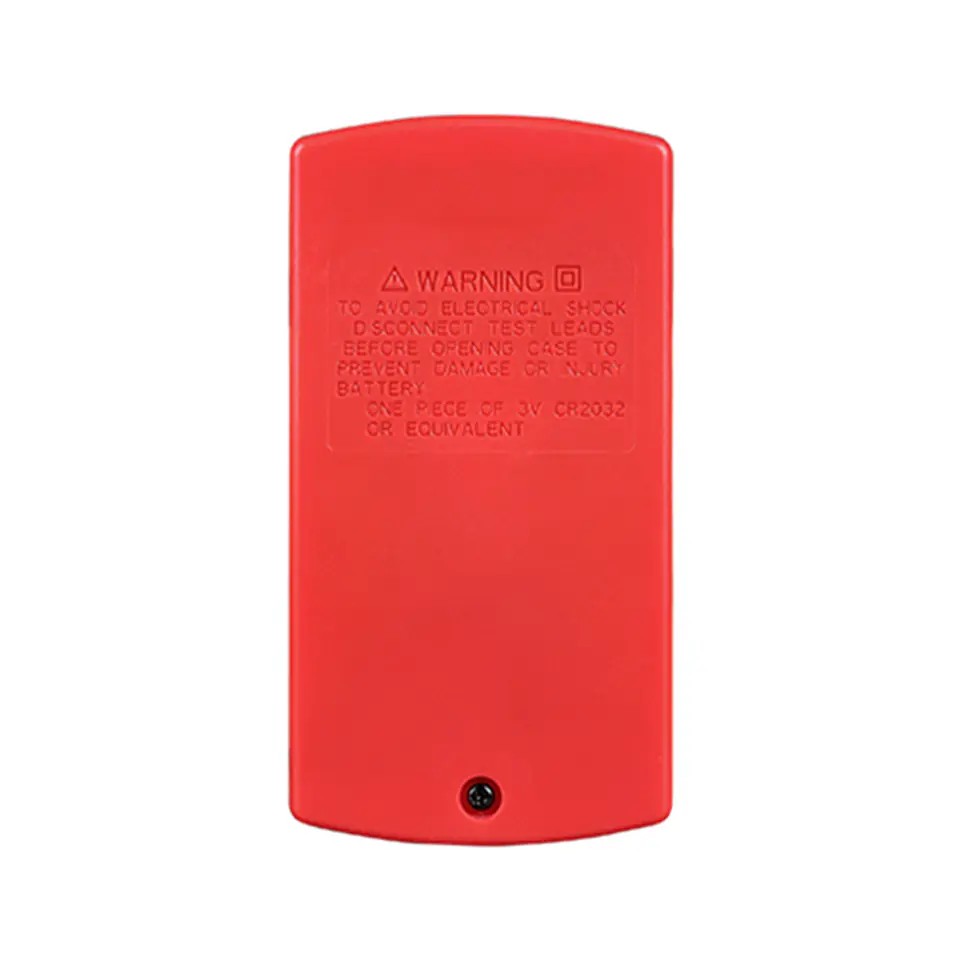

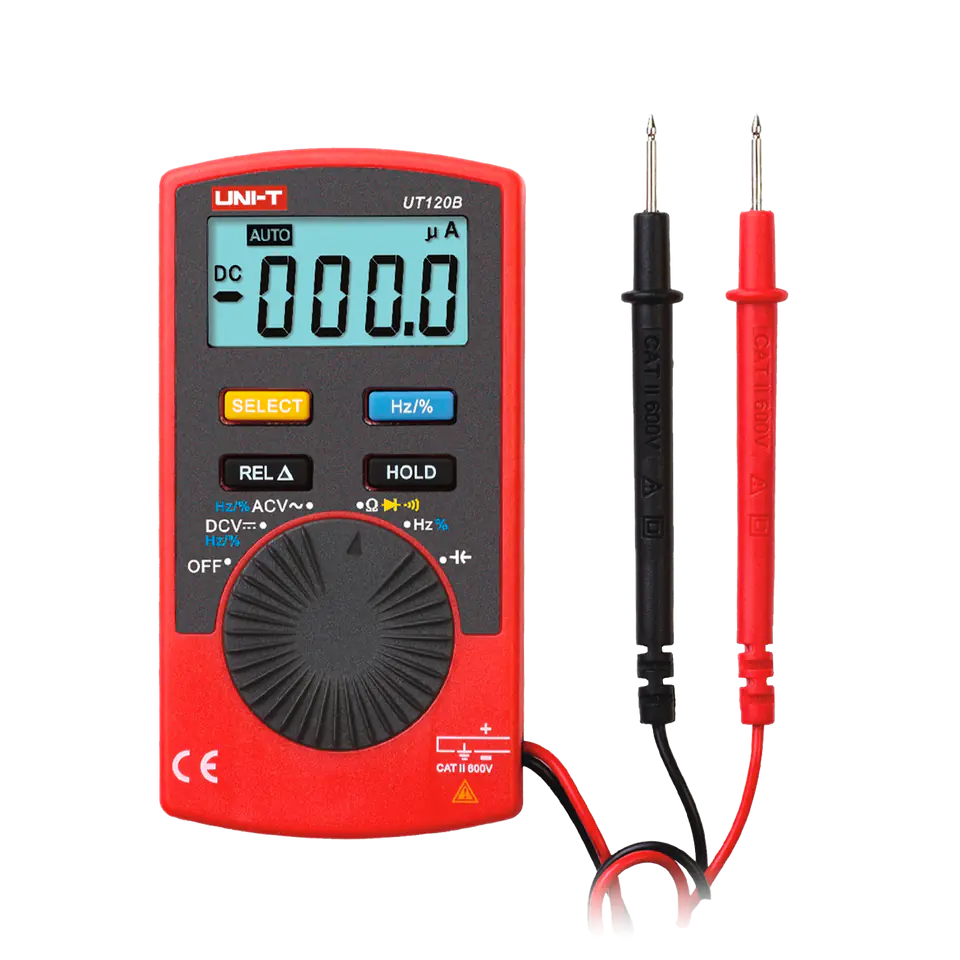

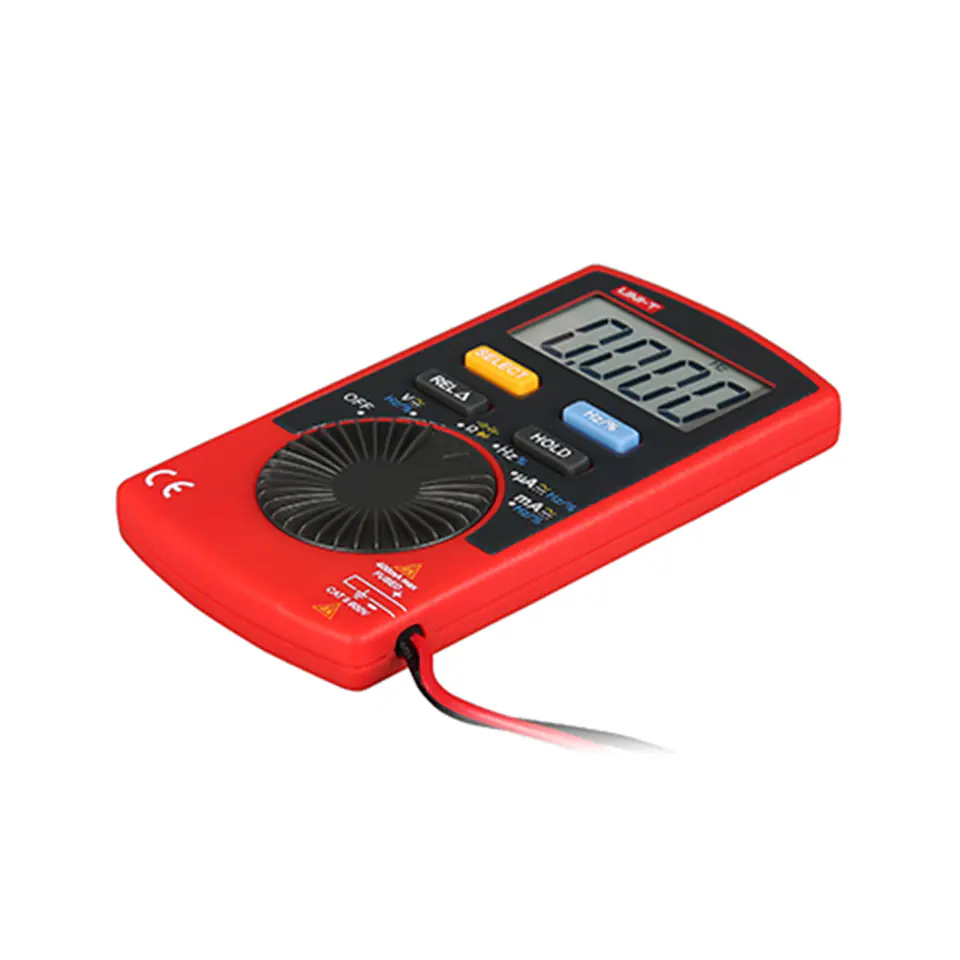

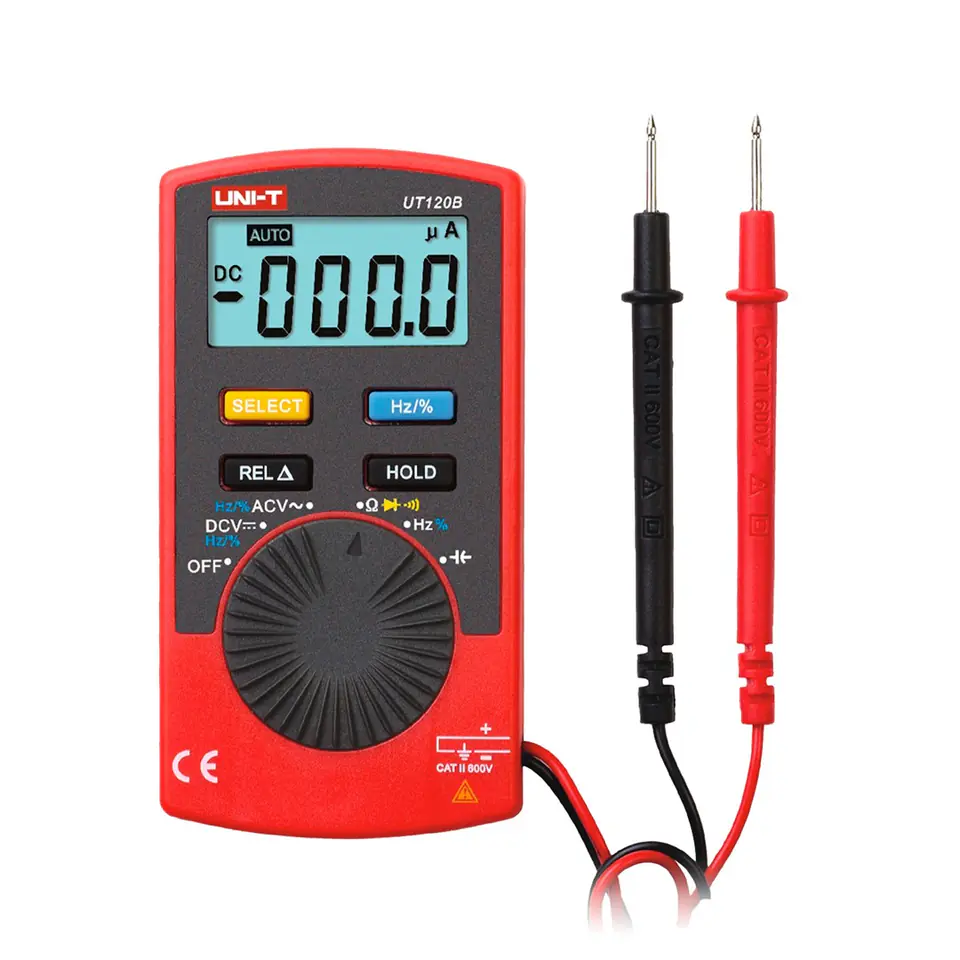

Universal pocket meter Uni-T UT120B
€22.94
Shipping from warehouse: L1
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- MIE0451 / 5901890074872
