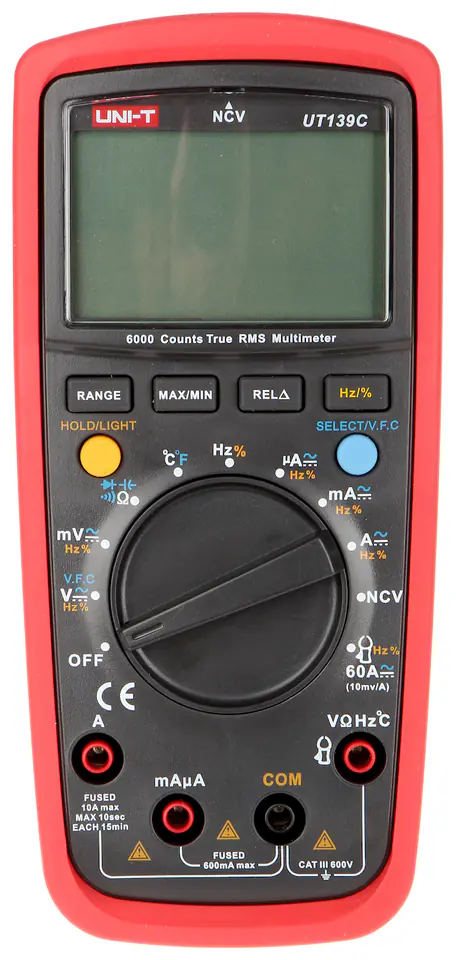

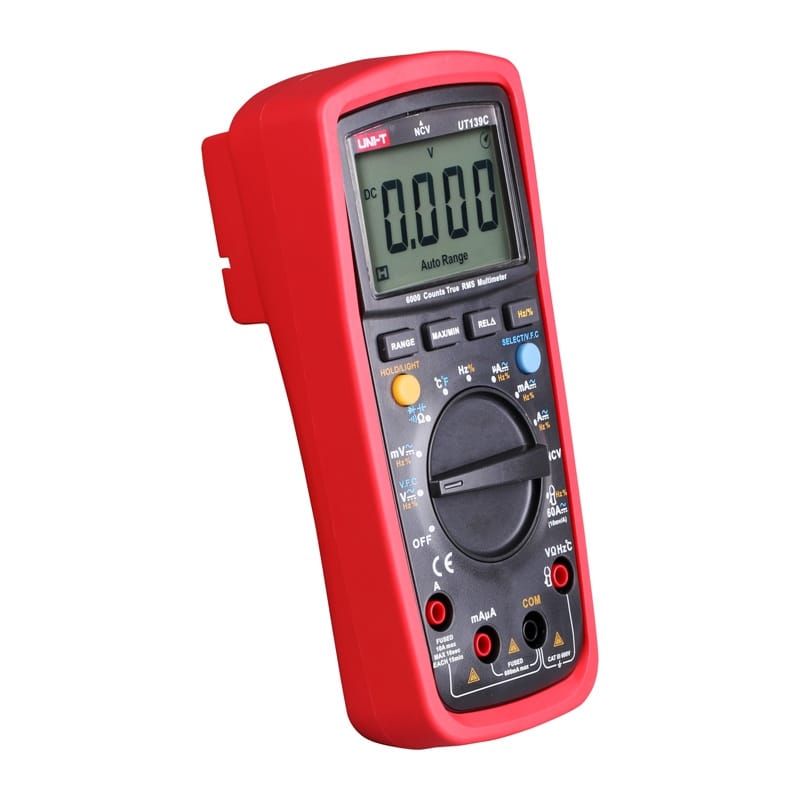

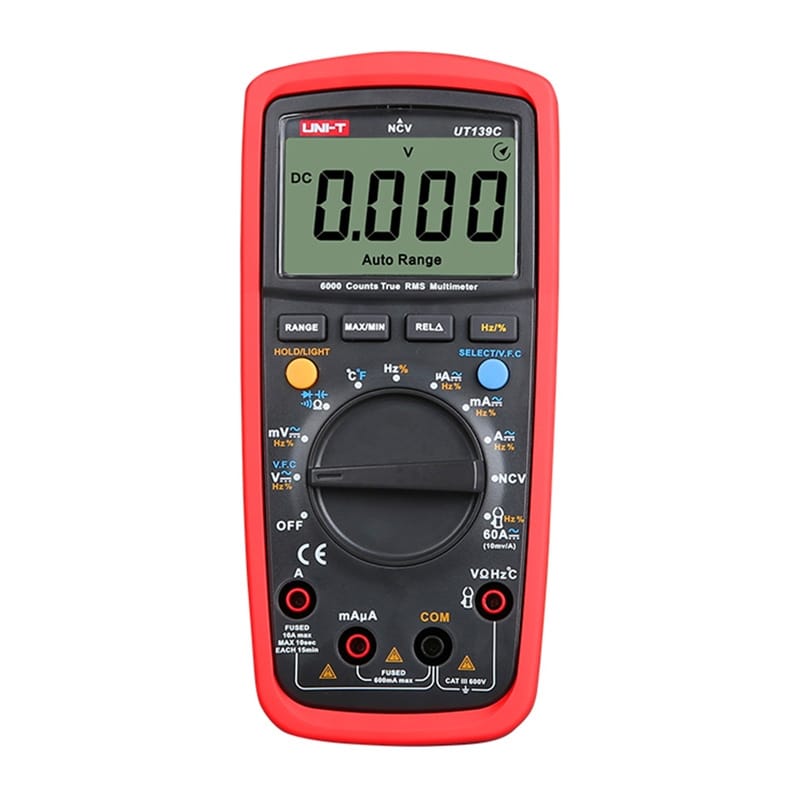

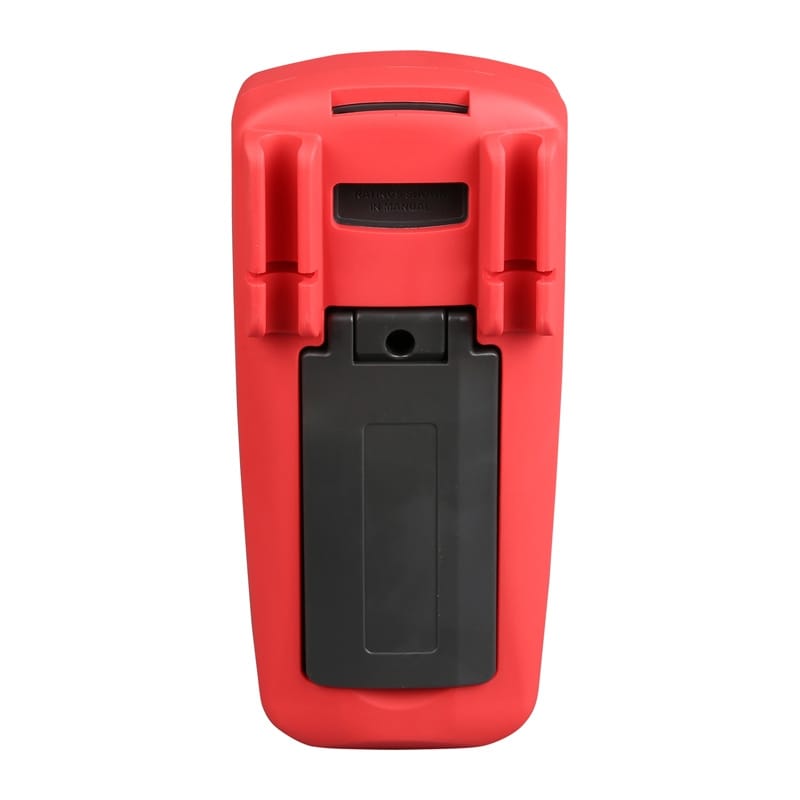

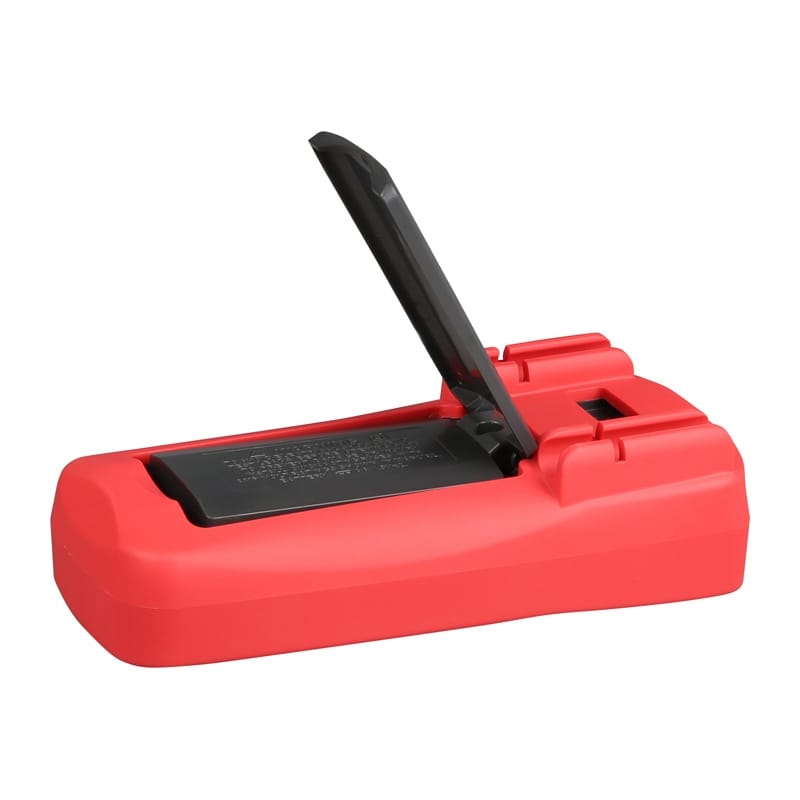

Universal meter UT139C

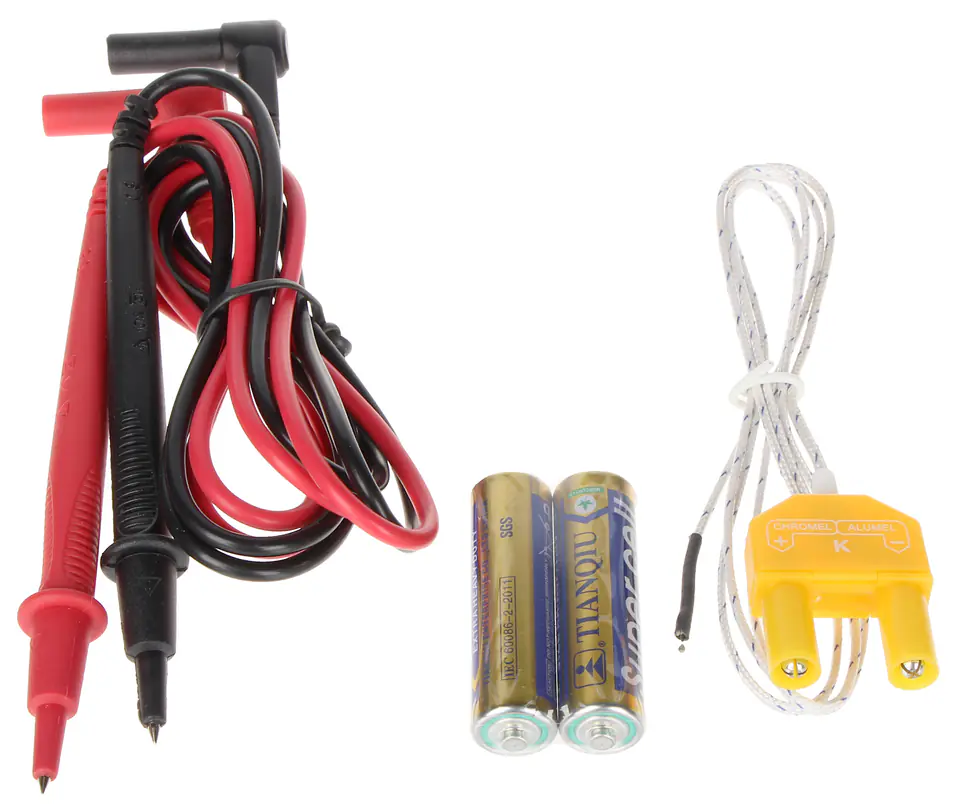

MEASURING RANGES DC voltage: 60 mV / 600 mV / 6 V / 60 V / 600 V / 600 V ±(0.5%+2) AC voltage: 60 mV / 600 mV / 6 V / 60 V / 600 V / 600 V ±(0.8%+3) DC current: 600 μA / 6000 μA / 60 mA / 600 mA / 6 A / 10 A ±(0.7%+2) AC current: 600 μA / 6000 μA / 60 mA / 600 mA / 6 A / 10 A ±(1%+3) Resistance: 600 Ohm / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm ±(0.8%+2) Capacity: 9.999 nF / 99.99 nF ~ 999.9 μF / 9.999 mF ~ 99.99 mF ±(4%+5) Frequency: 9.999 Hz ~ 9.999 MHz ±(0.1%+4) Temperature: 40°C~1000°C ±(1%+3); -40°F~1832°F ±(1.5%+5) Fill Factor: 0.1%-99.9% Diode Test: Approx. 3V Circuit Continuity Check ADDITIONAL FEATURES Automatic/Manual Change of Measurement Ranges High Frequency Suppression Filter That May Affect Measurement Accuracy (VFC) Electric Field Detection (NCV) True RMS Auto Power Off: Approx. 15 Minutes Low Battery Indicator Freeze Last Indication Relative Measurement Mode Recording MAX/MIN Value Backlit Screen LCD Maximum reading: 6000 GENERAL FEATURES Voltage measurement input impedance: approx. 10 MOhm Power supply: 2x 1.5 V battery (R06) Display size: 58 x 36 mm Product dimensions: 175 x 81 x 48.5 mm Product weight: 370 g Accessories: batteries, test leads, temperature measuring probe
