MEASURING RANGES
DC voltage: 1000 V ±(0.7%+3)
AC voltage: 1000 V ±(1%+3)
DC current: 10 A ±(1%+3)
AC: 10 A ±(1.2%+5)
Resistance: 40 MOhm ±(0.8%+2)
Temperature: -40°C~1000°C ±(0.1%+4); -40°C~1832°C ±(0.1%+4);
Measurement of the hFE of transistors
Diode test
Checking the continuity of the circuit
ADDITIONAL FEATURES
Automatic change of measuring ranges
Freezing of the last indication
Low battery indicator
Auto Power Off
Backlighting the display
Maximum reading: 4000
GENERAL FEATURES
Power supply: 2x 1.5V battery (R6)
Display size: 56.5 x 36mm
Product dimensions: 175 x 83 x 53 mm
Weight: 330 g

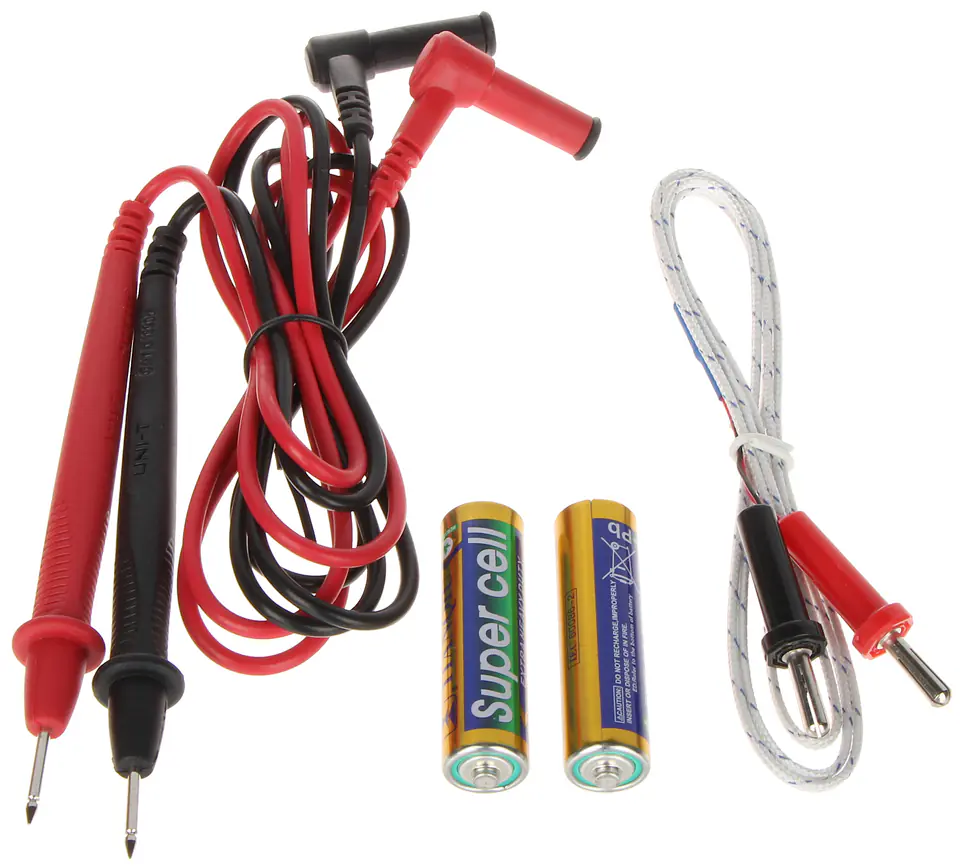

Accessories: Batteries, test leads, temperature probe
