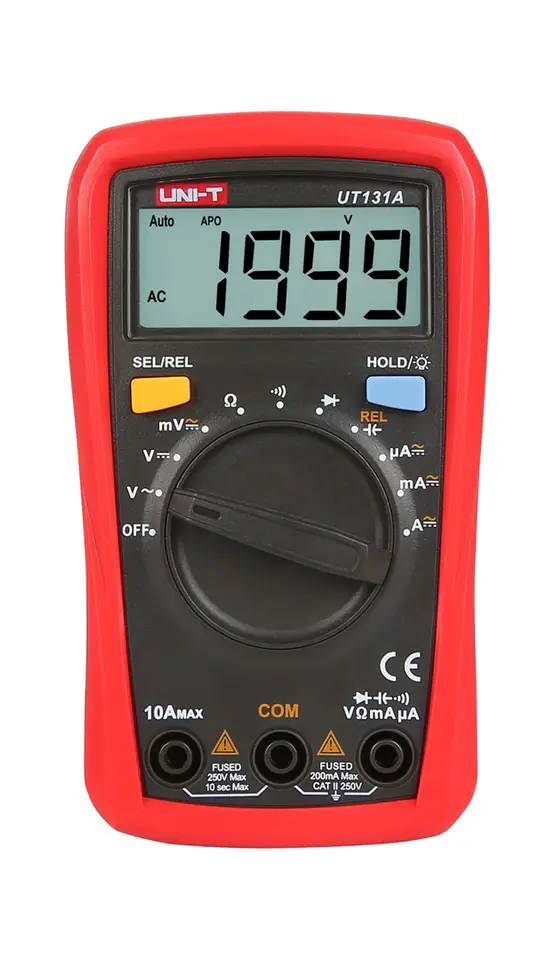

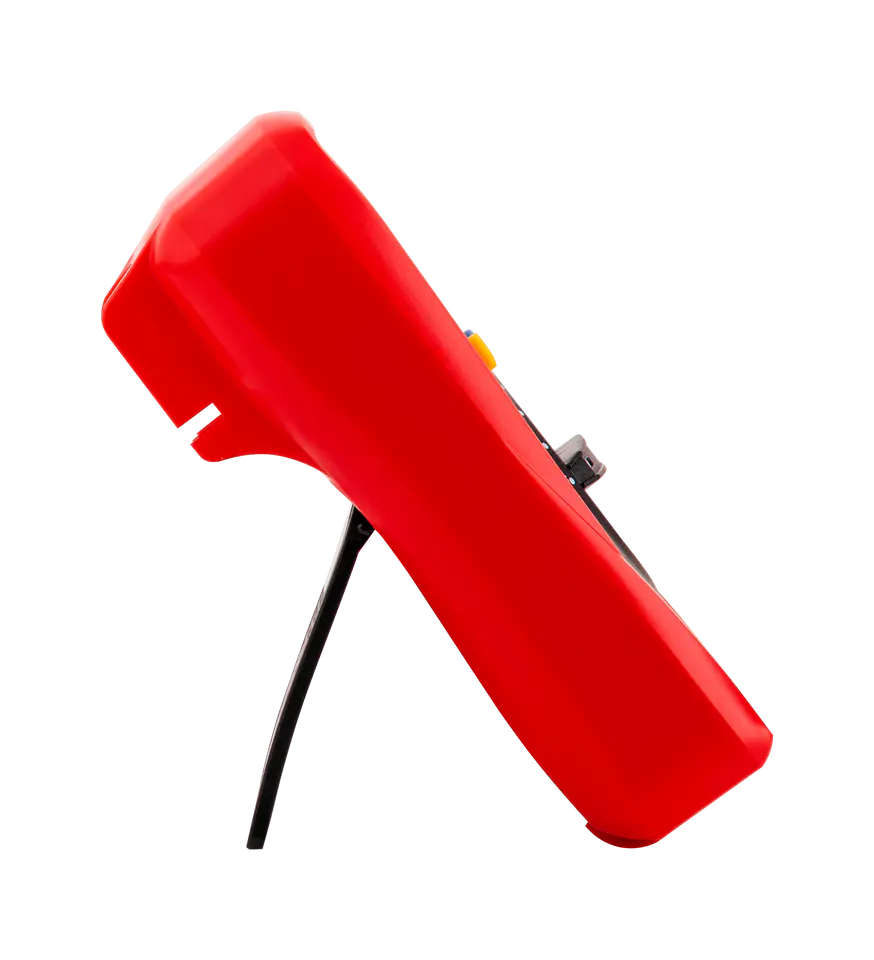

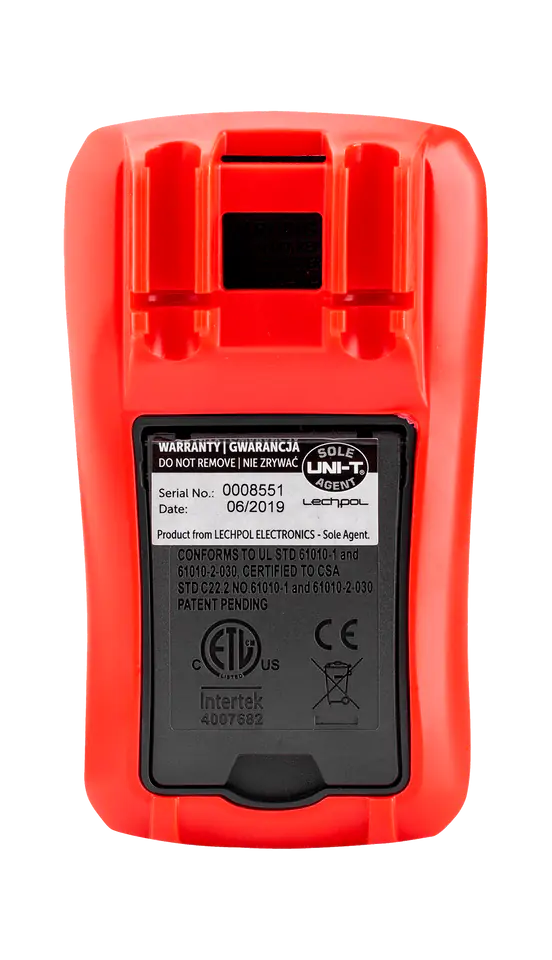

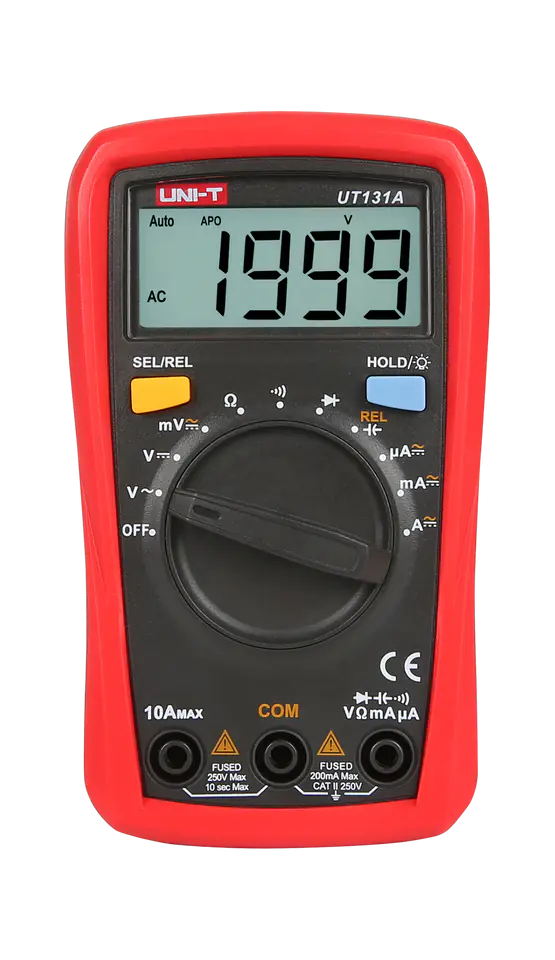

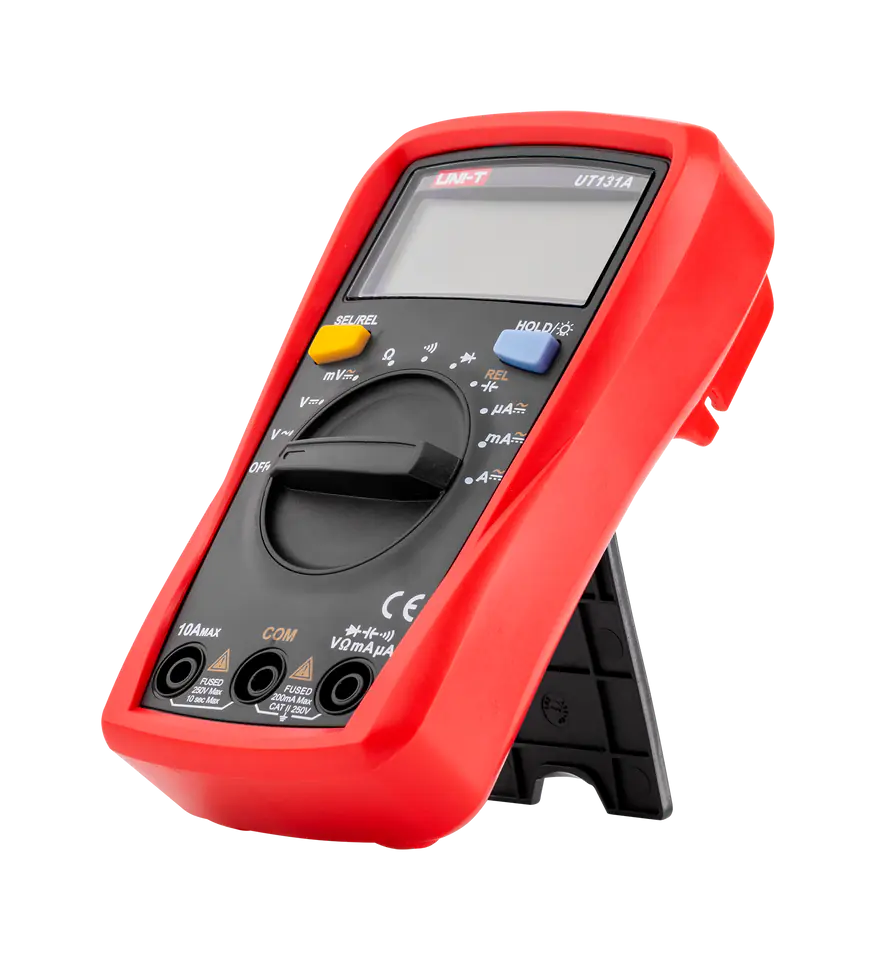

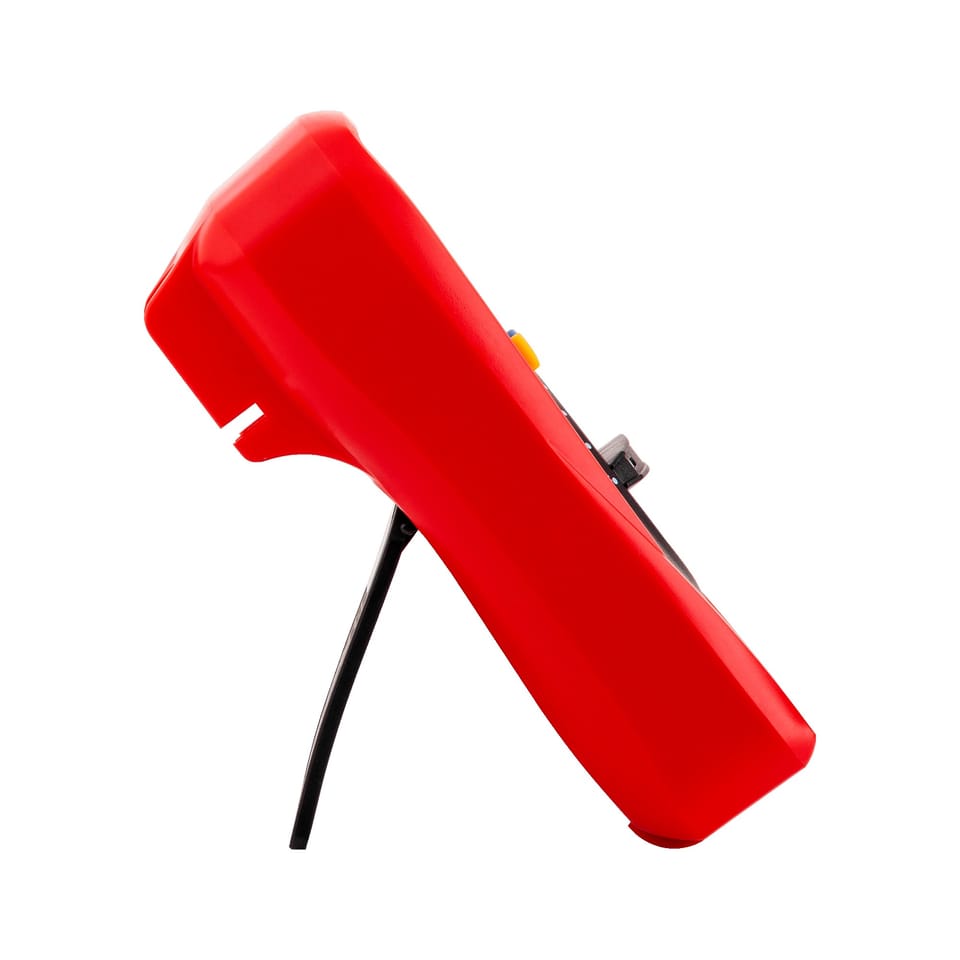

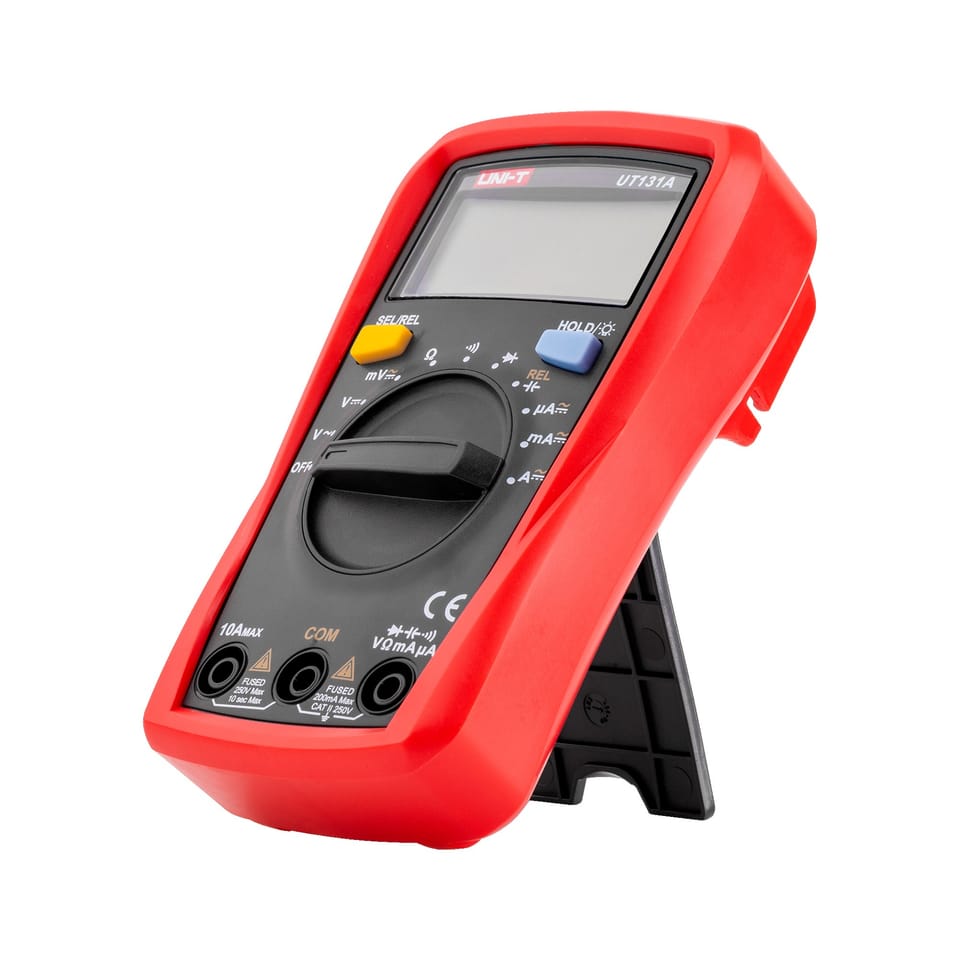

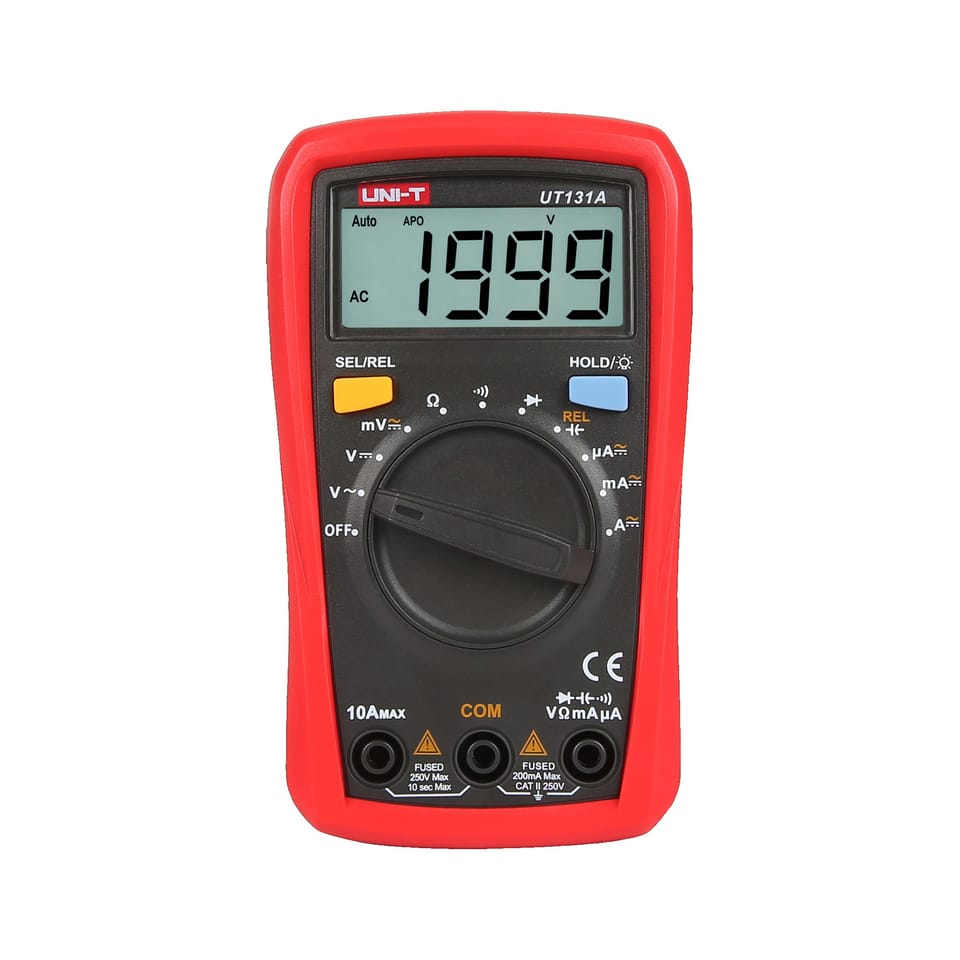

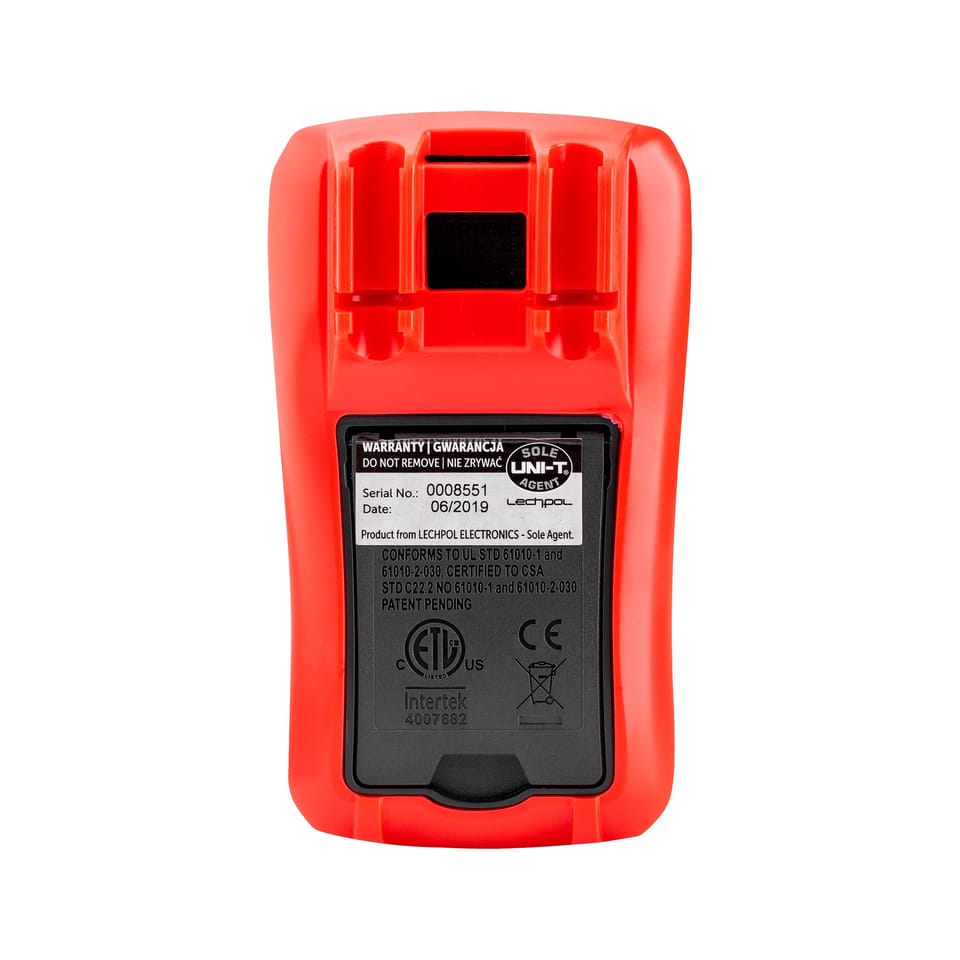

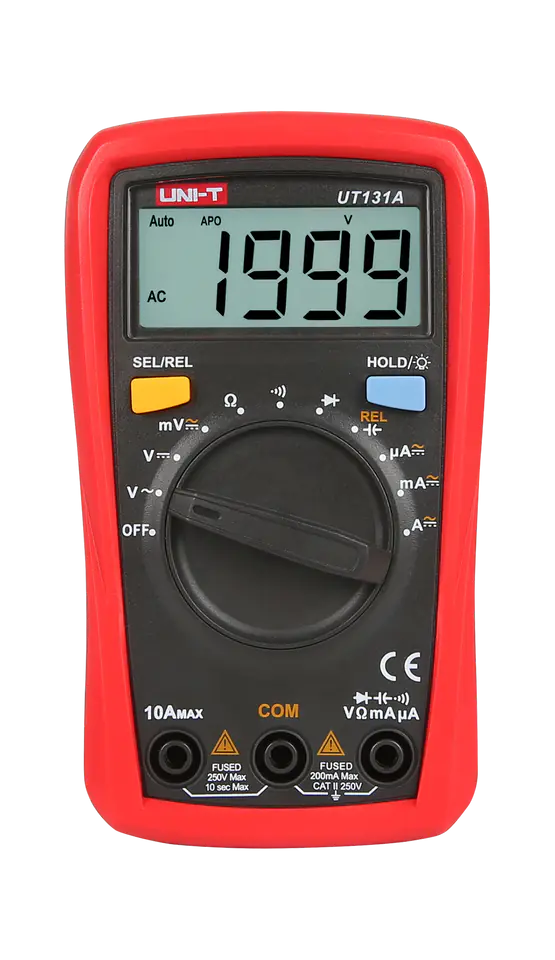

Universal meter Uni-T UT131A

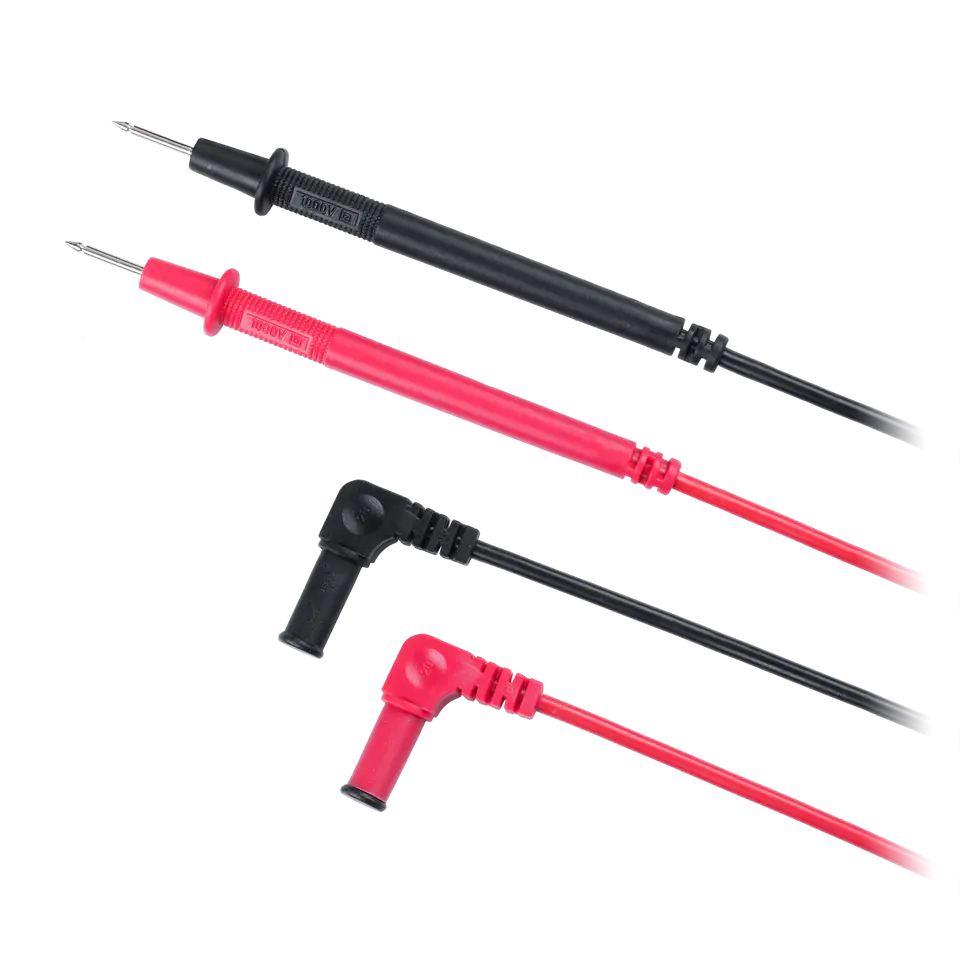

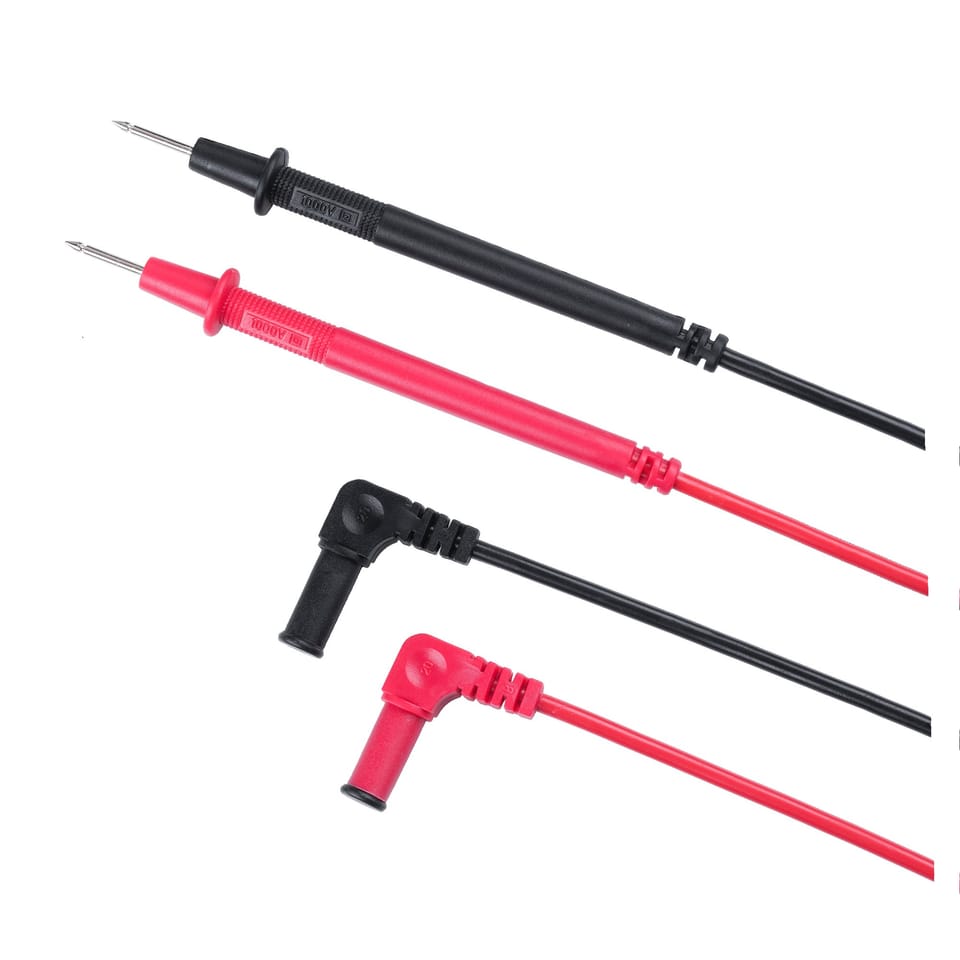

MEASURING RANGES DC Voltage: 200 mV / 2000 mV / 20 V / 200 V / 250 V ±(0.5%+2) AC Voltage: 200 mV / 2 V / 20 V / 200 V / 250 V ±(0.7%+3) DC Current: 200 μA / 2000 μA / 20 mA / 200 mA / 2 A / 10 A ±(1%+2) AC Current: 200 μA / 2000 μA / 20 mA / 200 mA / 2 A / 10 A ±(1.2%+3) Resistance: 200 Ohm / 2000 Ohm / 20 kOhm / 200 kOhm / 20 MOhm / 200 MOhm ±(0.8%+2) Capacity: 2 nF / 20 nF / 200 nF / 2 μF / 20 μF / 200 μF / 2 mF ±(4%+8) Diode test Checking continuity of the circuit ADDITIONAL FUNCTIONS Automatic change of measuring ranges Freezing the last indication Measurement of the relative value Indicator low battery level Automatic shutdown Maximum reading: 2000 Backlit LCD screen GENERAL FEATURES DC input impedance: about 10 MOhm Power supply: 2x 1.5V battery (R03) Display size: 48 x 16mm Product dimensions: 134 x 77 x 47mm Product weight: 206g Accessories: Batteries, test leads, holster
