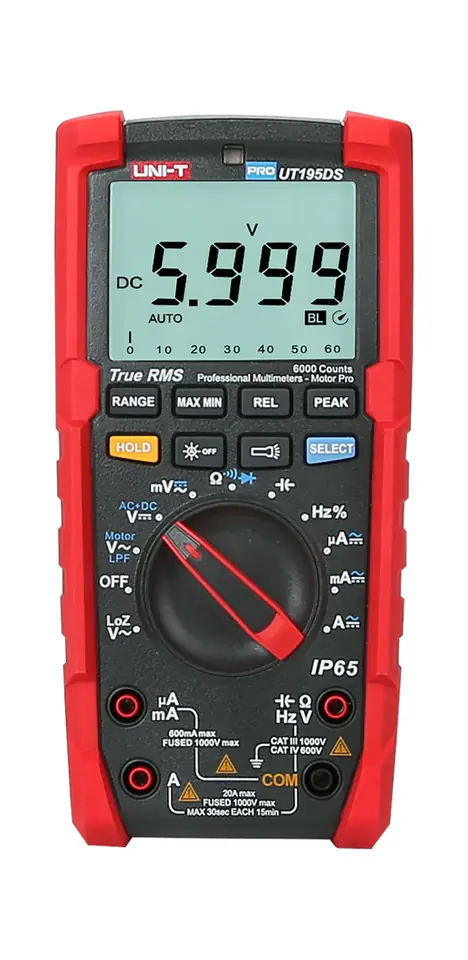

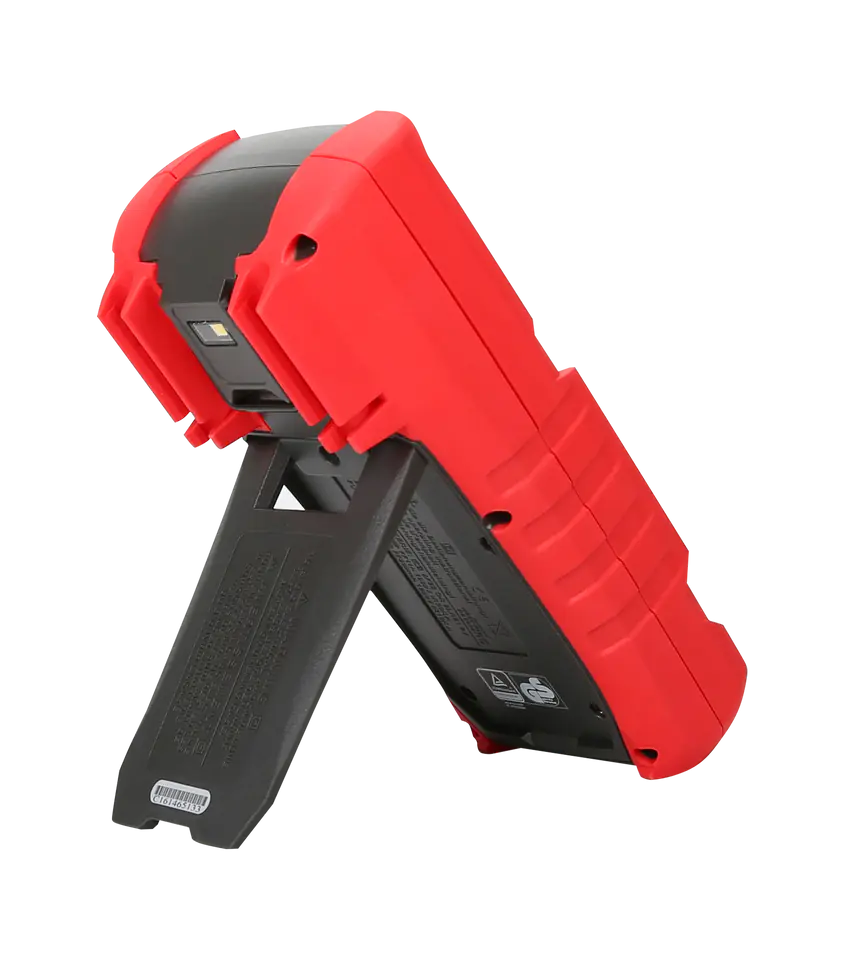

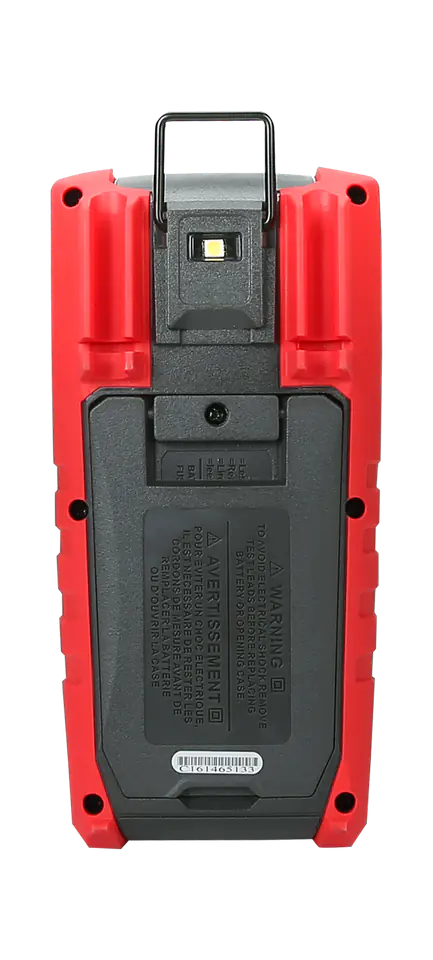

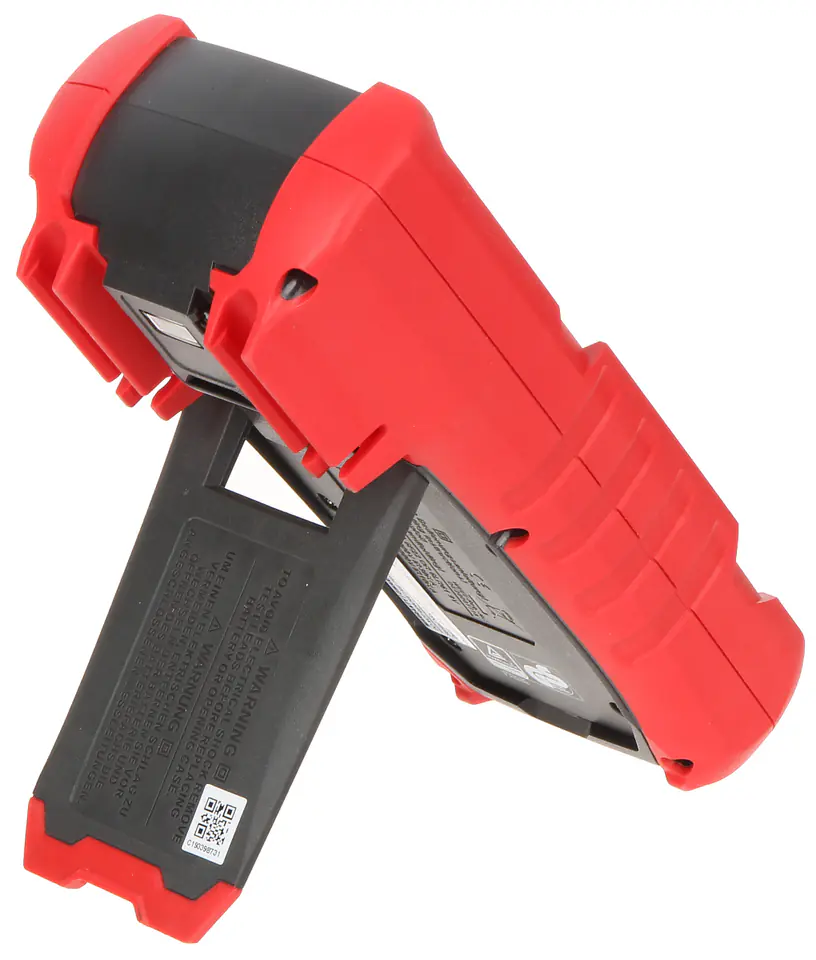

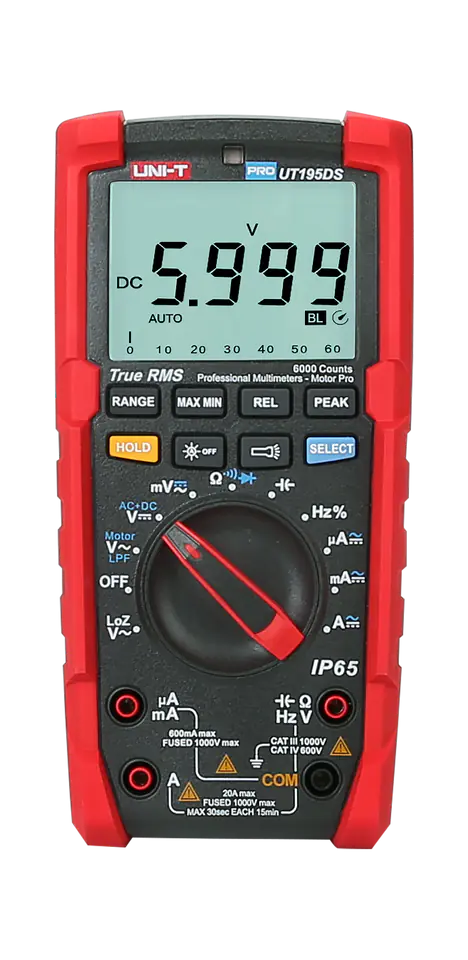

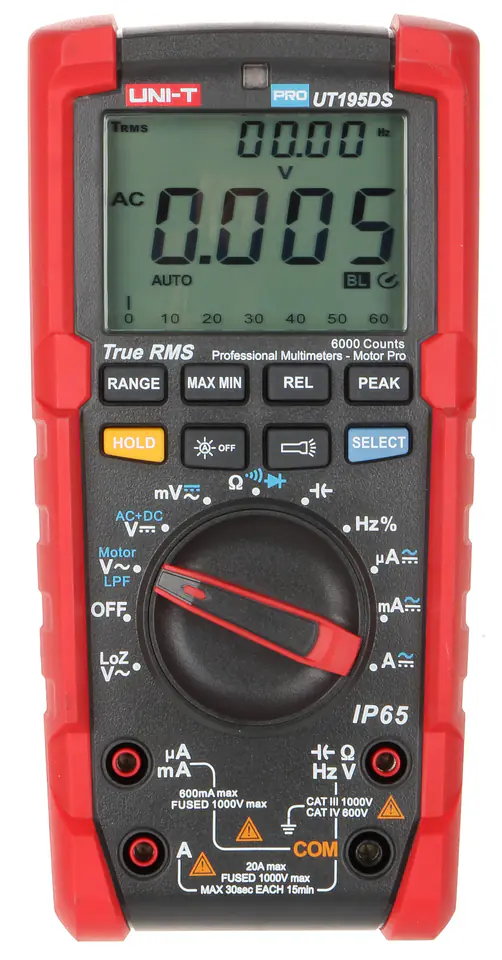

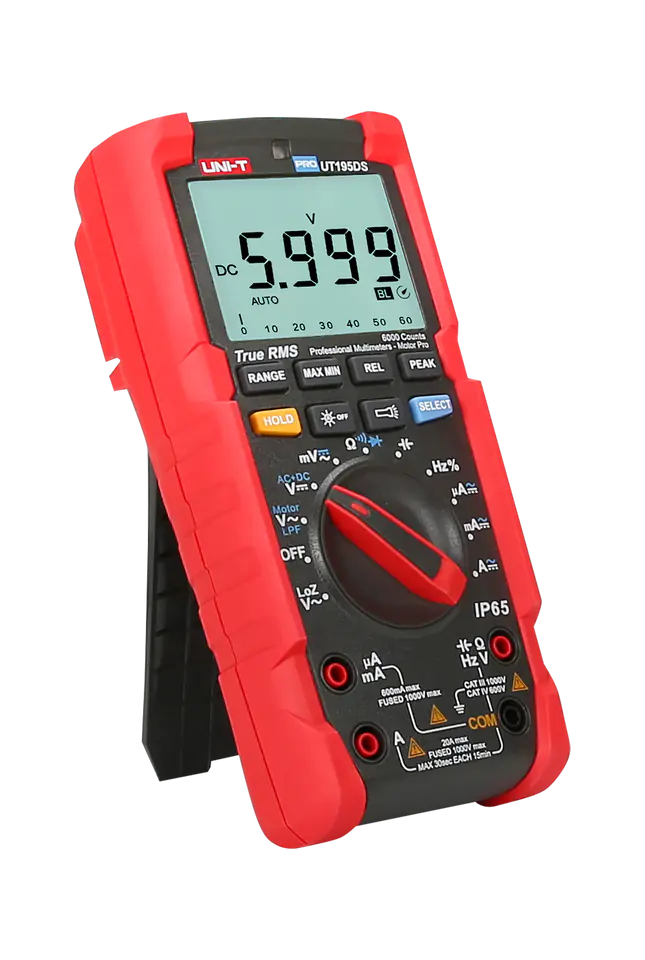

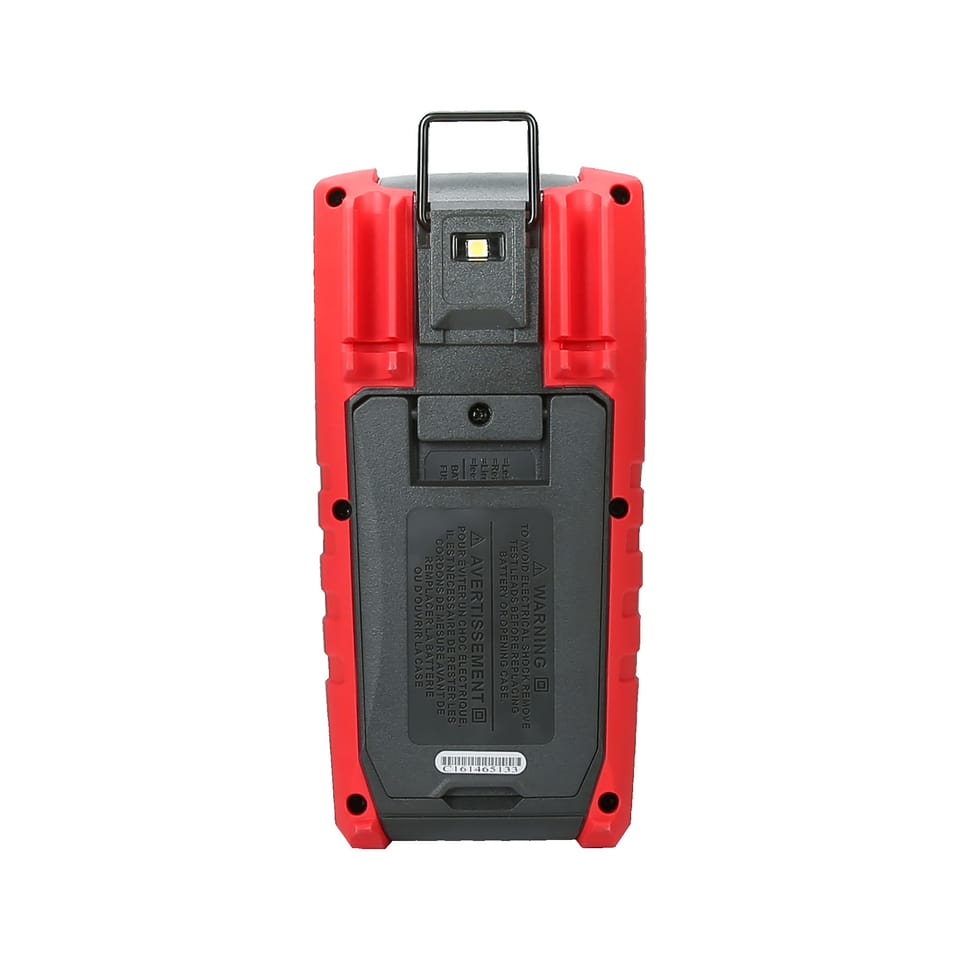

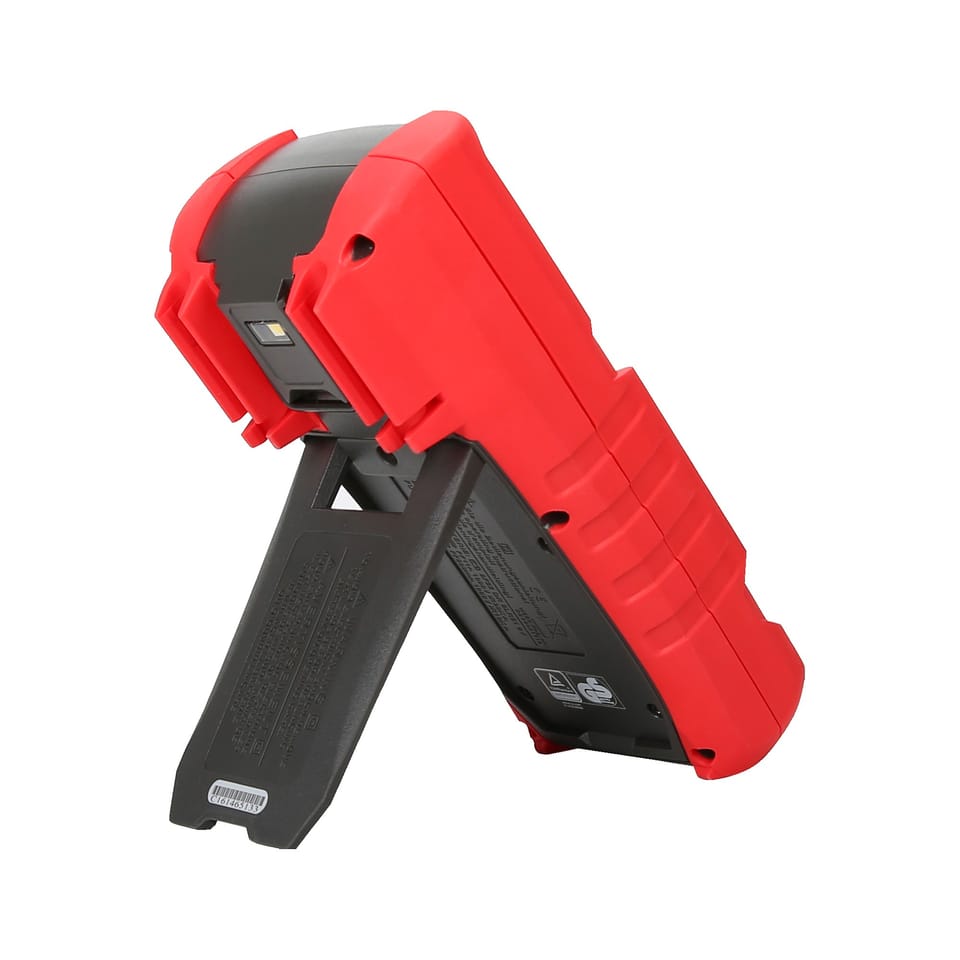

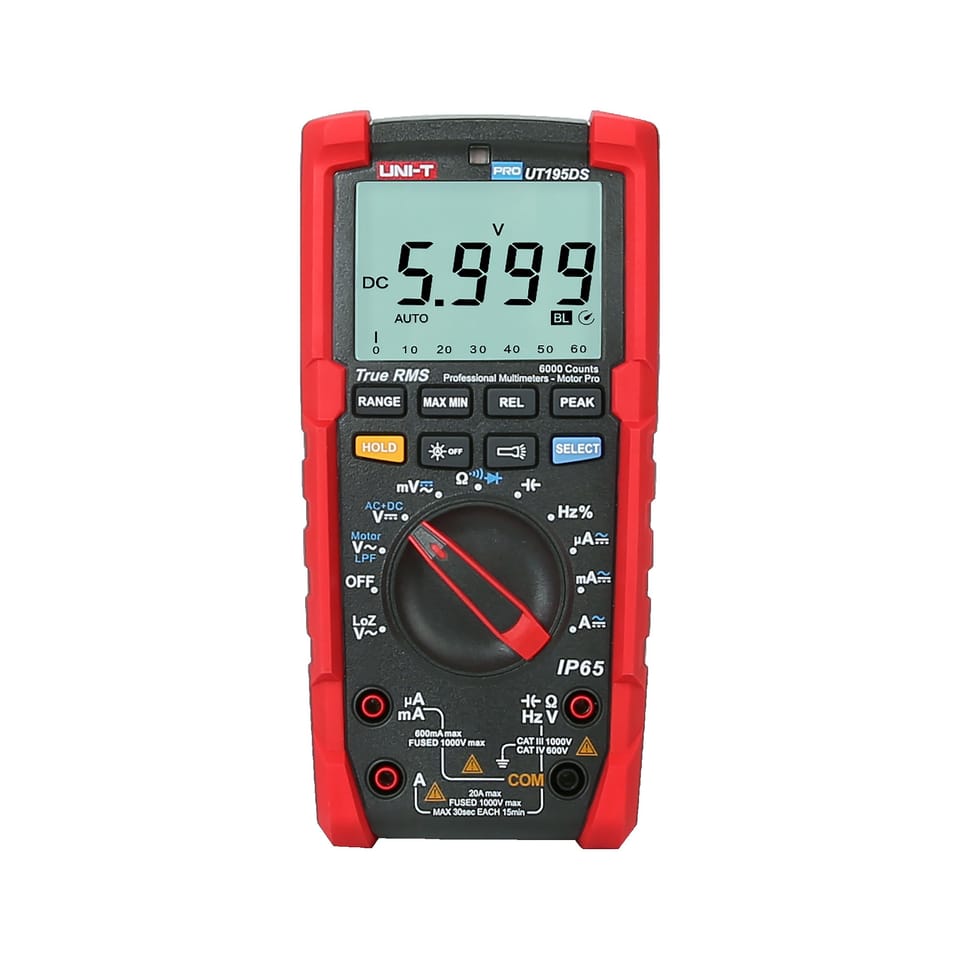

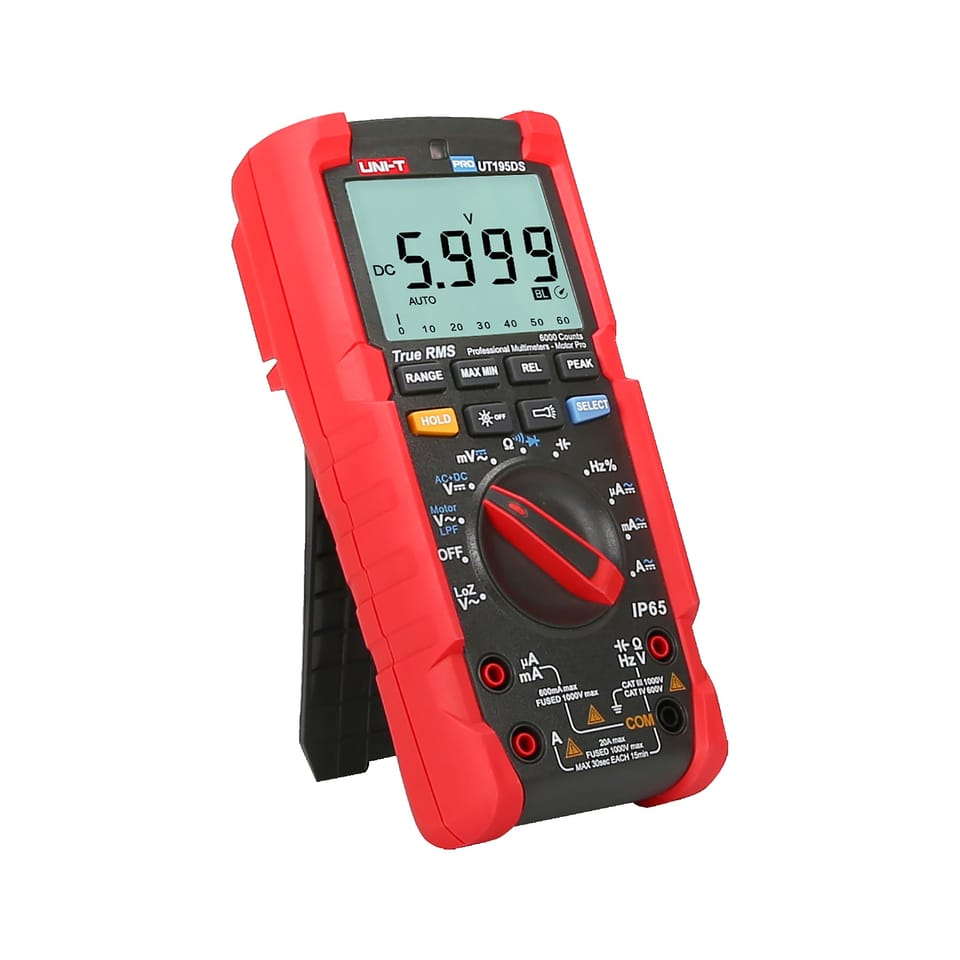

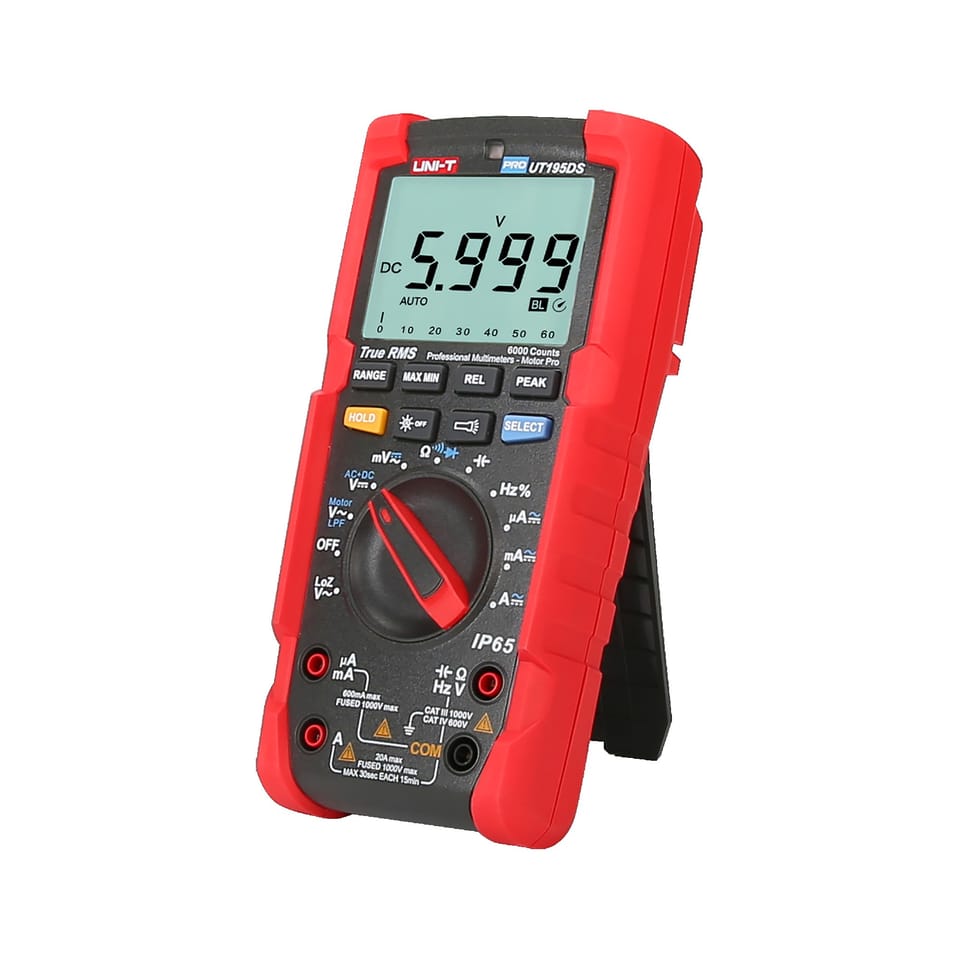

Universal meter Uni-T PRO UT195DS

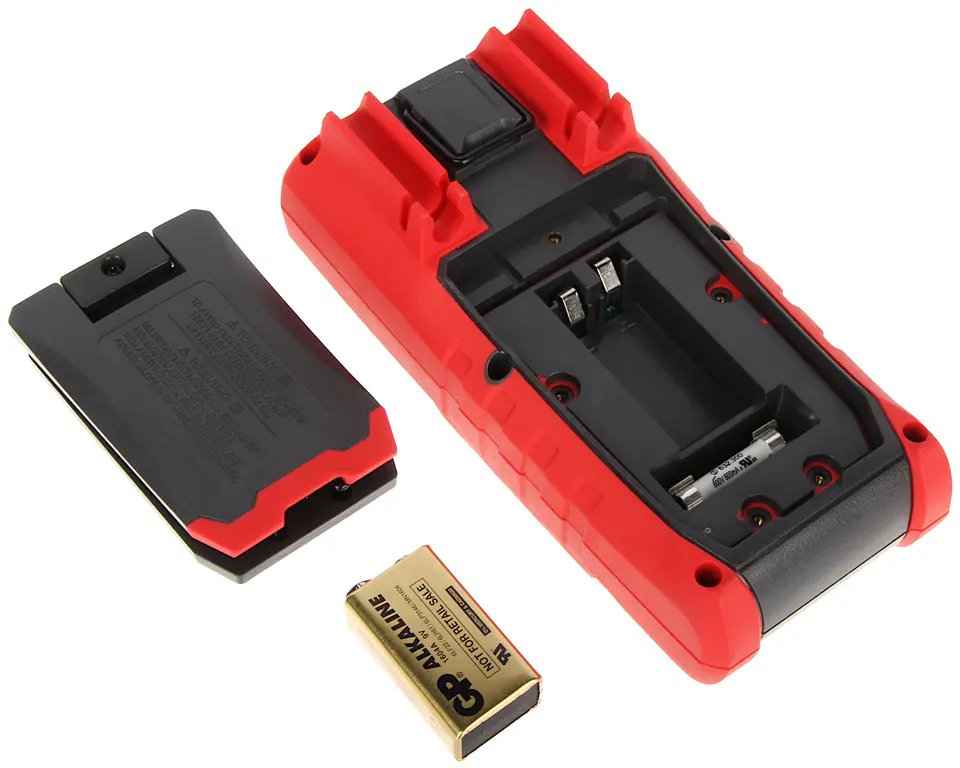

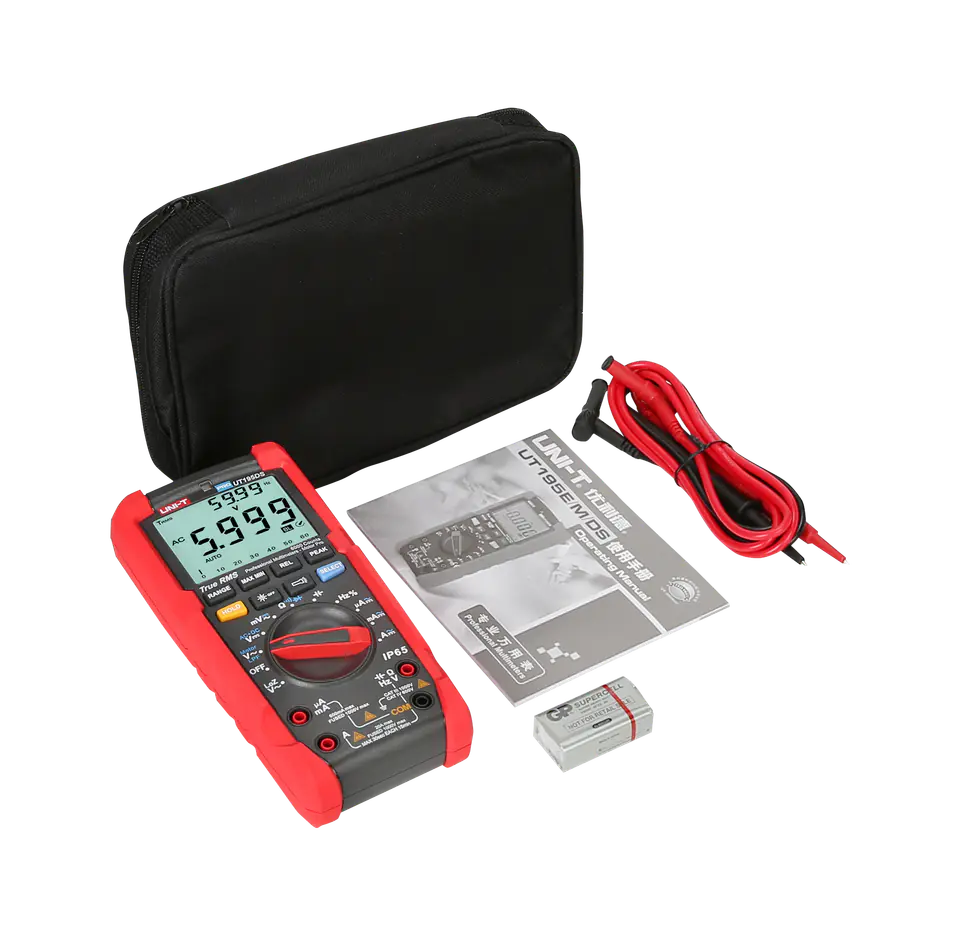

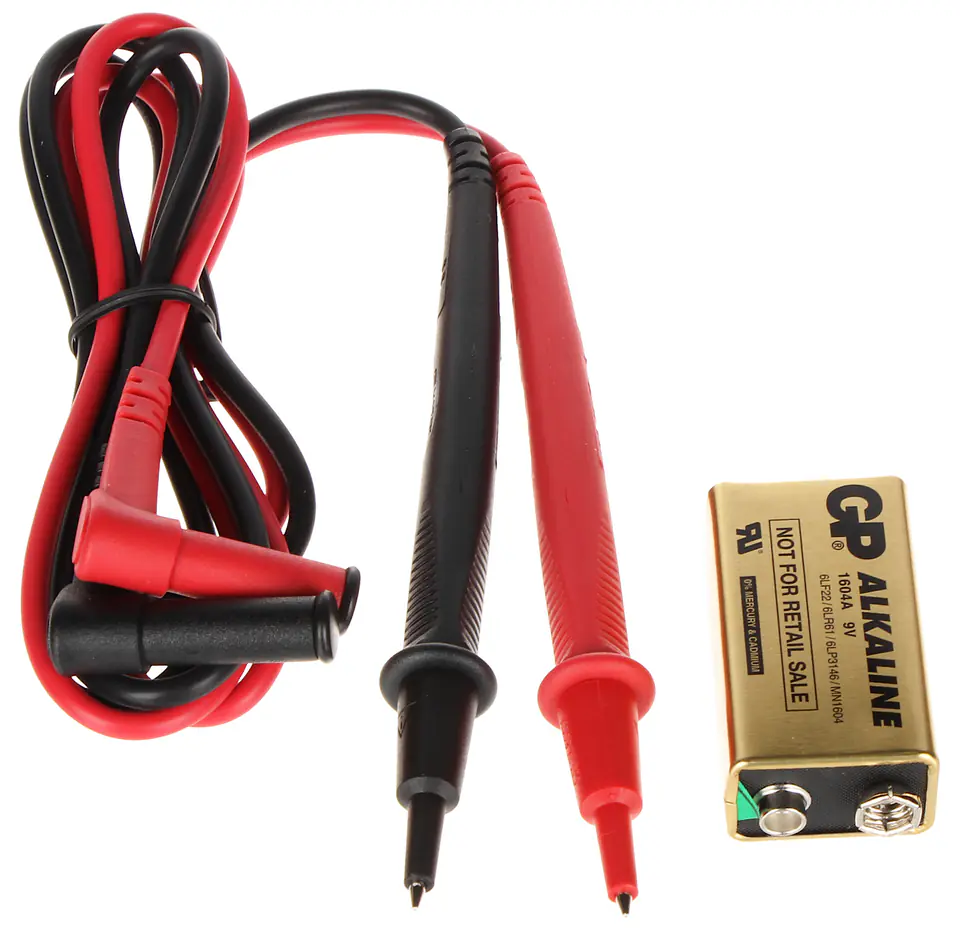

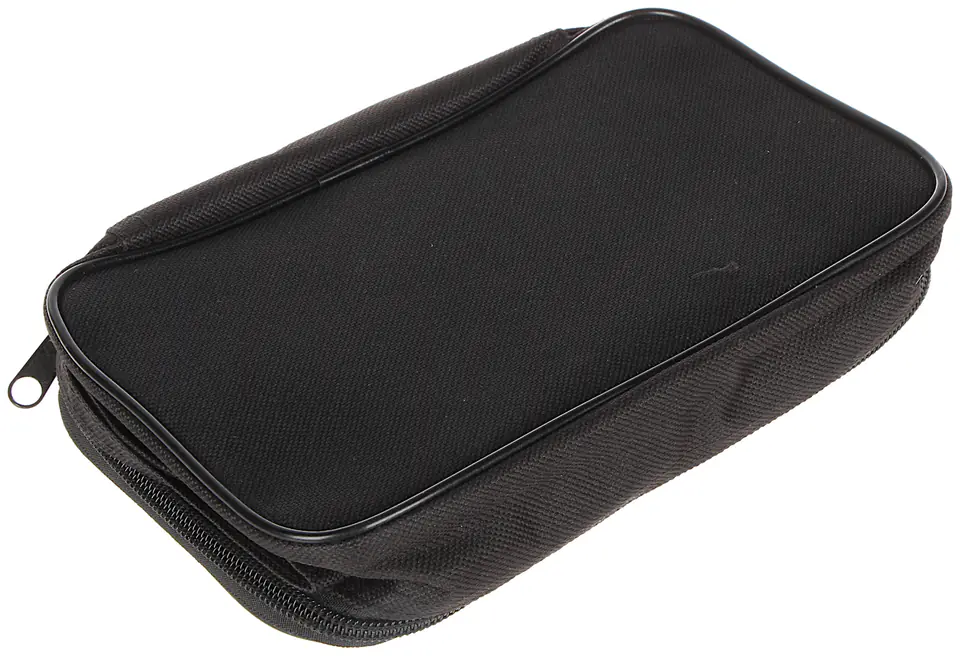

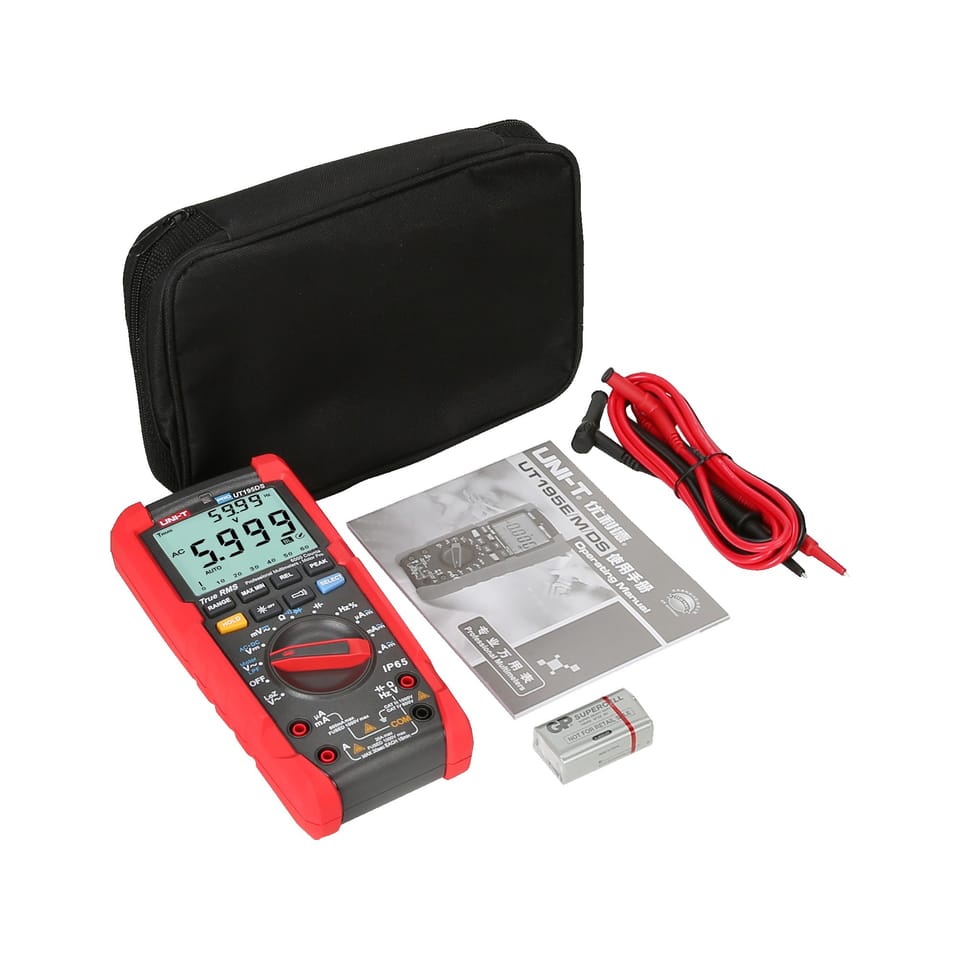

MEASURING RANGEDC CONSTANT VOLTAGE: 600 mV / 6 V / 60 V / 600 V / 1000 V ? (0,5%+3) AC Voltage: 600mV/6V/60V/600V/750V/LoZ 600V/LPF 6~750V ? (0,7%+3) DC current: 600 ? A / 6000 ? A / 60 mA / 600 mA / 6 A / 20 A ? (0,8%+3) AC: 600 ? A / 6000 ? A / 60 mA / 600 mA / 6 A / 20 A ? (1%+3) Resistance: 600 Ohm / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm ? (0,8%+2) Capacity: 6 nF / 60 nF ~ 600 ? F/6 mF~60mF; ? (3%+5) Frequency: 100Hz~40MHz ? (0,1%+4) Fill factor: 0.1%-99.9%Diode test Checking circuit continuity ADDITIONAL FUNCTIONSAutomatic/manual change of measuring ranges AC voltage measurement for low internal impedance (LoZ) sources AC voltage measurement with low-pass filter (LPF)AC+DCTrue measurement RMSSmeasure of peakS relative measurementmodationSubscription of MAX/MIN valuesPhase sequence test: 600 VAutomatic shutdownLow battery indicatorFreezing the last indicationAnlog bargraph: 31 segments (number of measurements: 20/s)Dual displayAutomatic BACKLIGHT LCD screen FlashlightMaximum reading: 6000GENERAL PRICESPower: 9 V battery (6F22/6LR61)Display size: 66 x 51 mmNumber of measurements: 5/s Product dimensions: 206.5 x 95.5 x 61 mmProduct weight: 450 g Accessories: battery, test leads, cases
