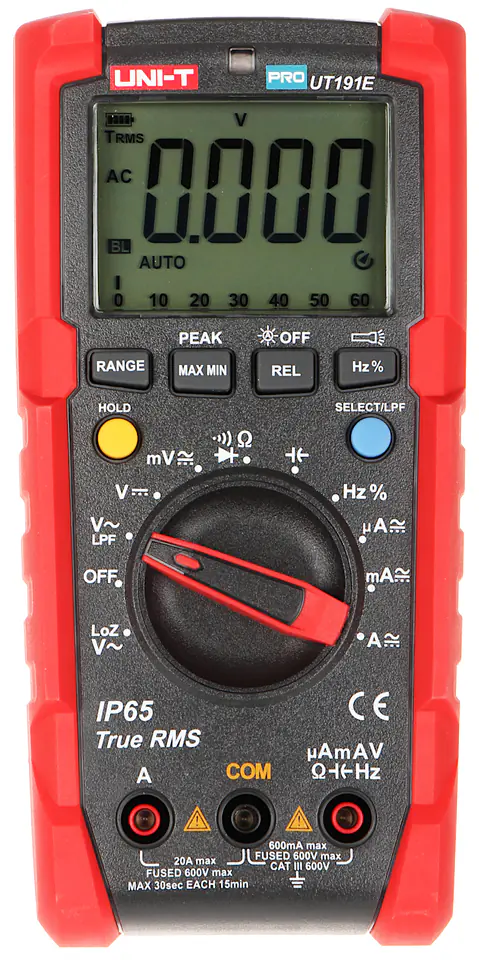

Universal meter Uni-T PRO UT191E

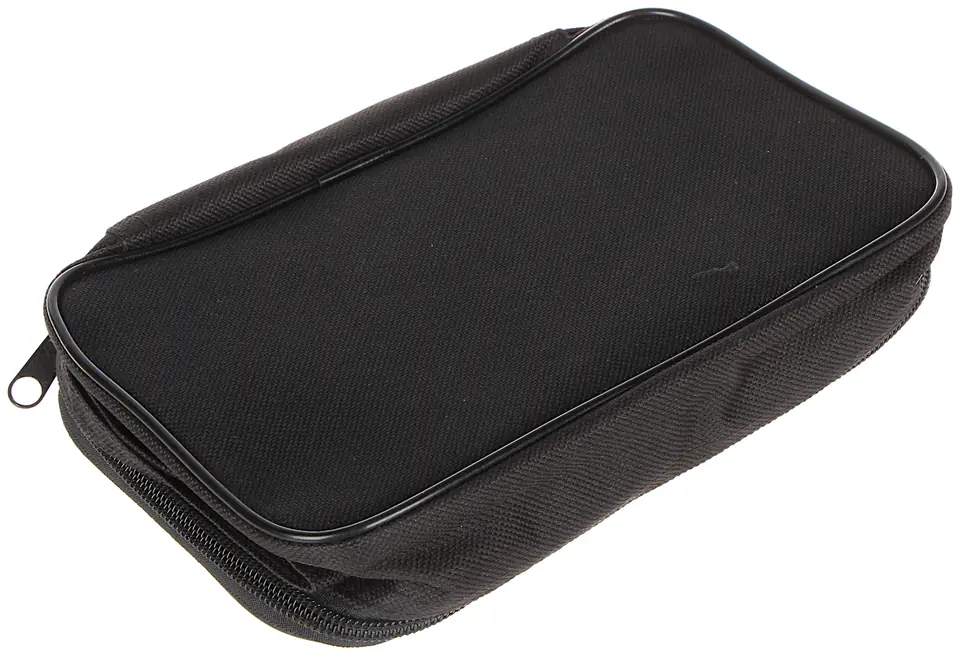

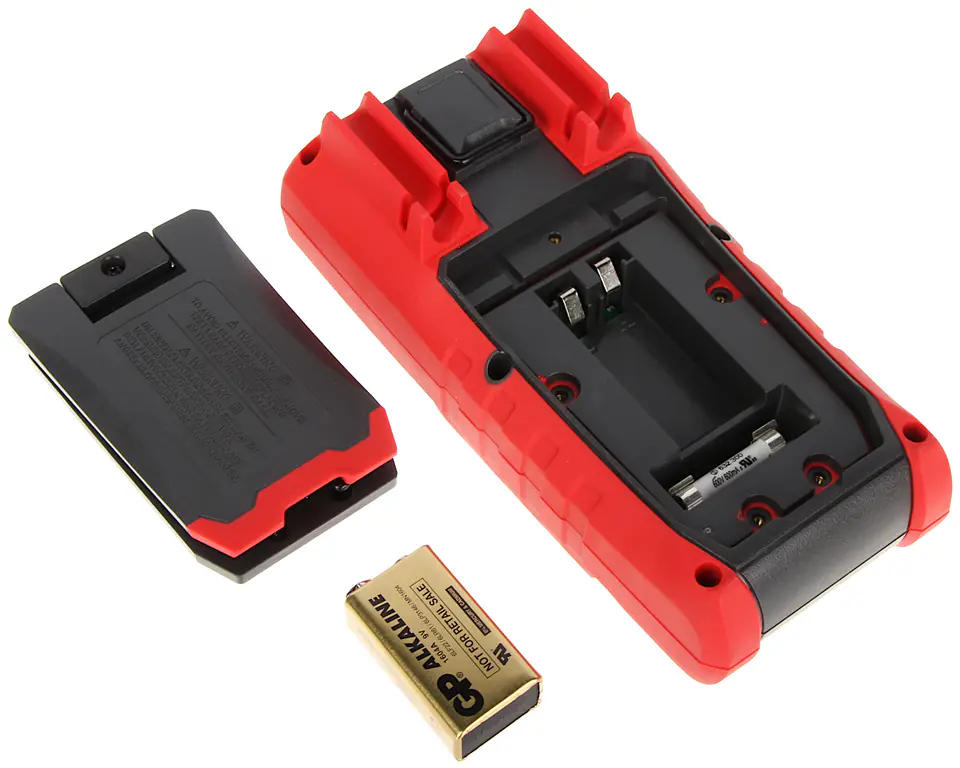

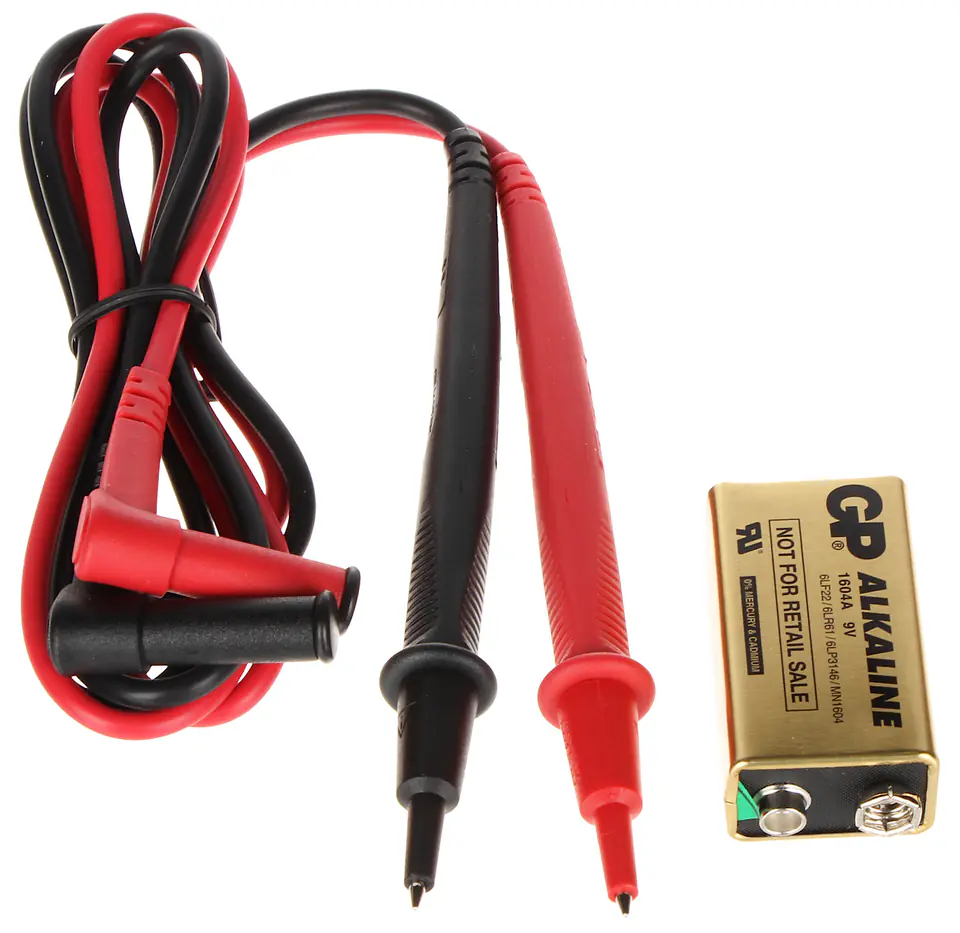

MEASURING RANGES DC voltage: 600 mV / 6 V / 60 V / 600 V ±(0.5%+3) AC voltage: 600 mV / 6 V / 60 V / 600 V ±(0.7%+3) (Measured current frequency range: 45 ~ 400 Hz) AC voltage for sources with low internal impedance: 600 V (2%+5) AC voltage with low pass filter attached: 600 V (2%+5) DC current: 600 μA, 6000 μA / 60 mA / 600 mA / 6 A / 20 A (0.8%+3) AC current: 600 μA, 6000 μA / 60 mA / 600 mA / 6 A / 20 A (1%+3) (Measured current frequency range: 45 ~ 400 Hz) Resistance: 600 Ohm / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm ±(0.8%+2) Capacity: 6 nF / 60 nF ~ 600 μF / 6 mF ~ 60 mF ±(3%+5) Frequency: 10 Hz ~ 1 MHz ±(0.1%+4) Fill factor: 0.1% ~ 99.9% ±(0.2%+5) Diode test Checking continuity of the circuit ADDITIONAL FUNCTIONS Automatic/manual change of measurement ranges Measurement True RMS Recording of MAX/MIN/peak values Freezing of the last indication Relative measurement mode Illuminated LCD screen Analog bargraph: 31 segments Low battery indicator Auto power off Flashlight Maximum reading: 6000 GENERAL FEATURES Power supply: 9 V battery Display size: 58 x 42 mm Product dimensions: 180 x 87 x 59 mm Product weight: 428 g Accessories: Battery, test leads, case
