Universal meter (tester) UT18D

MEASURING RANGES

LED voltage measurement indicator:

• Ranges: 6 V / 12 V / 24 V / 50 V / 120 V / 230 V / 400 V / 690 V

• Accuracy: ±(1.5%+5)

Phase sequence test:

• Voltage: 100 ~ 690 V

• Frequency: 50 ~ 60 Hz

Circuit Continuity Test:

• Resistance: 0 ~ 100 kOhm

• Buzzer and LED indicator

RCD Test:

• Voltage: 230 V

• Frequency: 50~400 Hz

Polarity detection: positive and negative



ADDITIONAL FEATURES

Automatic change of measuring ranges

Instrument test before measurement

Freezing of the last indication

Low battery indicator

Voltage overrun indicator

Automatic standby mode

Illumination of the measurement site

Backlit LCD screen



GENERAL FEATURES

IP65

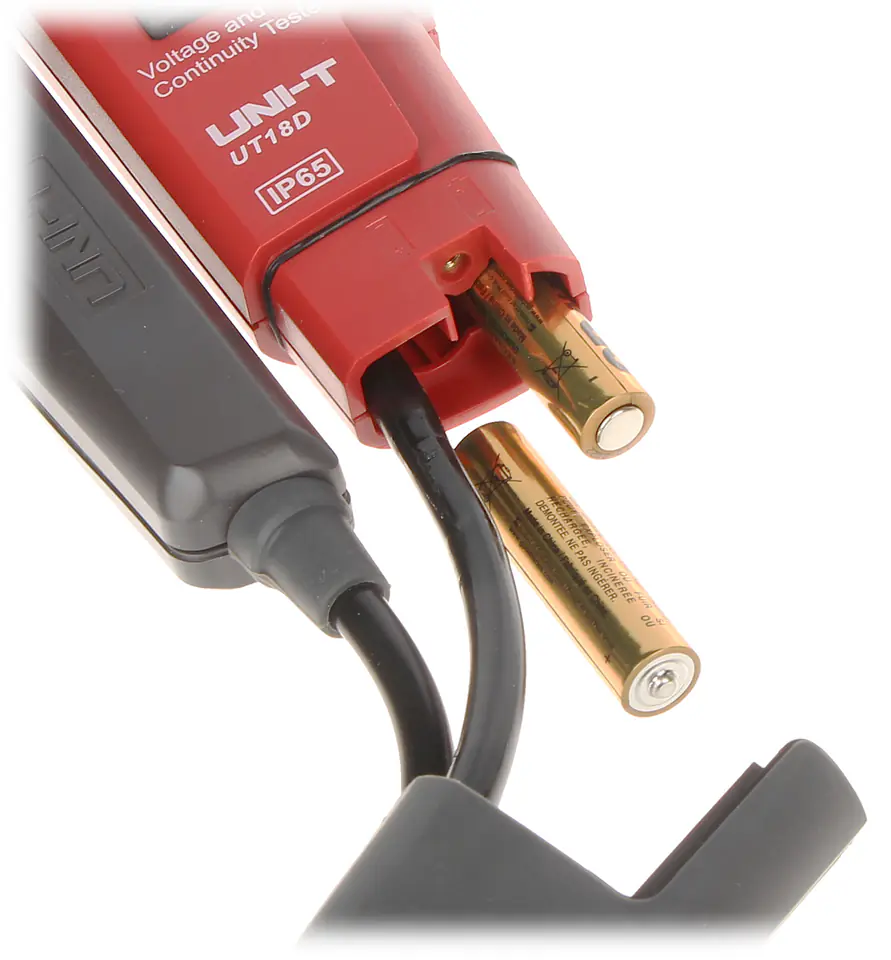

Power supply: 2x 1,5 V (R03)

Display size: 73.5 x 35.5mm

Dimensions: 272 x 85 x 31 mm

Weight: 280 g

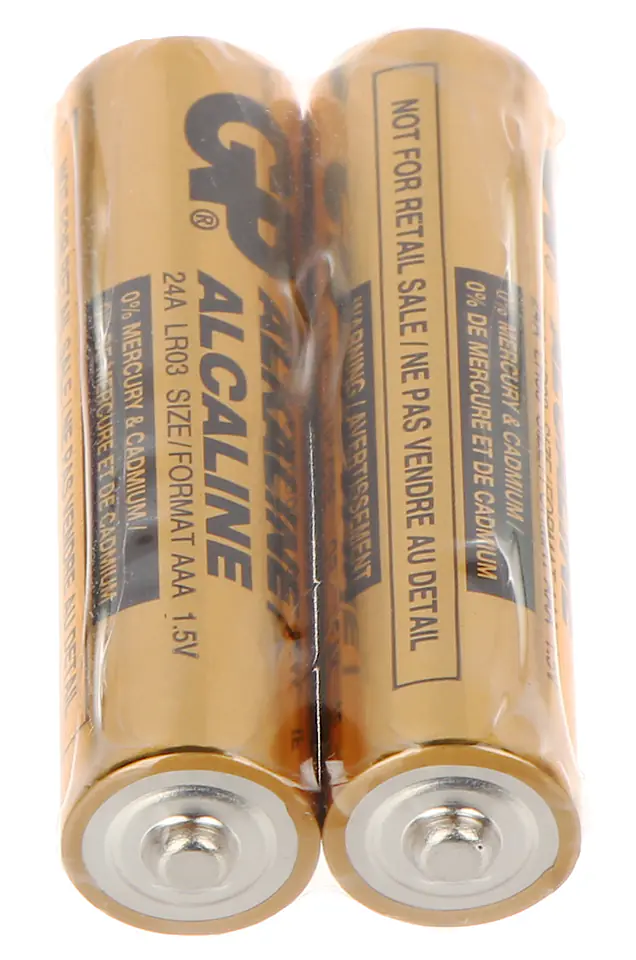

Accessories: batteries
