MEASURING RANGES
DC voltage: 200 mV/2 V/20 V/200 V/1000 V; ±(0.5%+1)
AC voltage: 2 V/20 V/200 V/750 V; ±(0.8%+3)
DC current: 20 μA/2 mA/20 mA/200 mA/20 A; ±(0.8%+1)
Natężenie prądu zmiennego AC: 2 mA/200 mA/20 A; ±(1%+3)
Resistance: 200 Ohm/2 kOhm/20 kOhm/2 MOhm/20 MOhm/200 MOhm; ±(0.8%+1)
Capacity: 2 nF/200 nF/100 μF; ±(4%+3)
Diode test
Checking the continuity of the circuit
hFE measurement of transistors
ADDITIONAL FEATURES
Manual change of measuring ranges
Freezing of the last indication
Maximum reading: 2000
Low battery indicator
Auto Power Off
DC voltage input impedance: about 10MOhm
GENERAL FEATURES
Power Supply: 9V (6F22) Battery
Display size: 60 x 54 mm
Product dimensions: 179 x 88 x 39 mm
Weight: 350 g

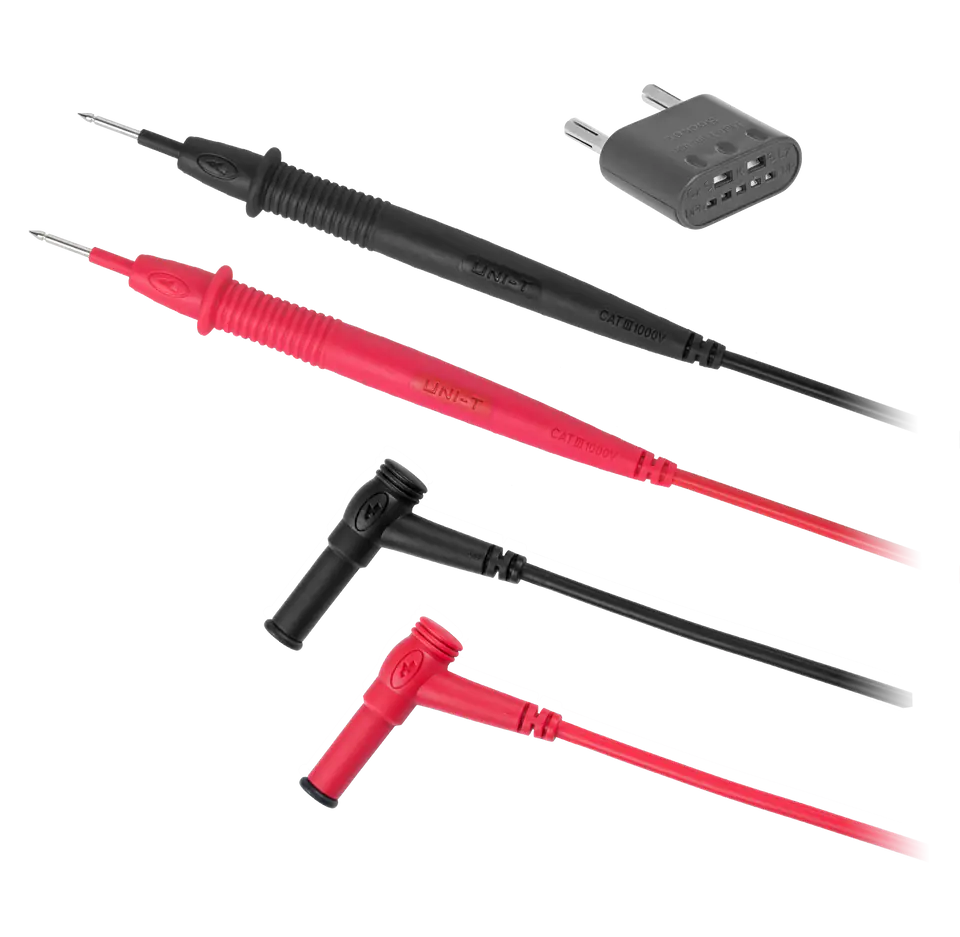

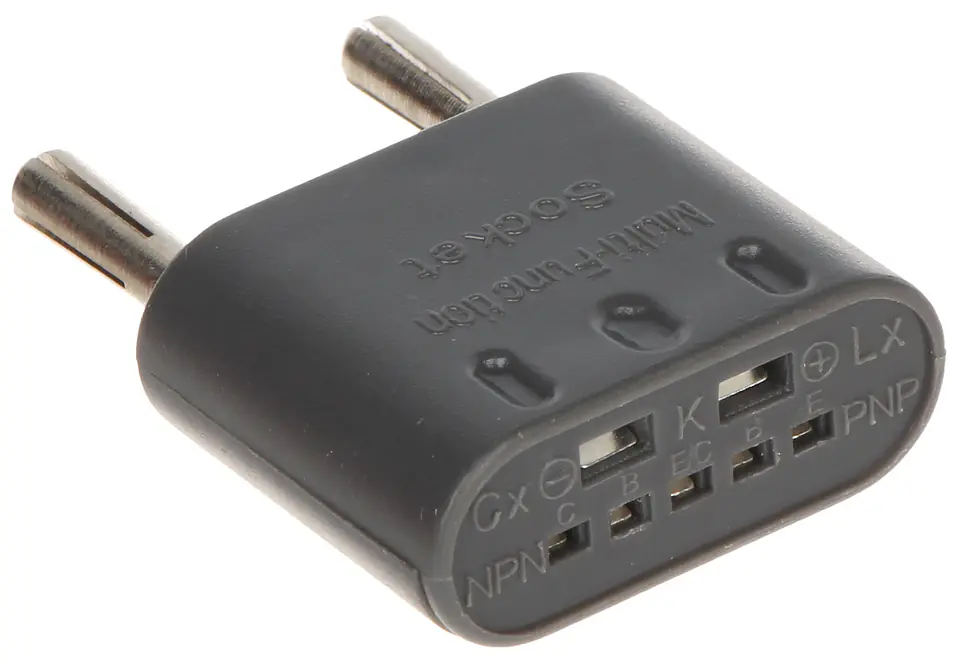

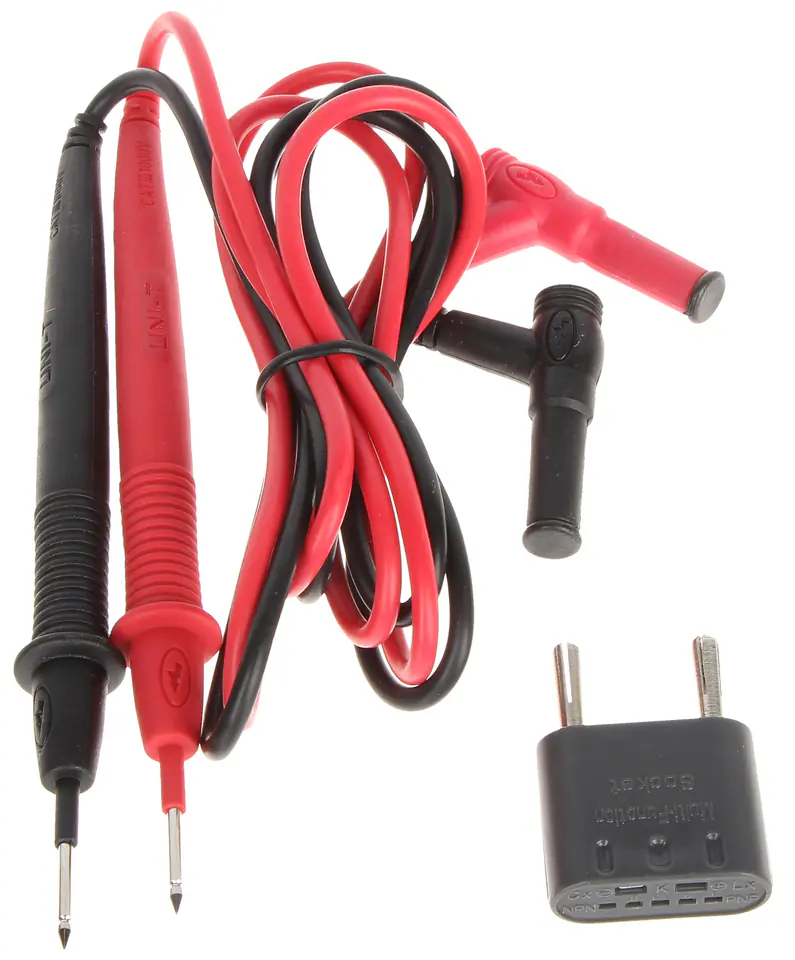

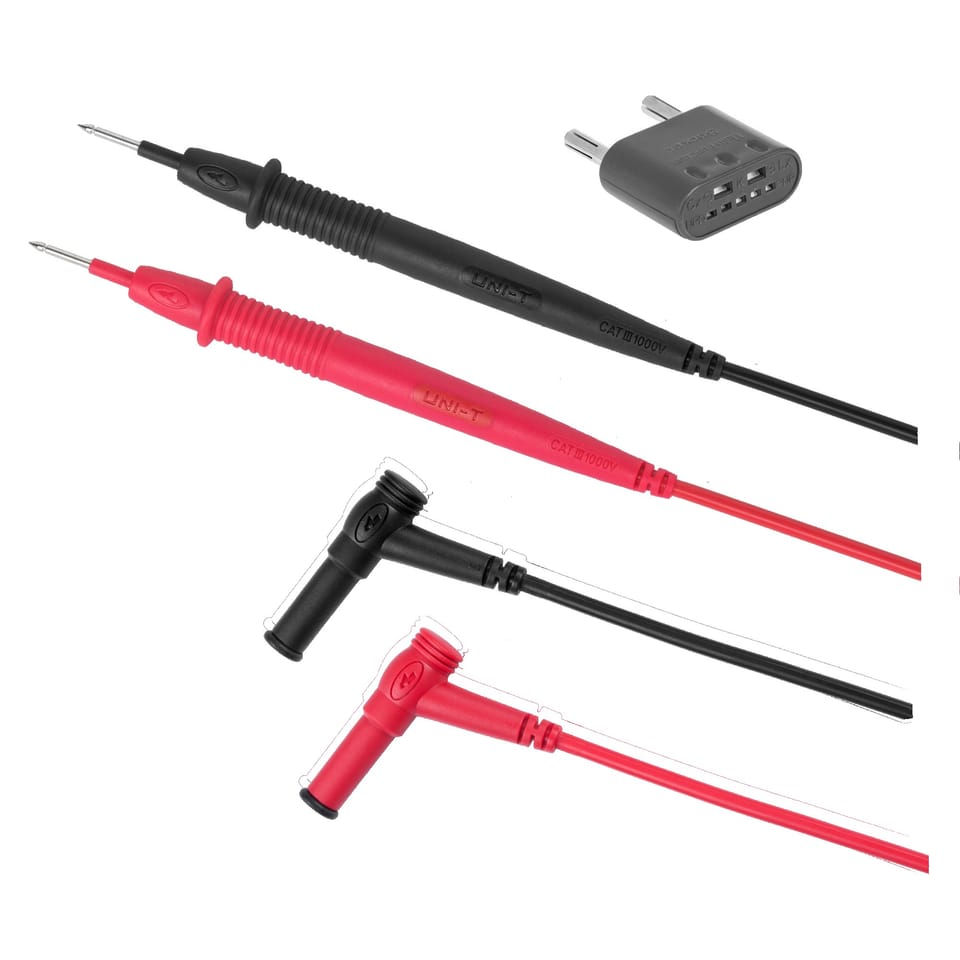

Accessories: battery, test leads, test socket, holster

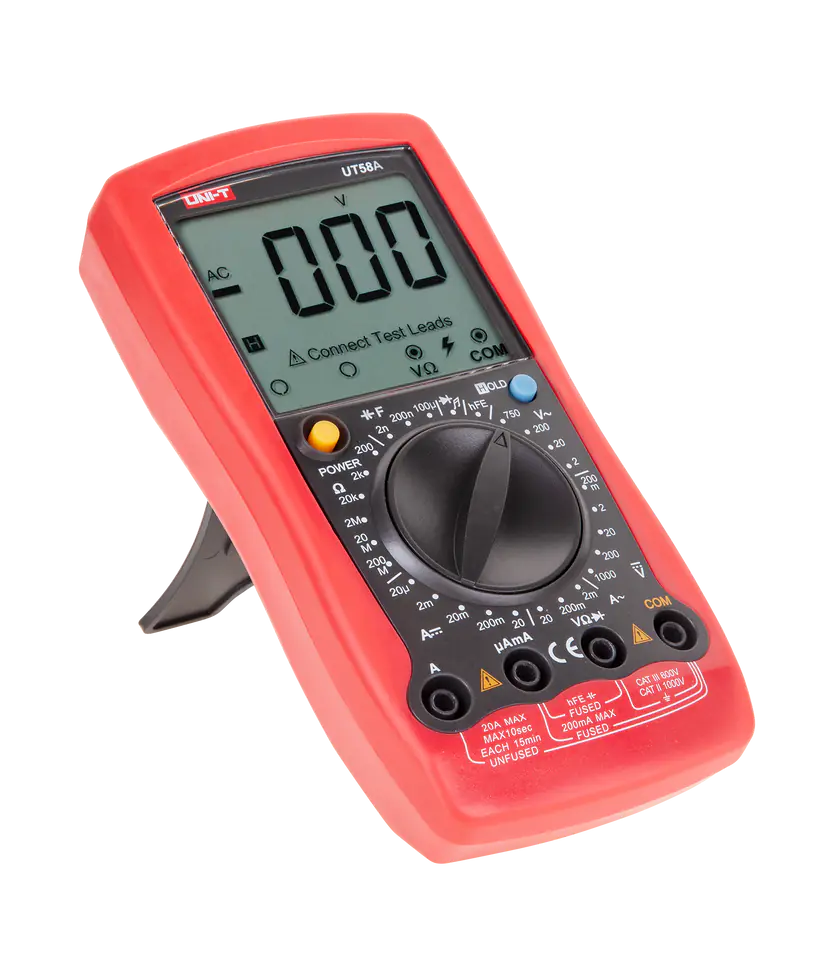

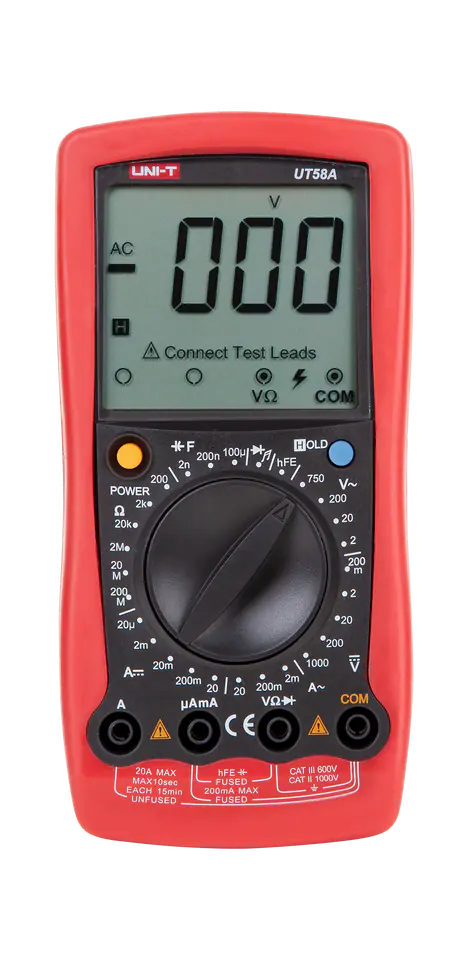

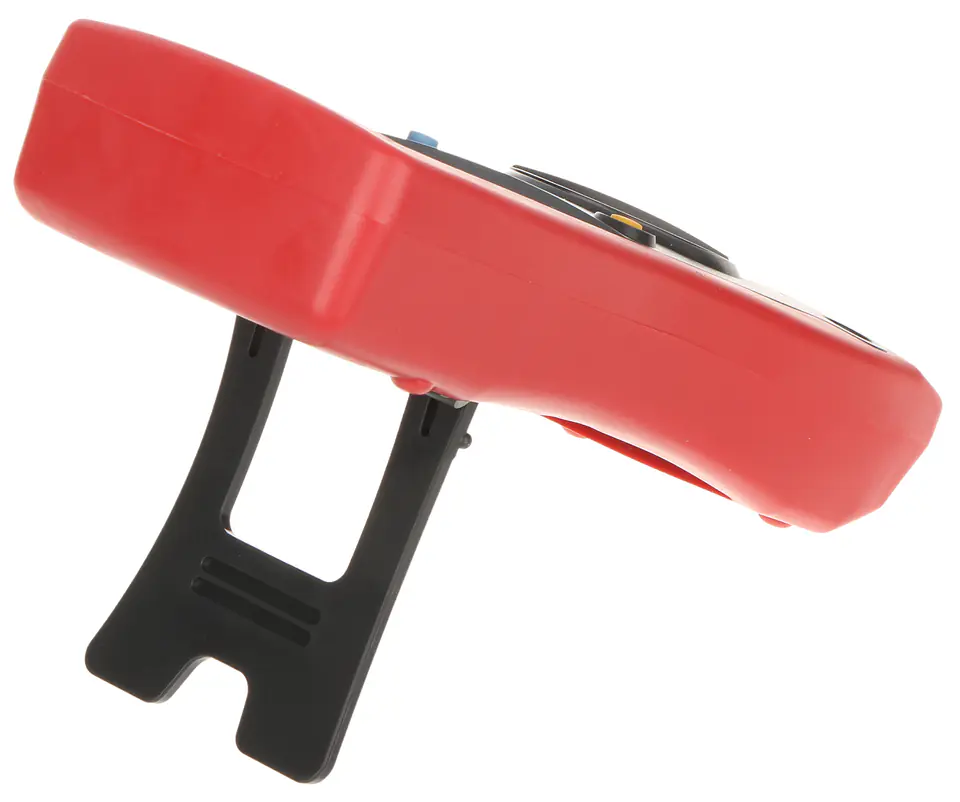

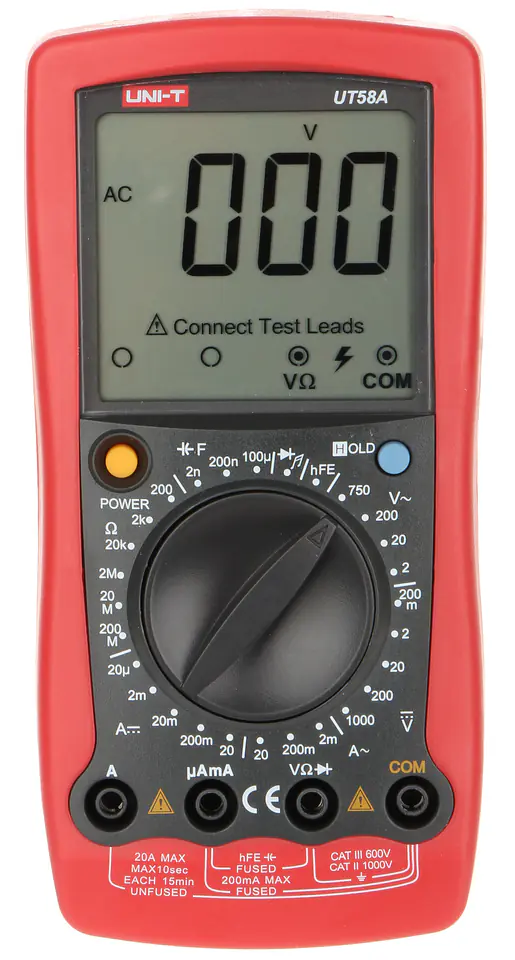

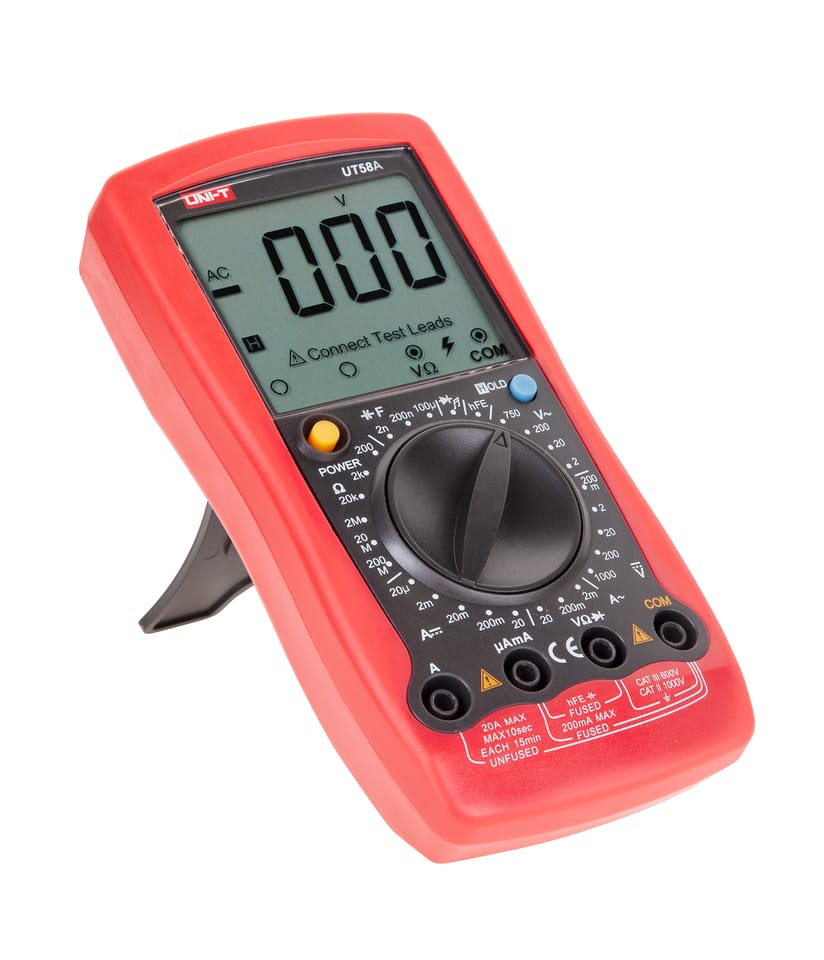

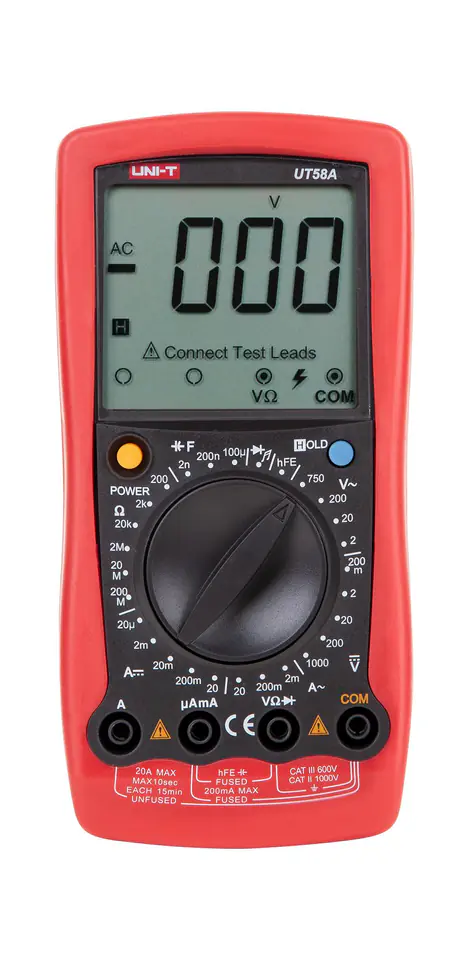

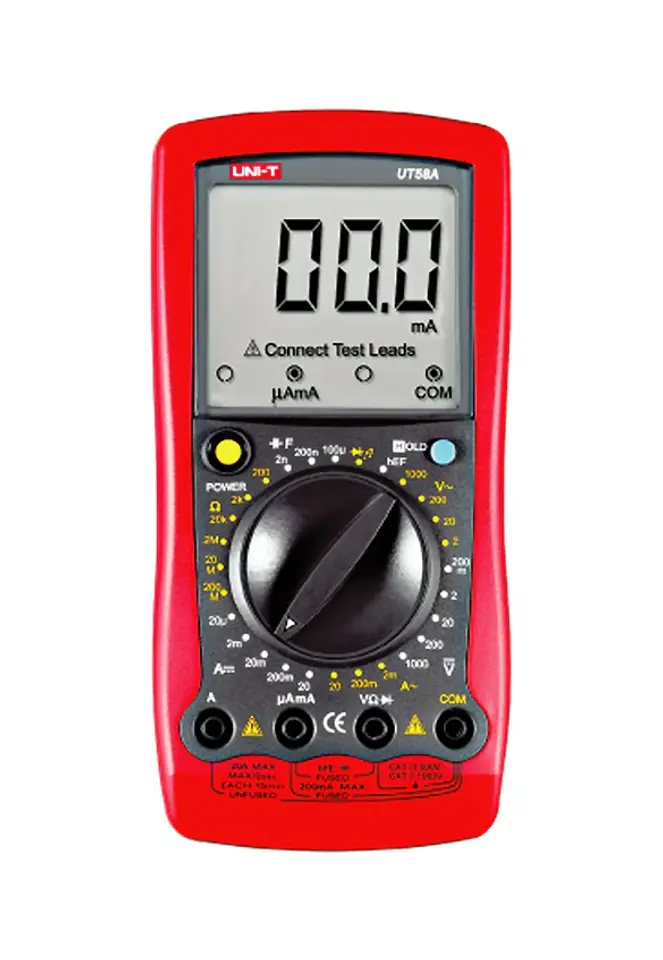

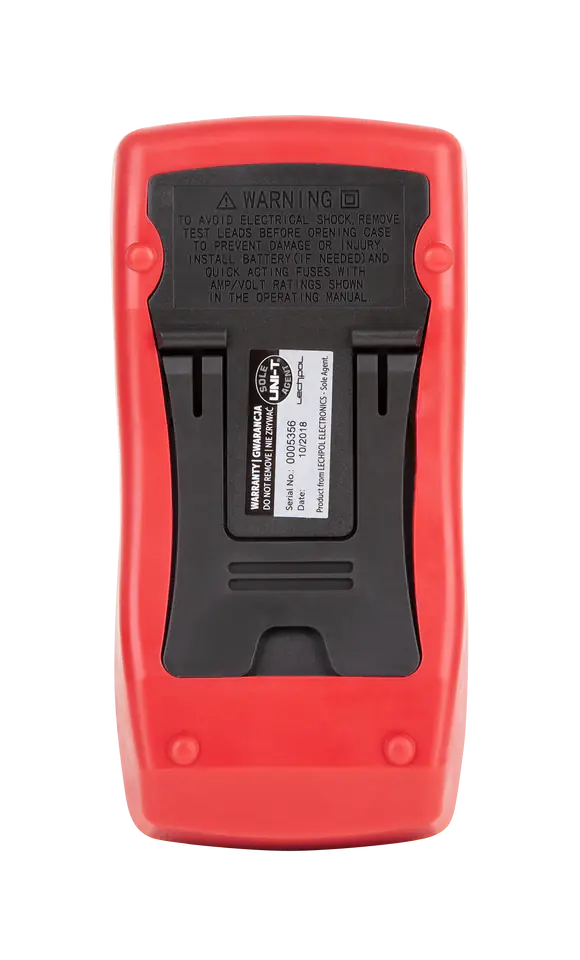

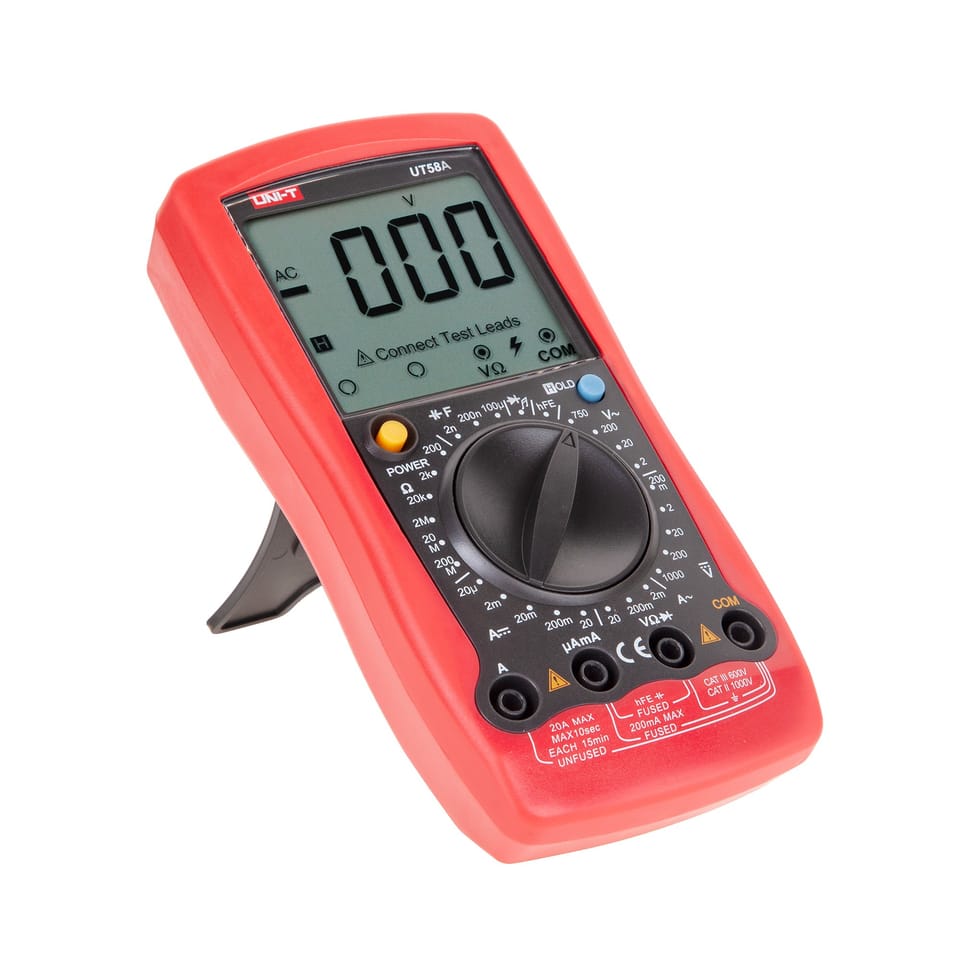

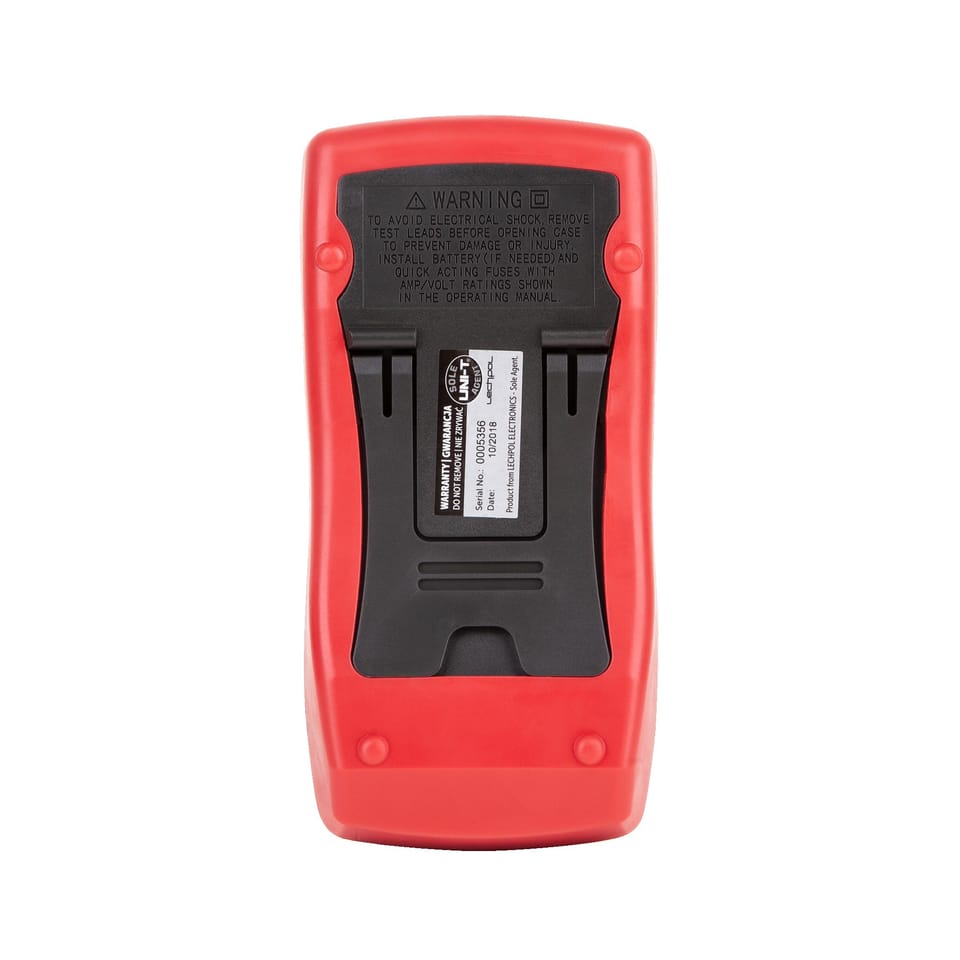

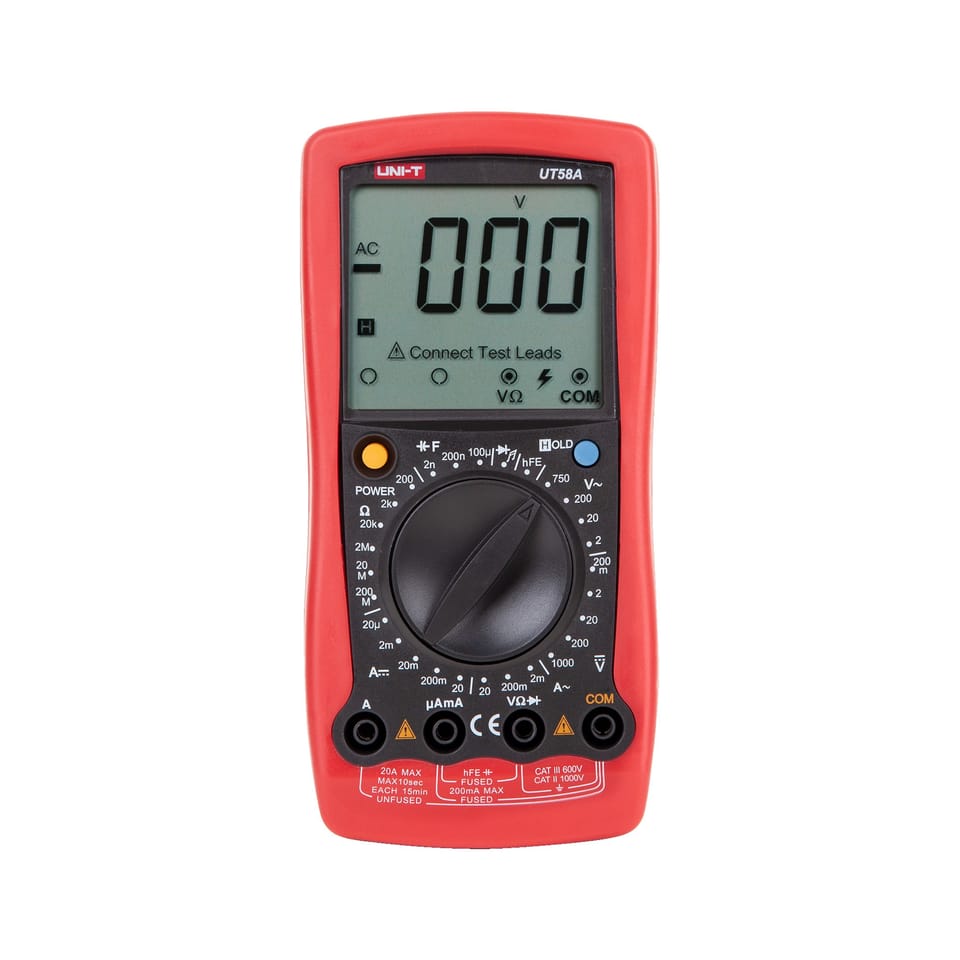

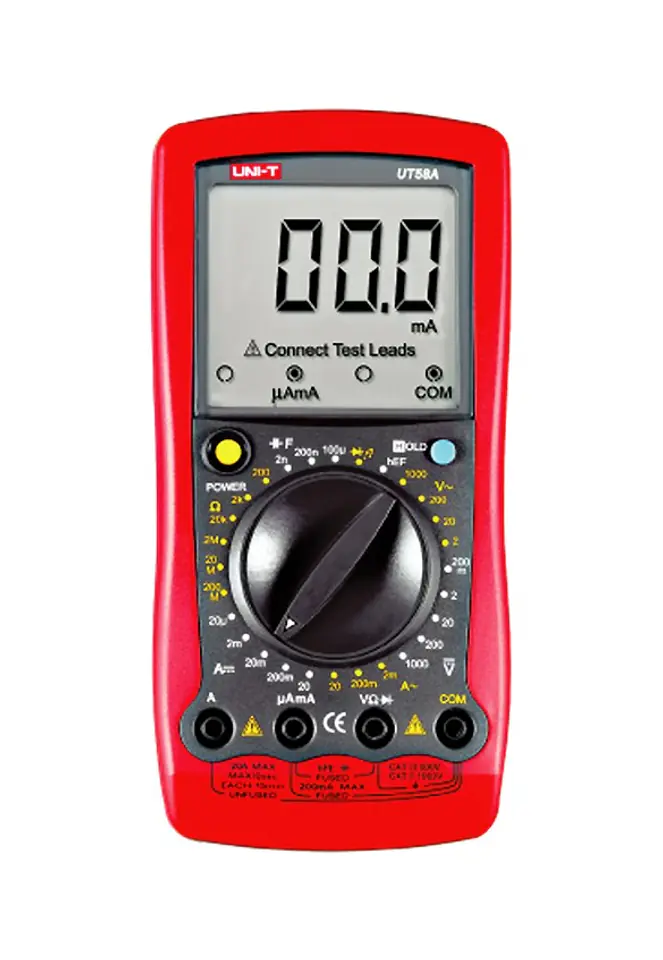

Universal meter model UT58A
€38.67
Shipping from warehouse: L1
Estimated shipping: Wed, Nov 20 - Mon, Nov 25
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- UT-58A / 5901436822530
