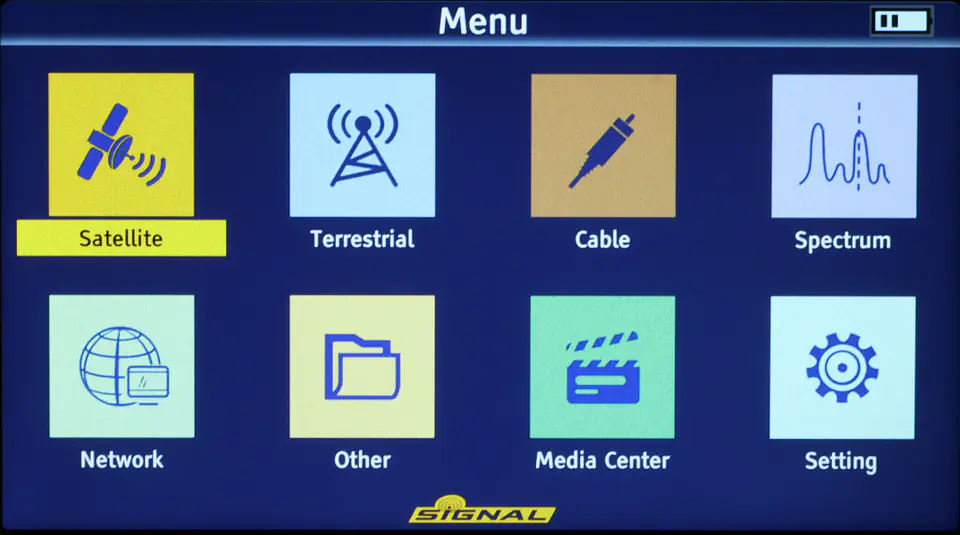

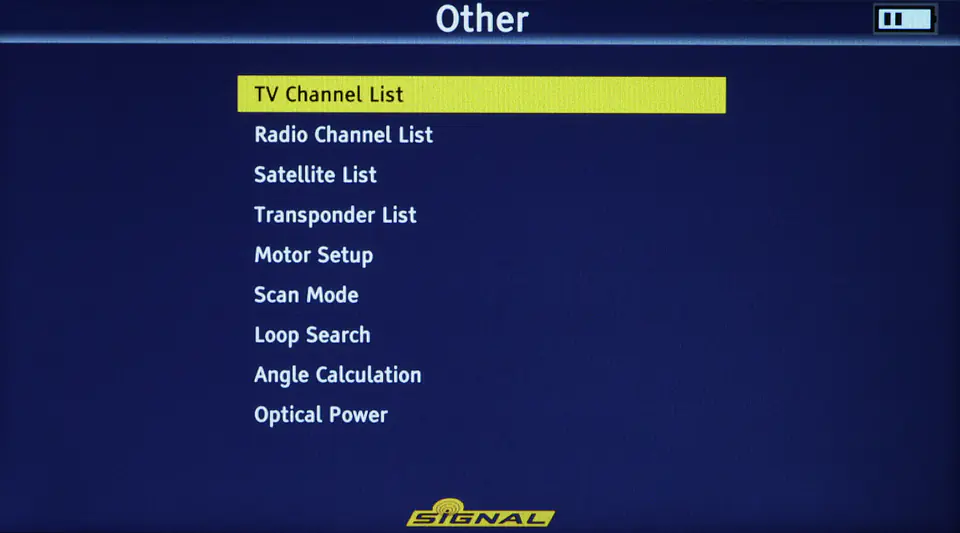

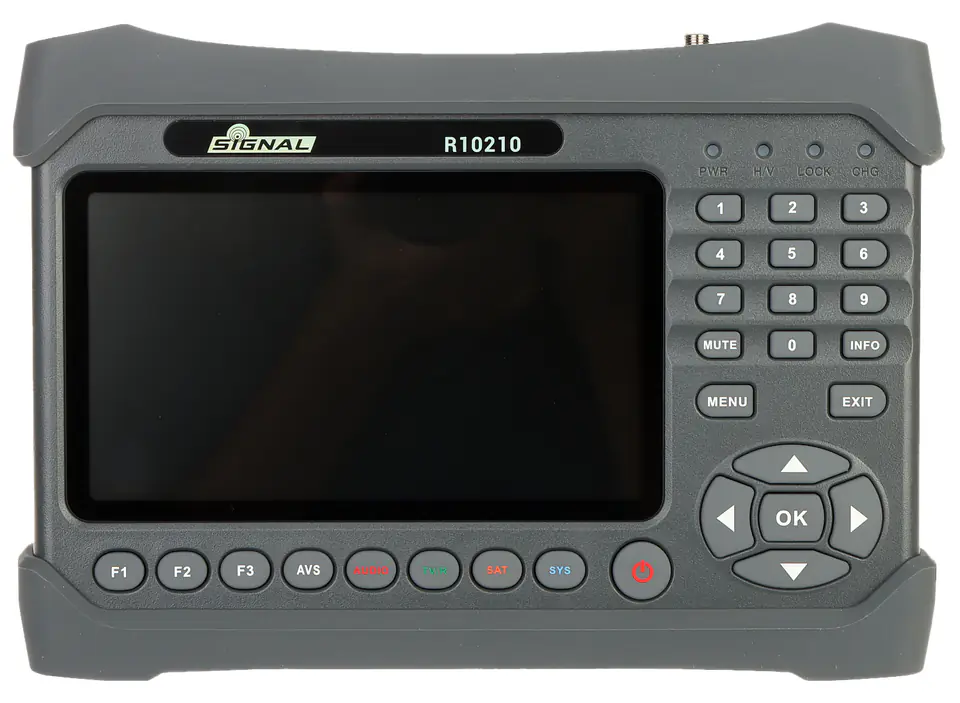

ST-6986 allows you to measure TV signals in DVB-T/T2, DVB-S/S2, DVB-CC networksThe flexible menu will certainly facilitate the work of any installer
UNIVERSAL DVB-T/T2 DVB-S/S2 DVB-C METER SIGNAL
€405.86
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- ST-6986 / 5902887070631
Share this product:
Specification
| Antenna power supply: | 5 / 12 / 24 V @ 100 mA |
|---|---|

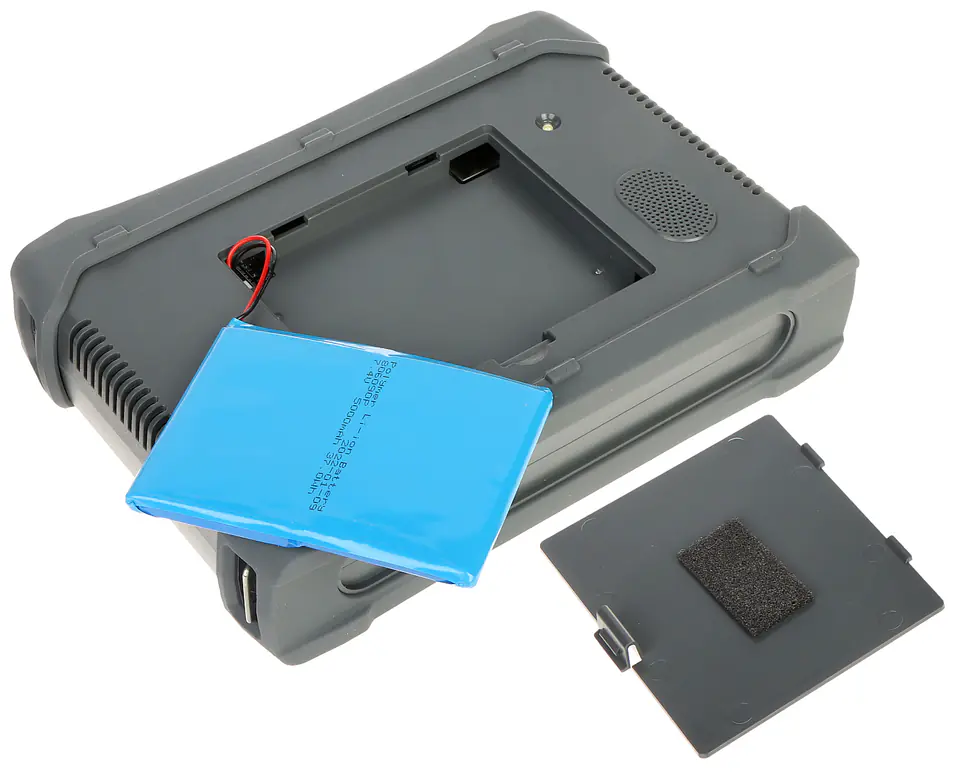

| Battery: | Li-Ion battery 7.4 V / 5000 mAh |
| Dimensions: | 259 x 181 x 59 mm |
| Diseqc: | Supports 1.0, 1.1,1.2, 0/22 kHz Tone, Unicable (dSCR), Wideband |

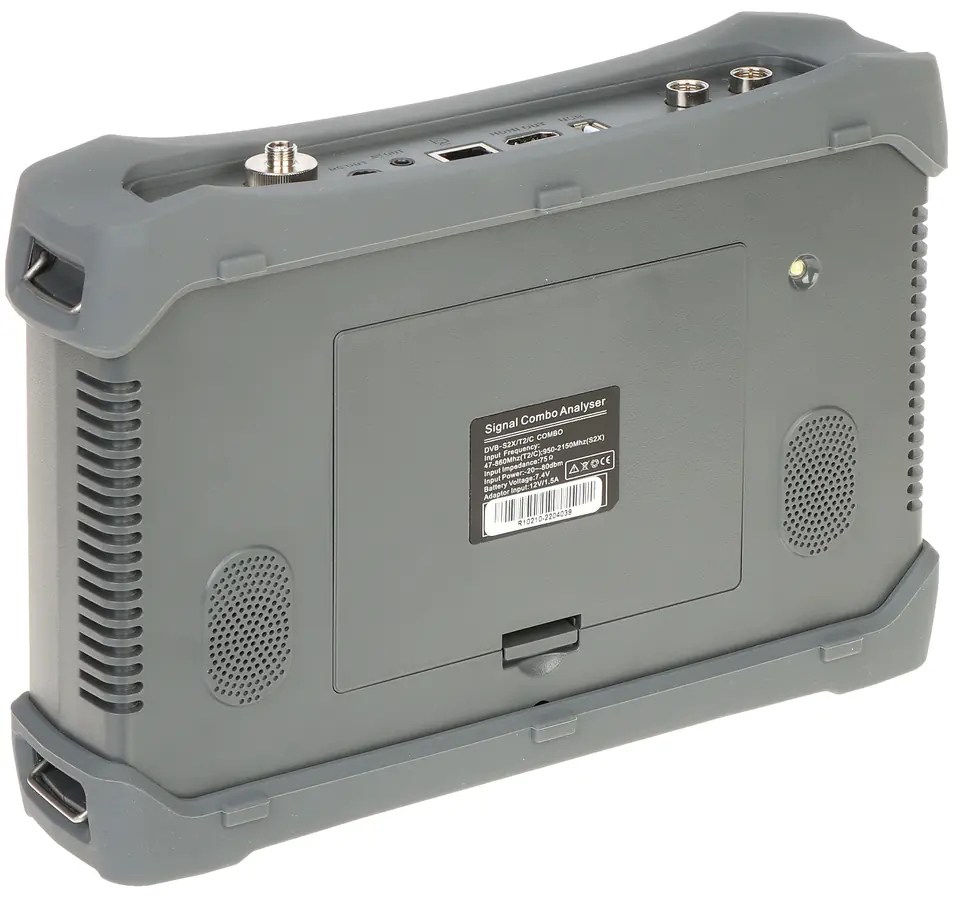

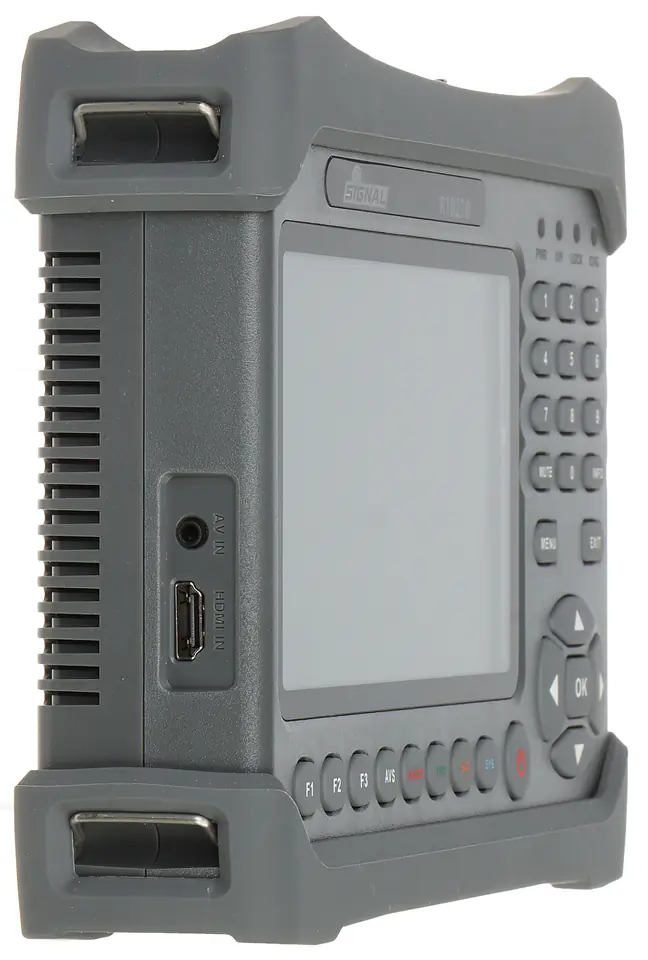

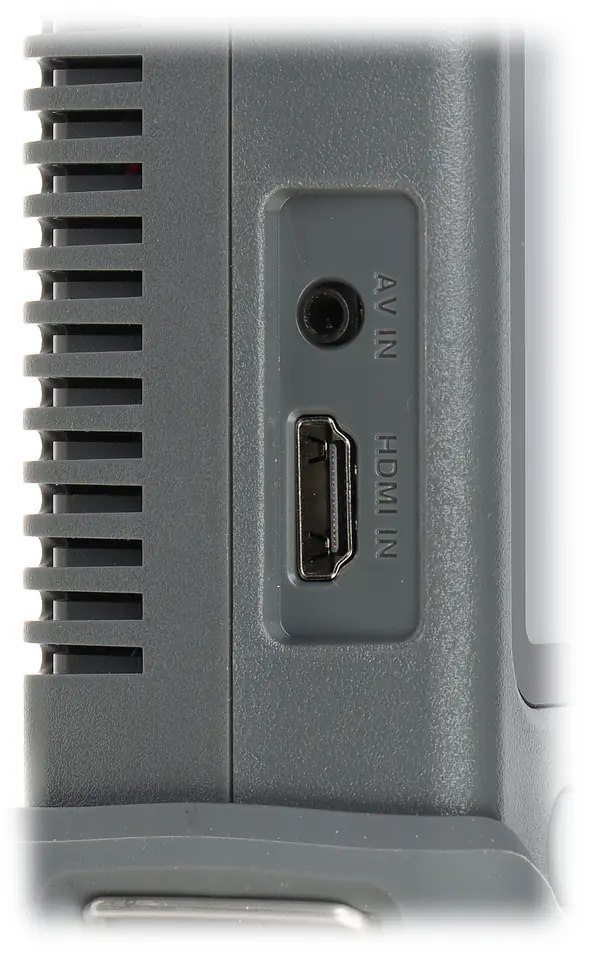

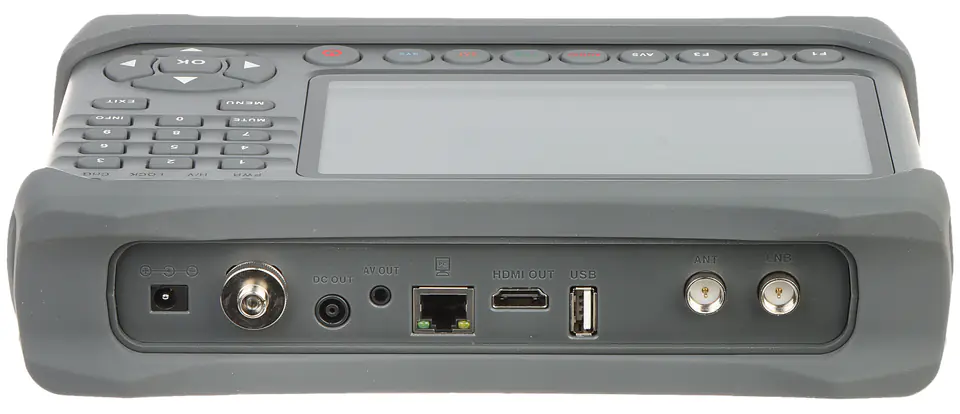

| Exit and entry: | Inputs : IEC socket - Ant, Socket "F" - LNB, HDMI, AV Input - mini Jack, Fiber Optic Input SC / FC Outputs : HDMI, AV Out - Mini Jack, Power Output, 12 V DC |
| Frequency range: | 48 MHz ... 862 MHz@DVB-T / DVB-T2 / DVB-C, 950 MHz ... 2150 MHz@DVB-S/DVB-S2 |
| Lnb power supply: | 13 / 18 V, max. 400 mA |
| Modulation: | QPSK/8PSK/16APSK@DVB-S/DVB-S2QPSK/16-QAM/64-QAM/256-QAM@DVB-T/DVB-T2/DVB-C |
| Power: | 12 V / 1.5 A (power adapter included) |
| Power consumption: | ≤ 10 watts |
| Producer / brand: | SIGNAL |
| Programming and software update: | via USB port |
| Scales: | 1.17 kg |

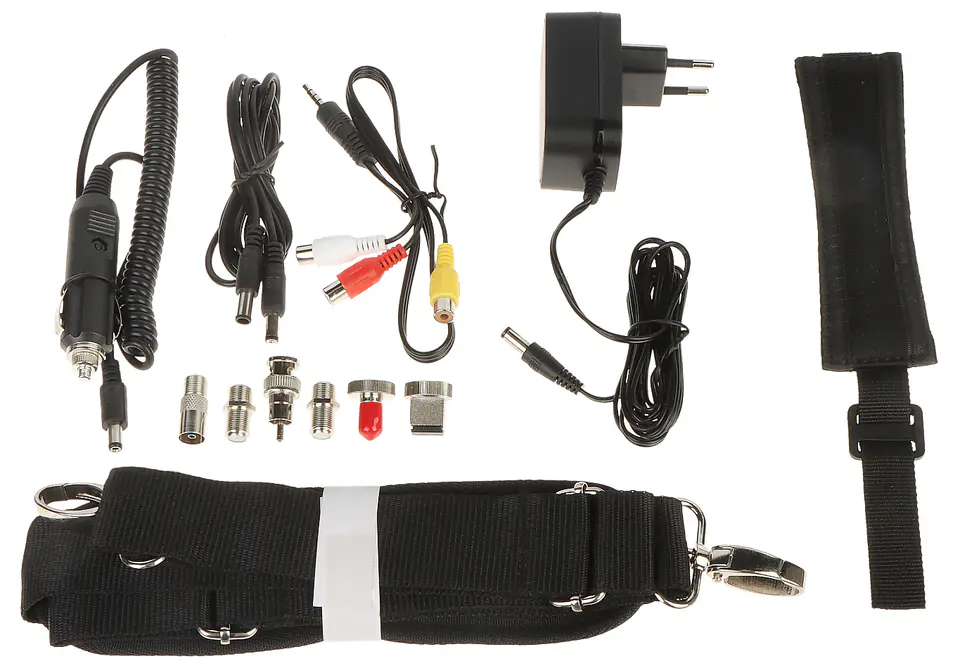

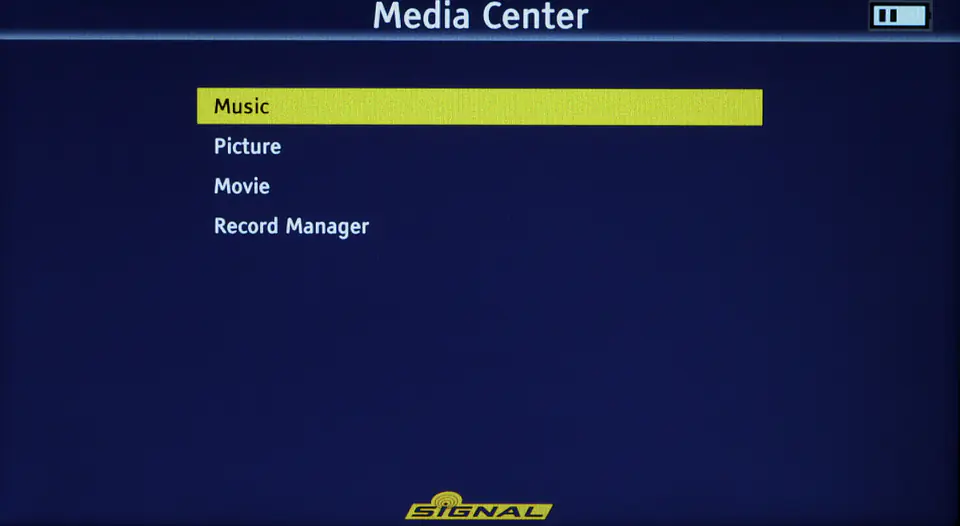

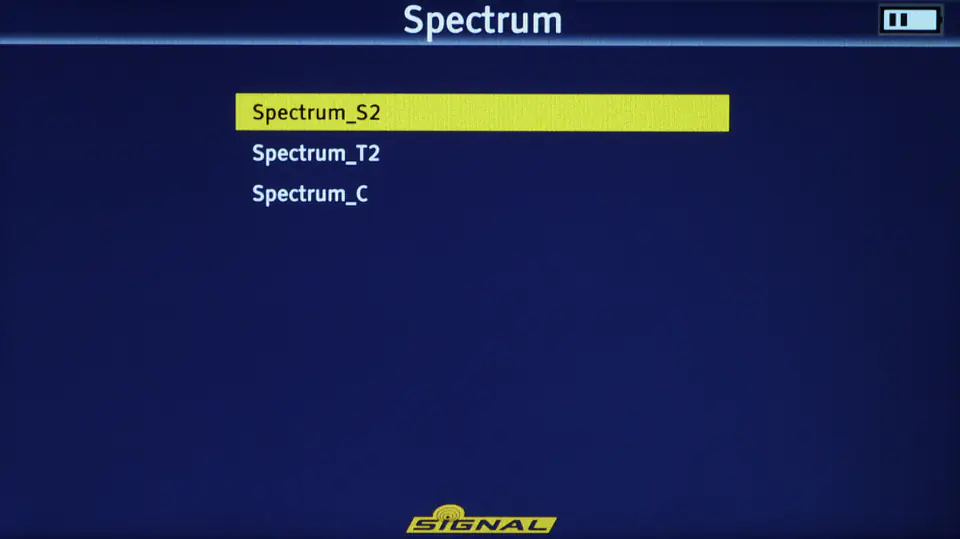

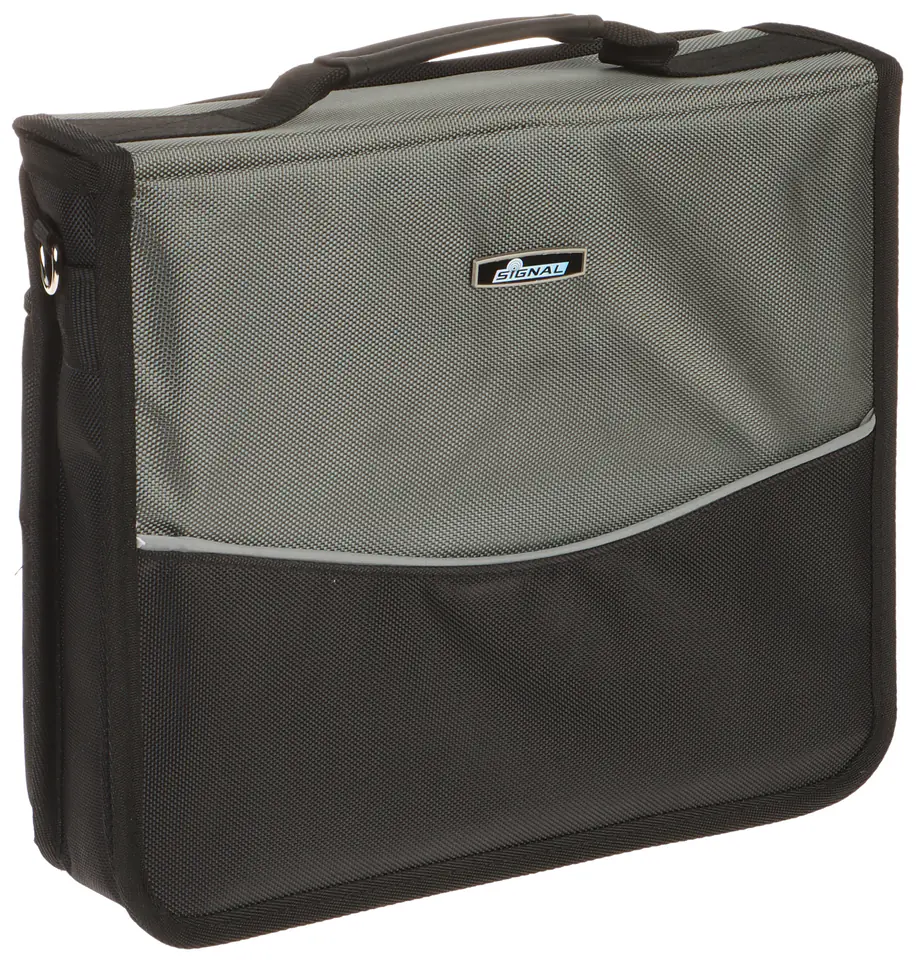

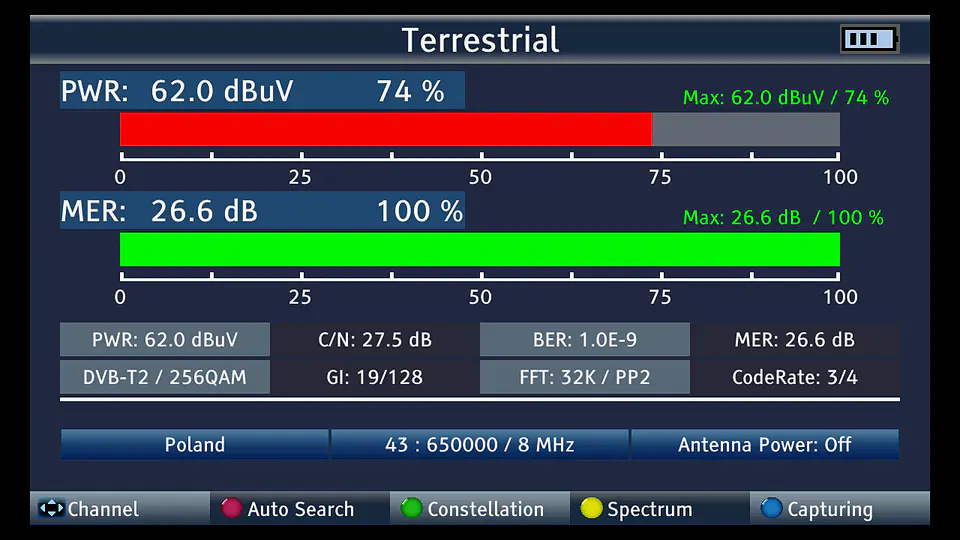

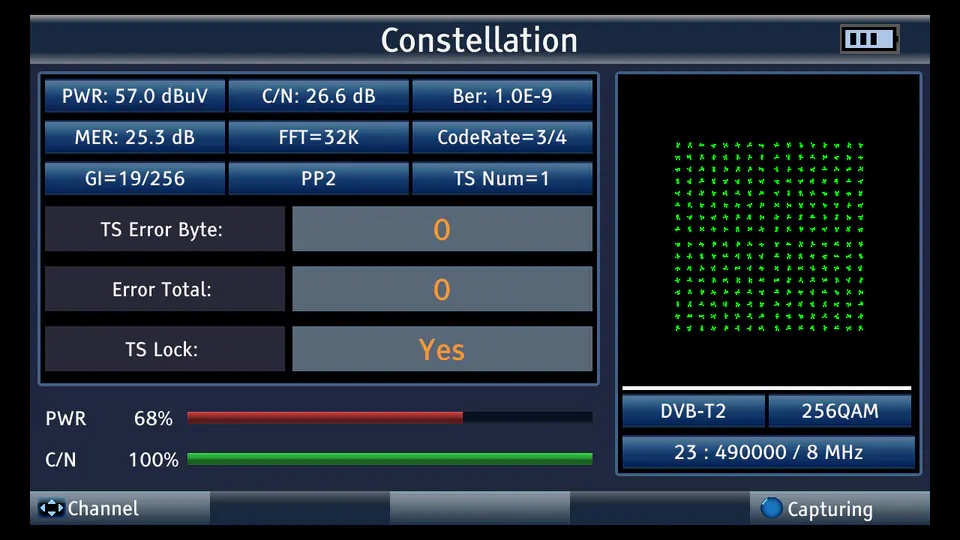

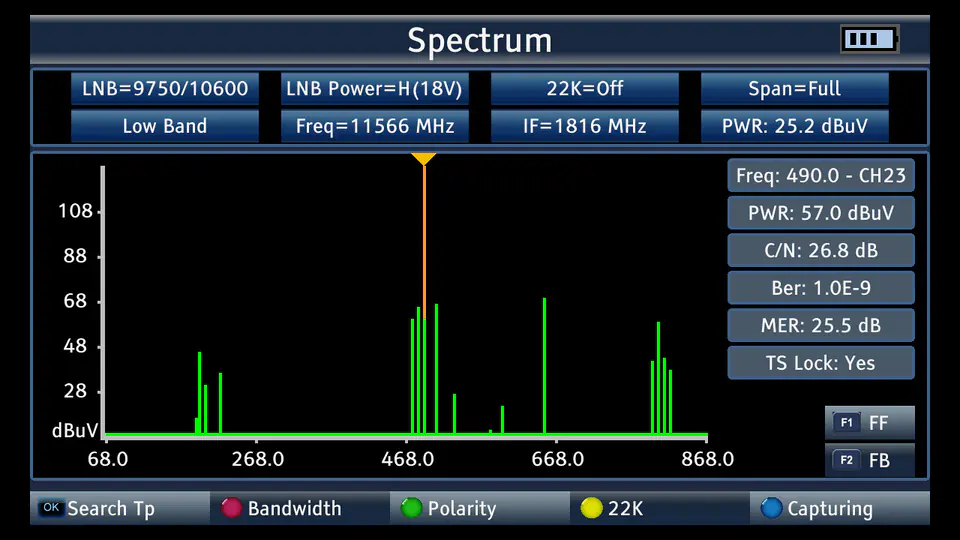

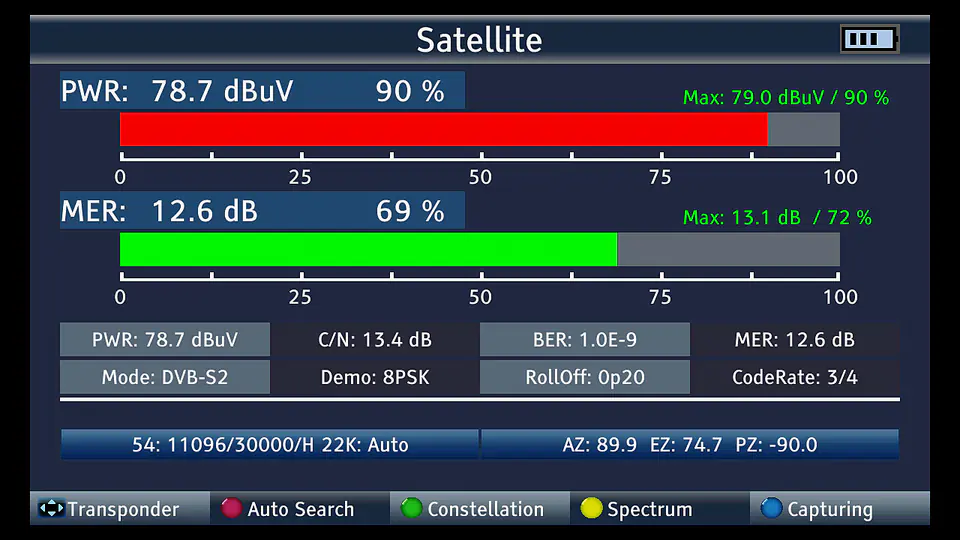

| Selected features: | 7 " LCD display - 1280 x 720 px Measurement of DVB-T/T2/C, DVB-S/S2 @ MPEG2/MPEG4 signals Built-in DVB-S/S2, DVB-T/T2/C tuner for constant monitoring of the set channel Built-in MPEG-2 / H.264 / H.265 video decoder Calculation of azimuth and elevation angle Constellation diagram Spectrum analysis for the entire frequency band Signal measurement expressed in dBμV, C/N, BER, MER Measurement of signal strength and quality Percentage indication of signal quality Built-in optical power meter - Wavelength Optical : 850,1300, 1310, 1330, 1490, 1550, 1625 nm USB connector for multimedia files wma, mp3, mp4, avi, jpg, jpeg, bmp, img Automatic identification DisEqC High measurement accuracy Practical case included |
| Signal level: | -20 ... +80 dBm @ DVB-S / DVB-S2, -20 ... +80 dBm @ DVB-T / DVB-T2 / DVB-C, -40 ... +23 dBm - Optical power meter |

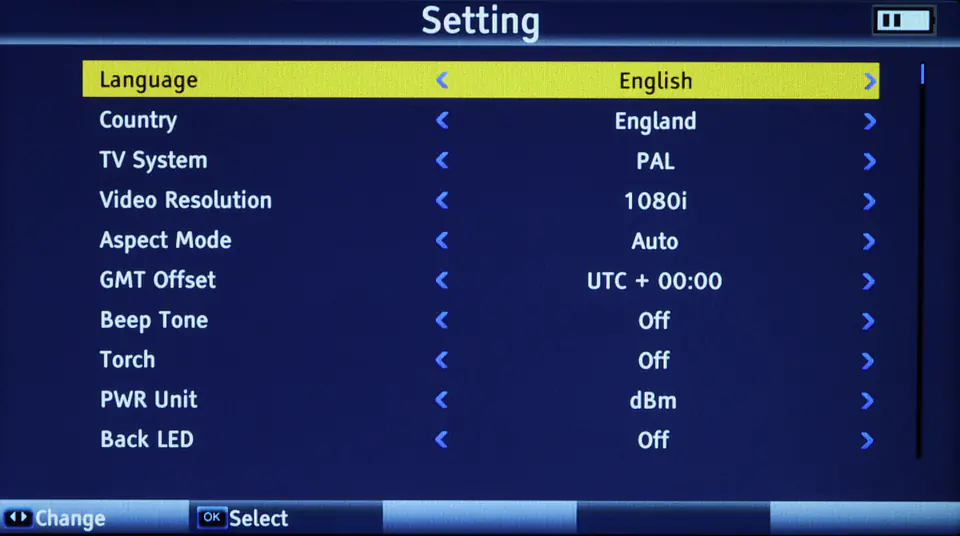

| Supported languages: | Polish, Czech, Danish, Dutch, English, French, German, Greek, Hungarian, Italian, Slovenian, Portuguese, Russian, Spanish, Turkish |
| Switching between bands: | 0 / 22 kHz |
| Warranty: | 2 years |
