Product Description:

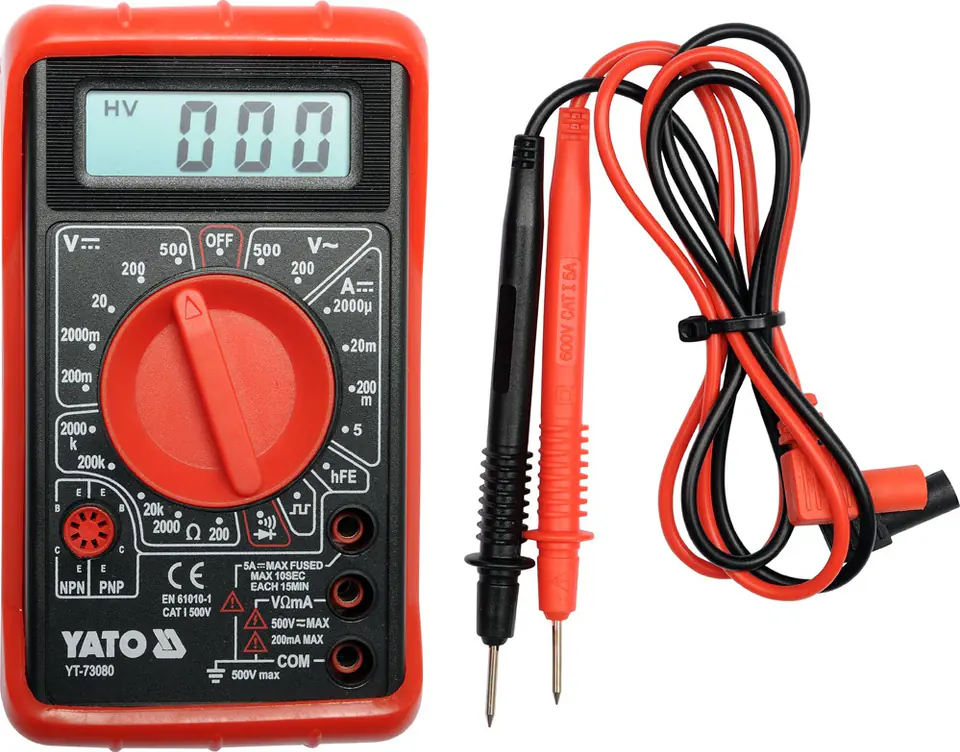

Multimeter (electric meter) YT-73080 we can measure the basic values important in the operation of electrical equipment.
The multimeter allows us to measure DIRECT or ALTERNATING voltage, direct current and resistance.
It also allows us to inspect diodes and transistors. The YT-73080 universal meter is the basic model in our multimeter range.
The buzzer is useful when inspecting electrical installations - it allows us to easily verify the continuity of the circuit.
The multimeter's auto-off function saves battery life. YT-73080, like other YATO multimeters in our offer, is equipped with the so-called holster - a rubber housing protecting the meter against mechanical damage.
Purpose / Application:
The meter allows you to test basic current values such as:
- voltage, current, resistance, diode test, conduction test, transistor test
Contents:

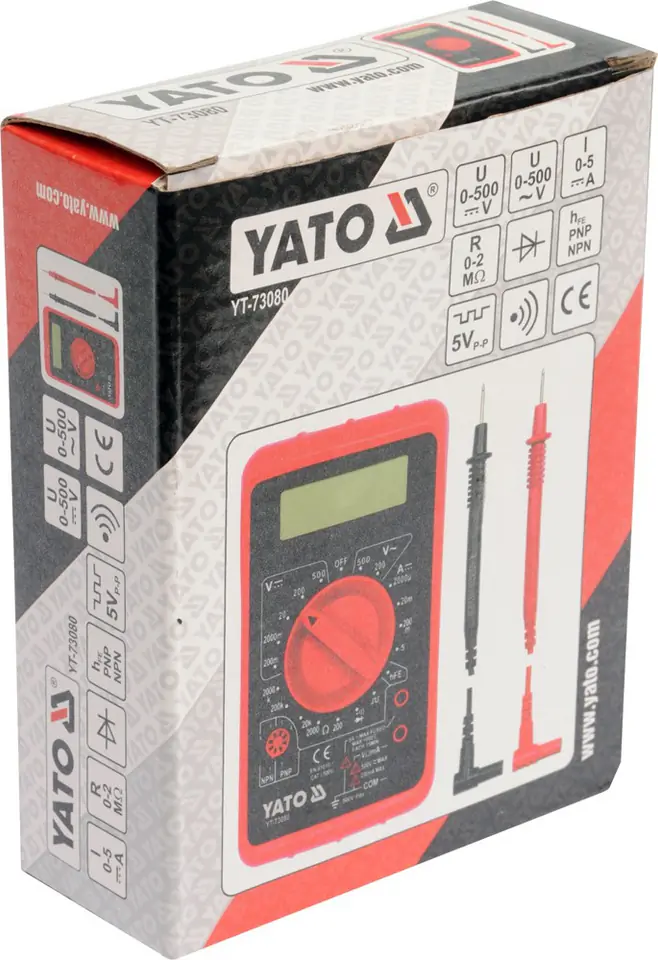

Meter, holster, 600V Cat I 5A test leads, user manual, warranty card
Technical data:
- Index number YT-73080
- EAN 5906083730801
- Gross weight (kg) 0.2800
- Automatic range No
- Sampling rate 2-3 times per second
- AC voltage measurement 0-500V ±1.2%
- DC voltage measurement 0-500V ±1.2%
- Resistance measurement 0-200k
- DC 0-5A ±2.0%
- Circuit continuity test built-in buzzer
- 1mV diode test
