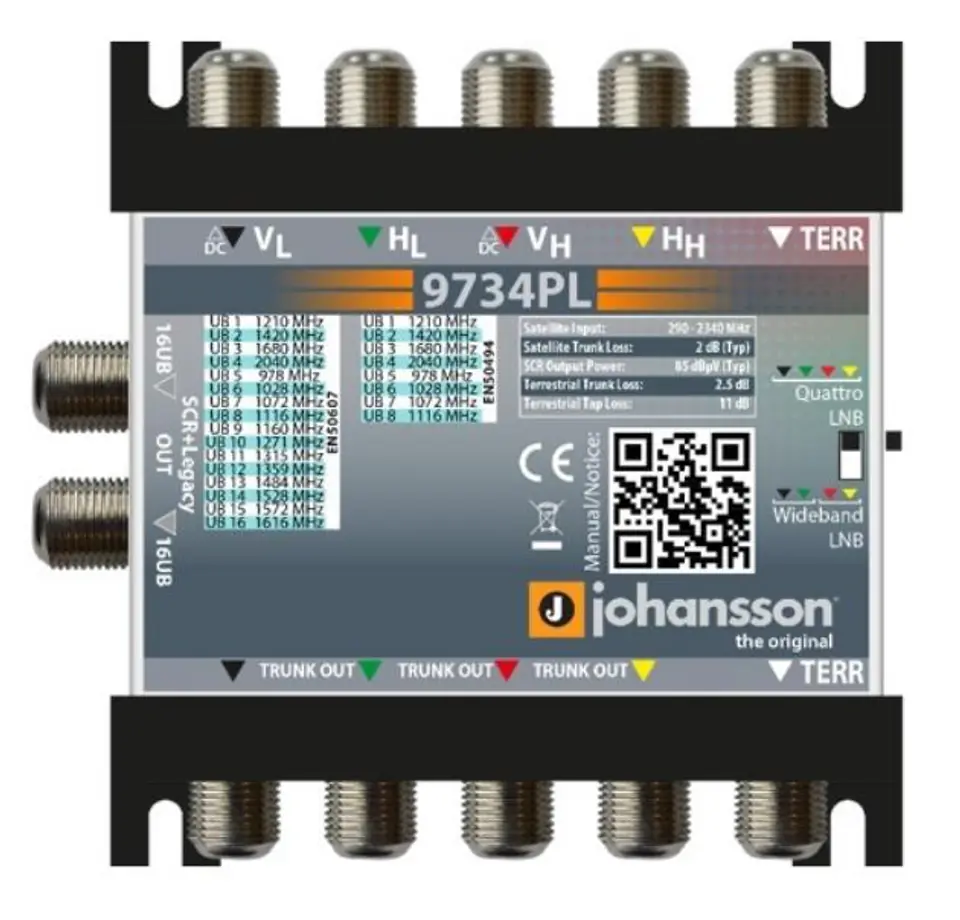

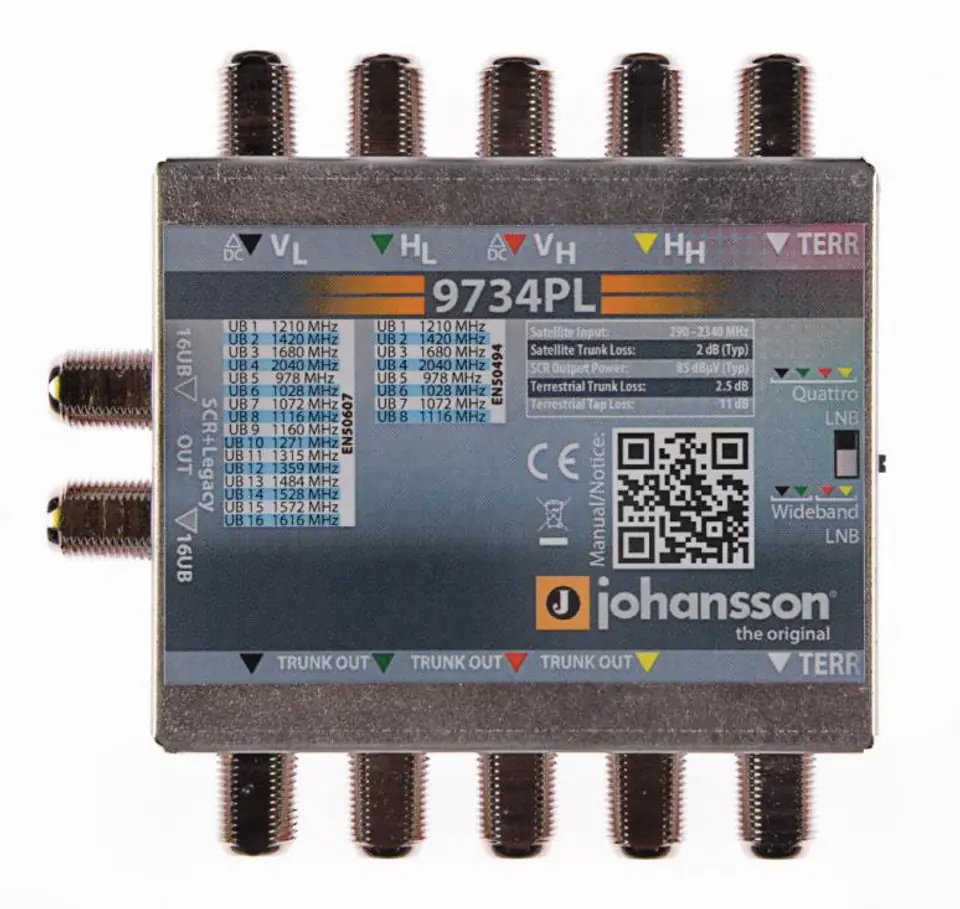

Multiswitch Unicable II Johansson 9734PL ver.2 - 5/2 dCSS/dSCR
Multiswitch Unicable II 5/1, 9734 Johansson, PL version. List of channels compatible with Cyfrowy Polsat receivers.
4 satellite inputs + 1 DVB-T input, 4 satellite pass-through outputs + 1 DVB-T output, 2 SCR output. Standard Unicable I / Unicable II.
The device is especially recommended in situations where we would like to expand the existing multiswitch installation at the lowest possible cost to 16+16 independent signals supporting single-cable technology.

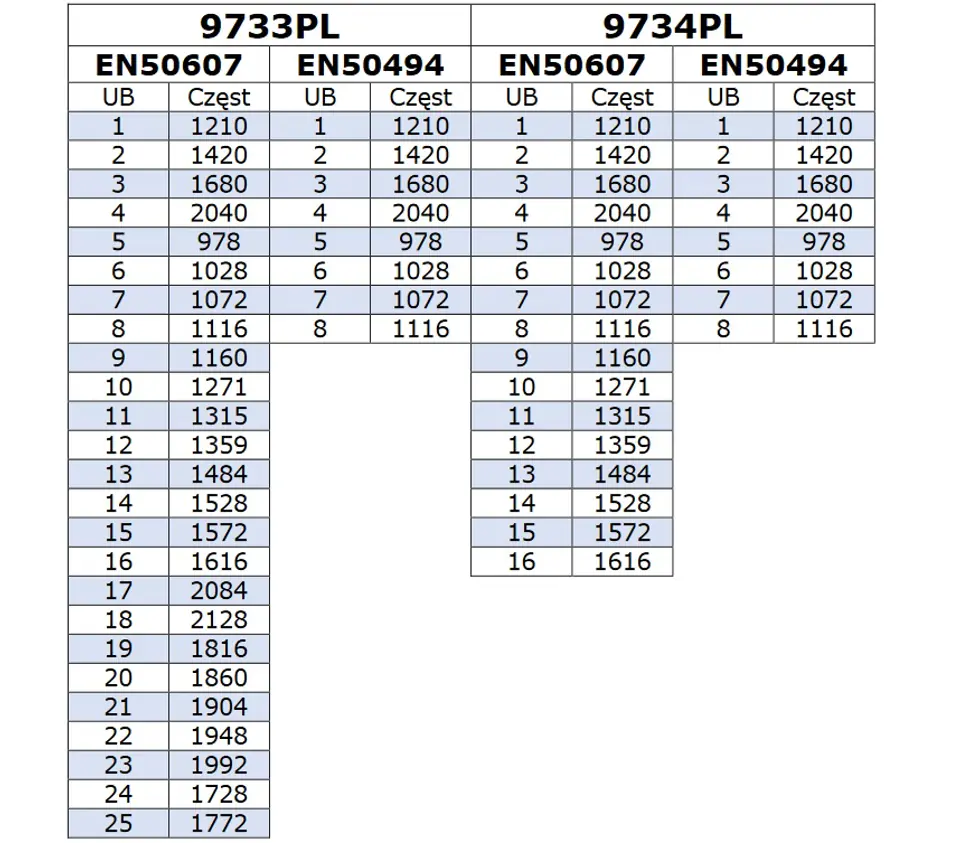

- List of UNICABLE channels compatible with Cyfrowy Polsat and Canal+ receivers
- Support for 16 bands at one output
- Support for converters: Quattro and WideBand
- Automatic AGC gain level
- Support for Unicable I and Unicable II standards
REMARK! We sell the latest version 9734 version 2 with increased reduction of signal loss!

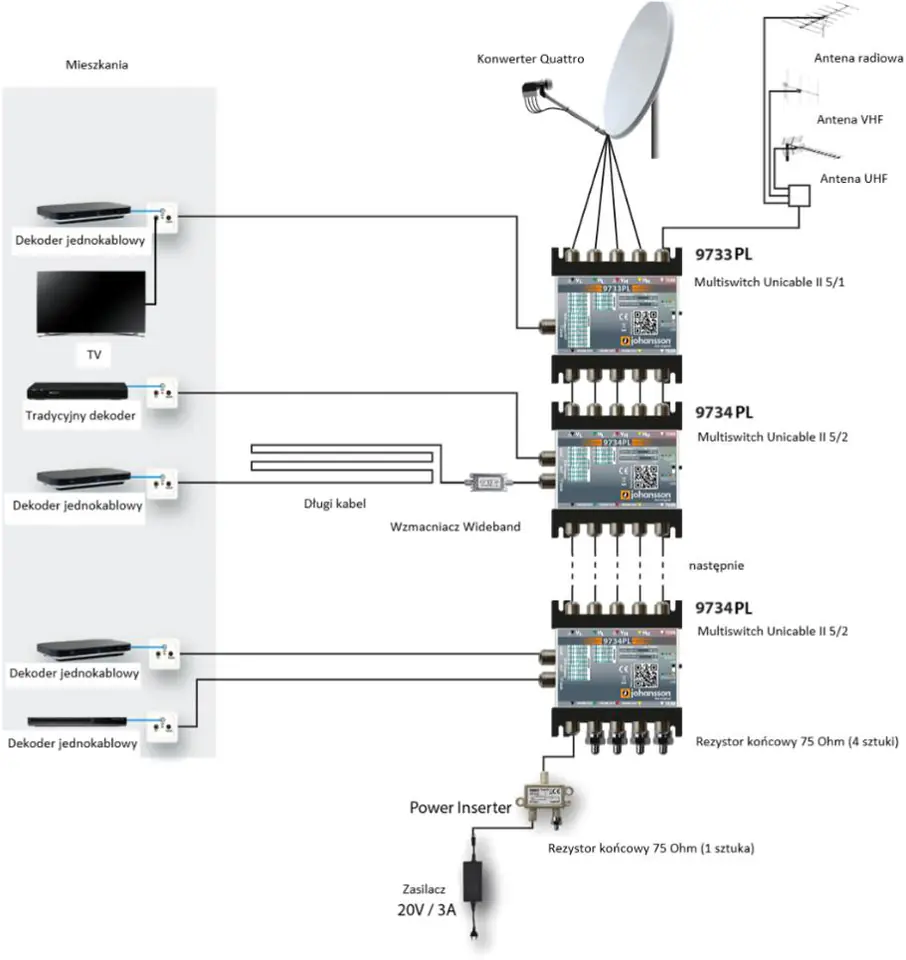

Example installation using Johansson Unicable II Multiswitch :
User manual in POLISH version available >>HERE<<
https://dmtrade.pl/katalogi/johansson/9733PLPOL.pdfThe data sheet in ENGLISH is available >>HERE<<https://dmtrade.pl/katalogi/johansson/katalogowaunicable2.pdf
