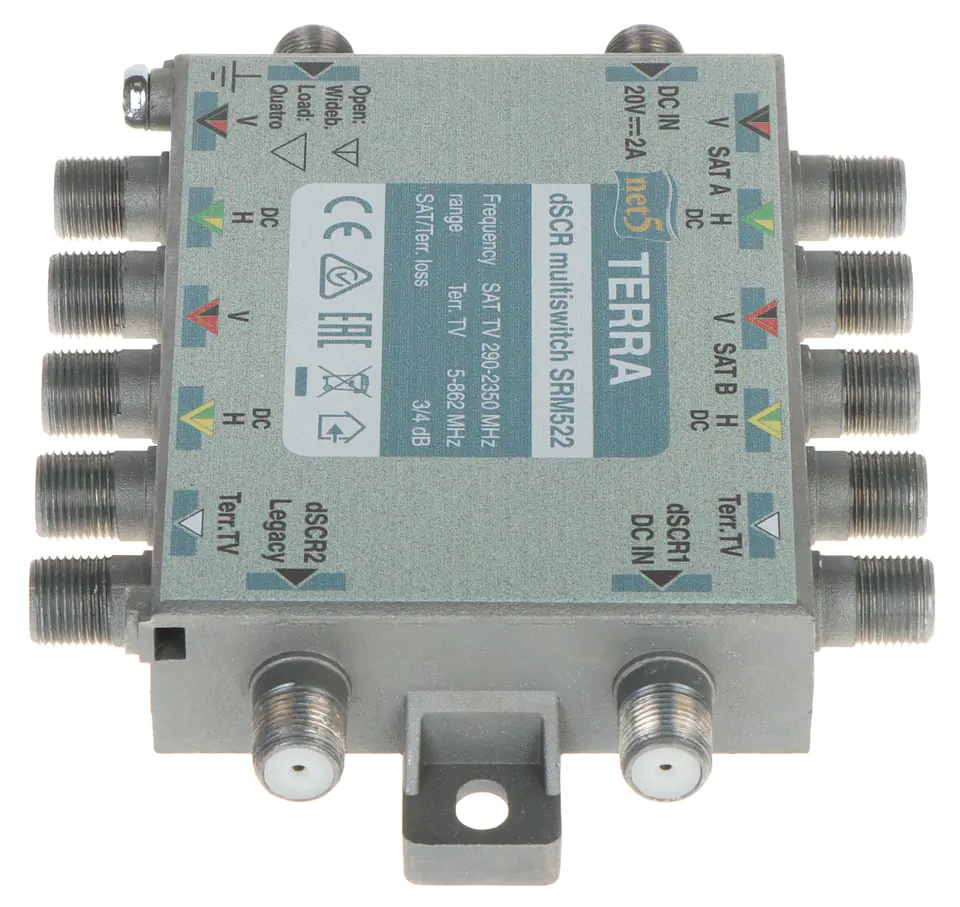

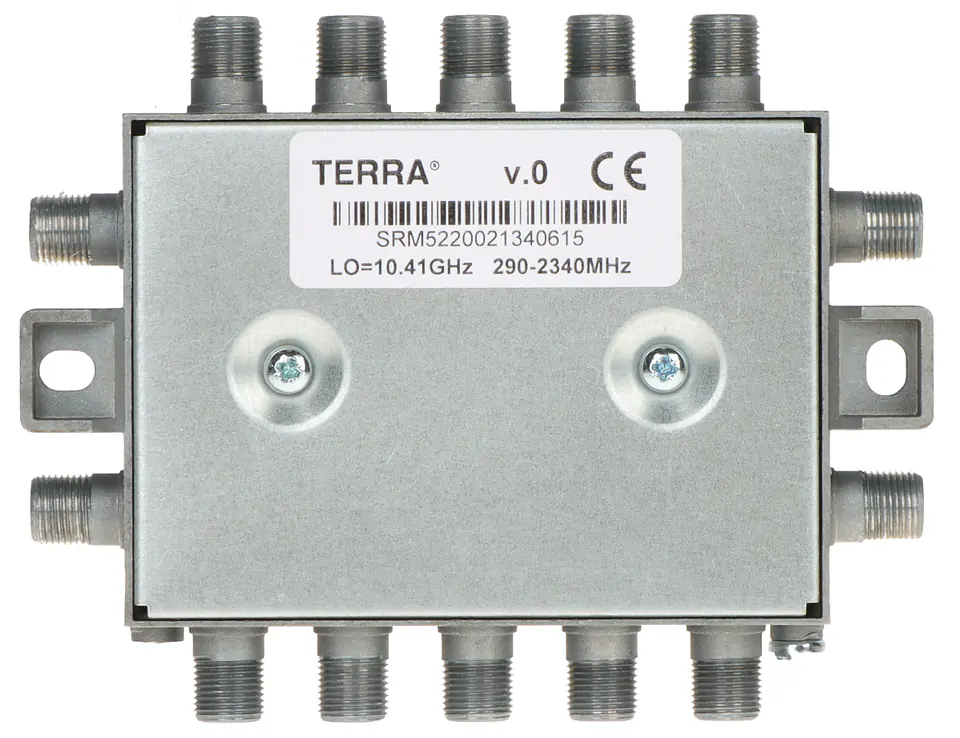

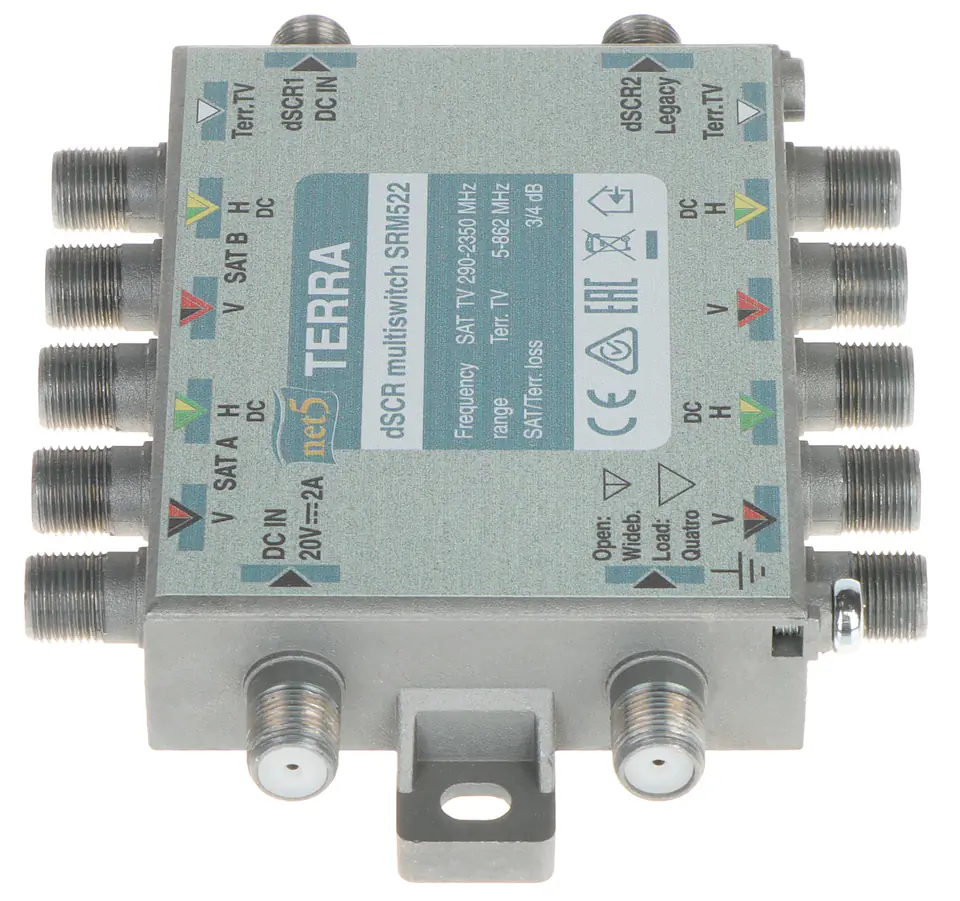

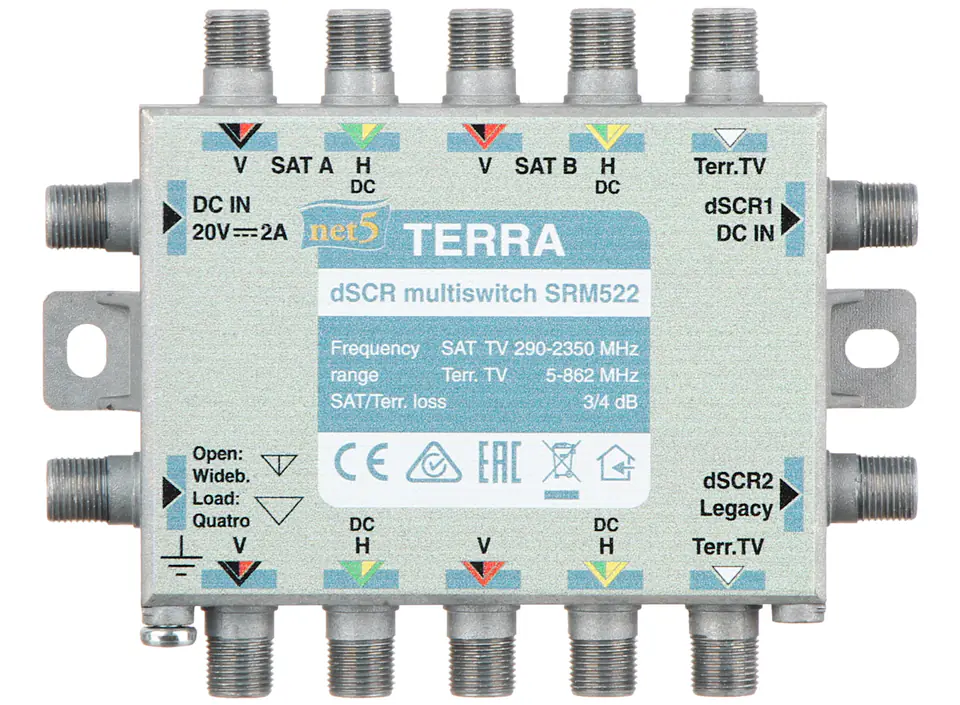

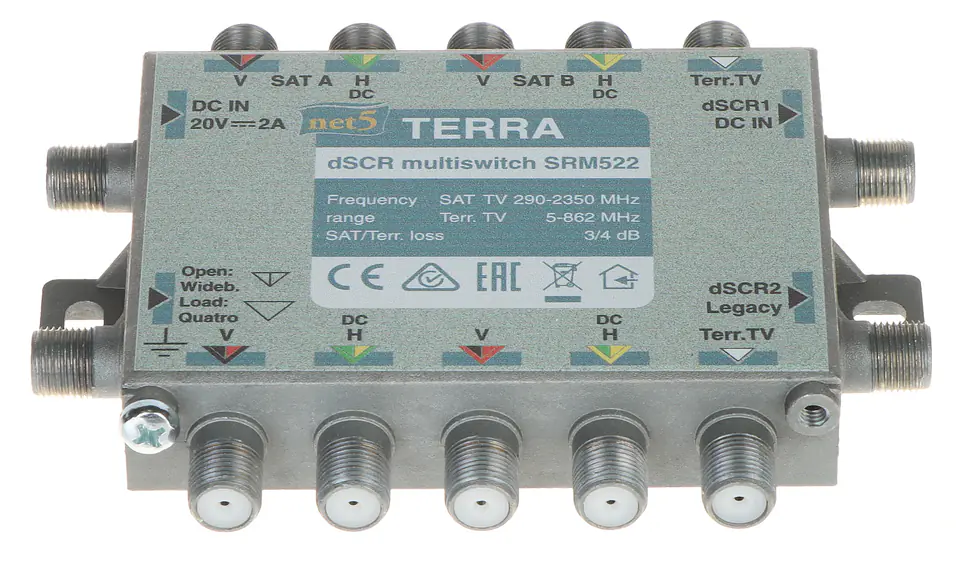

UNICABLE I/II SRM-522 5 INPUTS / 5 OUTPUTS + 2 UNICABLE TERRA

€90.51
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Wed, Nov 27 - Mon, Dec 2
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Terra
Product code:
SRM-522 / 5902887035654

Specification

Current consumption:.max. 300 mA @ 13 V DCmax. 500 mA @ 20 VDC
Dimensions:116 x 91 x 26 mm
Inputs:4 x 290 MHz ... 2340 MHz, 1 x 5 MHz ... 862 MHz DVB-T
Maximum sat output level:84 dBμV @ dSCR78 dBμV @ Legacy out
Output:4 x 290 MHz ... 2340 MHz (Signal Through-Through), 1 x 5 MHz ... 862 MHz DVB-T, 1 x Legacy out / dSCR (EN50607/EN50494) - Auto Recognition, 1 x dSCR : (EN50607/EN50494)
Power:Power supply 20 V / 2 A - necessary for the operation of the device (power supply not included)
Producer / brand:TERRA
Scales:0.26 kg

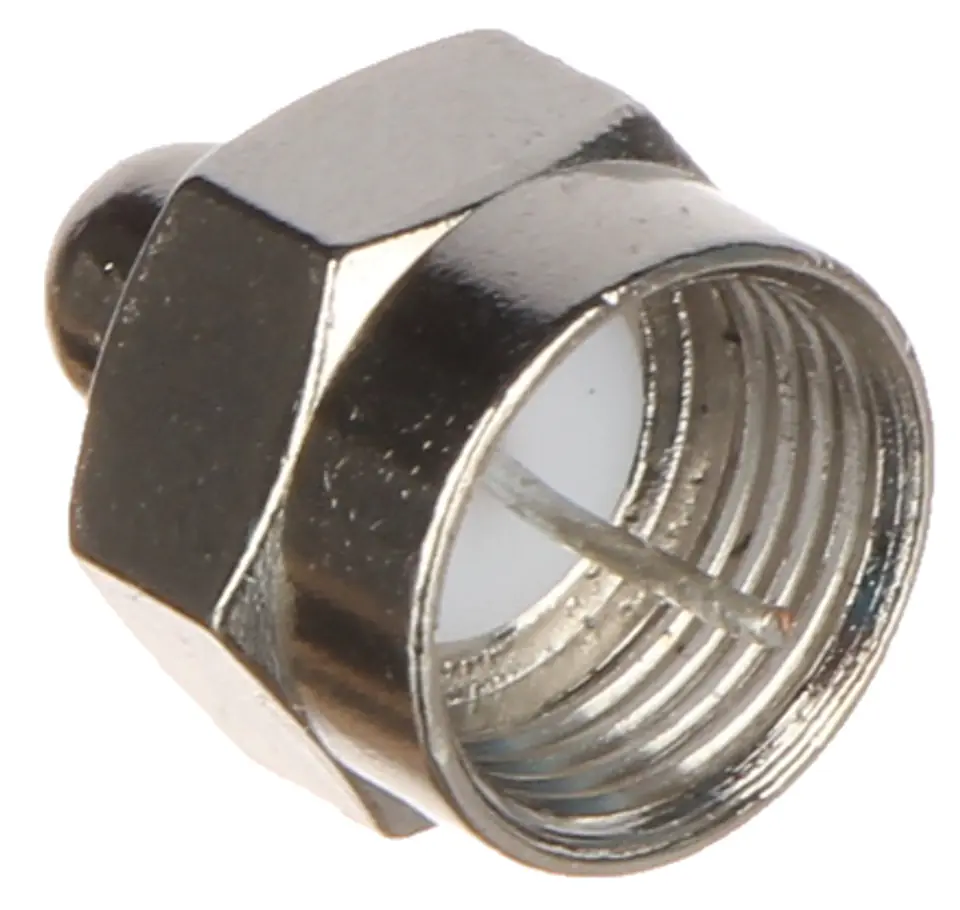

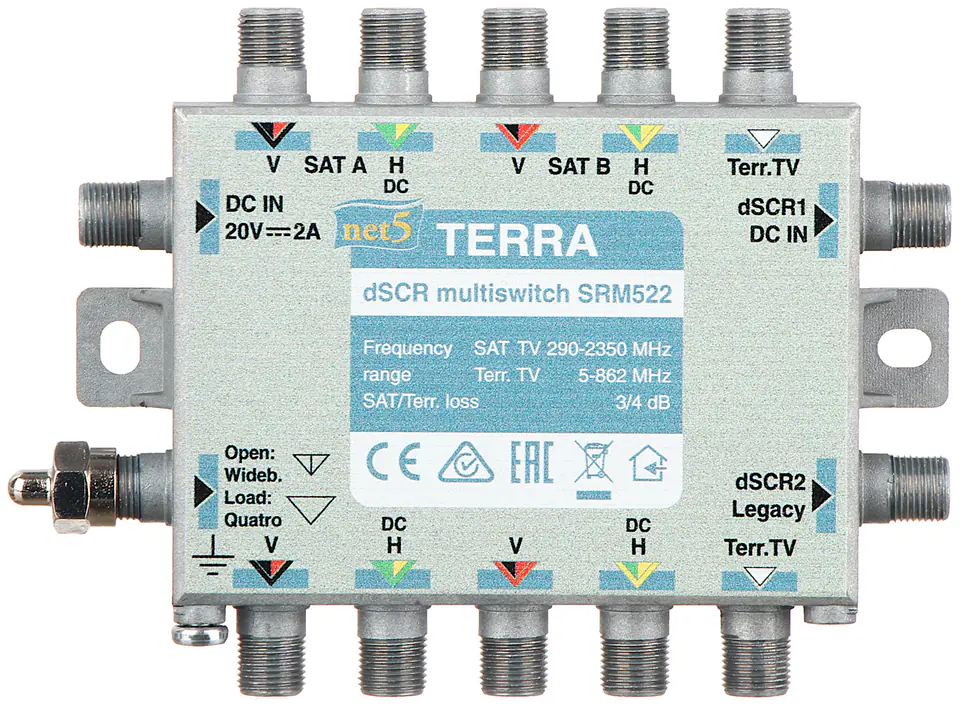

Selected features:The resistor attached to the device screwed into a dedicated connector allows you to work in one of two modes: Screw-in resistor - compatibility mode with QUATTRO converters Disconnected resistor - compatibility mode with Wide Band converters
Through-damping:< 4.0 dB SAT< 4.0 dB TV
Tv branch attenuation:11 dB @ dSCR12 dB @ Legacy out
Warranty:2 years

SRM-522 pass-through multiswitch is a device that allows distribution of DVB-S/S2 signals from one satellite position, terrestrial DVB-T TV and analog/DAB radio via one coaxial cable using UNICABLE technologyThe device has been equipped with 5 inputs: two pairs of SAT IF inputs (290 ... 2340 MHz, enabling satellite signal from two Wide Band converters), Terr. TV (DVB-T/Radio signal) and 2 dSCR Out outputs (allowing to divide the signal up to 32 receivers via one coaxial cable), one of which can work as Legacy Out (ordinary output, as in Universal LNB or in classic multiswitches used to connect a classic satellite receiver)

The device has full support for receivers operating in two dynamic modes: SCR (Unicable I - 8 User Bands) and dSCR (Unicable II - 32 User Bands)By default, the multiswitch is configured so that one of the ports acts as a Unicable port in dynamic mode, while the other as a universal port (Legacy) and switches to Unicable as soon as it receives the command EN50494 / EN50607

The dSCR multiswitches are programmed using the PC102W programmer

Remark! Multiswitch requires external power supply (available separately)

Remark! The configuration resistor should be installed and removed before switching on the voltage supplying the device

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
