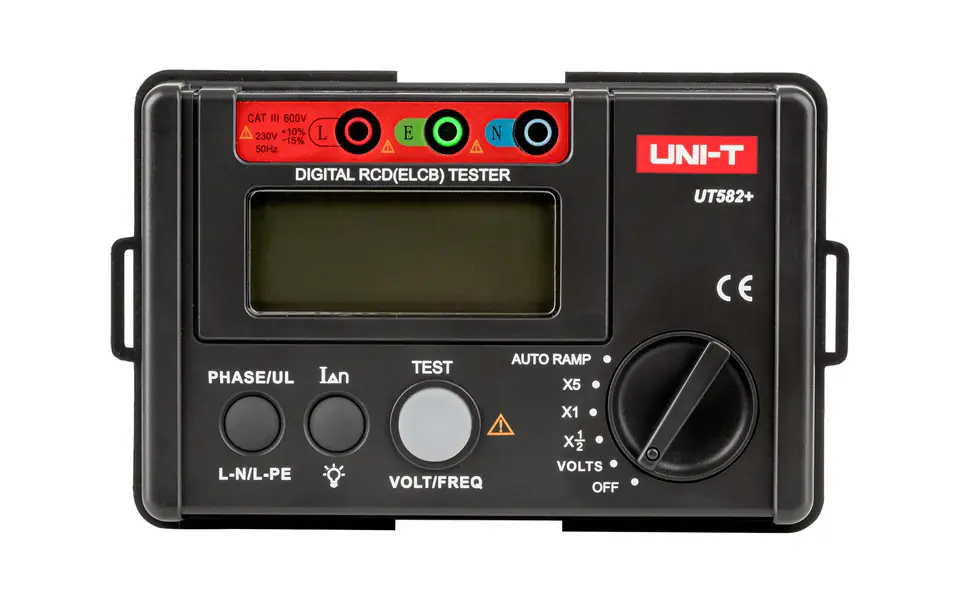

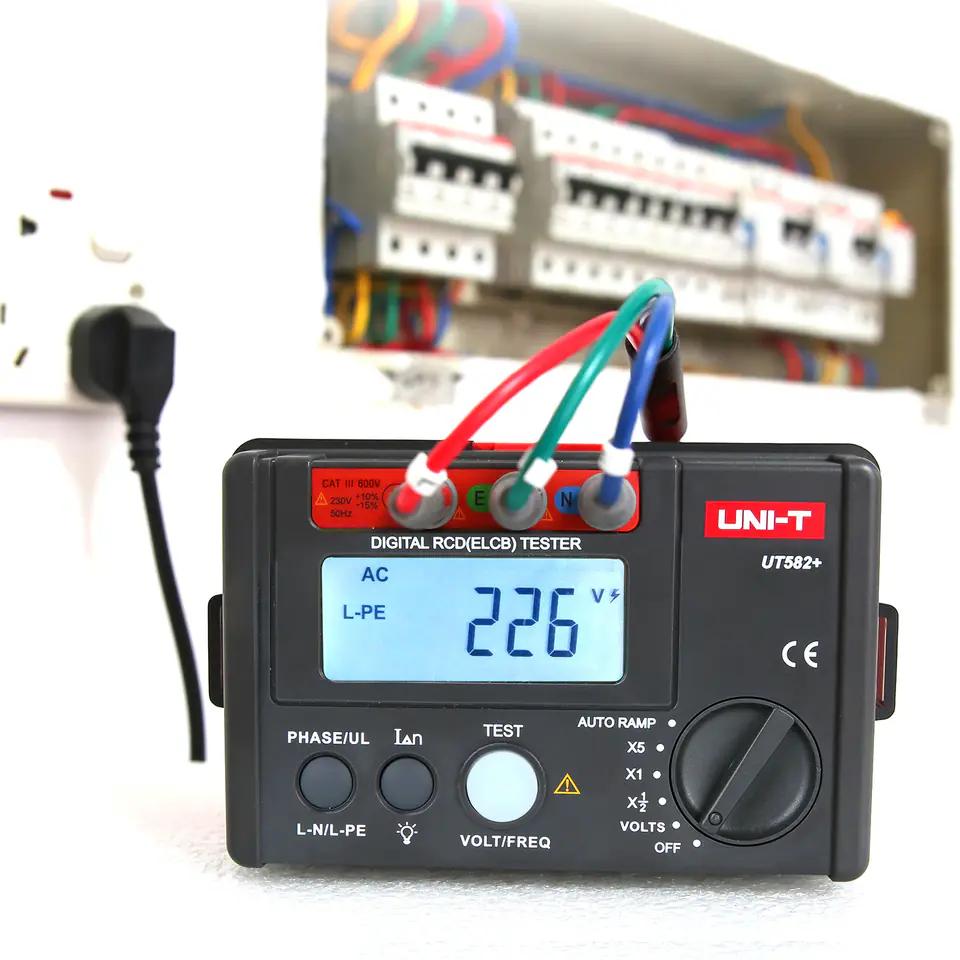

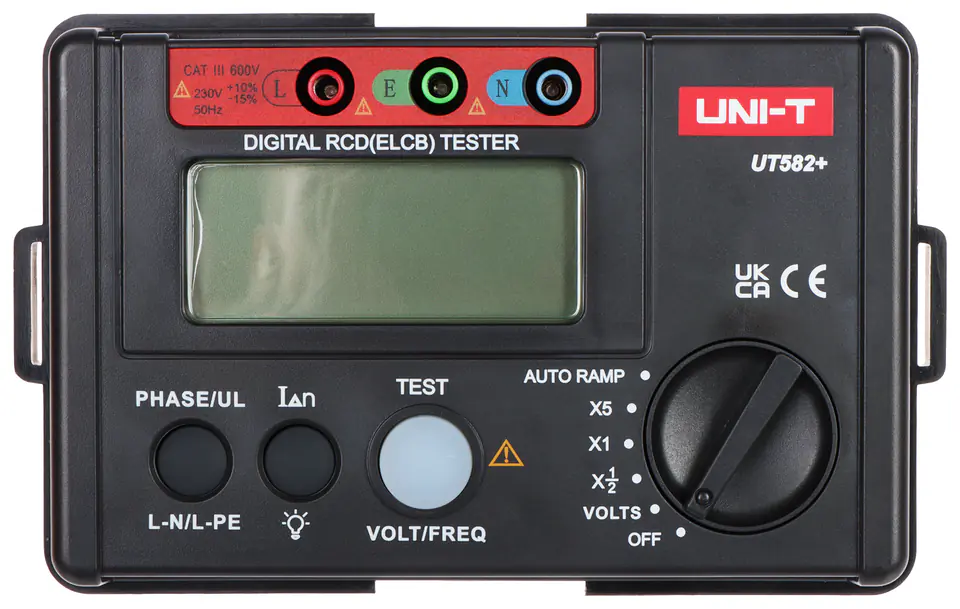

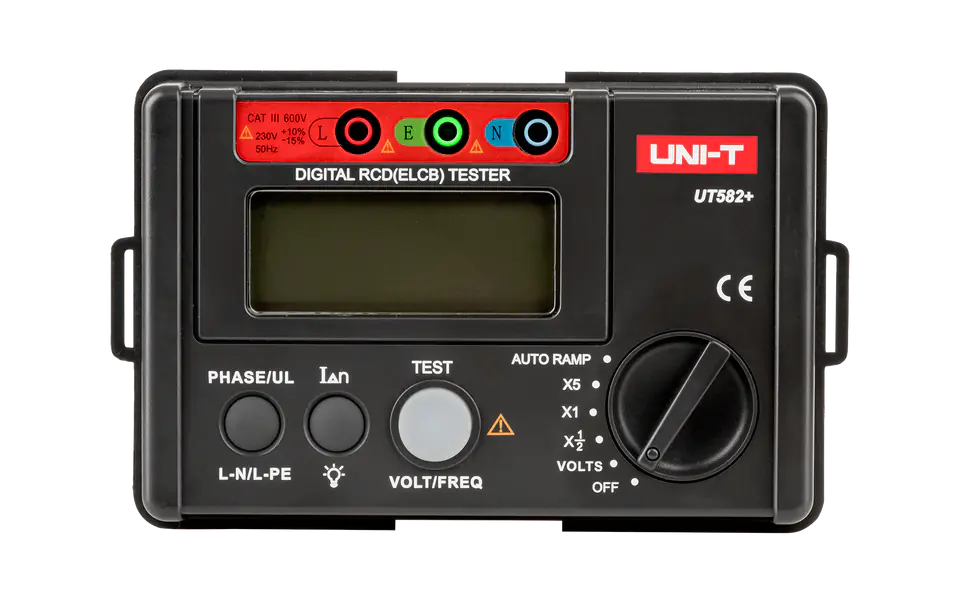

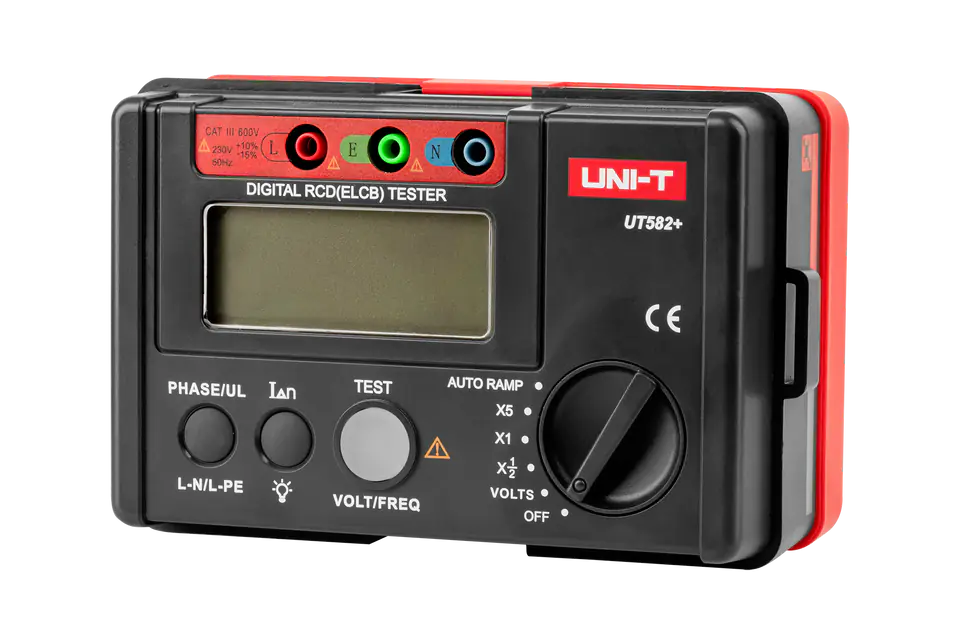

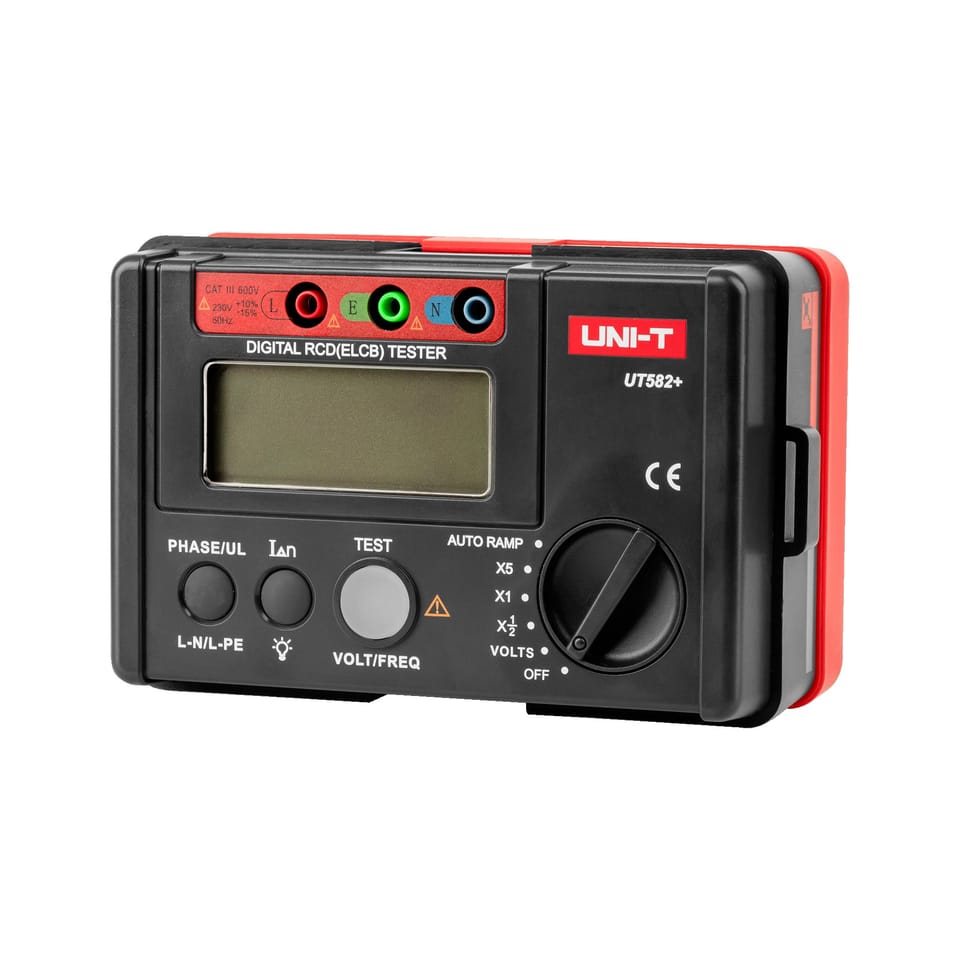

Uni-T UT582+ Digital RCD Switch Tester

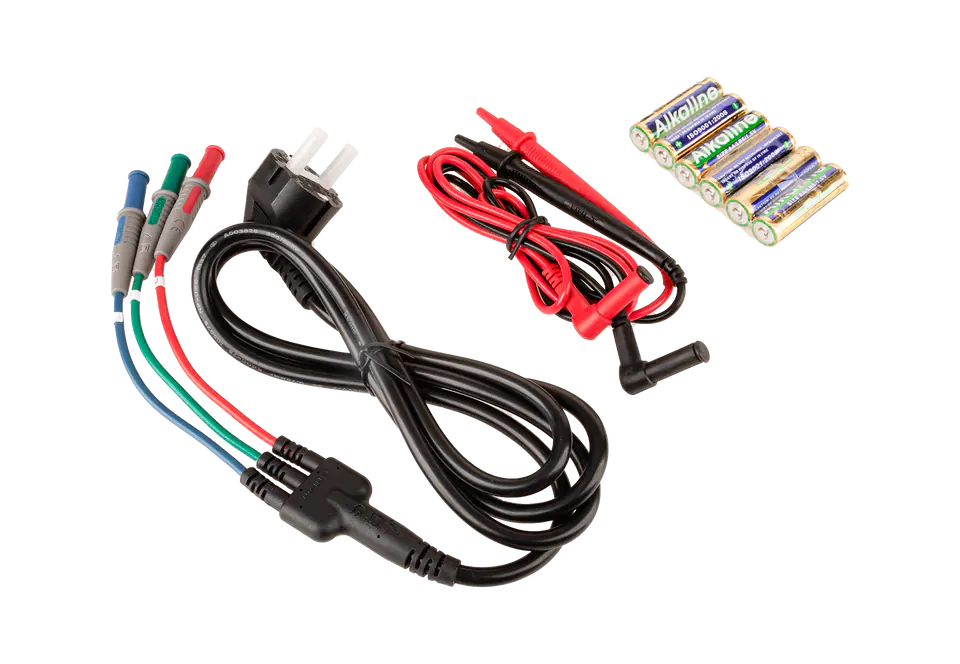

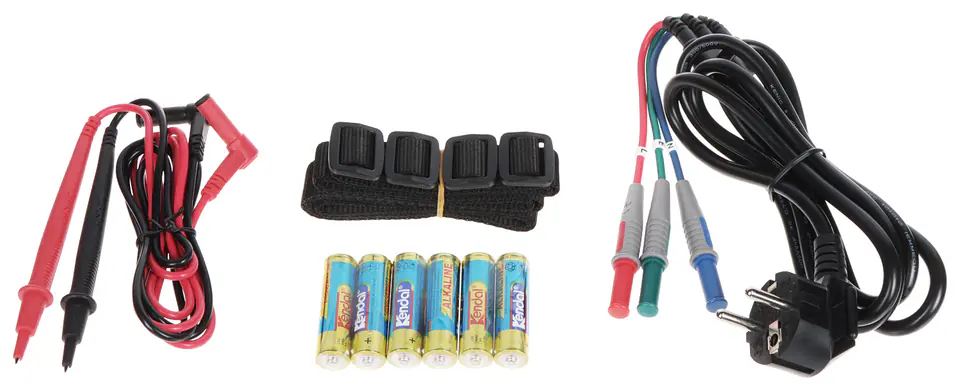

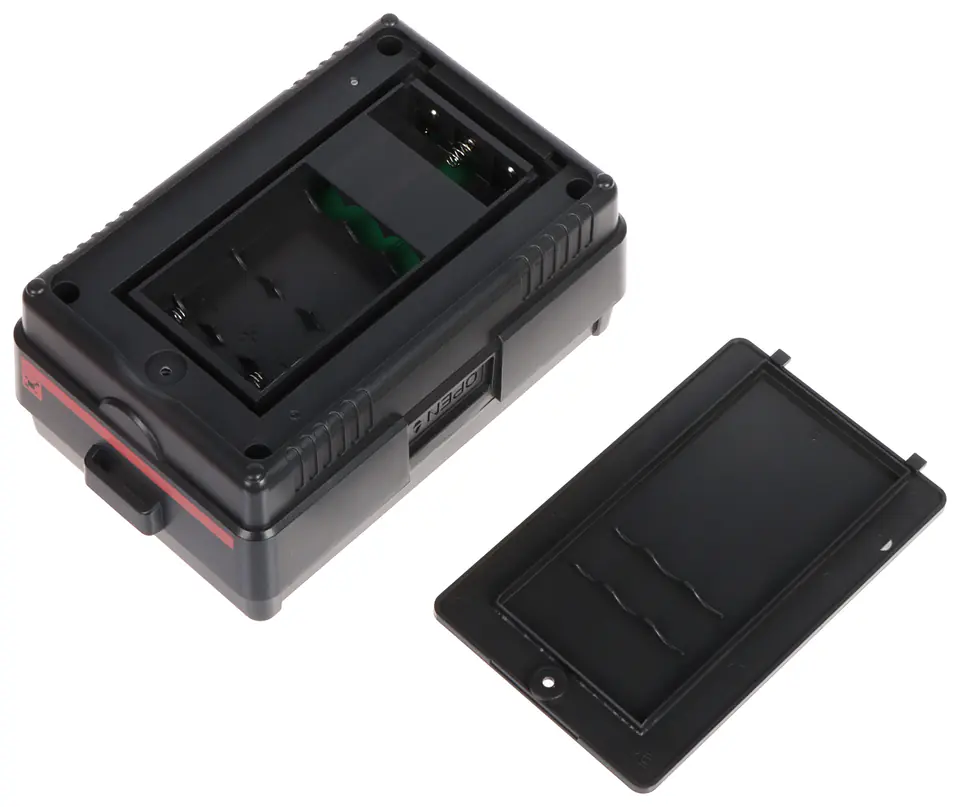

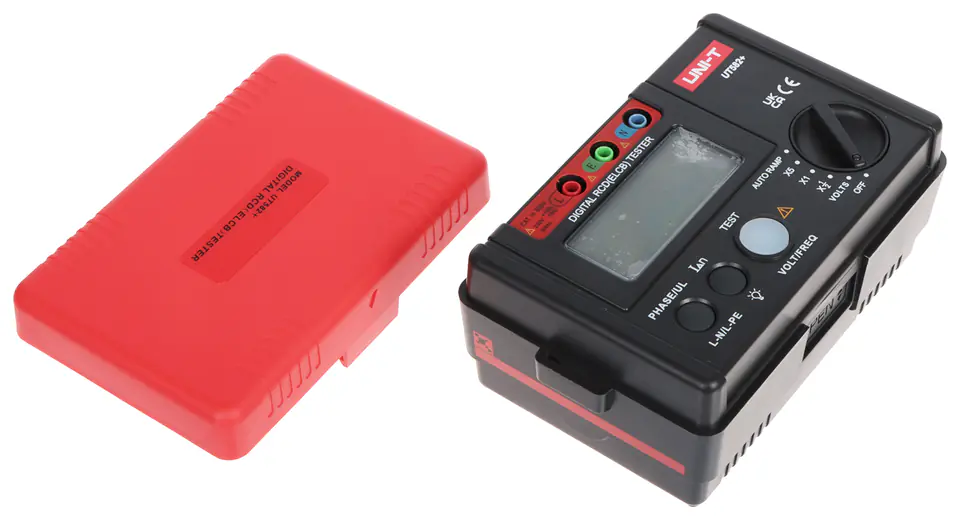

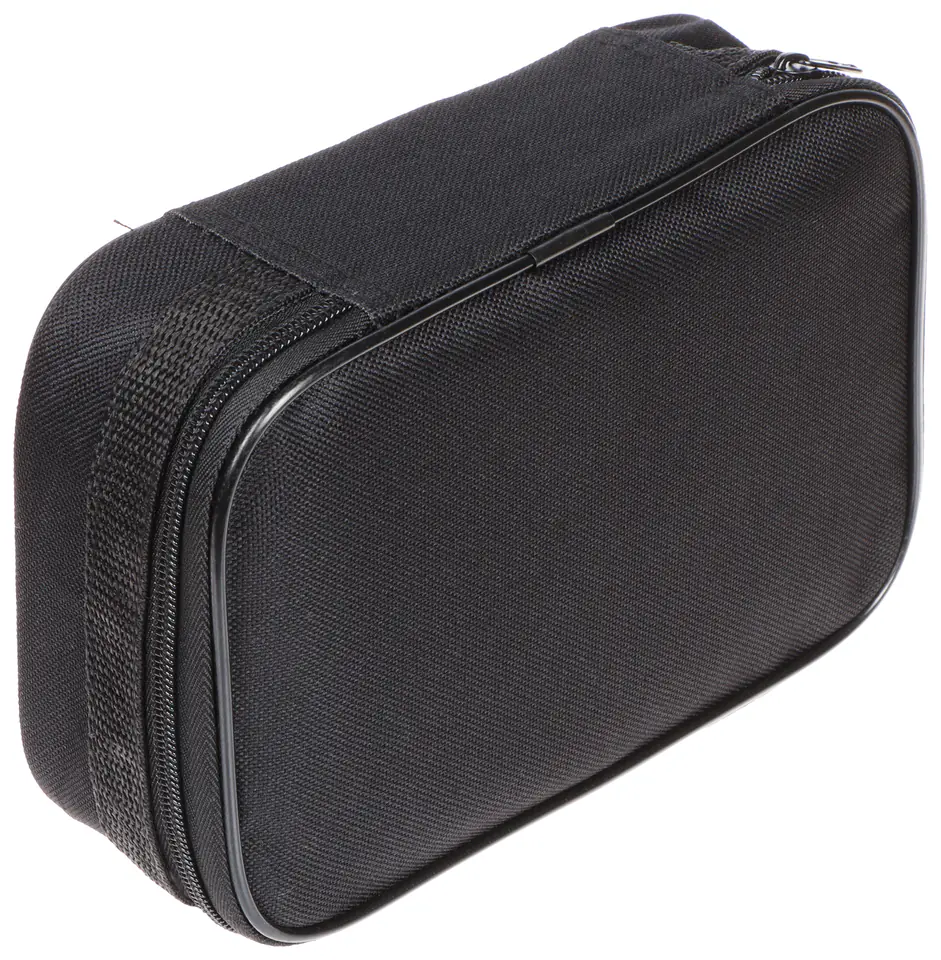

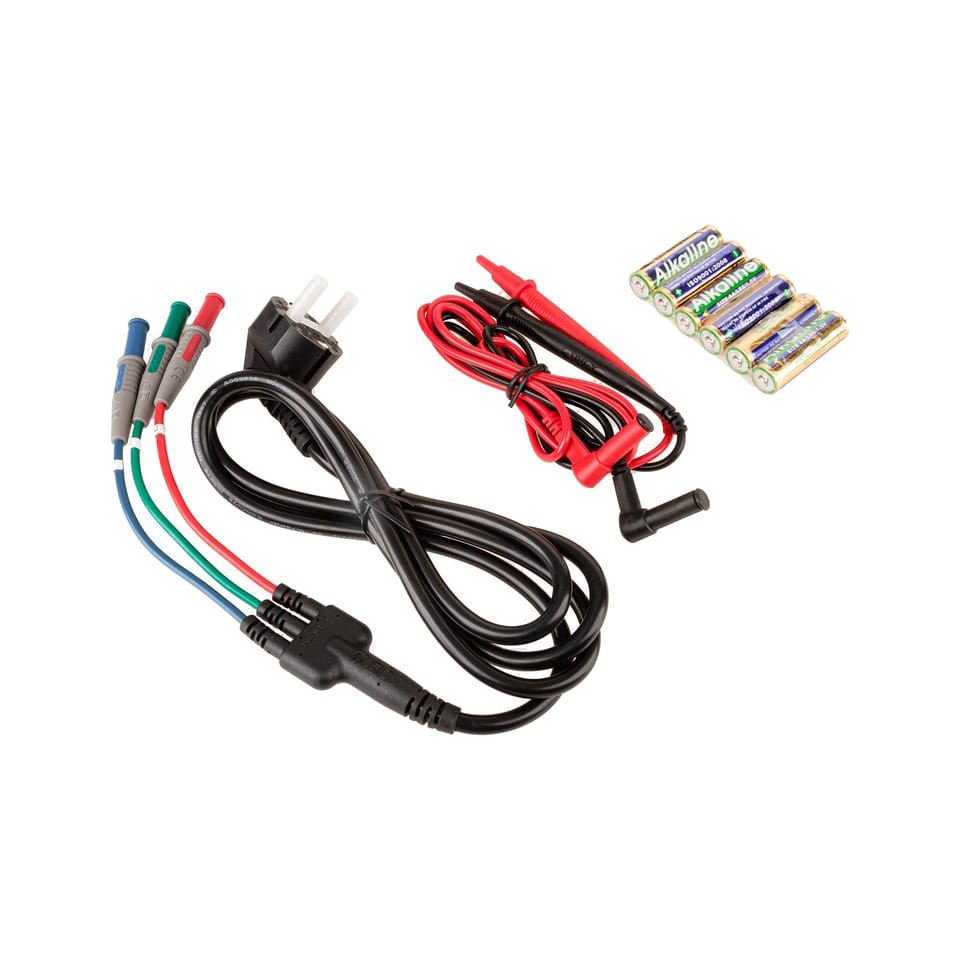

MEASURING RANGE AC voltage: 30-600 V ±(3%+3) (Voltage measurement frequency range: 45-65 Hz Testing of residual current circuit breakers with rated residual currents In: 10/20/30/100/300/500 mA Measurement of the time of operation of the circuit breaker at currents: x 1 / x1 / x5 – respectively 2000 ms / 1000 ms / 300 ms Measurement of the operating current of the residual current of the circuit breaker: 20% ~ 110% of the rated CURRENT OF THE RCD; max. measurement time: up to 300 ms ADDITIONAL FEATURES Phase reversal function Freezing last indication Indicator exceeding the range Automatic shutdown LCD backlight Low battery indicator GENERAL FEATURES Power supply: 6x 1.5 V (AA) battery Net weight: 400 g Dimensions: 160 x 70.5 x 100 mm Accessories: battery, 2 sets of test leads, strap, case
