MEASURING RANGES
----------
DC voltage: 200 mV/2 V/20 V/200 V/1000 V; ±(0.5%+3)
AC voltage: 200 mV/2 V/20 V/200 V/1000 V; ±(0.5%+10)
DC current: 2000uA /20 mA/200 mA/2 A/20 A; ±(0.5%+5)
AC current: 2000uA/20 mA/200 mA/2 A/20 A; ±(0.8%+10)
Resistance: 200 Ohm/2 kOhm/20 kOhm/2 MOhm/20 MOhm/200 MOhm; ±(0.3%+2)
Capacity: 2000 mF; ±(4%+20)
Frequency: 10Hz~2MHz; ±(0.1%+3)
Temperature: -40°C-1000°C; ±(2%+8)
Diode test
Checking the continuity of the circuit
hFE measurement of transistors
-----------
ADDITIONAL FEATURES
-----------
Manual change of measuring ranges
Maximum reading: 19999
Low battery indicator
Auto Power Off
Freezing of the last indication
-----------
GENERAL FEATURES
-----------
Power Supply: 2 * AA batteries (1.5V)
Product dimensions: 175 x 83 x 53 mm
Weight: 330 g

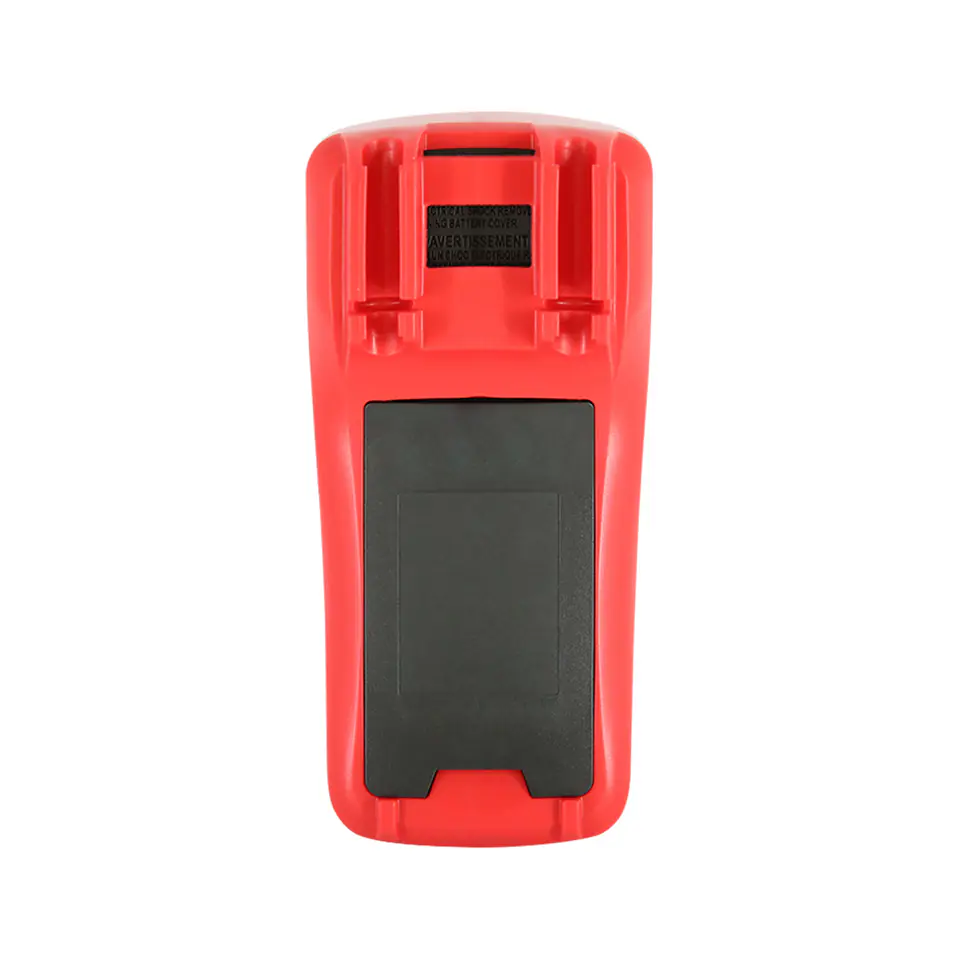

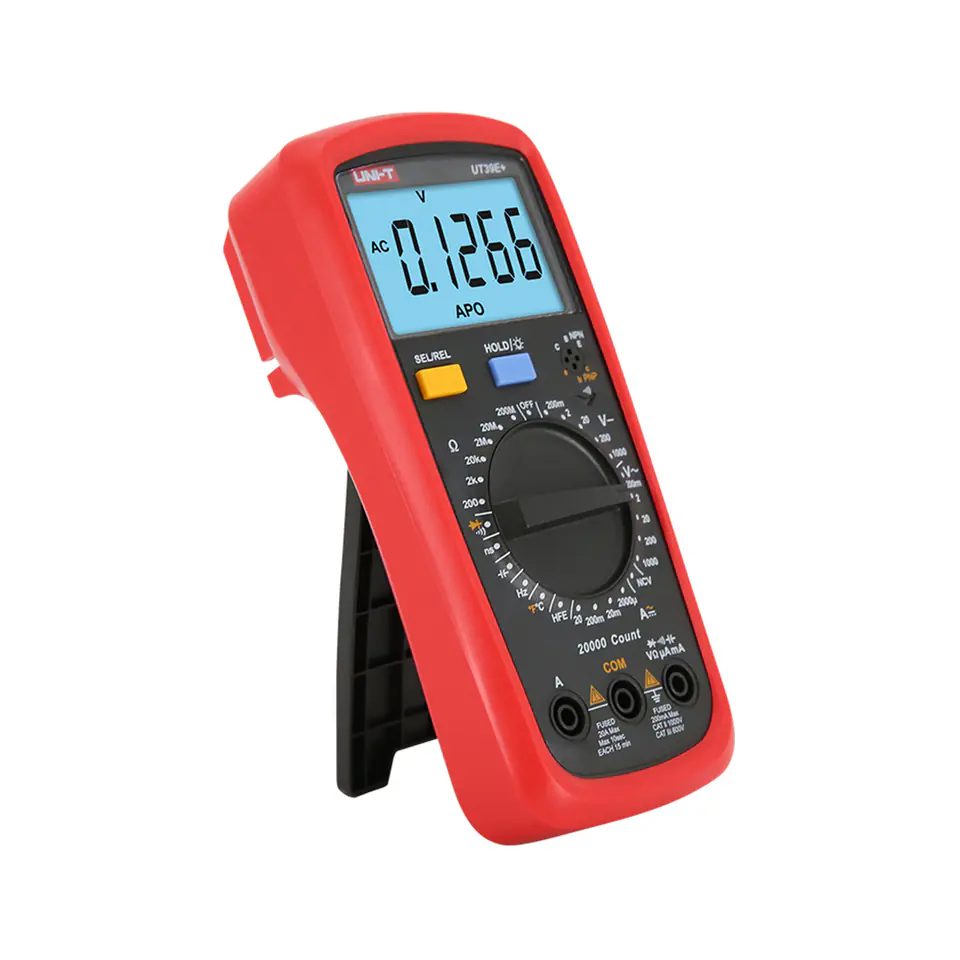

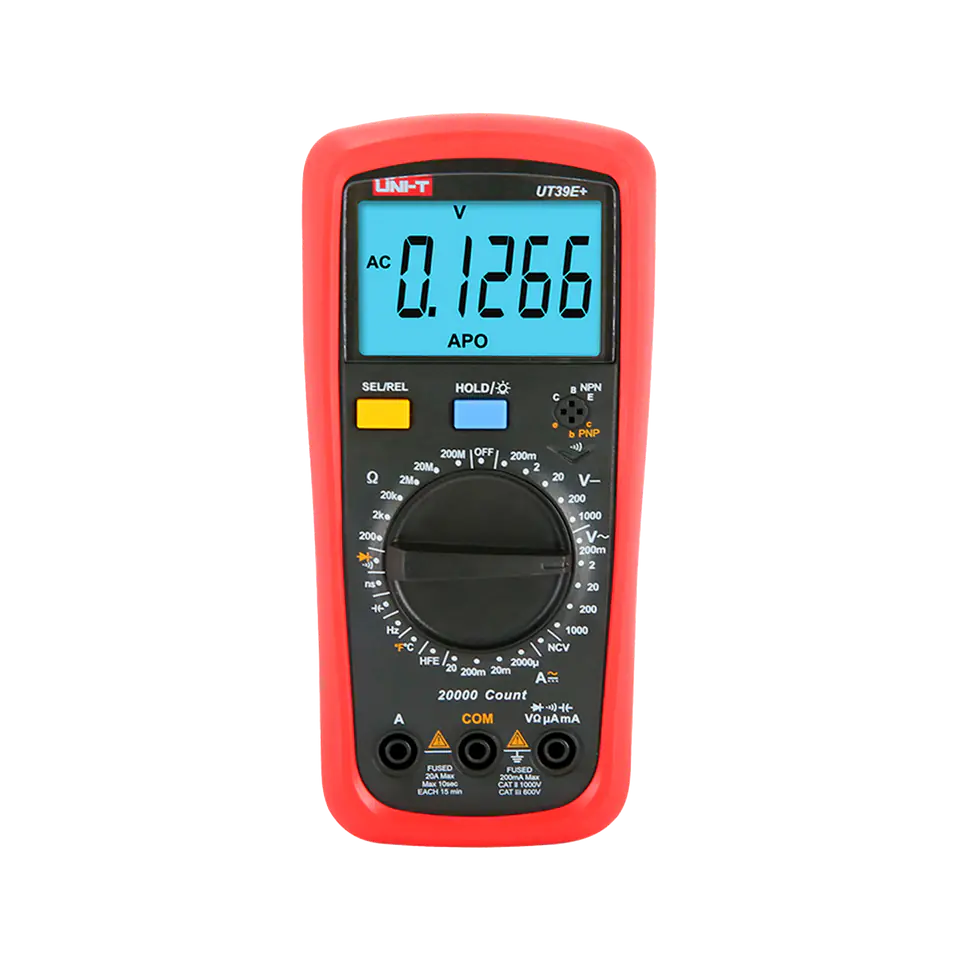

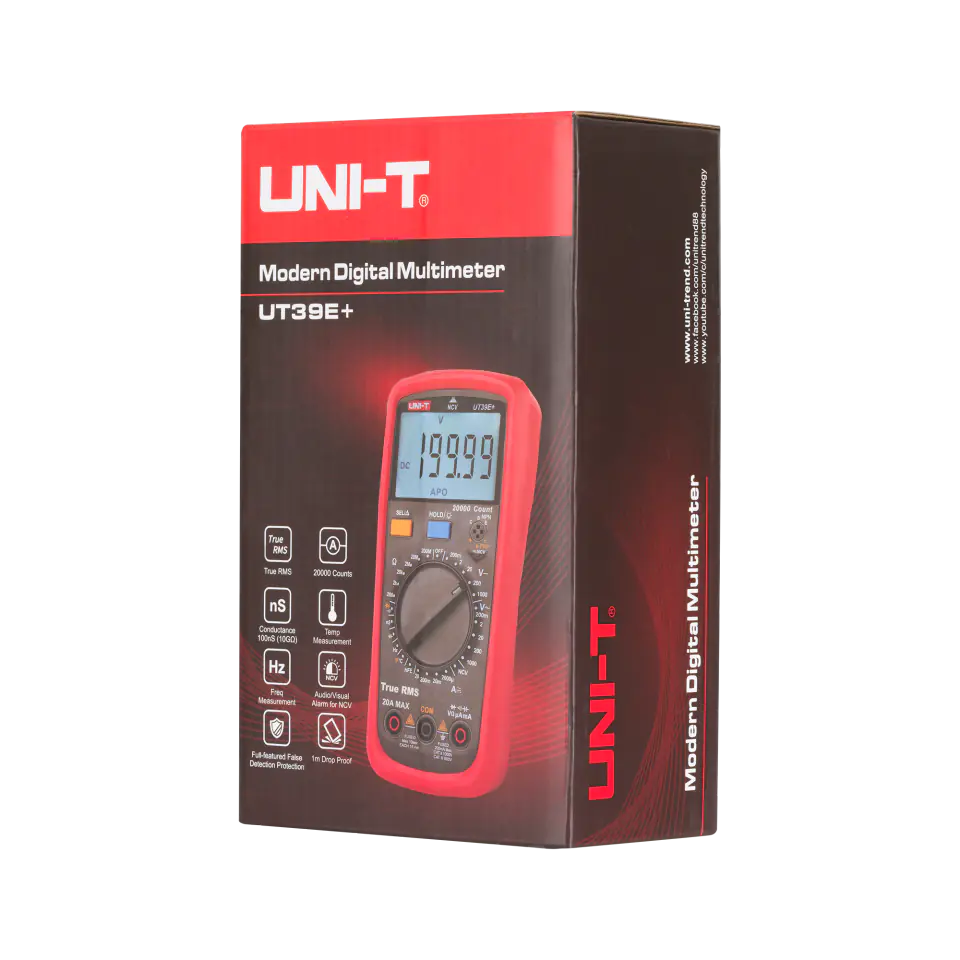

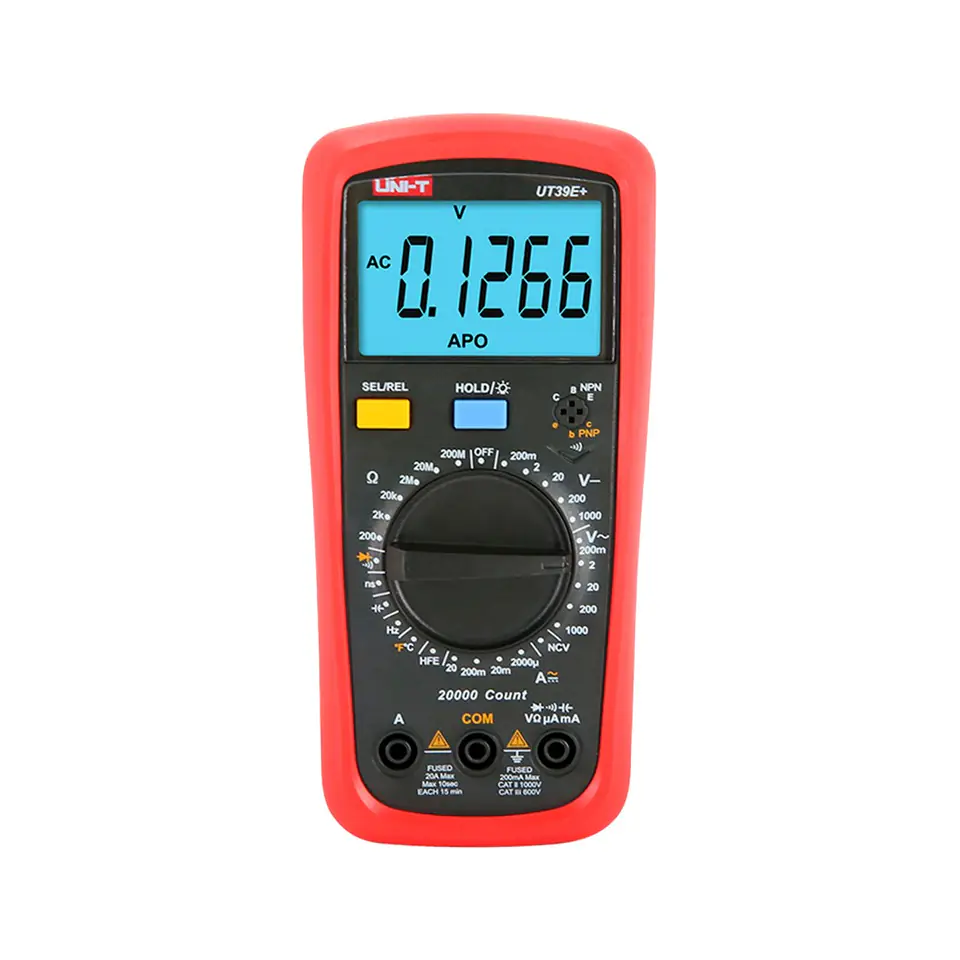

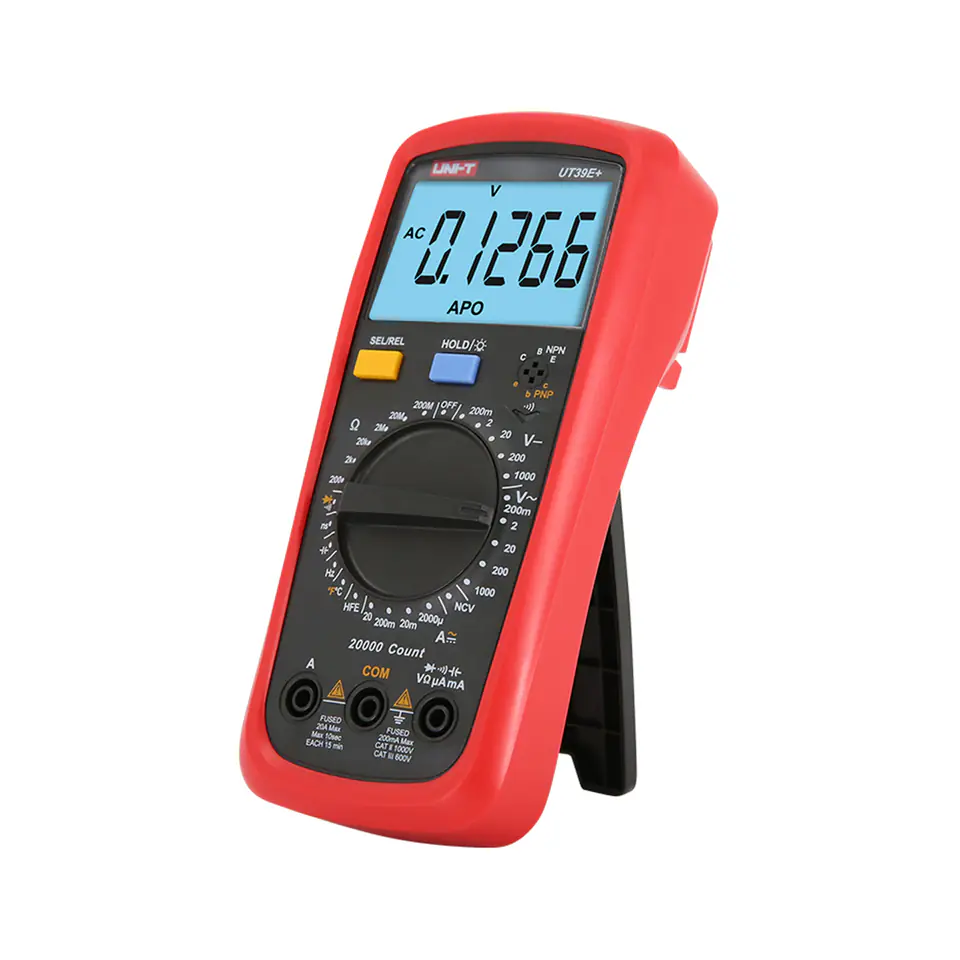

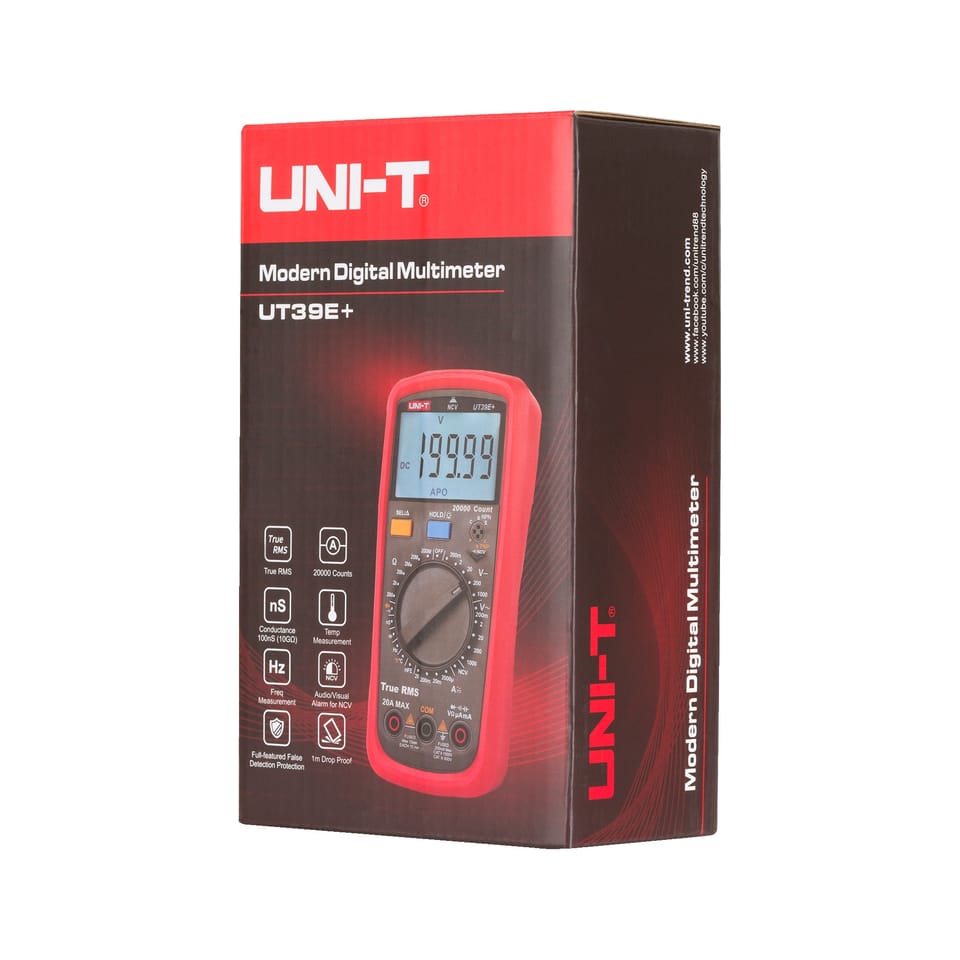

Uni-T UT39E+ Universal Meter
€43.09
Shipping from warehouse: L1
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
