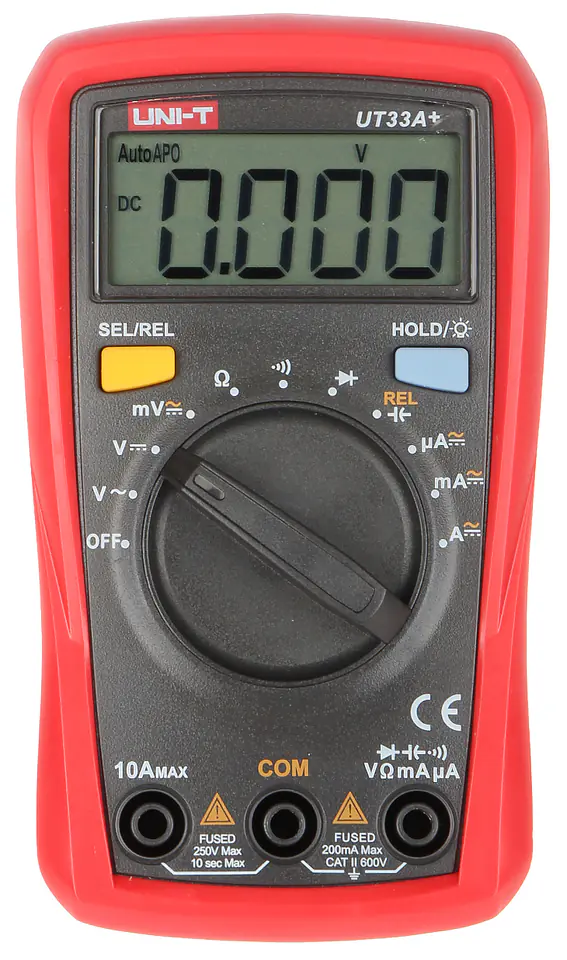

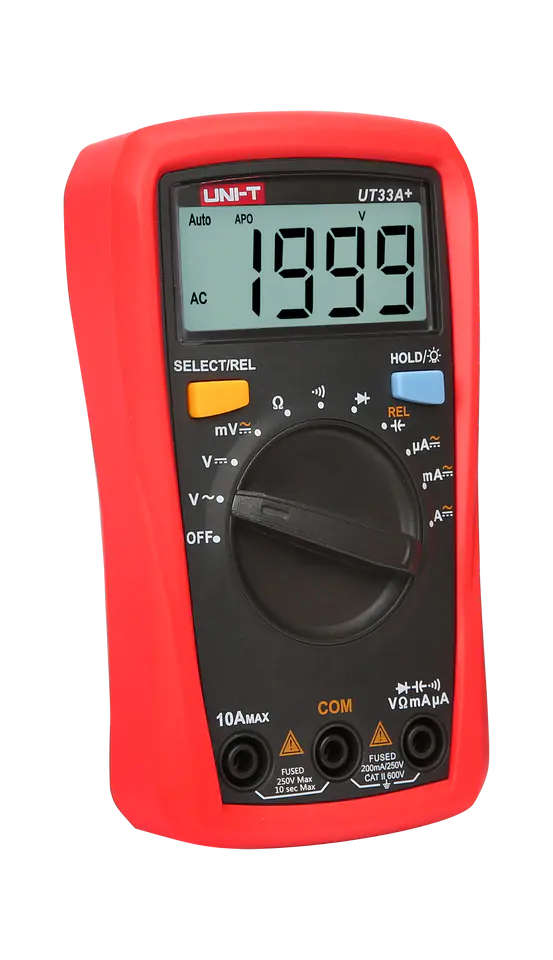

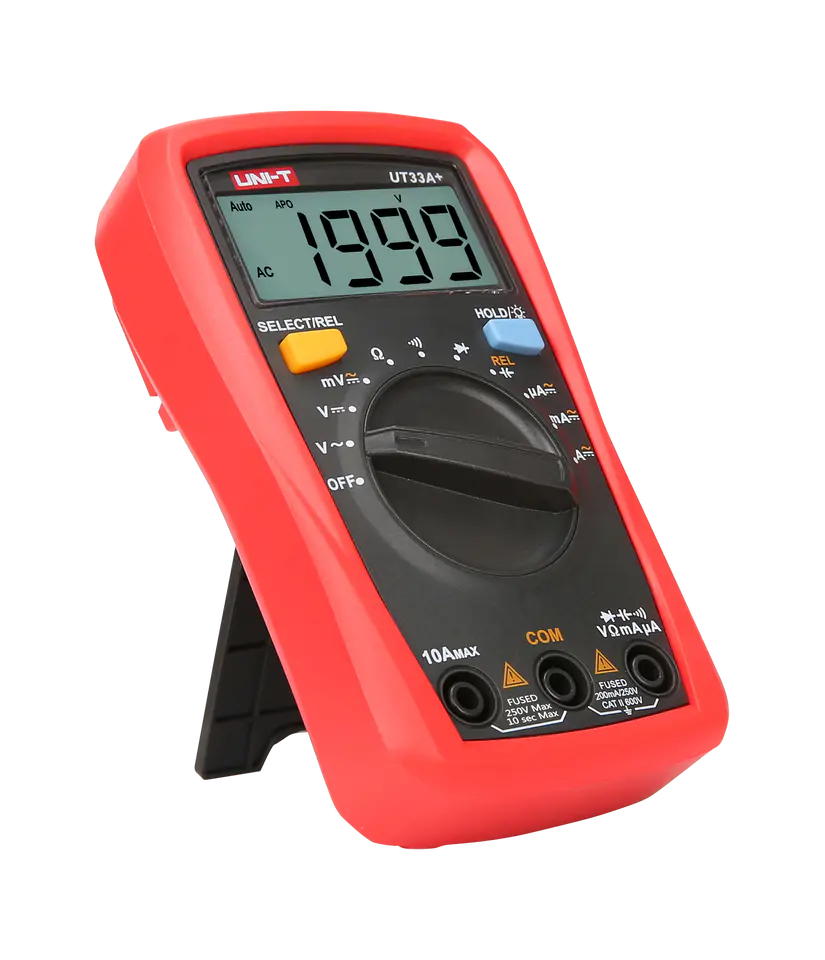

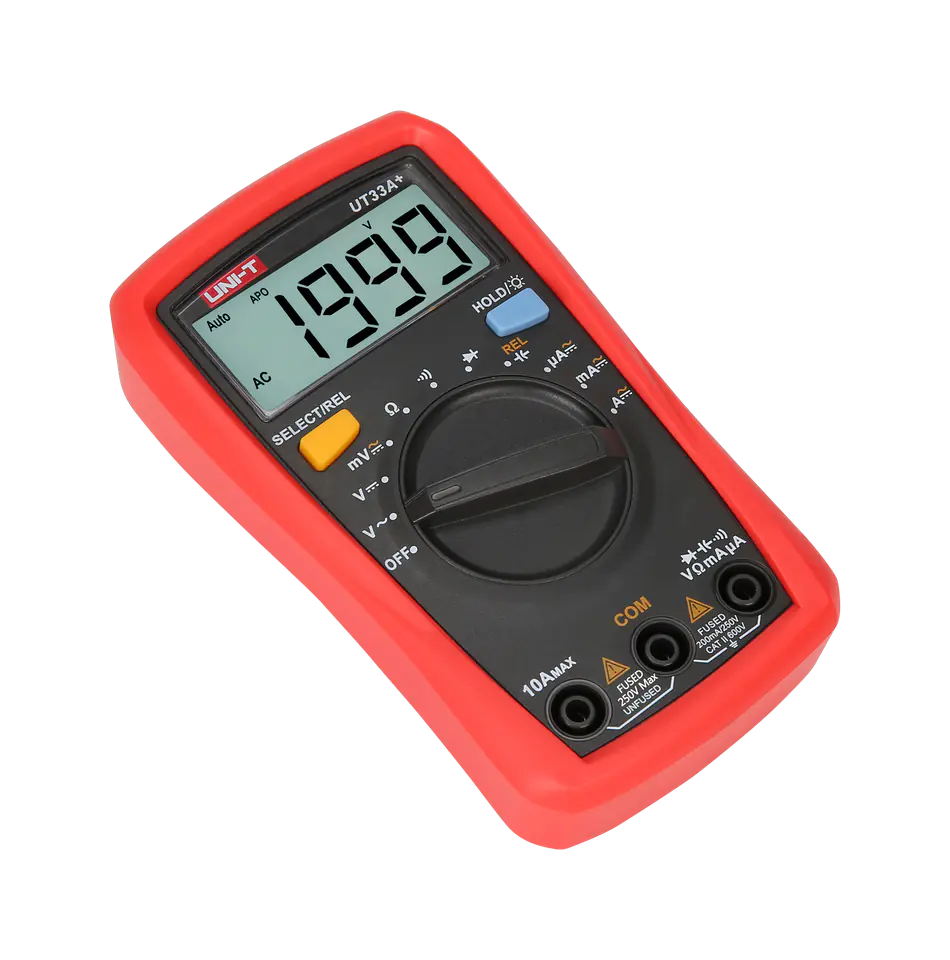

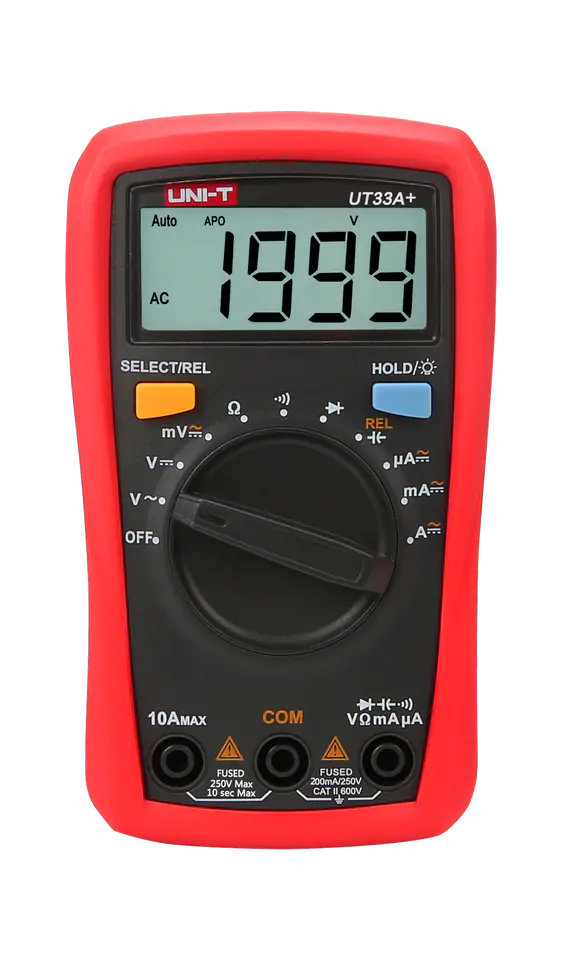

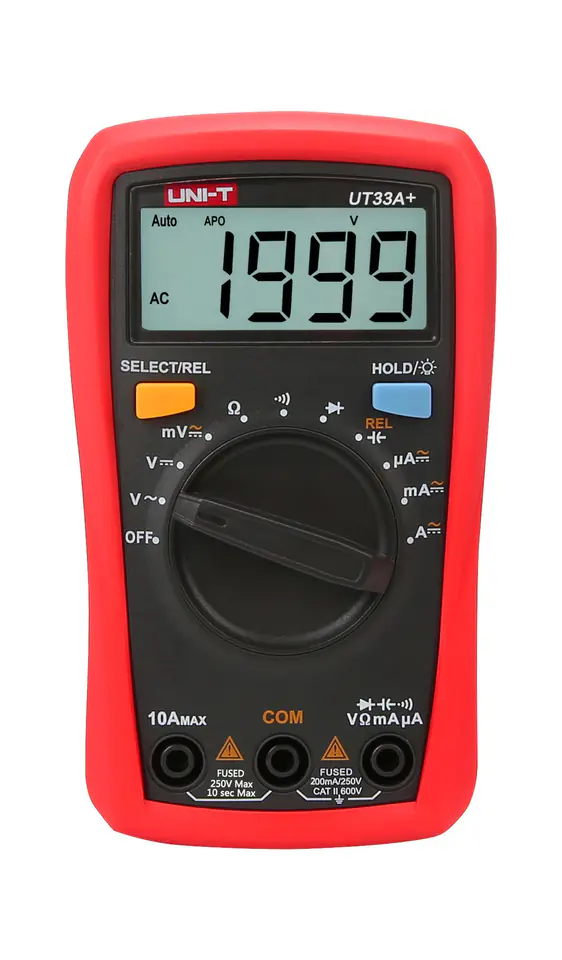

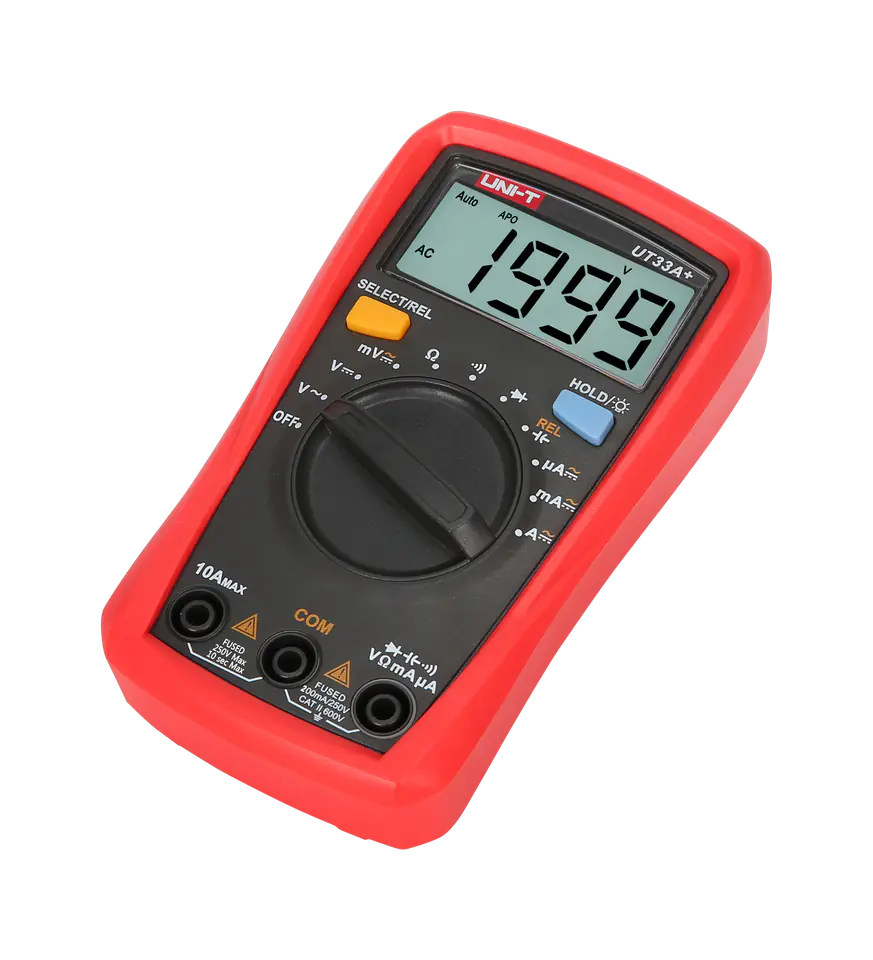

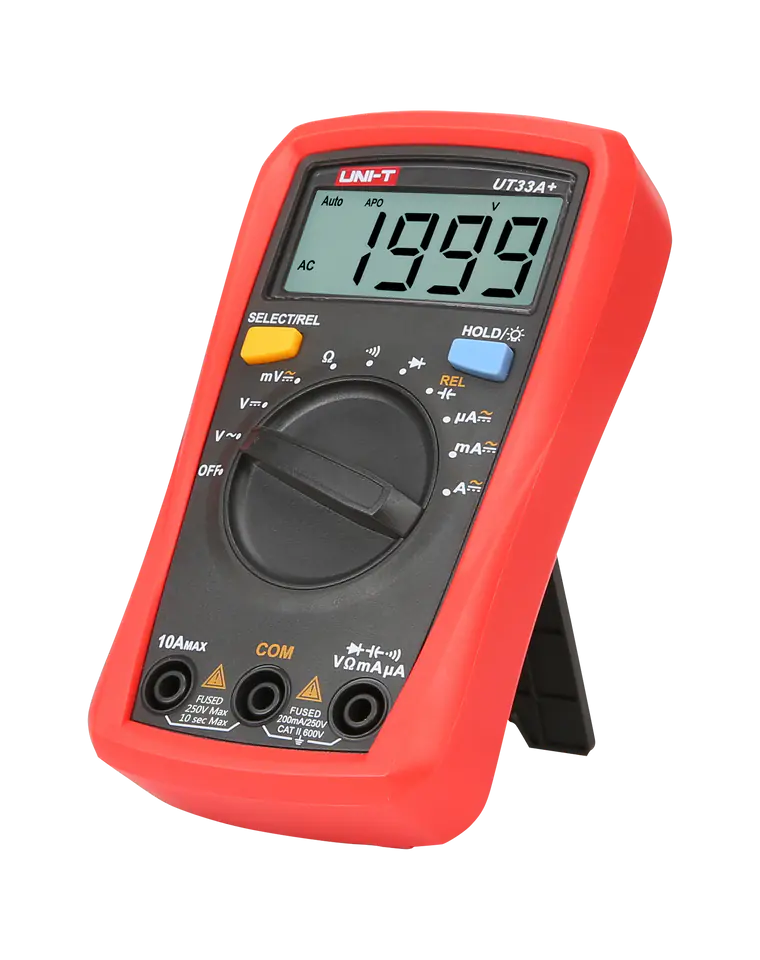

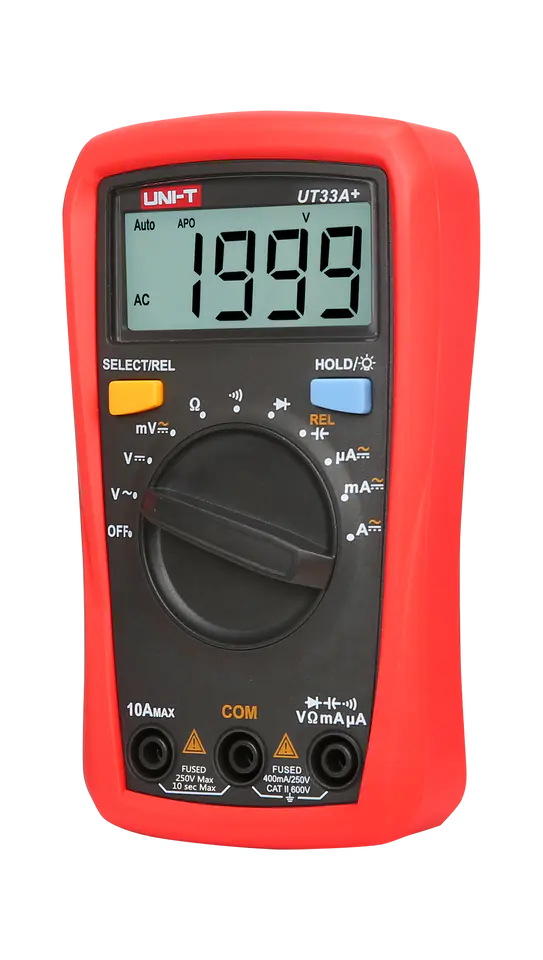

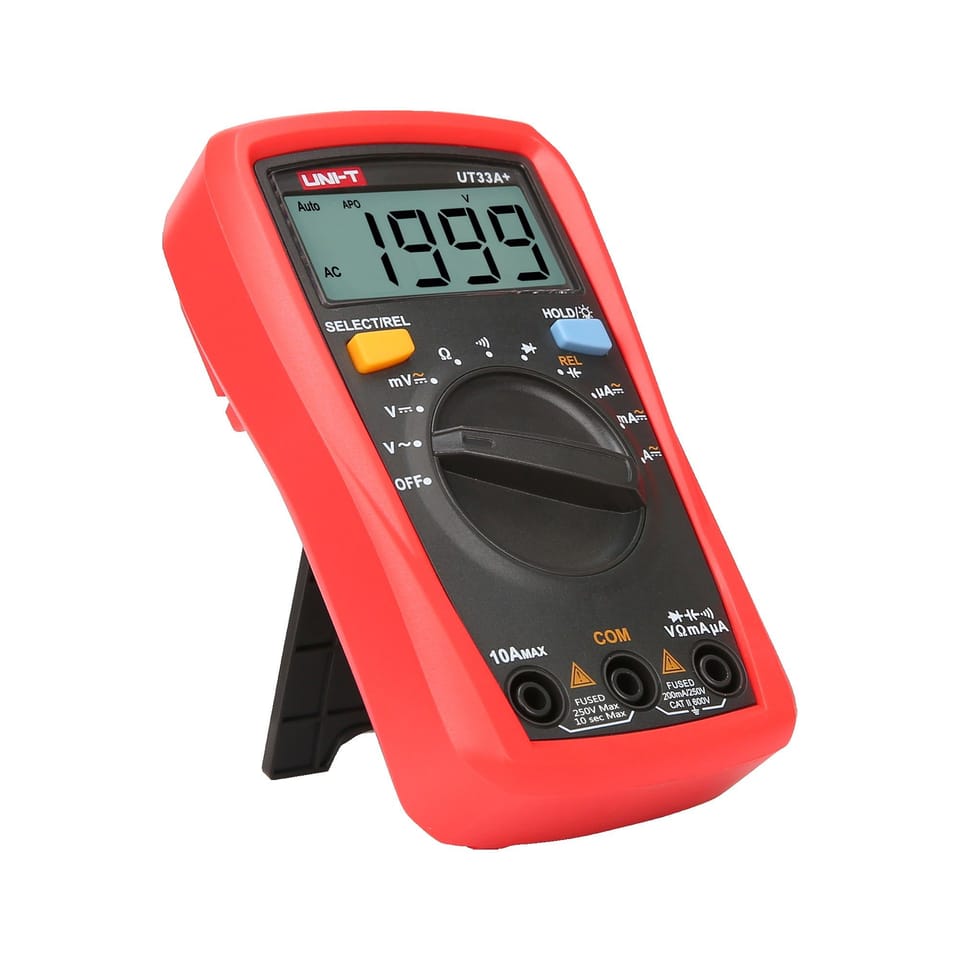

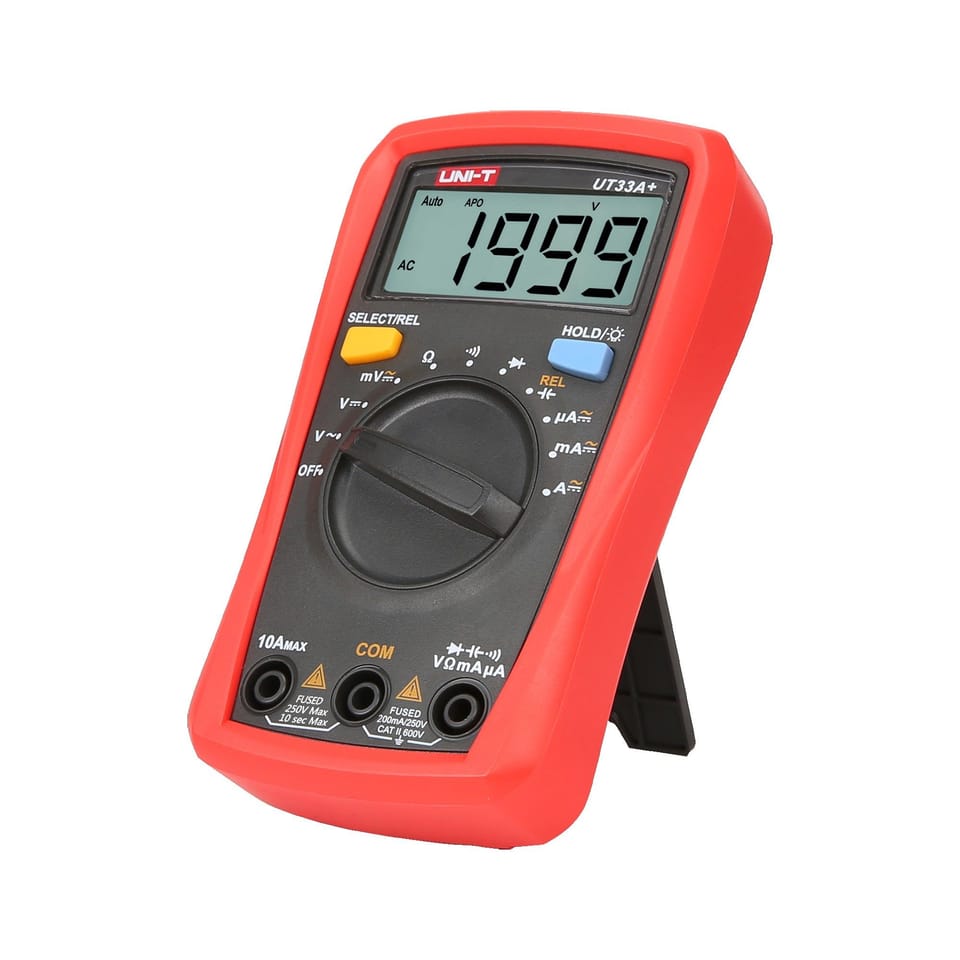

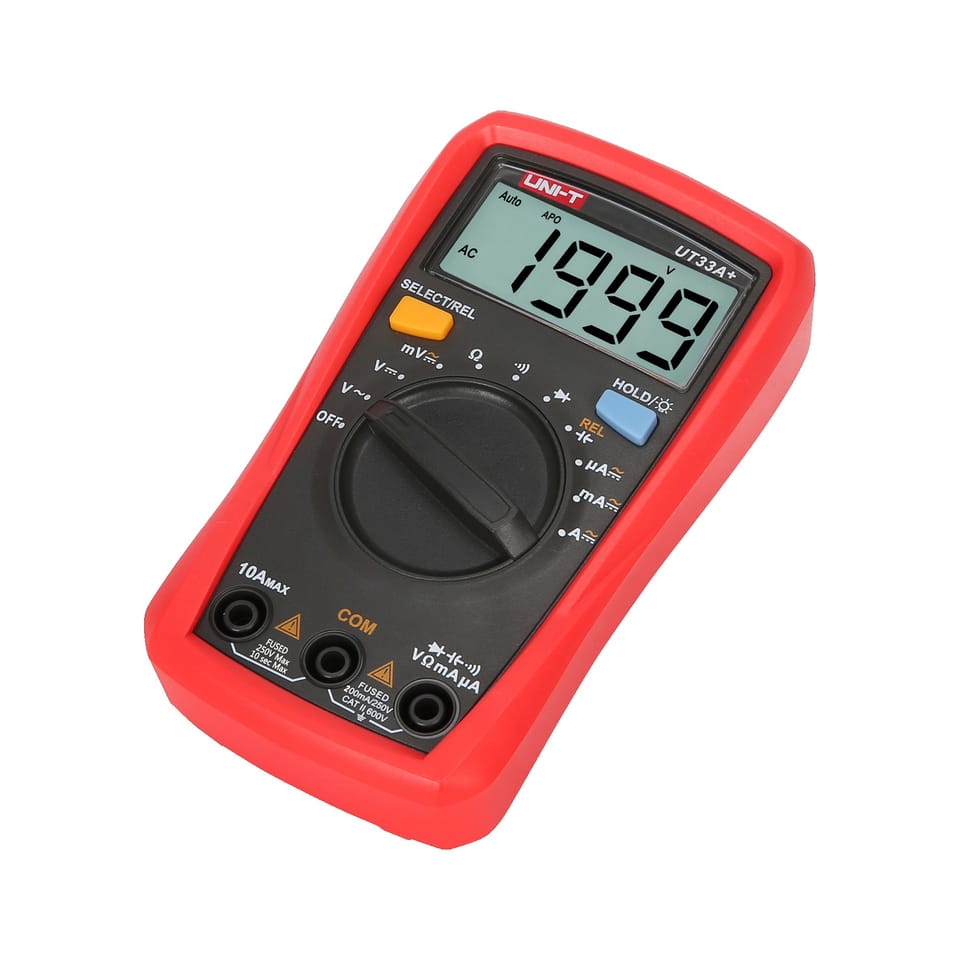

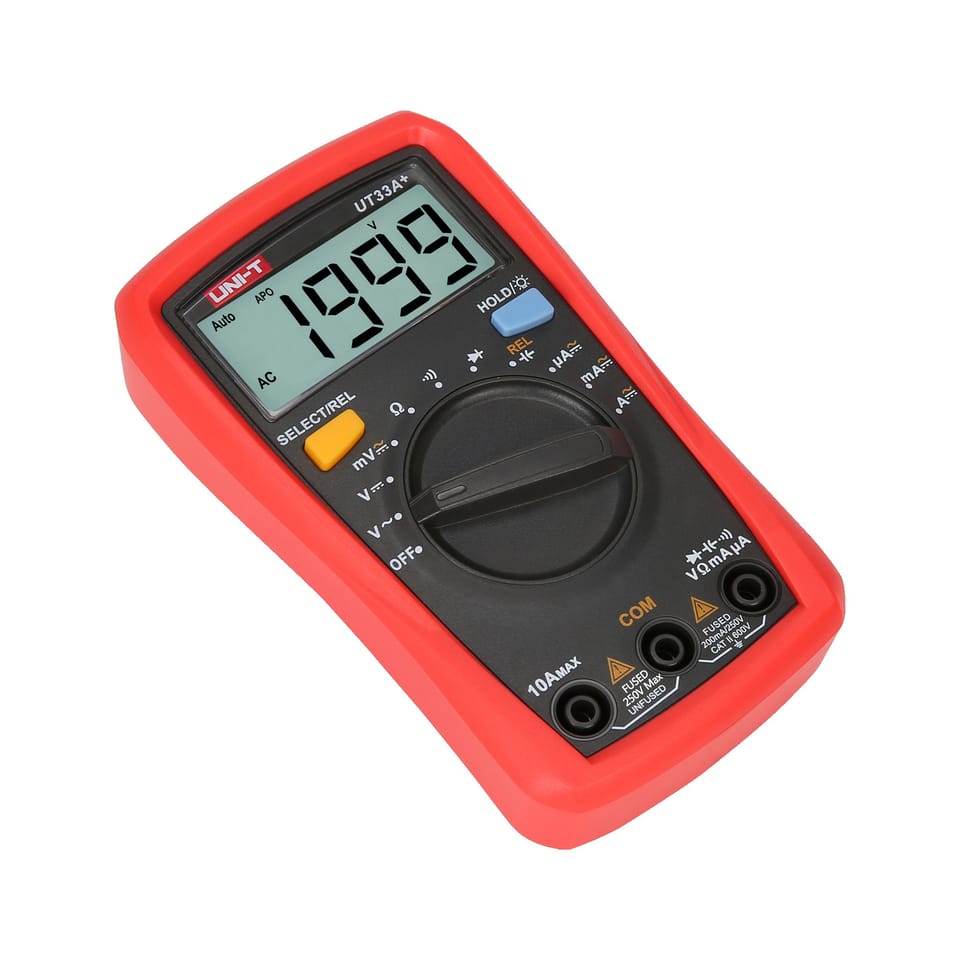

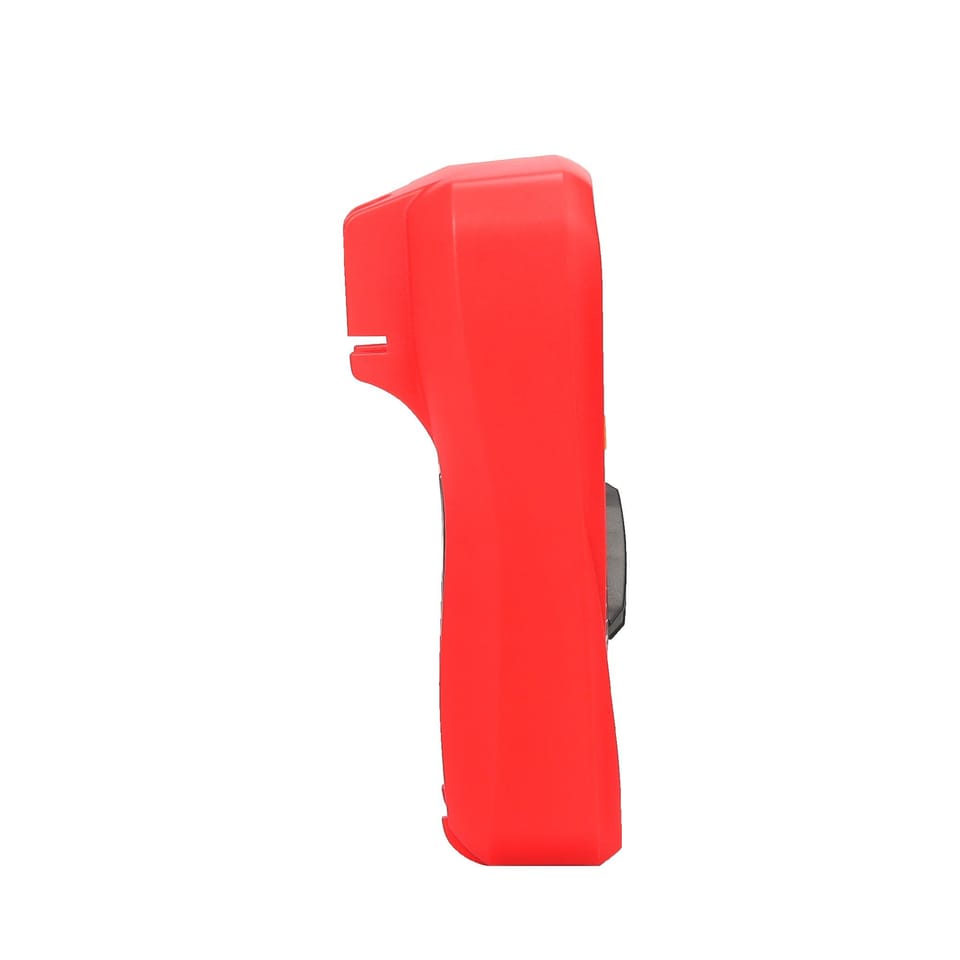

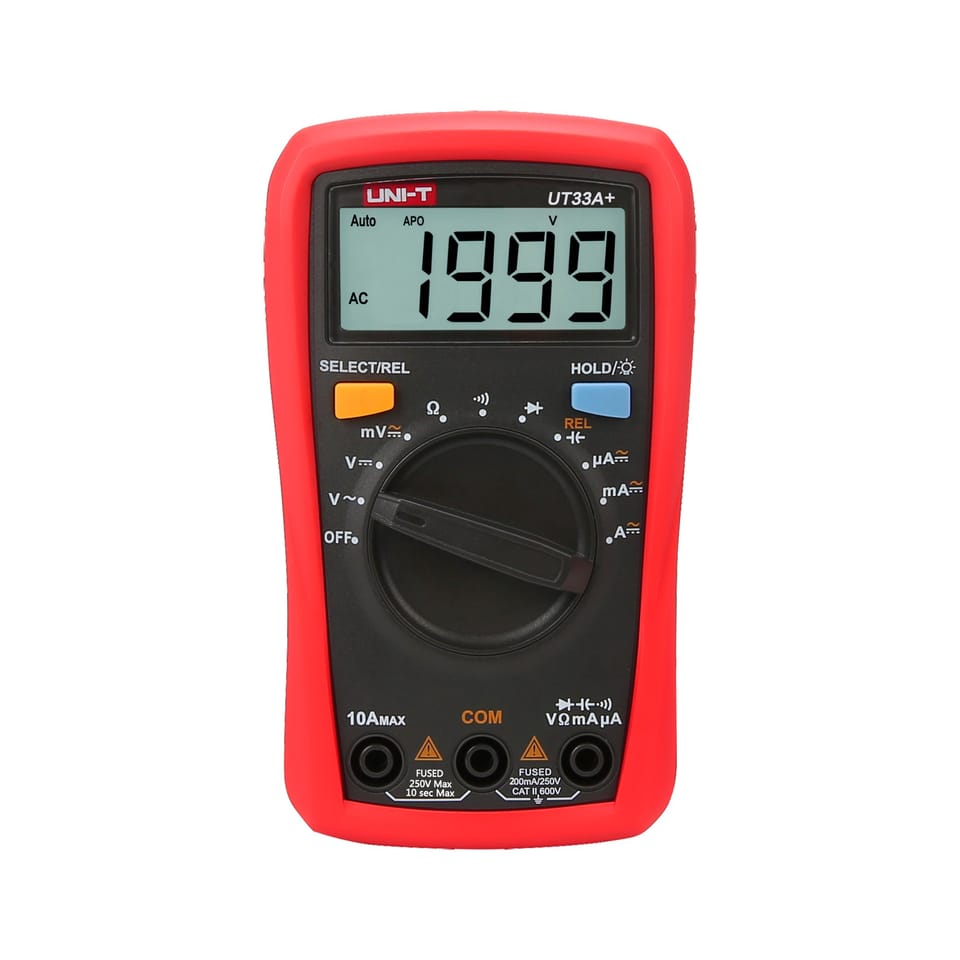

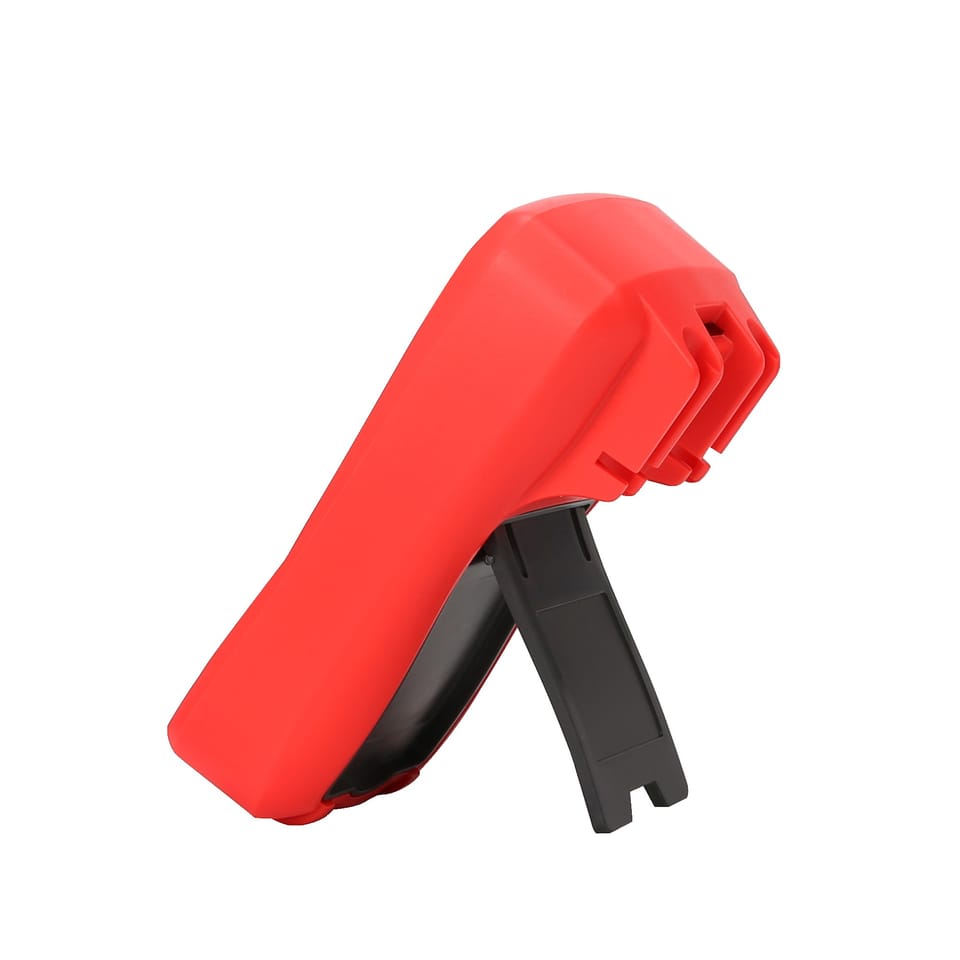

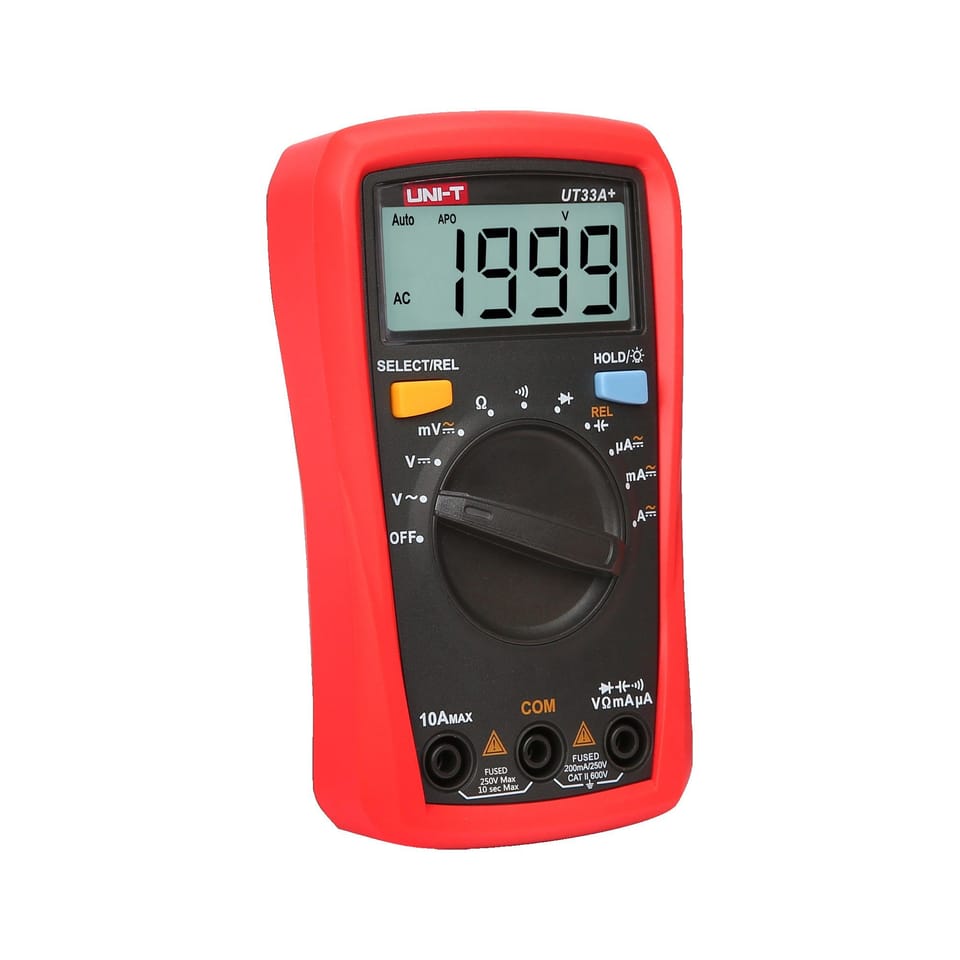

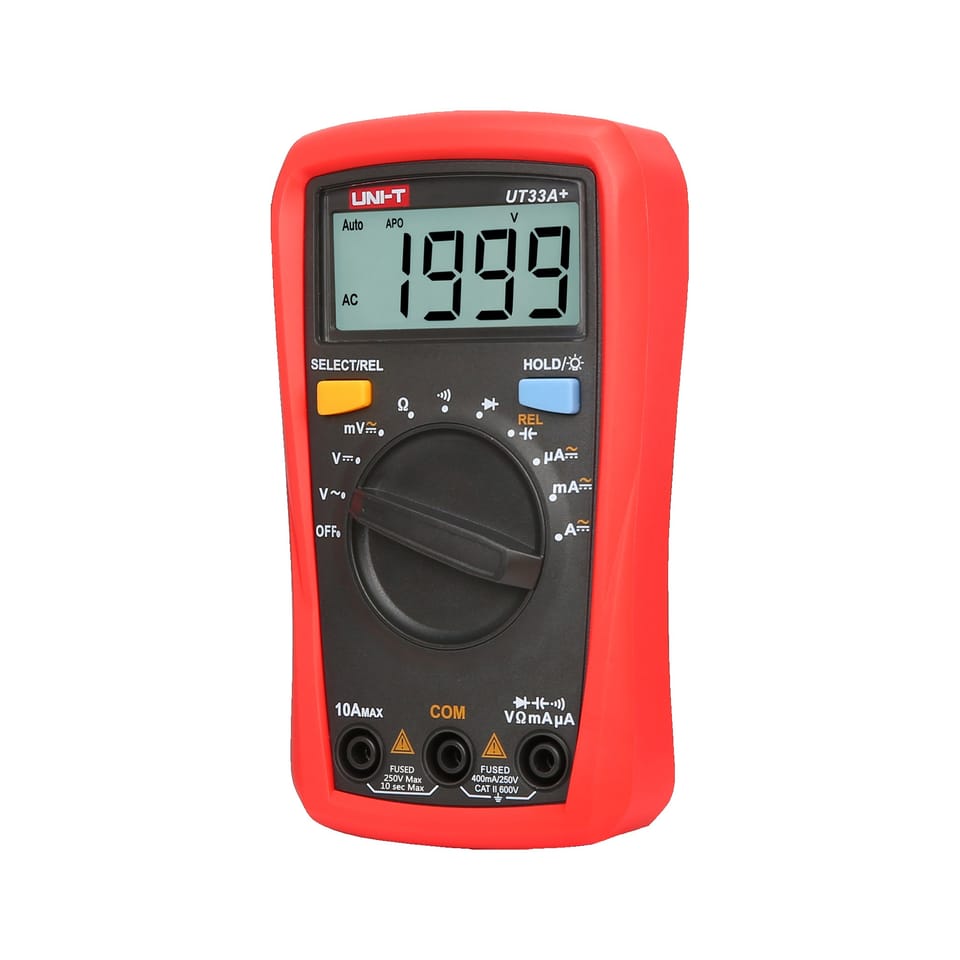

Uni-T UT33A+ Universal Meter

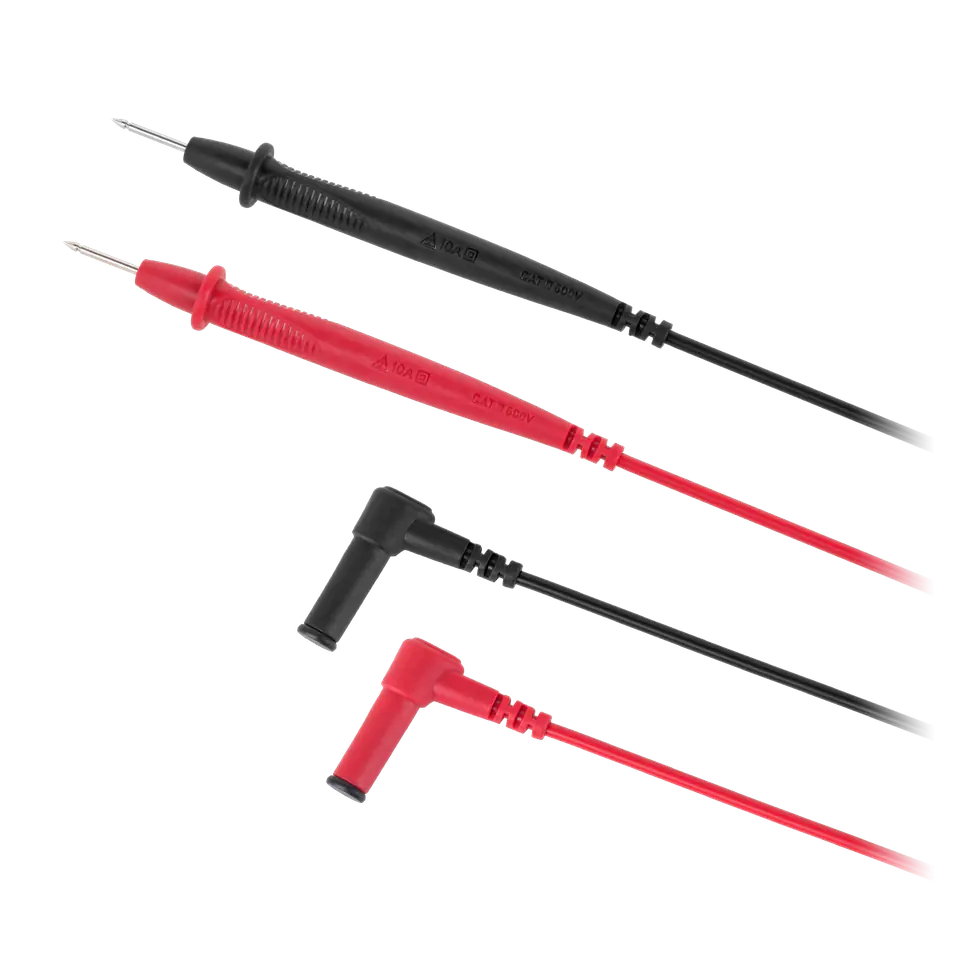

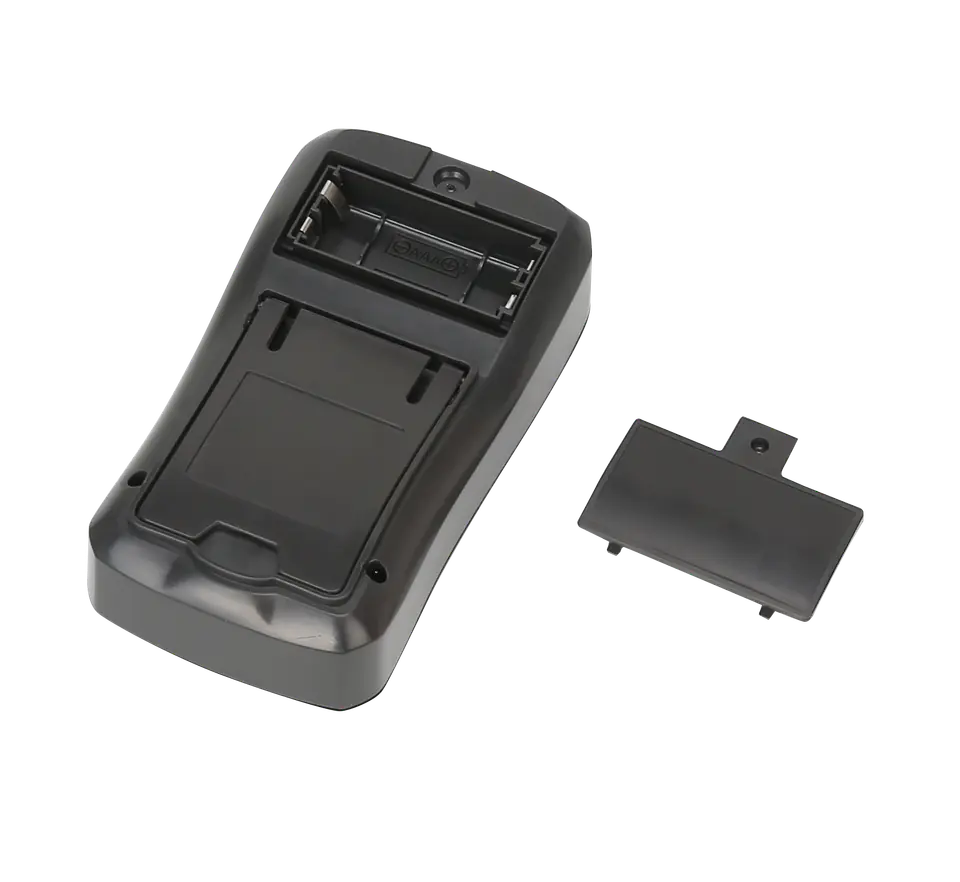

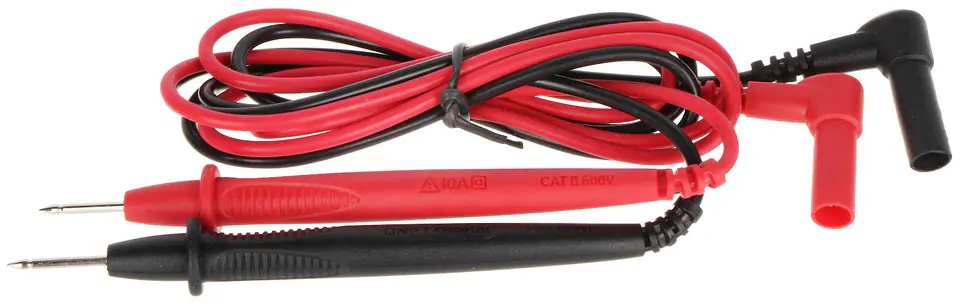

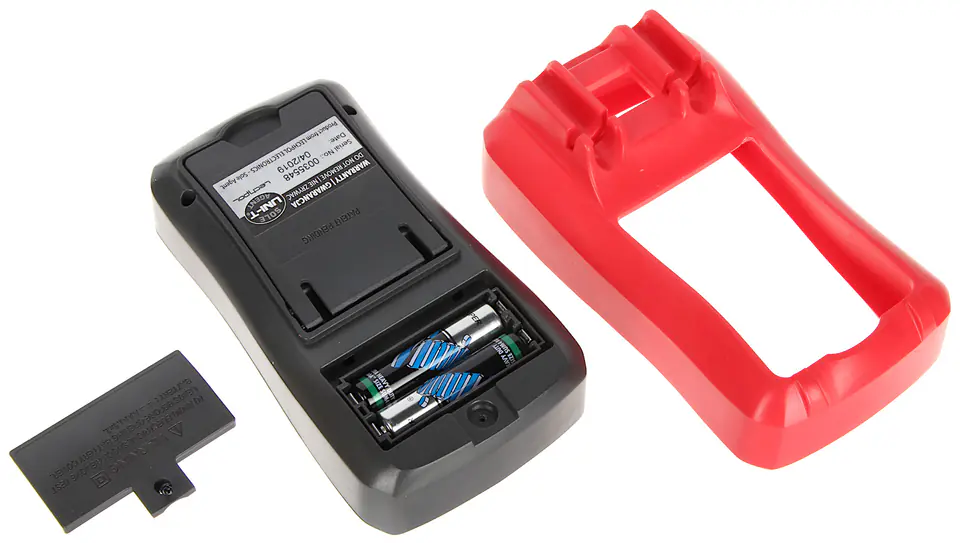

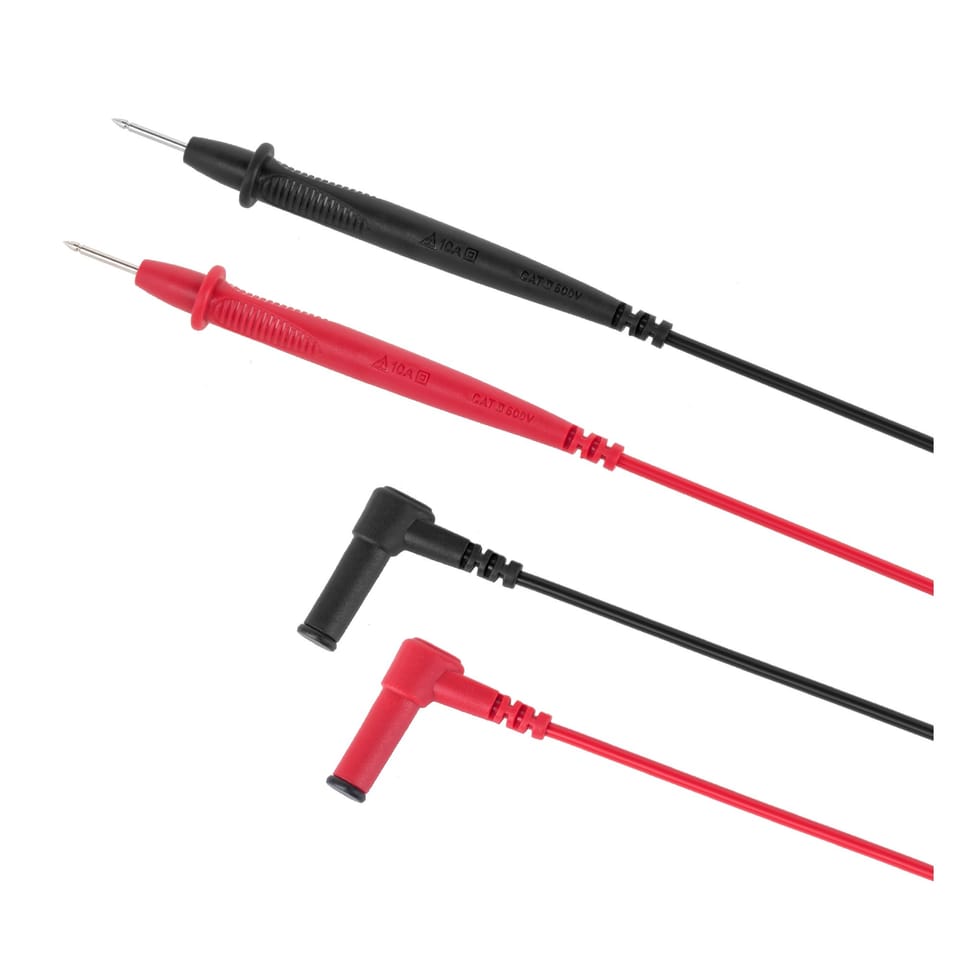

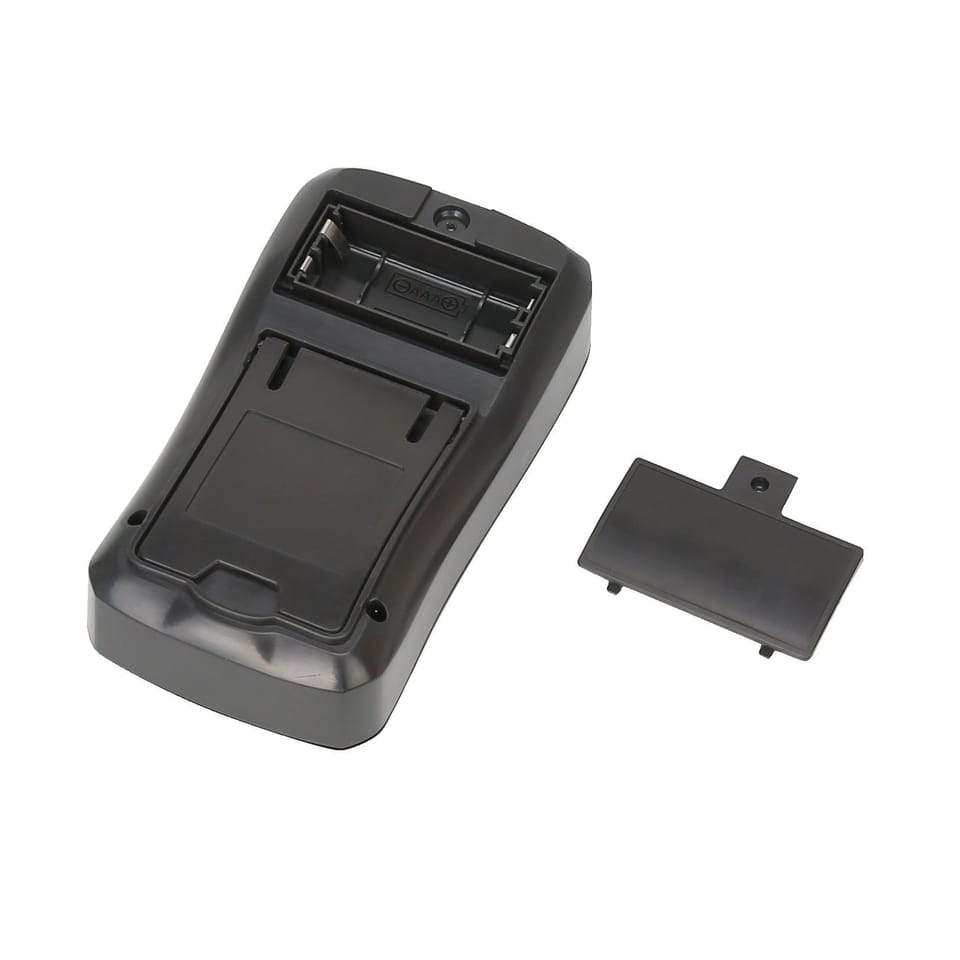

MEASURING RANGEDC voltage: 200 mV / 2000 mV / 20 V / 200 V / 600 V ? (0,5%+2) AC voltage: 200 mV / 2 V / 20 V / 200 V / 600 V ? (0,7%+3) DC current: 200 ? A / 2000 ? A / 20 mA / 200 mA / 2 A / 10 A ? (1%+2) AC: 200 ? A / 2000 ? A / 20 mA / 200 mA / 2 A / 10 A ? (1,2%+3) Resistance: 200 Ohm / 2000 Ohm / 20 kOhm / 200 kOhm / 20 MOhm / 200 MOhm ? (0,8%+2) Capacity: 2 nF / 20 nF / 200 nF / 2 ? F/ 20 ? F/200 ? F / 2 mF ? (4%+8) Diode testChecking continuity of the circuit ADDITIONAL FUNCTIONSAutomatic change of measurement ranges Relative measurement function (applies only to capacitance measurement)Freezing of the last indicationLow battery indicatorMaximum reading: 2000Exposed LCD screenGENERAL specificationsDIRECT voltage input impedance: about 10 MOhmPower: battery 2x 1.5 V (R03) battery Display size: 48 x 16 mm Product dimensions: 134 x 77 x 47 mm Product weight: 206 gAccessories: Batteries, test leads, holster
