MAIN PARAMETERS
-----------
Analog bandwidth: 100MHz
Rise time: 3.5 ns
Number of channels: 2
Sampling rate: 1 GS/s
Memory depth: 64 kpts
Mileage capture rate: 5000 wfms/s
Time Base: 2 ns/div ~ 50 s/div
Measurement data recording method: setup, wave, bitmap
Triggering ways: slope, pulse width, video signal
Mathematical operations: addition, subtraction, multiplication, division, FFT
Interfaces: USB Host, USB Device, Pass/Fail
-----------
GENERAL FEATURES
-----------
Power supply: 100 V~240 V AC rms, 45-440 Hz
Display: 7" TFT LED (800x480 px)
Dimensions: 336 x 164 x 108 mm
Weight: 3.5 kg

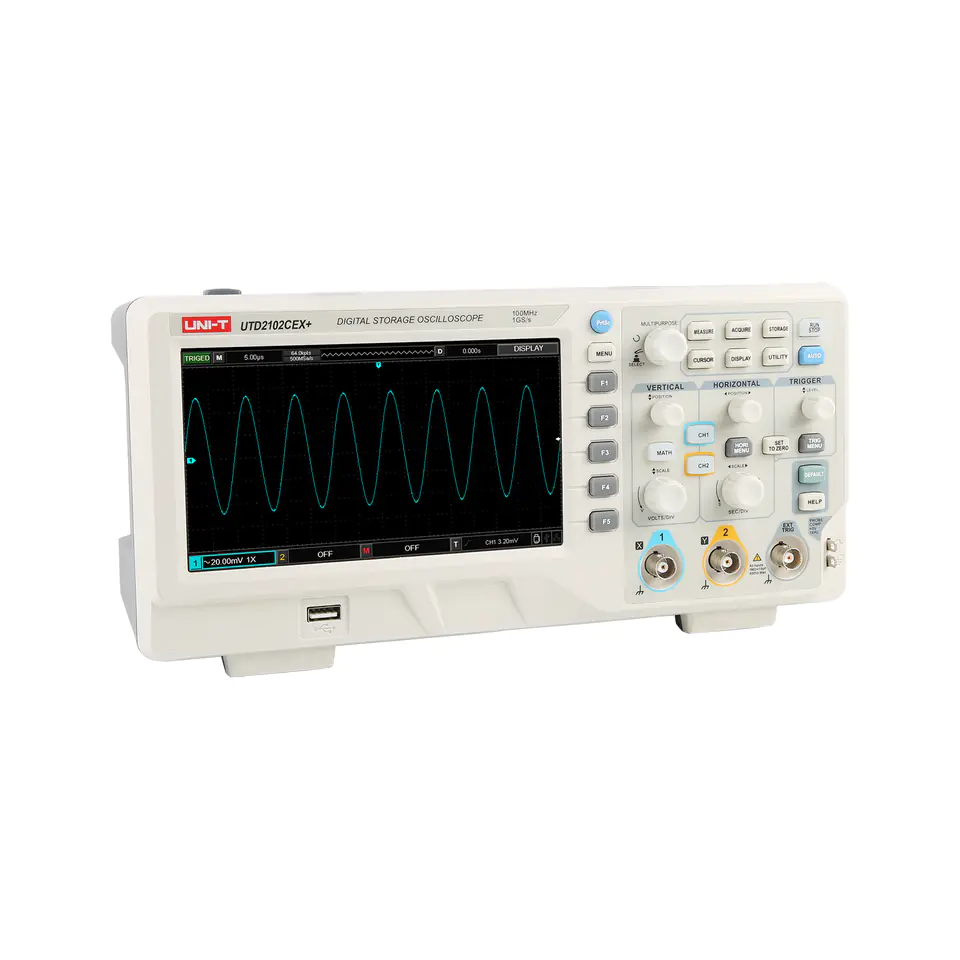

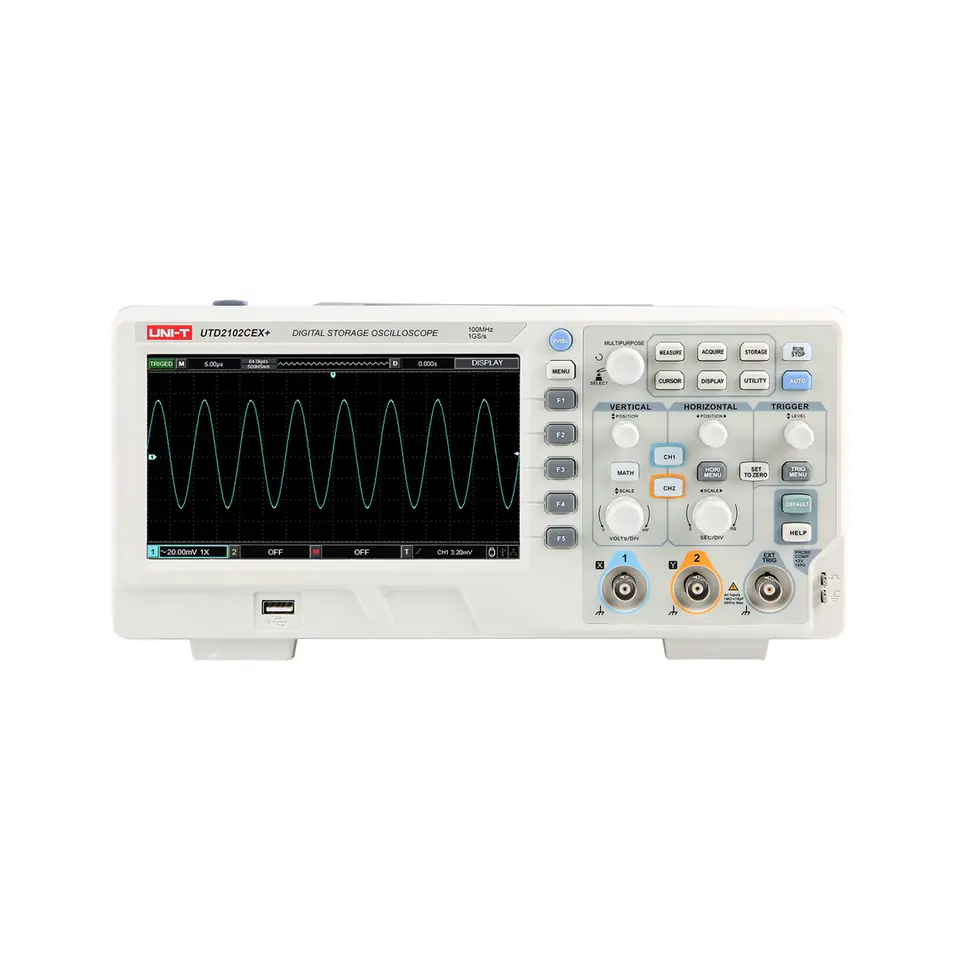

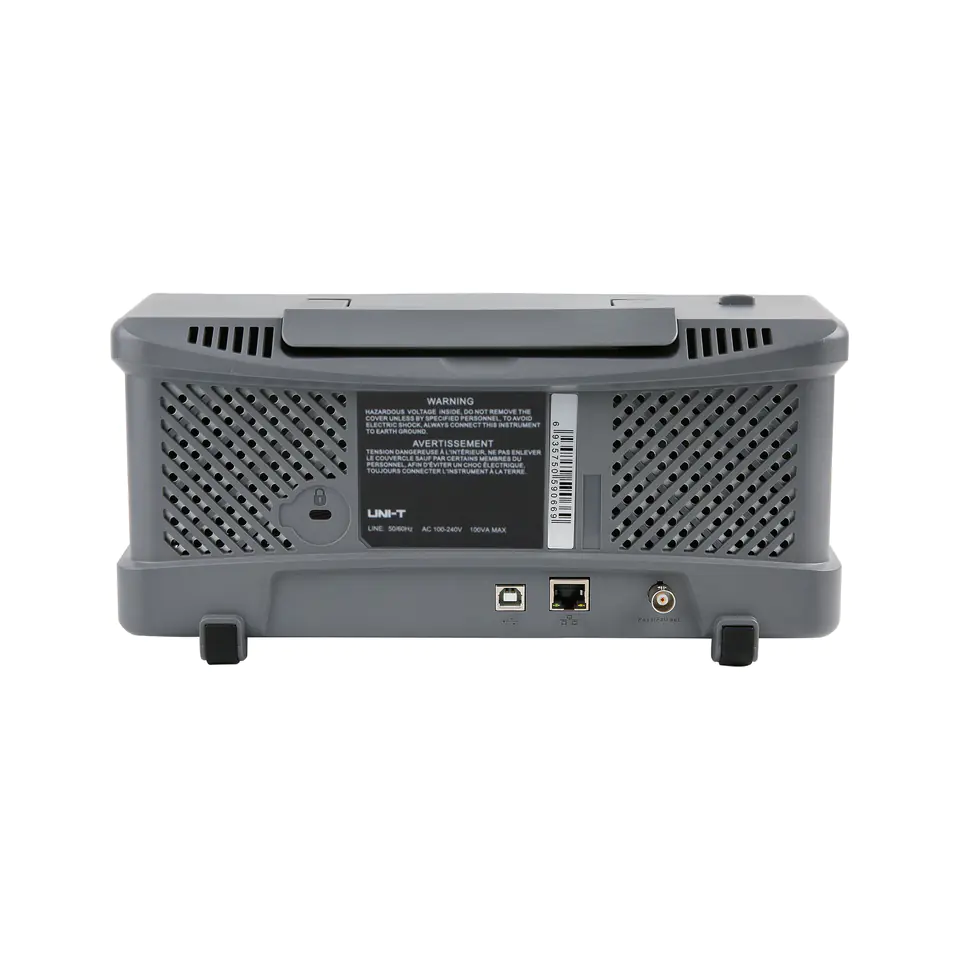

Uni-T Oscilloscope UTD2102CEX+
€342.69
Shipping from warehouse: L1
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- MIE0442 / 5901890074698
Share this product:
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
