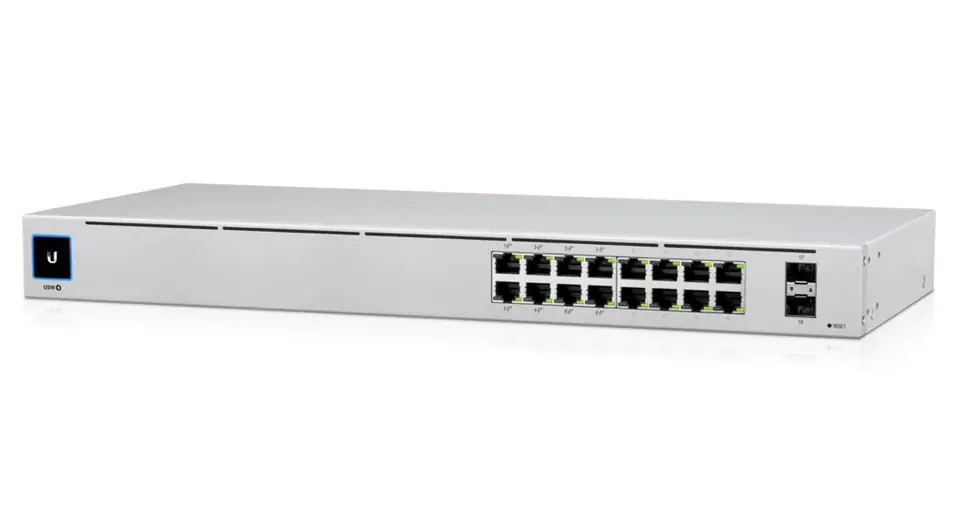

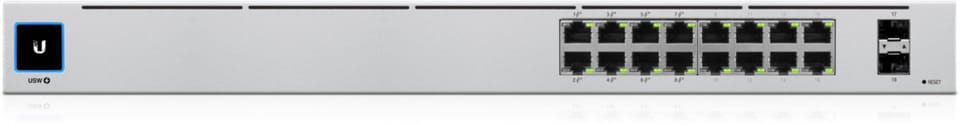

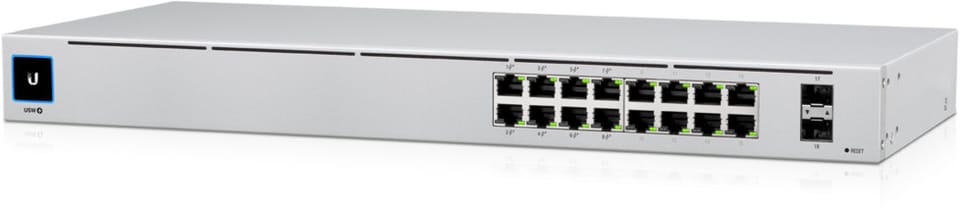

The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports, including eight PoE + ports with 802.3at auto-detection and two SFP ports. Provides Gigabit PoE links to RJ45 Ethernet devices and Gigabit Fiber link options to enterprise networks.
UBIQUITI USW-16-POE UNIFI SWITCH GEN2 16x GIGABIT POE+ PORTS, 2x SFP PORTS
€371.75
Shipping from warehouse: H7
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- USW-16-POE / 0817882028547
Share this product:
Specification
| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Ac input voltage: | 100 - 240 V |
| Arrangement: | 1U |
| Authentication type: | IEEE 802.1x, RADIUS |
| Auto mdi/mdi-x: | Yes |
| Auto-sensing: | Yes |
| Automatic detection: | yes |
| Automatic mdi/mdi-x: | yes |
| Basic ethernet switching rj-45 ports type: | Gigabit Ethernet (10/100/1000) |
| Basic rj-45 switching ethernet ports quantity: | 16 |
| Basic switching rj-45 ethernet ports quantity: | 16 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Certificates: | CE, FCC, IC |
| Communication standards: | IEEE 802.3af, IEEE 802.3at |
| Dc input voltage: | 44 - 57 V |
| Depth: | 200 mm |
| Enclosure type: | Rack (1U) |
| Flow control support: | Yes |
| Form factor: | 1U |
| Forwarding rate: | 26.78 Mpps |
| Forwarding speed: | 26,78 |
| Full duplex: | Yes |
| Full duplex: | yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 43.7 mm |
| Installed sfp modules quantity: | 2 |
| Jumbo frames compatible: | yes |
| Jumbo frames support: | Yes |
| Led indicators: | Link, System, Activity, Speed, PoE |
| Leds: | Operation, Link, PoE, Speed, System |
| Management: | Via a web browser |
| Multilayer switch: | L2/L3 |
| Networking standards: | IEEE 802.3at, IEEE 802.3af |
| Number of lan ports: | 2x [1G (SFP)] |
| Number of poe ports: | 8x [802.3af/at (1G)] |
| Number of sfp modules installed: | 2 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | -5 - 40 °C |
| Planned delivery: | 29.05.2023 |
| Poe support: | yes |
| Port mirroring: | Yes |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 32 W |
| Power over ethernet (poe) power supply per port: | 32 |
| Power over ethernet plus (poe +) ports quantity: | 8 |
| Power over ethernet plus (poe+) ports quantity: | 8 |
| Power supply included: | Yes |
| Product colour: | Silver |
| Product depth: | 200 |
| Product height: | 43,7 |
| Product weight: | 2,8 |
| Product width: | 442,4 |
| Rack mountable: | yes |
| Rack mounting: | Yes |
| Relative humidity range: | 10 - 90 |
| Routing/switching throughput: | 36 |
| Sfp module slots quantity: | 2 |
| Spanning tree protocol: | Yes |
| Standard sieci lan: | Gigabit Ethernet 10/100/1000 Mbps |
| Static route: | Yes |
| Switch layer: | L2/L3 |
| Switch type: | Managed |
| Switching capacity: | 36 Gbit/s |
| Switching layer: | 2 |
| Temperature range (operation): | -5 - 40 |
| Throughput: | 18000 Mpps |
| Throughput: | 18000 |
| Total power over ethernet (poe) budget: | 48 W |
| Vlan support: | Yes |
| Weight: | 2.8 kg |
| Width: | 442.4 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
