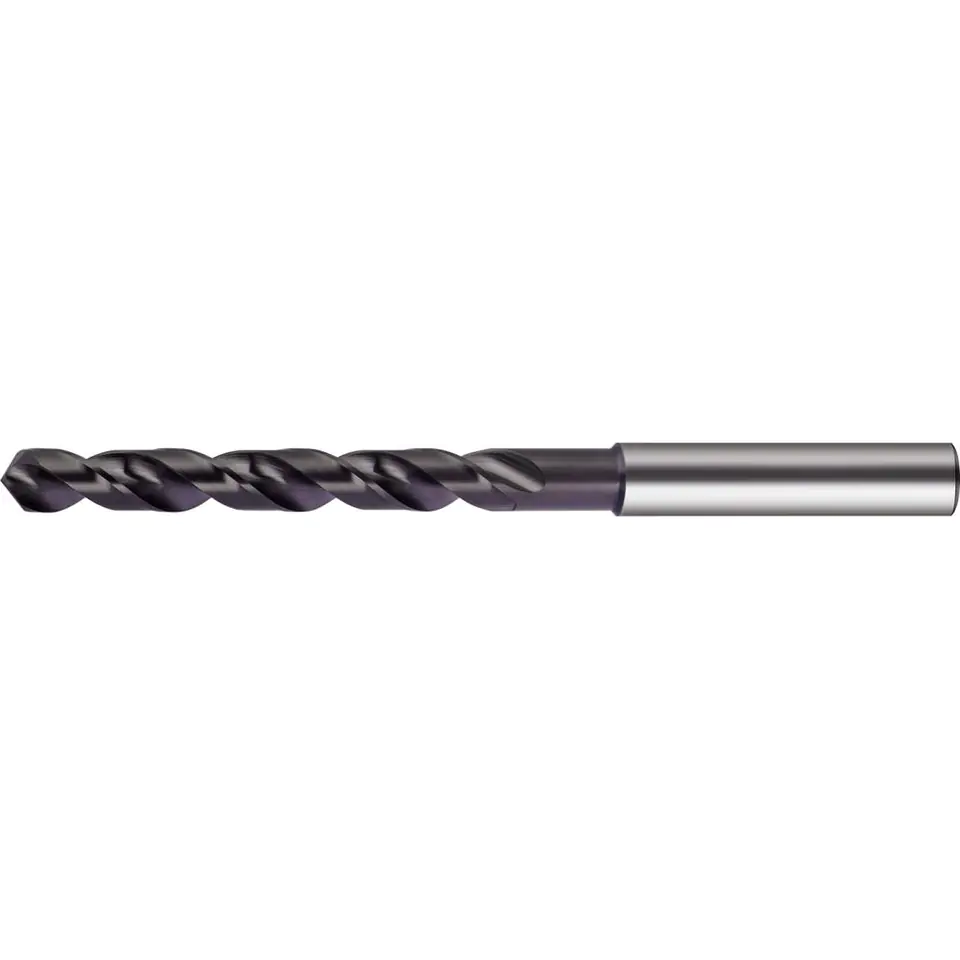

Twist drill with cylindrical shank
Design: twist drill for high-performance machining, with 4-surface shank.
Aluminium < 8% krzemu: | 89 |
---|---|
Aluminium > 8% silicon: | 74 |
Always < 1000 n/mm²: | 37 |
Always < 1400 n/mm²: | 24 |
Always < 700 n/mm²: | 47 |
Always < 700 n/mm² f: | 0.125 mm/rev. |
Cast iron gg/gts: | 45 |
Copper alloys: | 84 |
Ggg cast iron: | 32 |
Grip ø: | 10 mm |
Inox austenite.: | 17 |
Inox duplex: | 19 |
Inox ferrite./martenz.: | 21 |
No: | 9060060095000 |
Ø h7: | 9.5 mm |
Overall length: | 131 mm |
Shell: | TiAlN |
Spiral length: | 72 mm |
Titanium > 850 n/mm²: | 5 |
Twist drill with cylindrical shank
Design: twist drill for high-performance machining, with 4-surface shank.
