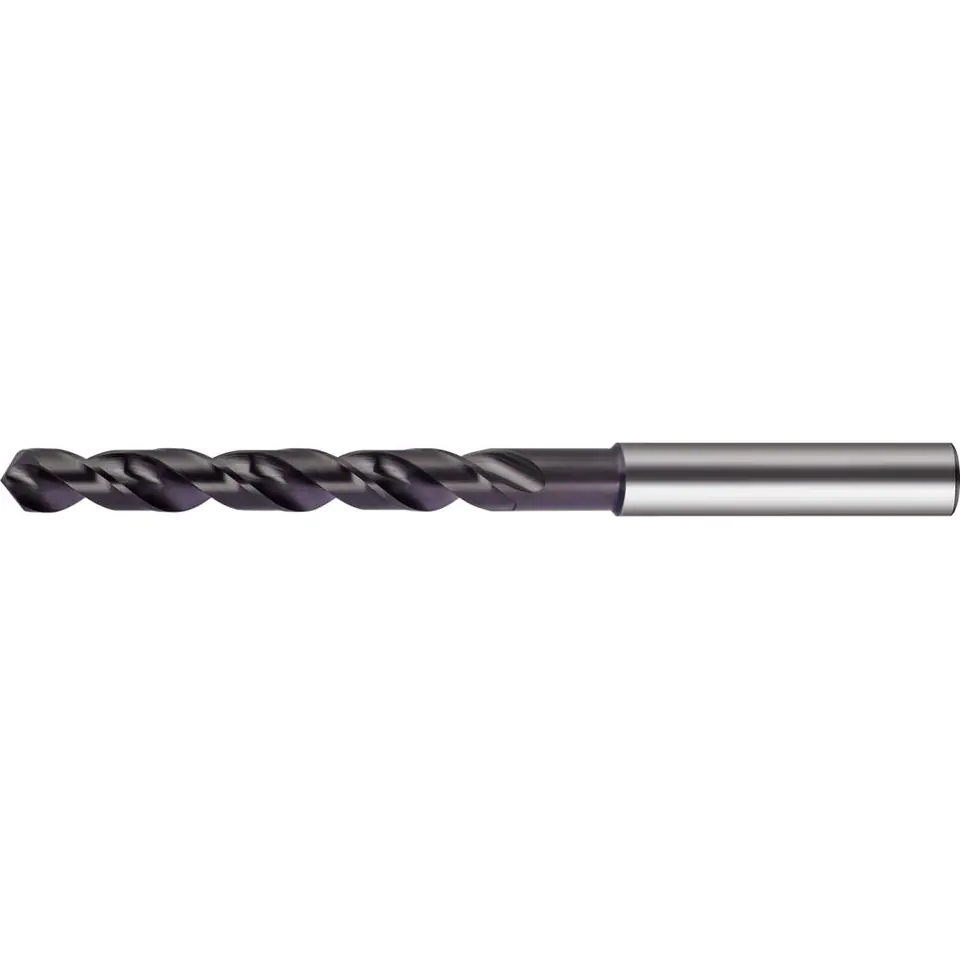

Twist drill WN HSSE-PM TiAlN 5xd 18,5mm GÜHRING

This product is not available
Availability:
expected delivery
Brand:
GÜHRING
Product code:
9060060185000 / 4049844353954

Specification

Aluminium < 8% krzemu:89
Aluminium > 8% silicon:74
Always < 1000 n/mm²:37
Always < 1400 n/mm²:24
Always < 700 n/mm²:47
Always < 700 n/mm² f:0.16 mm/rev
Cast iron gg/gts:45
Copper alloys:84
Ggg cast iron:32
Grip ø:20 mm
Inox austenite.:17
Inox duplex:19
Inox ferrite./martenz.:21
No:9060060185000
Ø h7:18.5 mm
Overall length:188 mm
Shell:TiAlN
Spiral length:105 mm
Titanium > 850 n/mm²:5

Twist drill with cylindrical shank

Design: twist drill for high-performance machining, with 4-surface shank.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
