Twist drill SL WN, FIRE,shank 6537-HA 5xD 5,95mm full bone, GÜHRING

This product is not available
Availability:
expected delivery
Brand:
GÜHRING
Product code:
9055150059500 / 4031093577373

Specification

Aluminium > 8% silicon:180
Cast iron gg/gts:155
Copper alloys:270
Ggg cast iron:125

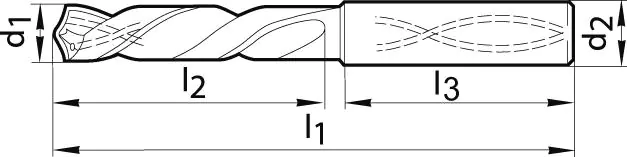

Grip ø h6:6 mm
Hardened steel < 55 hrc:45
Inox austenite.:15
Inox duplex:35
Inox ferrite./martenz.:45
Ø m7/h7:5.95 mm
Shank length l3:36 mm
Spiral length l2:44 mm
Steel < 1000 n/mm2:110
Steel < 1400 n/mm2:100
Steel < 1400 n/mm2 f:0.125 mm/rev.
Steel < 700 n/mm2:120
Titanium > 850 n/mm2:40
Total length l1:82 mm

Twist drill, solid carbide, SuperLine

Made of construction: right-handed, with special grinding. Drill with very good self-centering properties, producing short chips even when cutting long-chip materials.
Application: universal twist drill for hole alignment with tight diameter tolerances and good surface quality. For drilling max. 5 x D holes with high cutting speeds. Designed in particular for long- and short-chip materials such as structural steels and carburizing, cast steels, heat conditioning steels, carbon steels, bronzes, castings, high-alloy AlSi alloys and alloy steels with a strength of up to 1200 N/mm2.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
