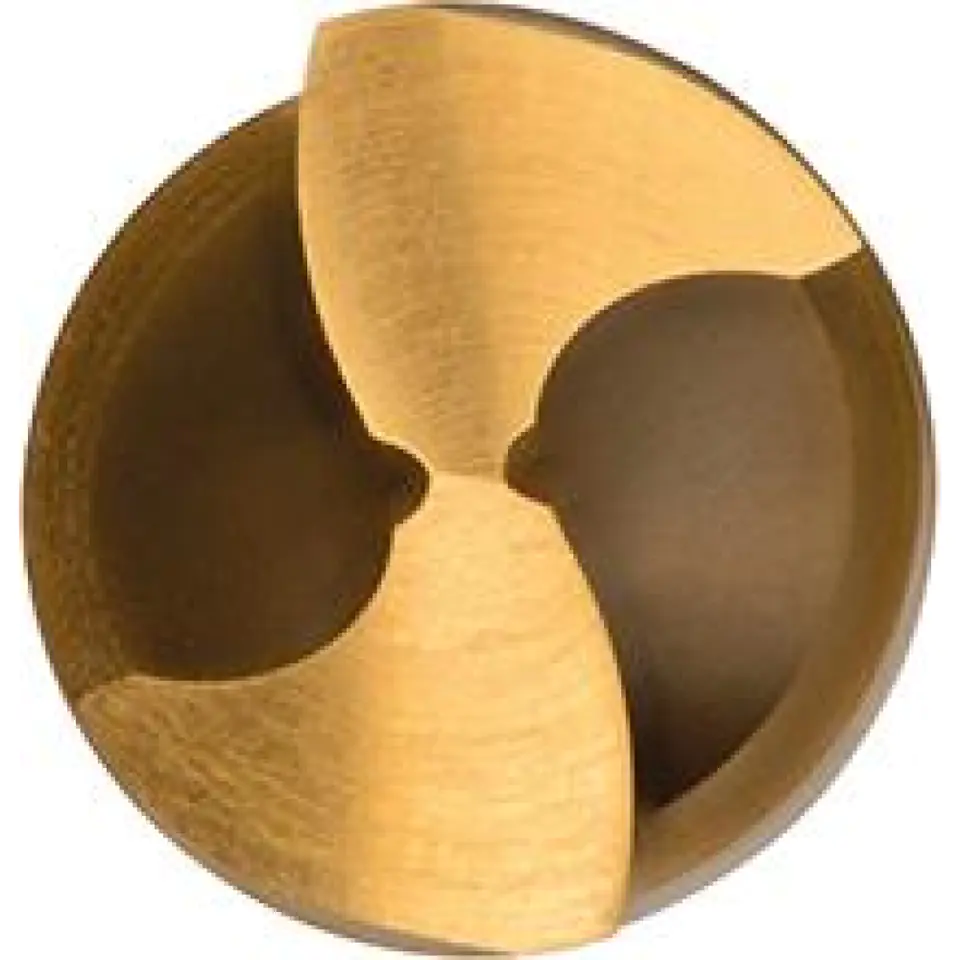

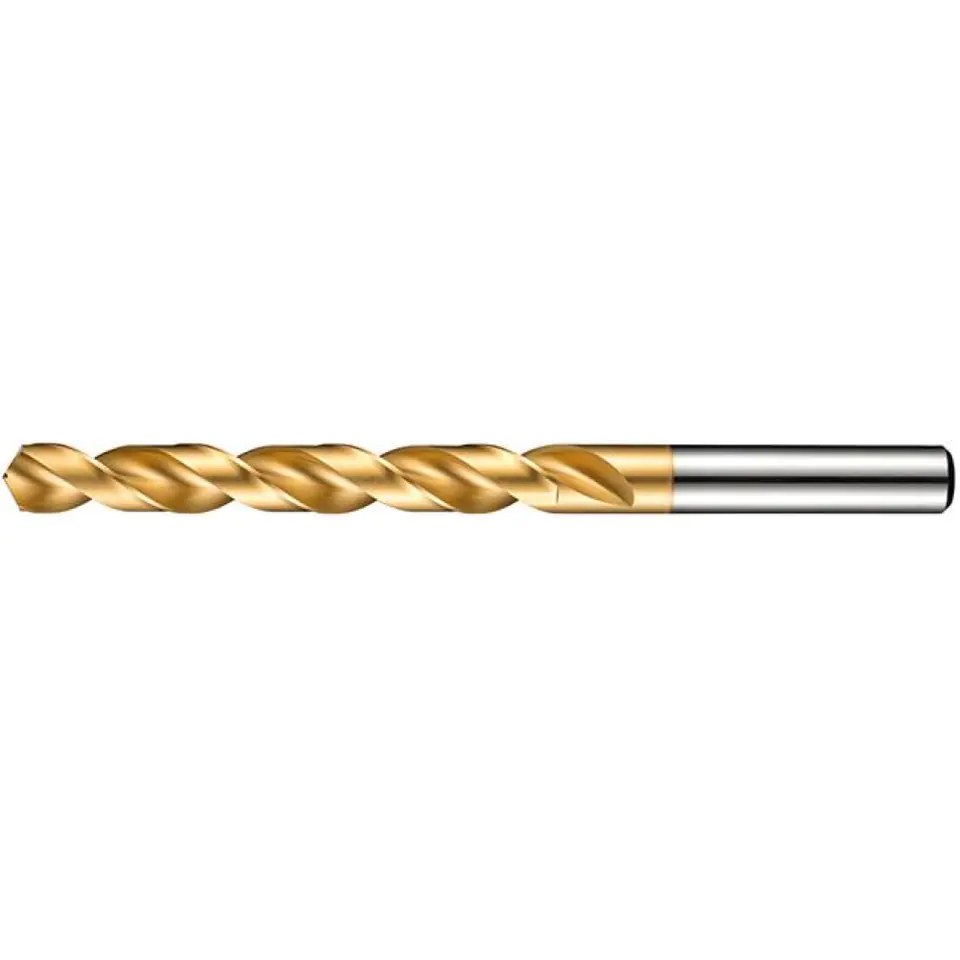

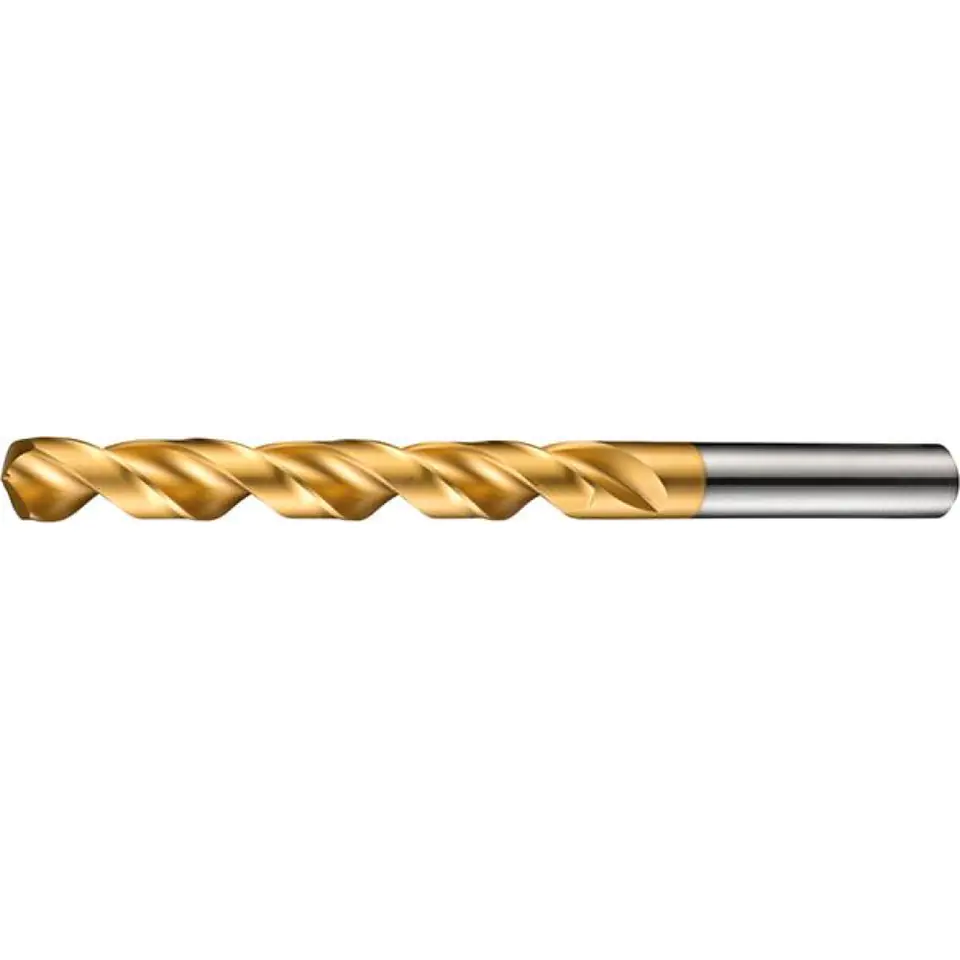

Twist drill HSS DIN338N5,8mm 118G type N 4xD A5105.8 TiN Dormer

€30.47
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Fri, Jan 17 - Mon, Jan 20
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
DORMER
Product code:
86010411 / 7320760036778

Specification

Aluminium < 8% krzemu:40
Aluminium > 8% silicon:50
Always < 1000 n/mm²:21
Always < 1400 n/mm²:11
Always < 700 n/mm²:47
Always < 700 n/mm² f:0.125 mm/rev.
Cast iron gg/gts:42
Copper alloys:50
Ggg cast iron:32
Graphite gfk/cfk/duropl.:28
Hardened steels < 55 hrc:11
Inox austenite.:35
Inox duplex:20
Inox ferrite./martenz.:35
No:86010411
Ø h7:5.8 mm
Overall length:93 mm
Shell:Tin
Spiral length:57 mm
Titanium > 850 n/mm²:20

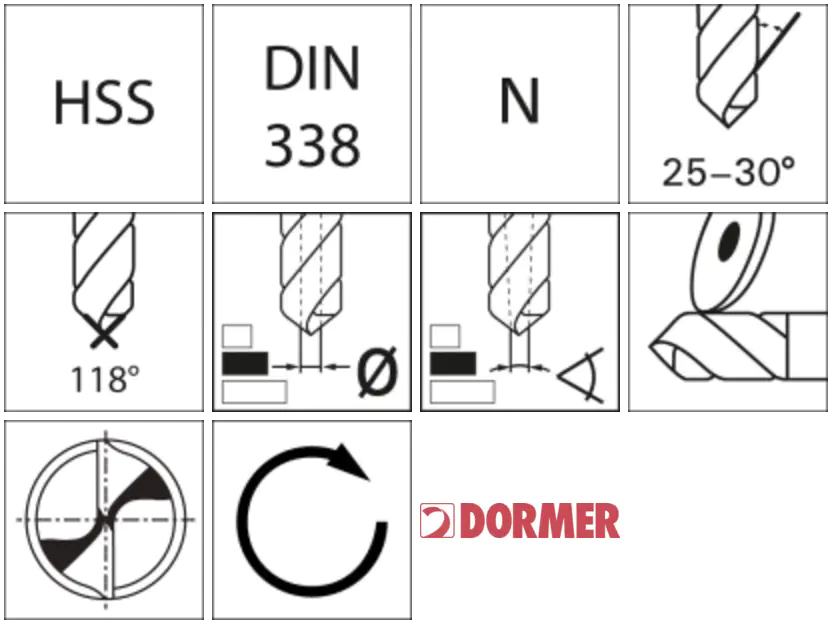

Twist drill with cylindrical shank, ground

Execution: A510 with precise top grinding and low radial runout and high graduation accuracy. The special geometry of the Dormer ADX ensures not only significantly higher performance, but also better hole quality.
