| Aluminium < 8% krzemu: | 40 |
|---|---|
| Aluminium > 8% silicon: | 50 |
| Always < 1000 n/mm²: | 21 |
| Always < 1400 n/mm²: | 11 |
| Always < 700 n/mm²: | 47 |
| Always < 700 n/mm² f: | 0.1 mm/rev |
| Cast iron gg/gts: | 42 |
| Copper alloys: | 50 |
| Ggg cast iron: | 32 |
| Graphite gfk/cfk/duropl.: | 28 |
| Hardened steels < 55 hrc: | 11 |
| Inox austenite.: | 35 |
| Inox duplex: | 20 |
| Inox ferrite./martenz.: | 35 |
| No: | 86010396 |
| Ø h7: | 4.3 mm |
| Overall length: | 80 mm |
| Shell: | Tin |
| Spiral length: | 47 mm |
| Titanium > 850 n/mm²: | 20 |

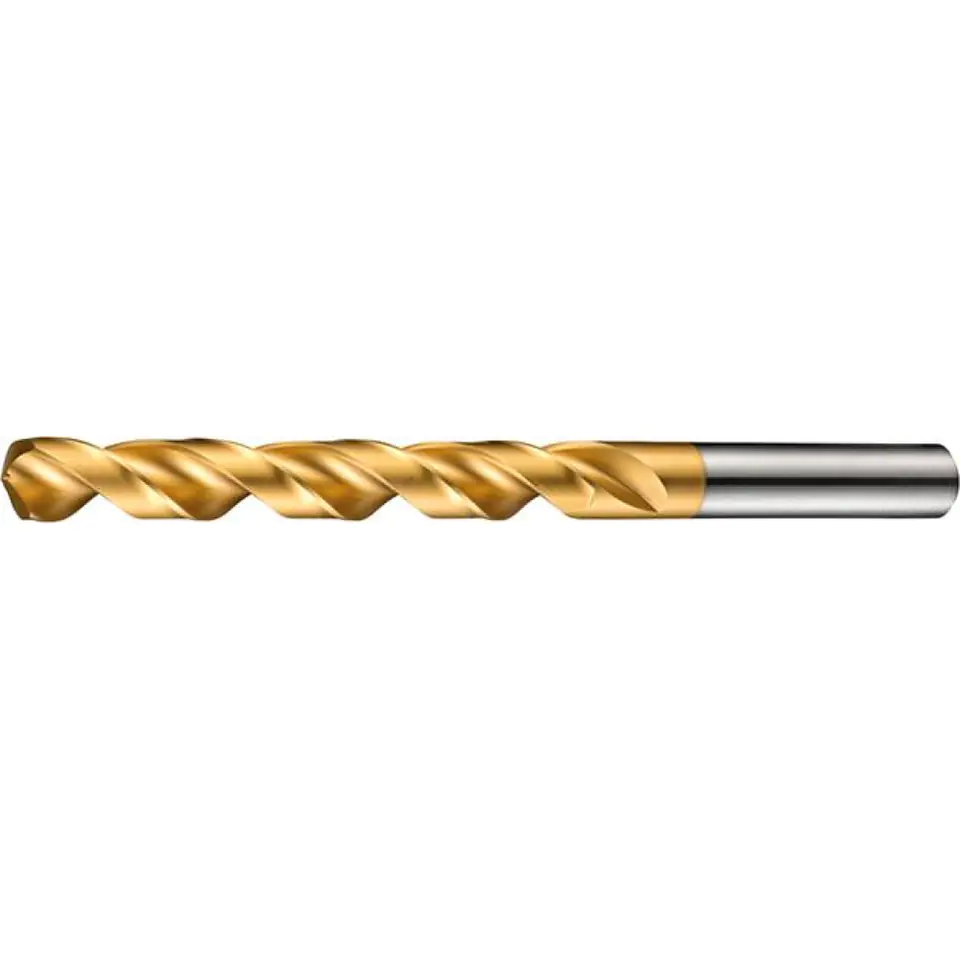

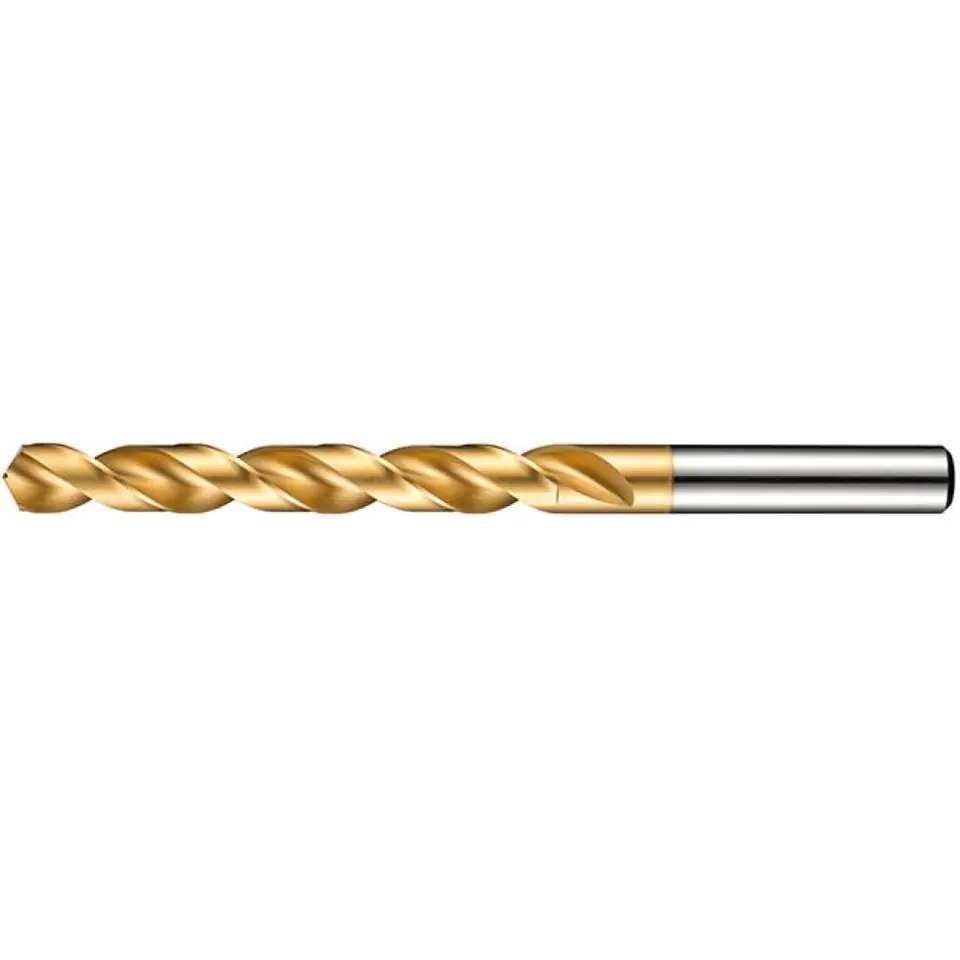

Twist drill with cylindrical shank, ground
Execution: A510 with precise top grinding and low radial runout and high graduation accuracy. The special geometry of the Dormer ADX ensures not only significantly higher performance, but also better hole quality.
