| Aluminium > 8% silicon: | 70 |
|---|---|
| Cast iron gg/gts: | 40 |
| Copper alloys: | 77 |
| Ggg cast iron: | 30 |
| Inox austenite.: | 16 |
| Inox duplex: | 18 |
| Inox ferrite./martenz.: | 20 |
| Ø h7: | 10.2 mm |
| Overall length: | 133 mm |
| Spiral length: | 87 mm |
| Steel < 1000 n/mm2: | 35 |
| Steel < 1400 n/mm2: | 22 |
| Steel < 700 n/mm2: | 44 |
| Steel < 700 n/mm2 f: | 0.250 mm/rev. |

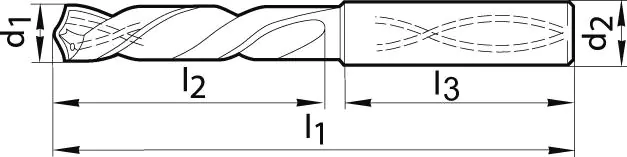

Twisting drill, cylindrical shank
Design: stable, durable drill, right-cutting, precise top grinding and very high heat resistance.
Application: designed in particular for stainless steels, acid-resistant, heat-resistant and austenitic, for hard and short-chip steels with a strength of 900 N/mm2, for special alloys such as Hastelloy®, Inconel® and Nimonic®.
Lateral approach angle greater than normal (38°). Core thickness normal.
