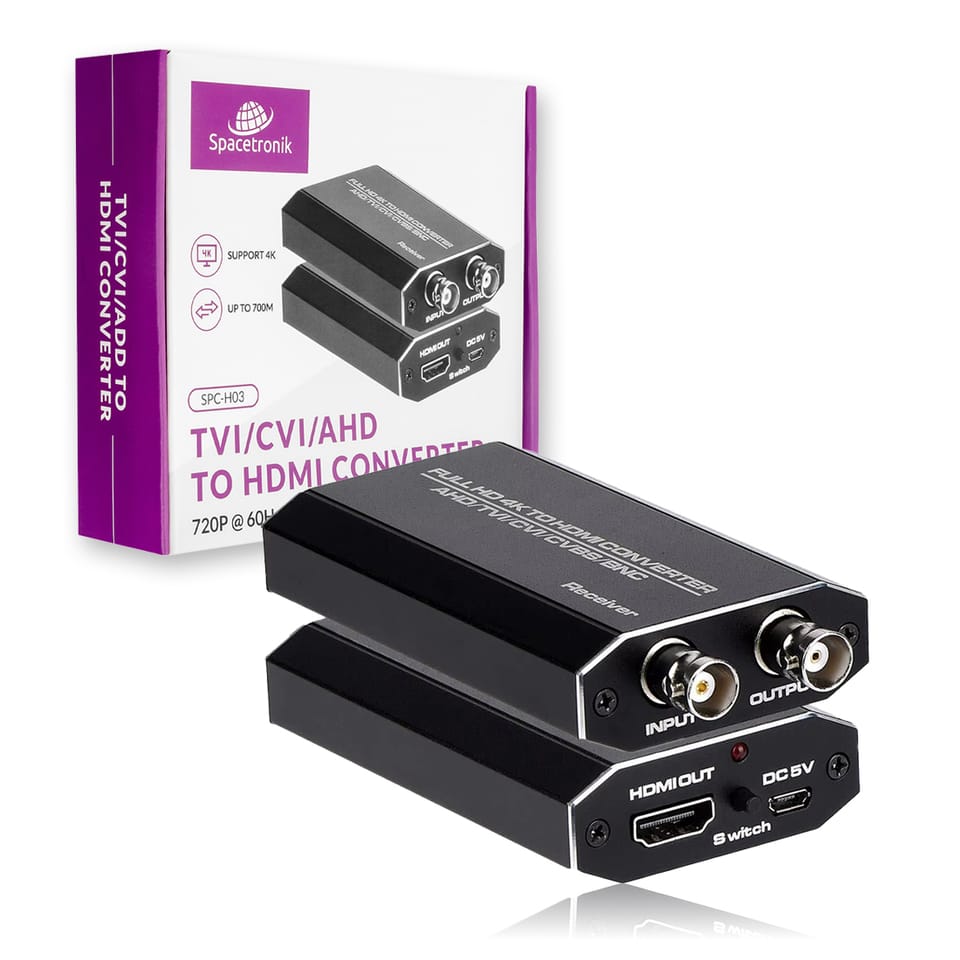

TVI CVI AHD to HDMI Converter Spacetronik SPC-H03

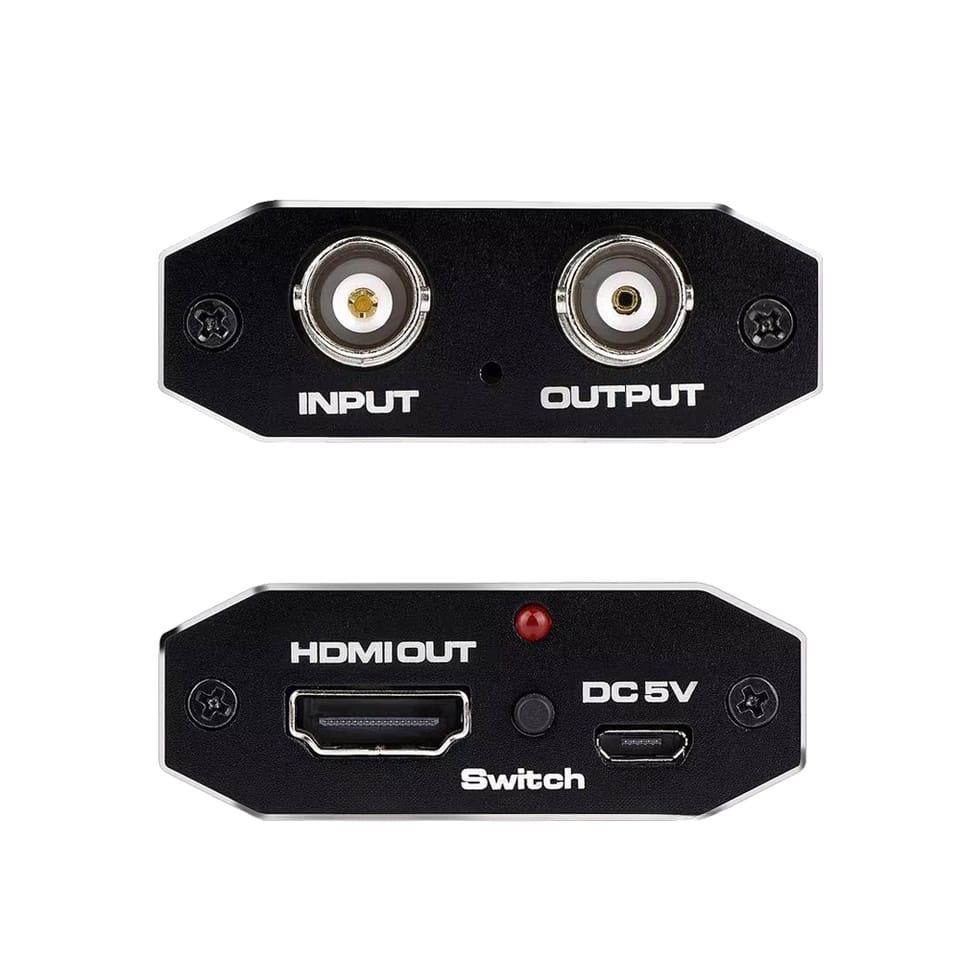

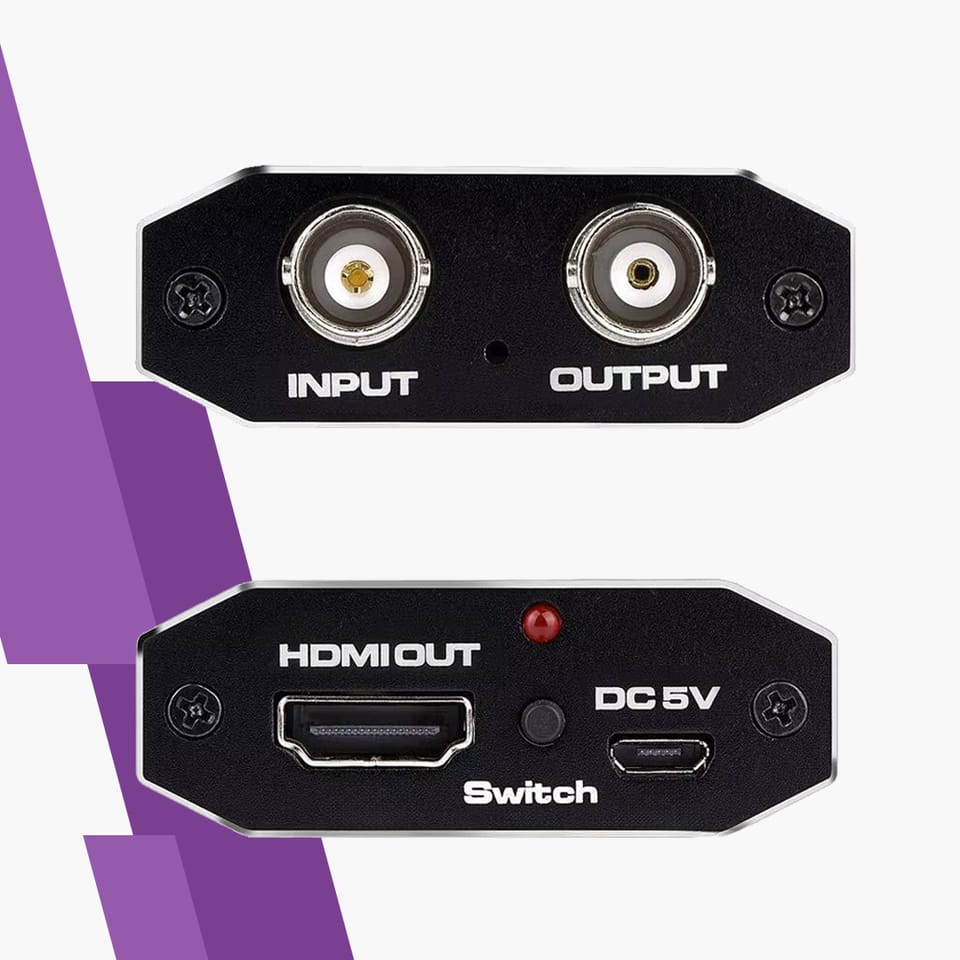

The SPC-H03 converter is a device that allows to process AHD, CVI, TVI, CVBS signals using BNC input and display the image on a monitor, TV or other device with HDMI input. In addition, the converter has a BNC loop-through output. A switch on the device allows you to adjust the resolution on the HDMI output and remembers the settings even when the item is turned off.

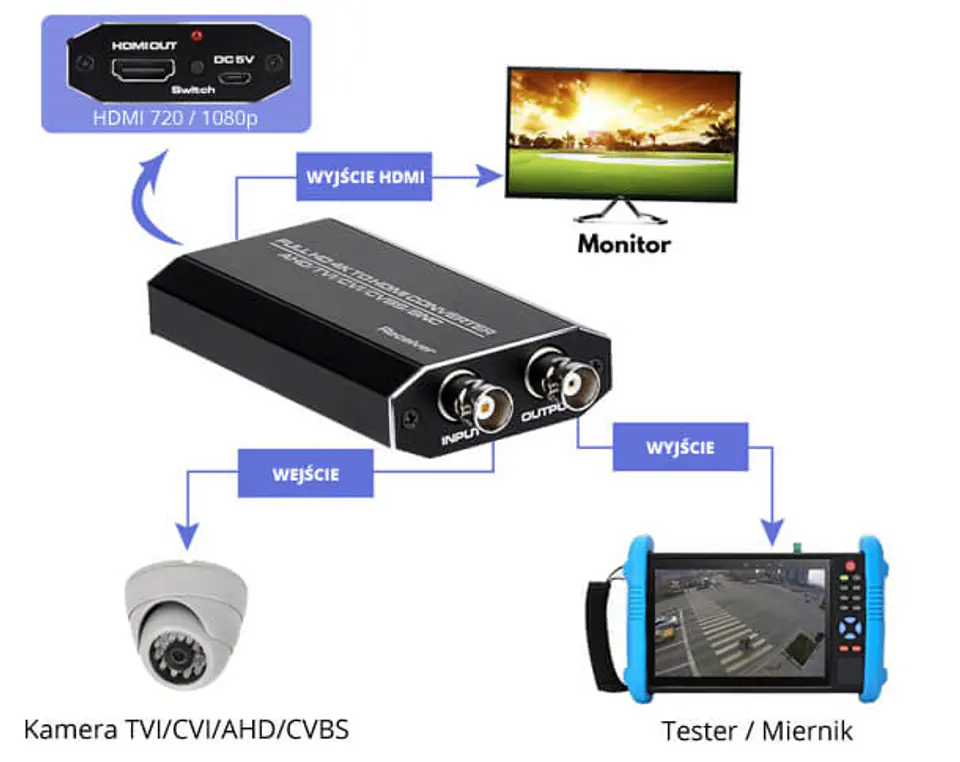

To do this, we do not need any additional device. Thanks to the additional BNC via, it is child's play and boils down to connecting the right cables to the right place.

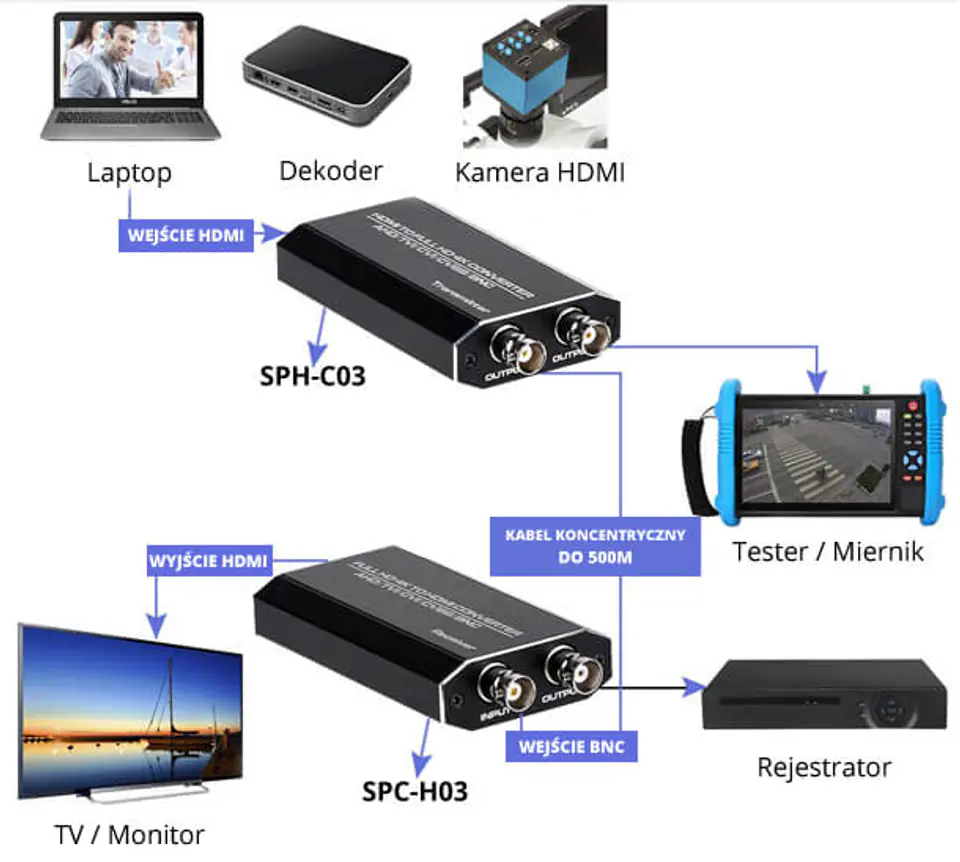

Is such a solution possible? Yes, if we have a set of devices - SPH-C03 and SPC-H03 from the manufacturer Spacetronik. In addition, this configuration of devices allows you to send data up to 500 meters.

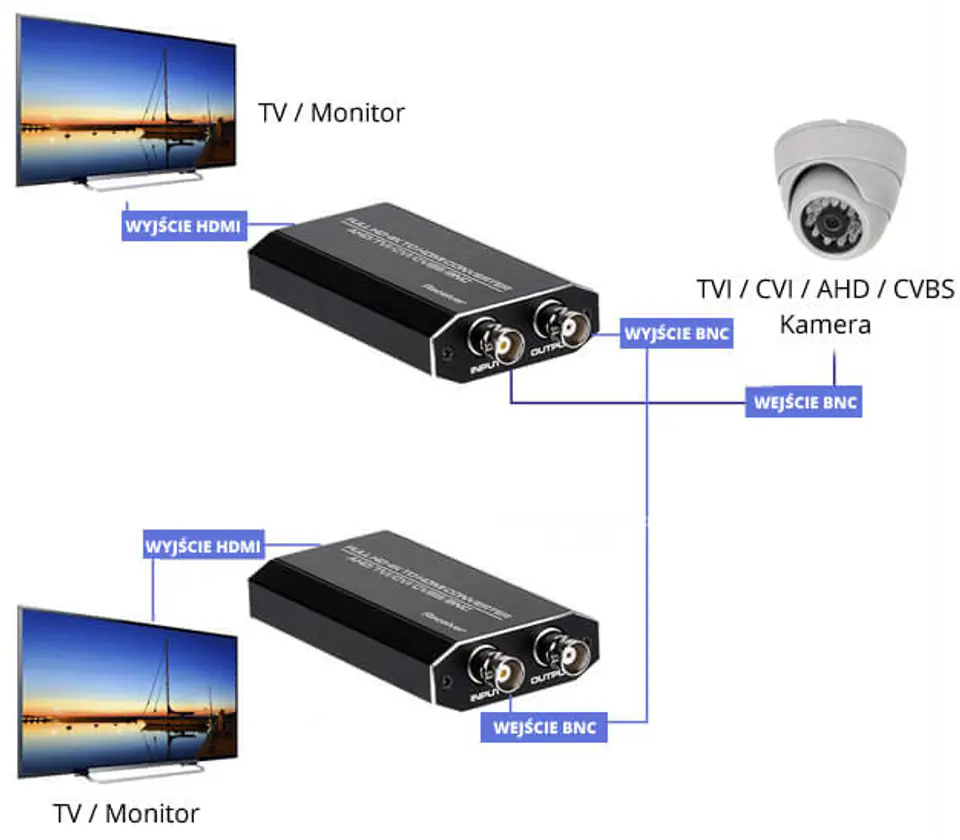

Yes, it is possible. To do this, we need a minimum of 2 SPC-H03 converters and connect them as in the diagram below. Of course, you can also use more devices to connect more monitors.
- Converts TVI / AHD / CVI / CVBS signal to HDMI up to 1080p
- HDMI output format: 720P@60Hz, 1080P 60Hz
- HDMI and BNC output
- Compatible with HDCP, HDMI1.4
- HD analog signal input interface
- HD HDMI signal output interface (720P@60Hz/1080p@60hz).
- Power supply 5-12 V DC
- Supports AHD 500m signal
- Smooth video operation, without signal loss and screen shake
Kit Contents
-Converter
-Power supply
- EN Manual
