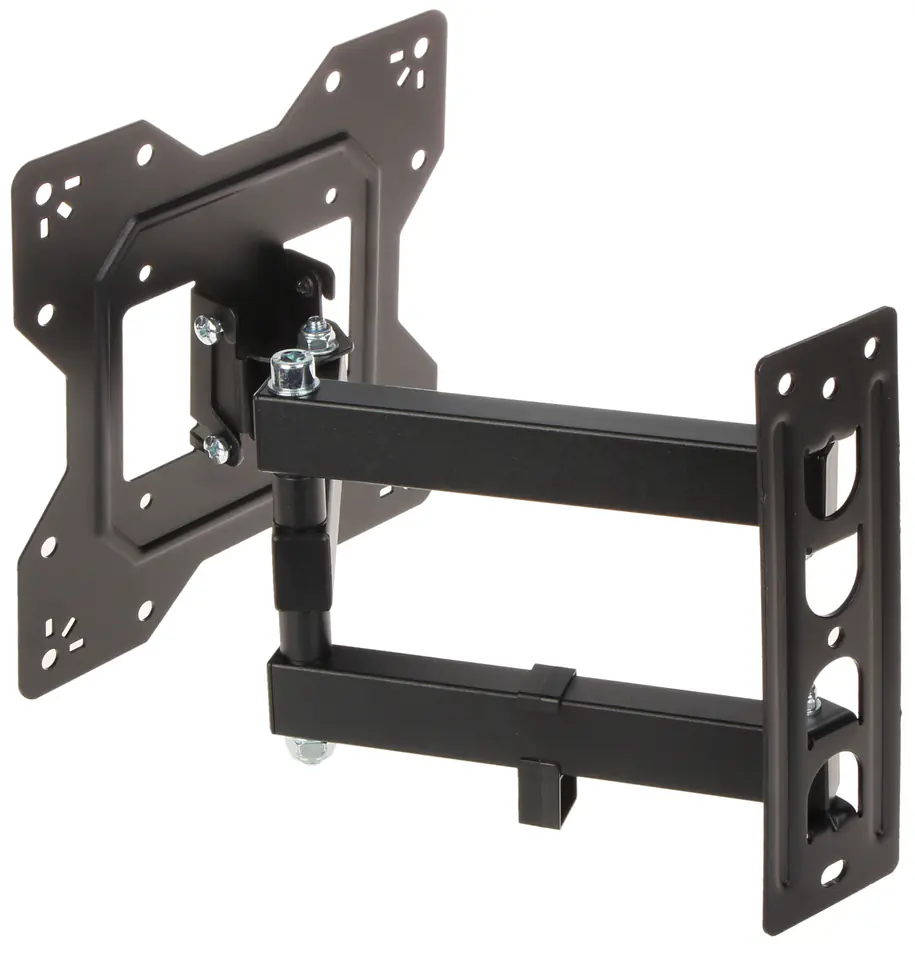

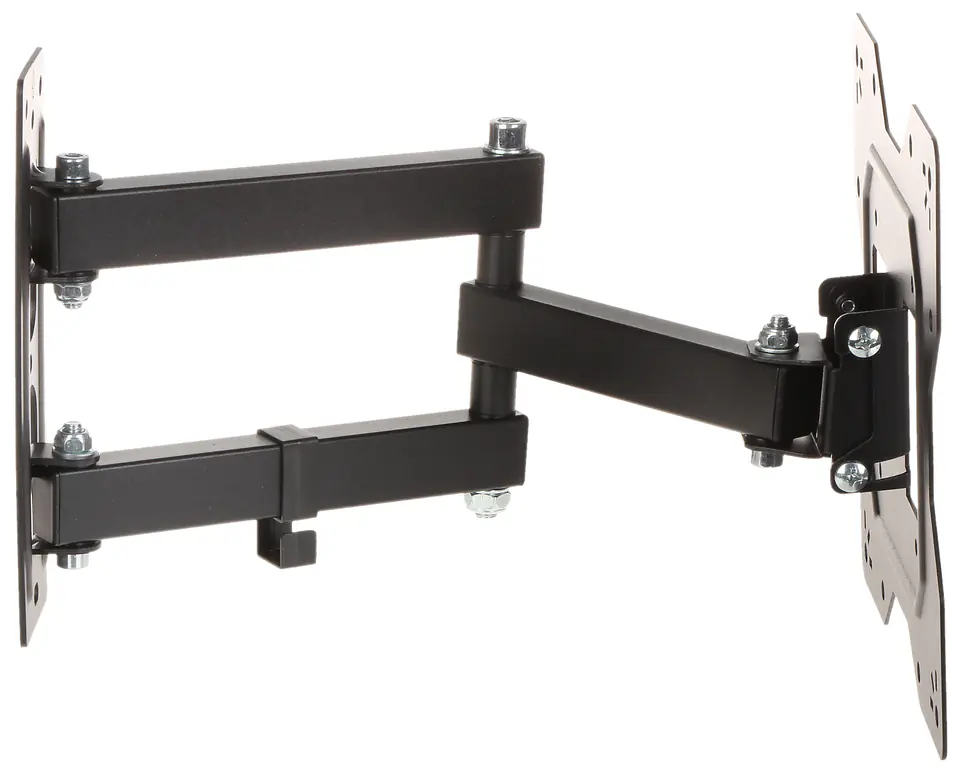

The BRATECK-LPA68-223 mount is designed to be hung on the wall of a TV or LCD/OLED monitor
It has an easy adjustment of the tilt of the panel vertically within -10° ... 3° and horizontal rotation on 3 joints of 180° each
Carrying capacity:: | 30 kg |
---|---|
Colour:: | Black |

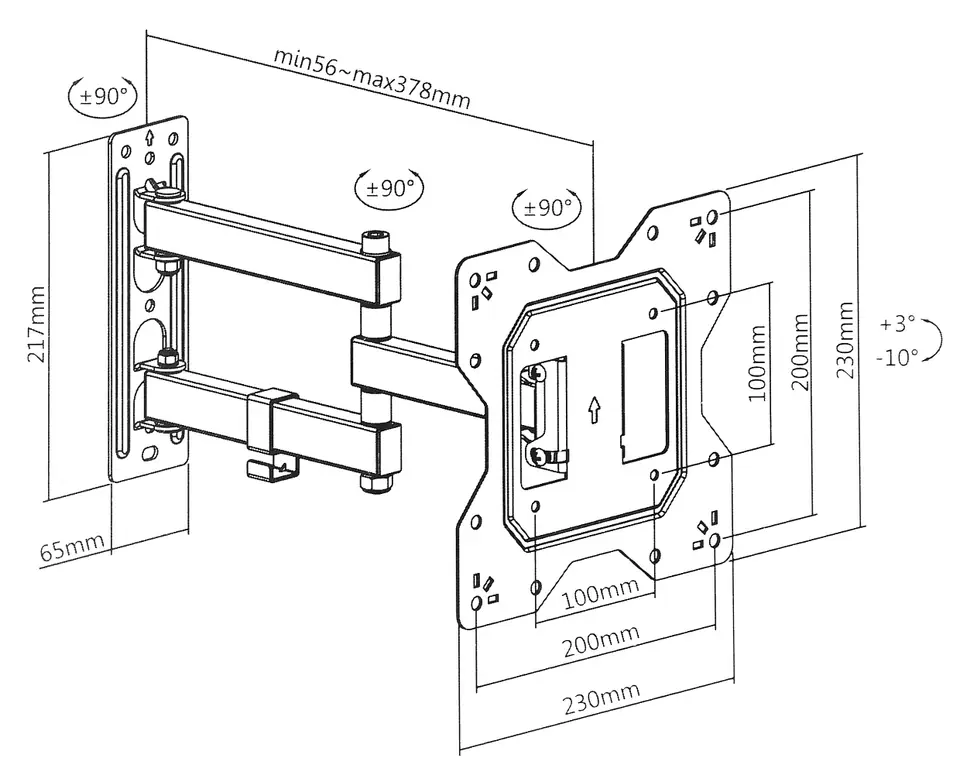

Dimensions:: | 230 x 230 x (56 ... 378) mm |
Distance from the mounting surface:: | 56 ... 378 mm |
Horizontal rotation:: | -90 ° ... 90 ° |
Manufacturer / brand:: | BRATECK |
Mounting standard:: | VESA 100, 200, 200x100 |
Scales:: | 1.7 kg |
Tv size in inches:: | 23 " ... 43 " |
Vertical tilt:: | -10 ° ... 3 ° |
Warranty:: | 2 years |
The BRATECK-LPA68-223 mount is designed to be hung on the wall of a TV or LCD/OLED monitor
It has an easy adjustment of the tilt of the panel vertically within -10° ... 3° and horizontal rotation on 3 joints of 180° each
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
