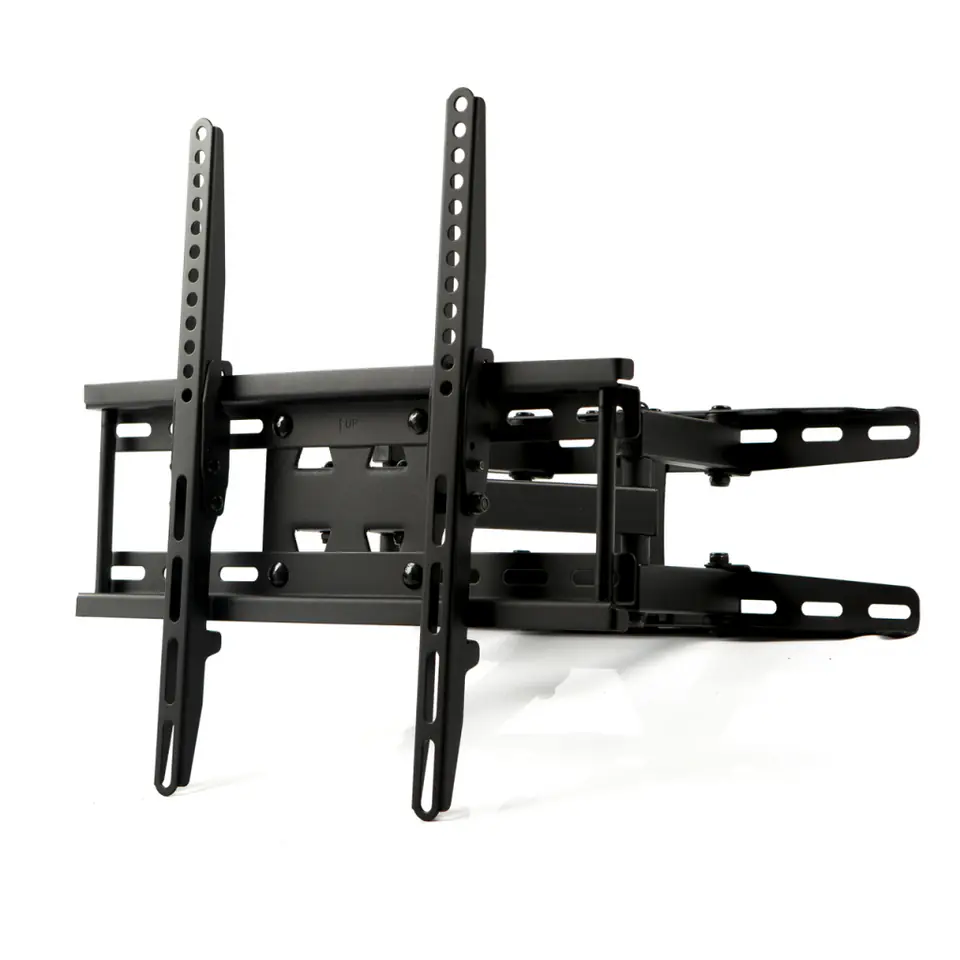

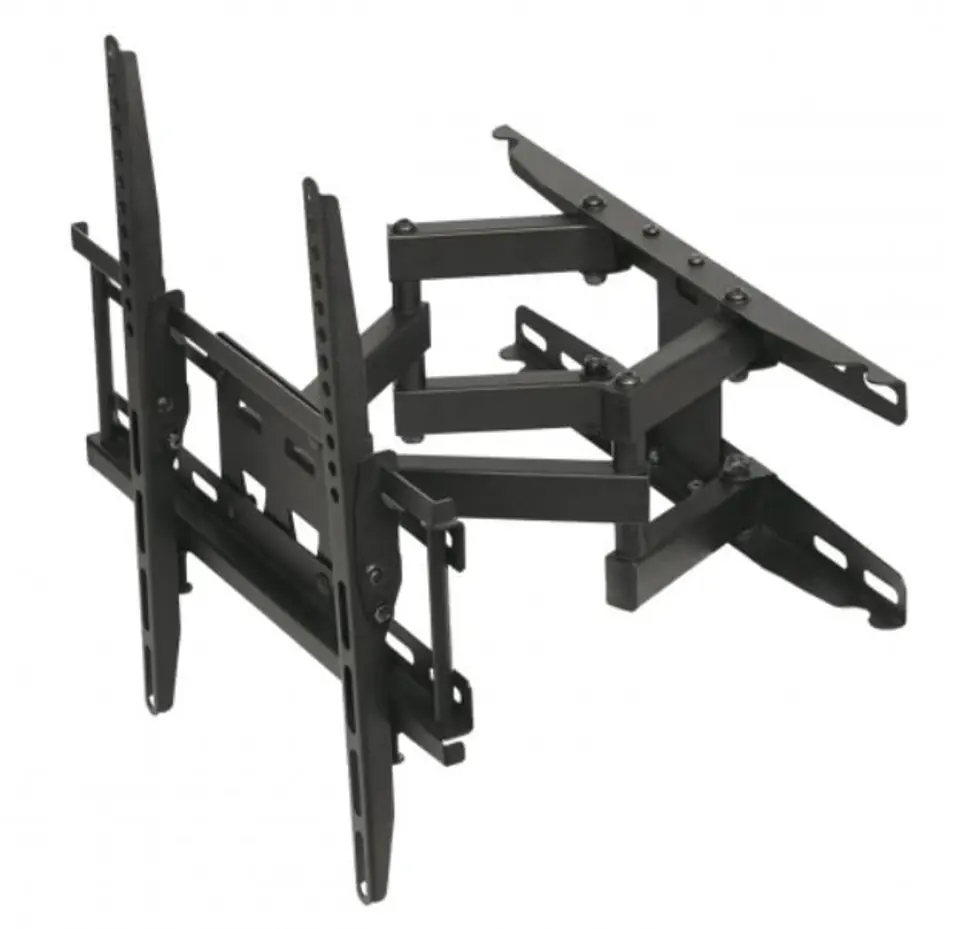

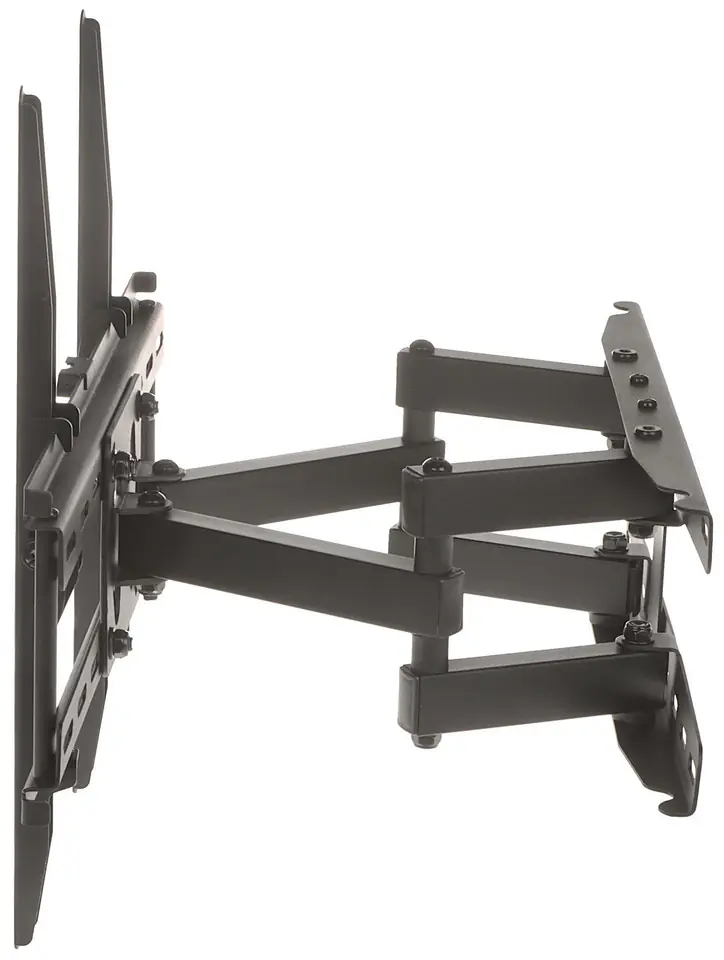

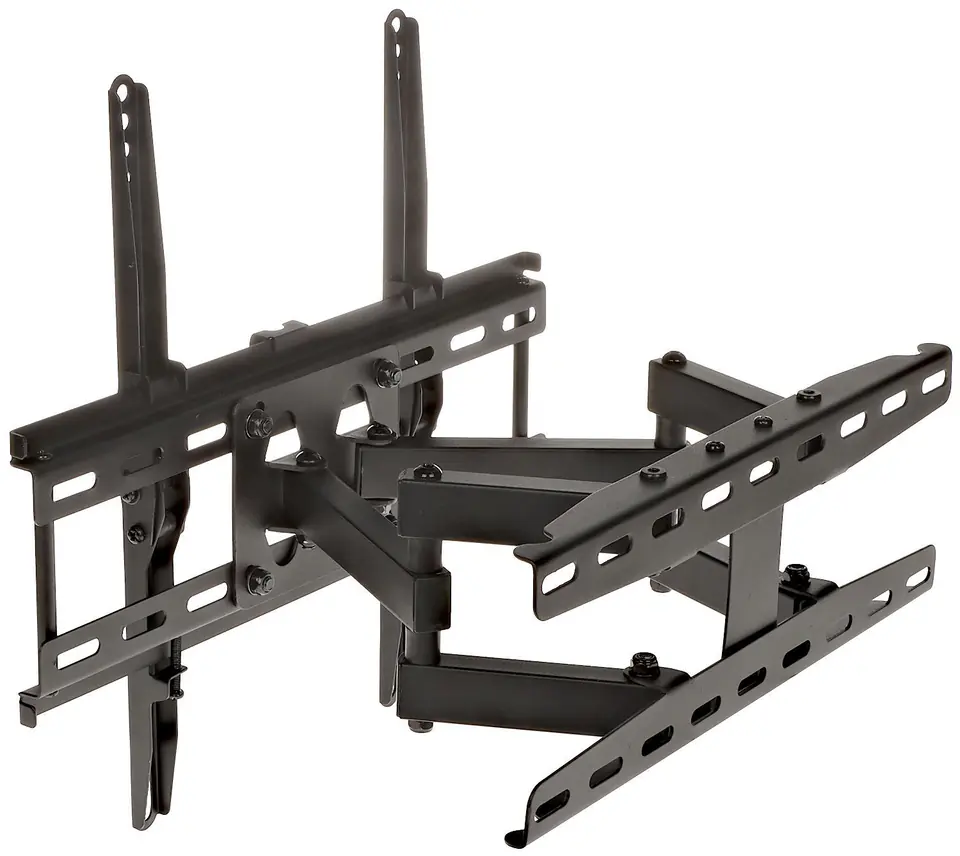

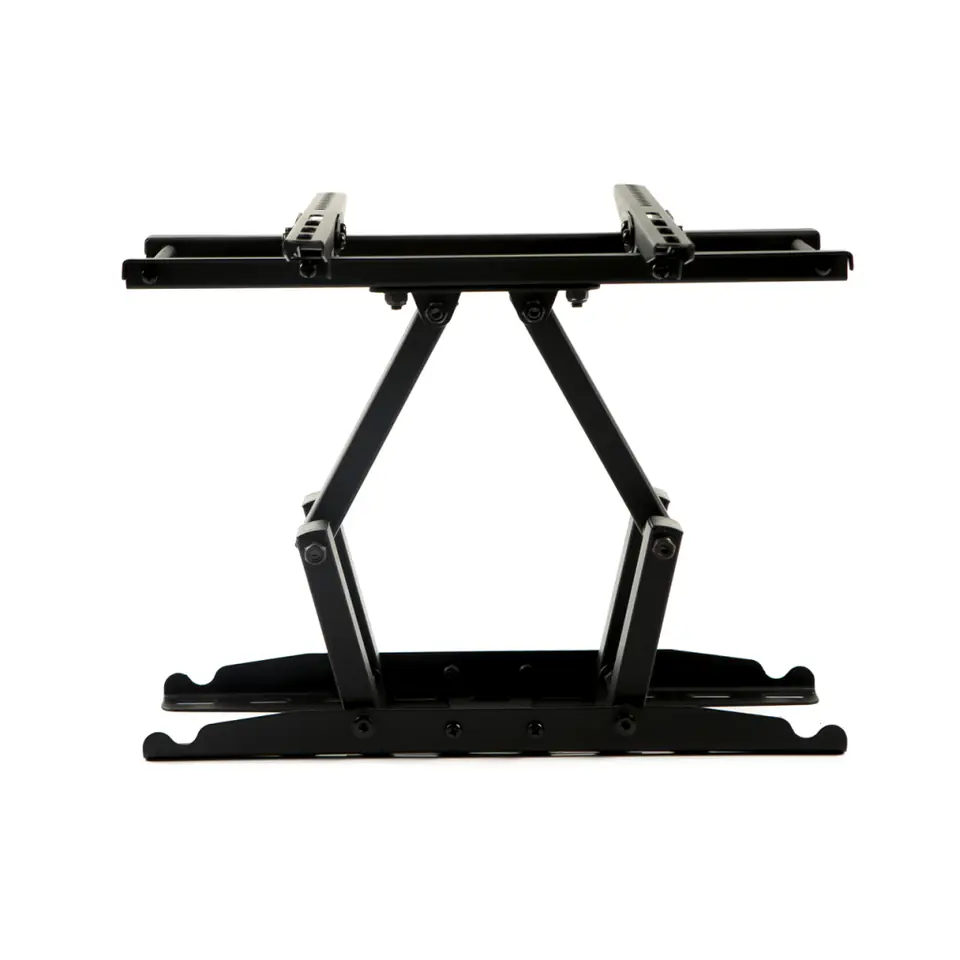

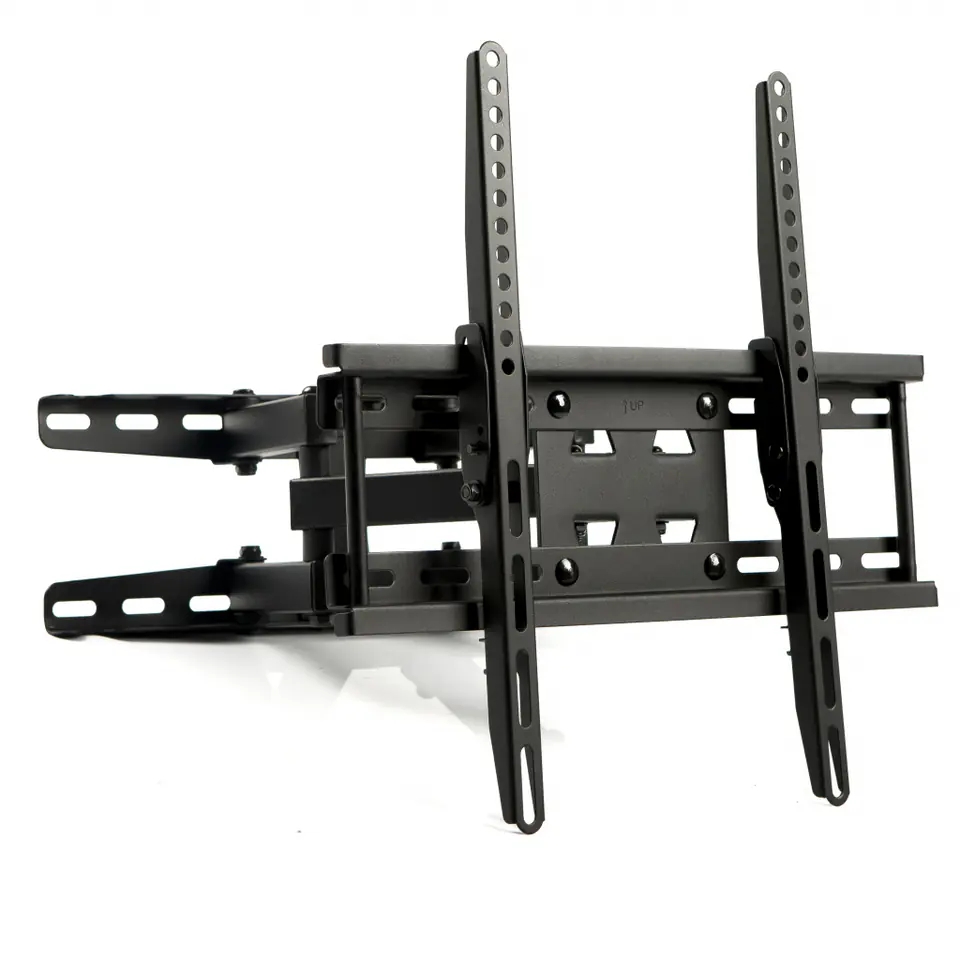

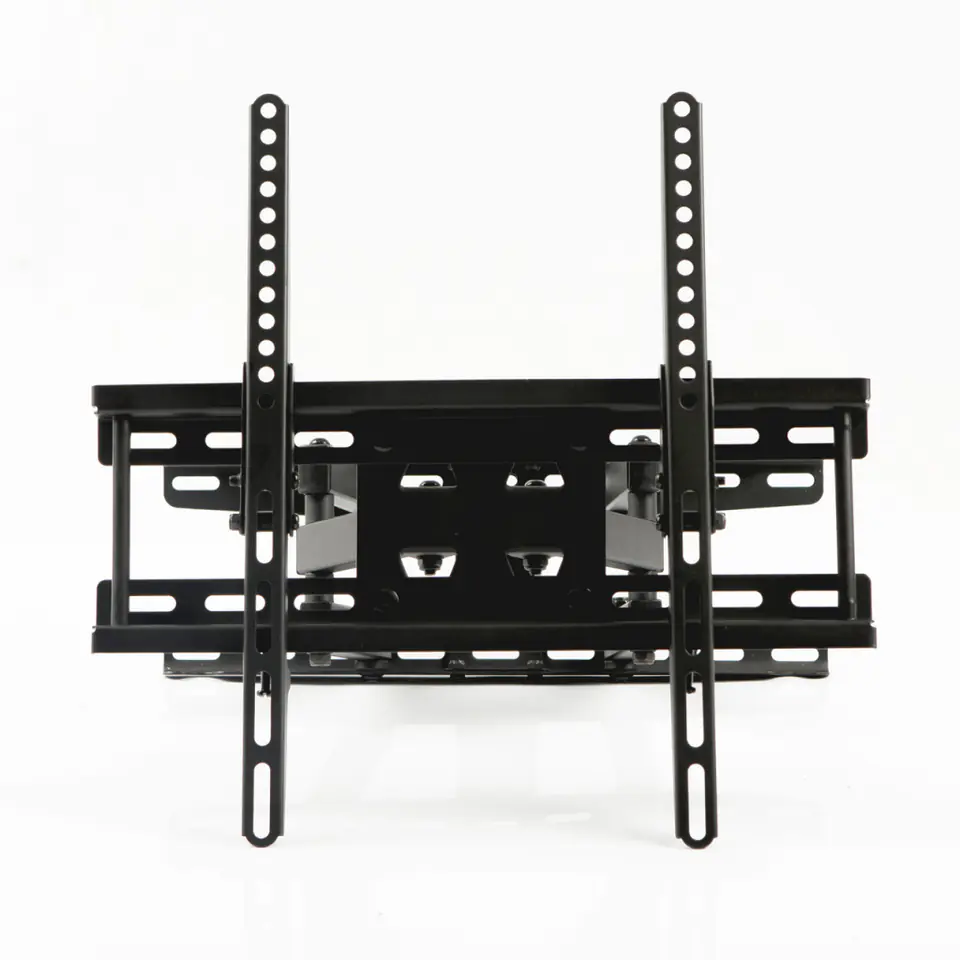

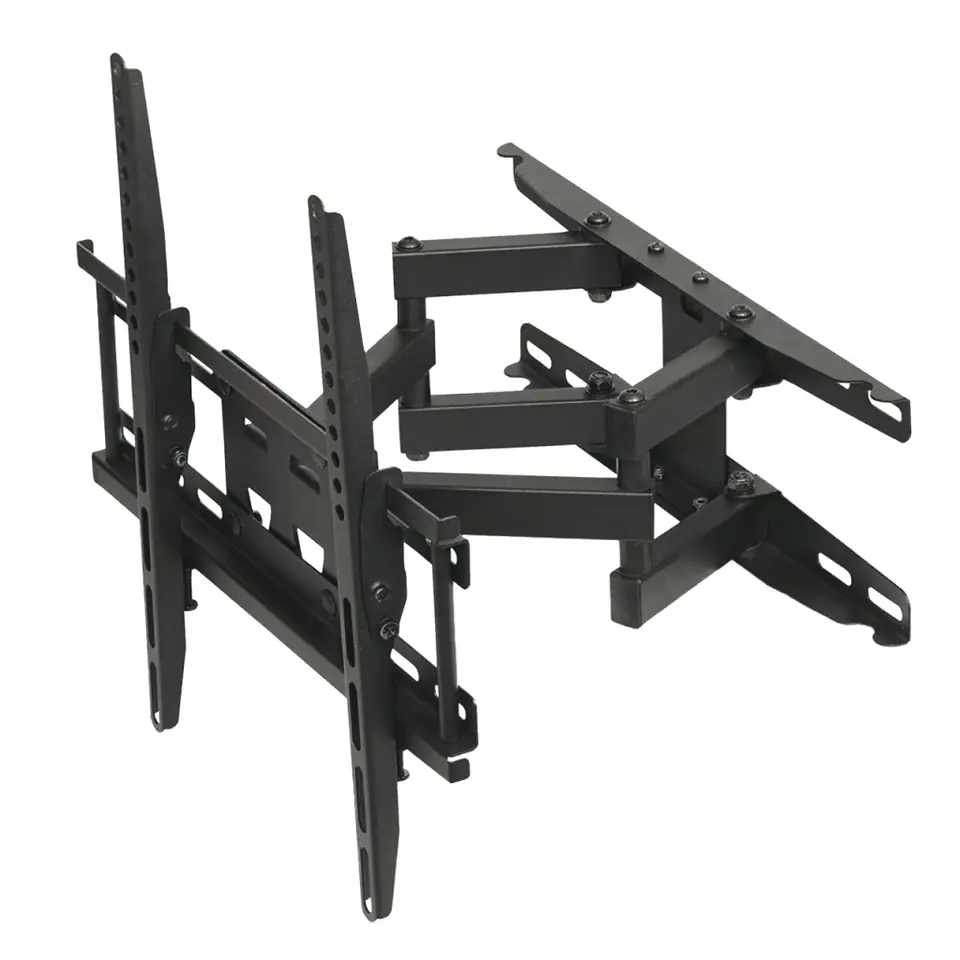

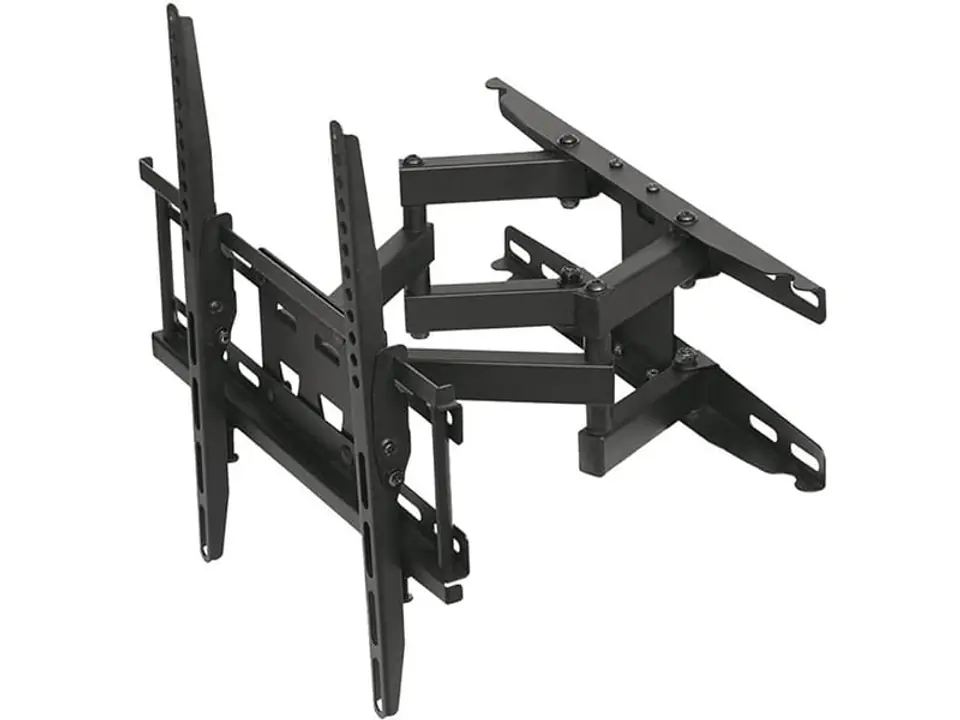

TV/LCD mount 23-60' 45kg UX150 Fully adjustable

€25.71

Shipping from warehouse: ⁨A1⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:
Product code:: ADUX150 / 5902115405136

Specification

Adjustment:	Vertical (tilt): -15 to 15 degrees, horizontal (rotation): -45 to 45 degrees
Assembly:	To the wall
Carrying capacity:	45 kg
Certificates and standards:	CE
Colour:	Black
Corner handle:	yes
Country of origin:	China
Dedicated screen diagonal:	23 - 60 inches
Depth (mm):	65 - 350
Destiny:	Television

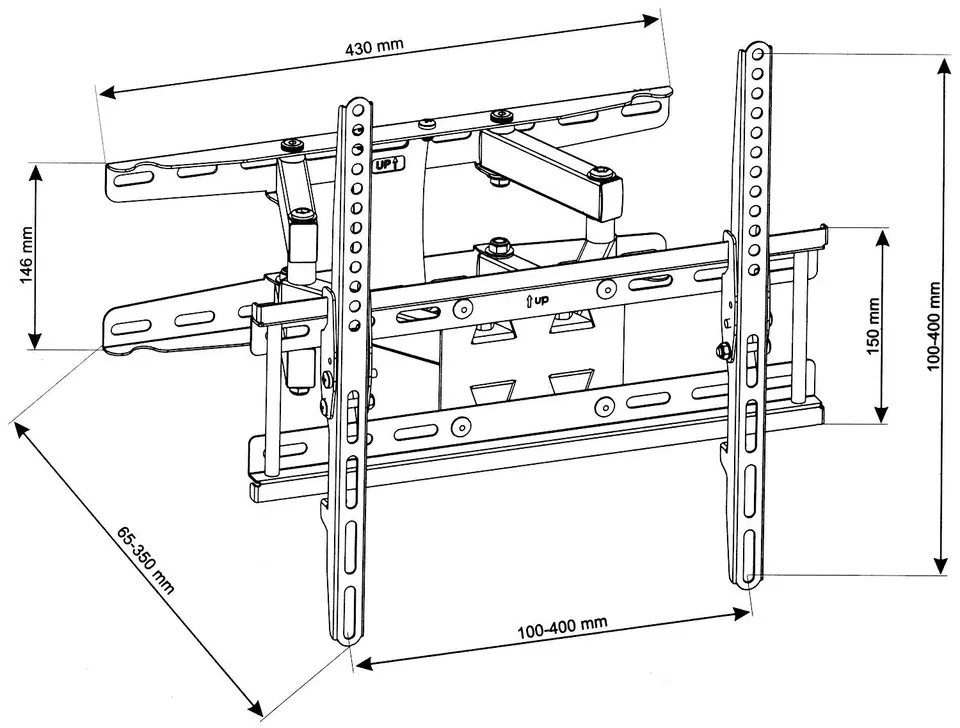

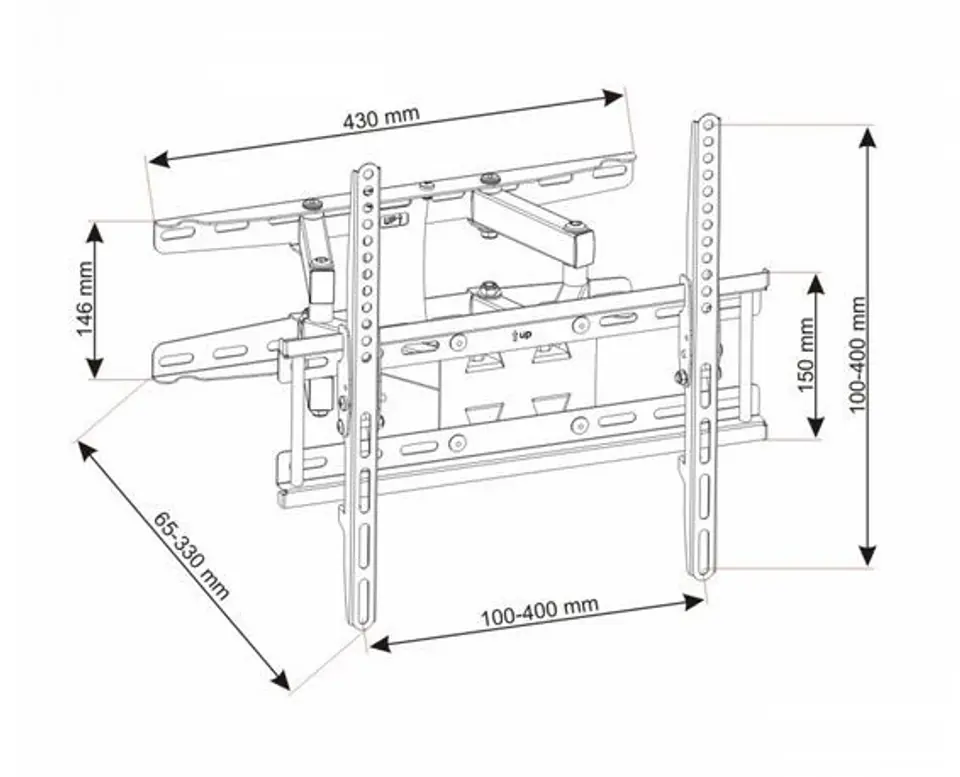

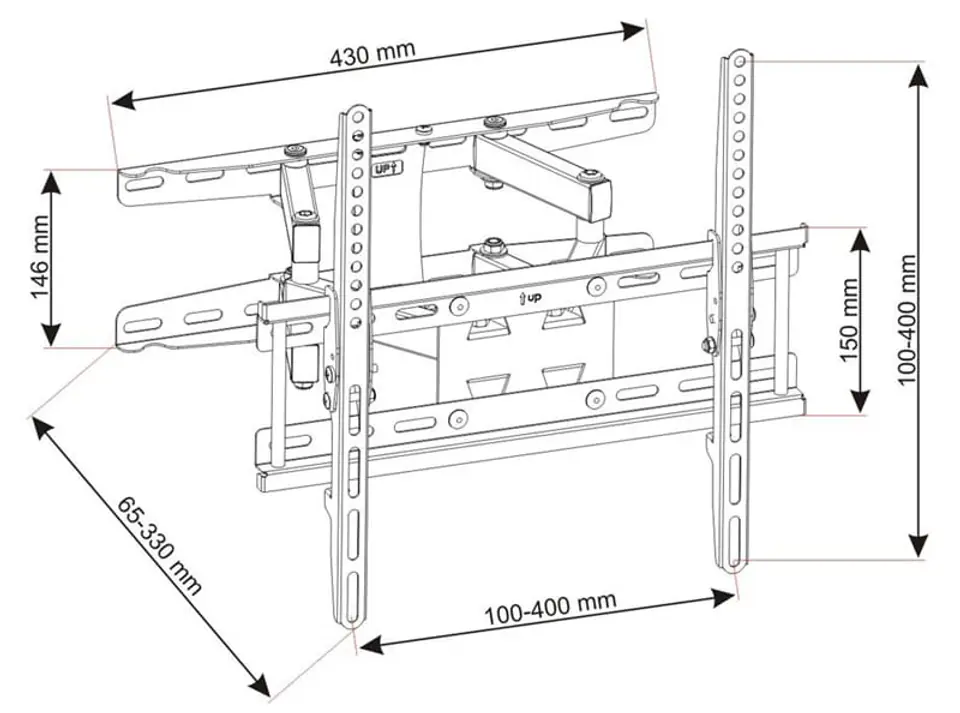

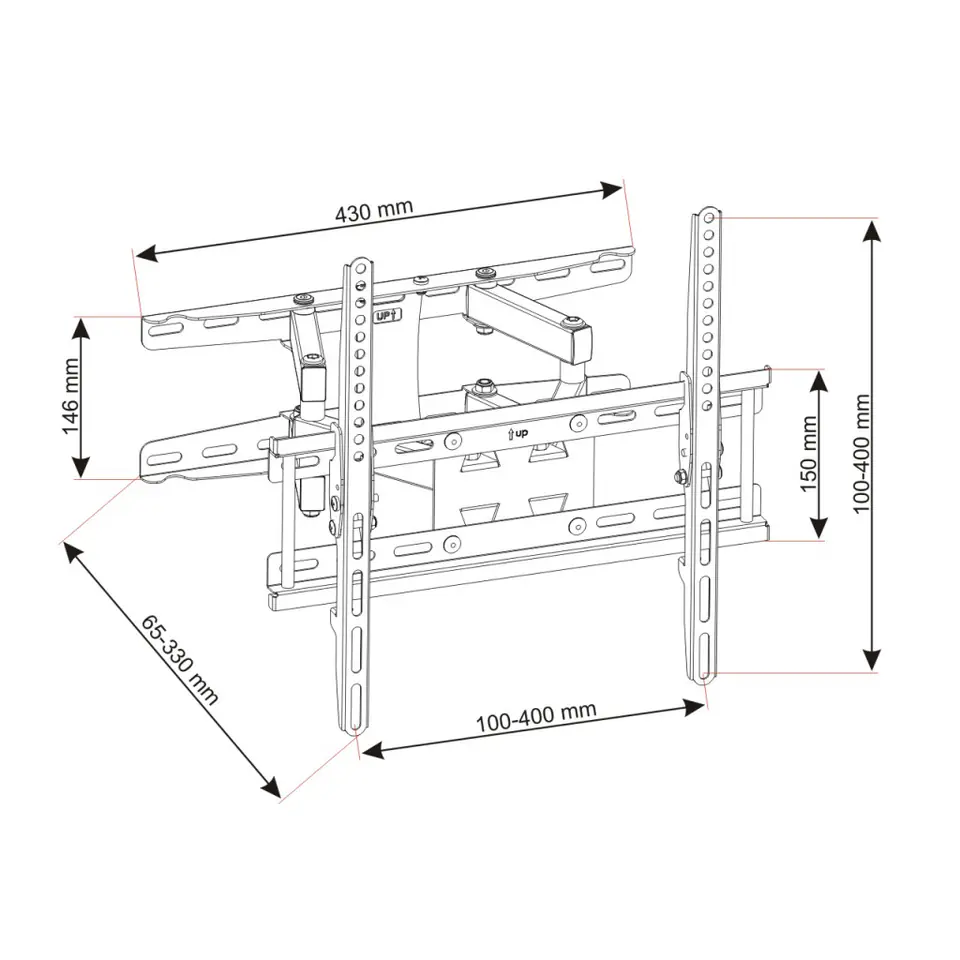

Dimensions:	435 x 420 x (65 ... 350) mm
Distance from mounting surface:	65 ... 350 mm
Distance from the wall:	6.5-35cm

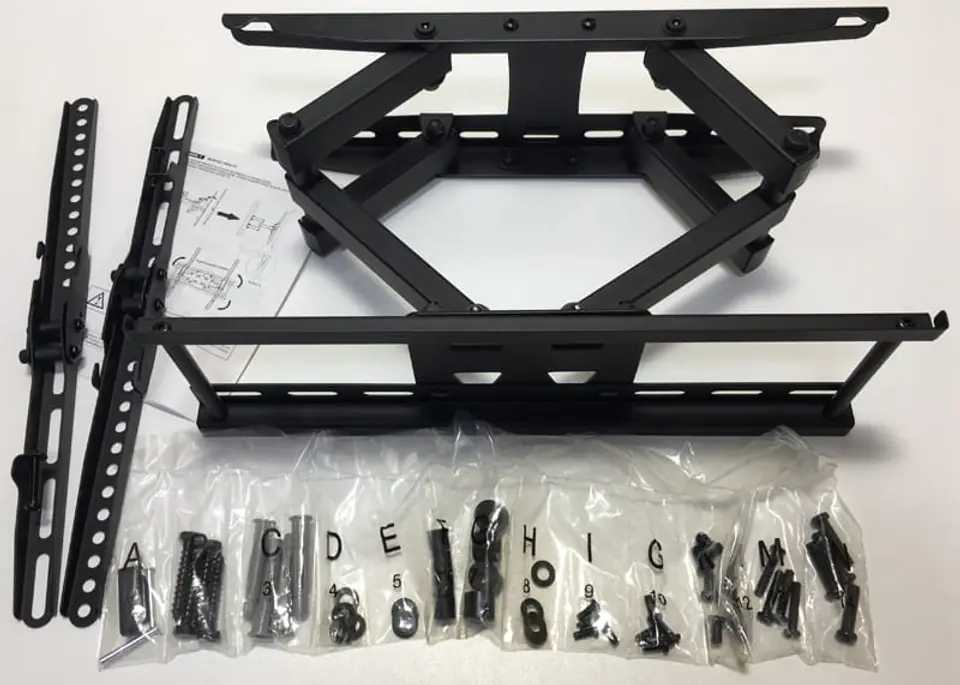

Equipment:	Mounting kit
Execution:	Metal
Features:	The built-in spirit level will facilitate the already simple installation
Handle dimensions:	430x40x65-350mm
Height (mm):	430
Horizontal adjustment (rotation):	-45 to 45 degrees
Horizontal rotation:	-45 ° ... 45 °
Kind:	Wall mount
Load capacity (kg):	45
Manufacturer's symbol:	UX150
Manufacturer's warranty:	2 years
Marketing authorisation in the republic of poland:	yes
Material of manufacture:	Metal
Maximum hole spacing for the handle:	200x200, 300x200, 300x300, 400x300, 400x400
Maximum screen size:	152.4 cm (60")
Maximum tv weight:	45kg
Maximum vesa mount:	400 x 600 mm
Maximum weight:	45 kg
Minimal vesa mount:	75 x 75 mm
Mounting screw kit:	yes
Mounting standard:	VESA 200 x 200, 300 x 200, 300 x 300, 400 x 300, 400 x 400
Mounting type:	Wall
Number of included products:	1 pc
Number of supported displays:	1
Other features:	Double arm for stability and safety
Other parameters:	Powder coated, Built-in spirit level, Material: Metal
Panel mounting interface:	400 x 200, 300 x 200 mm, 400 x 400 mm, 280 x 150, 200 x 100, 300 x 300 mm, 400 x 600 mm, 400 x 300, 200 x 200 mm, 75 x 75 mm, 360 x 304, 100 x 100 mm, 300 x 100
Producer:	ART
Producer / brand:	ART
Product colour:	Black
Scales:	4.09 kg

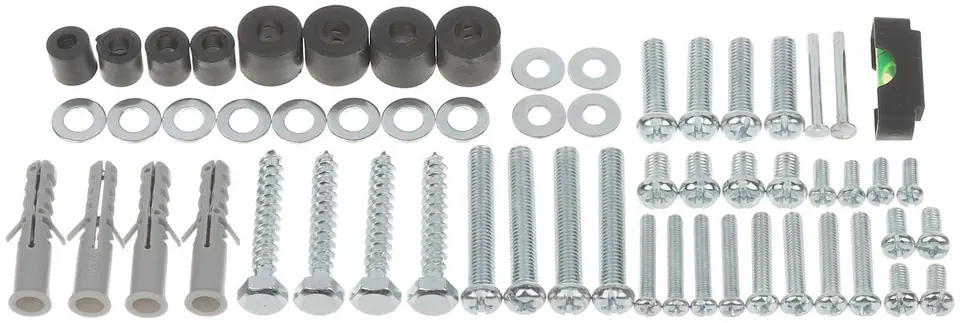

Selected features:	TV/monitor lock against slipping Double arm for stability and safety Built-in spirit level for easy installation Set : Dowels, Screws
Standard vesa:	yes
Tilt angle range:	-15 - 15°
Tilt vertically:	0 ° ... 15 °
Tv size:	23-60
Tv size in inches:	23 " ... 60 "
Type of product:	TV mount with vertical and horizontal adjustment
Use:	TV installation 23-60
Varnishing method:	Powder coated
Vertical adjustment (inclination):	15 degrees
Vesa:	400 x 400, 200 x 200, 300 x 300, 300 x 200
Wall mounting:	yes
Warranty:	2 years
Width (mm):	40

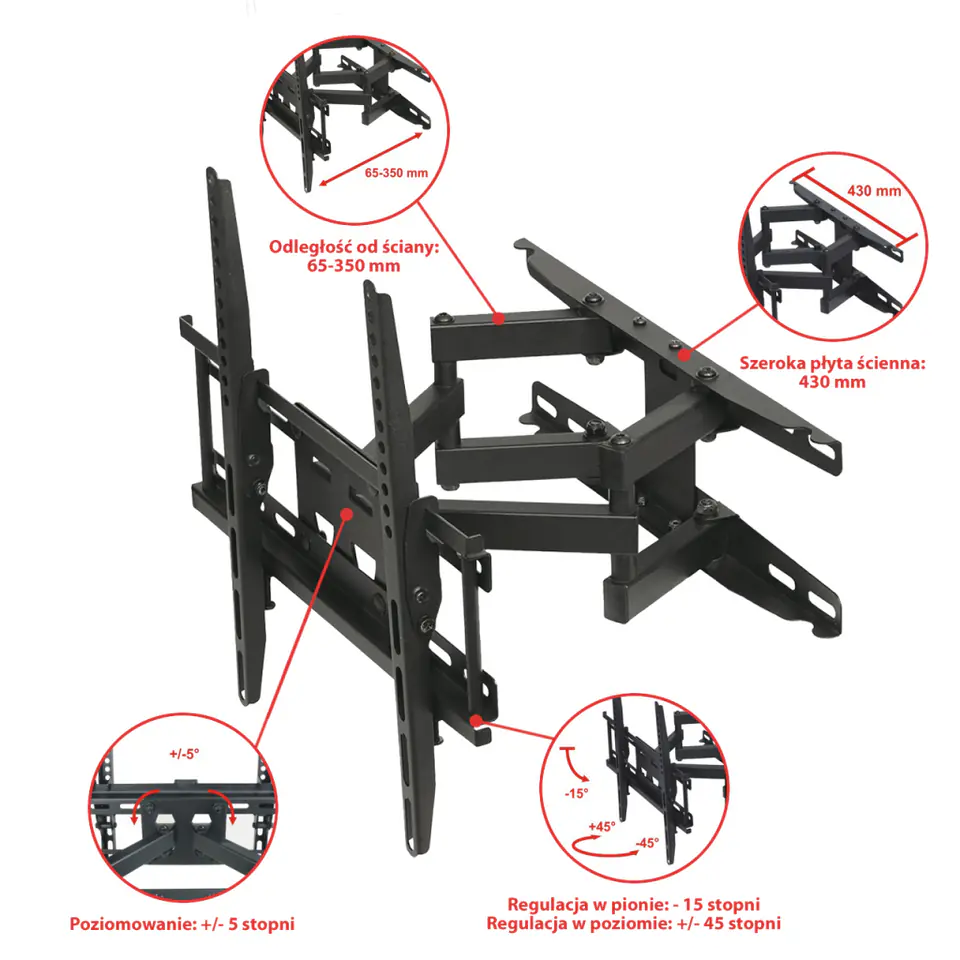

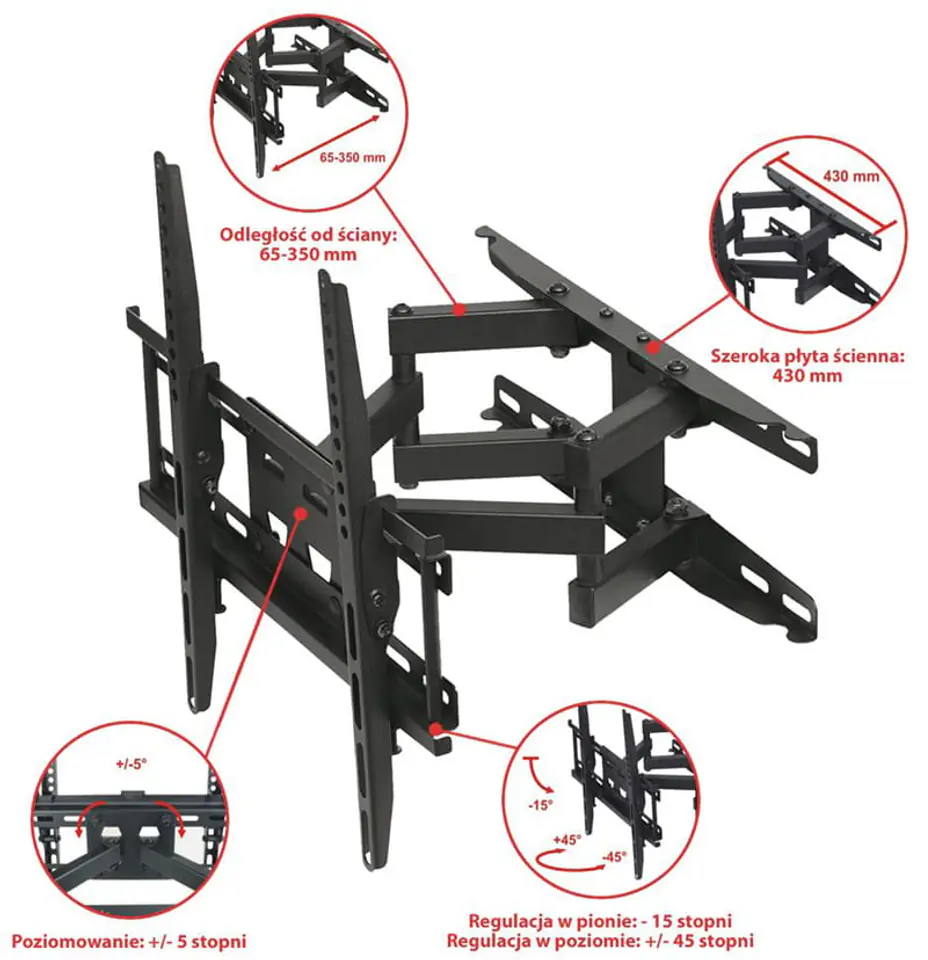

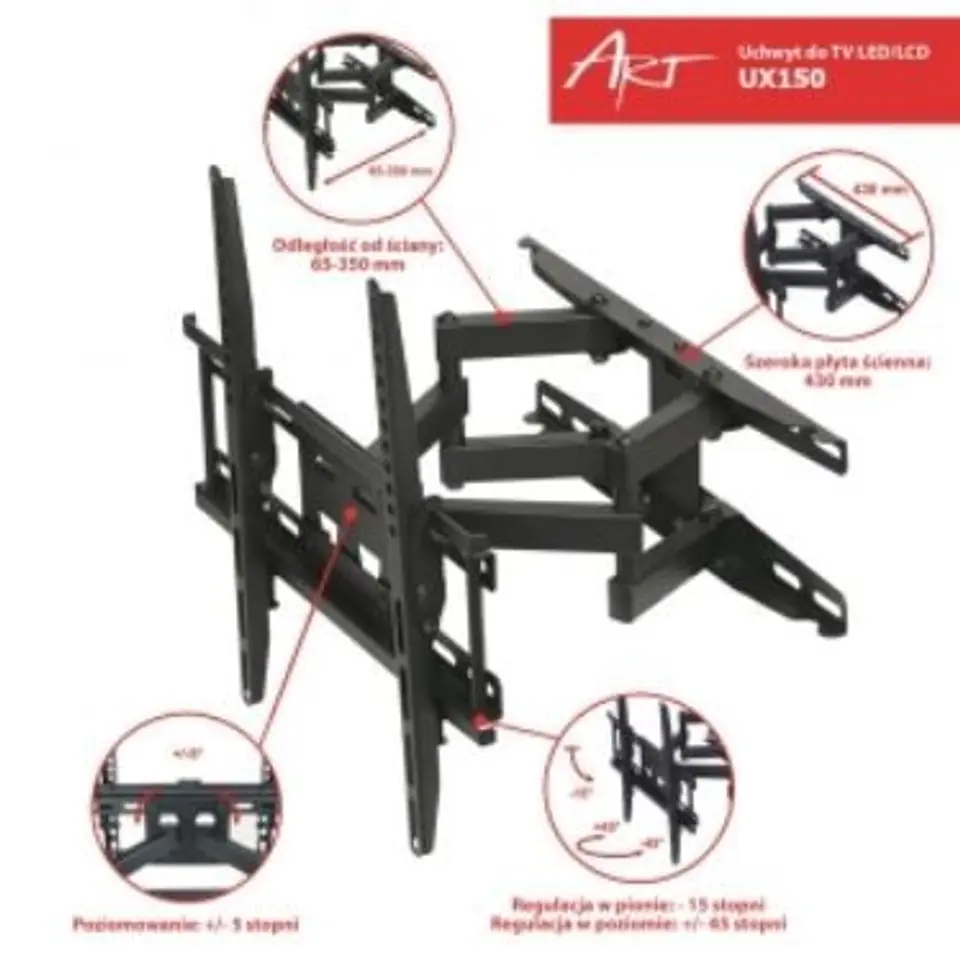

Double arm for stability and safety. Wide range of adjustment both vertically and horizontally and adjusting the right distance from the wall. A spirit level for easy even installation of the handle.

Manufacturer: ART

Manufacturer symbol: UX150

Product type: TV mount with vertical and horizontal adjustment

Application: 23-60 inch TV assembly

VESA standard: Yes

TV size: 23-60

Max TV weight: 45kg

Maximum hole spacing: 200x200, 300x200, 300x300, 400x300, 400x400

Vertical adjustment (inclination): 15 degrees

Horizontal adjustment (swivel): -45 to 45 degrees

Wall mounting: Yes

Distance from wall: 6.5-35cm

Corner handle: Yes

Handle dimensions: 430x40x65-350mm

Material: Metal

Coating method: Powder

Color: Black

Mounting screw set: Yes

Marketing authorisation in the Republic of Poland: Yes

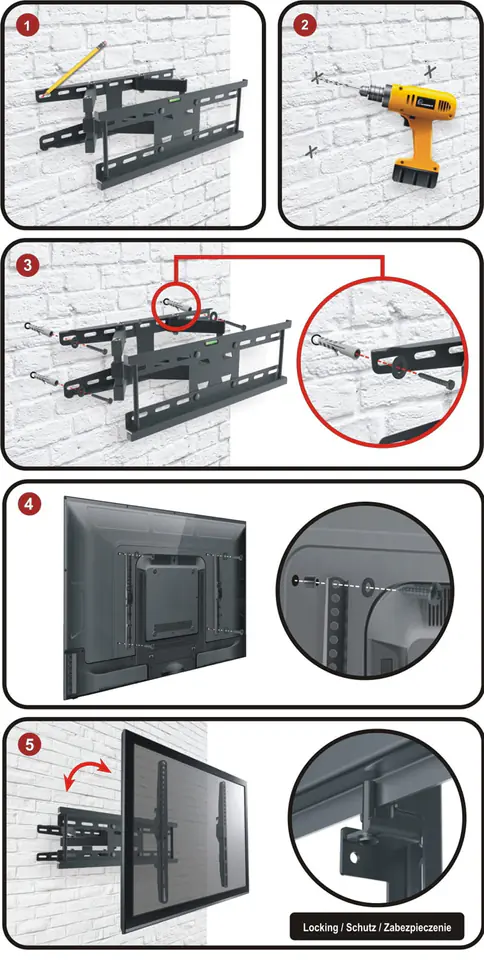

On the graphic below there is a short assembly instruction for the hanger.

Instrukcja mocowania wieszaka na telewizor

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
