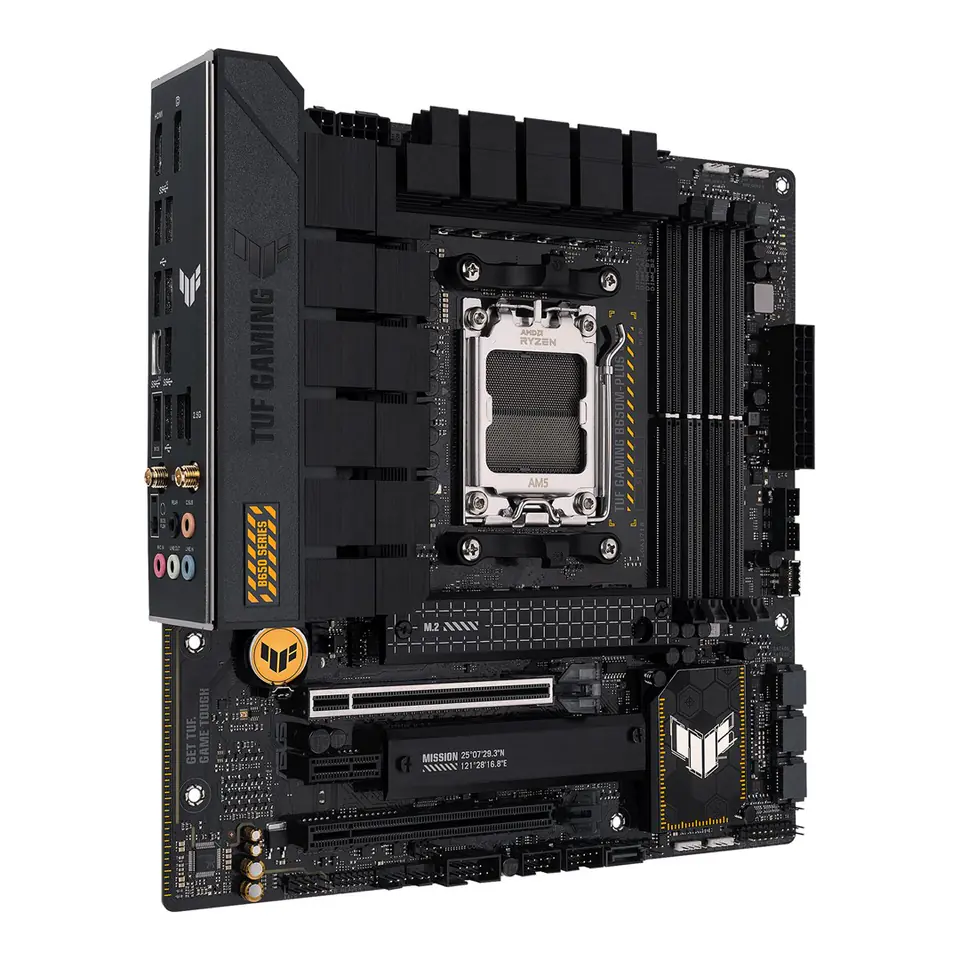

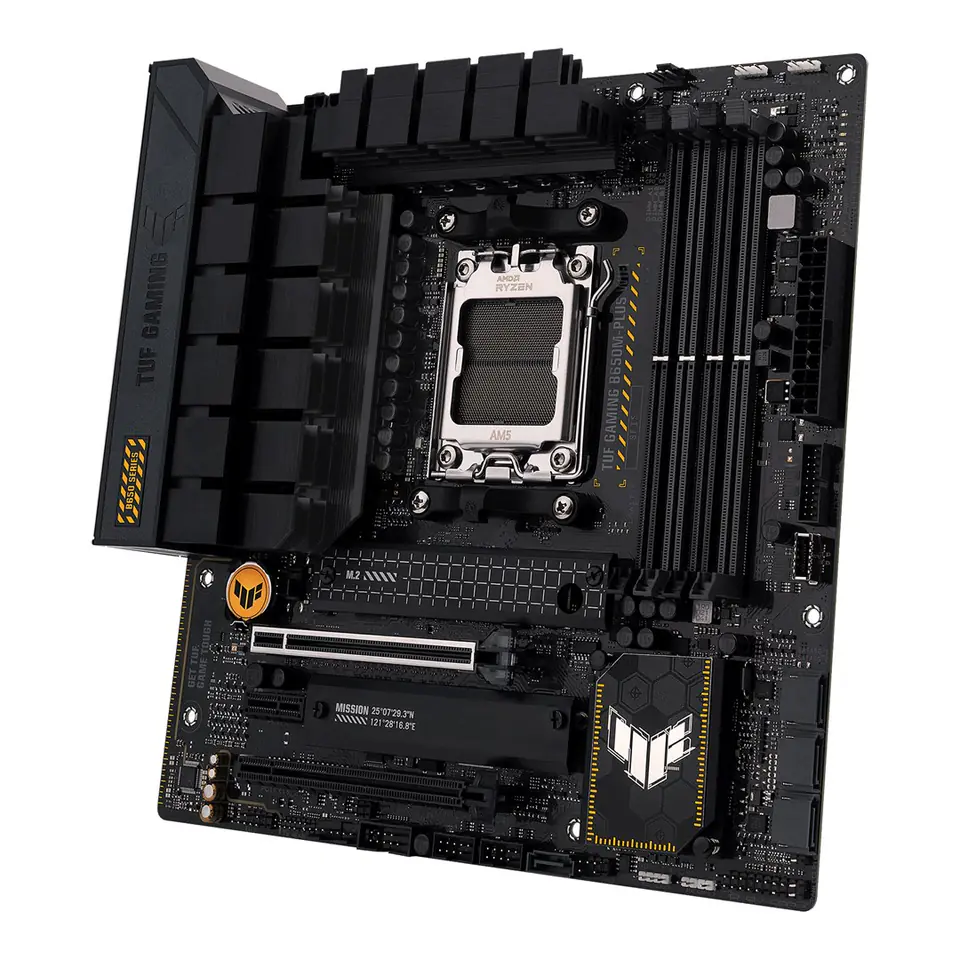

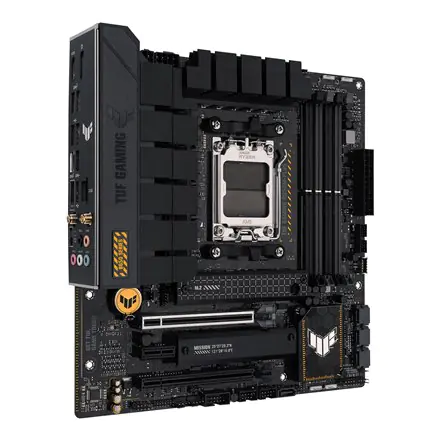

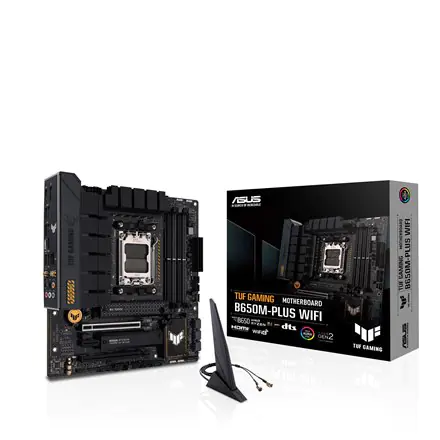

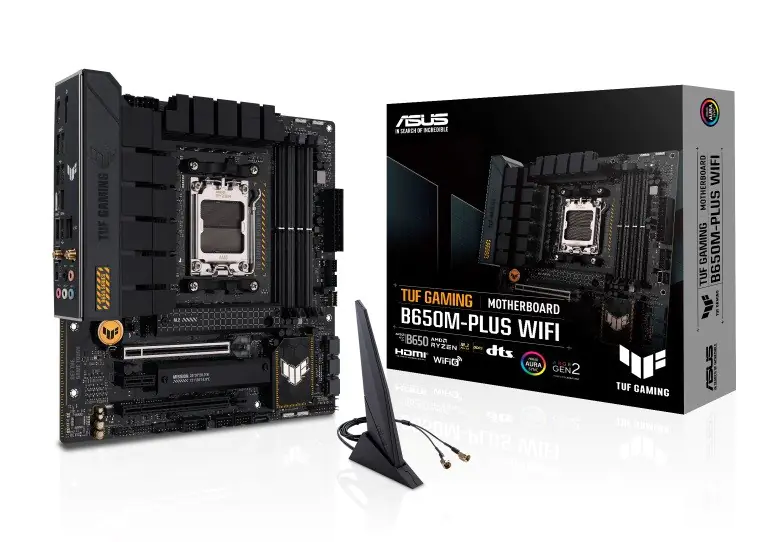

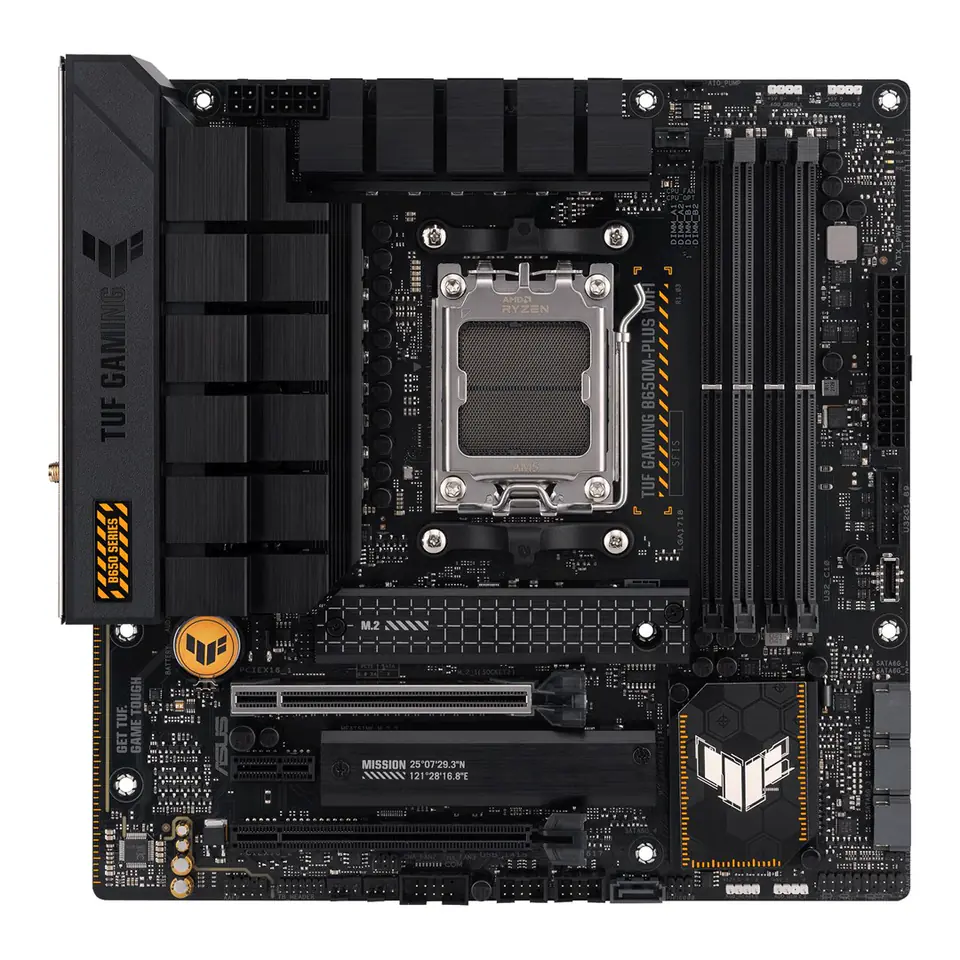

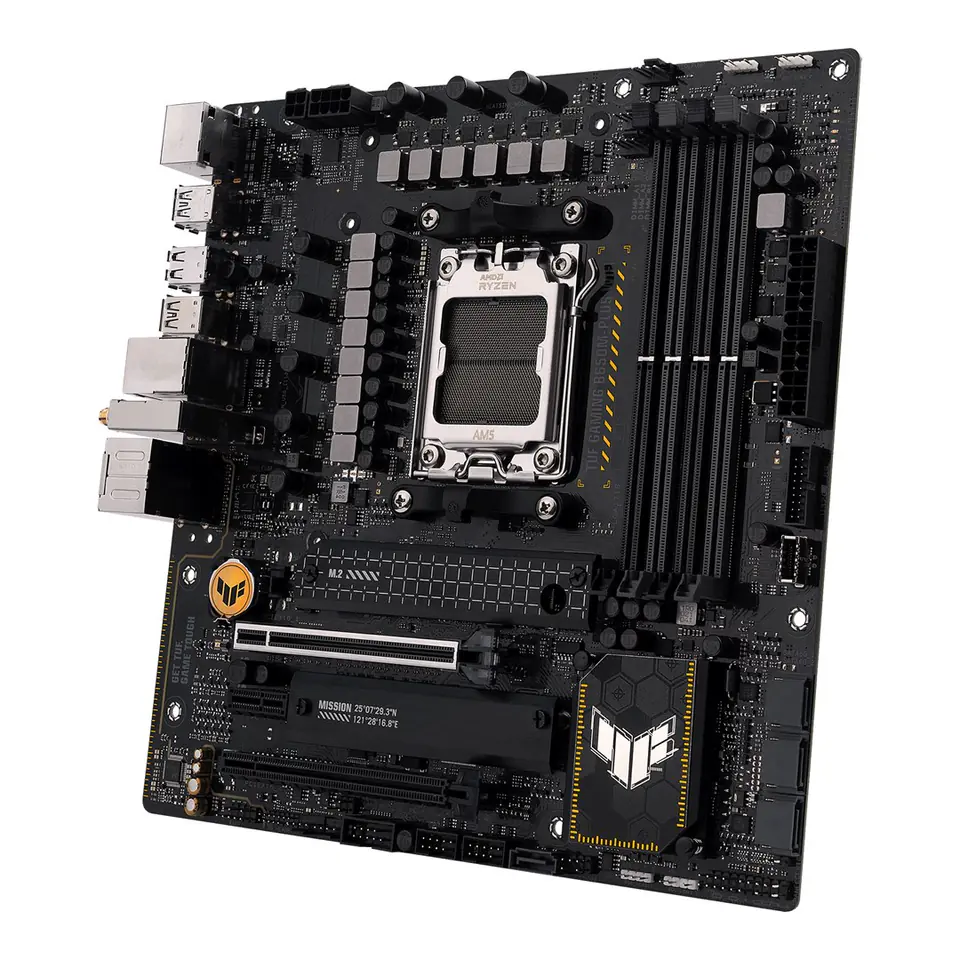

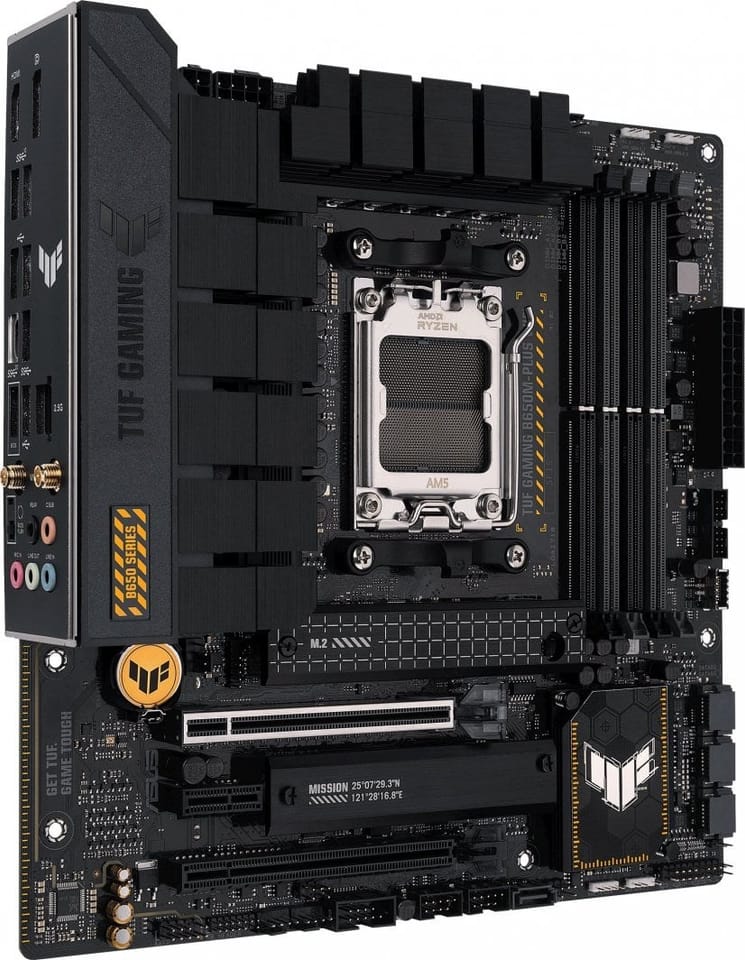

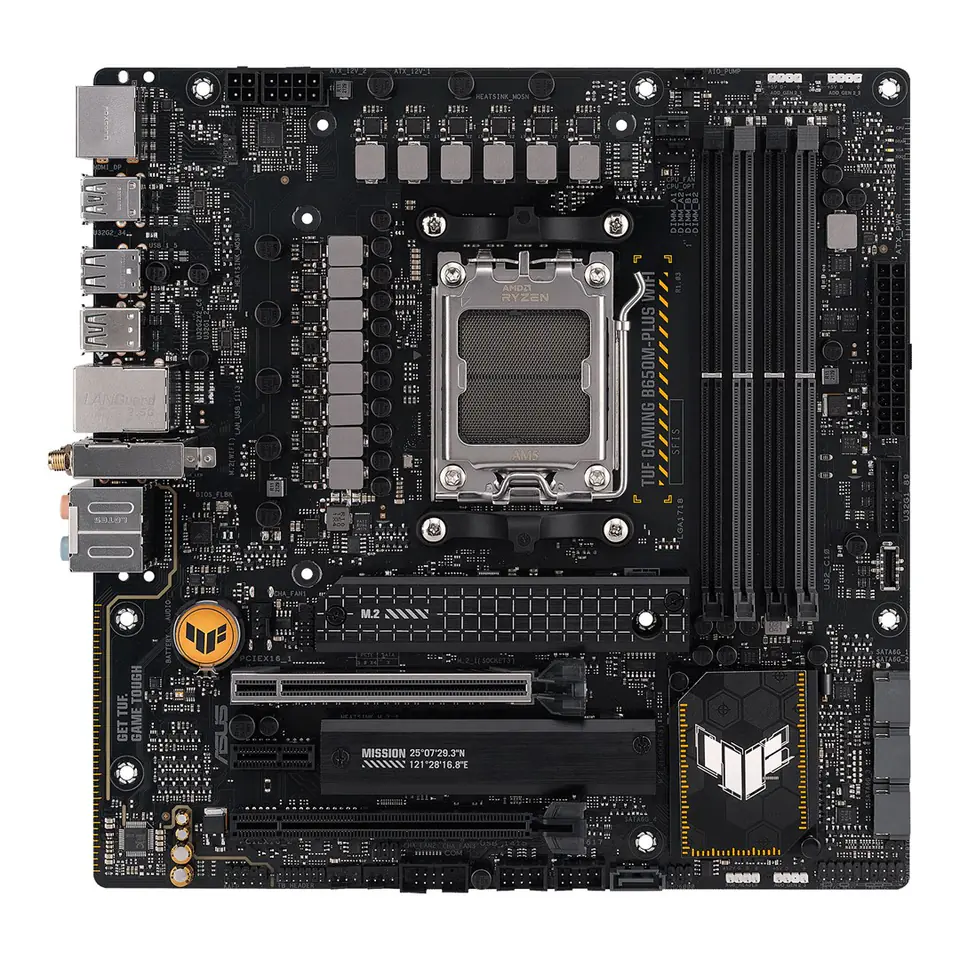

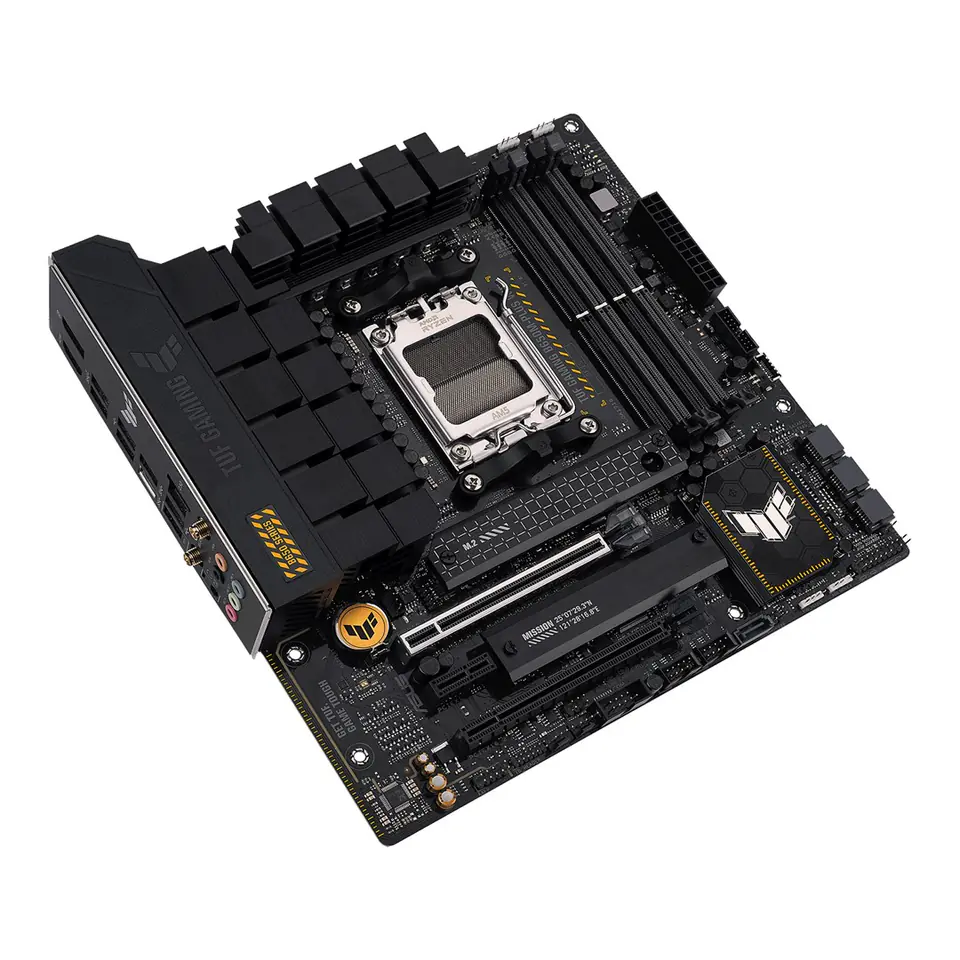

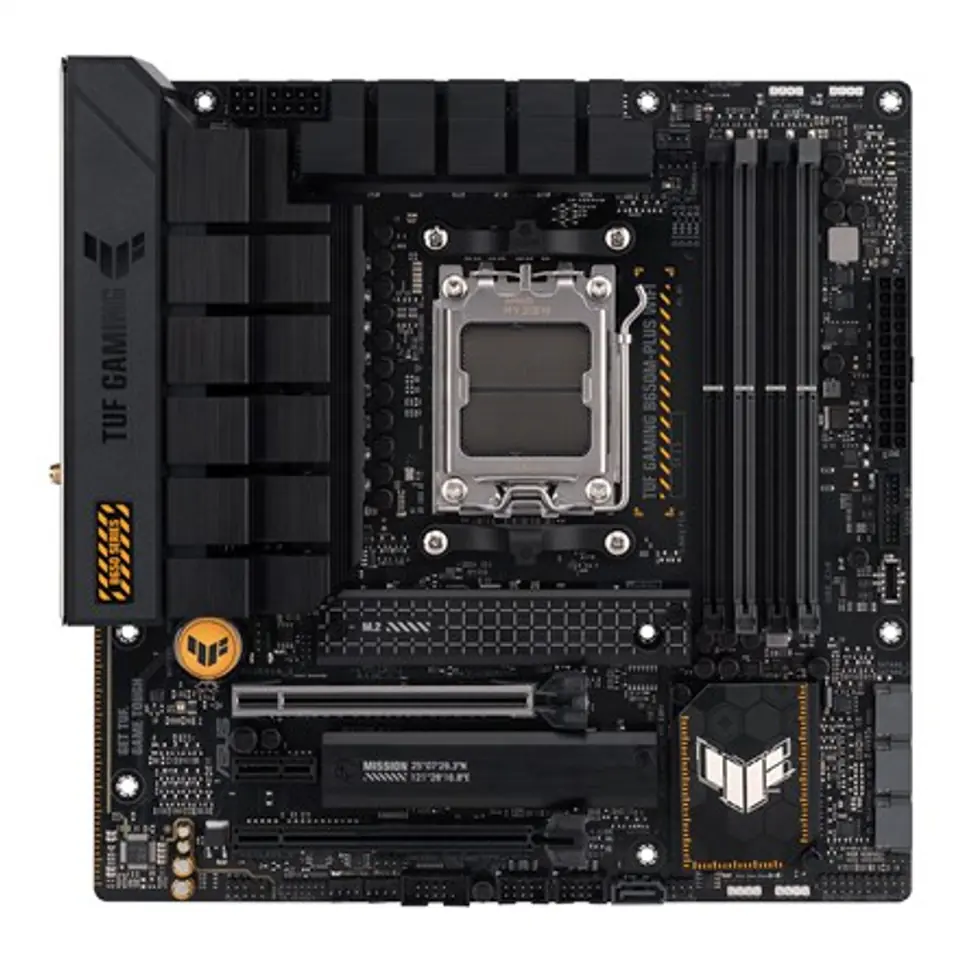

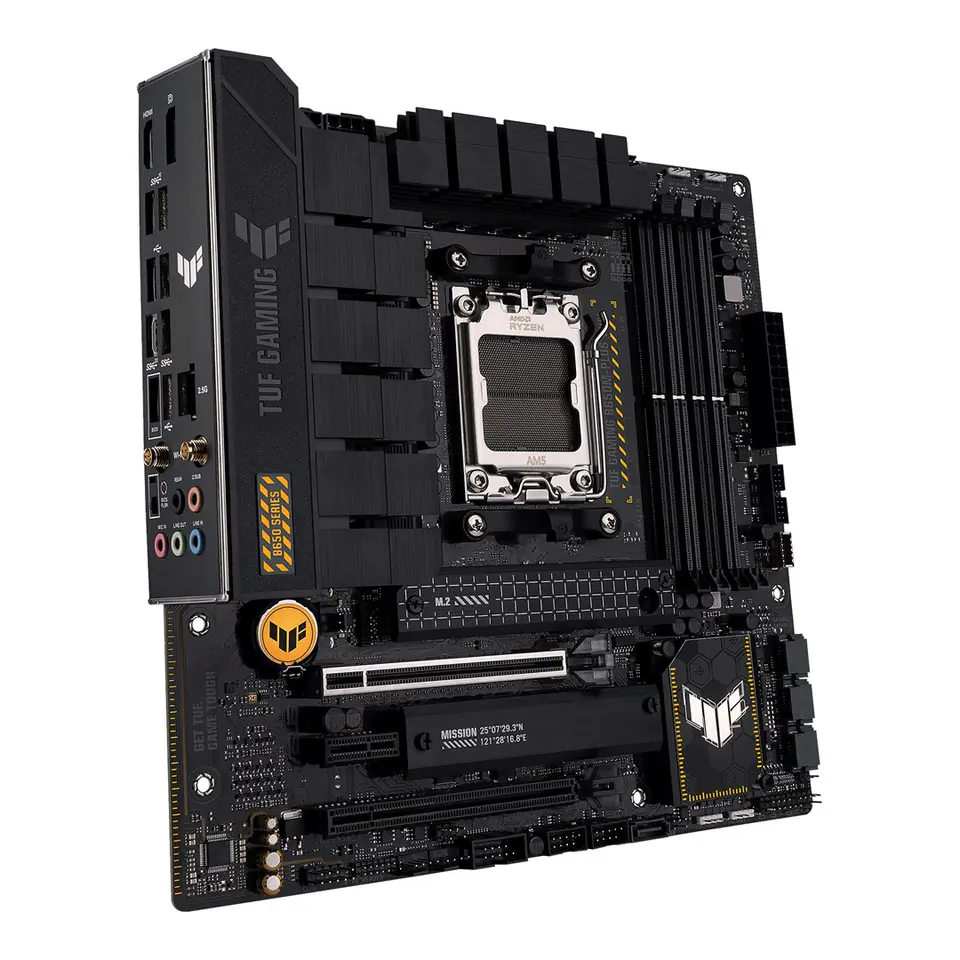

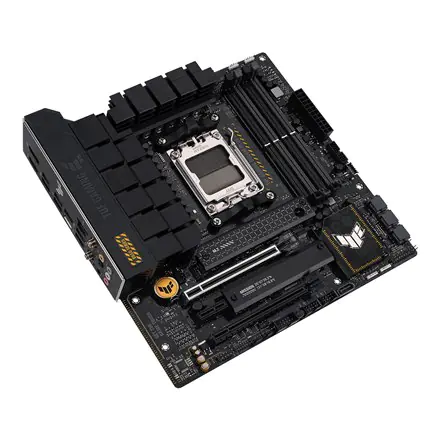

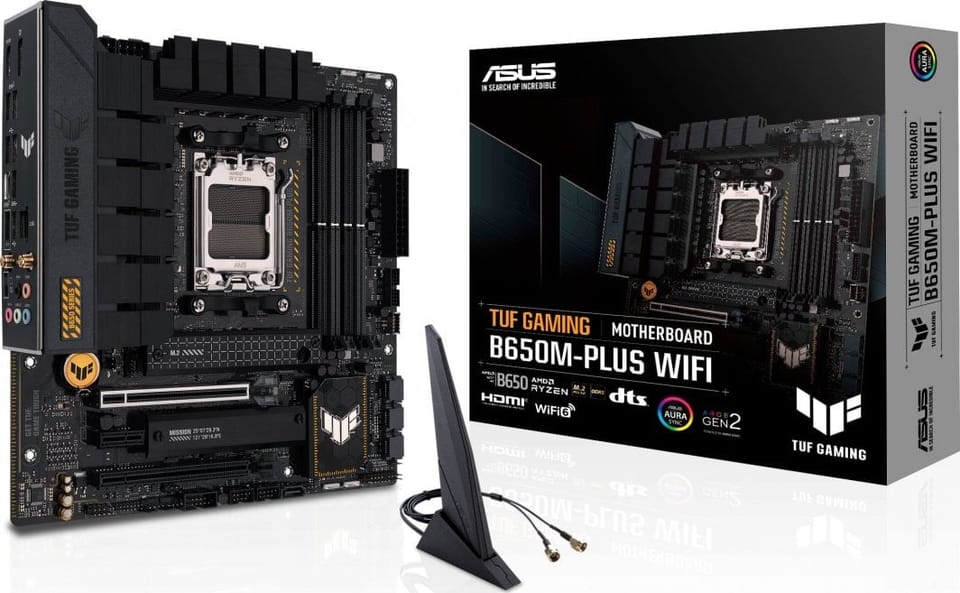

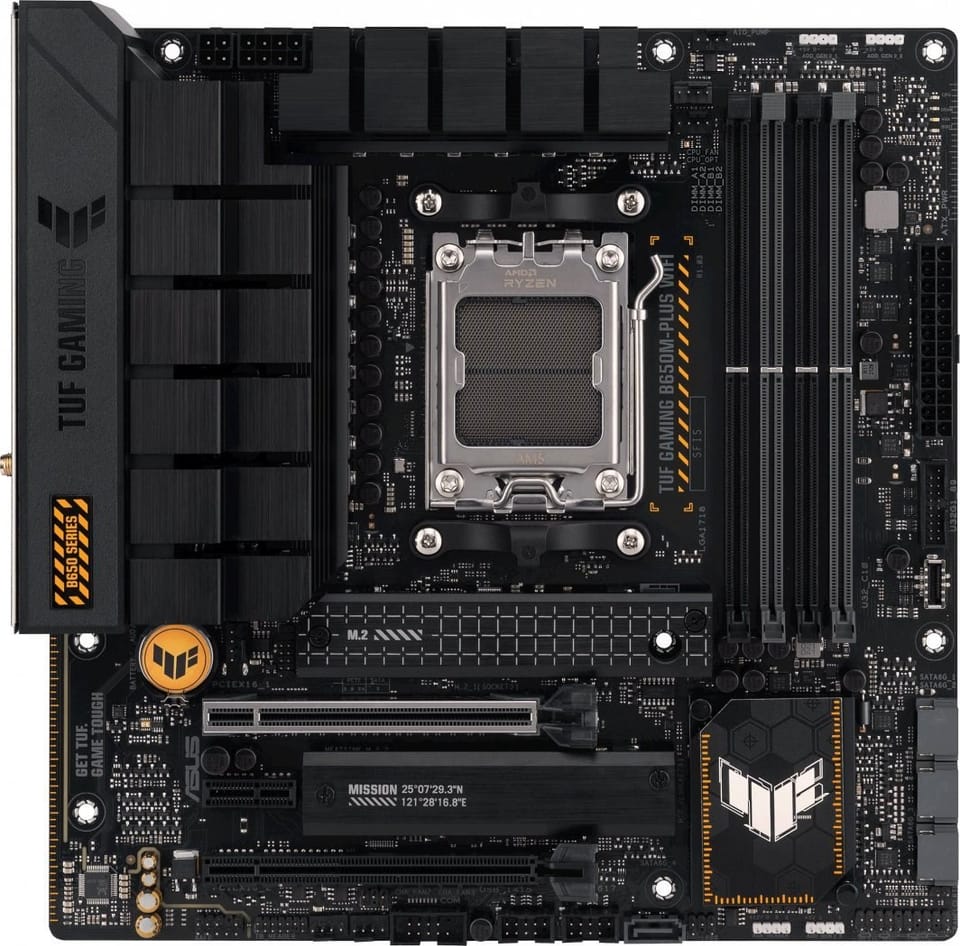

TUF GAMING B650M-PLUS WIFI
AMD B650
Supports 2 x M.2 and 4 SATA 6Gb/s ports in total:
AMD Ryzen 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
- 4 x SATA 6Gb/s ports
*AMD RAIDXpert2 technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

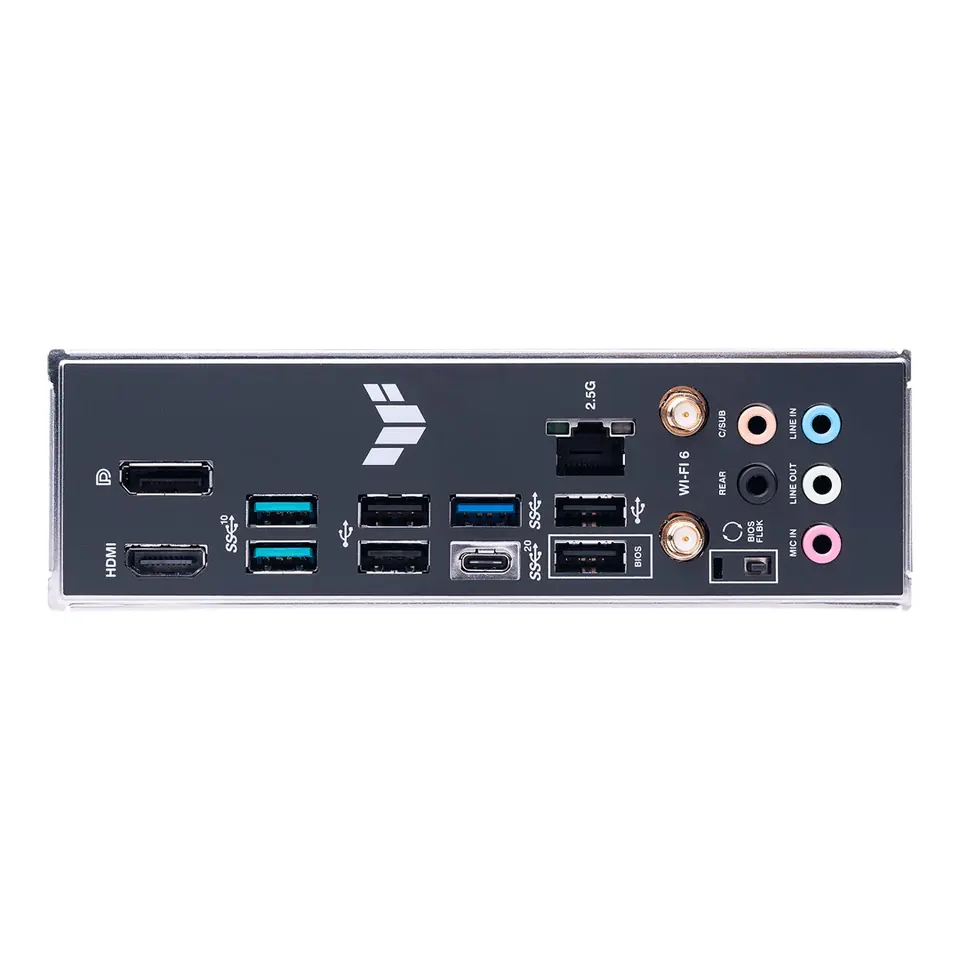

- 1 DisplayPort*
- 1 x HDMI**
* Supports max. 8K at 60Hz, according to DisplayPort 1.4.** Supports 4K@60Hz according to HDMI 2.1.*** VGA support depends on the resolution of your CPU or graphics card.
Realtek 7.1 Surround Sound High Definition Audio CODEC:
- Supports: plugin detection, multi-streaming, front-panel plug-in task change
- Supports playback up to 24-bit/192kHz
Audio Features:
- Audio shielding
- High quality audio capacitors
- Dedicated audio PCB layers
Ethernet:
- Realtek 2.5Gb Ethernet
- TUF LANGuard

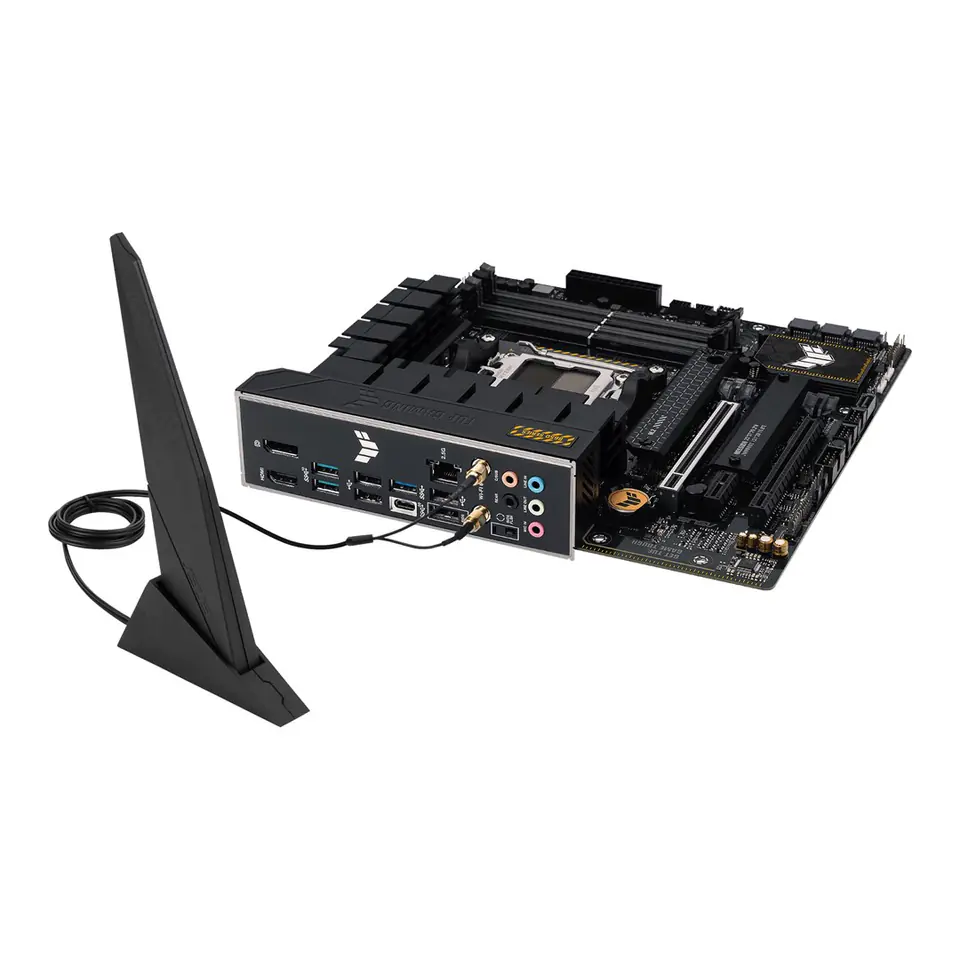

Wireless:
- Wi-Fi 6
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth v5.2
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+

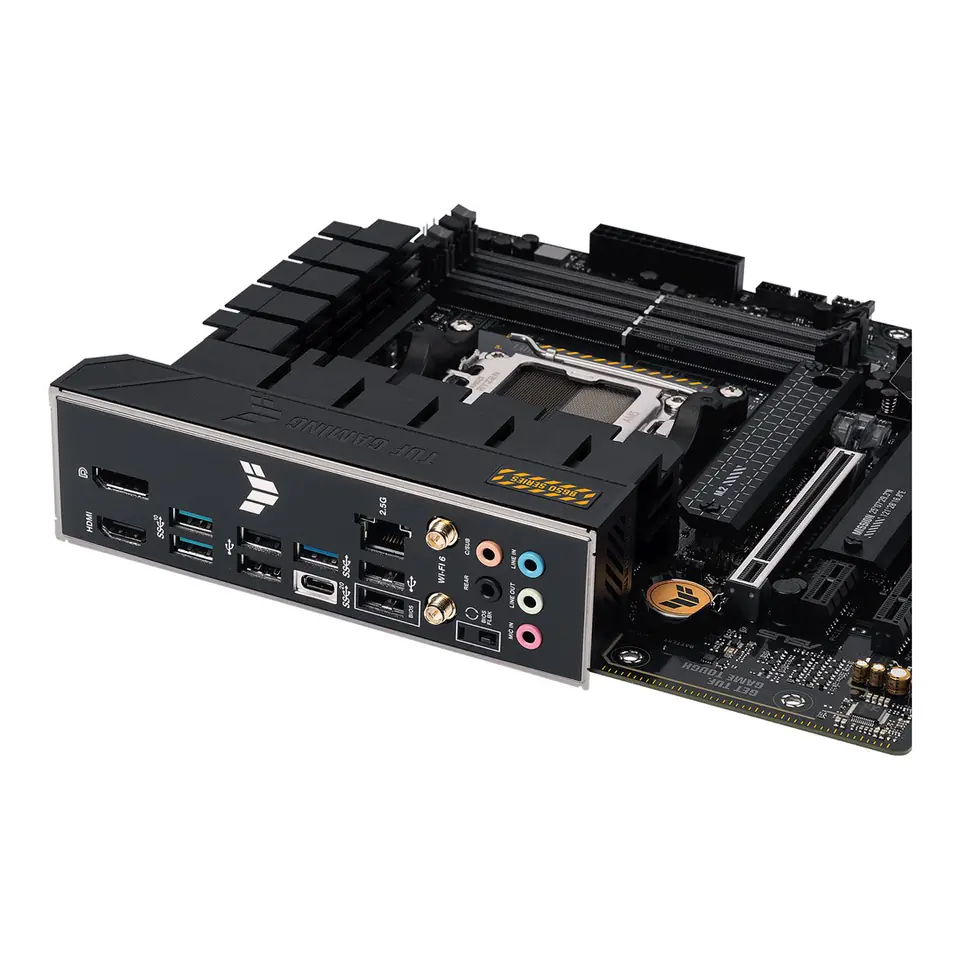

- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
256 Mb Flash ROM, UEFI AMI BIOS
24.4 x 24.4 cm
TUF GAMING CPU-Z:
- DTS Audio Processing
- MyAsus
- Norton Anti-virus software (Free Trial version)
- WinRAR
- ASUS Exclusive Software
Armoury Crate:
- Aura Creator
- Aura Sync
- Xpert Fan 2+
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3:
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
UEFI BIOS:
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
