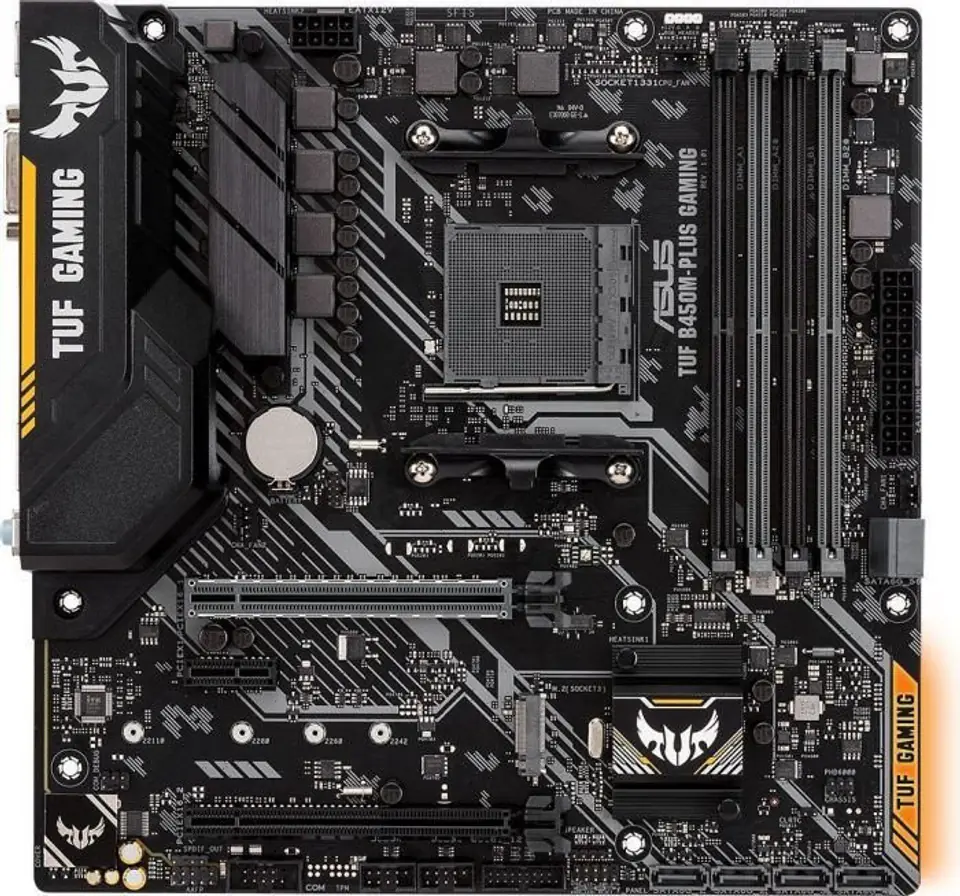

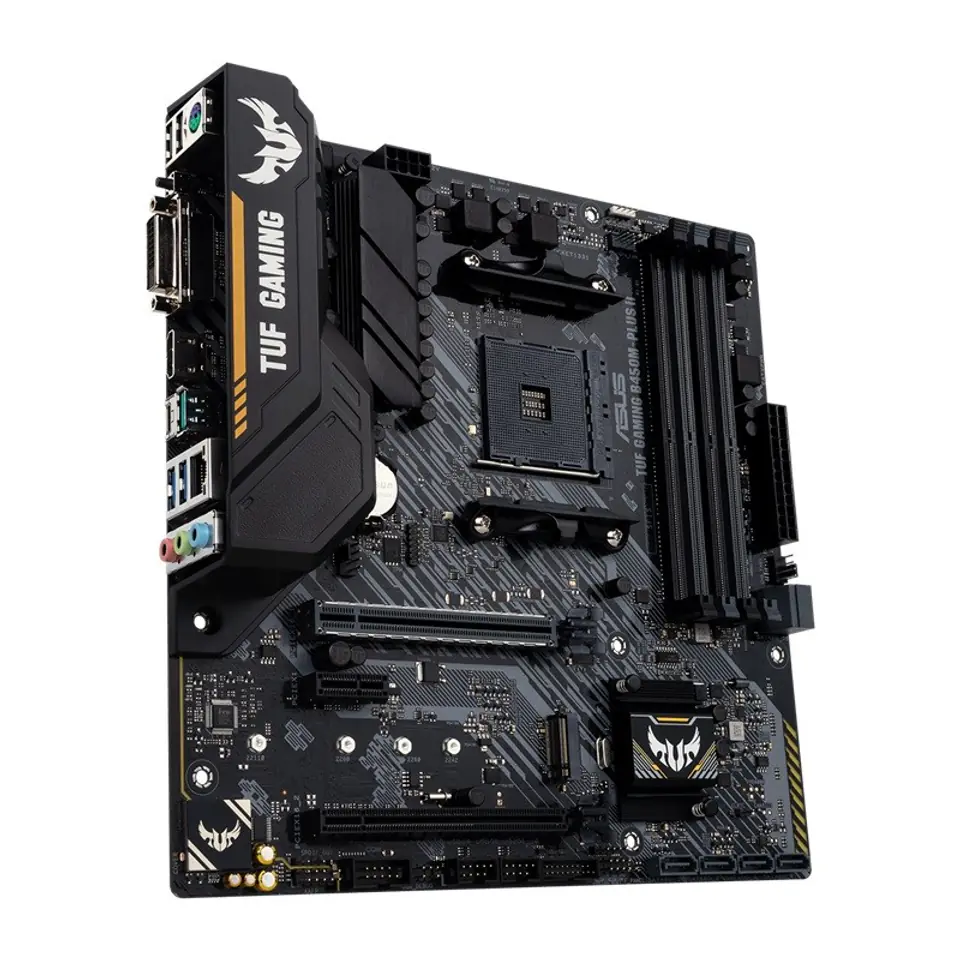

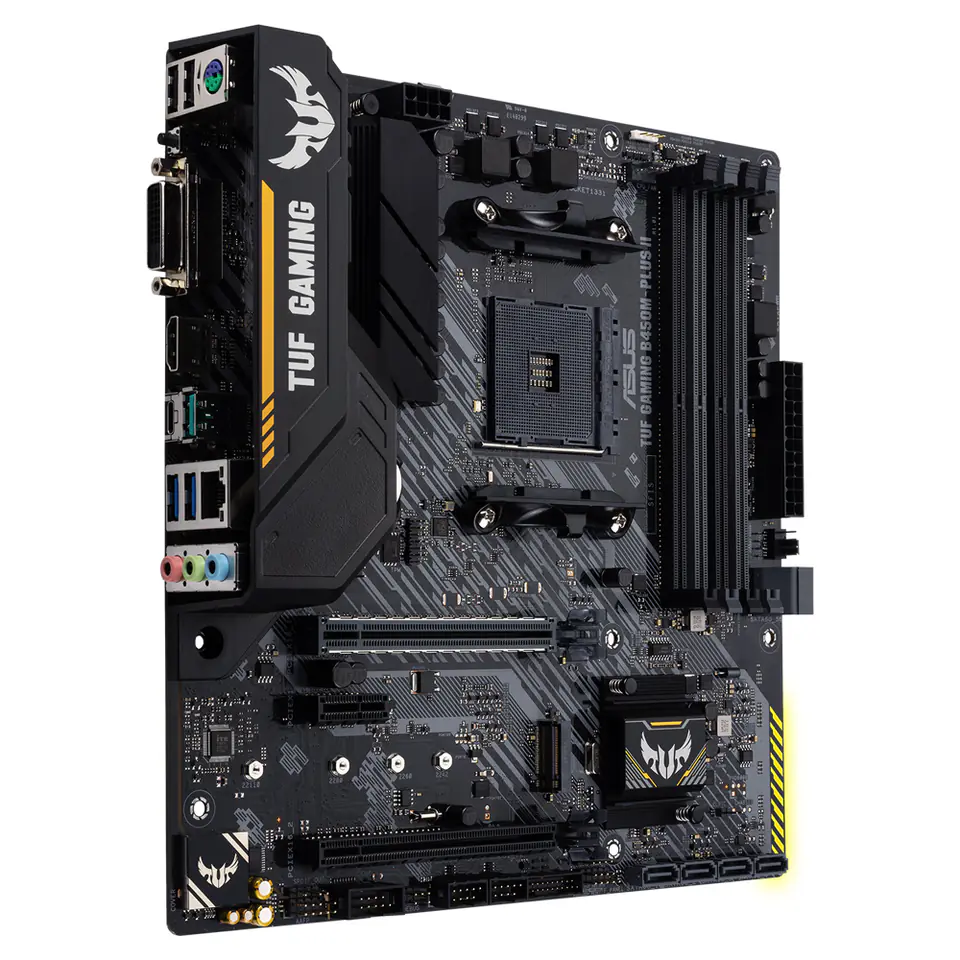

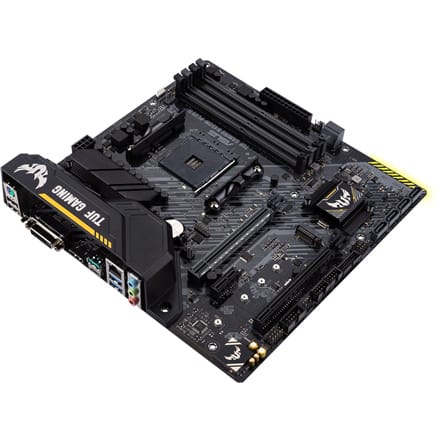

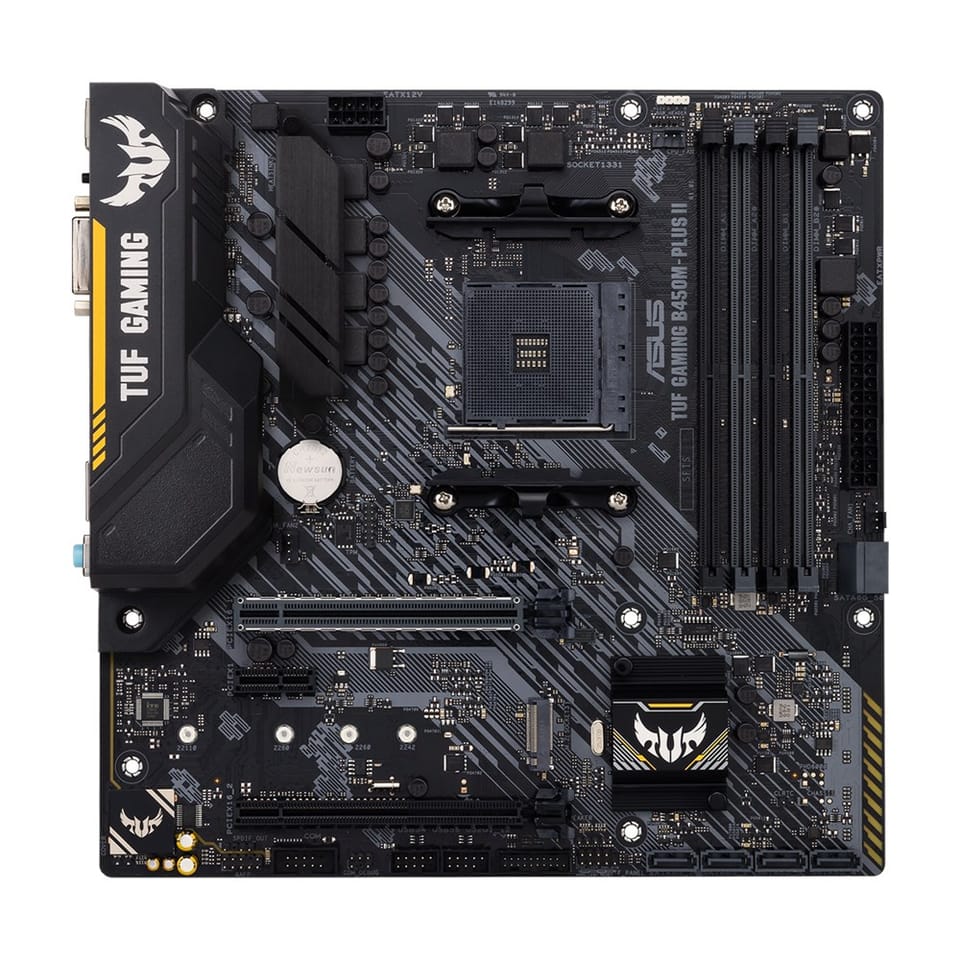

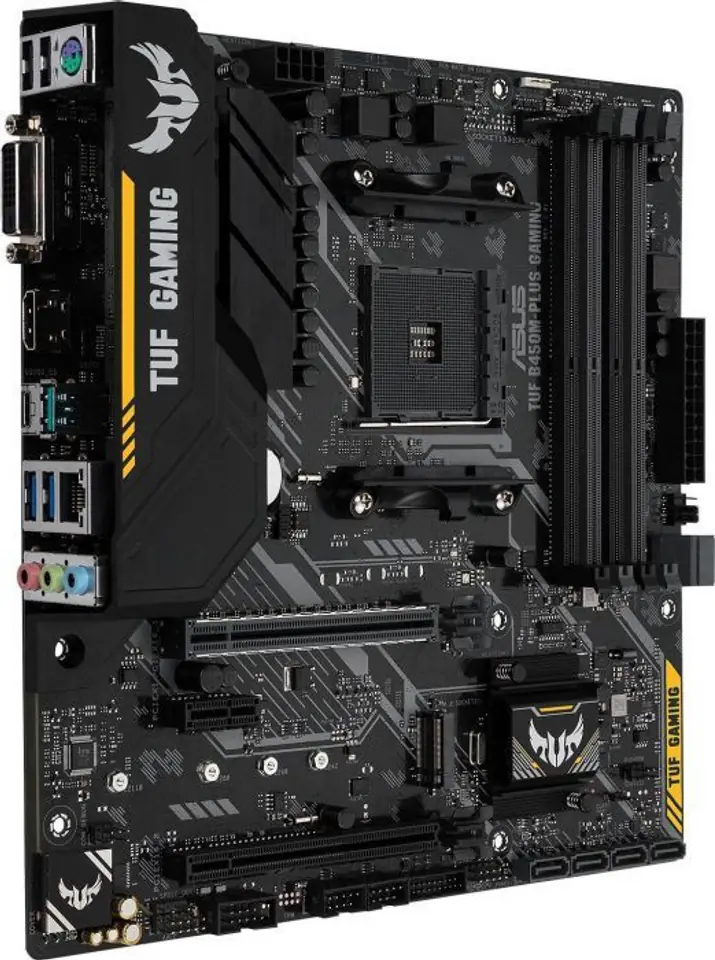

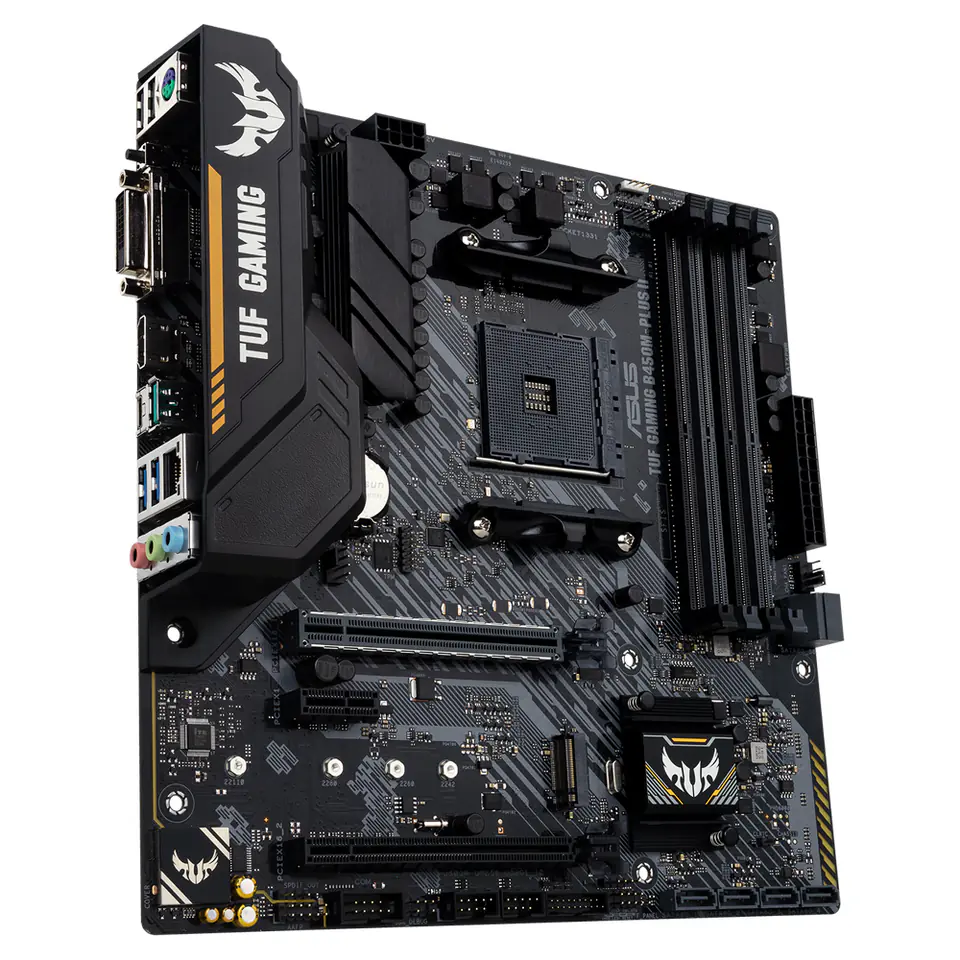

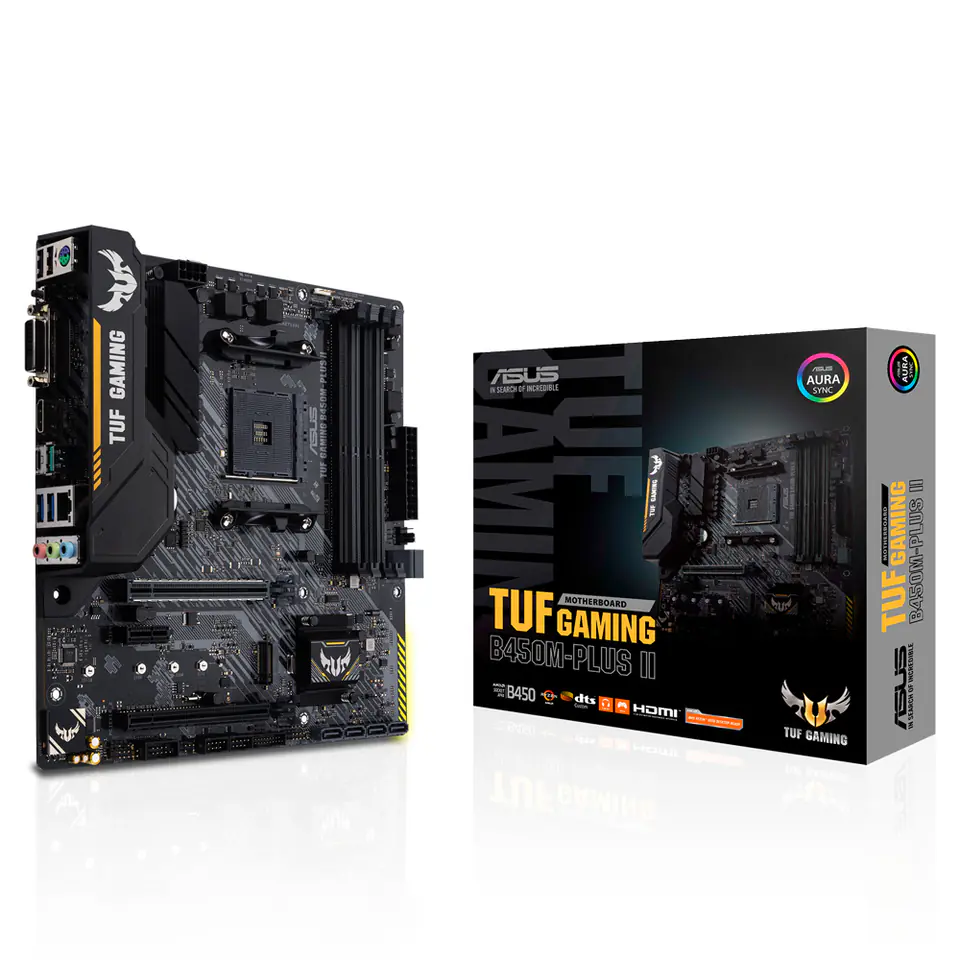

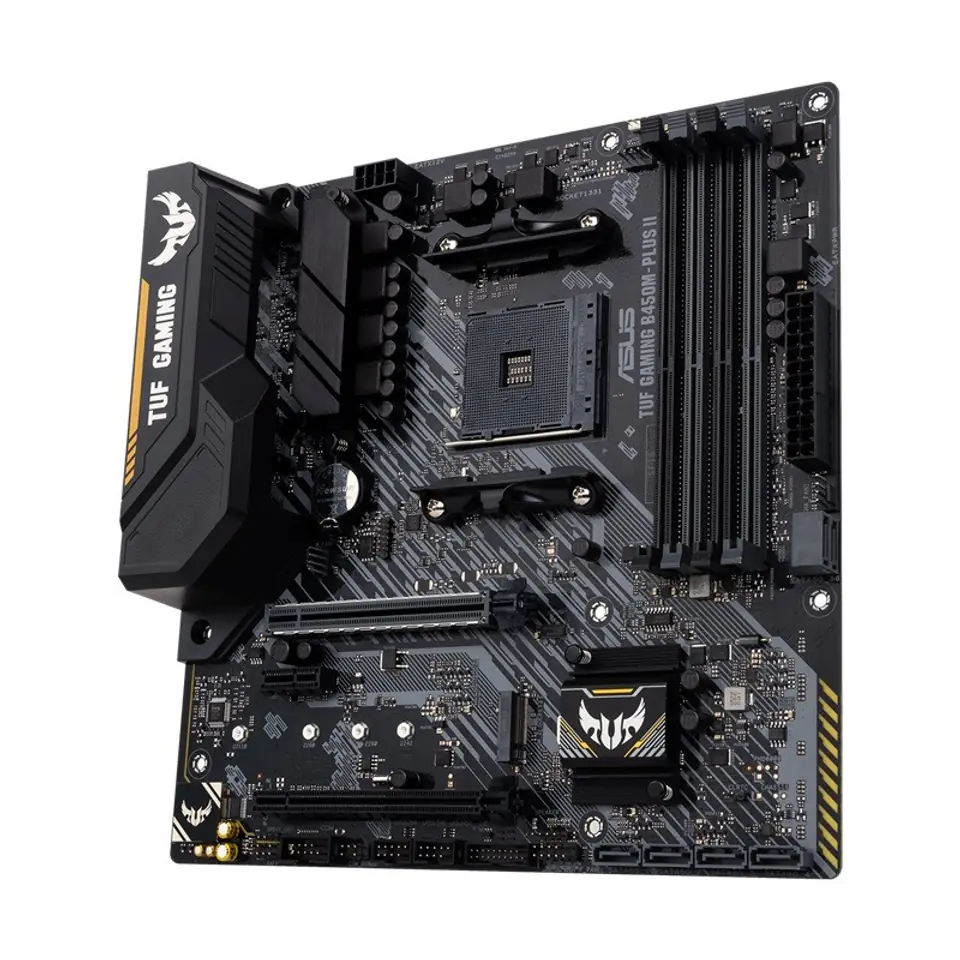

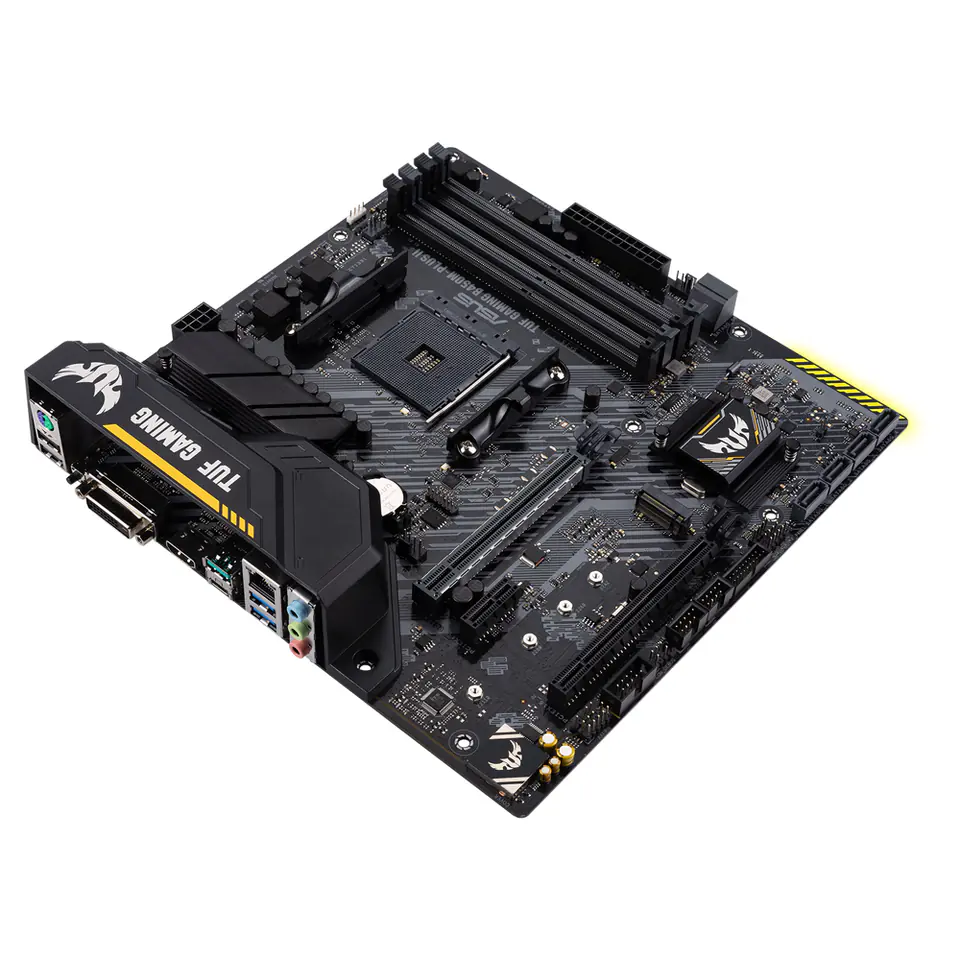

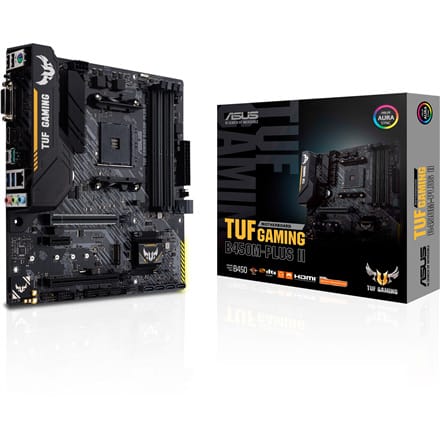

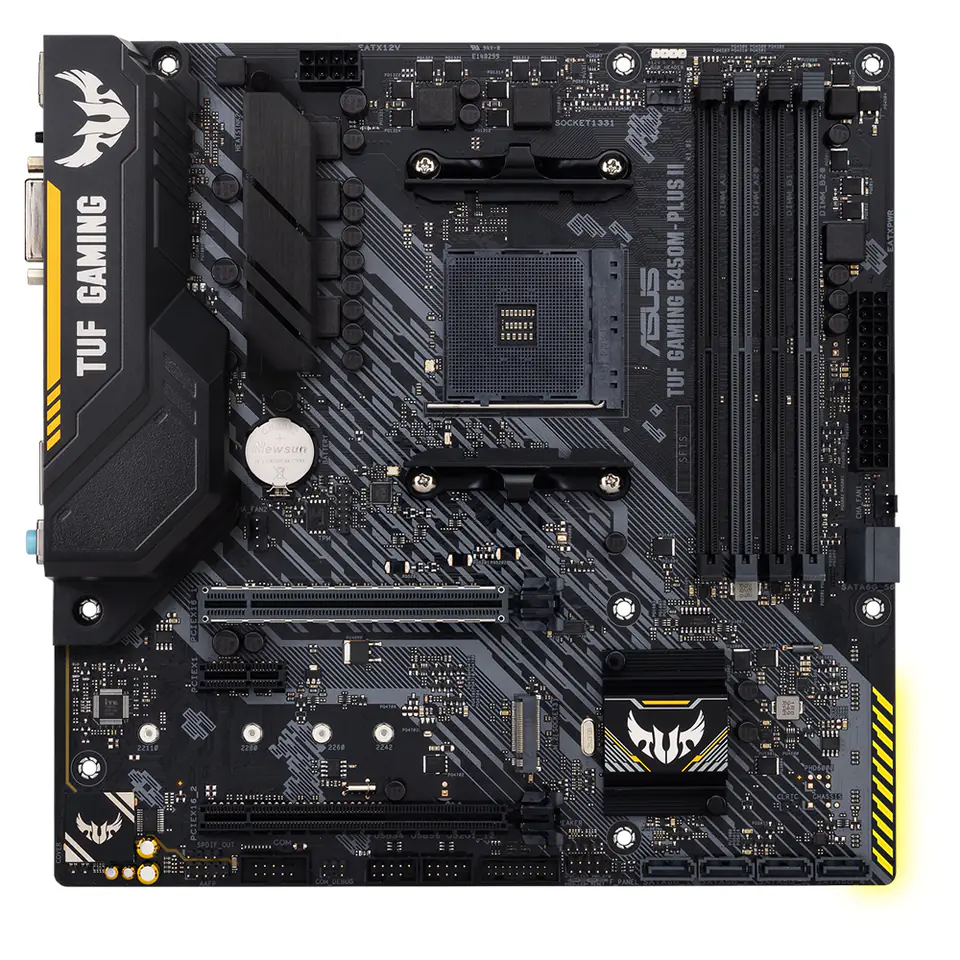

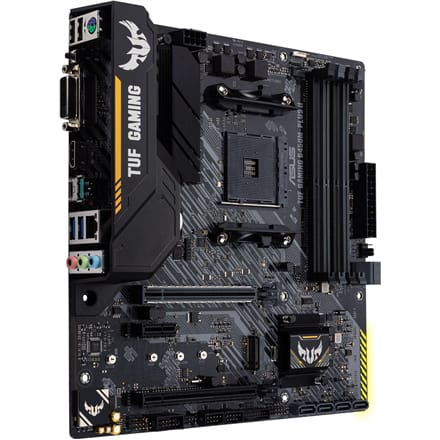

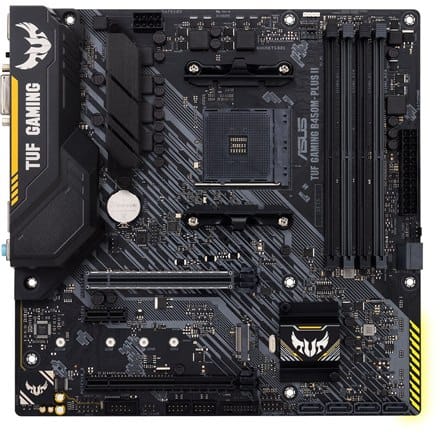

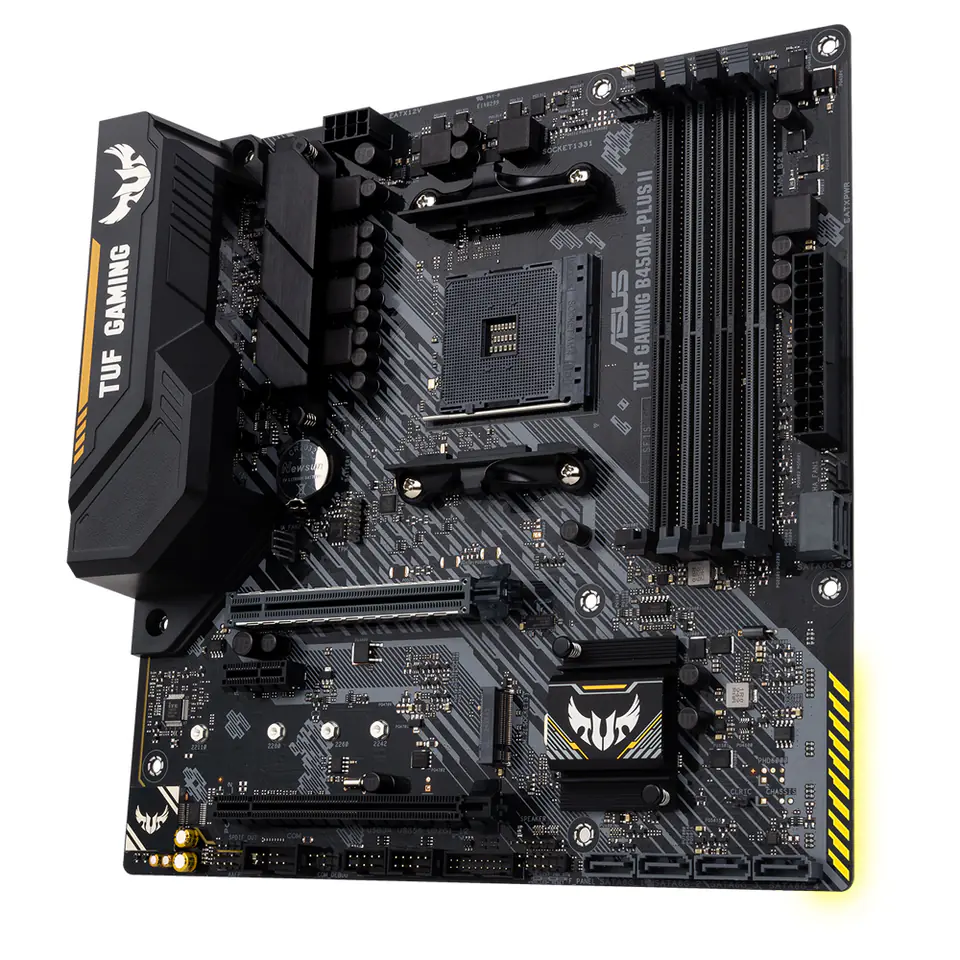

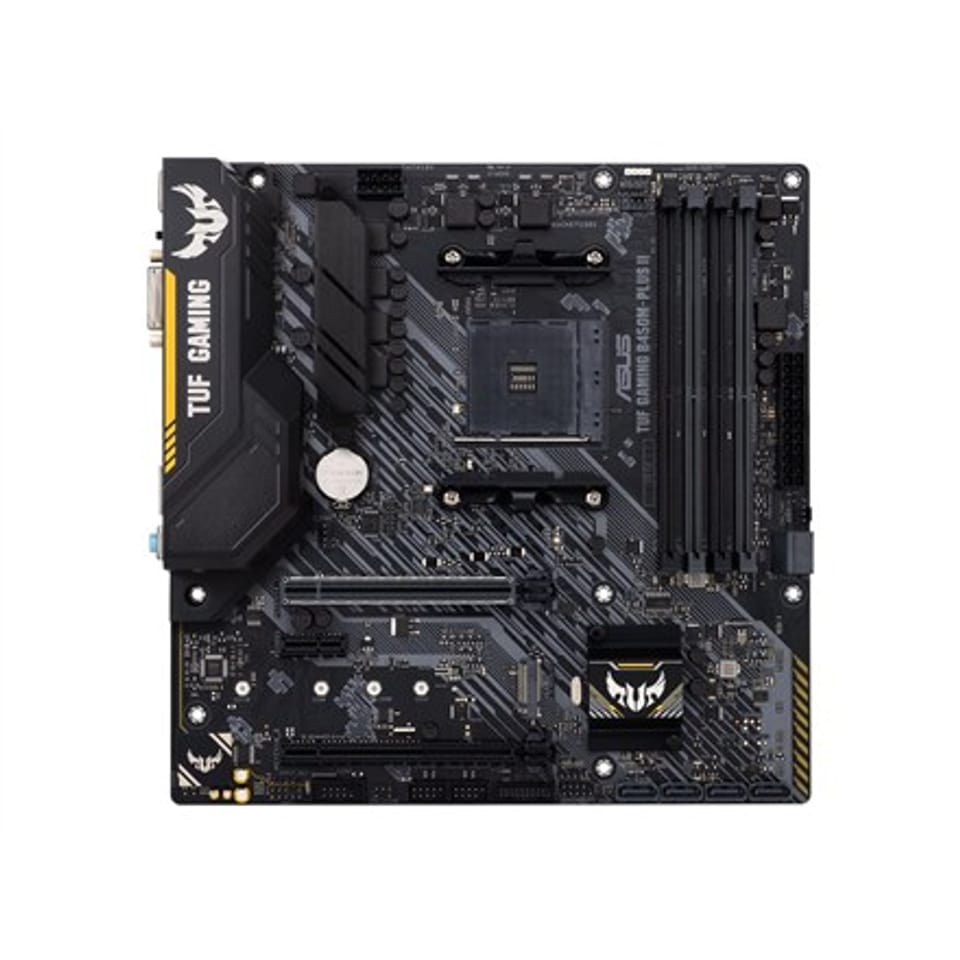

TUF B450M-PLUS II AM4 4DDR4 DVI/HDMI uATX
€108.30
Shipping from warehouse: M7
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 90MB1620-M0EAY0 / 4718017927185
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC887 |
| Audio connector: | Yes |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |

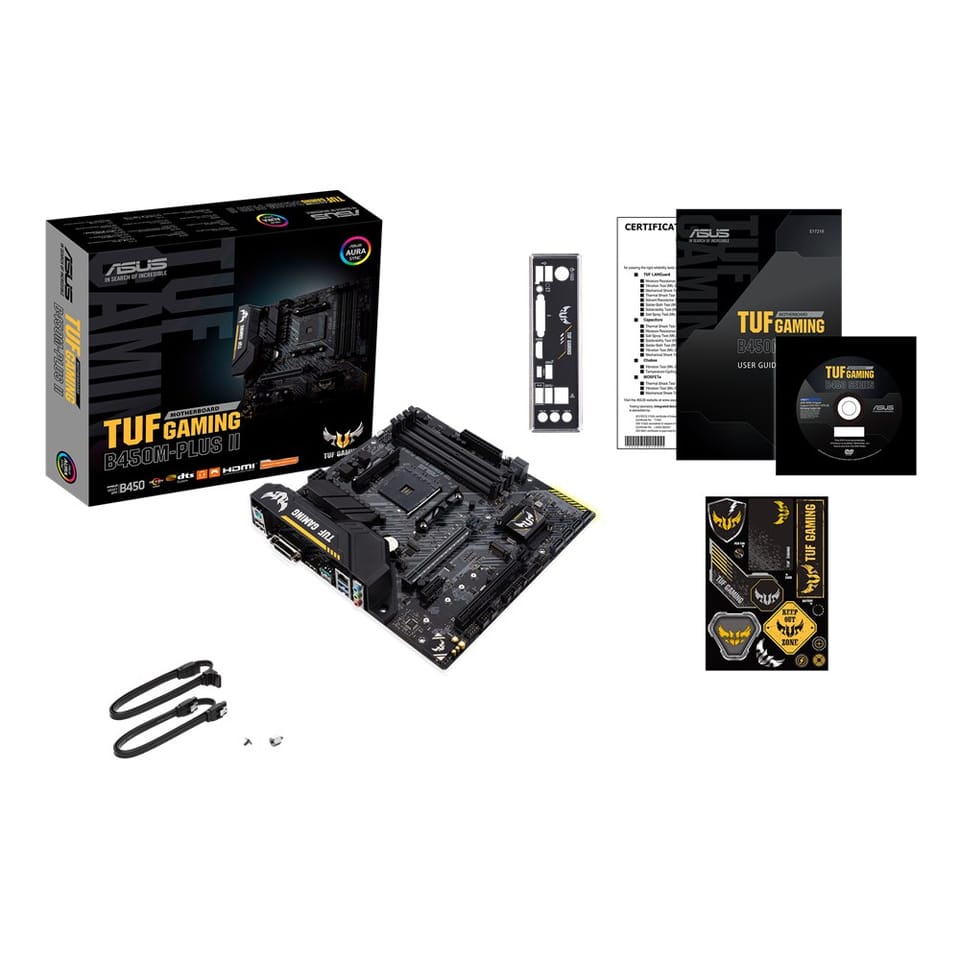

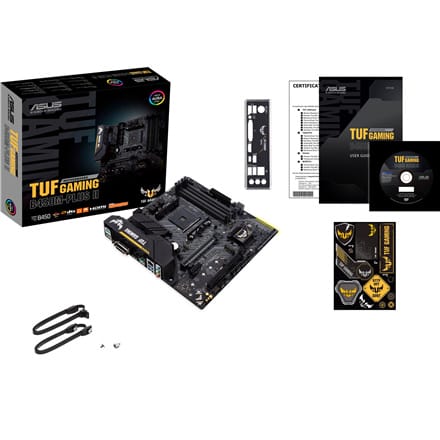

| Cables included: | SATA |
| Compatible processor series: | 3rd Generation AMD Ryzen 5, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 2nd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, 3rd Generation AMD Ryzen™ 7, AMD Ryzen™ Threadripper™: The Second Generation, 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, AMD Ryzen™ 3, AMD Ryzen Threadripper Pro 3rd Gen, AMD Ryzen™ Threadripper™, 3rd Gen AMD Ryzen™ Threadripper™, AMD Ryzen™ 7 |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |

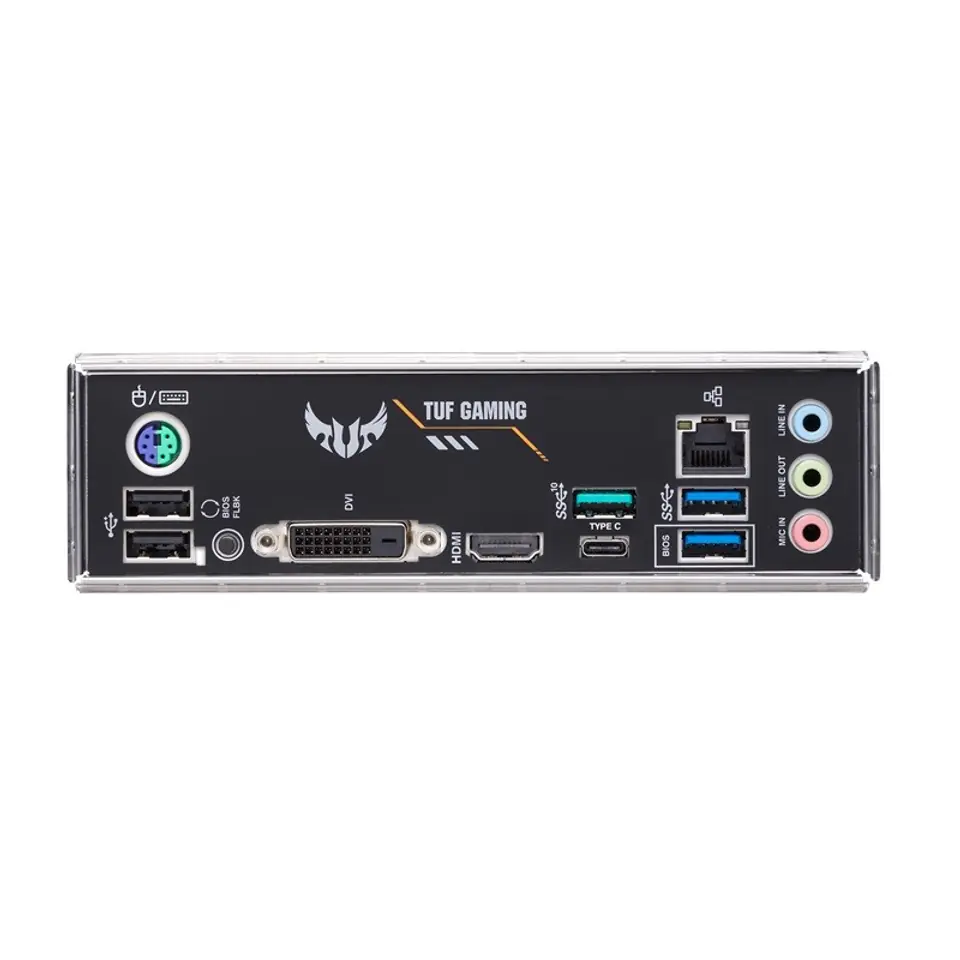

| Dvi-d ports quantity: | 1 |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Headphone outputs: | 1 |
| Maximum internal memory: | 128 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD B450 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 2 |
| Number of com connectors: | 1 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 6 |
| Number of storage drives supported: | 7 |
| Pci express x1 (gen 2.x) slots: | 1 |
| Pci express x16 (gen 2.x) slots: | 3 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Ps/2 ports quantity: | 1 |
| Raid levels: | 0, 10, 1 |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Supported memory clock speeds: | 2400, 2800, 3733, 4400 MHz, 3400, 3866, 3000, 2133, 3600, 3200 MHz, 2666, 3466, 3533 MHz, 4000 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, SATA, SATA II, SATA III |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 1 |
| Wi-fi: | No |
| Width: | 244 mm |
| Windows operating systems supported: | Windows 7 x64, Windows 10 x64 |
