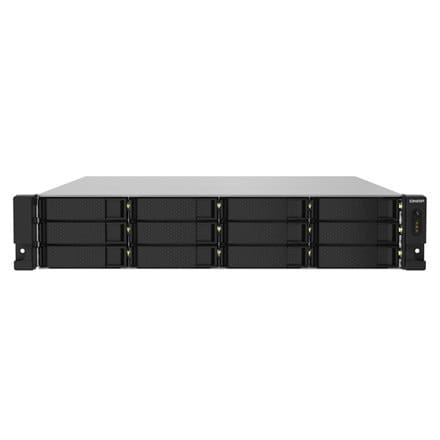

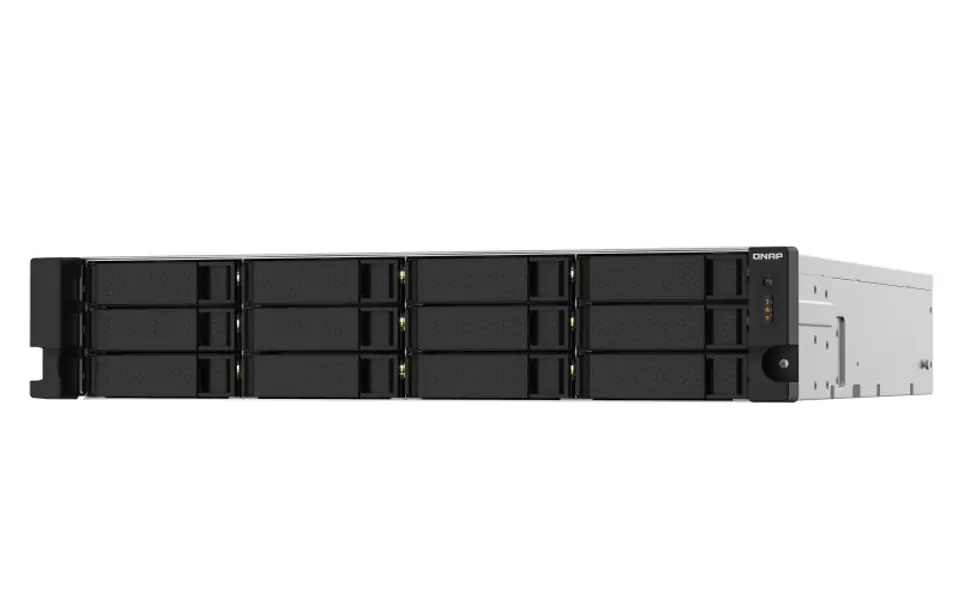

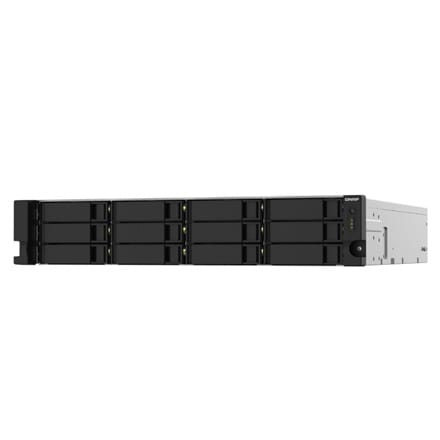

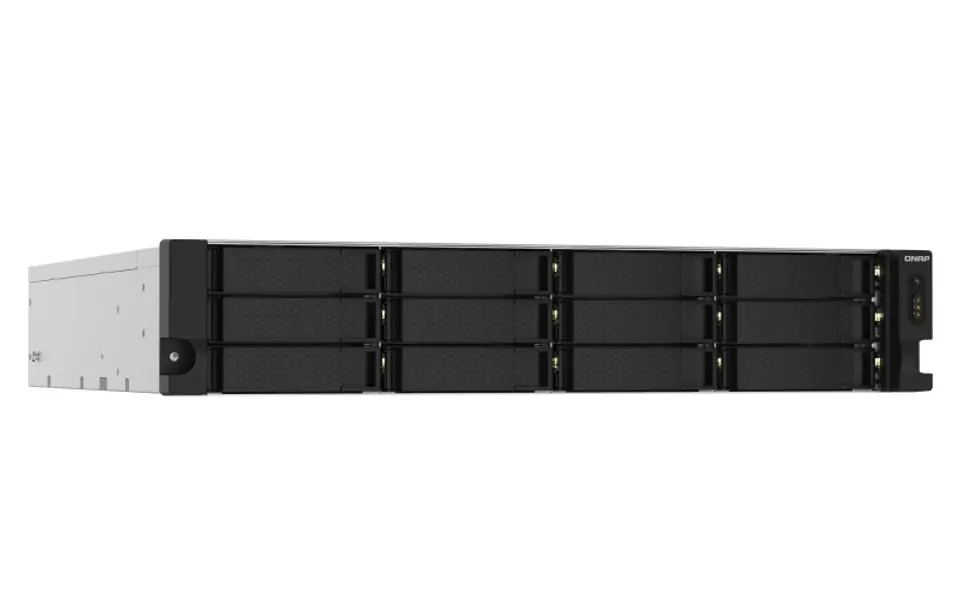

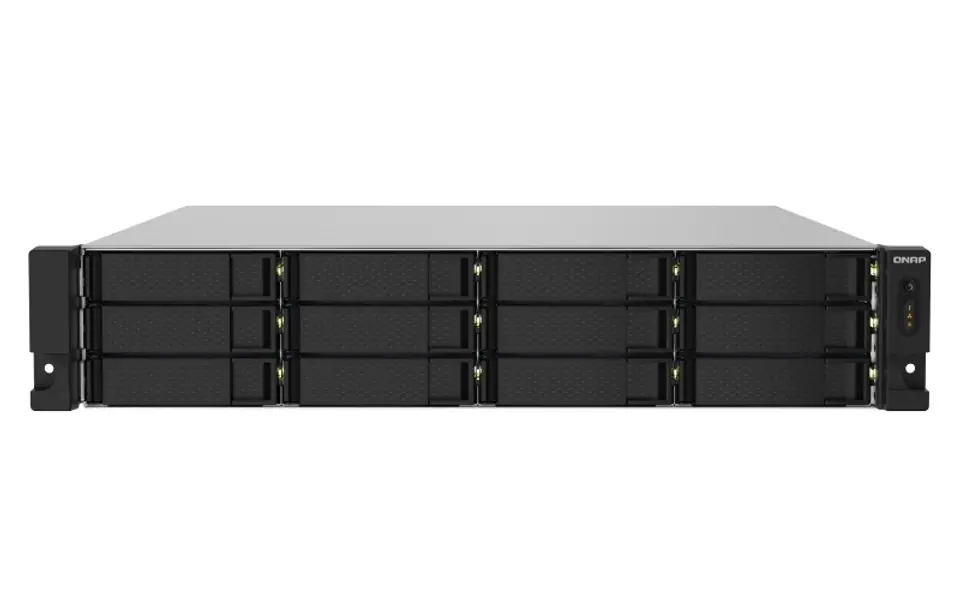

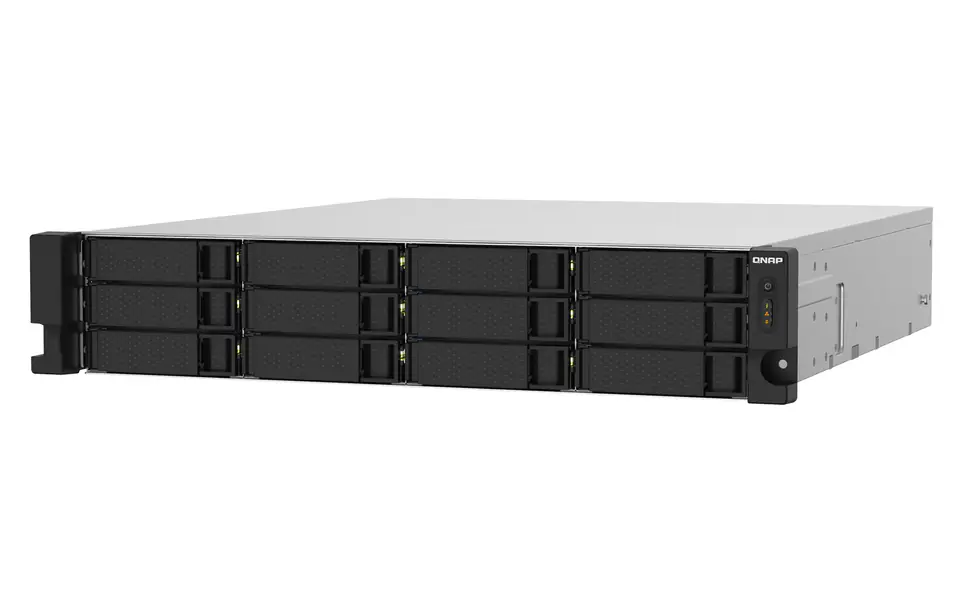

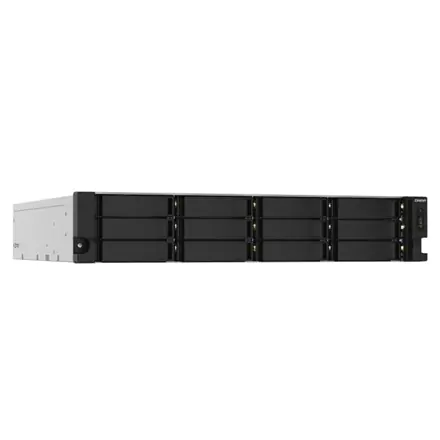

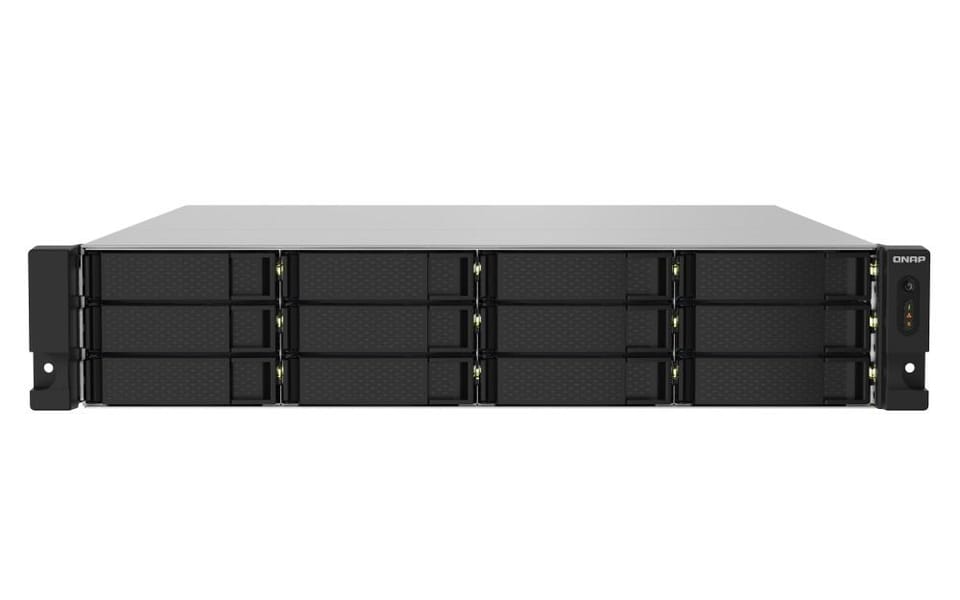

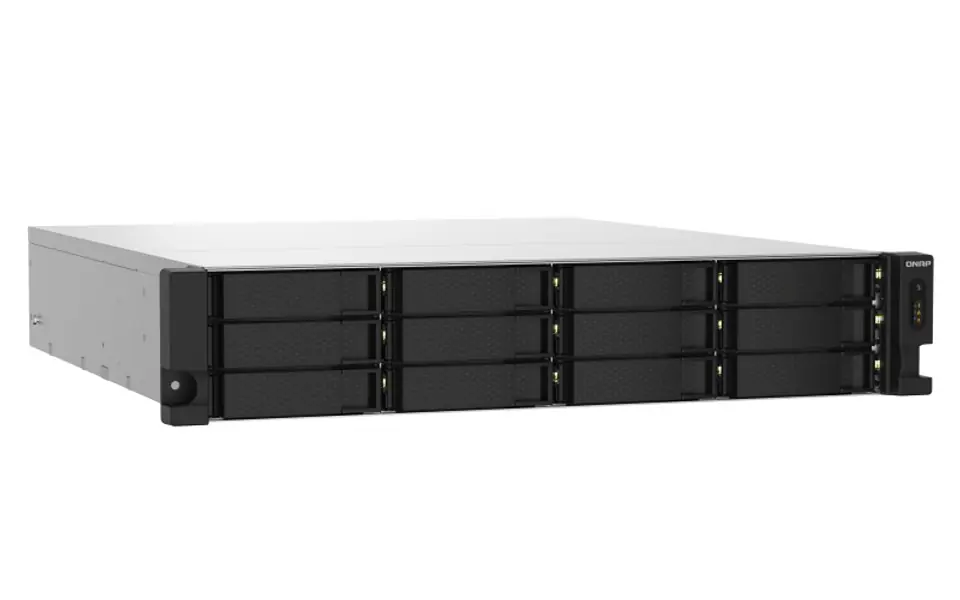

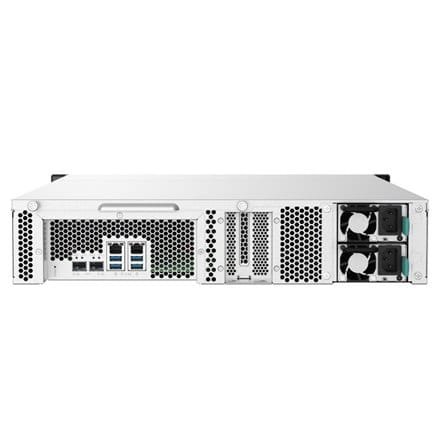

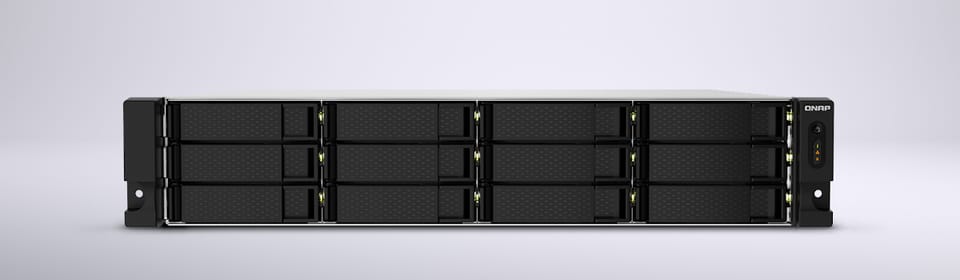

TS-1232PXU-RP-4G 2x10G E SFP+ 2x2,5GbE 3U 4GB
€2,136.99
Shipping from warehouse: M7
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- QNAP
- Product code:
- TS-1232PXU-RP-4G / 4713213518120
Share this product:
Specification
| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |

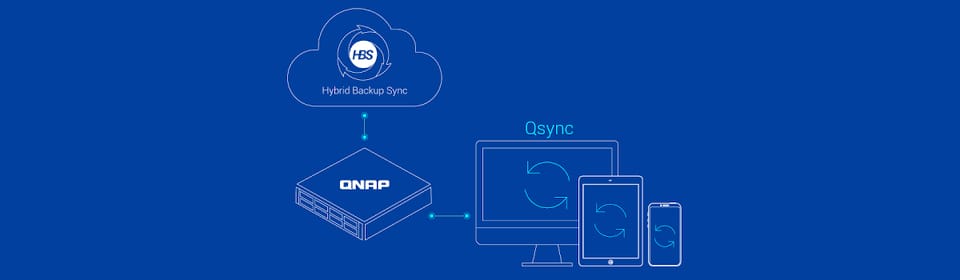

| Backup features: | iSCSI LUN, Cloud |
| Backup function: | Yes |
| Bad block scan: | Yes |
| Browser supported: | Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome |
| Built-in ftp server: | Yes |
| Buzzer: | Yes |
| Cables included: | LAN (RJ-45), AC |
| Chassis type: | Rack (2U) |
| Cooling type: | Active |
| Depth: | 534 mm |
| Device class: | Small & Medium Business |
| Dhcp client: | Yes |
| Dhcp server: | Yes |
| Disk roaming: | Yes |
| Disk scan: | Yes |
| Dynamic dns (ddns): | Yes |
| Ethernet lan: | Yes |

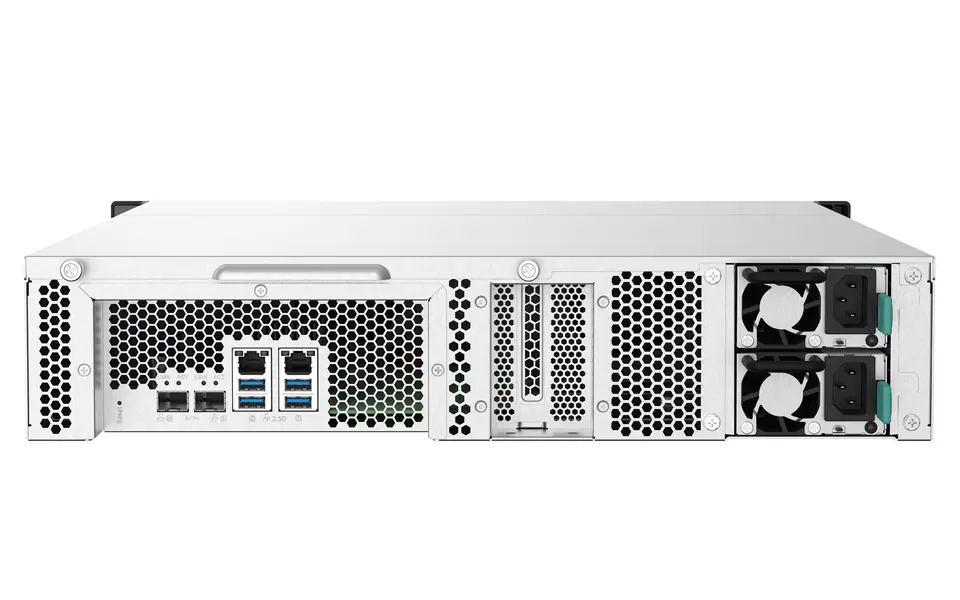

| Ethernet lan (rj-45) ports: | 2 |
| Ethernet lan data rates: | 2500 Mbit/s, 10000 Mbit/s, 1000 Mbit/s, 100 |
| Fan diameter: | 7 cm |
| Fan diameter 2: | 7 cm |
| Fan voltage: | 12 V |
| Fiber optic connector: | SFP+ |
| Fiber ports quantity: | 2 |
| Flash memory: | 512 MB |
| Harmonized system (hs) code: | 84714100 |
| Height: | 89 mm |
| Hot spare: | Yes |
| Hot-swap drive bays: | Yes |
| Installed storage drive type: | No |
| Internal memory: | 4 GB |
| Internal memory type: | DDR4 |
| Iscsi support: | Yes |
| Jumbo frames support: | Yes |
| Led indicators: | LAN, Status, HDD |
| Link aggregation: | Yes |
| Linux operating systems supported: | Yes |
| Load balancing system: | Yes |
| Mac operating systems supported: | Mac OS X 10.11 El Capitan, Mac OS X 10.15 Catalina, Mac OS X 10.10 Yosemite, Mac OS X 10.14 Mojave, Mac OS X 10.13 High Sierra, Mac OS X 10.12 Sierra |
| Management protocols: | SNMP |
| Maximum ram supported: | 16 GB |
| Memory form factor: | UDIMM |
| Memory slots: | 1 |
| Multilingual support: | Yes |
| Noise level: | 32.2 dB |
| Number of fans: | 2 fan(s) |
| Number of power supply units: | 2 |
| Number of screws: | 84 |
| Number of storage drives supported: | 12 |
| On/off switch: | Yes |
| Online raid expansion: | Yes |
| Online raid migration: | Yes |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating system installed: | QNAP QTS |
| Operating system version: | 5.0.0 |
| Operating temperature (t-t): | 0 - 40 °C |
| Package weight: | 17.3 kg |
| Power consumption (typical): | 83.57 W |
| Power supply location: | Built-in |
| Power supply unit (psu) capacity: | 250 W |
| Processor cores: | 4 |
| Processor family: | Annapurna Labs |
| Processor frequency: | 1.7 GHz |
| Processor manufacturer: | Annapurna Labs |
| Processor model: | AL324 |
| Product colour: | Black |
| Raid levels: | 10, 5, JBOD, 6, 1, 0 |
| Raid rebuild: | Yes |
| Raid support: | Yes |
| Reset button: | Yes |
| S.m.a.r.t. support: | Yes |
| Security algorithms: | 256-bit AES, SSH, HTTPS, FIPS 140-2, SSL/TLS |
| Server operating systems supported: | Windows Server 2019, Windows Server 2012 R2, Windows Server 2016, Windows Server 2008 R2, Windows Server 2012 |
| Share folder: | CIFS/SMB |
| Snapshot: | Yes |
| Storage drive sizes supported: | 2.5, 3.5" |
| Storage drives installed: | No |
| Storage temperature (t-t): | -20 - 70 °C |
| Supported file systems: | ext4, ext3, NTFS, FAT32, HFS+ |
| Supported network protocols: | PPTP, L2TP/IPSec, OpenVPN, QBelt |
| Supported storage drive interfaces: | Serial ATA II, Serial ATA III |
| Supported storage drive types: | HDD & SSD |
| System log: | Yes |
| Type: | NAS |
| Universal plug and play (upnp): | Yes |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb copy function: | Yes |
| Usb port: | Yes |
| Wake-on-lan ready: | Yes |

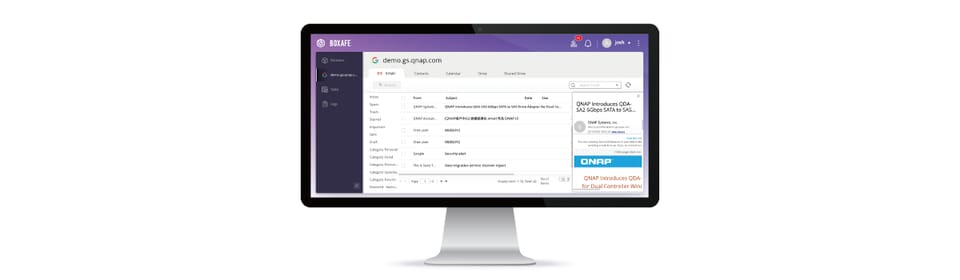

| Web-based management: | Yes |
| Weight: | 11.3 kg |
| Width: | 482 mm |
| Windows operating systems supported: | Windows 8, Windows 10, Windows 7 |
| Wlan adapter supported: | Yes |
