TRISET-113PE COAXIAL CABLE

€0.93
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Triset
Product code:
TRISET-113PE / 5907634500683

Specification

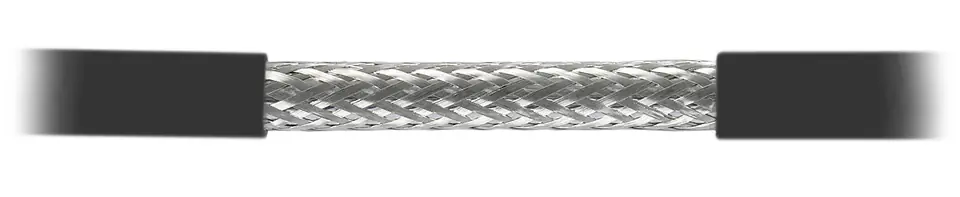

Braid::81 % Wire Al
Cable attenuation over a distance of 100m::4.5 dB @ 47 MHz5.8 dB @ 88 MHz8.0 dB @ 174 MHz9.2 dB @ 230 MHz13.2 dB @ 470 MHz18.1 dB @ 862 MHz20.1 dB @ 950 MHz27.7 dB @ 2150 MHz30.8 dB @ 2400 MHz
Capacity::52 pF/m
Coating color::Black
Coaxial cable::TRISET
Conductor resistance for direct current::16.85 Ω/km

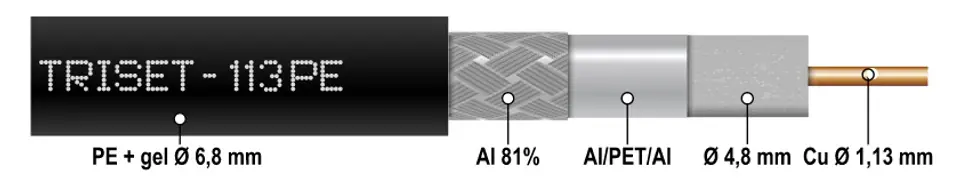

Dielectric::Ø 4.8 mm (physically foamed)
Impedance::75 Ω

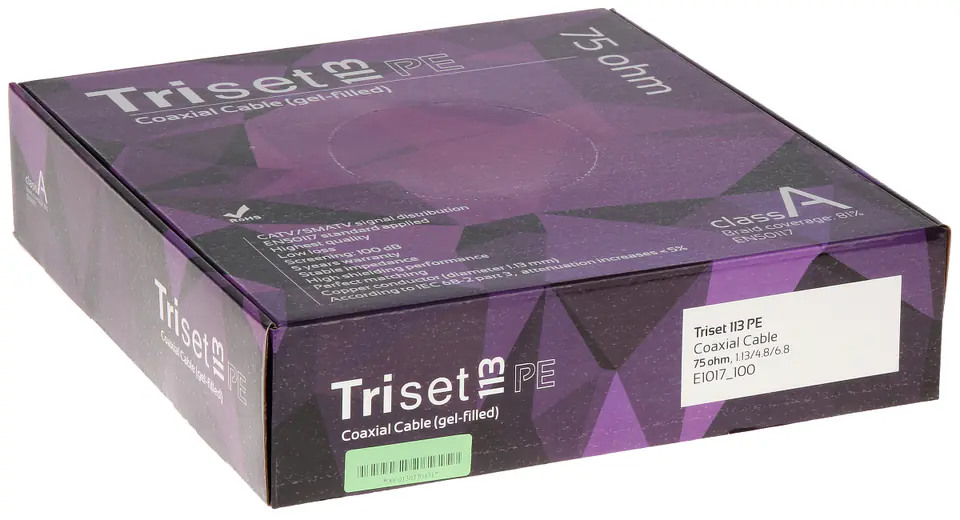

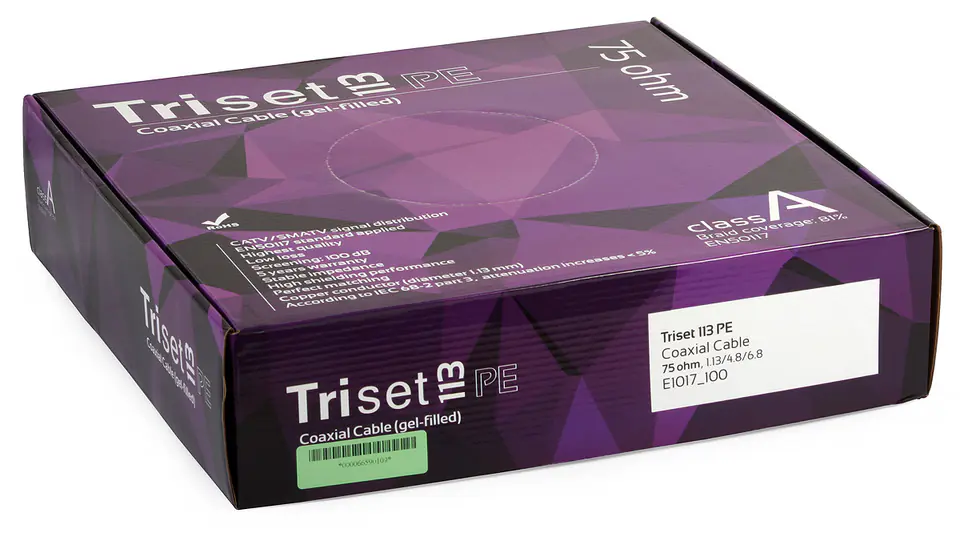

In the episode::100 m . The price given for 1m when buying the whole roll
Inner vein::Ø 1.13 mm Cu Wire
Insulation::2000 MΩ/km
Outer shell::Ø 6.8 mm PE + gel
Screen::Al/PET/Al - 9 μm / 23 μm / 9 μm
Selected features::low attenuation excellent fit high shielding efficiency PE coating Class A compliant
Warranty::2 years
Wave shortening coefficient::84 %

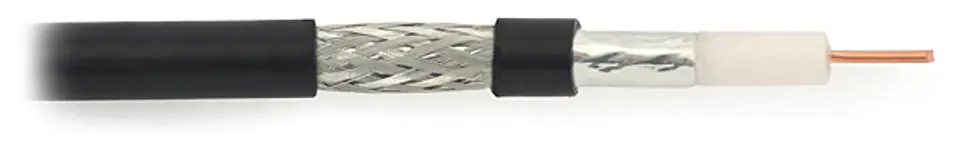

TRISET-113PE is a modern cable with an impedance of 75 Ω characterized by very good electrical and mechanical parametersFor ease of work, a length marker has been printed on the cable every 1 m

The cable is made in a PE jacket (polyethylene), it is therefore designed for outdoor applicationsThe cable is gelled

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
