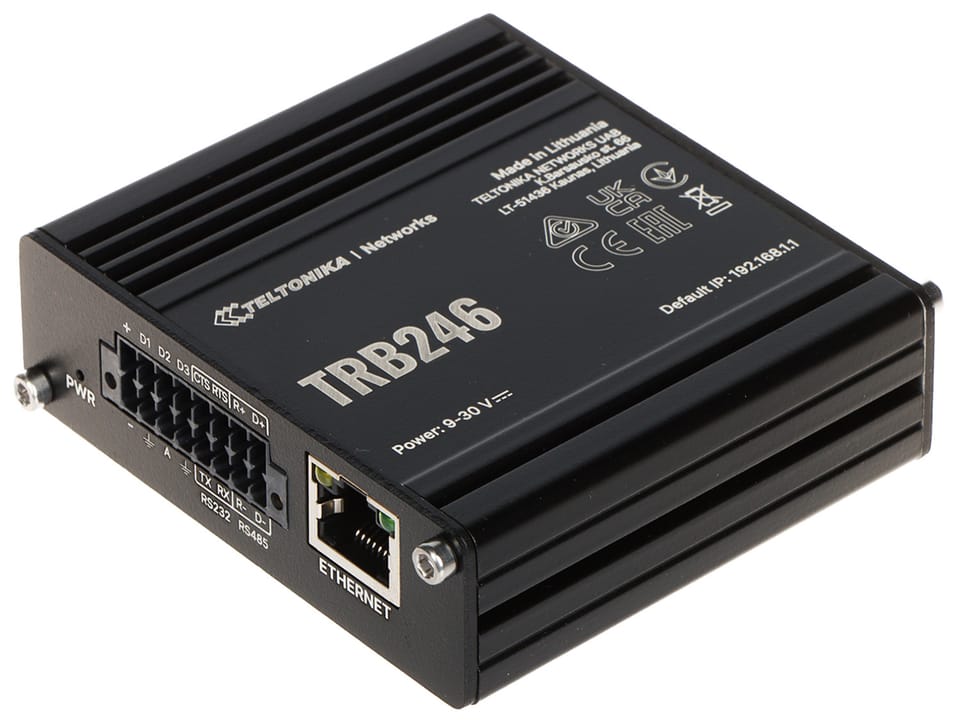

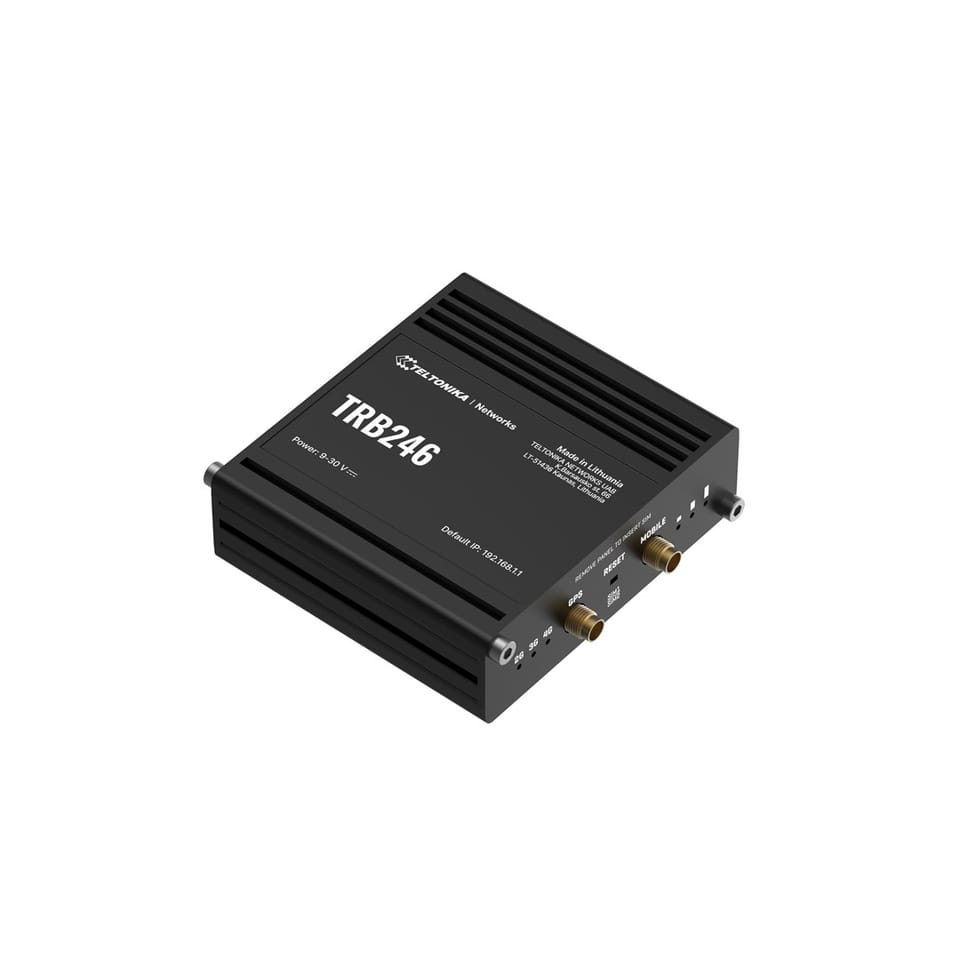

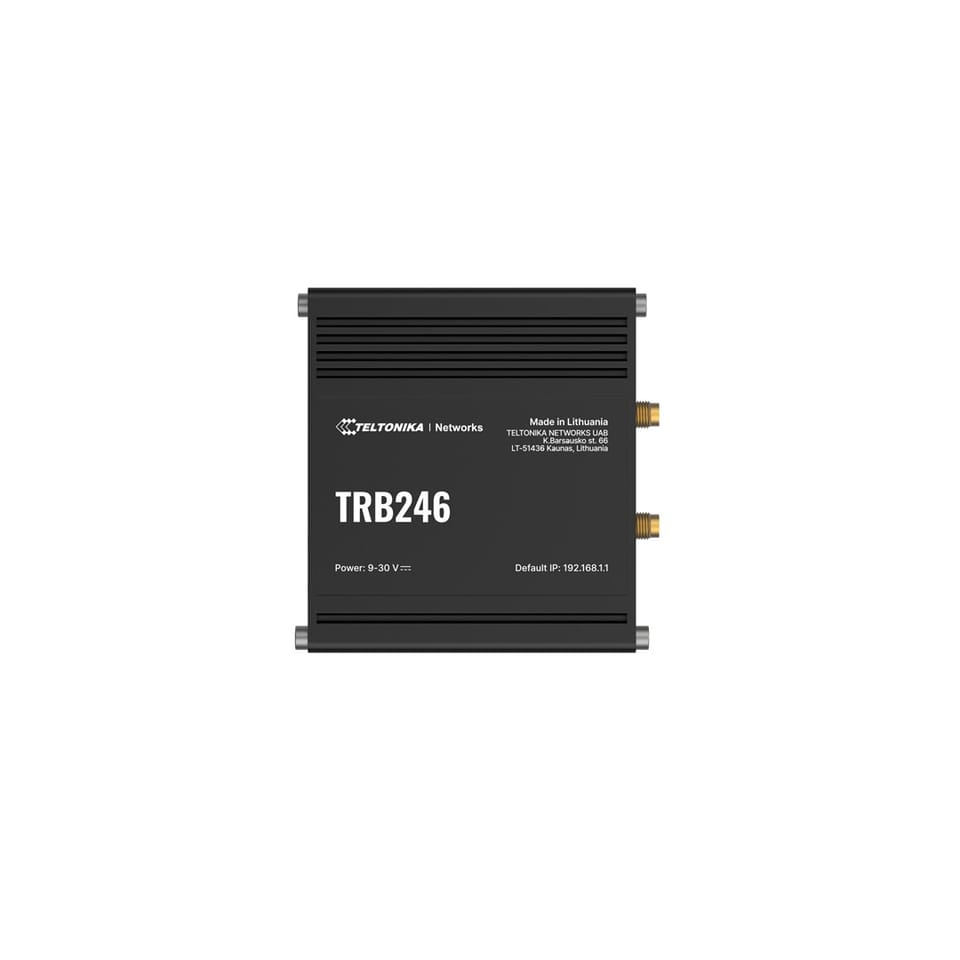

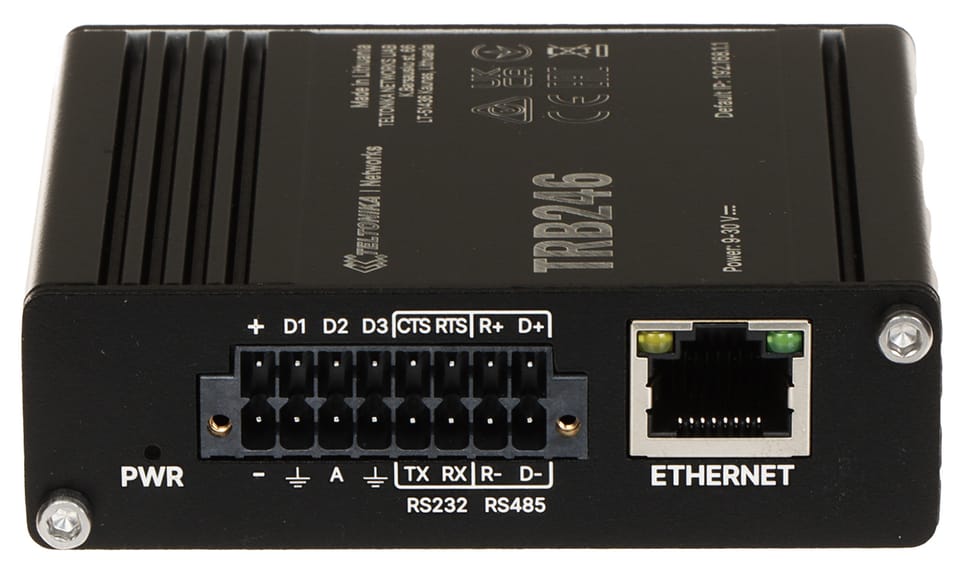

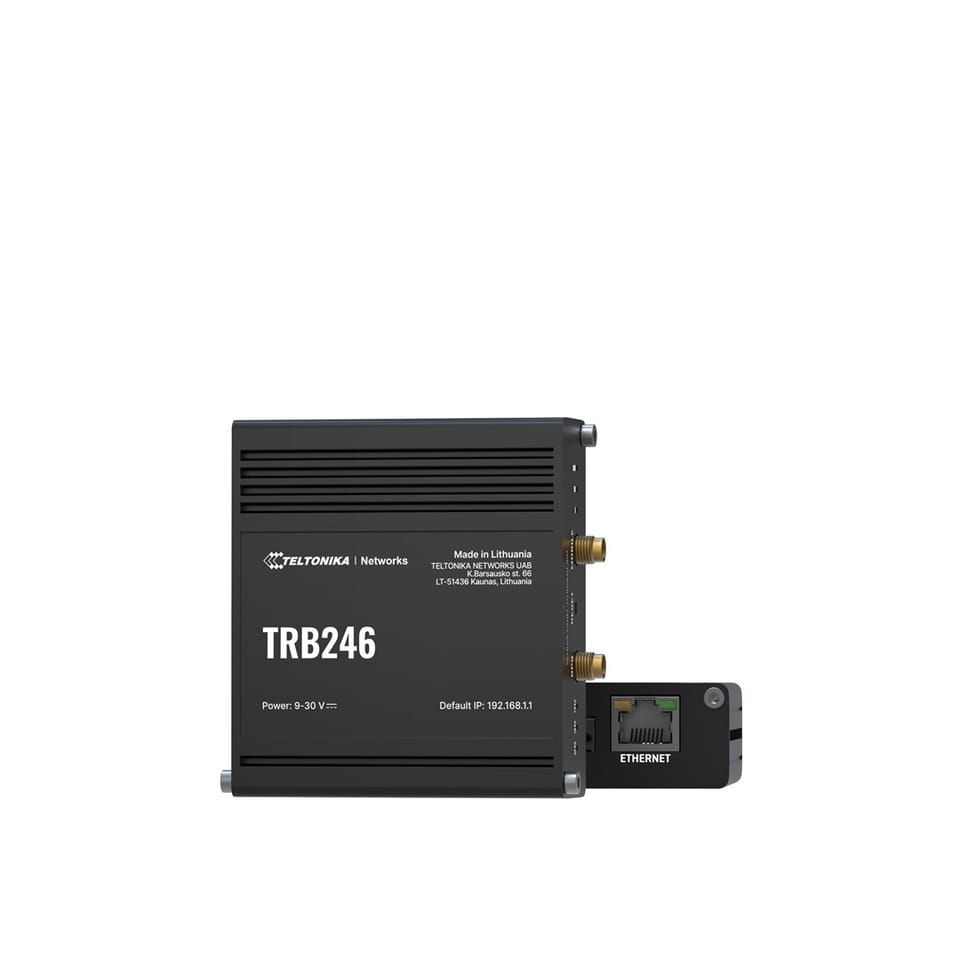

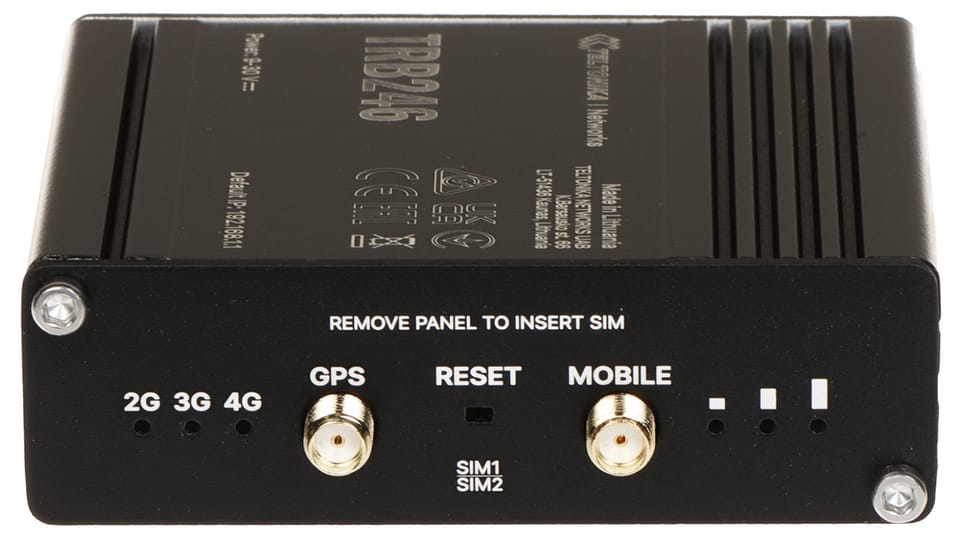

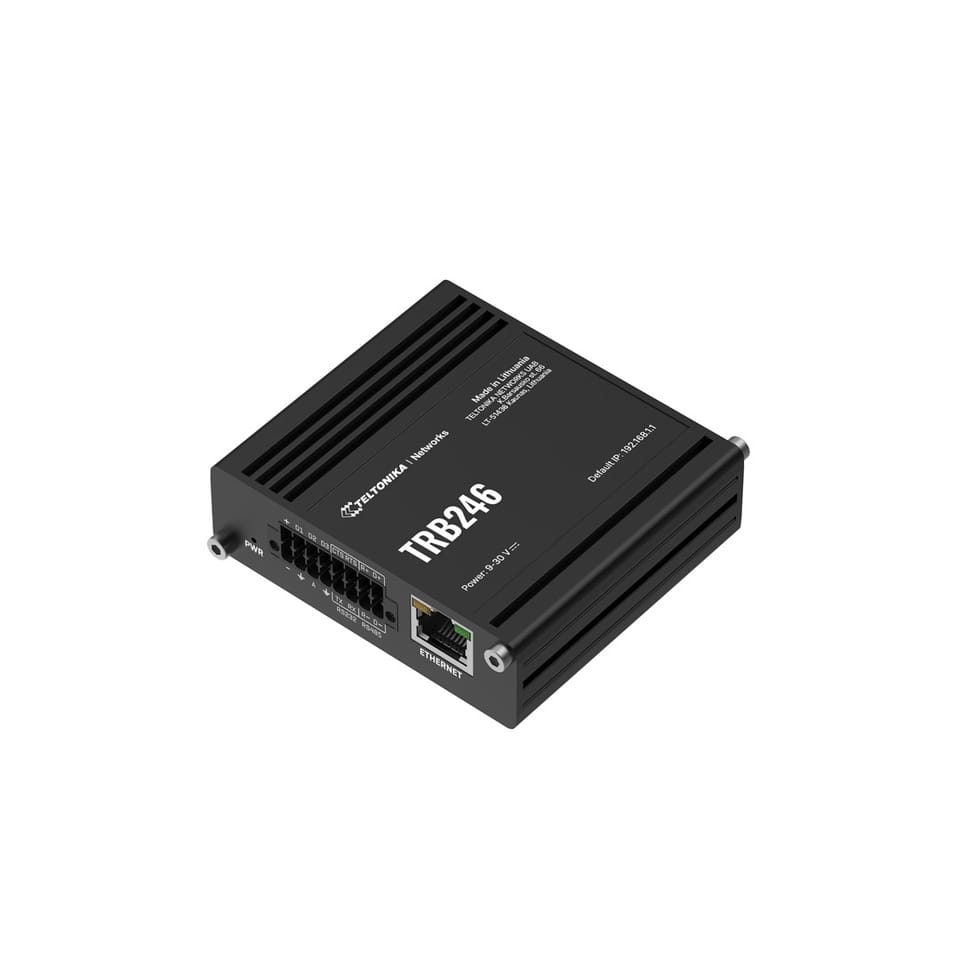

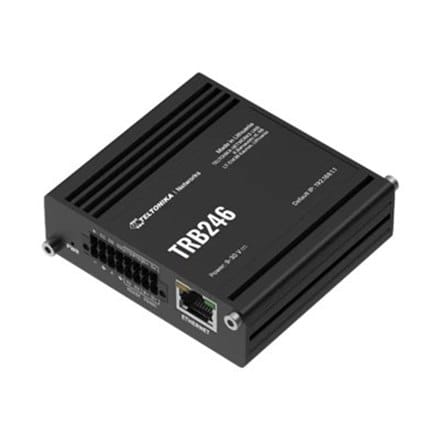

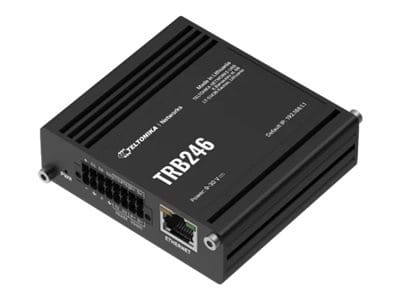

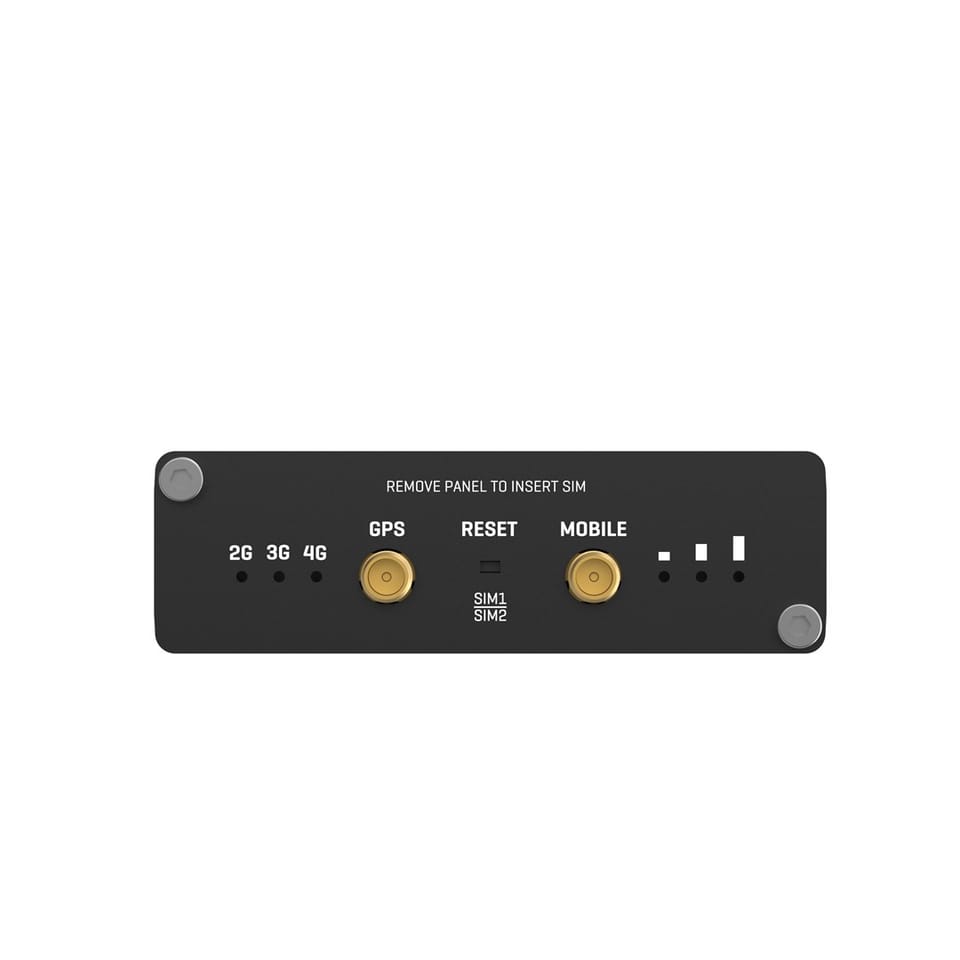

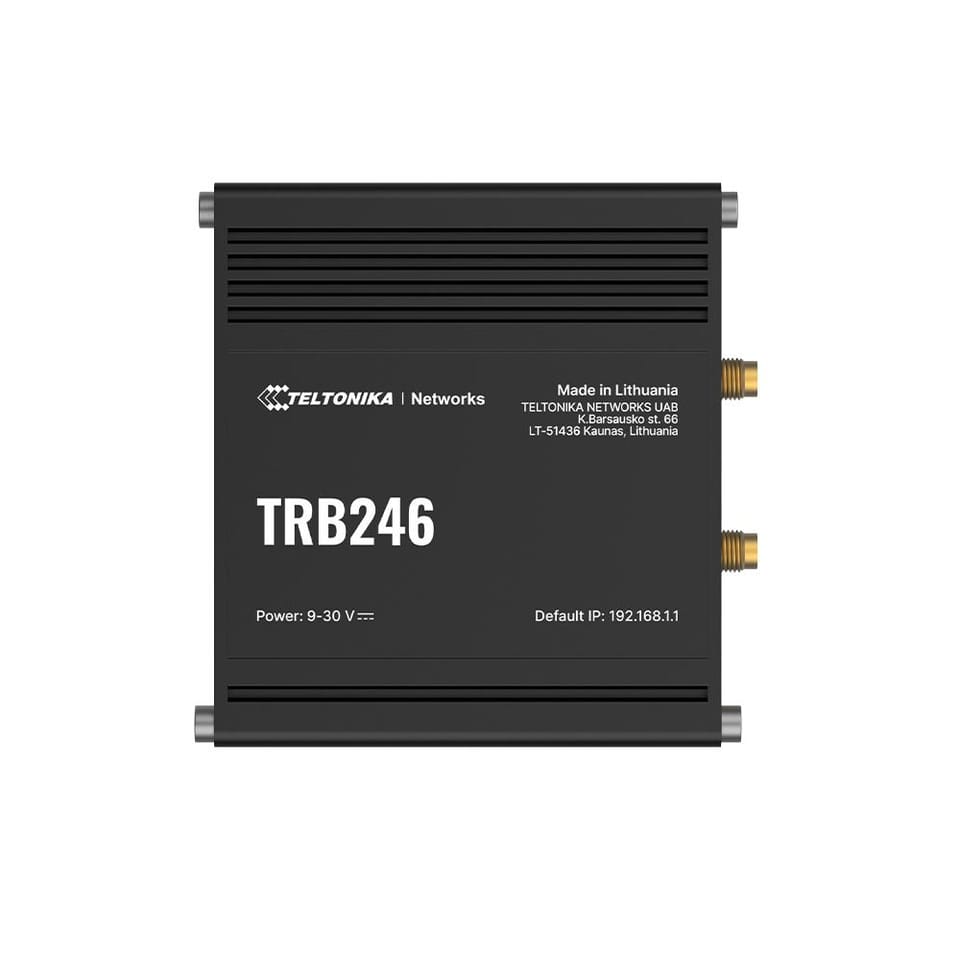

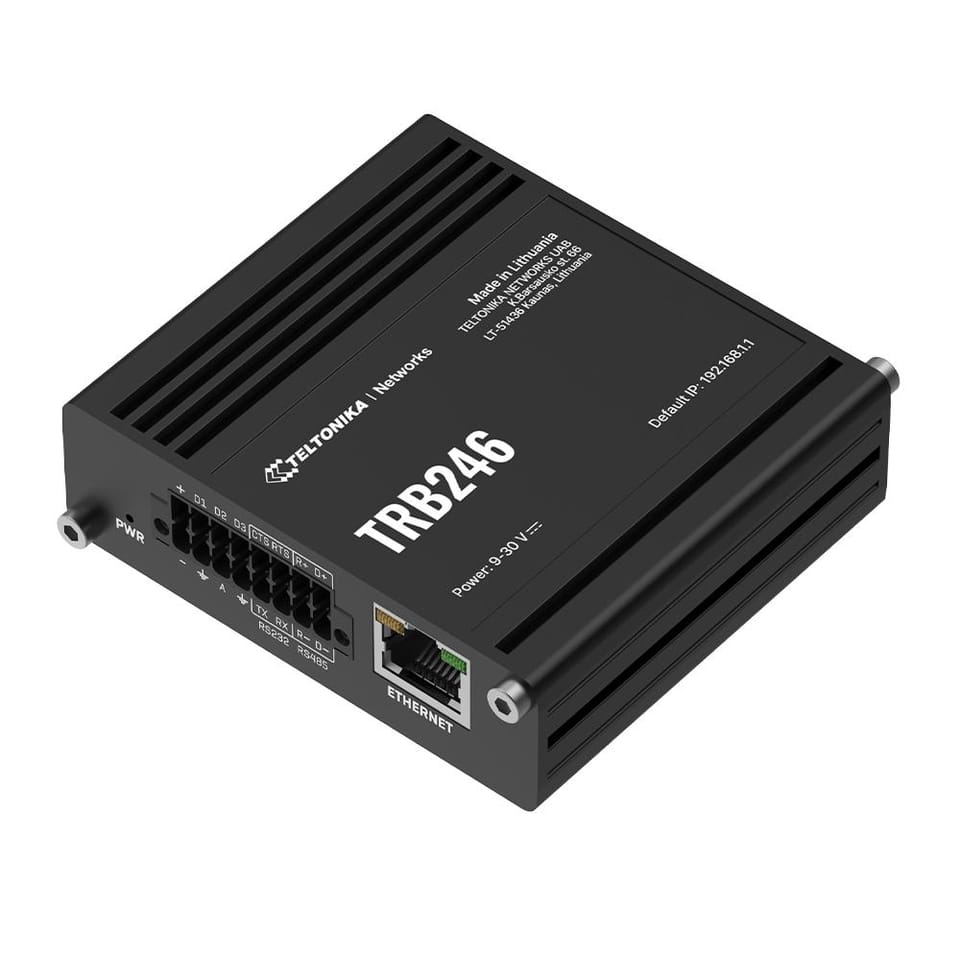

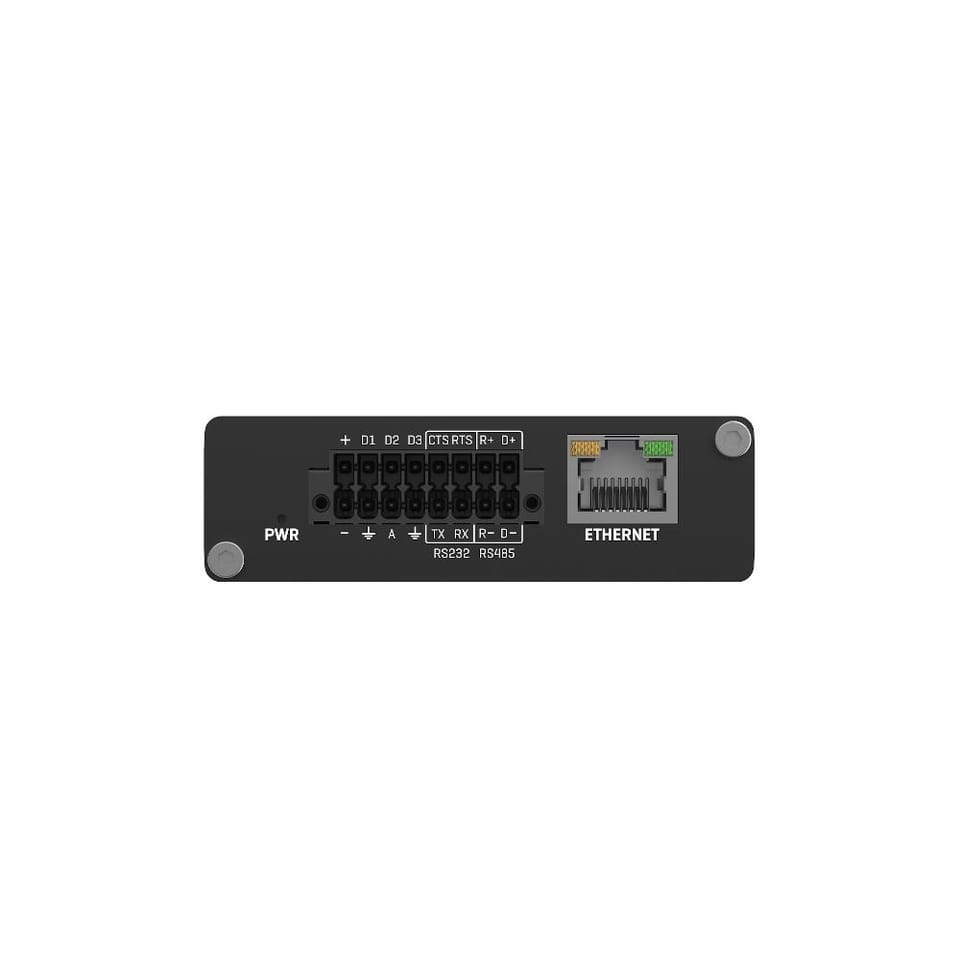

TRB246 is an industrial 4G LTE gateway equipped with I/O, RS232, RS485 and Ethernet interfaces, designed for IoT solutions that require versatility and reliable M2M communication support. This gateway features dual SIM functionality and supports multiple protocols such as DNP3, DLMS and Modbus, which is crucial for ensuring smooth data transmission. Housed in an aluminum housing, this industrial IoT gateway is resistant to extreme environmental conditions in manufacturing, agriculture or construction.
TRB246 (EU) Compact
€176.00
Shipping from warehouse: A3
Estimated shipping: Mon, Apr 7 - Thu, Apr 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Teltonika
- Product code:
- TRB246000000 / 4779051840755
Share this product:
Specification
| Antenna connector type: | SMA |
|---|---|
| Antenna type: | External |
| Antennas quantity: | 2 |
| Auto mdi/mdi-x: | Yes |
| Beidou: | Yes |
| Built-in processor: | Yes |
| Data network: | LTE, 4G, 2G, 3G |
| Data transfer rate (lte) (download): | 150 Mbit/s |
| Data transfer rate (lte) (upload): | 50 Mbit/s |
| Depth: | 74.2 mm |
| Device type: | Cellular network gateway |
| Dhcp server: | Yes |
| Dmz support: | Yes |
| Embedded gnss: | Yes |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 100, 10 |
| Ethernet lan interface type: | Fast Ethernet |
| External power adapter: | Yes |
| Full duplex: | Yes |
| Galileo: | Yes |
| Glonass: | Yes |
| Gps (satellite): | Yes |
| Height: | 25 mm |
| Housing material: | Aluminium |
| Input voltage: | 9 - 30 V |
| Internal storage capacity: | 0.016 GB |
| Led indicators: | Status, Signal strength, Power, LAN |
| Management platform: | RMS |
| Market positioning: | Industrial |
| Mounting: | DIN-rail/Wall mounting |
| Networking standards: | IEEE 802.3, IEEE 802.11e, IEEE 802.3az, IEEE 802.3u |
| Number of sim cards: | 2 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | -40 - 75 °C |
| Port forwarding: | Yes |
| Power source type: | DC |
| Processor frequency: | 0.58 GHz |
| Processor manufacturer: | MediaTek |
| Product colour: | Black |
| Quasi-zenith satellite system (qzss): | Yes |
| Ram capacity: | 0.128 GB |
| Ram type: | DDR2 |

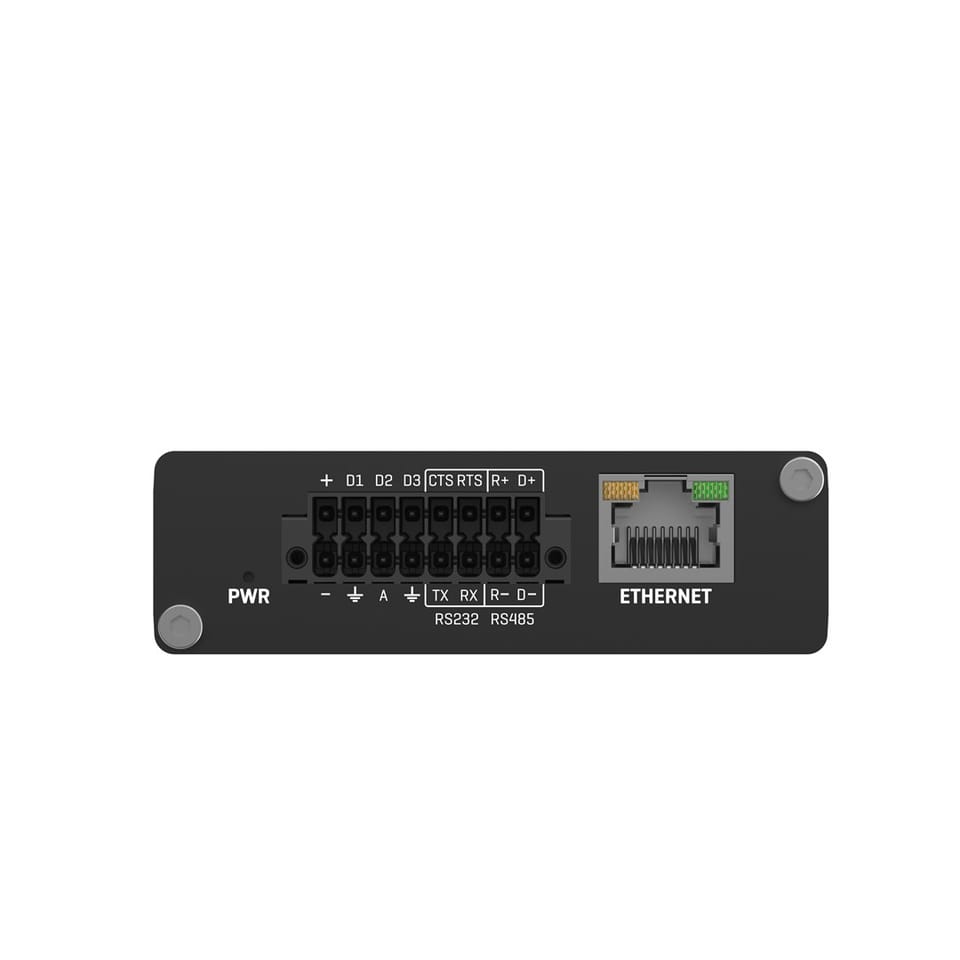

| Rs-232 signals: | Tx, CTS, Rx, RTS |
| Rs-485 signals: | Data+, Data-, RDA-, RDB+ |
| Serial interface type: | RS-232, RS-232/485 |
| Serial ports quantity: | 1 |
| Short message service (sms): | Yes |
| Sim card type: | MiniSIM |
| Sim interface: | 3 V |
| Suitable for indoor use: | Yes |
| Web-based management: | Yes |
| Weight: | 165 g |
| Wi-fi: | No |
| Width: | 83 mm |
