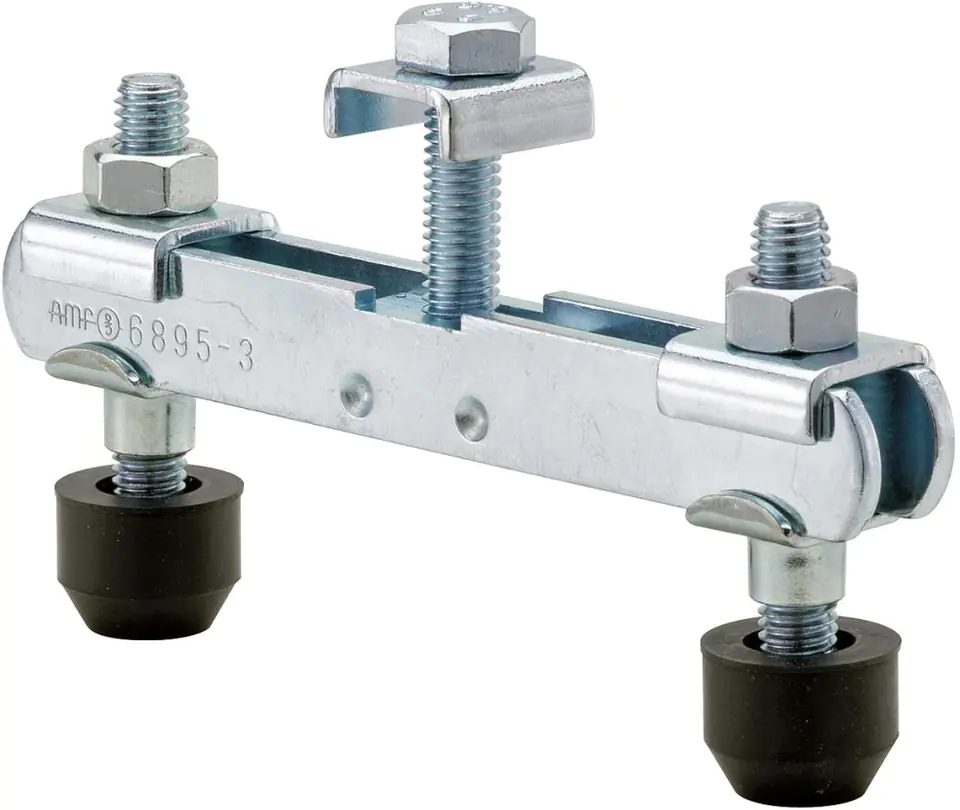

Transverse arm for quick-clamping clamps
Material: galvanized and passivated.
Application: for simultaneous fastening of 2 small parts, as well as for reliable and strong clamping of large parts in 2 points. Possibility of mounting pressure bolts from above or below the clamping arm.
Scope of delivery: complete with heat-boosted pressure screws and fixing screw.
For quick-clamping clamps (Article codes 3935, 3936, 3937, 3939, 3940, 3947 and 3949). For quick-clamping clamps (Article codes 3935, 3936, 3937, 3939, 3940, 3947 and 3949).
Transverse arm for fast-power clamps, up to 4 AMF
€27.85
Shipping from warehouse: B6
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- AMF
- Product code:
- 99549 / 4020772099541
Share this product:
Specification
| Mounting range: | 40-125 mm |
|---|---|
| Scales: | 370 g |
| Screw din 933: | M8 x 65 |
| Size: | 4 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
