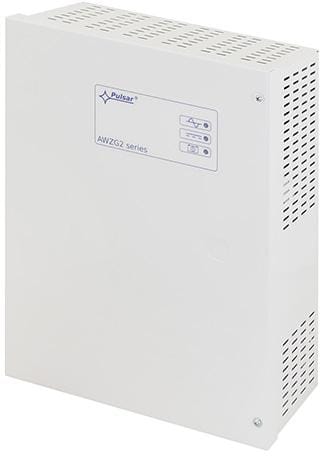

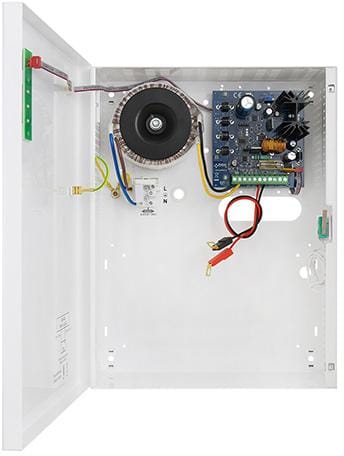

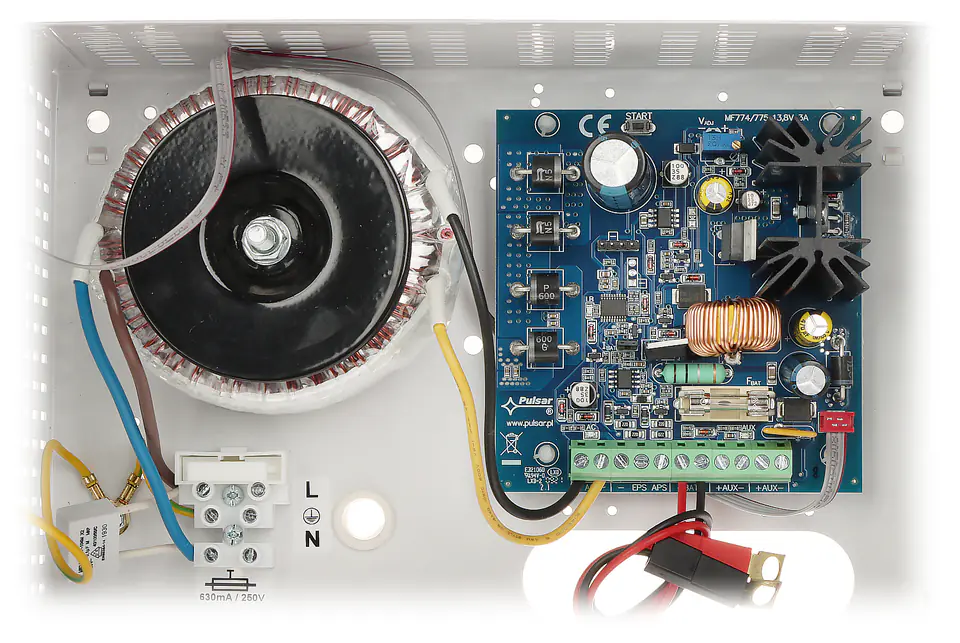

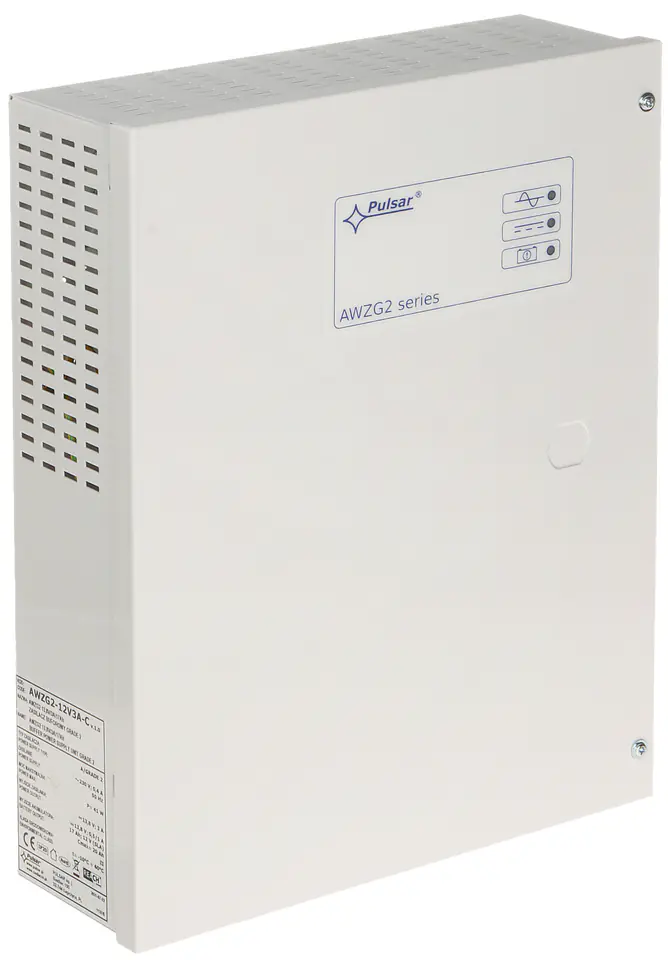

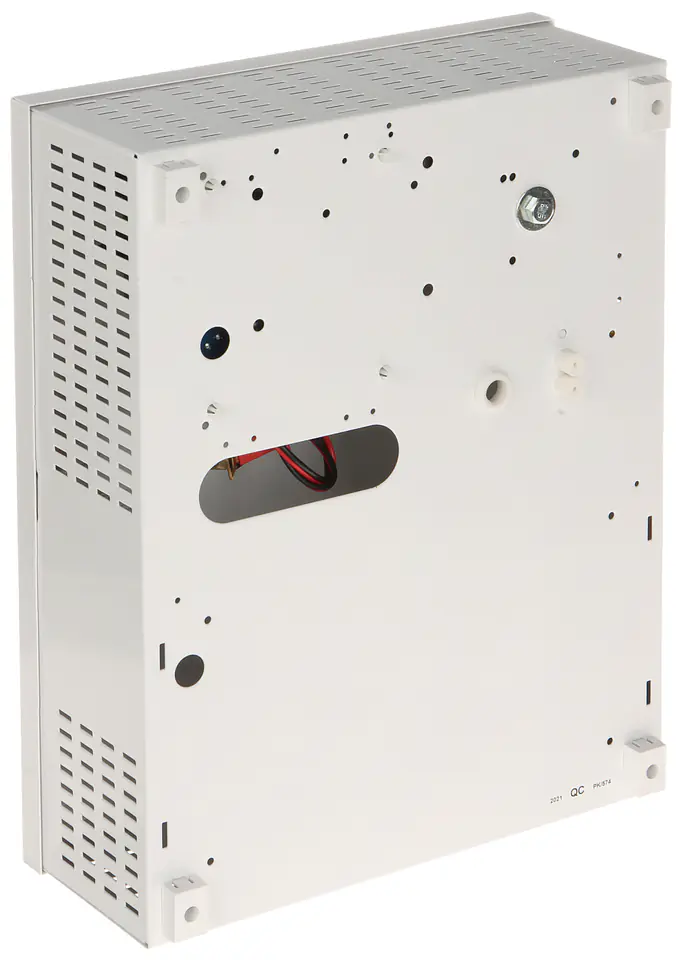

TRANSFORMER BUFFER POWER SUPPLY AWZG2-12V3A-C PULSAR

€100.75
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Wed, Nov 27 - Mon, Dec 2
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Pulsar
Product code:
AWZG2-12V3A-C / 5902135319628

Specification

Battery charging current::0.5 A / 1 A (adjustable with JP1 jumper)
Battery space::12 V / 20 Ah (max)

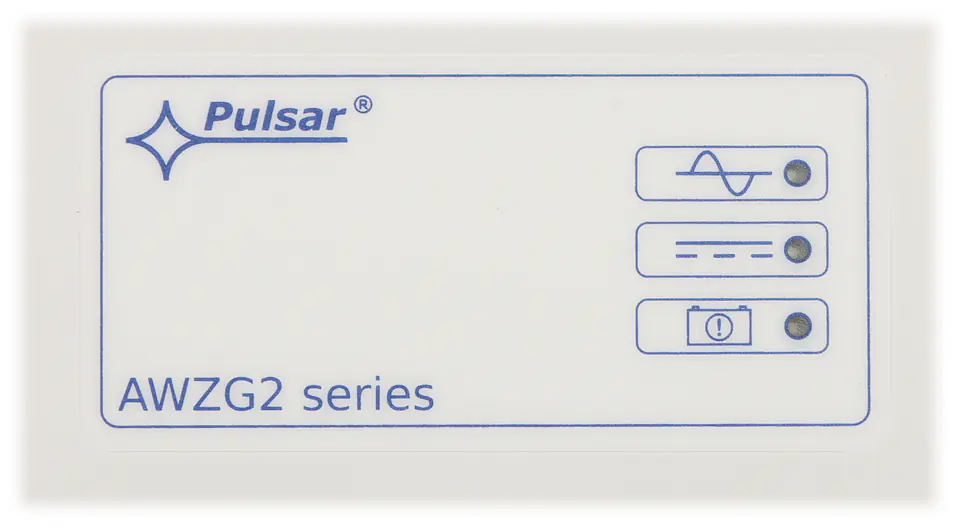

Control of power supply operation::Signaling the presence of AC mains power Signaling the presence of DC output voltage Missing or failure battery Charging the battery - on the motherboard EPS FLT output - signaling AC power failure APS OUTPUT FLT - Battery failure indication
Current efficiency (total)::3 A

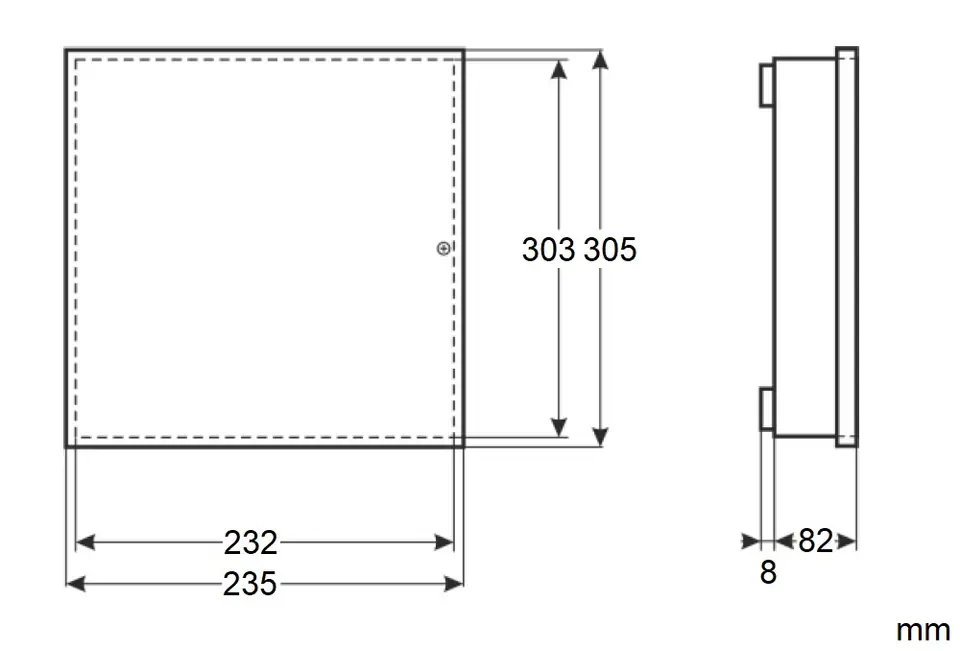

Dimensions::235 x 305 x 90 mm
Input voltage::230 VAC
Manufacturer / brand::PULSAR
Max. battery dimensions::215 x 172 x 75 mm
Number of outputs::2
Output voltage::11.0 V ... 13.8 V (buffer operation)
Power supply type::Transformer
Power::41 watts (Printing)
Scales::2.8 kg
Security::Short-circuit Overload Surge Protector Thermal Anti-Tamper Reverse Connection Before Over-Discharge
Selected features::Output Voltage - Stabilized Microprocessor Automation System Battery Charging and Maintenance Control. Tamper signaling - NC LED signalling 2 x OC output Compliant with EN 50131-6:2017 @ Grade 2 Compliant with EN 60839-11:2013 @ Grade 2
Warranty::2 years

The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, keypads, intercoms and other devices included in the alarm system

Special attention should be paid to the proper cooling of the power supply during operation!

Remark! The dimensions of the housing do not allow the installation of 12 Ah and 14 Ah batteries

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
