| 75ω i/o voltage (cvbs): | 1 Vpp |
|---|---|
| Attenuation: | 4.43 MHz @ 0.4 dB 11 MHz @ 0.61 dB 21 MHz @ 0.85 dB 38 MHz @ 1.22 dB 42 MHz @ 1.69 dB 67.5 MHz @ 1.92 dB The given attenuation applies to two devices connected to each other |
| Balanced connector impedance: | 100 Ω |
| Cmrr (db@5mhz): | 50 dB |
| Coaxial connector type: | BNC Straight plug |
| Coaxial junction impedance: | 75 Ω |
| Dimensions: | 47 x 16 x 15 mm |
| In the package: | 2 pcs. Price per pack |
| Number of channels: | 1 |
| Operating temperature: | -10 °C ... 55 °C |
| Permissible relative ambient humidity: | < 95 % |
| Scales: | 0.012 kg |
| Standard: | AHD - 8 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC |
| Symmetrical connector type: | cable clamps |
| Type of device: | Passive |
| Video coverage: | 250 m @ 720p - UTP cat. 5e 150 m @ 1080p - UTP cat. 5e 400 m @ CVBS - PAL / NTSC - UTP cat. 5e |
| Warranty: | Lifetime warranty |

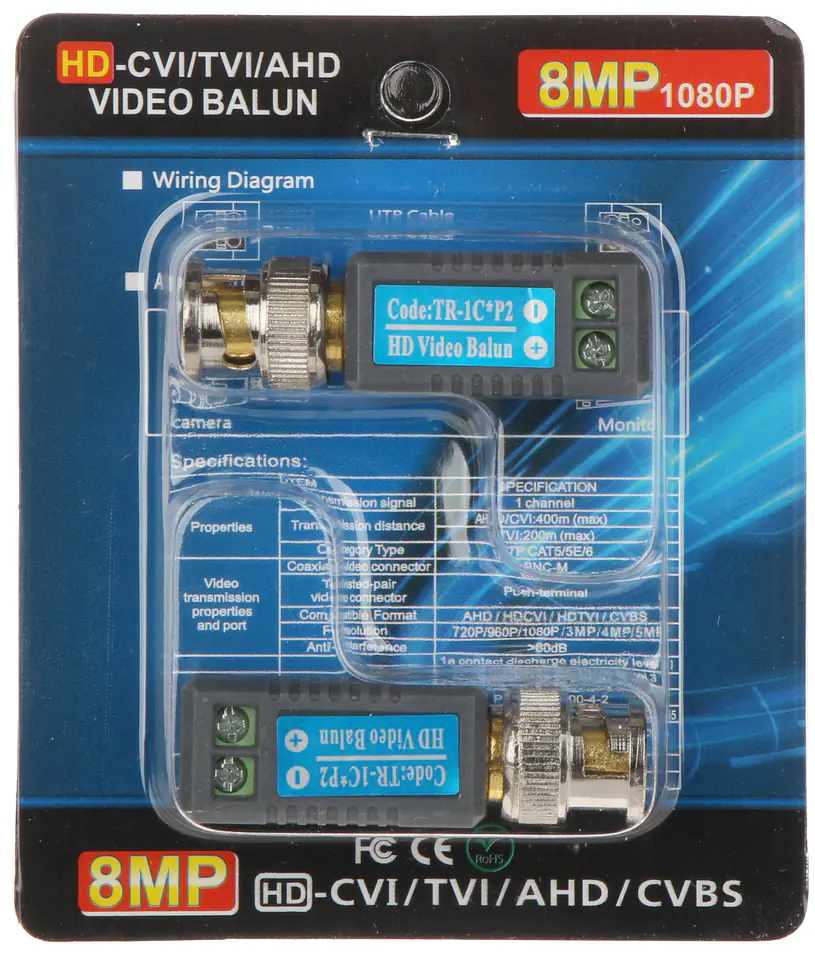

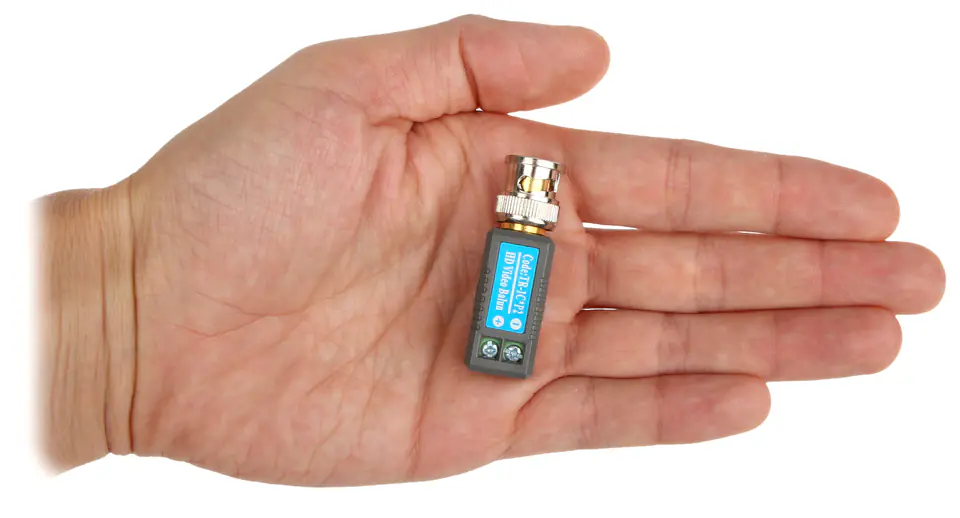

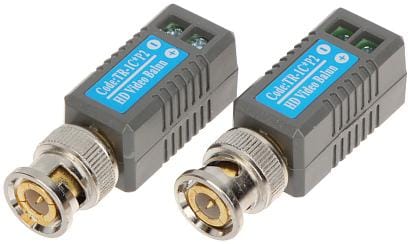

TR-1C*P2 is designed for video signal transmission via twisted-pair cableThe device matches the impedance of 75Ω coaxial cable to the impedance of a symmetrical cable, providing video signal transmission up to 400m (category 5 twisted pair cable) and eliminates unbalanced interference

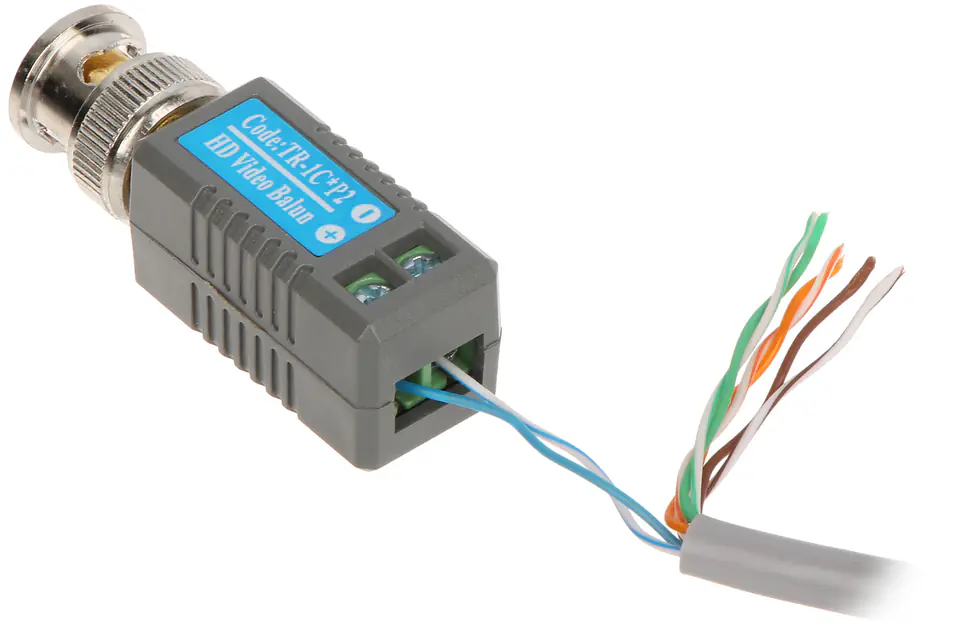

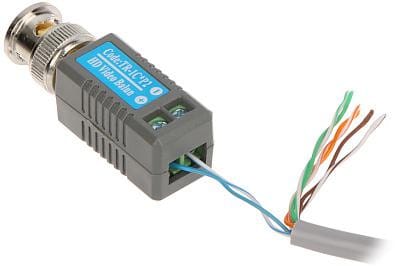

Pay attention to the correct connection of terminals (+) and (-)Reverse connection will cause image distortion
