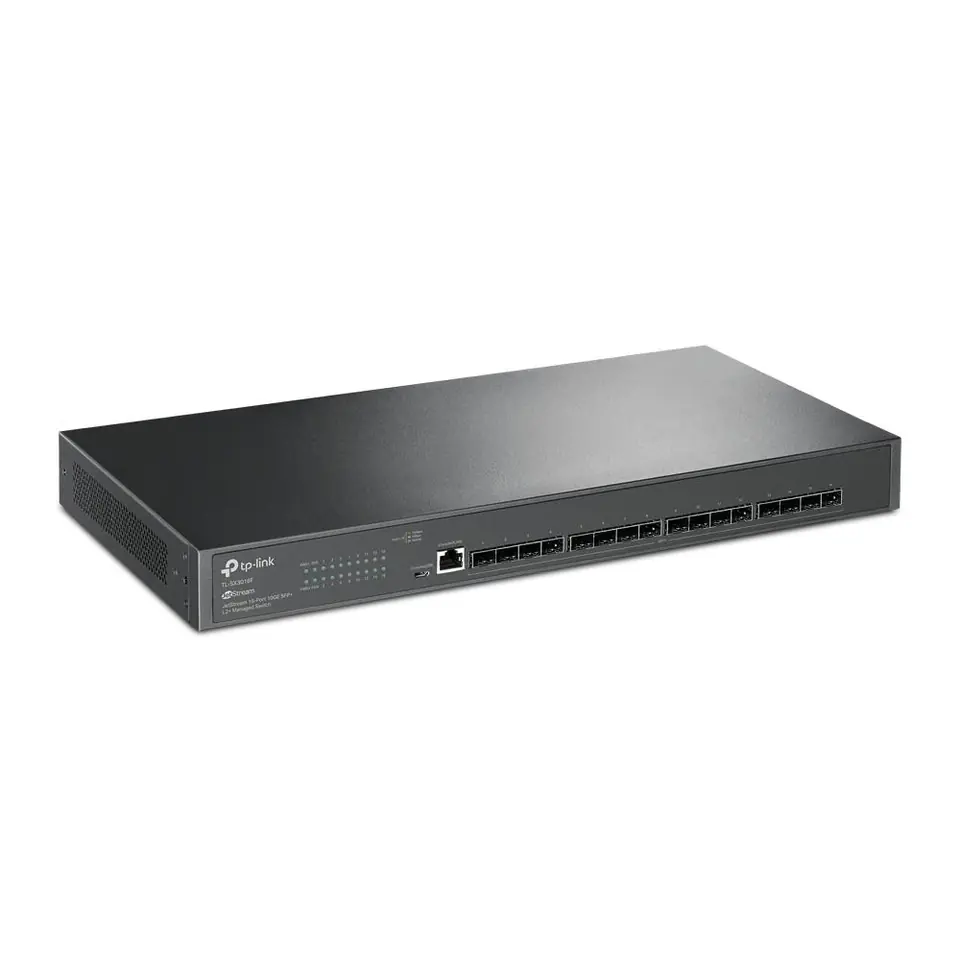

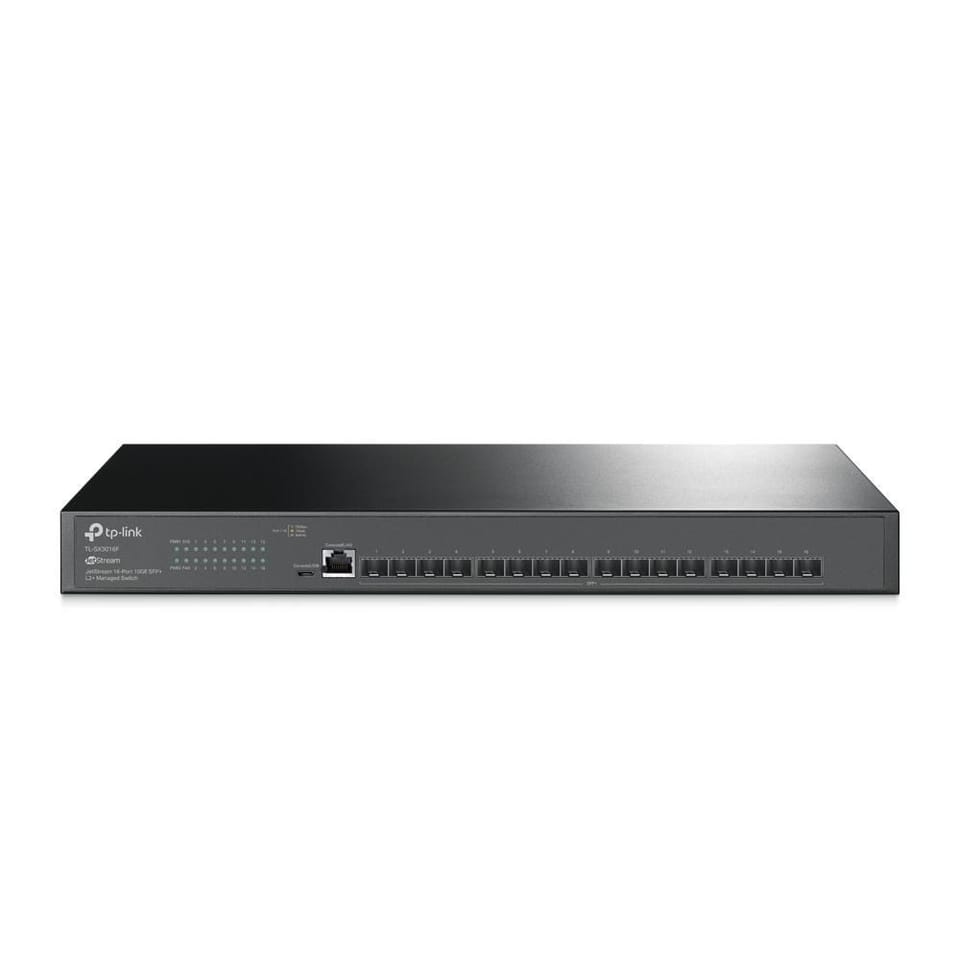

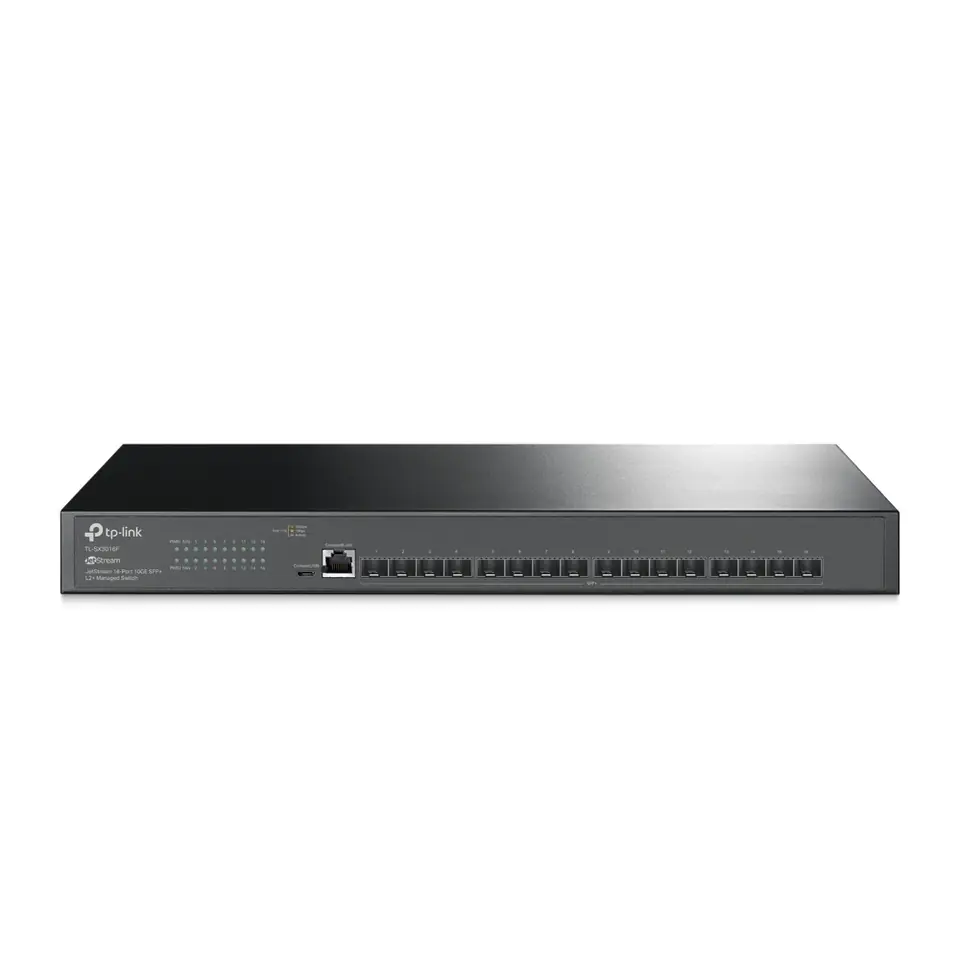

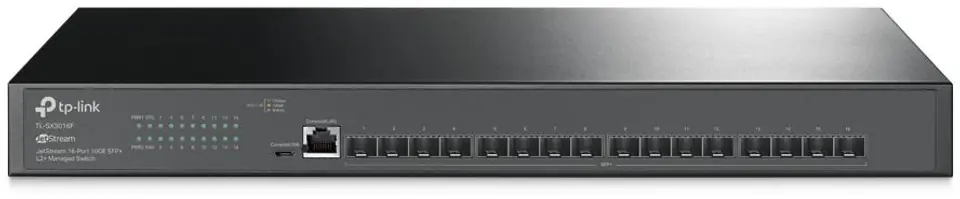

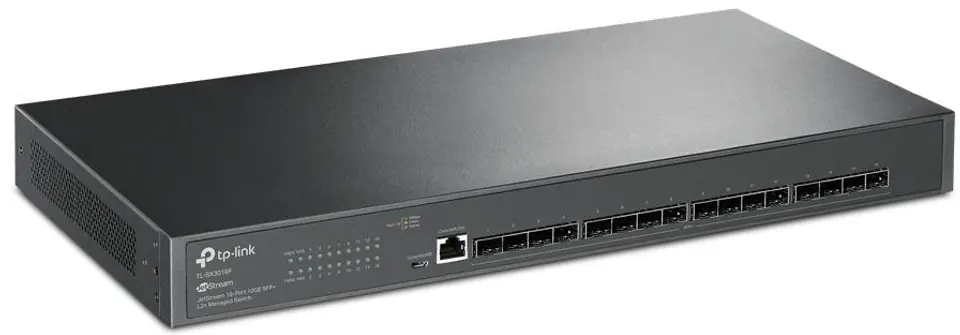

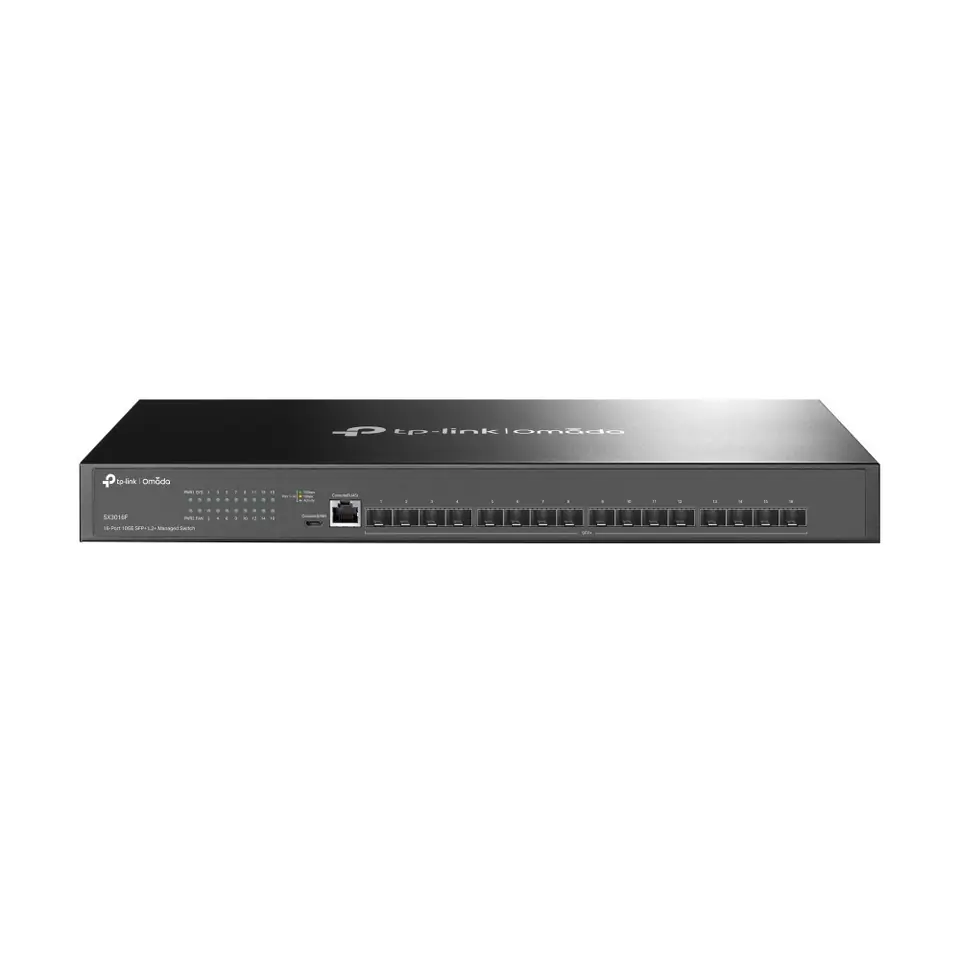

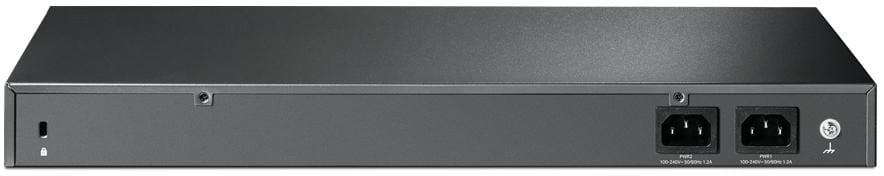

TP-Link TL-SX3016F network switch Managed L2/L2+ None Black

€671.78
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Tp-Link
Product code:
TL-SX3016F / 6935364006433

Specification

10g support:Yes
Ac input frequency:50/60 Hz
Ac input voltage:100 - 240 V
Access control list (acl):Yes
Arp inspection:Yes
Authentication:Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type:AAA, TACACS+
Basic switching rj-45 ethernet ports type:No
Bpdu filtering/protection:Yes
Broadcast storm control:Yes
Cables included:AC
Cloud-managed:Yes
Configuring location settings (cli):Yes
Console port:RJ-45/Micro-USB
Depth:220 mm
Dhcp features:DHCP server, DHCPv6 snooping, DHCPv6 client, DHCP relay, DHCP snooping
Flow control support:Yes
Forwarding rate:238.08 Mpps
Harmonized system (hs) code:85176990
Head-of-line (hol) blocking:Yes
Heat dissipation:111.71 BTU/h
Height:44 mm
Igmp snooping:Yes
Ip routing:Yes
Ip-mac-port binding:Yes
Ipv4 & ipv6 features:IPv6 tracert, IPv6 Telnet, IPv6 ping
Jumbo frames:9000
Jumbo frames support:Yes
Led indicators:Yes
Link aggregation:Yes
Loop protection:Yes
Mac address filtering:Yes
Mac address table:32000 entries
Management protocols:SNMPv1/v2c/v3, SNTP
Manual:Yes
Mib support:RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Multicast listener discovery (mld) snooping:Y
Multicast support:Yes
Networking standards:IEEE 802.3ad, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1D, IEEE 802.1x
Number of queues:8
Number of vlans:4000
Operating relative humidity (h-h):10 - 90%
Operating temperature (t-t):0 - 45 °C
Package depth:336 mm
Package height:100 mm
Package type:Box
Package weight:3.7 kg
Package width:528 mm
Packet buffer memory:24 MB
Port mirroring:Yes
Power connector:DC-in jack
Power consumption (max):32.74 W
Power over ethernet (poe):No
Power source:AC
Power supply included:Yes
Product colour:Black
Quality of service (qos) support:Yes
Queue scheduling algorithms:SP, WRR+SP, Weighted Round Robin (WRR)
Quick start guide:Yes
Rack mount kit:Yes
Rack mounting:Yes
Rate limiting:Yes
Security algorithms:HTTPS, SSH, SSL/TLS, SSH-2
Sfp+ module slots quantity:16
Spanning tree protocol:Yes
Ssh/ssl support:Yes
Static port security:Yes
Static route:Yes
Storage relative humidity (h-h):5 - 90%
Storage temperature (t-t):-40 - 70 °C
Switch layer:L2+/L3
Switch type:Managed
Switching capacity:320 Gbit/s
System event log:Yes
Traffic classification:Yes
Virtual lan features:Voice VLAN, Protocol-based VLAN, Tagged VLAN, Private VLAN
Vlan support:Yes
Web-based management:Yes
Width:440 mm

SWITCH TP-LINK TL-SX3016F

  • Model: TL-SX3016F
  • Rodzaj obudowy: Rack
  • Typ switcha: Zarządzalny L2
  • Porty SFP: 16
  • Port konsoli: Tak
  • Prędkość transmisji switch: 320 Gbps
  • Architektura switch: Gigabit Ethernet
  • Obsługa PoE: Nie
  • Liczba portów: 16 szt.
  • Przepustowość urządzenia: 320 Gb/s
TP-Link TL-SX3016F network switch Managed L2/L2+ None Black
