TP-Link TL-SG2016P network switch L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

€233.55
Shipping from warehouse: ⁨N2⁩
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Tp-Link
Product code:
TL-SG2016P / 4897098689493

Specification

10g support:No
Access control list (acl):Yes
Arp inspection:Yes
Authentication:Guest VLAN, MAC-based authentication, Port-based authentication
Auto mdi/mdi-x:Yes
Auto-negotiation:Yes
Basic switching rj-45 ethernet ports quantity:16
Basic switching rj-45 ethernet ports type:Gigabit Ethernet (10/100/1000)
Bpdu filtering/protection:Yes
Broadcast storm control:Yes
Cable types supported:Cat5, Cat5e, Cat3, Cat4
Cloud-managed:Yes
Configuring location settings (cli):Yes
Copper ethernet cabling technology:10BASE-T, 1000BASE-T, 100BASE-TX
Dc input voltage:53.5 V
Depth:111.7 mm
Dhcp features:DHCP relay, DHCP snooping, DHCPv6 snooping, DHCPv6 client
Ethernet lan data rates:10,100,1000 Mbit/s
Fanless:Yes
Firmware upgradeable:Yes
Flow control support:Yes
Garp vlan registration protocol (gvrp):Yes
Heat dissipation:499.98 BTU/h
Height:25.4 mm
Housing material:Metal
Igmp snooping:Yes
Input current:1.31 A
Ip-mac-port binding:Yes
Ipv4 & ipv6 features:Dual stack IPv4/IPv6
Jumbo frames:9000
Jumbo frames support:Yes

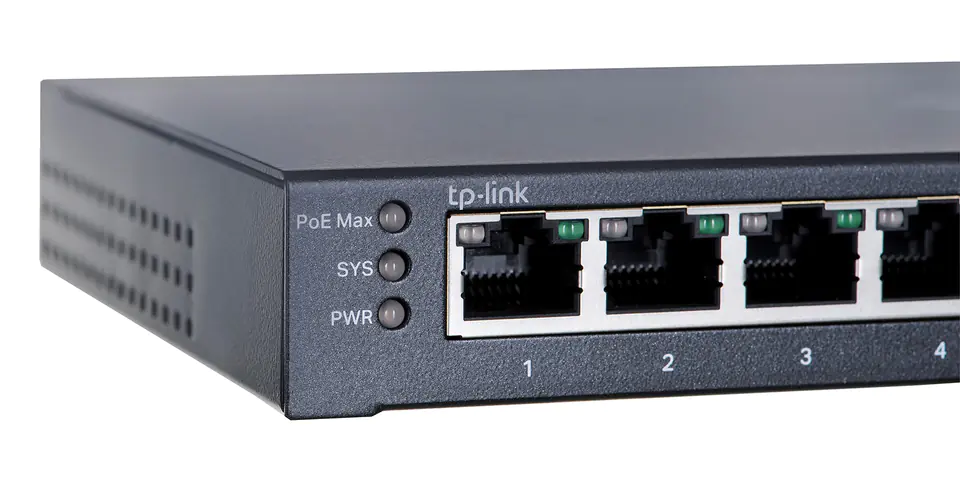

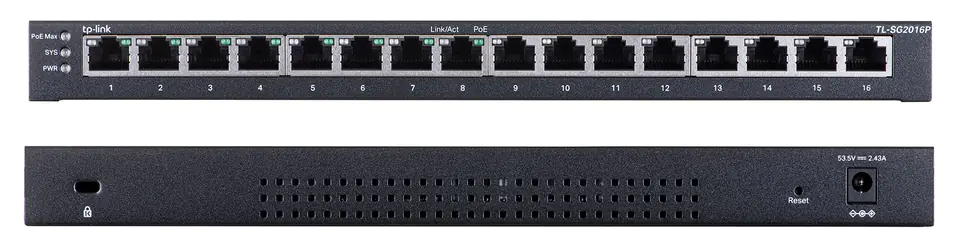

Led indicators:PoE, System, Power
Link aggregation:Yes
Mac address entries:Dynamic MAC address entries, Static MAC address entries
Mac address filtering:Yes
Mac address table:8000 entries
Manual:Yes
Mib support:RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
Multicast listener discovery (mld) snooping:MLD v1, MLD v2
Multicast support:Yes
Networking standards:IEEE 802.3ad, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3af, IEEE 802.1x, IEEE 802.1D, IEEE 802.11w, IEEE 802.3at, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3i
Number of queues:8
Number of vlans:4000
Operating relative humidity (h-h):10 - 90%
Operating temperature (t-t):0 - 40 °C
Packet buffer memory:4.1 MB
Port mirroring:Yes

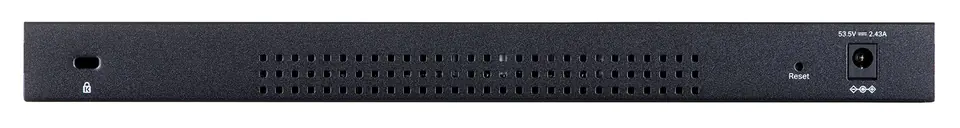

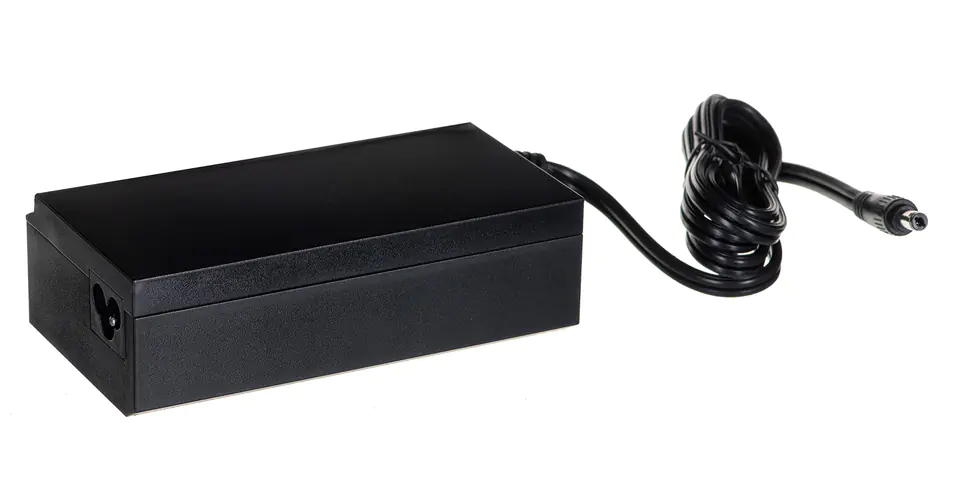

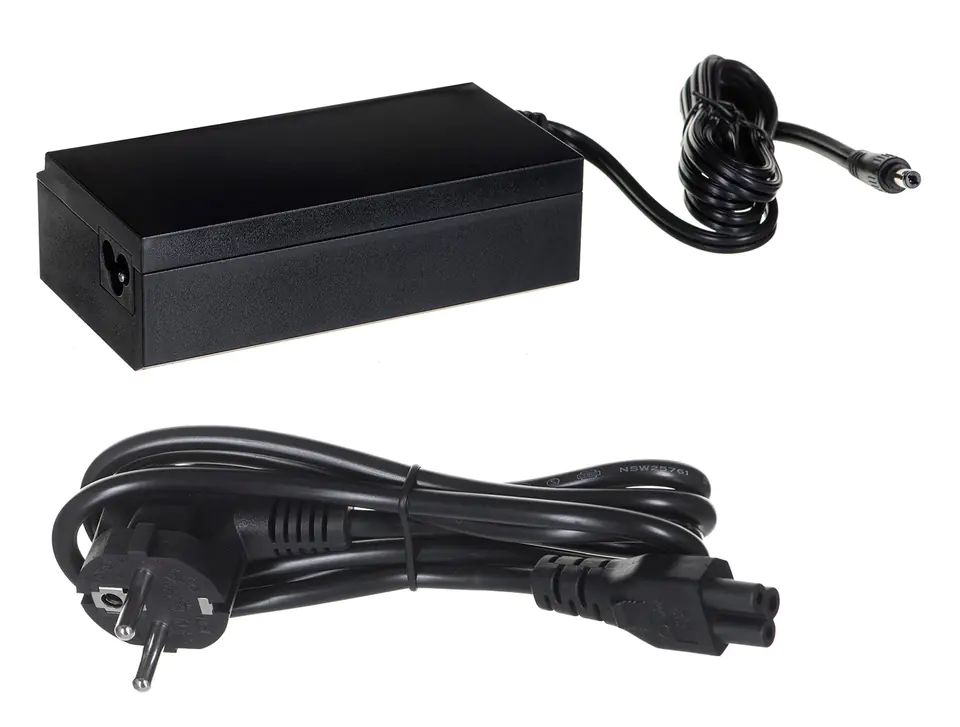

Power connector:DC-in jack
Power consumption (max):146.5 W
Power over ethernet (poe):Yes
Power over ethernet plus (poe+) ports quantity:8
Power source:DC/PoE
Product colour:Black
Quality of service (qos) support:Yes
Queue scheduling algorithms:SP, Weighted Round Robin (WRR)
Rate limiting:Yes
Security algorithms:SNMP, EAP-MD5, SSH, SNMPv2, HTTPS, SNMPv3, SSL/TLS
Spanning tree protocol:Yes
Ssh/ssl support:Yes
Storage relative humidity (h-h):5 - 90%
Storage temperature (t-t):-40 - 70 °C
Supported network protocols:ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
Switch layer:L2/L3/L4
System event log:Yes
Throughput:16 Gbit/s
Total power over ethernet (poe) budget:120 W
Virtual lan features:Tagged VLAN, Multicast VLAN, Voice VLAN
Vlan support:Yes
Web-based management:Yes
Width:286 mm

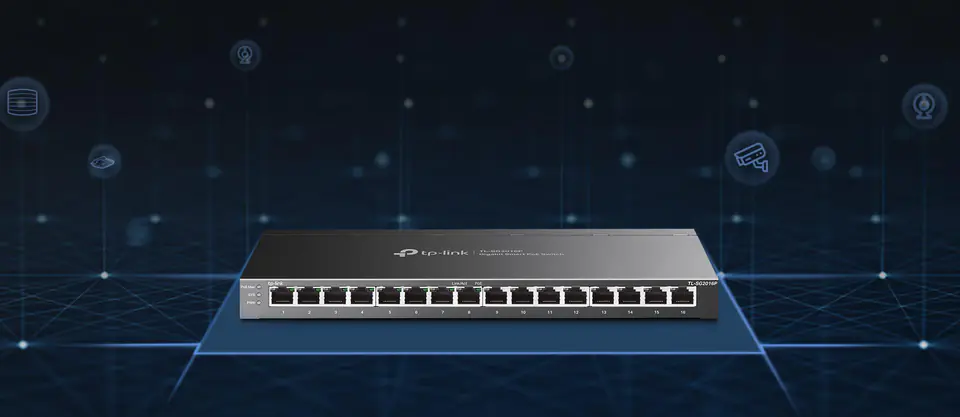

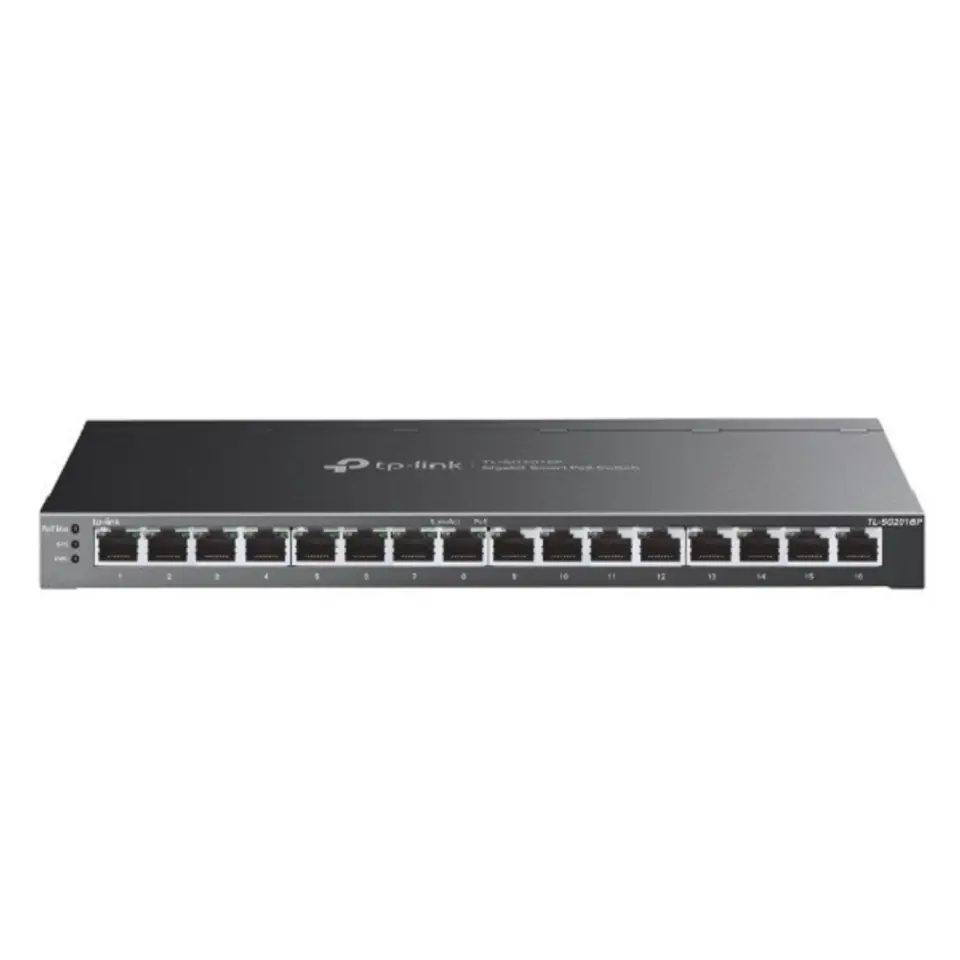

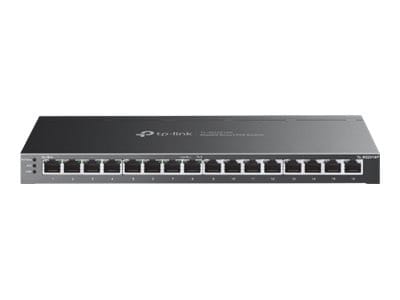

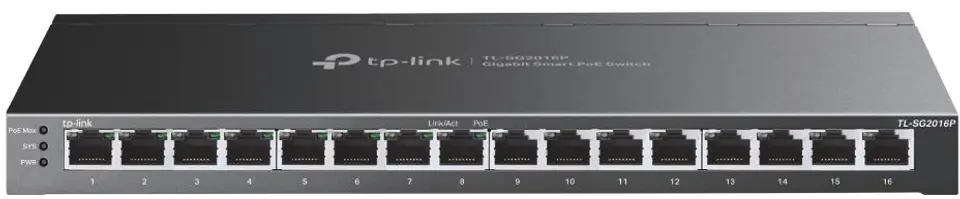

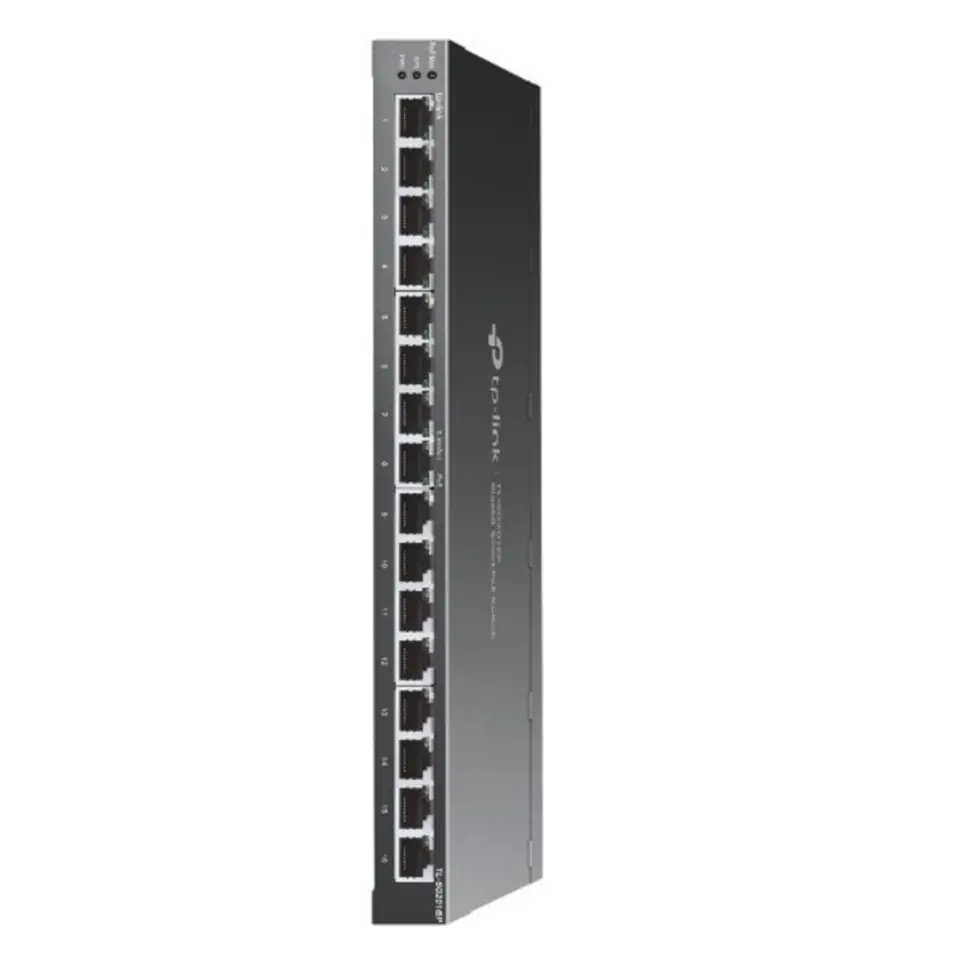

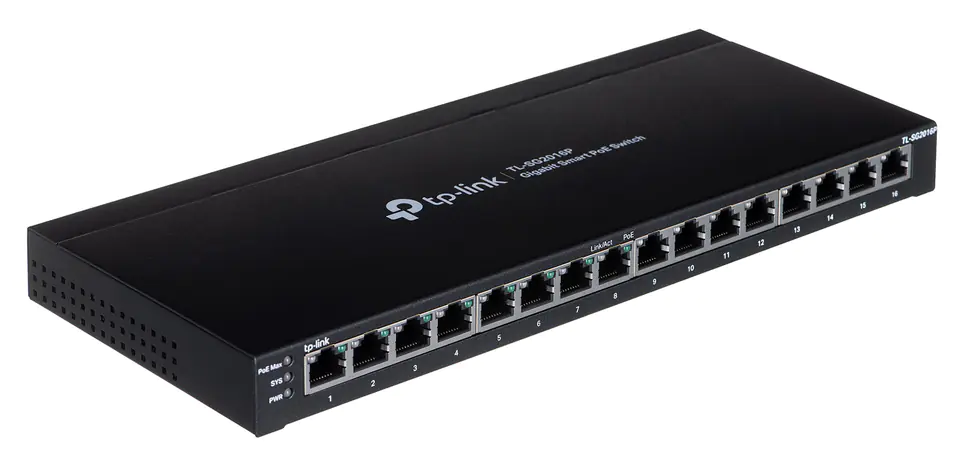

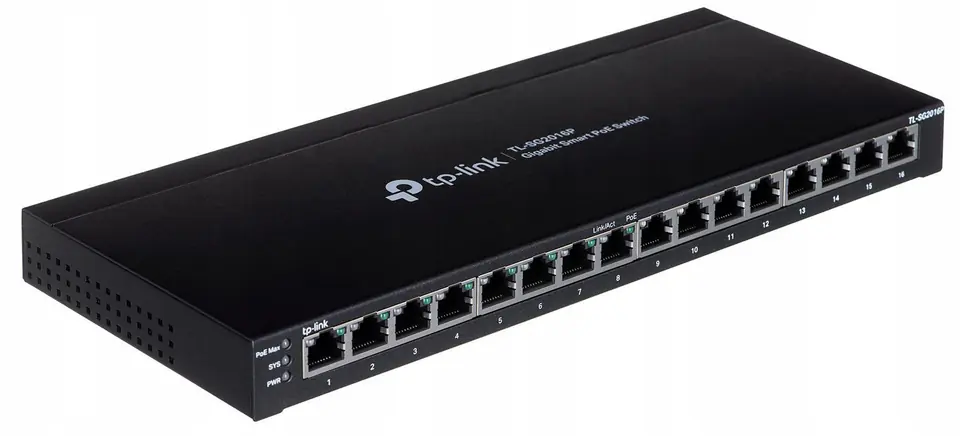

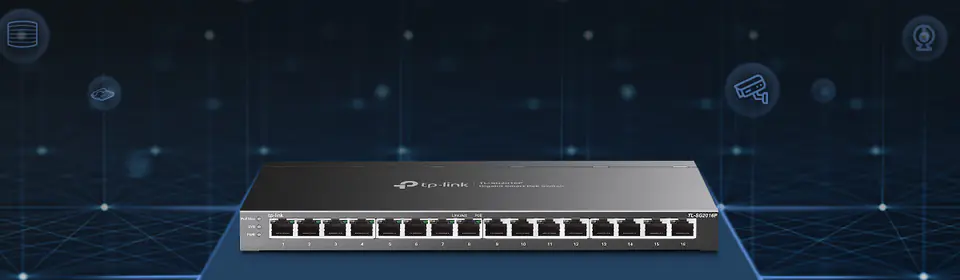

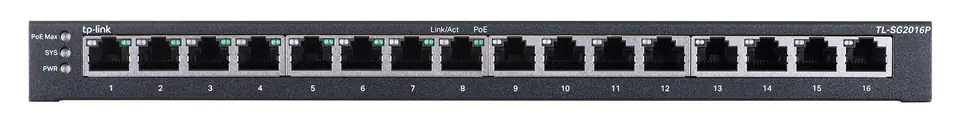

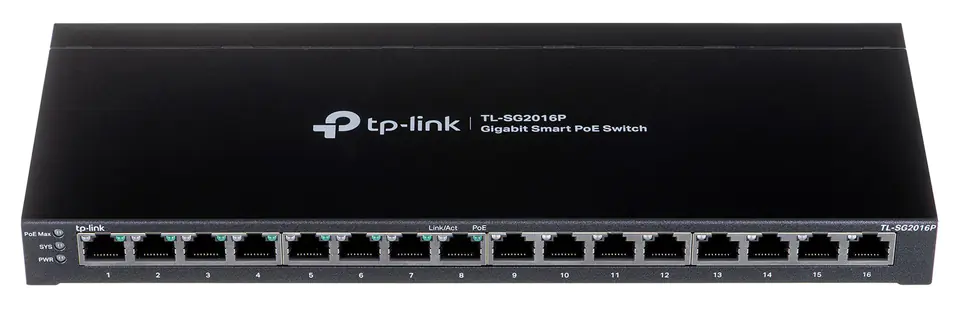

TL-SG2016P Smart JetStream Gigabit Switch, 16 Gigabit Ports Including 8 PoE+ Ports

  • 120W PoE Budget: 8 802.3at/af compliant PoE ports for a total of 120W PoE power.
  • Gigabit Ports: 8 Gigabit PoE+ ports and 8 Gigabit non-PoE ports provide high-speed connections.
  • Operation integrated with the Omada SDN platform: Unattended ZTP configuration, central cloud management and intelligent monitoring.
  • Centralized management: Cloud access and the Omada app is the convenience of management.
  • Robust Security: IP, MAC and Port Binding, ACL, Port Security, DoS Protection, Storm Control, DHCP Snooping, 802.1X, Radius Server Authentication and much more.
  • Optimization of voice and video transmission: QoS L2/L3/L4 and IGMP Snooping.

A smart switch is a smart operationSmart JetStream switch, 16 Gigabit ports, including 8 PoE+ ports

  • Centralized management
  • Control from multiple locations
  • Omada app
  • Multicast traffic optimization
  • VLANs
  • Access Control List (ACL)
  • 120 W total PoE power
  • Rugged metal housing

Many possible applications

The TL-SG2008P is fully compatible with PoE-powered devices such as IP cameras, access points and IP phones. I also work with wired devices without PoE support - computers, printers and IPTV.

  1. Surveillance - Compatibility with IP cameras
  2. Teleconferencing - Compatibility with IP phones
  3. Wi-Fi Coverage - Compatible with EAP Access Points
  4. Wired connections - Compatible with PC and printers

PoE power for simpler network deployment

The TL-SG2016P switch has 8 PoE+ ports compliant with 802.af/at standards and is able to provide devices with up to 120W of total power. Data and power are sent via a single Ethernet cable, so finding a suitable location for PoE-enabled devices, such as wireless access points, IP cameras or IP phones, is not difficult, and the costs of running a small business are much lower.

Access Control List (ACL)

ACL acts as a virtual administrator that grants data access to connected devices according to established rules and helps to implement the required network regulations.

QoS function - lag-free transmission

Network traffic is smooth even when performing activities that are susceptible to interference, such as voice or video transmission.

VLAN - security of network resources

Dividing the network into smaller segments ensures its more efficient operation and a higher level of security of network resources.

Omada SDN - an even smarter cloud solution for business networks

Omada's software-defined network infrastructure control (SDN) platform integrates the operation of network devices, including access points, switches and gateways, providing access to a functional business network with higher performance, better security and greater reliability.

Centralized management in the cloud

Comprehensive central management of the entire network, divided between different facilities, from a single interface - anywhere and at any time.

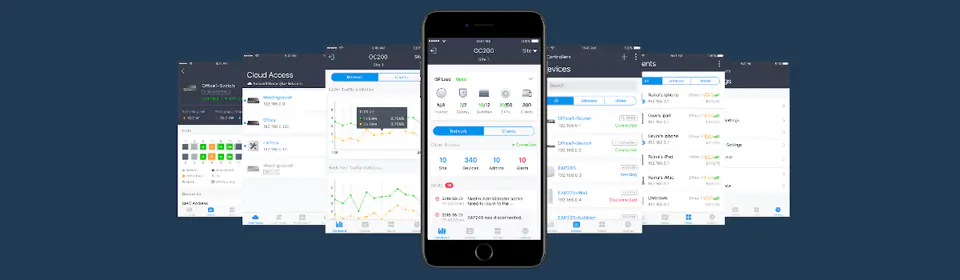

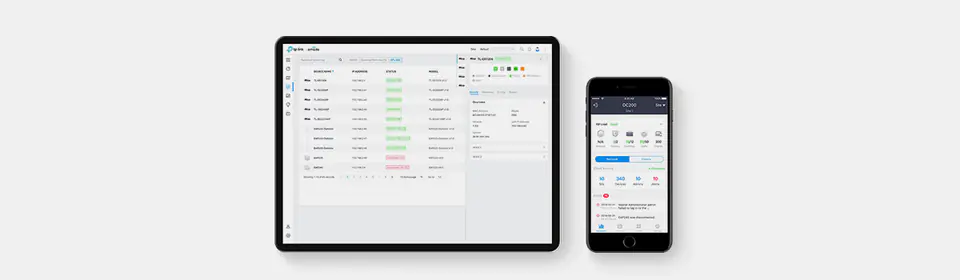

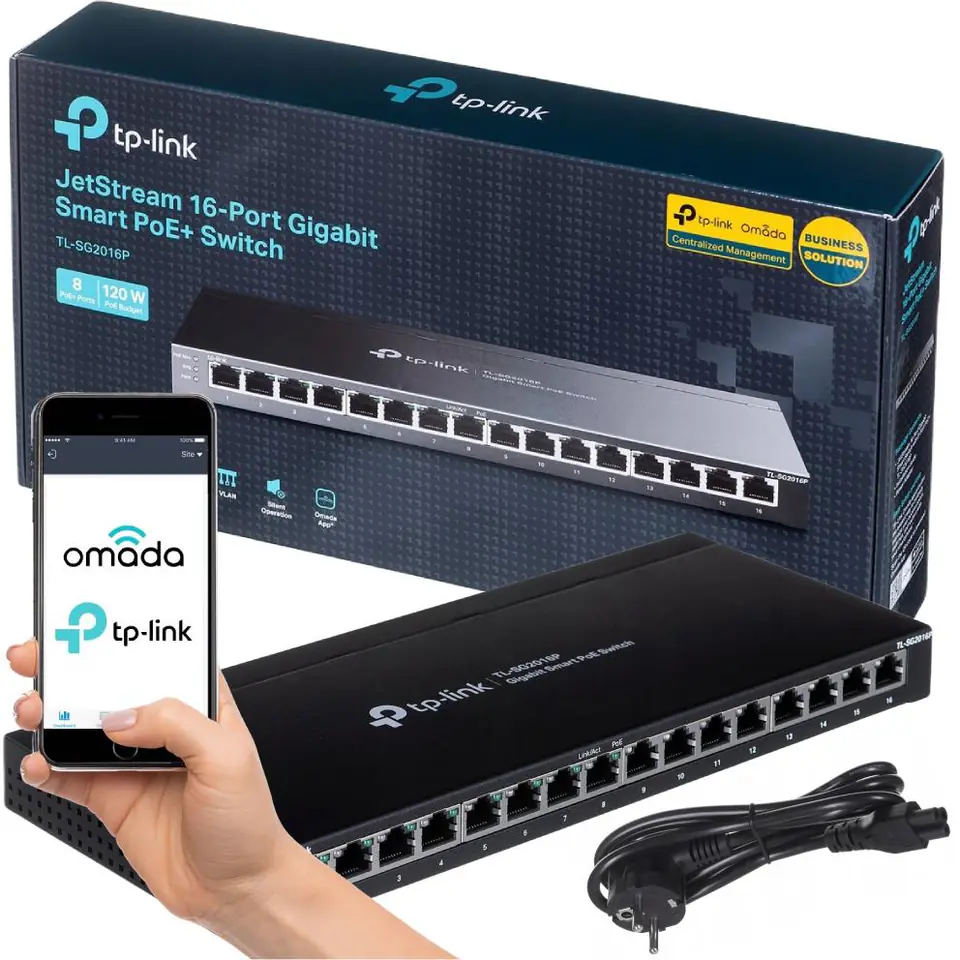

Convenience of management with the Omada application

With easy-to-follow instructions, it only takes a few minutes to configure the settings you need in the Omada app. Monitor network status, manage clients, change settings at any time - all from your smartphone or tablet.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
