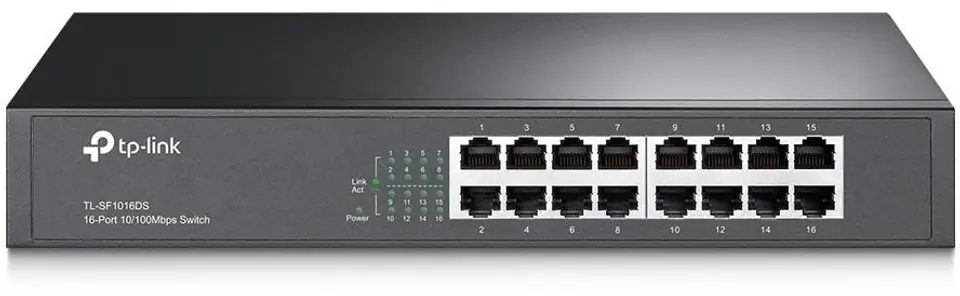

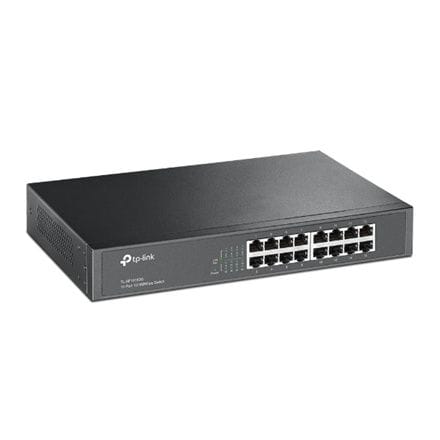

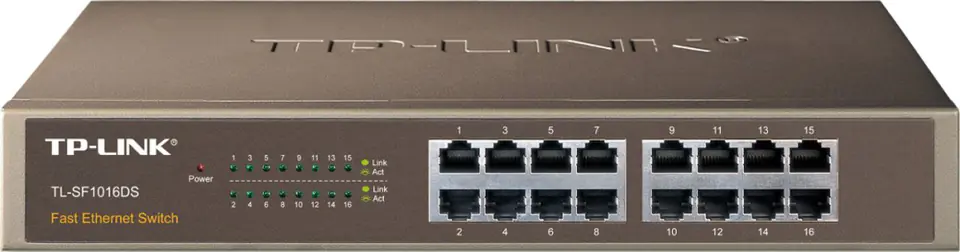

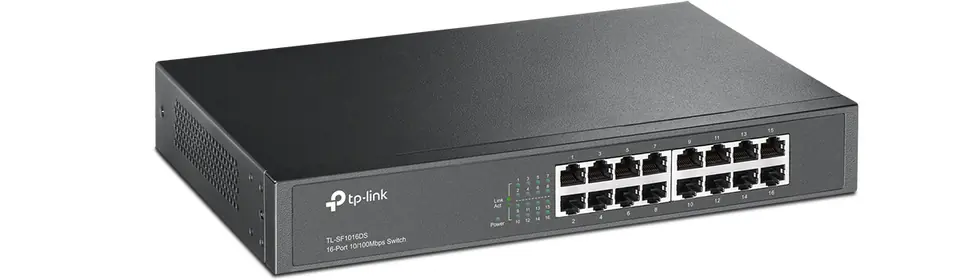

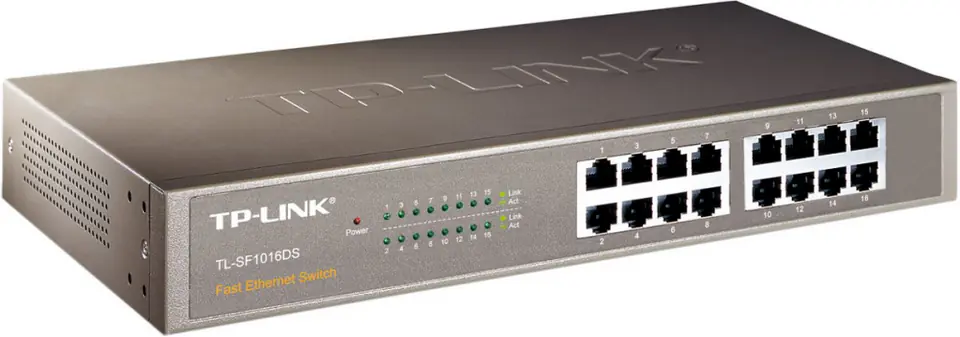

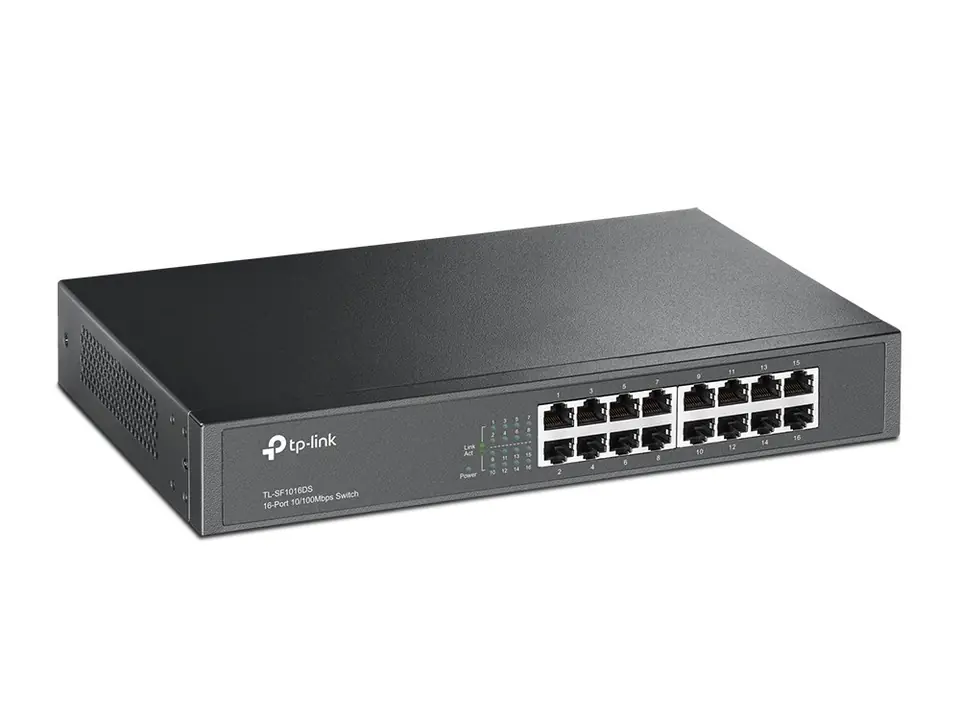

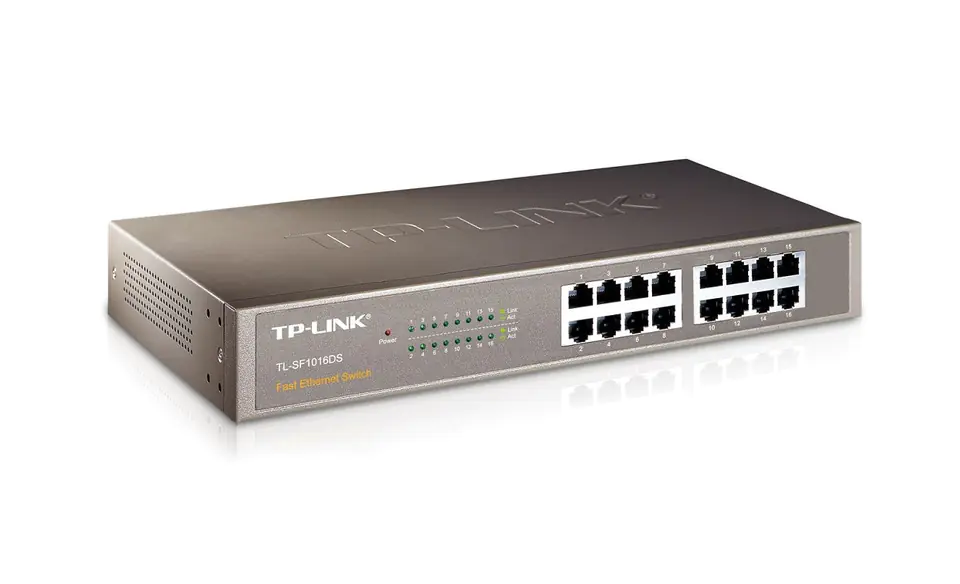

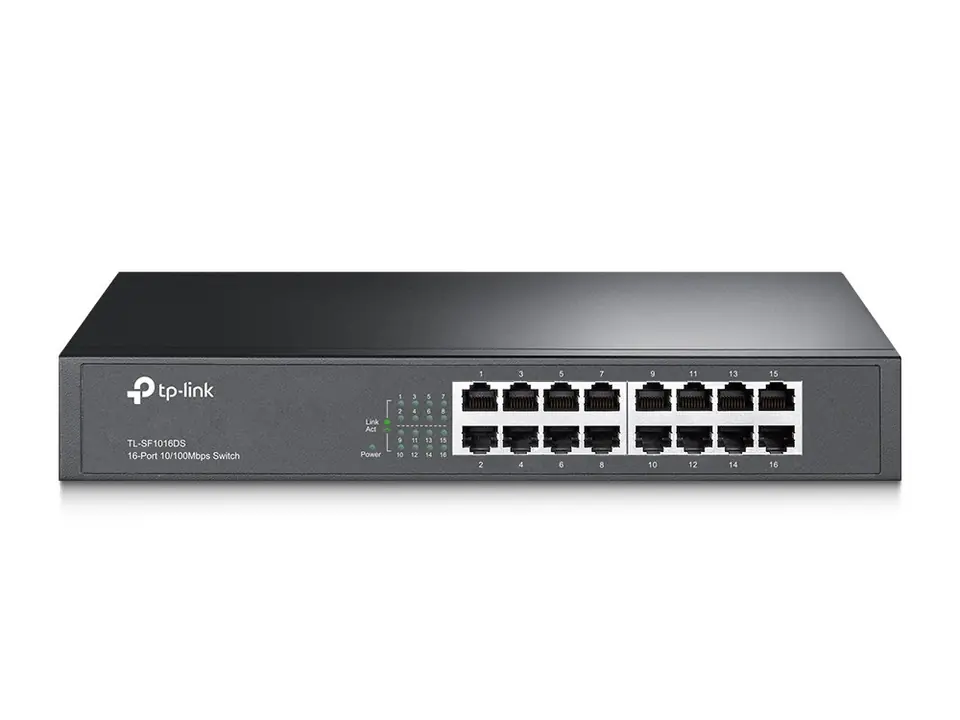

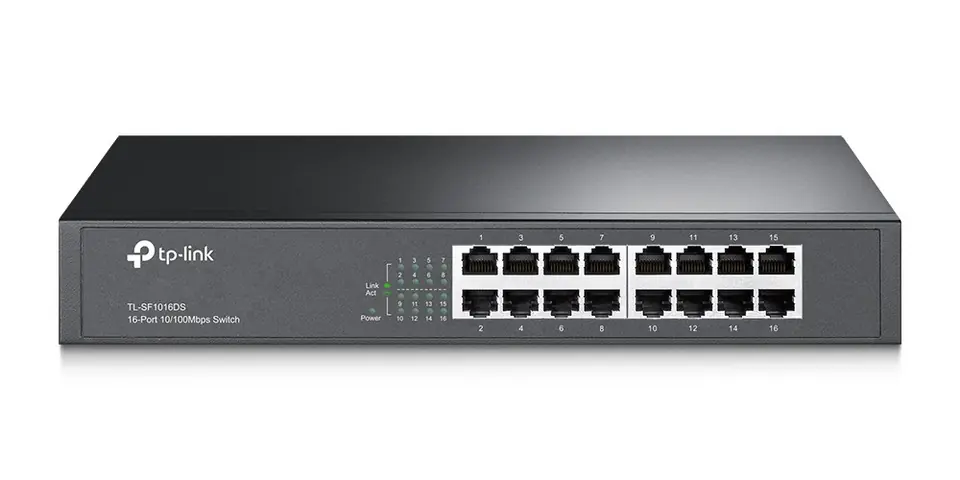

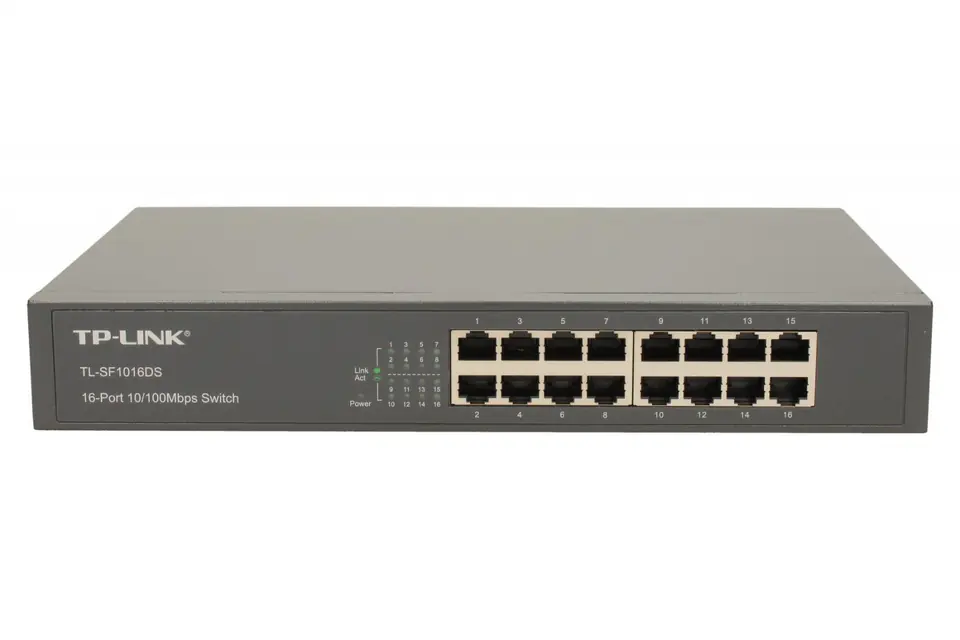

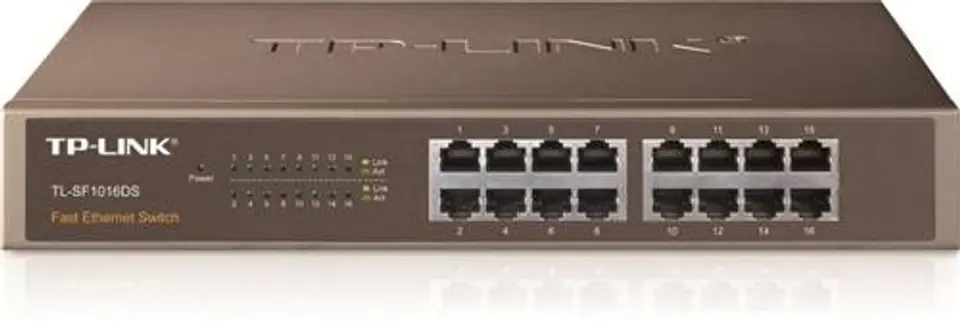

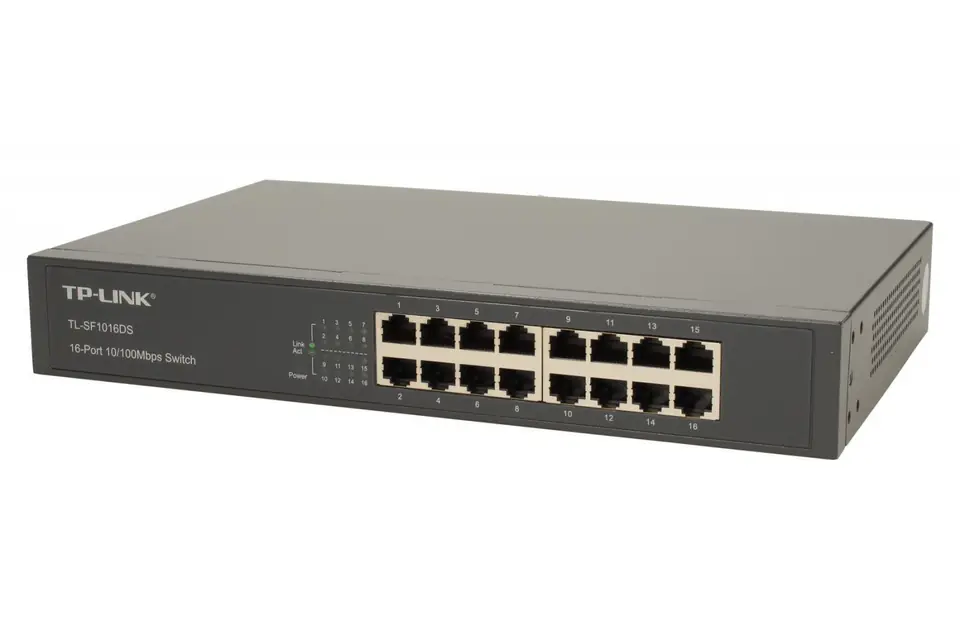

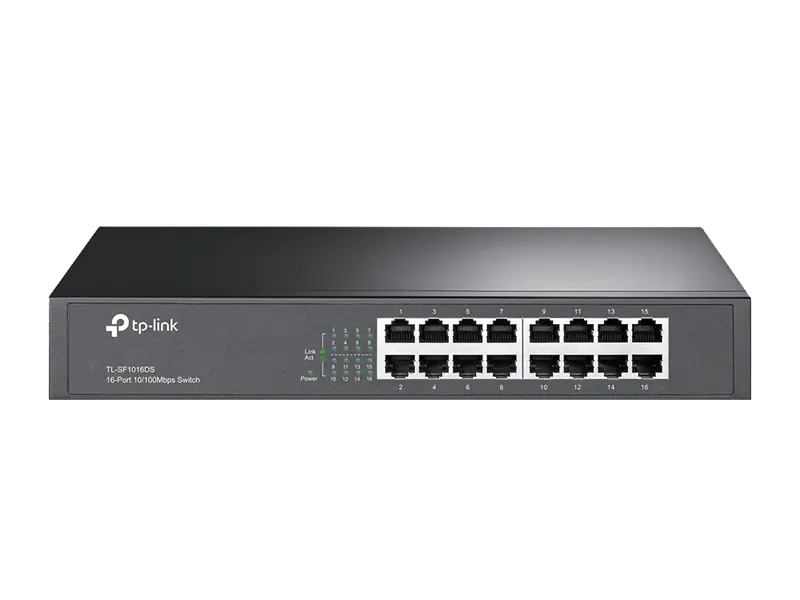

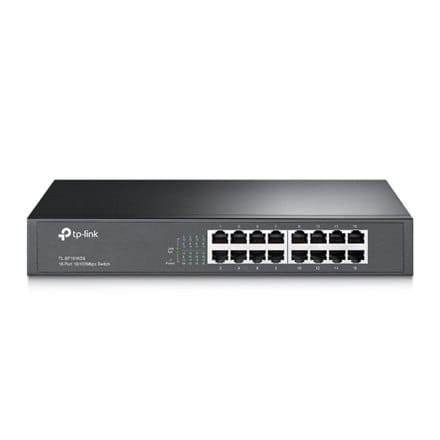

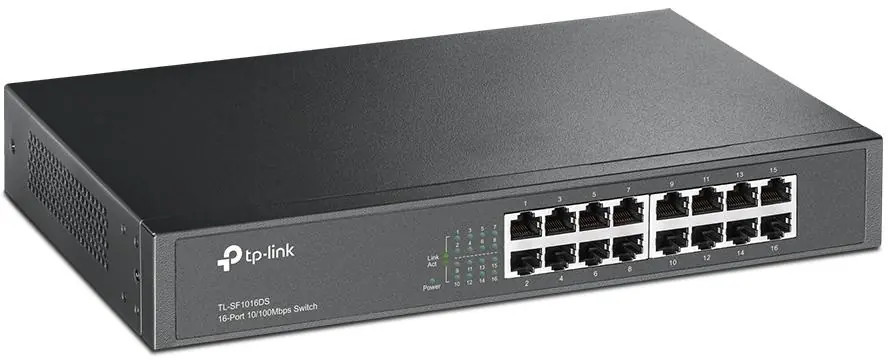

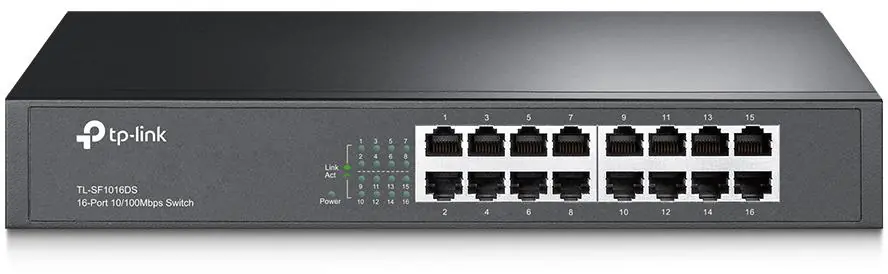

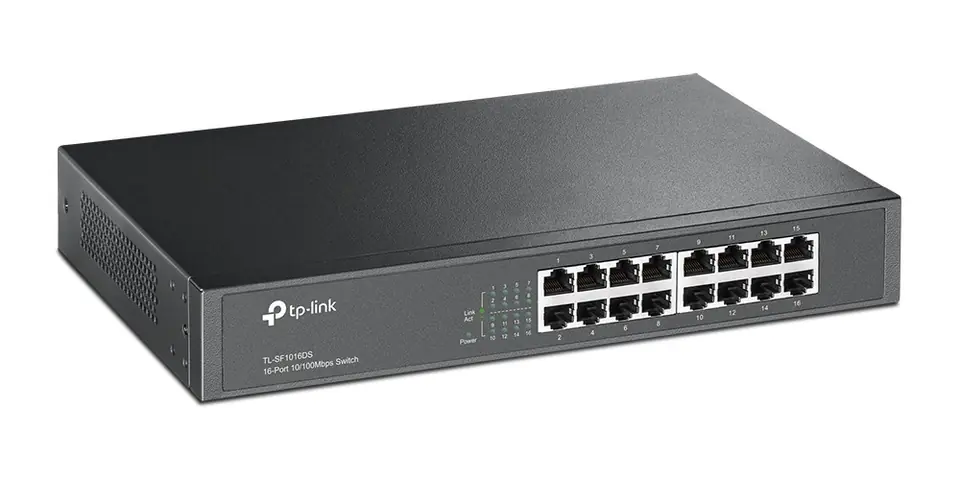

The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play.
HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface16 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media10Base-T: UTP category 3, 4, 5 cable (maximum 328.1feet)
EIA/TIA-568 100Ù STP (maximum 328.1feet)
100Base-Tx: UTP category 5, 5e cable (maximum 328.1feet)
EIA/TIA-568 100Ù STP (maximum 328.1feet)

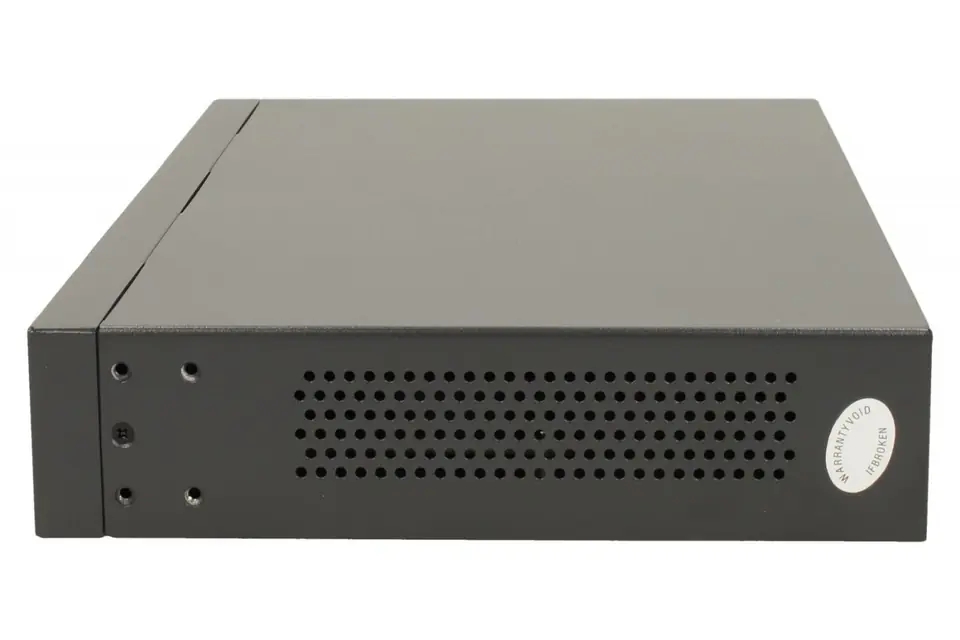

Fan QuantityFanless
Dimensions ( W x D x H )11.6×7.1×1.7 in. (294×180×44 mm)

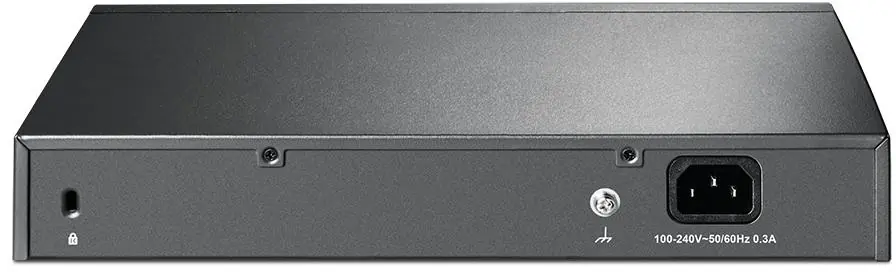

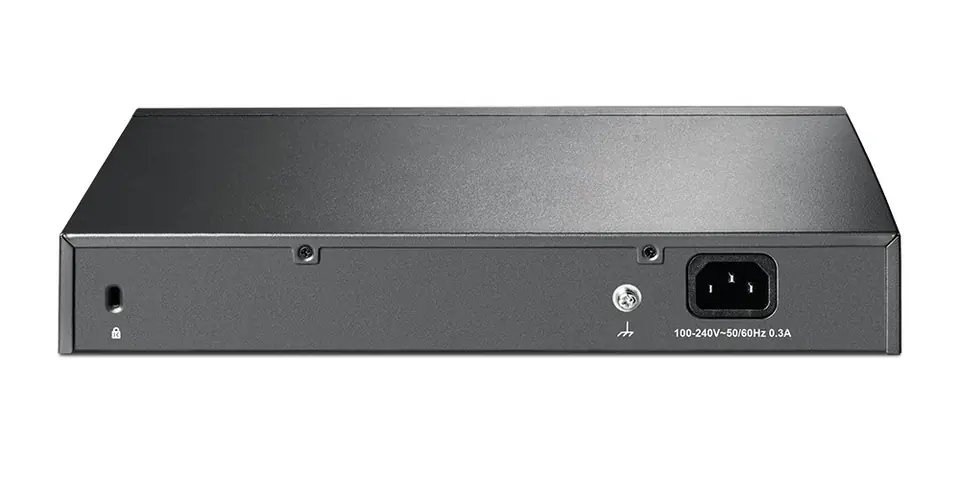

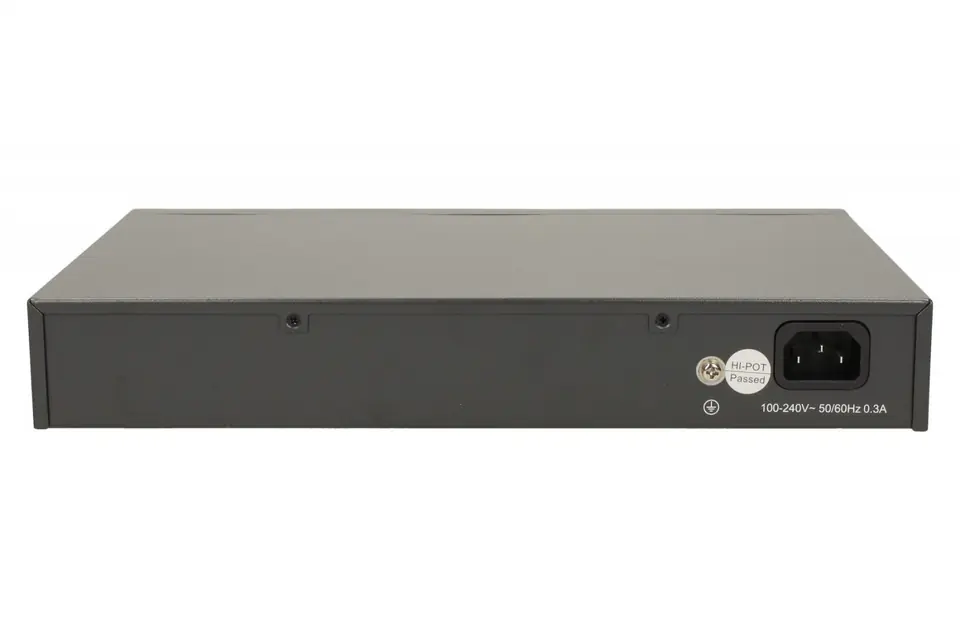

Power Supply100-240VAC, 50/60Hz
PERFORMANCE
Switching Capacity3.2Gbps
MAC Address Table8K
Packet Forwarding Rate2.38Mpps
Green Technology Innovative energy-efficient technology saves power up to 25%
Transfer MethodStore-and-Forward
OTHERS
CertificationFCC, CE, RoHS
Package Contents:
- 16-Port 10/100Mbps Desktop/Rackmount Switch
- Power Cord
- Installation Guide

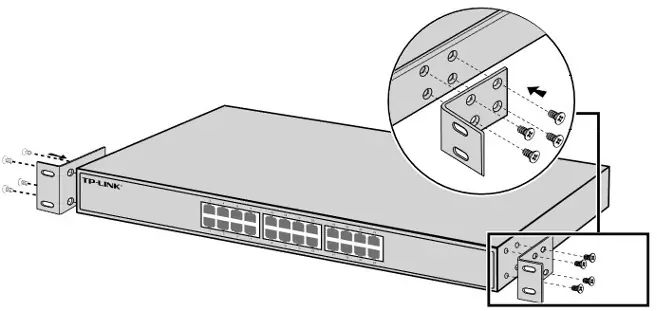

- Rackmount Kit
- Rubber Feet
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
