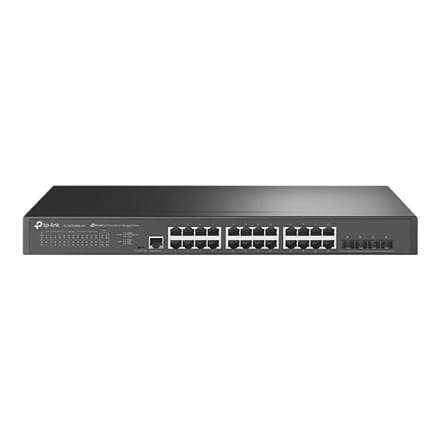

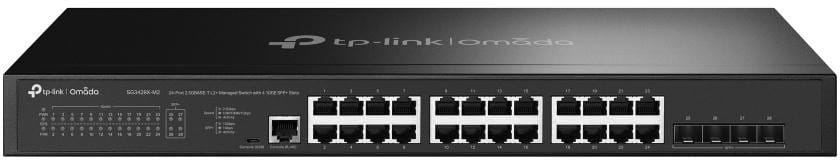

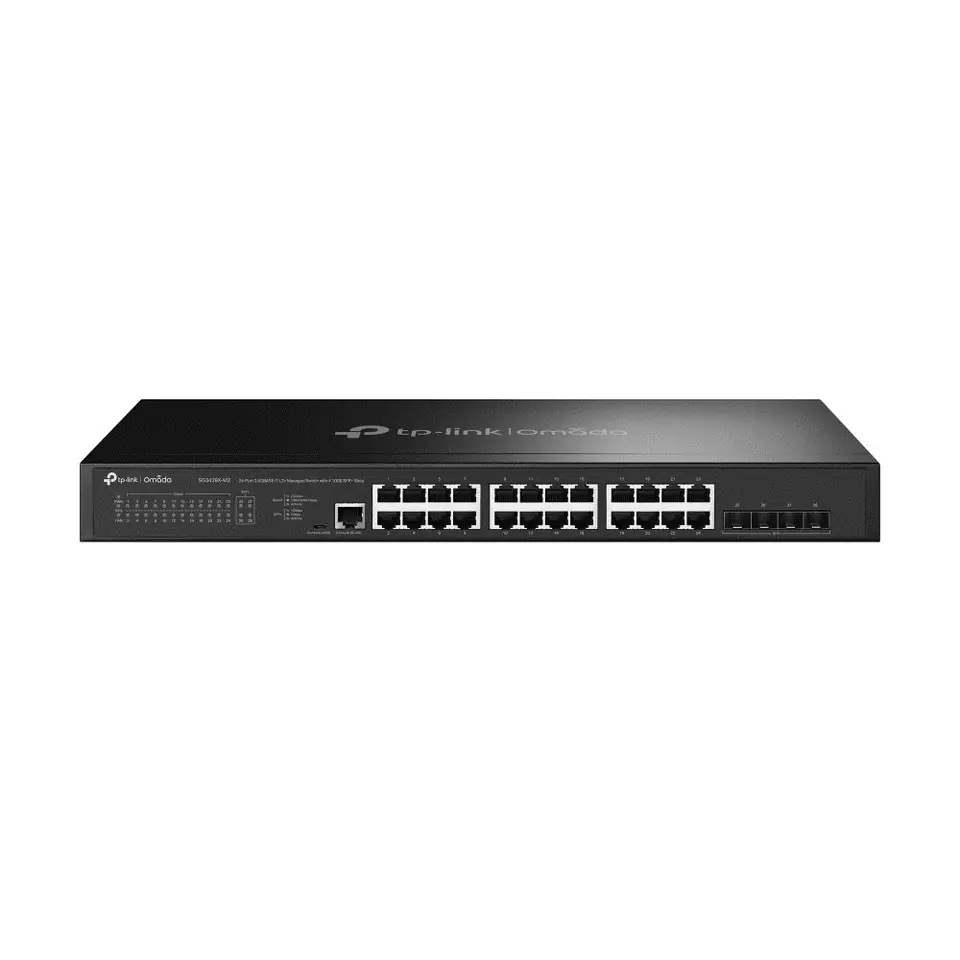

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots

€543.13
Shipping from warehouse: ⁨N2⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Tp-Link
Product code:
TL-SG3428X-M2 / 4897098689745

Specification

10g support:Yes
2.5g ethernet (copper) ports quantity:24
Ac input frequency:50/60 Hz
Ac input voltage:100 - 240 V
Access control list (acl):Yes
Active link detection:Yes
Arp inspection:Yes
Authentication:Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type:AAA, RADIUS, TACACS+
Basic switching rj-45 ethernet ports quantity:24
Basic switching rj-45 ethernet ports type:2.5G Ethernet (100/1000/2500)
Bpdu filtering/protection:Yes
Broadcast storm control:Yes
Cables included:LAN (RJ-45)
Cloud-managed:Yes
Compliance certificates:Federal Communications Commission (FCC), RoHS, CE
Configuring location settings (cli):Yes
Console port:RJ-45/micro-USB
Depth:180 mm
Dhcp features:DHCPv6 snooping, DHCP snooping, DHCP server, DHCPv6 client, DHCP client, DHCP relay
Flow control support:Yes
Form factor:1U
Forwarding rate:148.8 Mpps
Garp vlan registration protocol (gvrp):Yes
Head-of-line (hol) blocking:Yes
Heat dissipation:154.38 BTU/h
Height:44 mm
Igmp snooping:Yes
Ip-mac-port binding:Yes
Ipv4 & ipv6 features:IPv6 tracert, IPv6 Telnet, IPv4/IPv6 access-control list (ACL), IPv6 ping
Ipv4 fib entries:100
Ipv4 routes:48
Ipv6 fib entries:100
Ipv6 routes:48
Jumbo frames:9000
Jumbo frames support:Yes
Led indicators:Yes
Link aggregation:Yes
Loop protection:Yes
Mac address table:32000 entries
Management protocols:SNMP v1/v2c/v3, SNTP
Mib support:Yes
Multicast listener discovery (mld) snooping:Y
Multicast support:Yes
Networking standards:IEEE 802.3i, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1x, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3ab
Number of fans:1 fan(s)
Number of static routes:48
Operating relative humidity (h-h):10 - 90%
Operating temperature (t-t):0 - 40 °C
Package depth:250 mm
Package height:80 mm
Package weight:3 kg
Package width:528 mm
Packet buffer memory:16 MB
Policy-based routing:Yes
Port mirroring:Yes
Power connector:AC-in jack
Power consumption (max):45.1 W
Power over ethernet (poe):No
Power source:AC
Power supply included:Yes
Product colour:Black
Quality of service (qos) support:Yes
Quick start guide:Yes
Rack mounting:Yes
Rate limiting:Yes
Sfp+ module slots quantity:4
Spanning tree protocol:Yes
Ssh/ssl support:Yes
Static route:Yes
Storage relative humidity (h-h):5 - 90%
Storage temperature (t-t):-40 - 70 °C
Store-and-forward:Yes
Sustainability certificates:Federal Communications Commission (FCC), CE, RoHS
Switch layer:L2+
Switch type:Managed
Switching capacity:200 Gbit/s
System event log:Yes
Virtual lan features:Private VLAN, Voice VLAN, Protocol-based VLAN, Tagged VLAN
Vlan support:Yes
Web-based management:Yes
Width:440 mm

TL-SG3428X-M2 L2+ JetStream managed switch, 24 2.5G ports, 4 SFP+ 10 GE slots

  • 2.5Gb/s speeds: 24 2.5Gb/s RJ45 ports offer fast and reliable connections to other switches and devices.
  • Fast 10G uplink ports: 4 SFP+ slots with a speed of 10 Gb/s ensure high link bandwidth and non-blocking switching.
  • Operation integrated with the Omada SDN platform: Headless ZTP* configuration, central cloud management and intelligent monitoring.
  • Central management: Cloud access and the Omada application provide convenient management.
  • Static routing: Controlling internal traffic allows for more efficient use of network resources.
  • Reliable security: IP, MAC and port binding, ACL, Port Security, DoS protection, Storm Control, DHCP Snooping, 802.1X, Radius server authentication and much more.
  • Voice and video transmission optimization: QoS L2/L3/L4 and IGMP Snooping.
  • Self-management: website, CLI (console port, Telnet, SSH), SNMP, RMON and Dual Image provide extensive management possibilities

Fast 10G uplink ports

4 SFP+ slots with a speed of 10 Gb/s ensure high link bandwidth

2.5Gb/s ports for PC, Wi-Fi 6/6E/7

24 2.5Gb/s ports thanks to which you can use the potential of multi-gigabit devices

Centralized management in the cloud

SDN solutions are fully integrated with each other to create a high-performance network

Advanced Layer 2+ features

Static Routing, IGMP Snooping, 802.1Q VLAN and much more

Business switch with 10G uplink ports

Four 10 Gb/s SFP+ slots ensure non-blocking switching and reduce latency to a minimum. Thanks to this, connections to servers and other switches are established quickly and are reliable.

Unlock the ultimate performance of multi-gigabit 2.5G bandwidth

24 2.5G ports unlock the highest performance for your multi-gigabit bandwidth and devices. Auto-Negotiation connections detect link speeds and intelligently adjust for compatibility and optimal performance of all devices, including desktop computers, 4K video, 6/6E and 7Ghz access points, 2.5Gb/s NAS servers, network cards PCI, game consoles, VR technology and much more.

Software control of network infrastructure (SDN) with access from the cloud

Omada's software-defined network (SDN) platform integrates the operation of network devices, including access points, switches and gateways, providing comprehensive central management from the cloud. Omada enables you to create a highly scalable network - fully controlled via a single interface. This translates into seamless wired and wireless connections that are essential in hospitality, education, retail, offices and many other industries and establishments.

Advanced Layer 3 features

Extensive L2+ and L3 features help build a highly scalable and well-secured network that is reliable and efficient - ideal for offices, campuses and for use by service providers.

Effective security

IP-MAC-Port-VID binding, port protection, Storm Control and DHCP Snooping are the functions of the TL-SG3428X-M2 switch that protect the network against threats. The device also allows you to define the most common DoS attacks, so you can detect and prevent them early. However, the ACL function (from L2 to L4) is used to block access to specific network resources. Packets can be denied for specific source or destination MAC addresses, IP addresses, TCP/UDP ports or VLAN IDs. Additionally, the switch uses 802.1X encryption combined with RADIUS/Tacacs+ server capabilities to authenticate users seeking network access.

L2+ layer functions

With extensive Layer 2 features including VLAN 802.1Q tag support, port mirroring, STP/RSTP/MSTP, port aggregation and 802.3x flow control, the TL-SG3428X-M2 switches are versatile. The IGMP Snooping feature allows you to intelligently route multicast streams only to specific subscribers, while the IGMP Throttling and IGMP Filtering features effectively restrict unauthorized users from accessing multicast transmissions. The TL-SG3428X-M2 also supports static routing, which allows you to segment your network and increase its performance.

Advanced QoS features

To ensure better audio and video transmission in one network traffic, network administrators can define priorities, e.g. for individual IP addresses, MAC addresses, TCP or UDP ports, etc. This makes audio and video transmission smooth and lag-free.

Facilities for service providers

QinQ, L2TP, PPPoE ID Insertion and IGMP authentication. 802.3ah OAM functions and device connection detection protocol (DLDP) enable easier network supervision and management.

IPv6 support

The switch supports many IPv6 features, such as dual stack IPv4/IPv6, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 interface, PMTU Discovery and IPv6 Neighbor Discovery, thanks to which the network fully complies with NGN standards and replacing the equipment with a new one is not necessary. will be necessary.
