| 10g support: | Yes |
|---|---|
| Ac input frequency: | 50/60 Hz |
| Ac input voltage: | 220 V |
| Access control list (acl): | Yes |
| Arp inspection: | Yes |
| Authentication: | Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| Authentication type: | AAA, TACACS+ |
| Basic switching rj-45 ethernet ports type: | No |
| Bpdu filtering/protection: | Yes |
| Broadcast storm control: | Yes |
| Cables included: | AC |
| Cloud-managed: | Yes |
| Configuring location settings (cli): | Yes |
| Console port: | RJ-45/micro-USB |

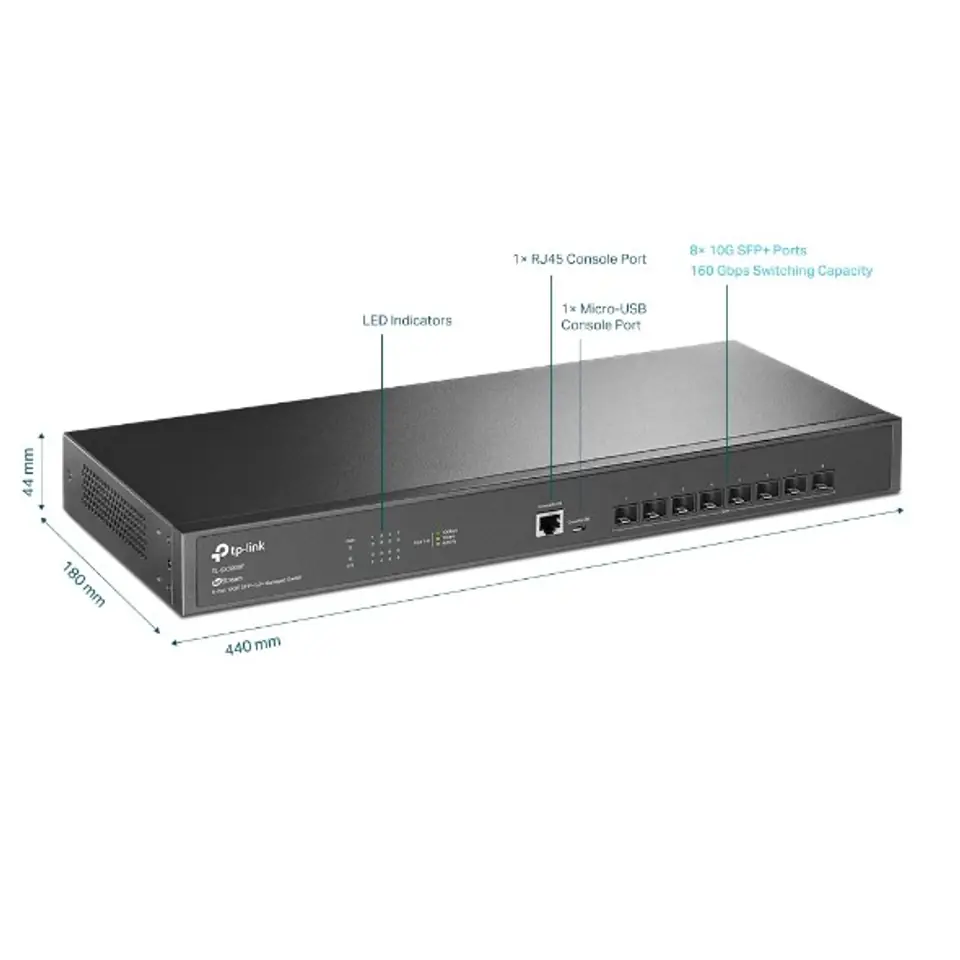

| Depth: | 180 mm |
| Dhcp features: | DHCPv6 client, DHCP server, DHCP relay, DHCPv6 snooping, DHCP snooping |
| Flow control support: | Yes |
| Forwarding rate: | 119.04 Mpps |
| Harmonized system (hs) code: | 85176990 |
| Head-of-line (hol) blocking: | Yes |
| Heat dissipation: | 52.75 BTU/h |
| Height: | 44 mm |
| Igmp snooping: | Yes |
| Ip routing: | Yes |
| Ip-mac-port binding: | Yes |
| Ipv4 & ipv6 features: | IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Loop protection: | Yes |
| Mac address filtering: | Yes |
| Mac address table: | 32000 entries |
| Management protocols: | SNMPv1/v2c/v3, SNTP |
| Manual: | Yes |
| Mib support: | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
| Multicast listener discovery (mld) snooping: | Y |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.1Q, IEEE 802.3x, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D |
| Number of queues: | 8 |
| Number of vlans: | 4000 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 45 °C |
| Package depth: | 250 mm |
| Package height: | 80 mm |
| Package type: | Box |
| Package weight: | 2.37 kg |
| Package width: | 528 mm |
| Packet buffer memory: | 16 MB |
| Port mirroring: | Yes |
| Power connector: | DC-in jack |
| Power consumption (max): | 15.46 W |
| Power over ethernet (poe): | No |
| Power source: | AC |
| Power supply included: | Yes |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Queue scheduling algorithms: | WRR+SP, SP, Weighted Round Robin (WRR) |
| Quick start guide: | Yes |
| Rack mount kit: | Yes |
| Rack mounting: | Yes |
| Rate limiting: | Yes |
| Security algorithms: | HTTPS, SSH, SSL/TLS, SSH-2 |
| Sfp+ module slots quantity: | 8 |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Static port security: | Yes |
| Static route: | Yes |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Switch layer: | L2/L3 |
| Switch type: | Managed |
| Switching capacity: | 160 Gbit/s |
| System event log: | Yes |
| Traffic classification: | Yes |
| Virtual lan features: | Protocol-based VLAN, Voice VLAN, Private VLAN |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Width: | 440 mm |
