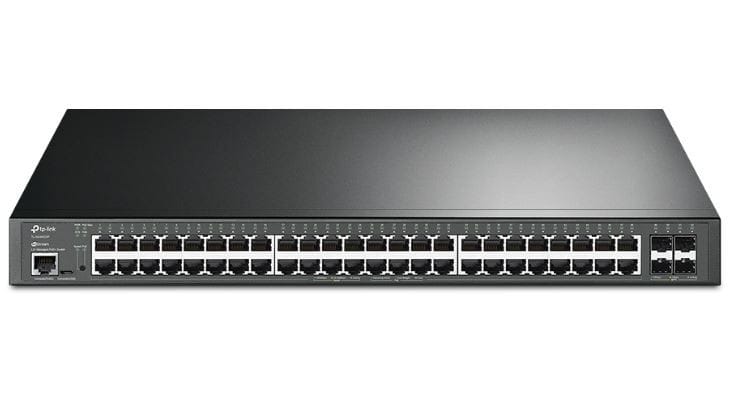

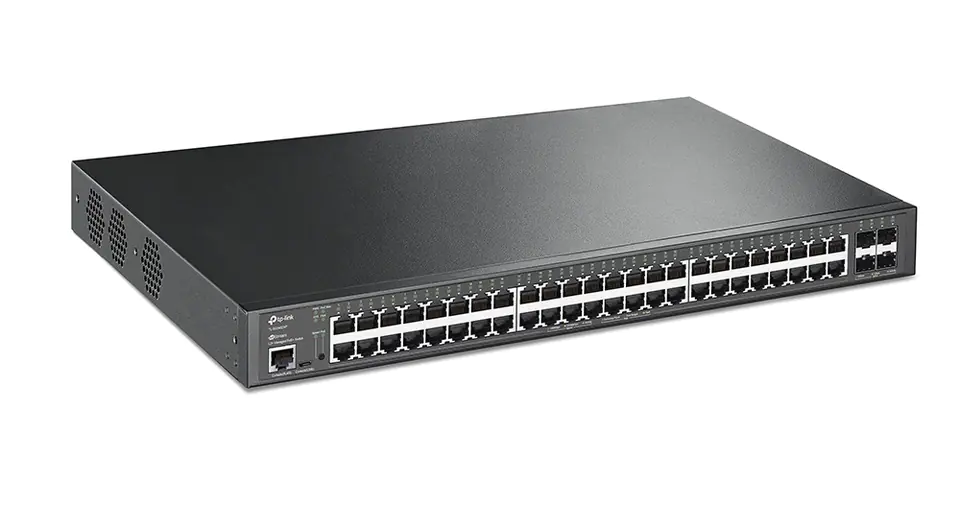

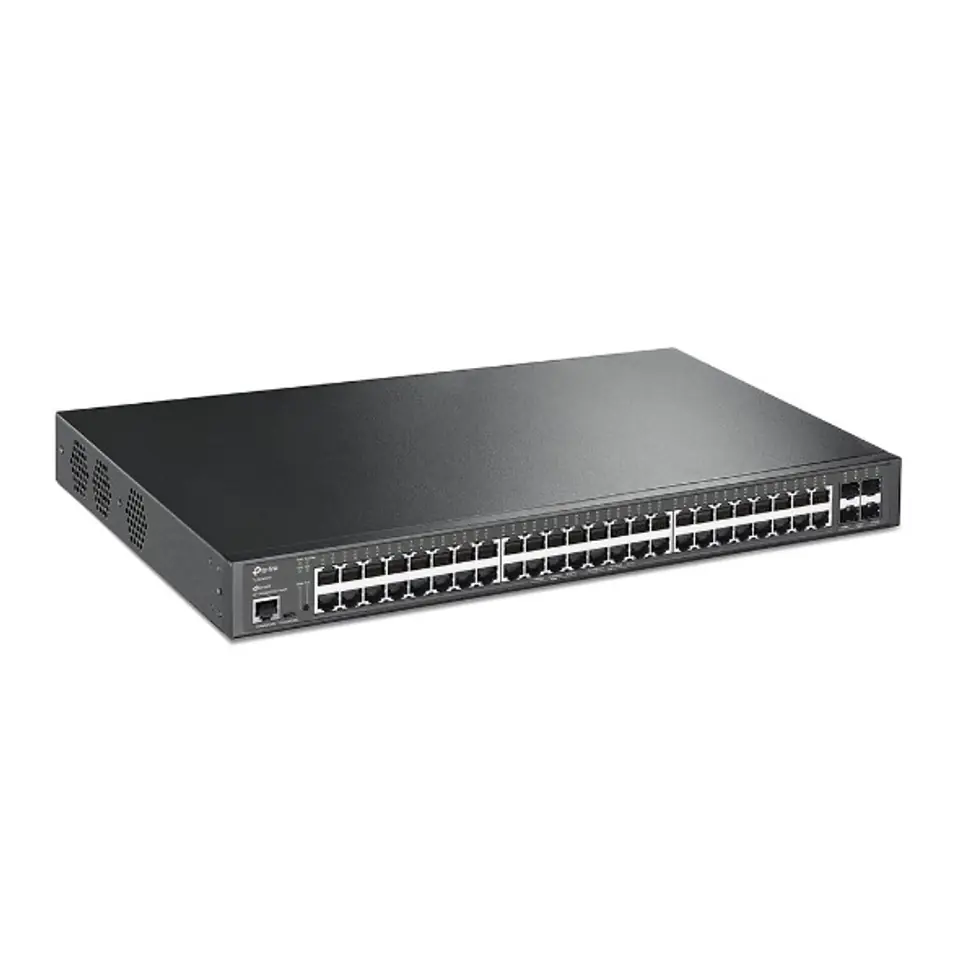

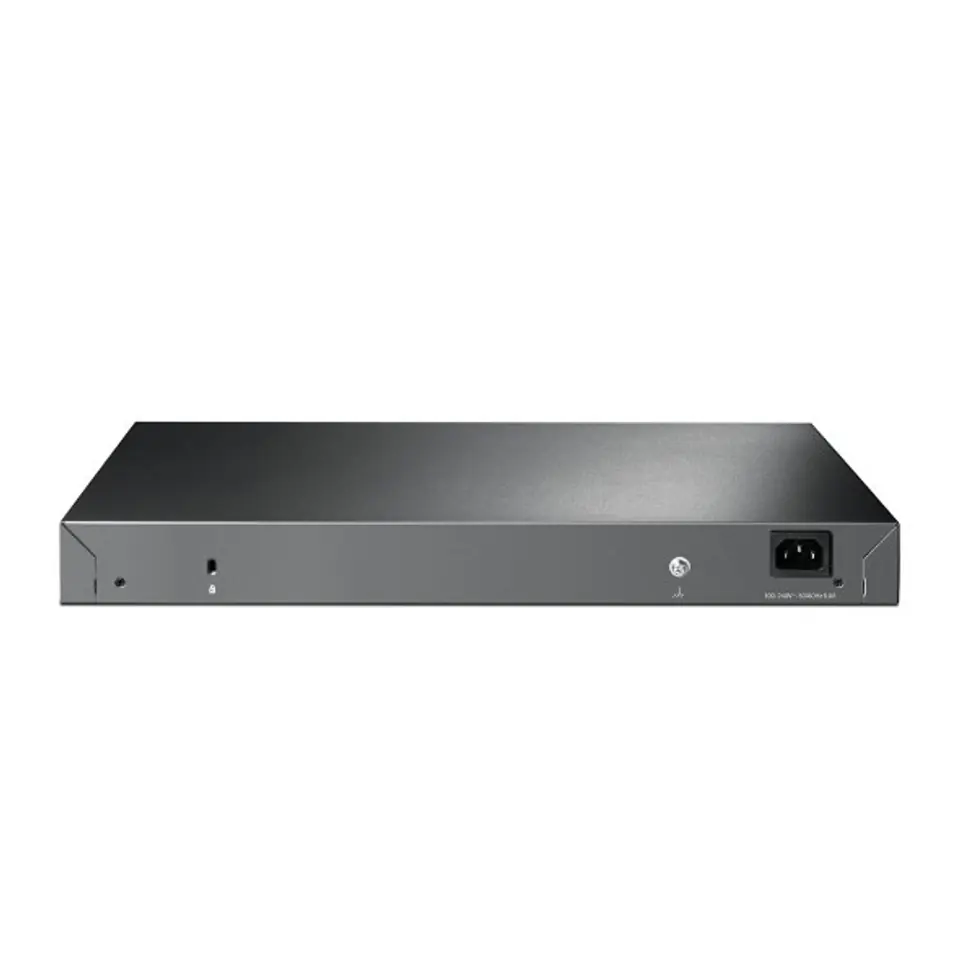

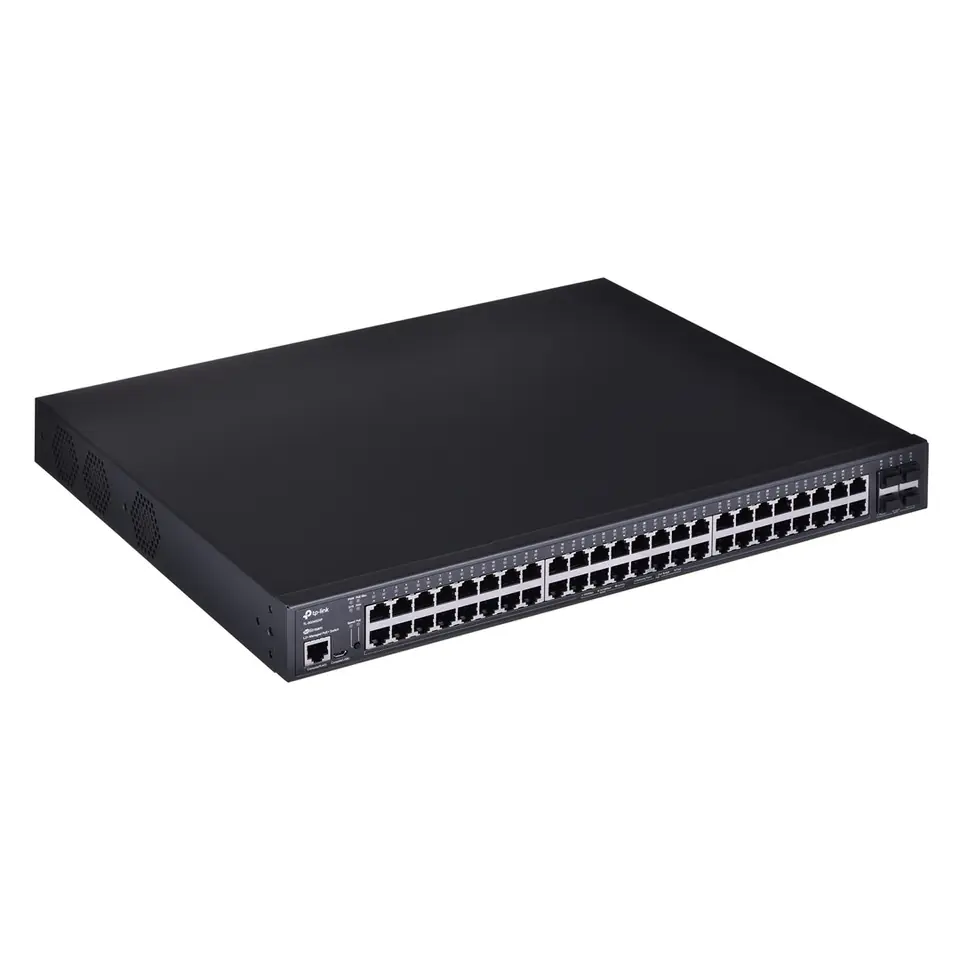

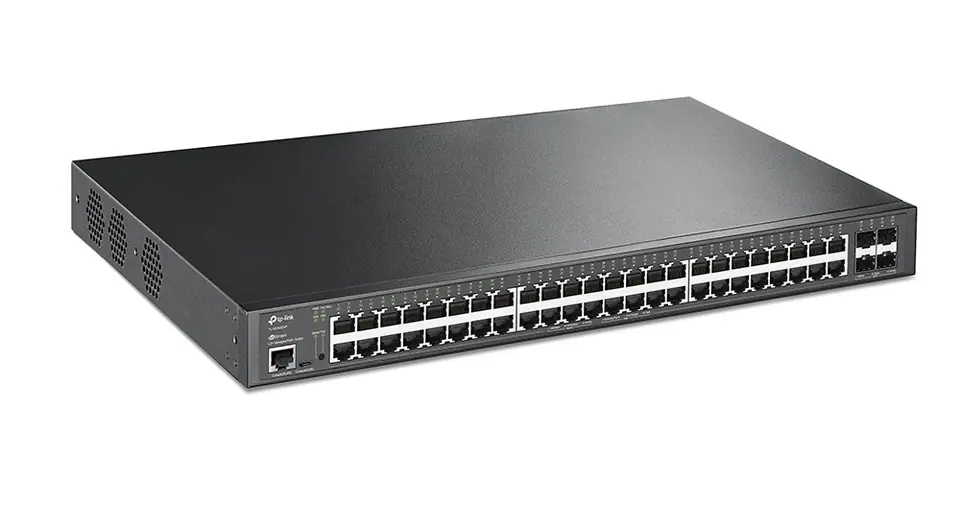

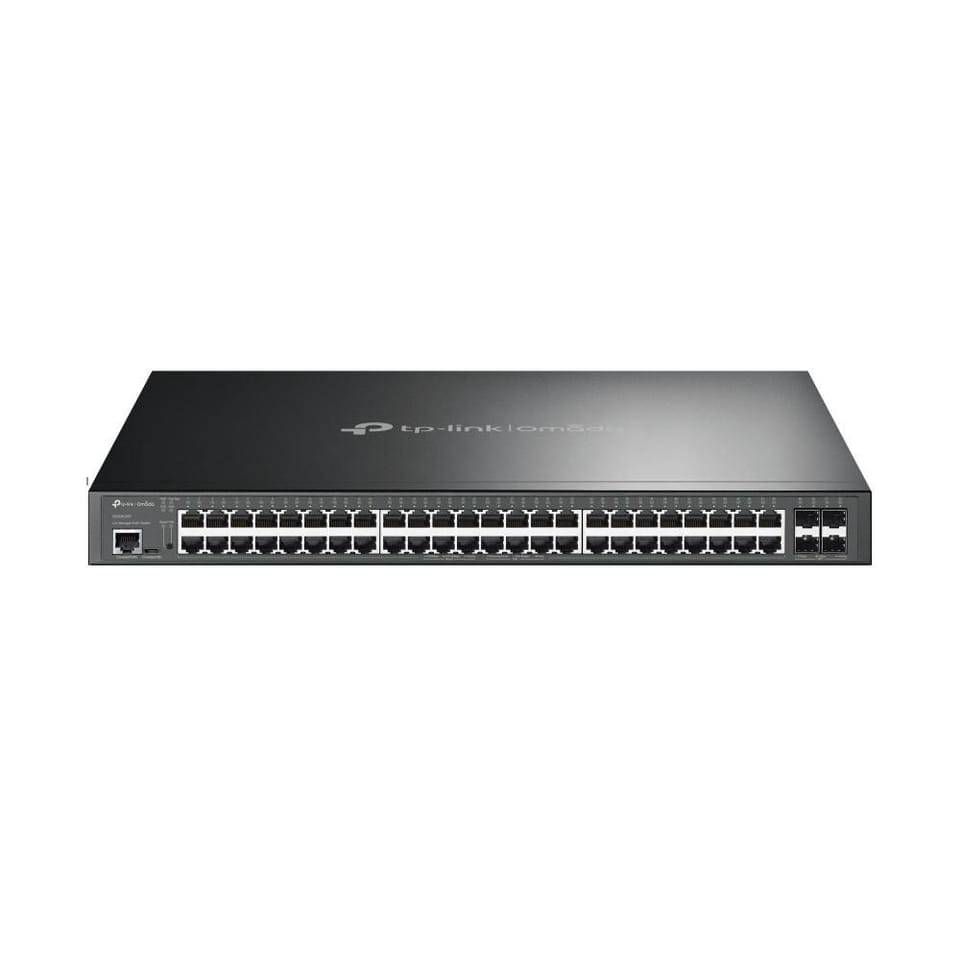

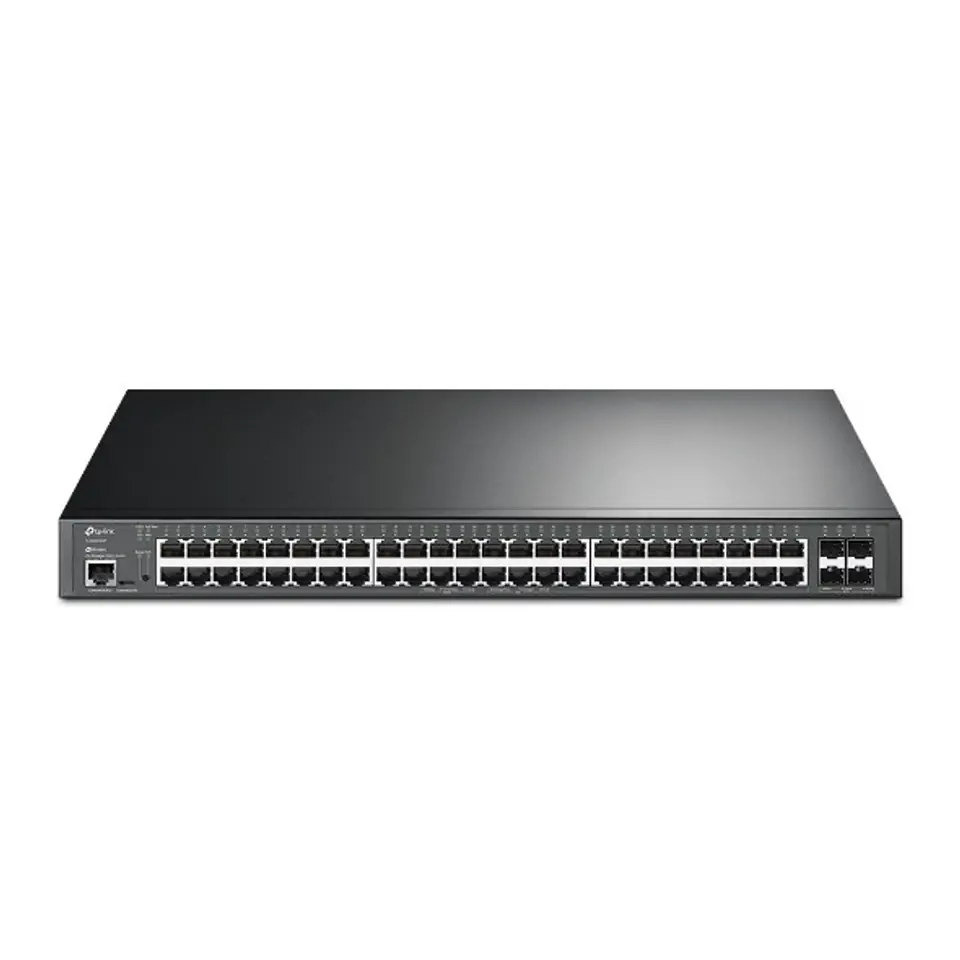

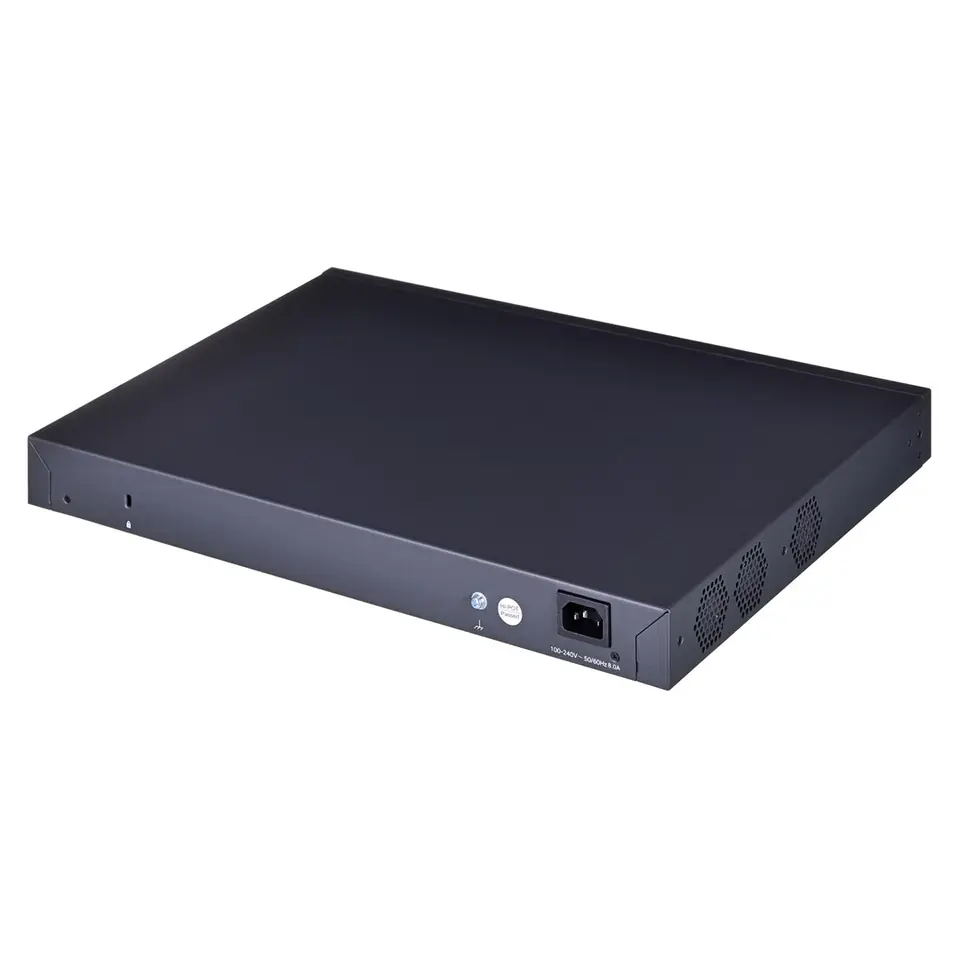

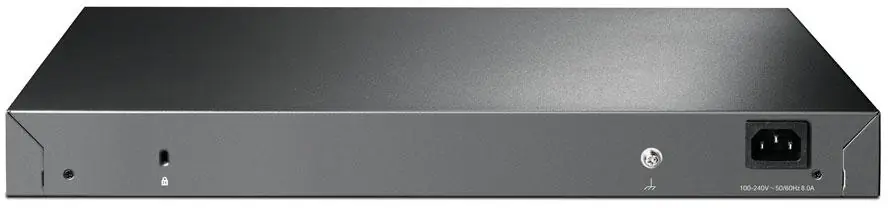

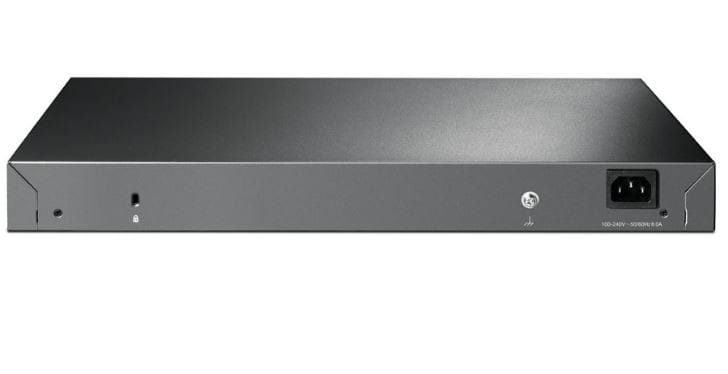

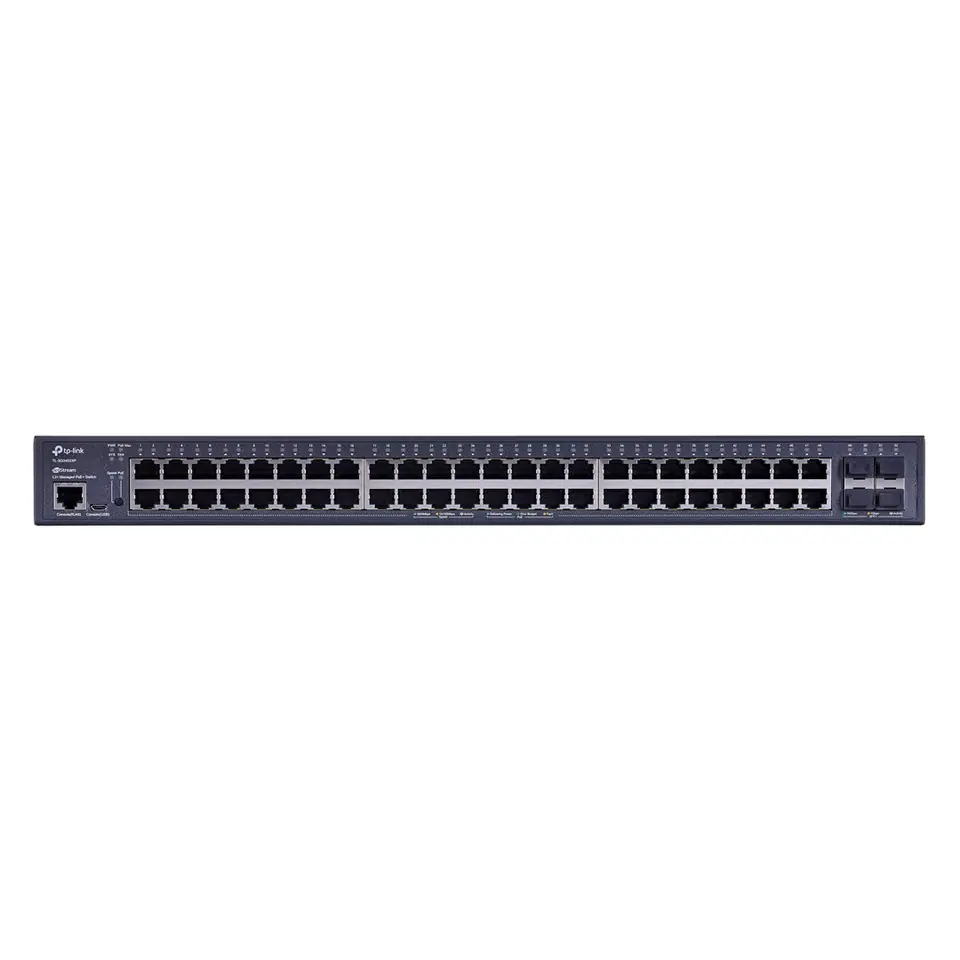

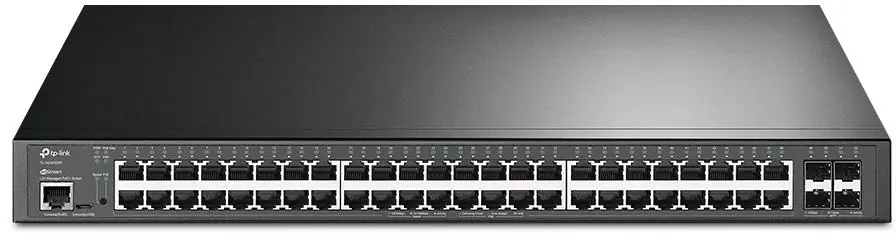

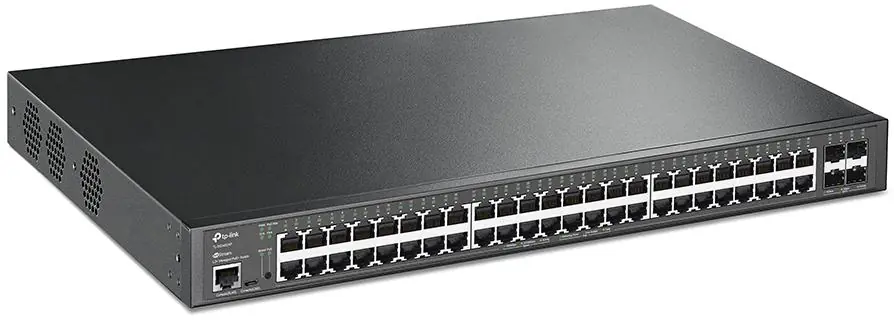

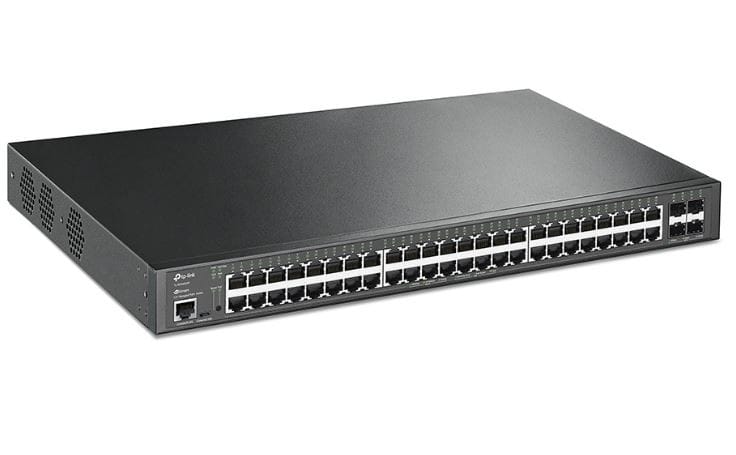

SWITCH TP-LINK TL-SG3452XP
- Model: TL-SG3452XP
10g support: | Yes |
---|---|
Ac input frequency: | 50 - 60 Hz |
Ac input voltage: | 100 - 240 V |
Access control list (acl): | Yes |
Arp inspection: | Yes |
Authentication: | Auto VLAN, Guest VLAN |
Basic switching rj-45 ethernet ports quantity: | 48 |
Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
Bpdu filtering/protection: | Yes |
Broadcast storm control: | Yes |

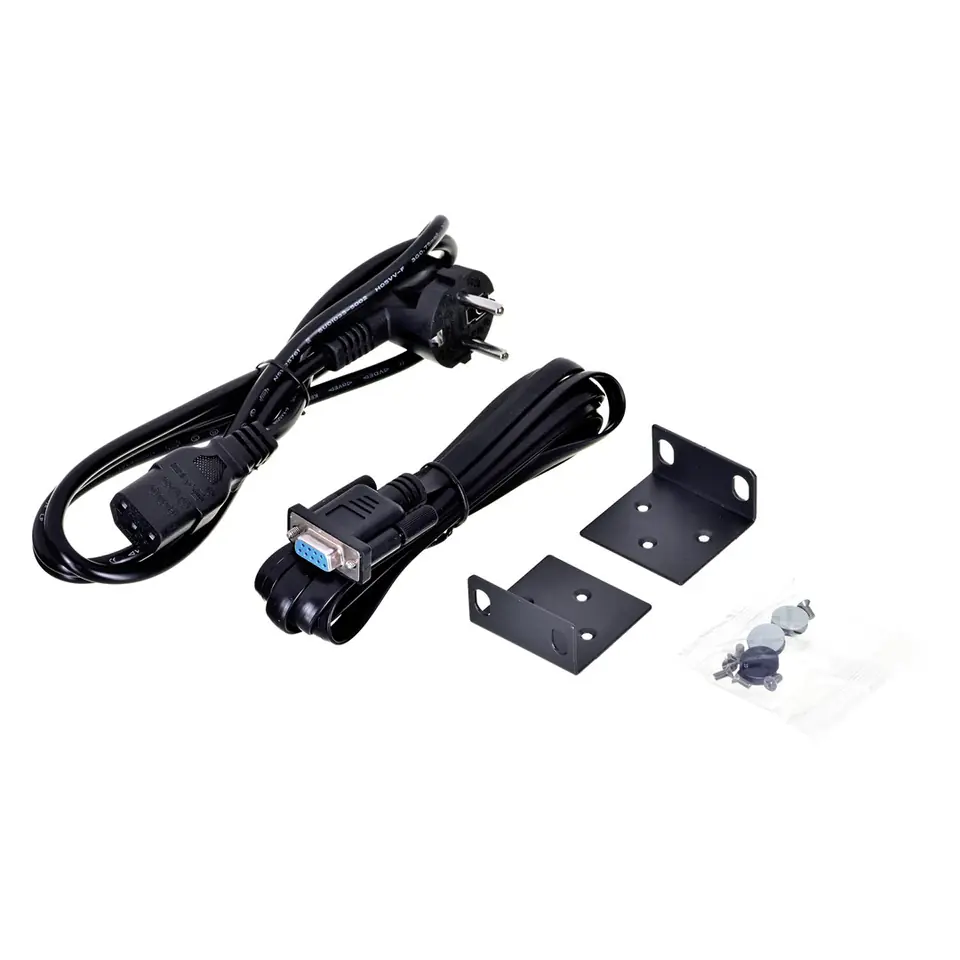

Cables included: | AC |

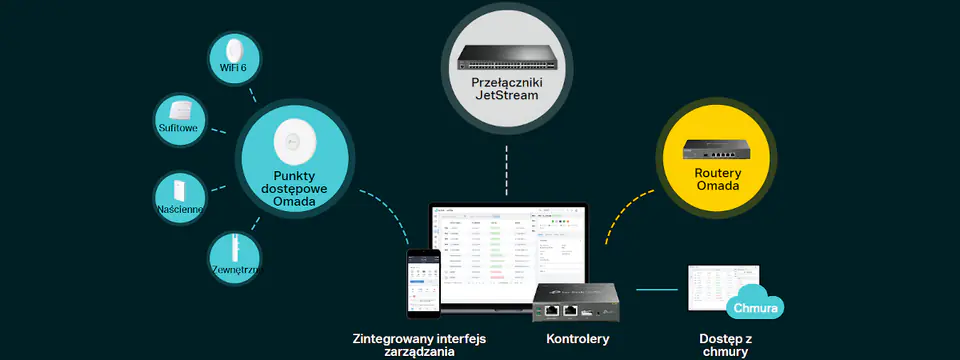

Cloud-managed: | Yes |
Configuring location settings (cli): | Yes |
Console port: | RJ-45/micro-USB |
Depth: | 330 mm |
Dhcp features: | DHCP server, DHCP client, DHCP relay |
Flash memory: | 32 MB |
Flow control support: | Yes |
Form factor: | 1U |
Forwarding rate: | 130.9 Mpps |
Harmonized system (hs) code: | 85176990 |
Head-of-line (hol) blocking: | Yes |
Heat dissipation: | 2169.2 BTU/h |
Height: | 44 mm |
Igmp snooping: | Yes |
Internal memory: | 512 MB |
Ip-mac-port binding: | Yes |
Jumbo frames: | 9216 |
Jumbo frames support: | Yes |
Link aggregation: | Yes |
Mac address filtering: | Yes |
Mac address table: | 16000 entries |
Multicast support: | Yes |
Networking standards: | IEEE 802.1D, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3u, IEEE 802.3af, IEEE 802.1Q, IEEE 802.3i, IEEE 802.1w, IEEE 802.3ab, IEEE 802.1s |
Number of fans: | 3 fan(s) |
Operating relative humidity (h-h): | 10 - 90% |
Operating temperature (t-t): | 0 - 40 °C |
Port mirroring: | Yes |
Power over ethernet (poe): | Yes |
Power over ethernet (poe) ports quantity: | 48 |
Power over ethernet (poe) power per port: | 30 W |
Power source: | AC |
Power supply included: | Yes |
Product colour: | Black |
Quality of service (qos) support: | Yes |
Quick start guide: | Yes |
Rack mounting: | Yes |
Rack rails: | Yes |
Rate limiting: | Yes |
Sfp+ module slots quantity: | 4 |
Spanning tree protocol: | Yes |
Ssh/ssl support: | Yes |
Static port security: | Yes |
Storage relative humidity (h-h): | 5 - 90% |
Storage temperature (t-t): | -40 - 70 °C |
Store-and-forward: | Yes |
Switch layer: | L2+ |
Switch type: | Managed |
Switching capacity: | 176 Gbit/s |
System event log: | Yes |
Total power over ethernet (poe) budget: | 500 W |
Vlan support: | Yes |
Web-based management: | Yes |
Width: | 440 mm |
