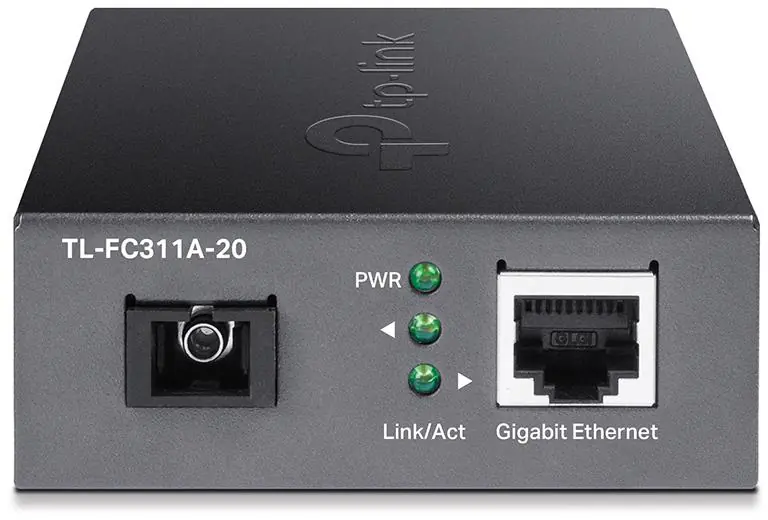

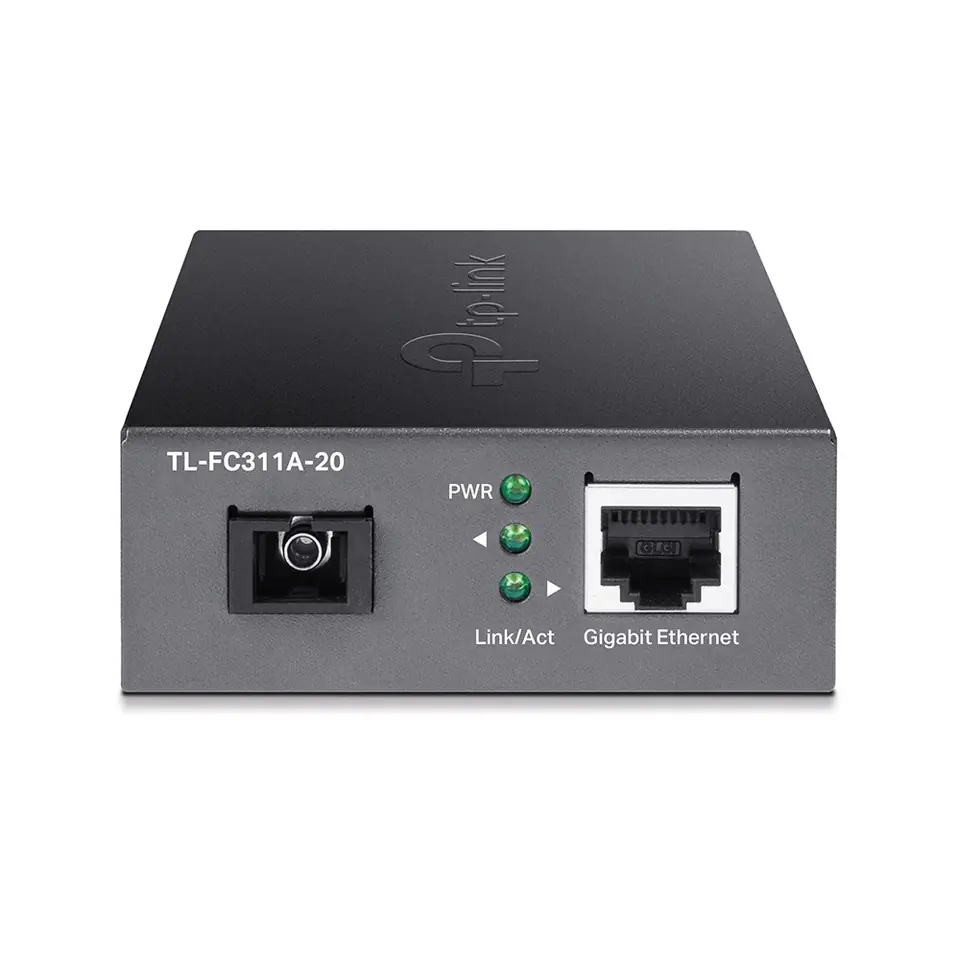

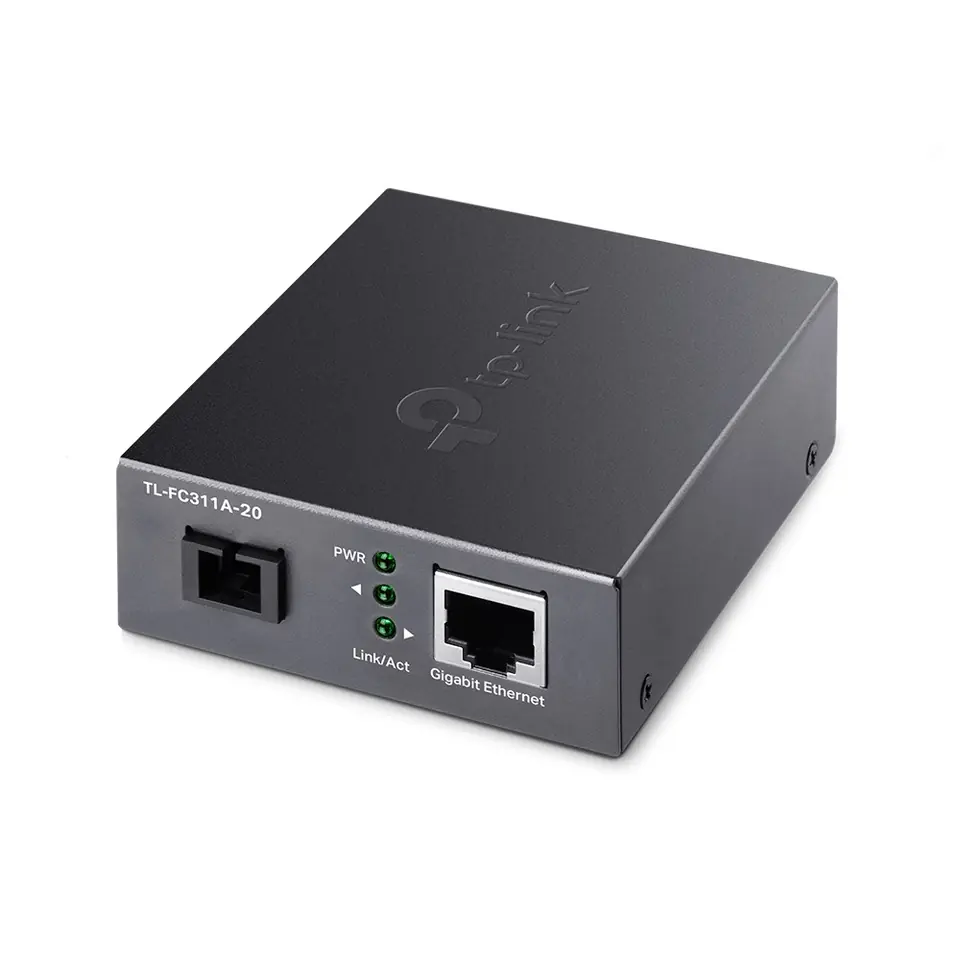

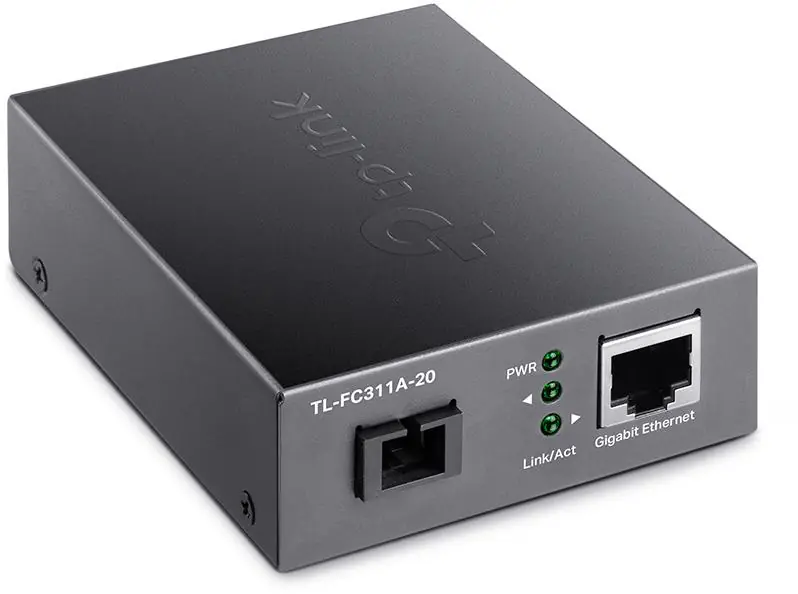

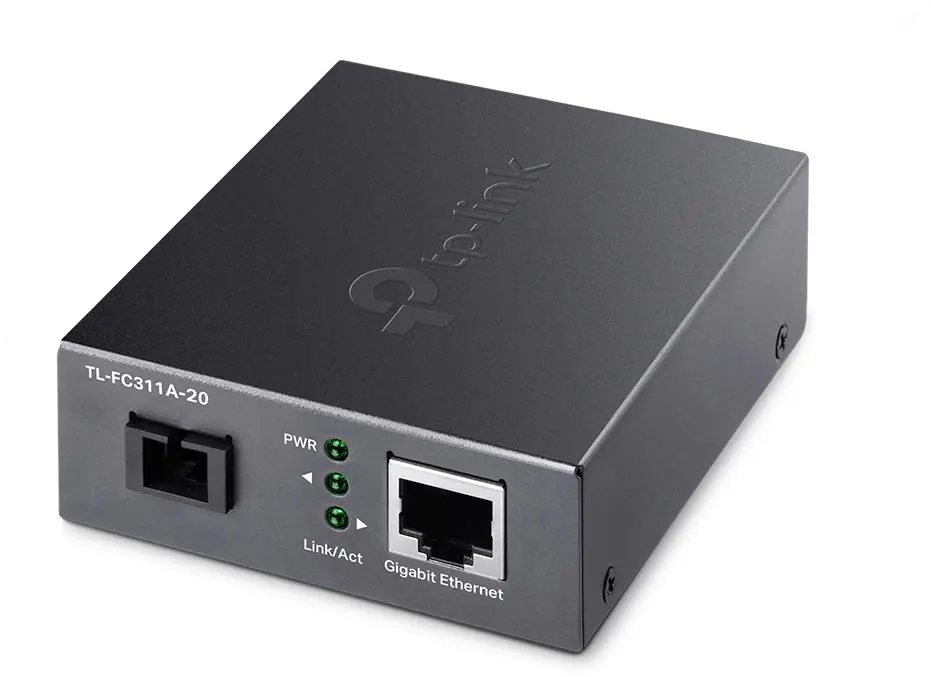

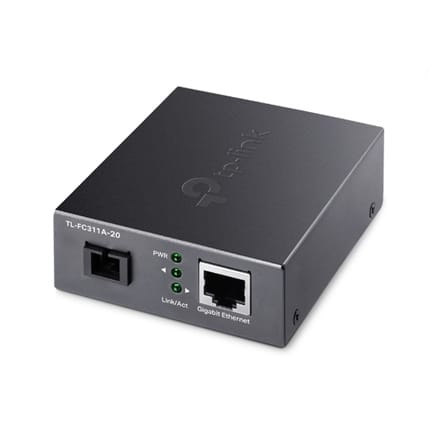

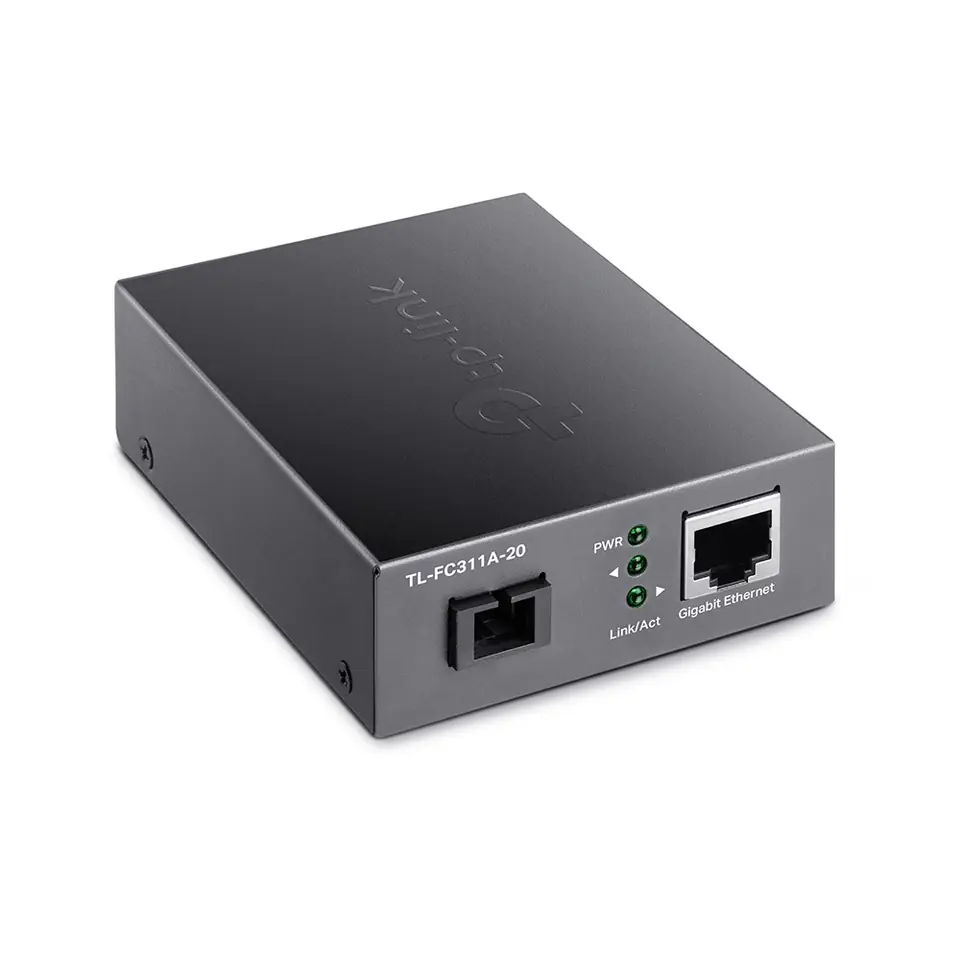

MEDIA KONWERTER WDM TP-LINK TL-FC311A-20
- Model: TL-FC311A-20
- Typ okablowania: Światłowód jednomodowy
- Maksymalny zasięg: 20 km
Ac adapter included: | Yes |
---|---|
Connectivity technology: | Wired |
Data transfer rate: | 1000 Mbit/s |
Dc-in jack: | Yes |
Depth: | 73 mm |
Ethernet interface type: | Gigabit Ethernet |
Ethernet lan (rj-45) ports: | 1 |
Ethernet lan data rates: | 10, 1000 Mbit/s, 100 |
Fiber cable diameters supported (core/cladding): | 9/125 µm |
Fiber mode structure: | Single-mode |
Fiber optic connector: | SC |
Fiber ports quantity: | 1 |
Harmonized system (hs) code: | 85176990 |
Height: | 27 mm |
Internal: | No |
Led indicators: | Power, Link, Activity |
Manual: | Yes |
Maximum data transfer rate: | 1000 Mbit/s |
Maximum transfer distance: | 20000 m |
Networking standards: | IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, IEEE 802.3i |
Operating relative humidity (h-h): | 10 - 90% |
Operating temperature (t-t): | 0 - 50 °C |
Output current: | 0.6 A |
Output voltage: | 5 V |
Package depth: | 204 mm |
Package height: | 65 mm |
Package weight: | 560 g |
Package width: | 165 mm |
Product colour: | Black |
Quick installation guide: | Yes |
Storage relative humidity (h-h): | 5 - 90% |
Storage temperature (t-t): | -40 - 70 °C |
Wavelength: | 1550 nm |
Wavelength-division multiplexing (wdm): | Yes |
Width: | 94.5 mm |
