| Auto mdi/mdi-x: | Yes |
|---|---|
| Cable types supported: | Cat5, Cat5e |
| Compliance certificates: | RoHS |
| Connectivity technology: | Wired |
| Copper ethernet cabling technology: | 1000BASE-T, 1000BASE-LX |
| Depth: | 73 mm |
| Duplex system: | Full |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 1000 |

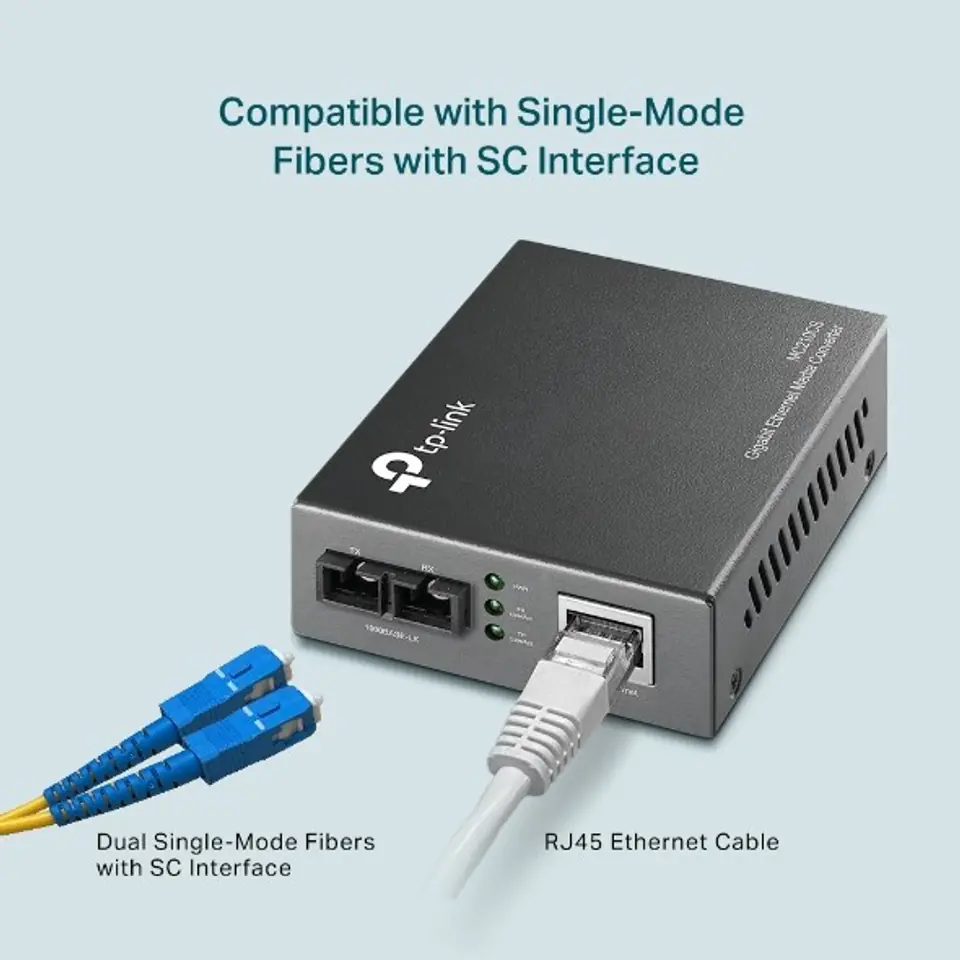

| Fiber mode structure: | Single-mode |
| Fiber optic connector: | SC |
| Fiber ports quantity: | 1 |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 27 mm |
| Internal: | No |
| Led indicators: | Yes |
| Maximum data transfer rate: | 1000 Mbit/s |
| Maximum transfer distance: | 15000 m |
| Networking standards: | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Package depth: | 204 mm |
| Package height: | 65 mm |
| Package weight: | 430 g |
| Package width: | 165 mm |
| Power consumption (max): | 1.8 W |
| Product colour: | Black |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Sustainability certificates: | RoHS |
| Wavelength: | 1310 nm |
| Width: | 95 mm |

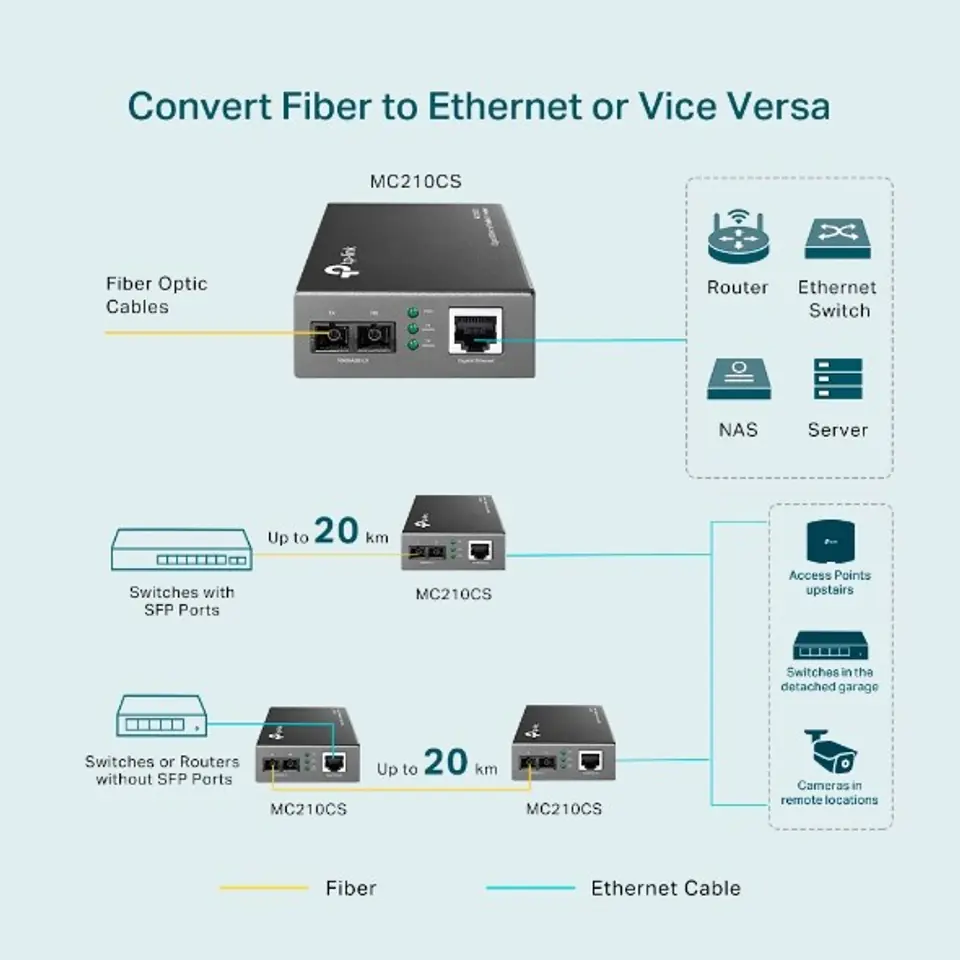

| Podstawowe funkcje | Zwiększenie zasięgu transmisji światłowodowej do 20km |
|---|---|
| Standardy i protokoły | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |

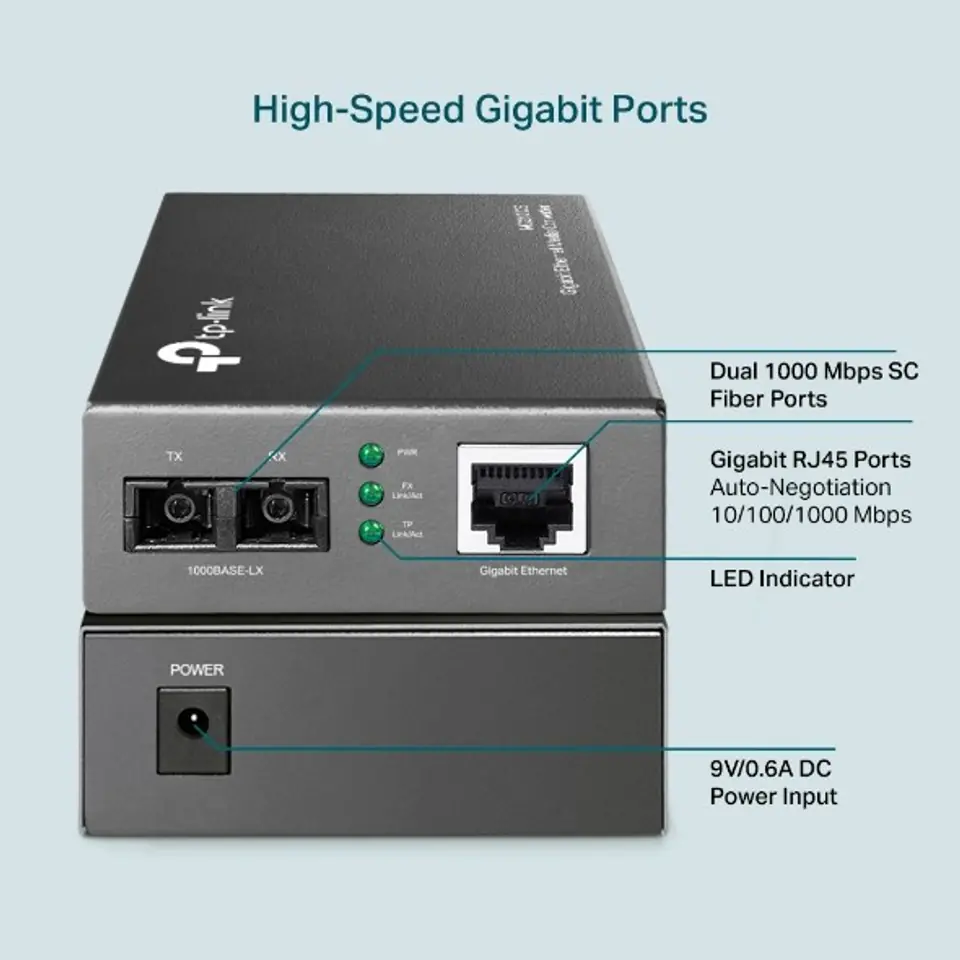

| Porty | 1 port SC/UPC 1000M, 1 port RJ45 10/100/1000M |
| Długość fali | 1310nm |
| Network Media | Światłowód jednomodowy |
| Kabel sieciowy | Kabel UTP kat. 5, lub 5e / Kabel STP EIA/TIA-568 100? do 100m |
