| 10g support: | No |
|---|---|
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |

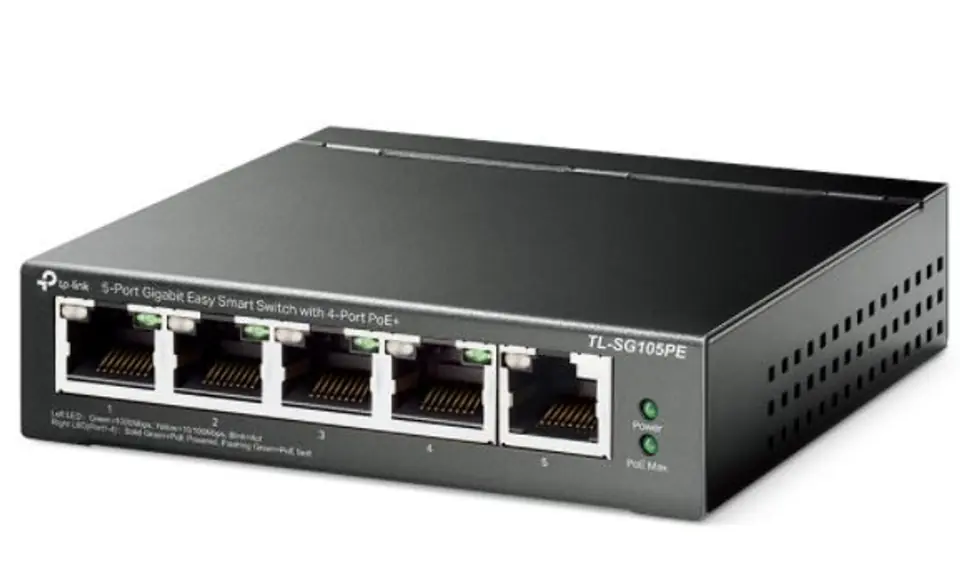

| Basic switching rj-45 ethernet ports quantity: | 5 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control: | Yes |
| Cable types supported: | Cat3, Cat6, Cat5, Cat5e, Cat4 |
| Copper ethernet cabling technology: | 1000BASE-T, 10BASE-T, 100BASE-FX, 100BASE-TX |
| Depth: | 98 mm |
| Fanless: | Yes |
| Flow control support: | Yes |
| Forwarding rate: | 7.44 Mpps |
| Gigabit ethernet (copper) ports quantity: | 5 |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 256.3 BTU/h |
| Height: | 25 mm |
| Igmp snooping: | Yes |

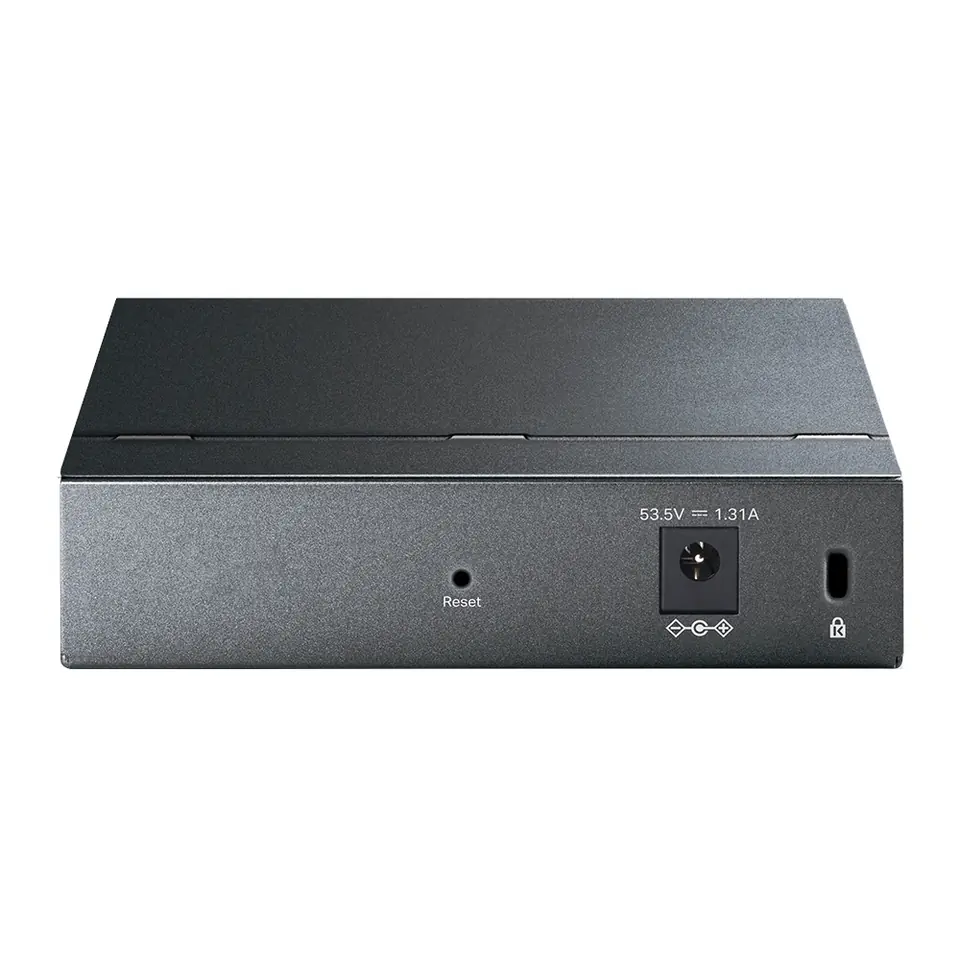

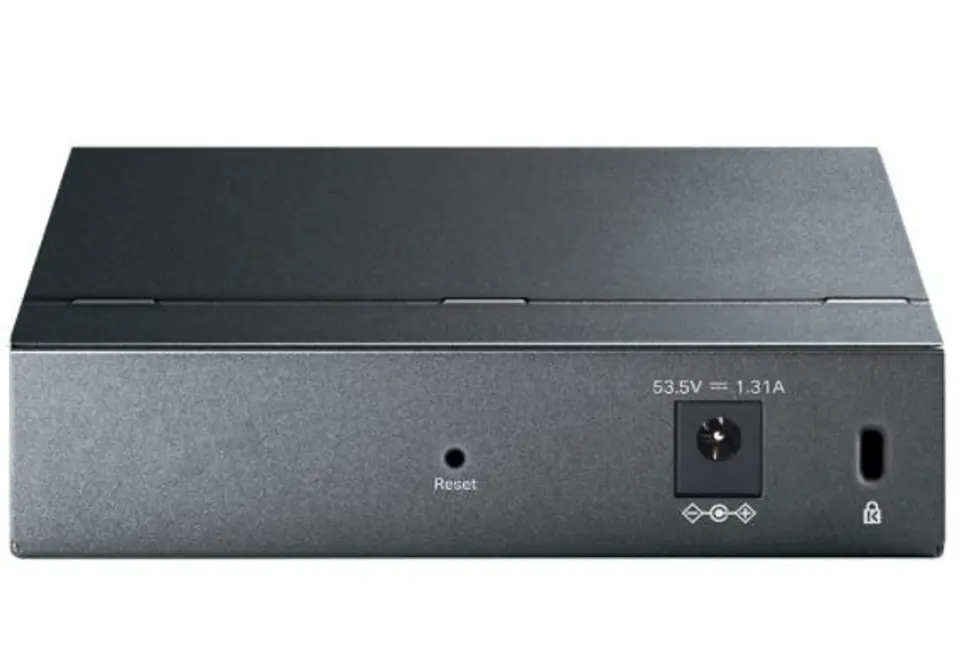

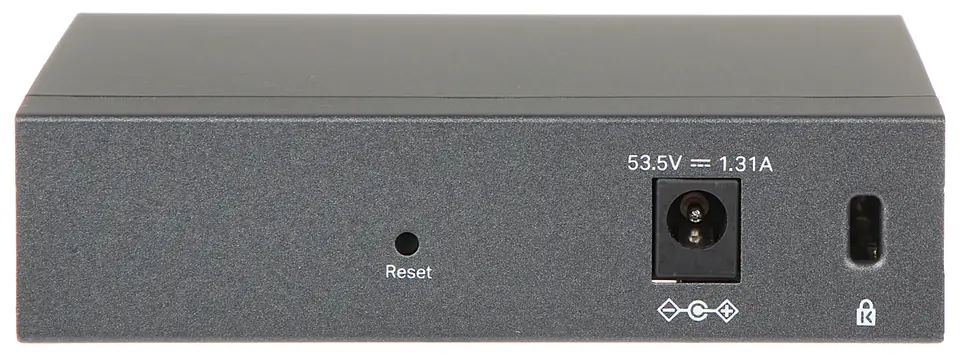

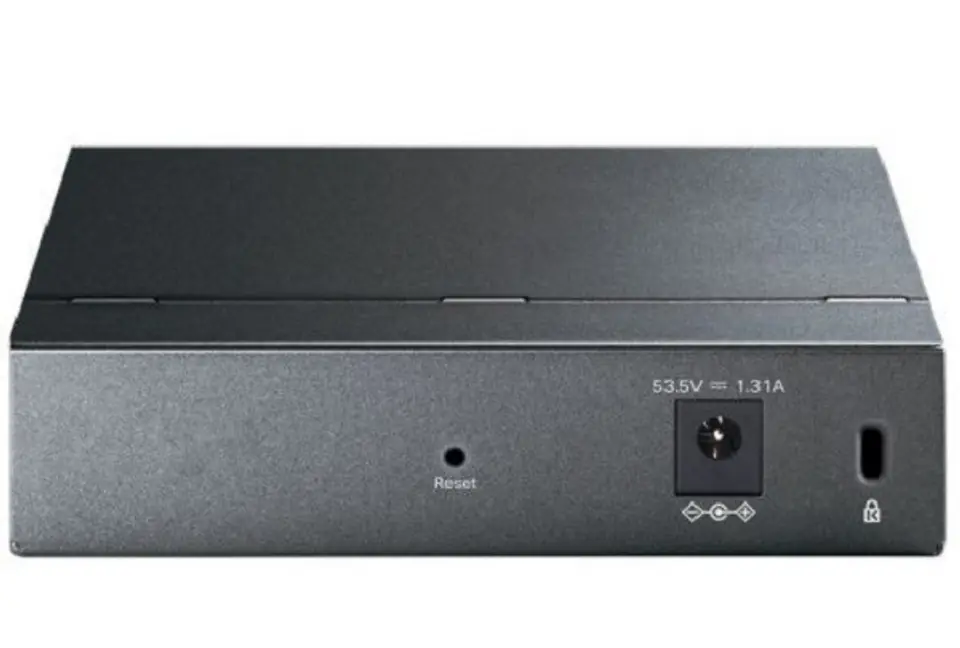

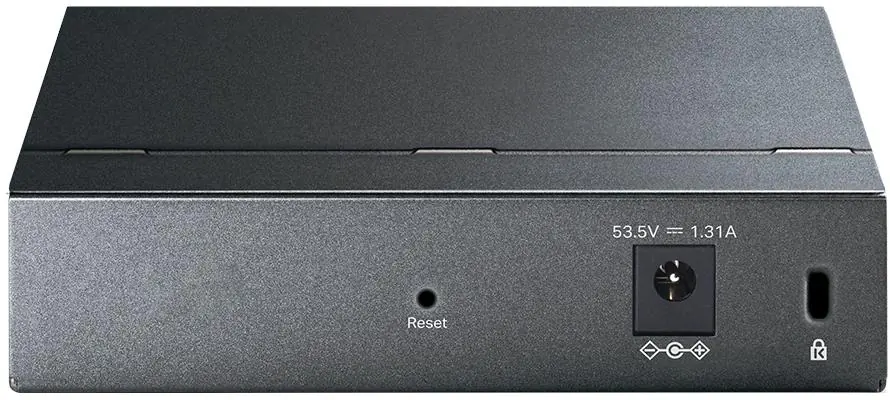

| Input current: | 1.31 A |
| Input voltage: | 53.5 V |
| Jumbo frames: | 16000 |
| Jumbo frames support: | Yes |

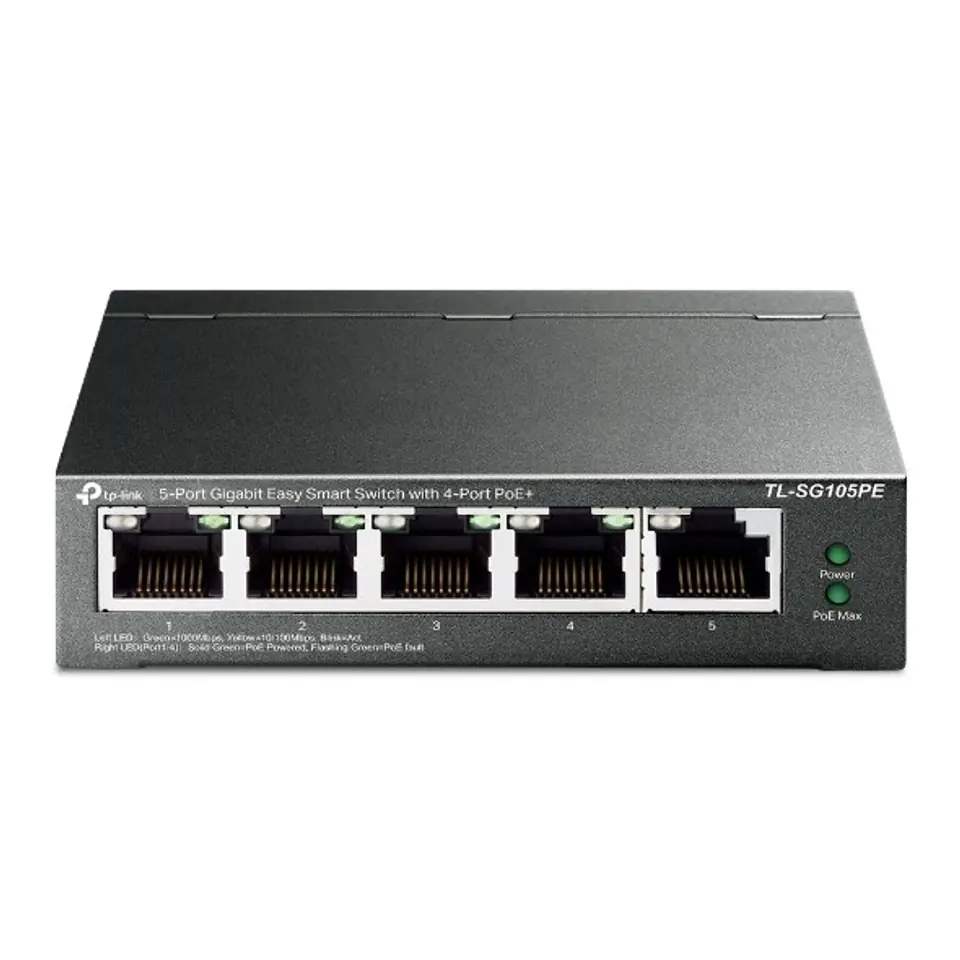

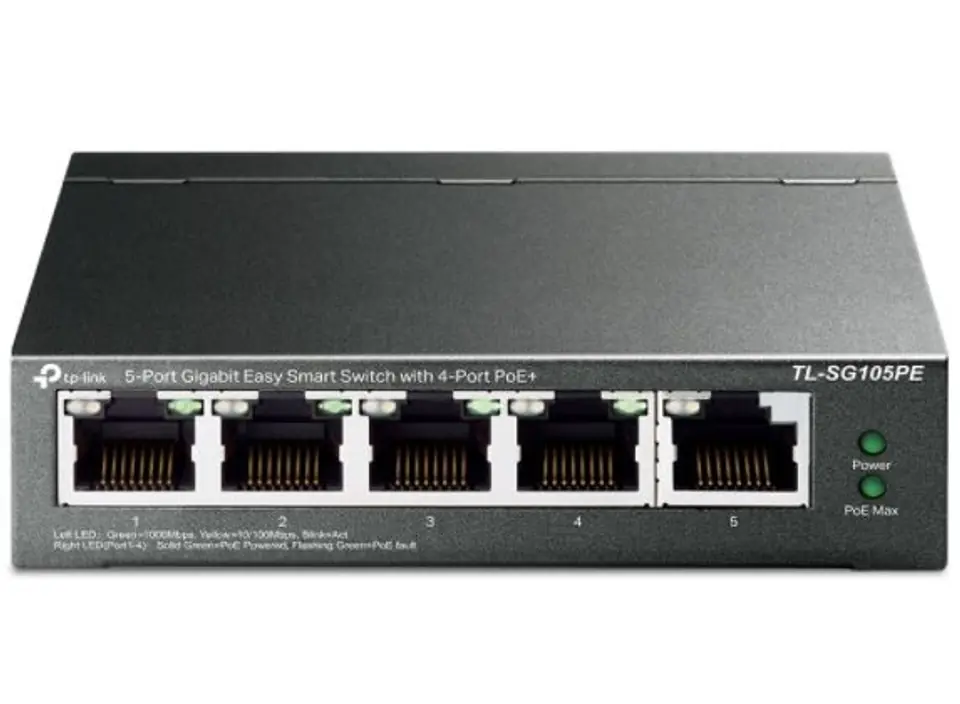

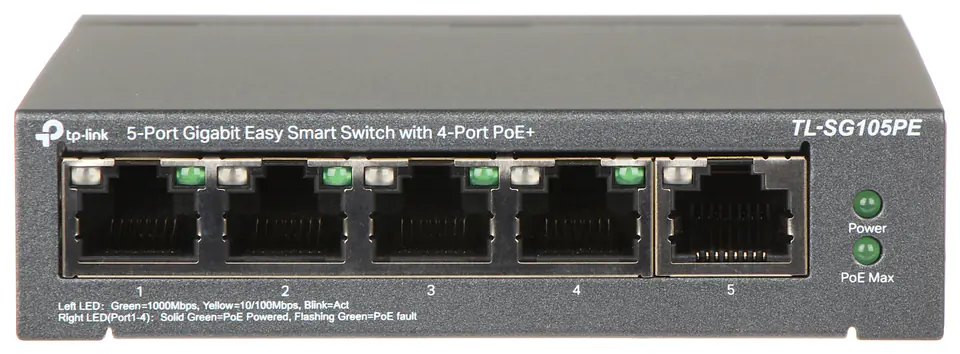

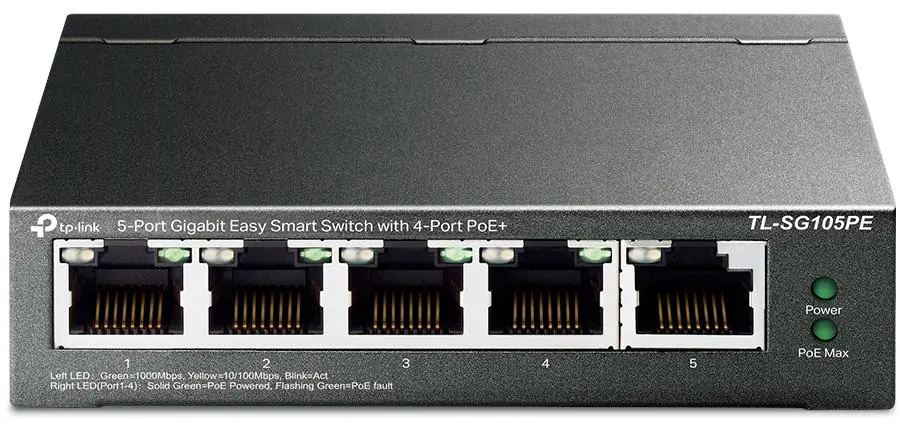

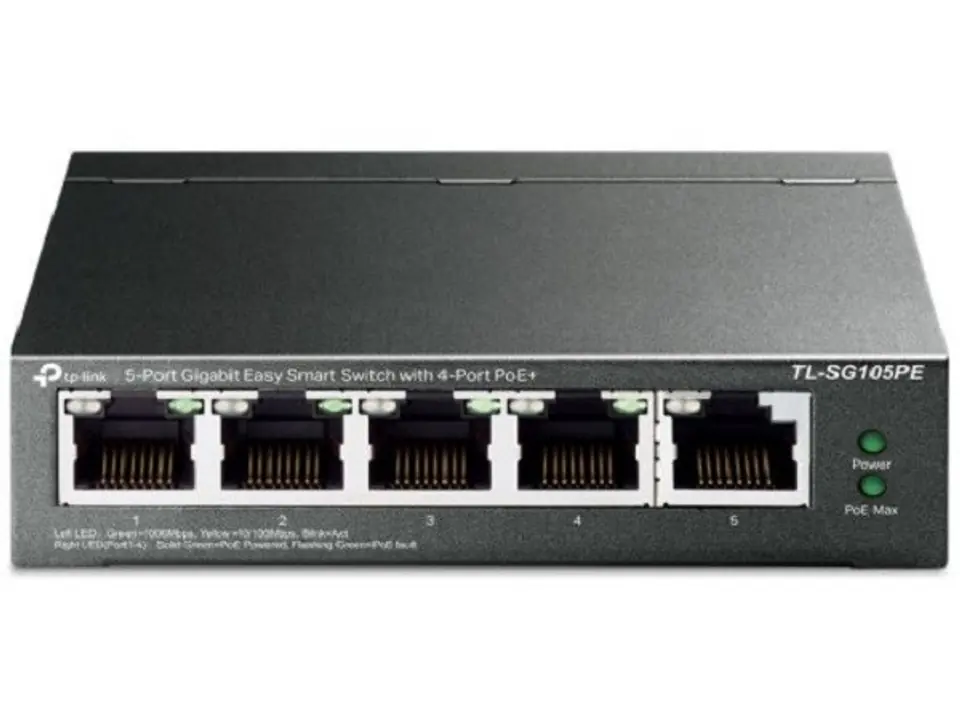

| Led indicators: | Status, Speed, Link, Power, Activity, PoE |
| Link aggregation: | Yes |
| Loop protection: | Yes |
| Mac address table: | 2000 entries |
| Networking standards: | IEEE 802.3at, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3u, IEEE 802.3af, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3i |
| Number of queues: | 4 |
| Number of vlans: | 4000 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Package depth: | 196 mm |
| Package height: | 121 mm |
| Package weight: | 770 g |
| Package width: | 131 mm |
| Packet buffer memory: | 1 MB |
| Port mirroring: | Yes |
| Power consumption (max): | 75.16 W |
| Power over ethernet (poe): | Yes |

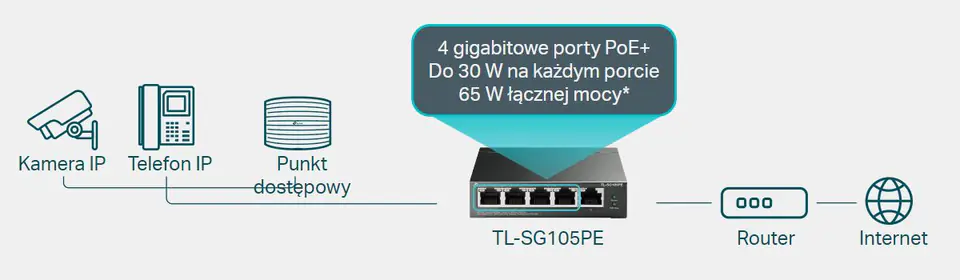

| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 4 |
| Power source: | DC |

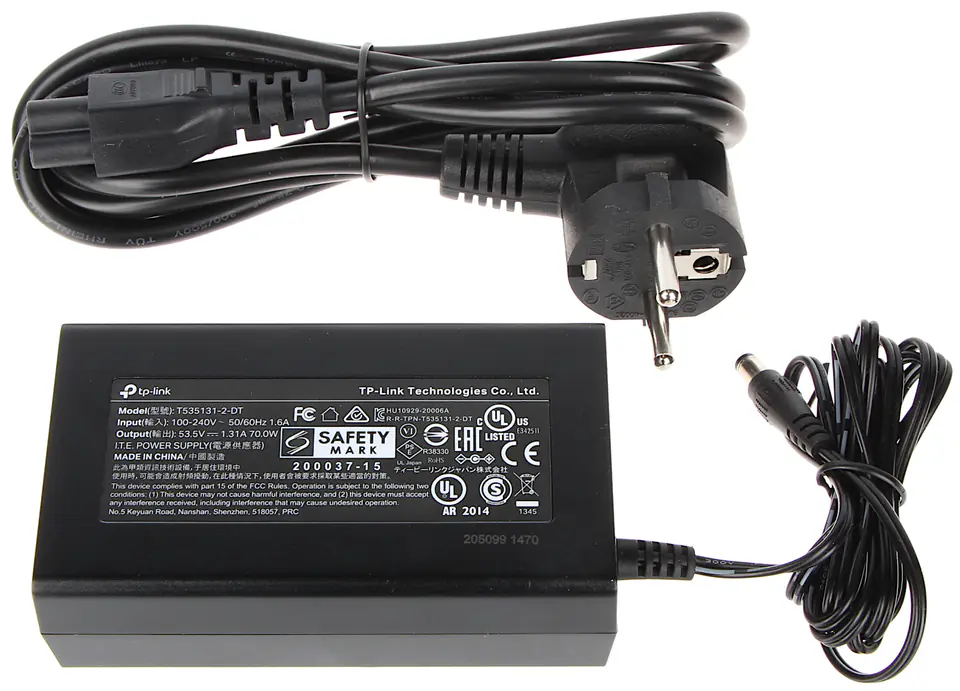

| Power supply included: | Yes |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Rack mounting: | No |
| Rate limiting: | Yes |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 70 °C |
| Store-and-forward: | Yes |
| Switch layer: | L2 |
| Switch type: | Managed |
| Switching capacity: | 10 Gbit/s |
| Total power over ethernet (poe) budget: | 65 W |
| User guide: | Yes |
| Virtual lan features: | Port-based VLAN, Tagged VLAN |
| Vlan support: | Yes |

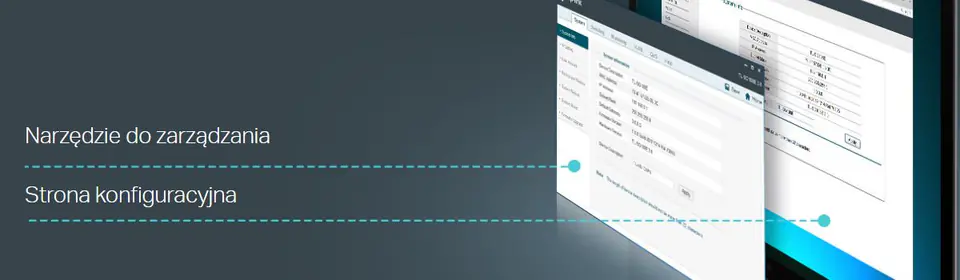

| Web-based management: | Yes |
| Width: | 99.8 mm |
