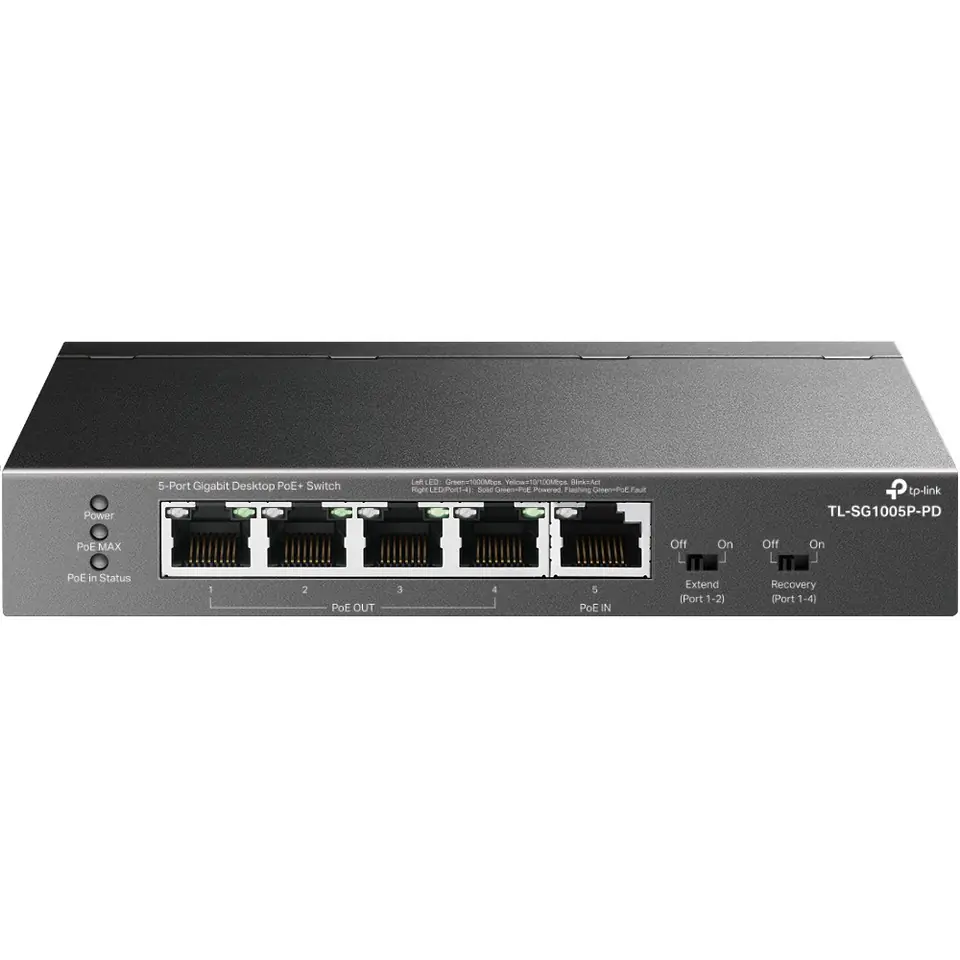

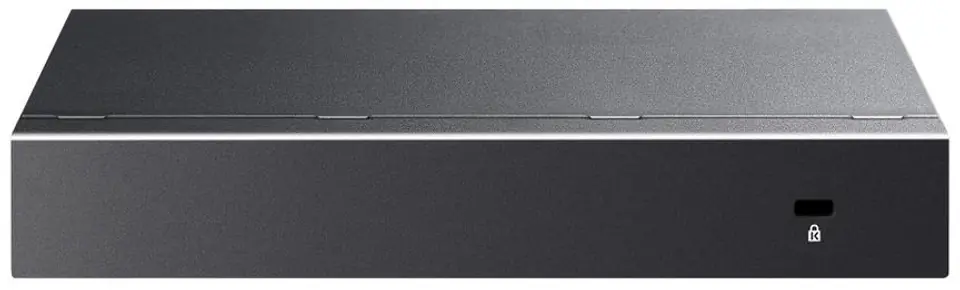

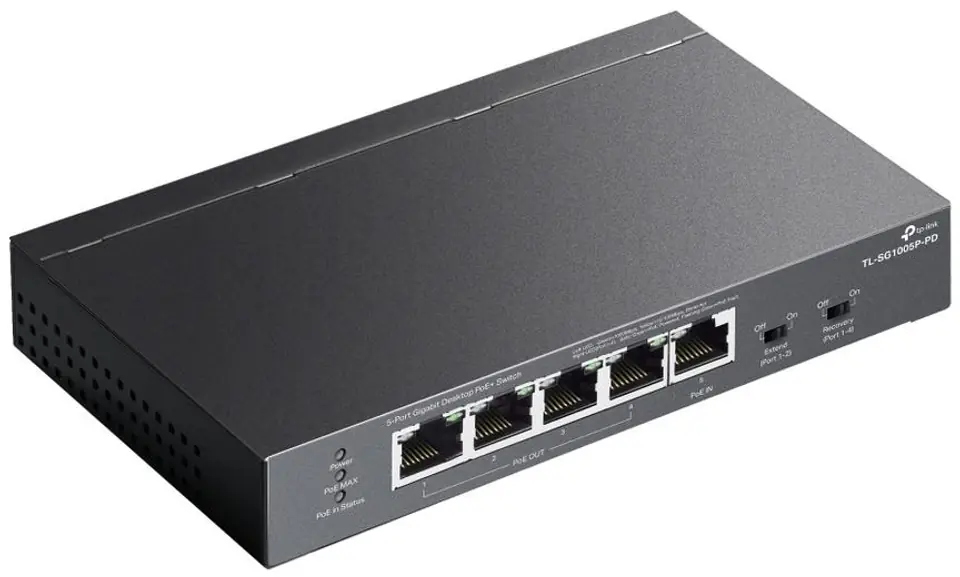

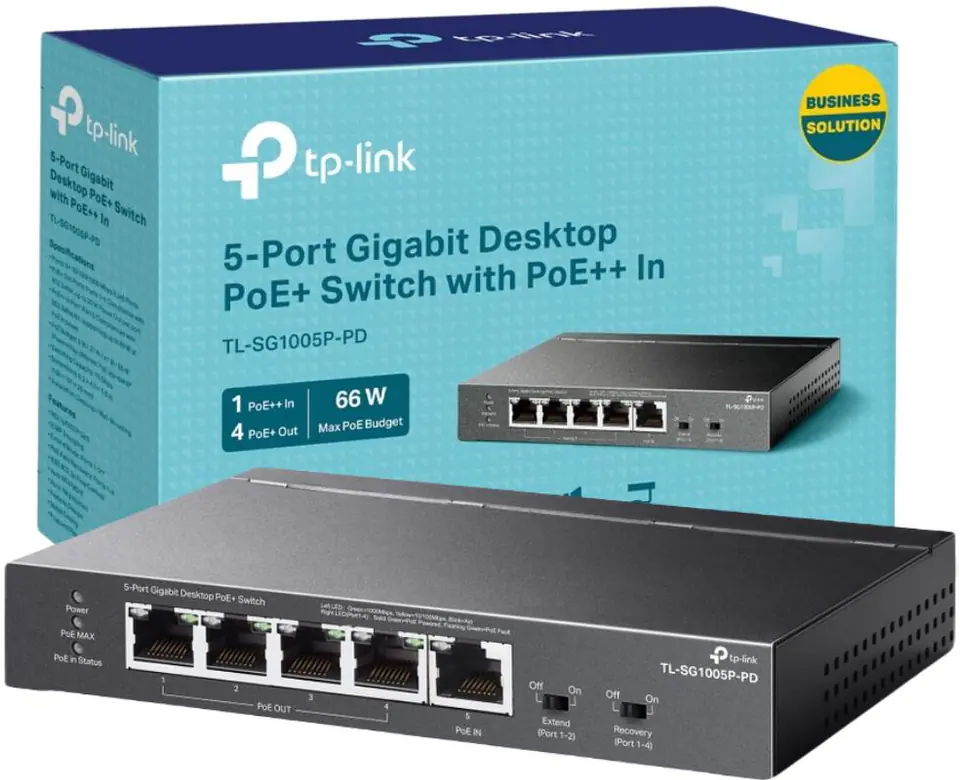

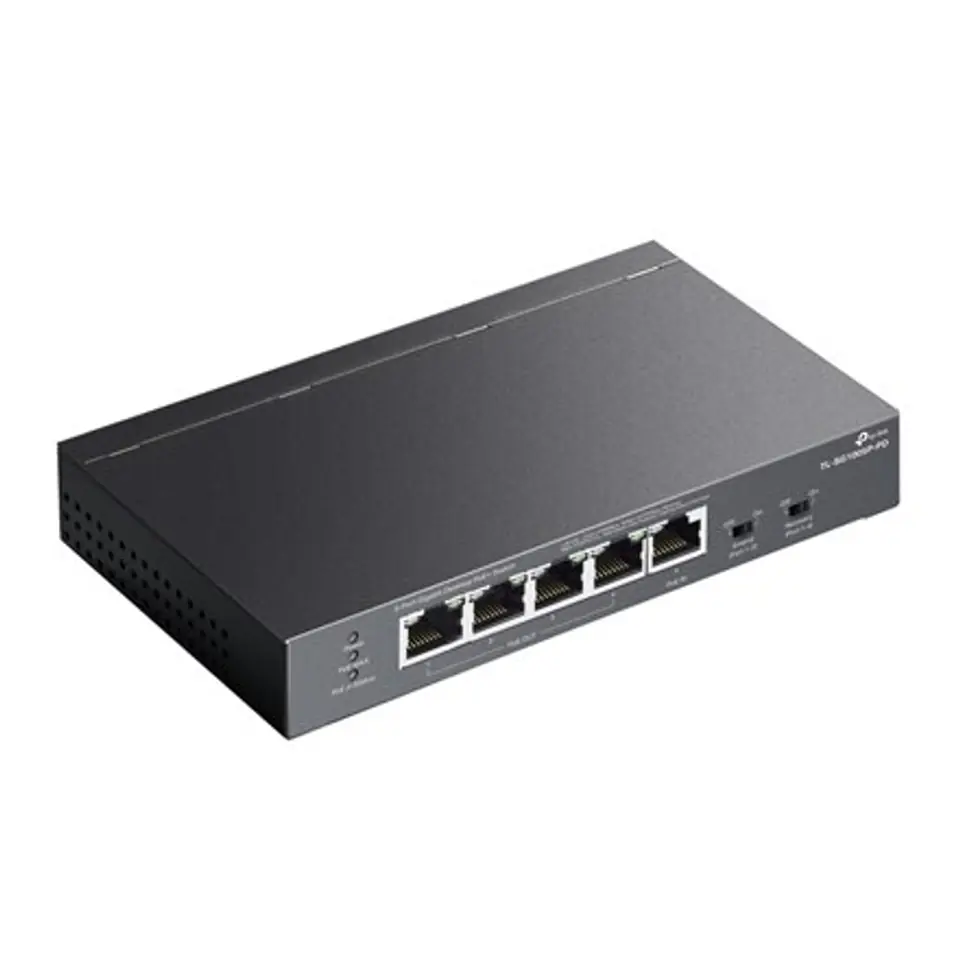

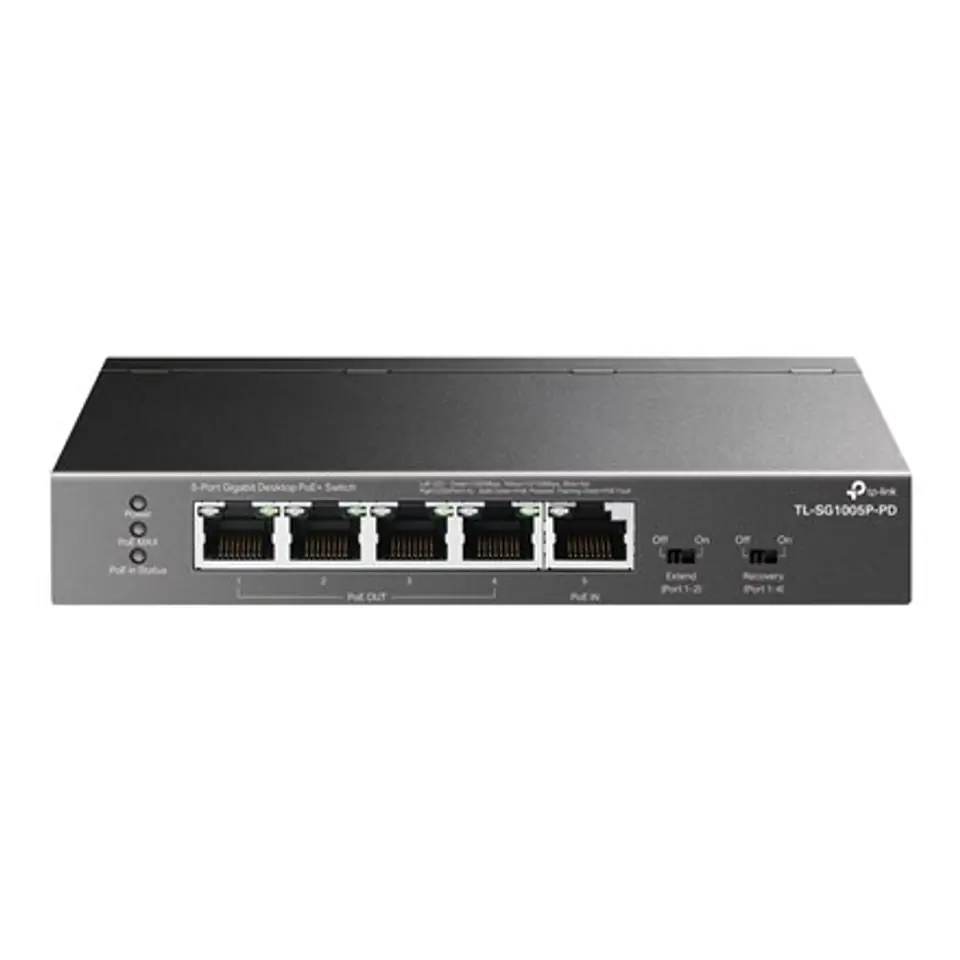

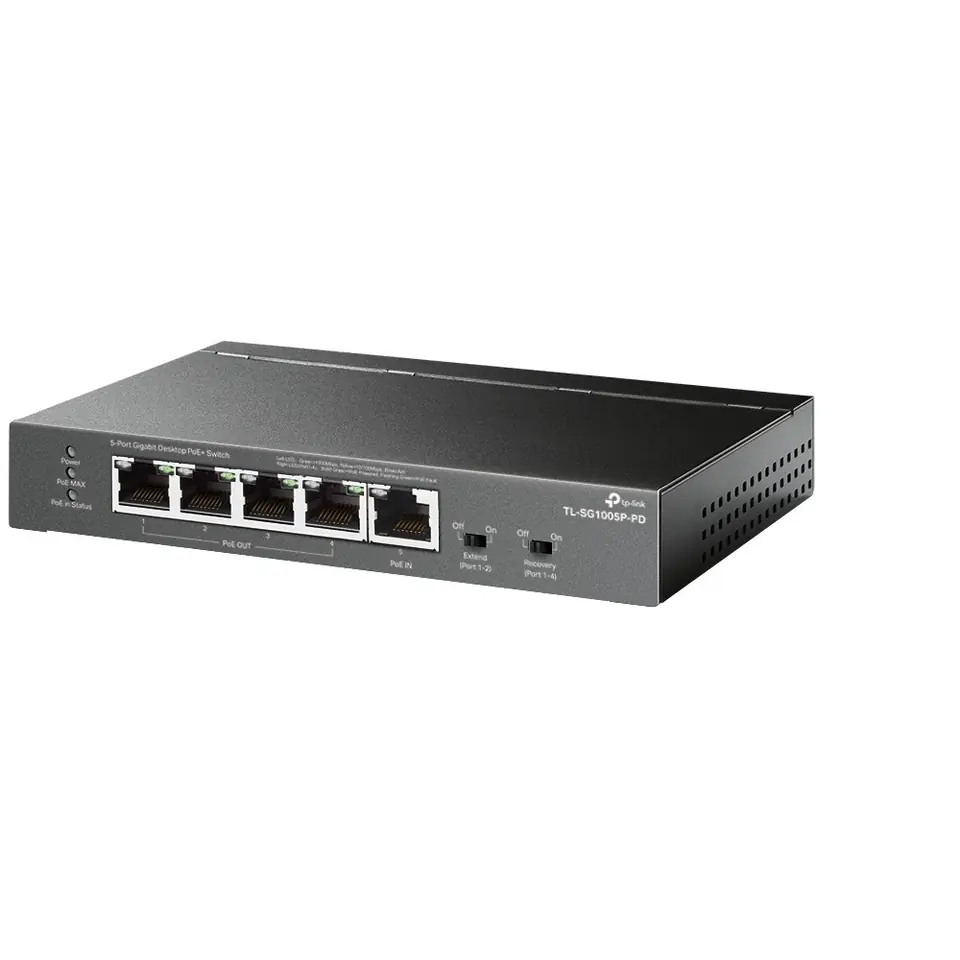

TP-LINK | 5-Port Gigabit Desktop Switch with 4-Port PoE | TL-SG1005P-PD | Unmanaged | Desktop/Wall mountable

Name: TP-LINK | 5-Port Gigabit Desktop Switch with 4-Port PoE | TL-SG1005P-PD | Unmanaged | Desktop/Wall mountable
Brand: Tp-Link
SKU: 1826310
Price: 40.35 EUR
Availability: InStock

€40.35

Shipping from warehouse: ⁨M7⁩

Estimated shipping: Thu, Apr 10 - Mon, Apr 14

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: Tp-Link
Product code:: SG1005P-PD / 4895252501117

Specification

10g support:	Yes
Auto mdi/mdi-x:	Yes
Auto-negotiation:	Yes
Basic switching rj-45 ethernet ports quantity:	5
Basic switching rj-45 ethernet ports type:	Gigabit Ethernet (10/100/1000)
Cable types supported:	Cat6, Cat5, Cat5e, Cat3, Cat4
Copper ethernet cabling technology:	10BASE-T, 100BASE-TX, 1000BASE-T
Depth:	101 mm
Fanless:	Yes
Flow control support:	Yes
Forwarding rate:	7.44 Mpps
Heat dissipation:	233.206 BTU/h
Height:	25 mm
Igmp snooping:	Yes
Led indicators:	Yes
Mac address auto-aging supported:	Yes
Mac address auto-learning supported:	Yes
Mac address table:	2000 entries
Networking standards:	IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3i
Operating relative humidity (h-h):	10 - 90%
Operating temperature (t-t):	-30 - 70 °C
Package type:	Box
Power consumption (max):	68.59 W
Power over ethernet (poe):	Yes
Power over ethernet (poe) ports quantity:	5
Power source:	PoE
Power supply included:	No
Product colour:	Black
Quality of service (qos) support:	Yes
Storage relative humidity (h-h):	5 - 90%
Storage temperature (t-t):	-40 - 70 °C
Store-and-forward:	Yes
Switching capacity:	10 Gbit/s
Total power over ethernet (poe) budget:	66 W
User guide:	Yes
Wall mountable:	Yes
Width:	158 mm

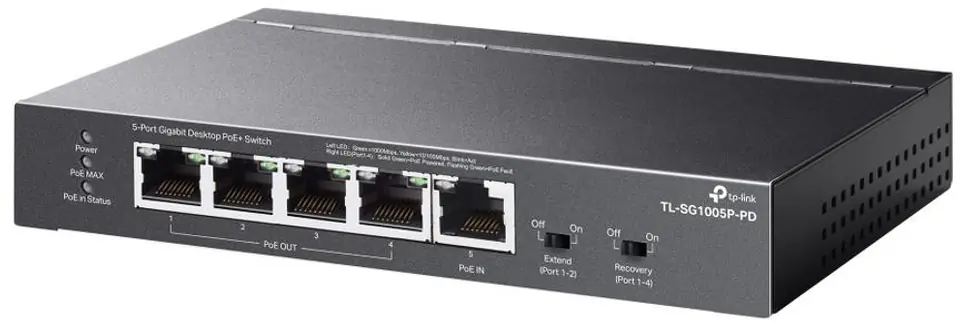

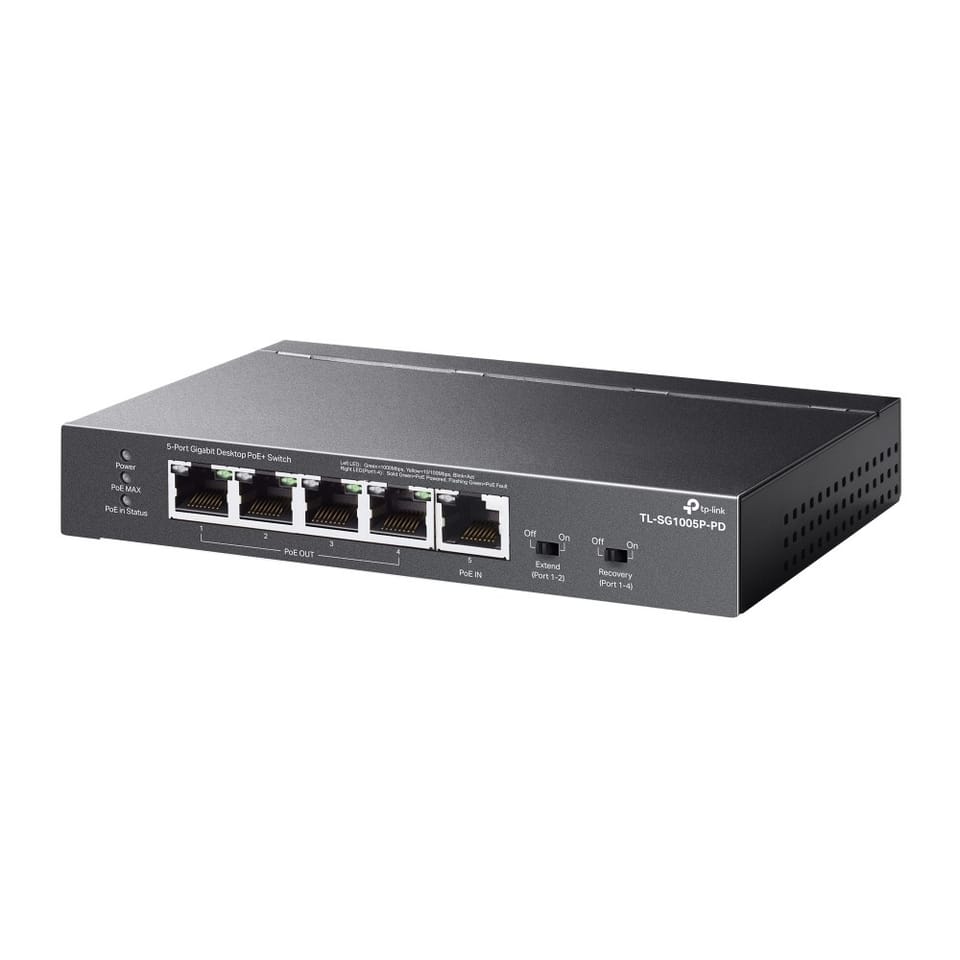

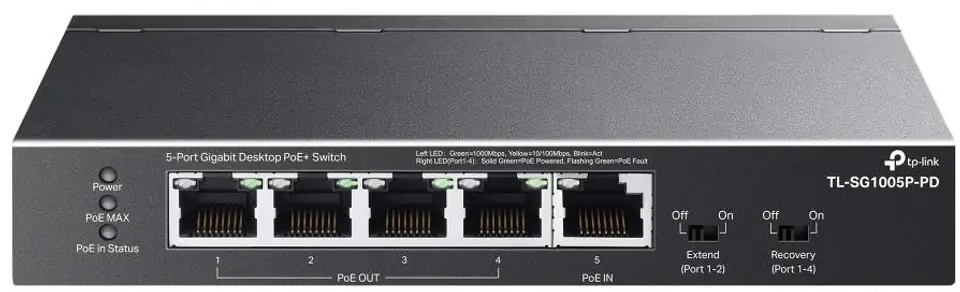

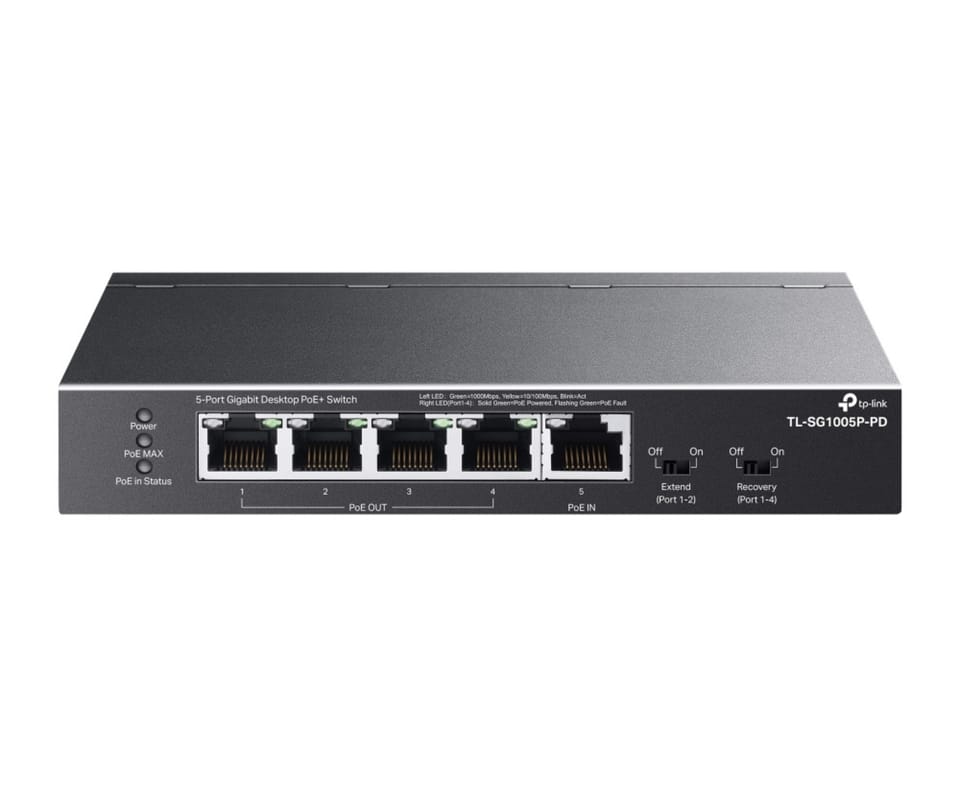

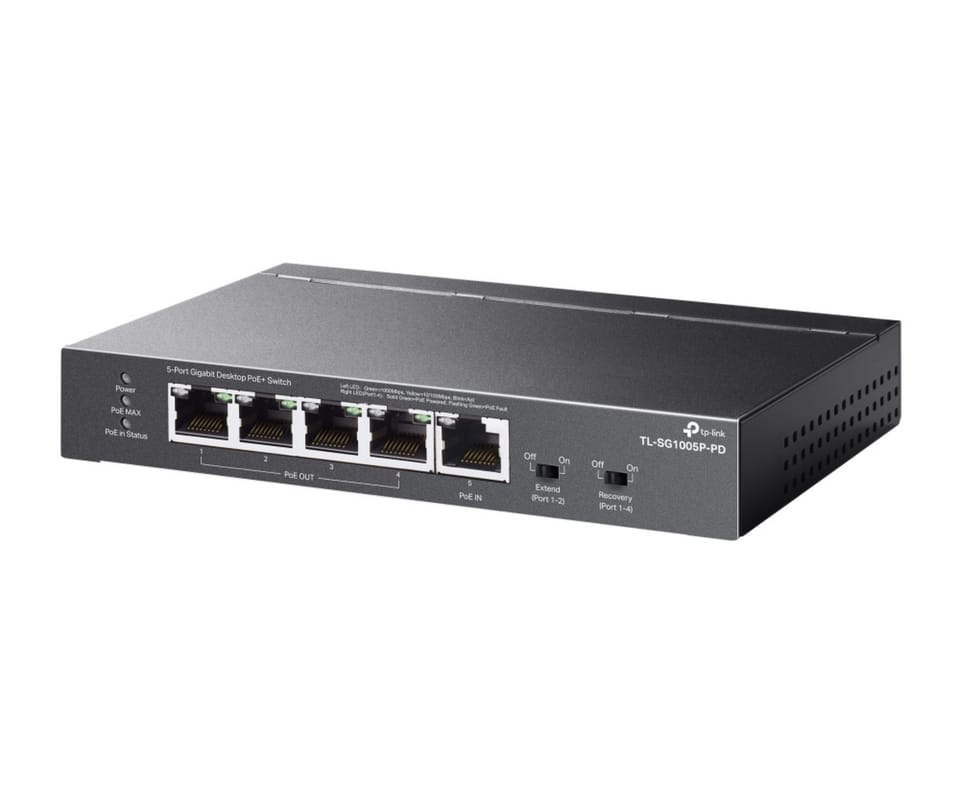

TL-SG1005P-PD Desktop PoE+ Switch, 5 Gigabit ports, including 1 PoE++ IN port and 4 PoE+ OUT ports

Ports: 5 RJ45 ports 10Mb/s / 100Mb/s / 1Gb/s
1 Gigabit PoE++ IN port and 4 PoE+ OUT ports: Supports up to 66 W / 47 W / 21 W / 9 W output PoE power - when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at and 802.3af PoE respectively.
Long PoE+ range: In Extend Mode, PoE transmission range reaches up to 250m, being ideal for deploying cameras over large areas.
PoE Auto Recovery: A function that guarantees stable operation of PoE devices by automatically restarting them when they lose connection or stop responding.

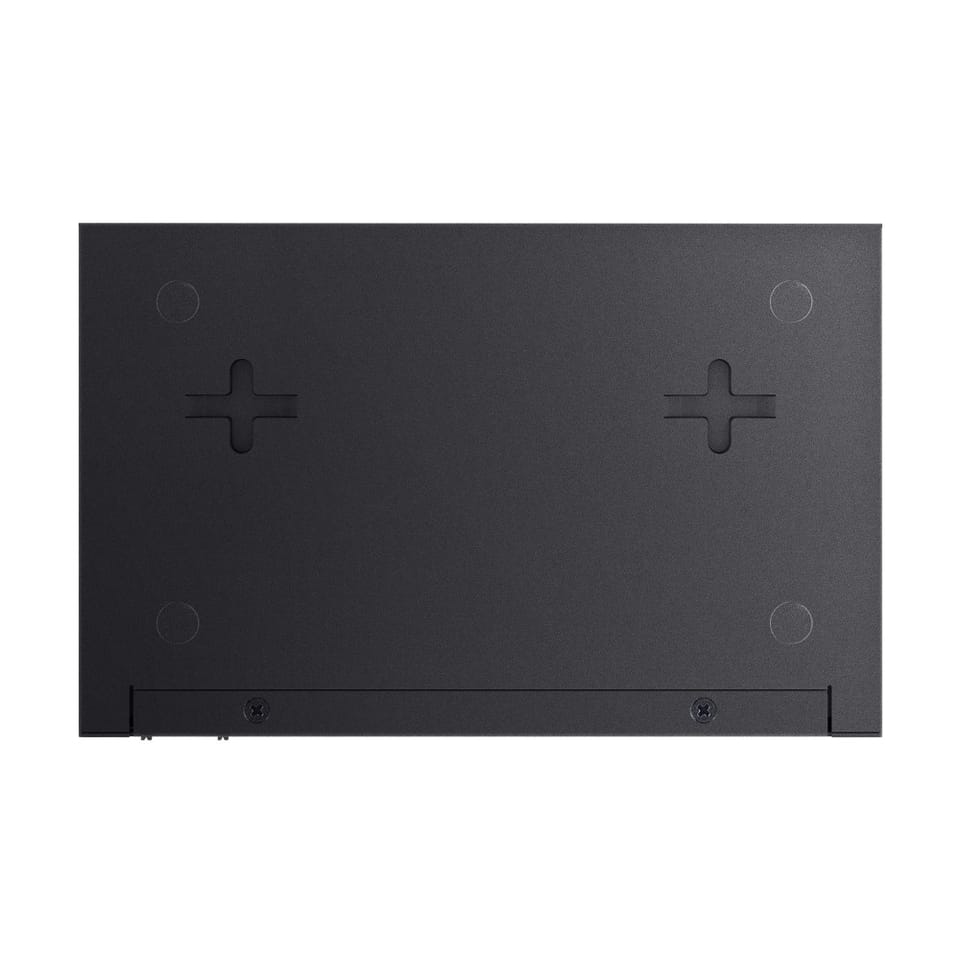

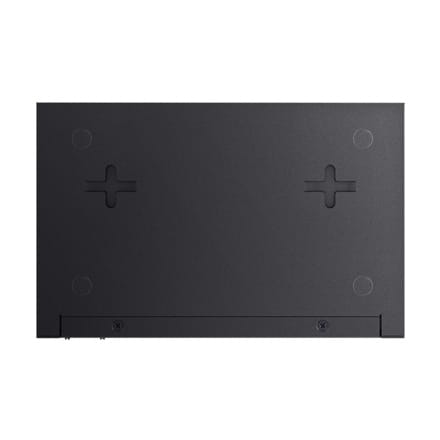

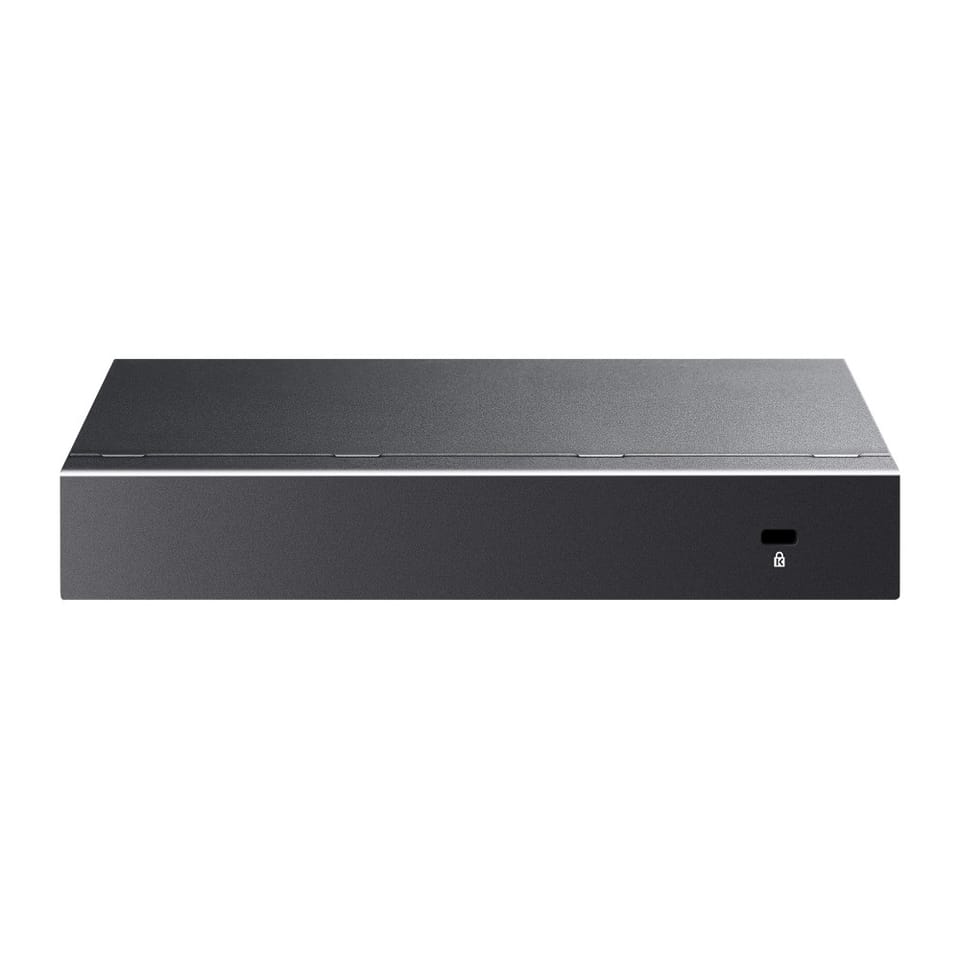

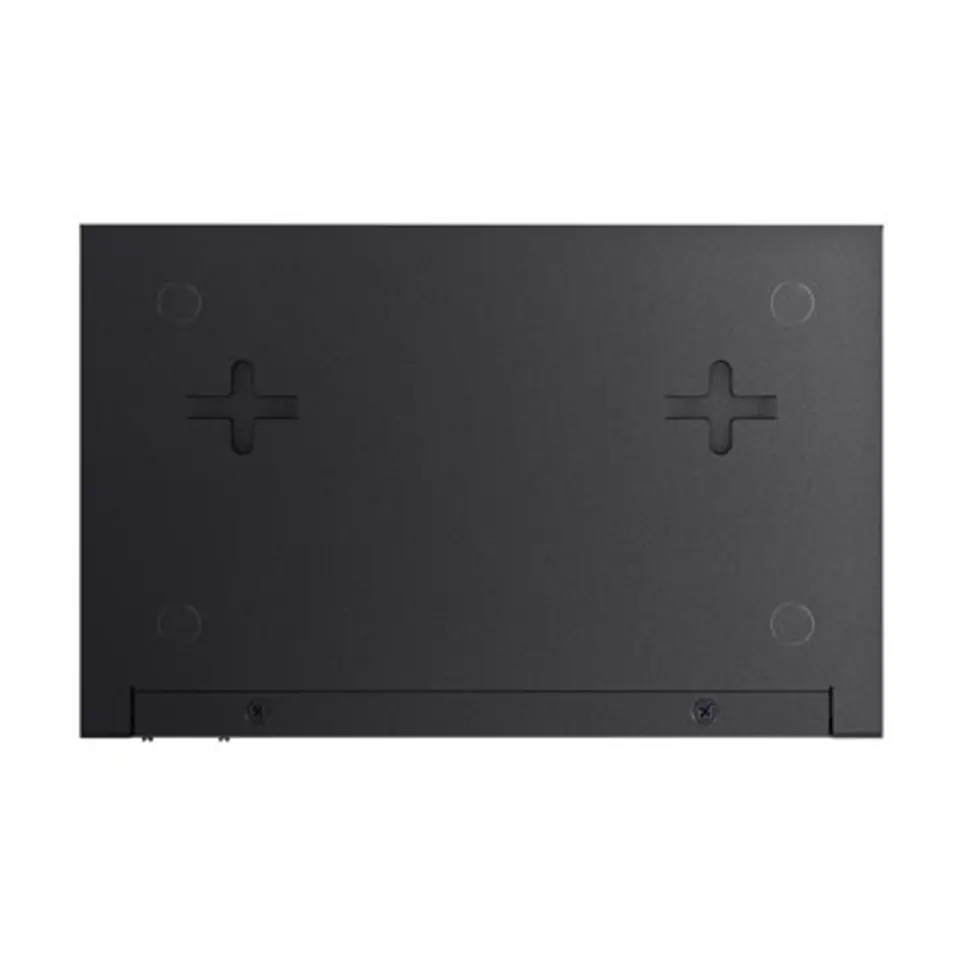

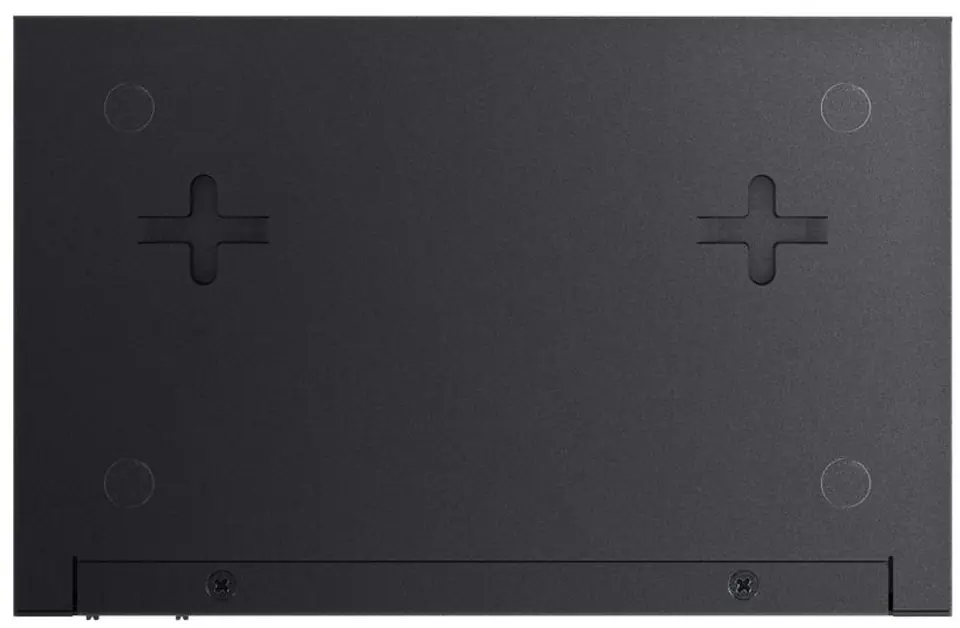

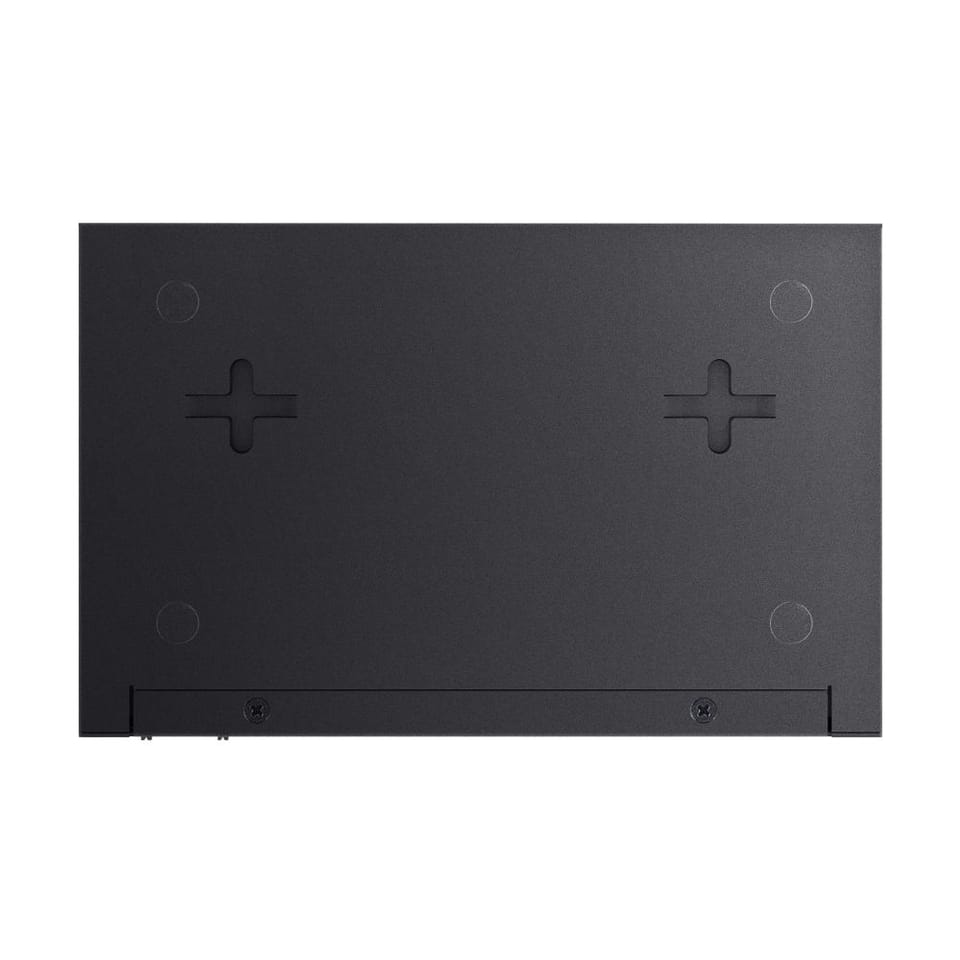

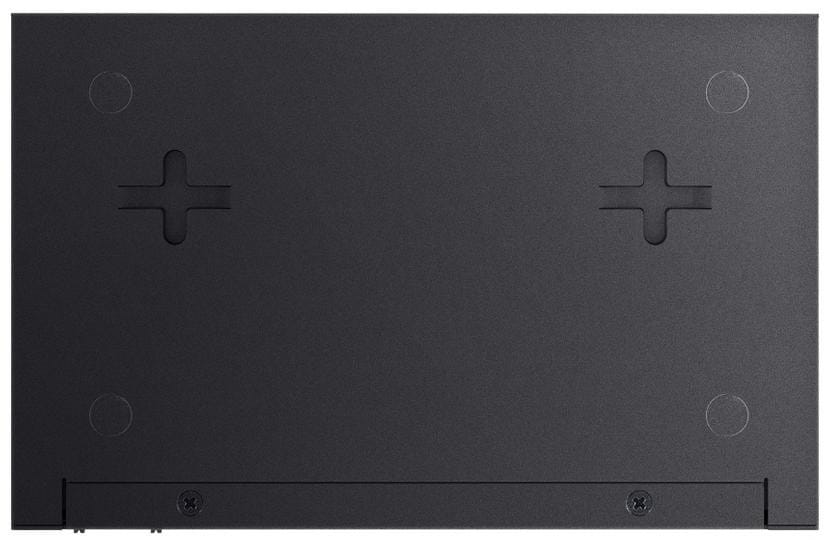

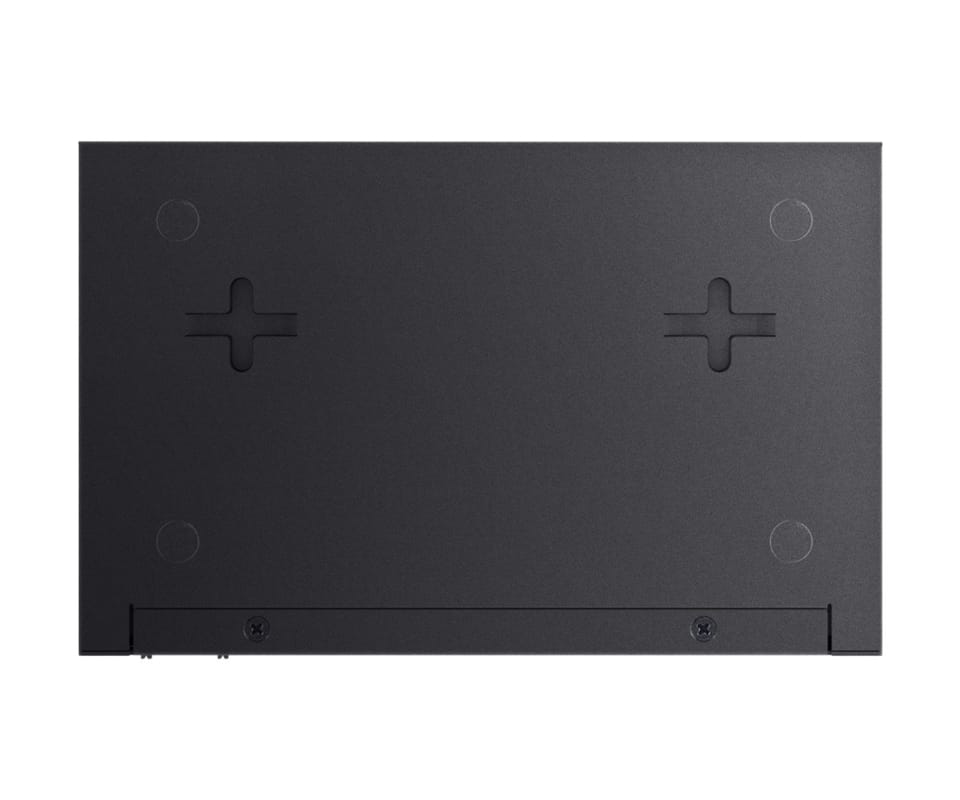

Metal chassis: The robust metal chassis and ability to be mounted on a desk or wall will work well in a wide variety of environments.
Quiet operation: The fanless design ensures silent operation, suitable for homes and businesses.
Plug and Play: No configuration or complicated installation required.
Power: The product can only be powered from a PoE source. AC and DC power supply is not supported.
