| 10g support: | No |
|---|---|

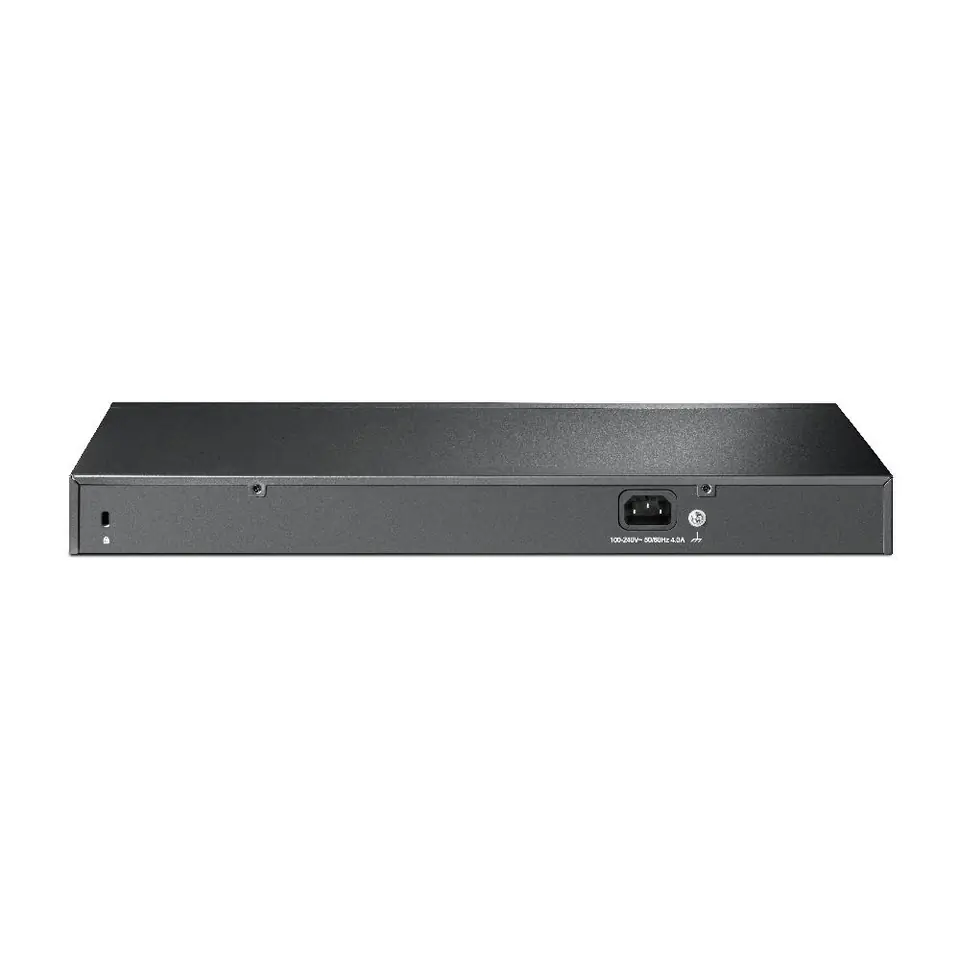

| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |

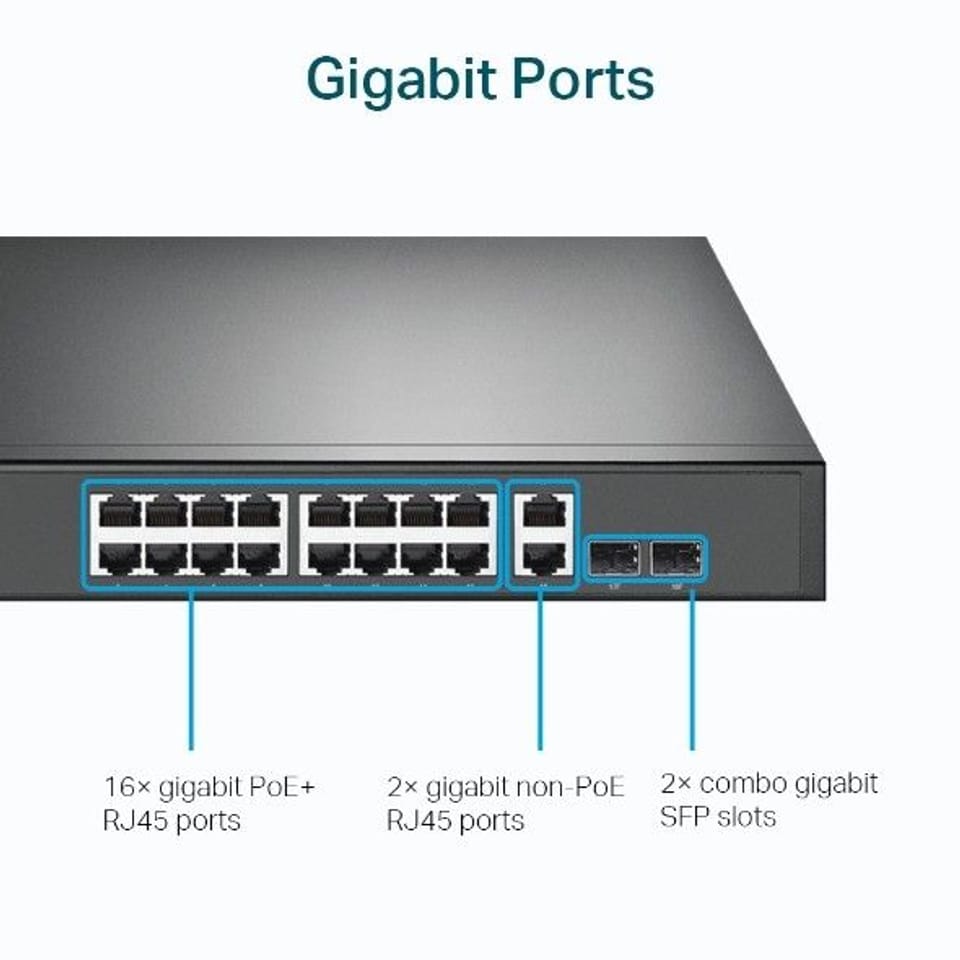

| Basic switching rj-45 ethernet ports quantity: | 18 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Cable types supported: | Cat5, Cat5e, Cat6, Cat4, Cat3 |
| Cables included: | AC |
| Combo sfp ports quantity: | 2 |

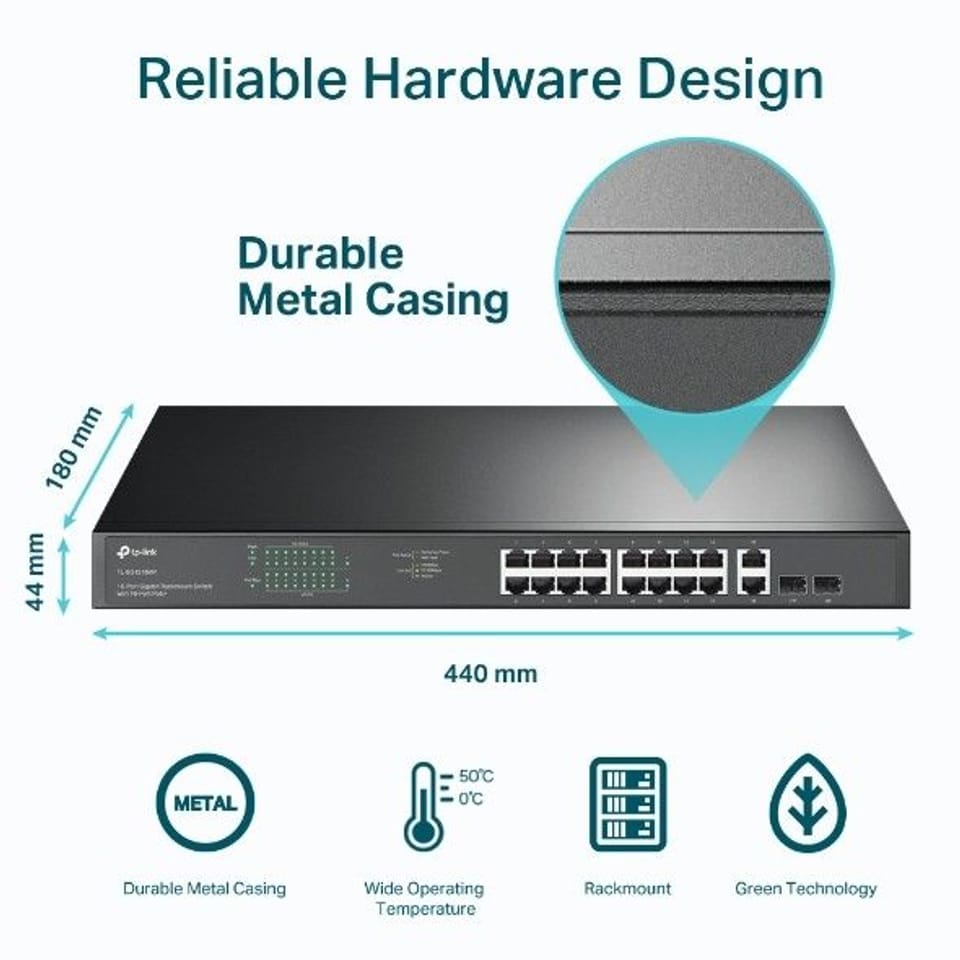

| Depth: | 180 mm |
| Ethernet lan data rates: | 10,100,1000 Mbit/s |
| Flow control support: | Yes |
| Form factor: | 1U |
| Forwarding rate: | 26.78 Mpps |
| Full duplex: | Yes |
| Gigabit ethernet (copper) ports quantity: | 18 |
| Half duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 977.44 BTU/h |
| Height: | 44 mm |
| Housing material: | Metal |
| Jumbo frames: | 10000 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Mac address auto-aging supported: | Yes |
| Mac address auto-learning supported: | Yes |
| Mac address table: | 8000 entries |
| Networking standards: | IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p |

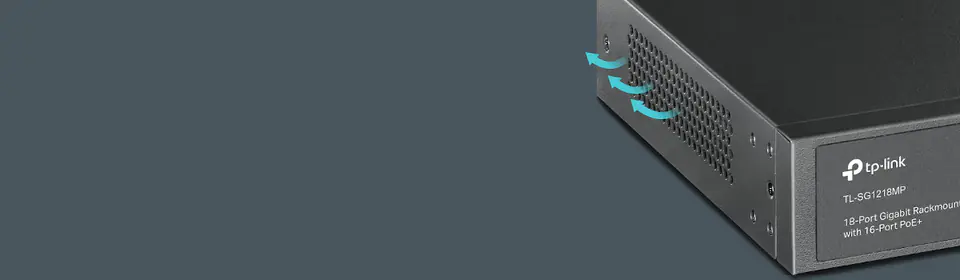

| Number of fans: | 2 fan(s) |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 50 °C |
| Package depth: | 528 mm |
| Package height: | 80 mm |
| Package weight: | 3.05 kg |
| Package width: | 250 mm |
| Packet buffer memory: | 4.1 MB |
| Power consumption (max): | 286.64 W |

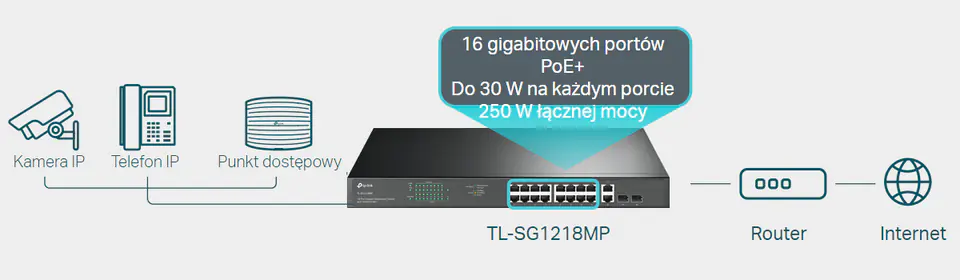

| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 16 |
| Power source: | AC |
| Power supply included: | Yes |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Quick start guide: | Yes |

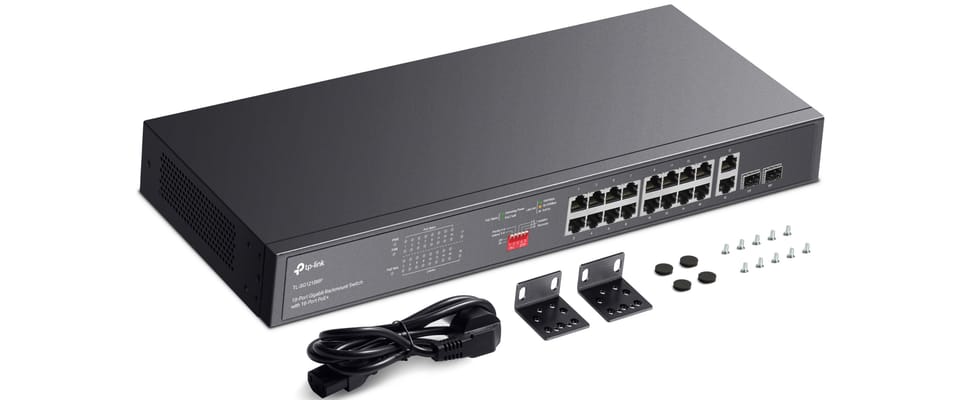

| Rack mounting: | Yes |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Switch type: | Unmanaged |
| Switching capacity: | 36 Gbit/s |

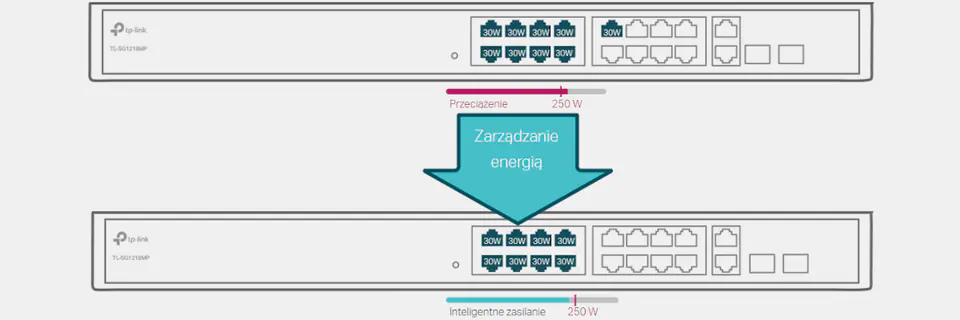

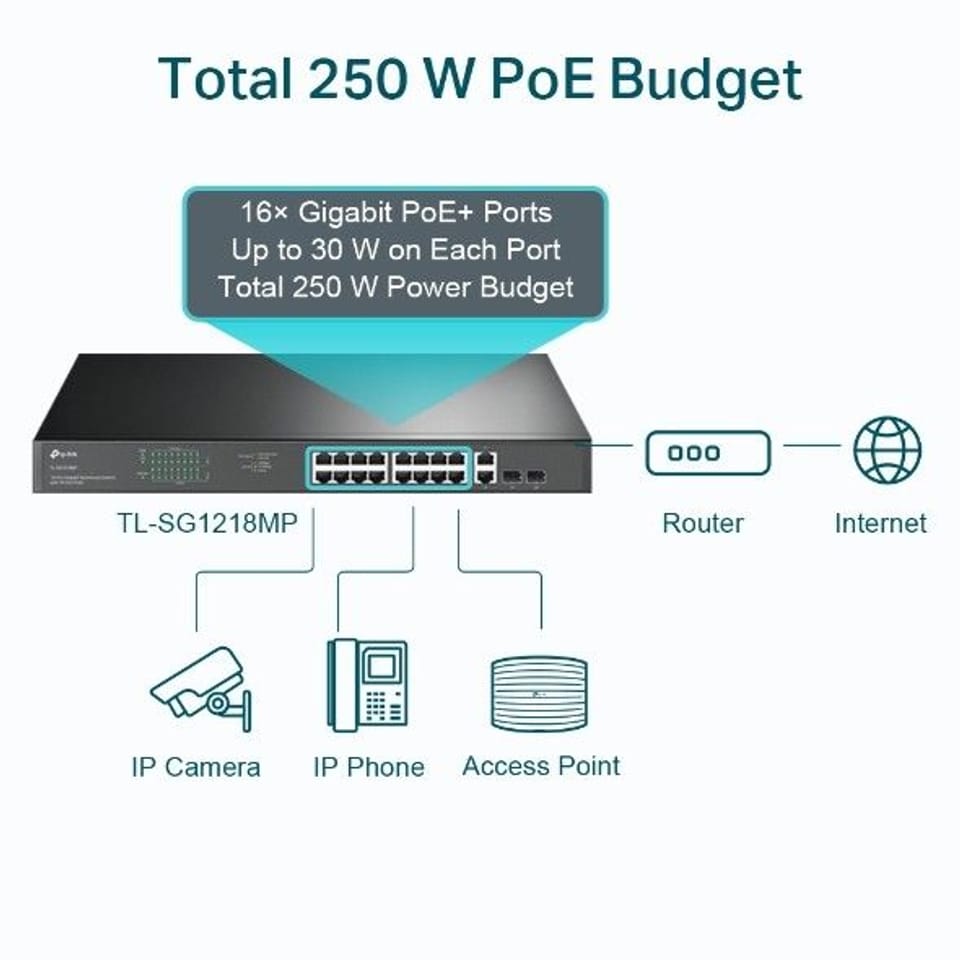

| Total power over ethernet (poe) budget: | 250 W |
| Traffic classification: | Yes |
| Width: | 440 mm |
