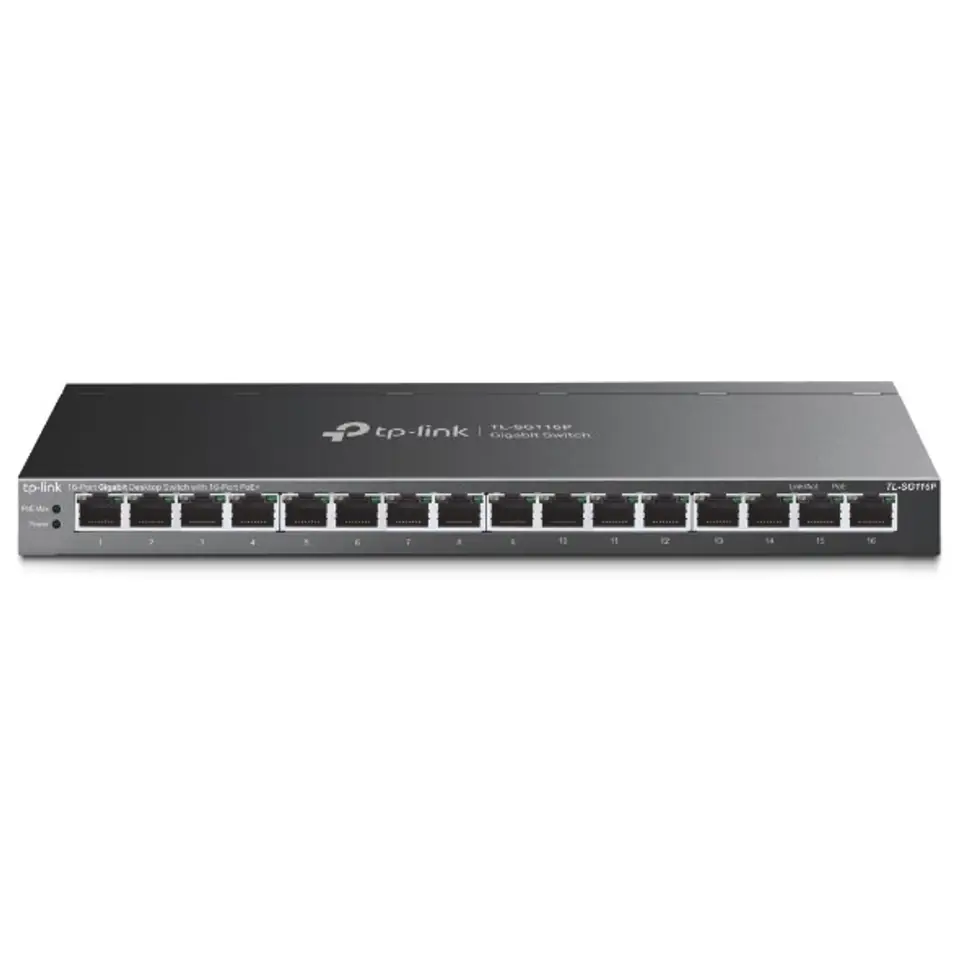

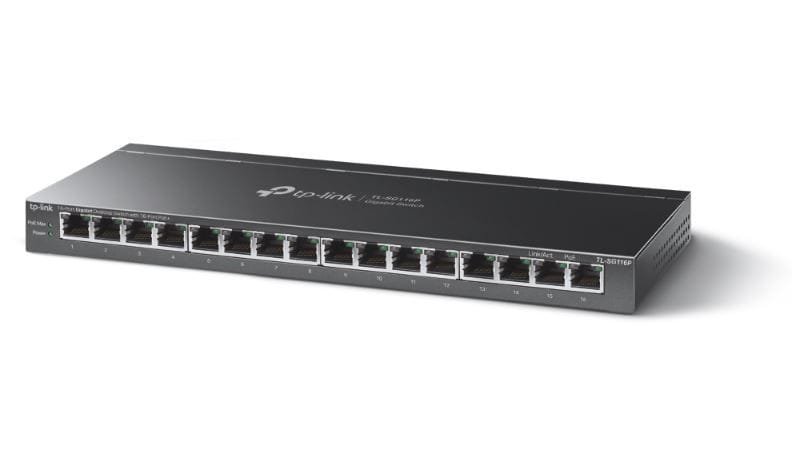

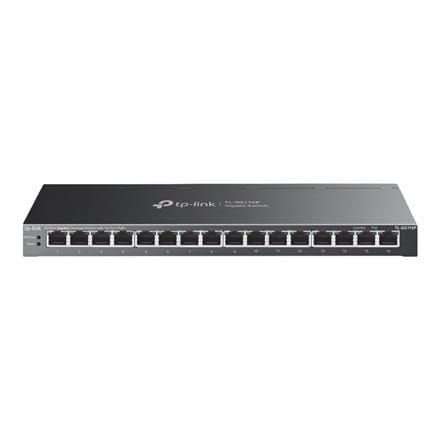

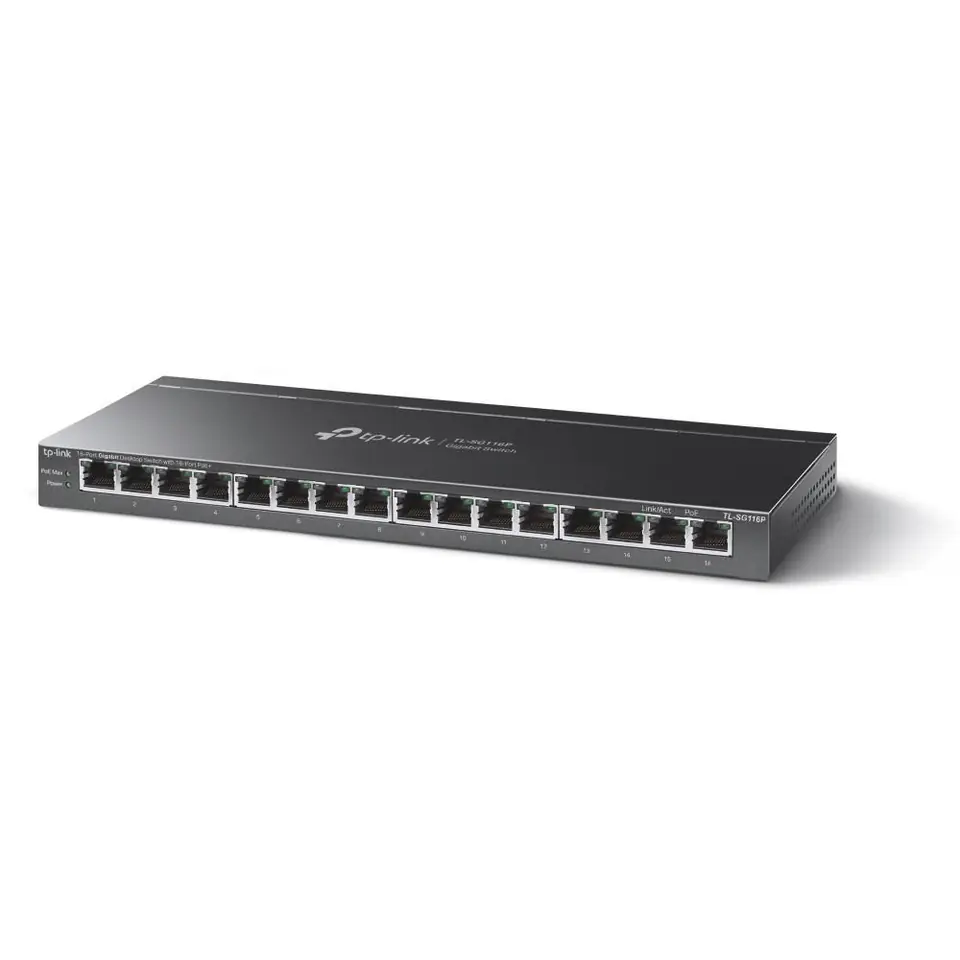

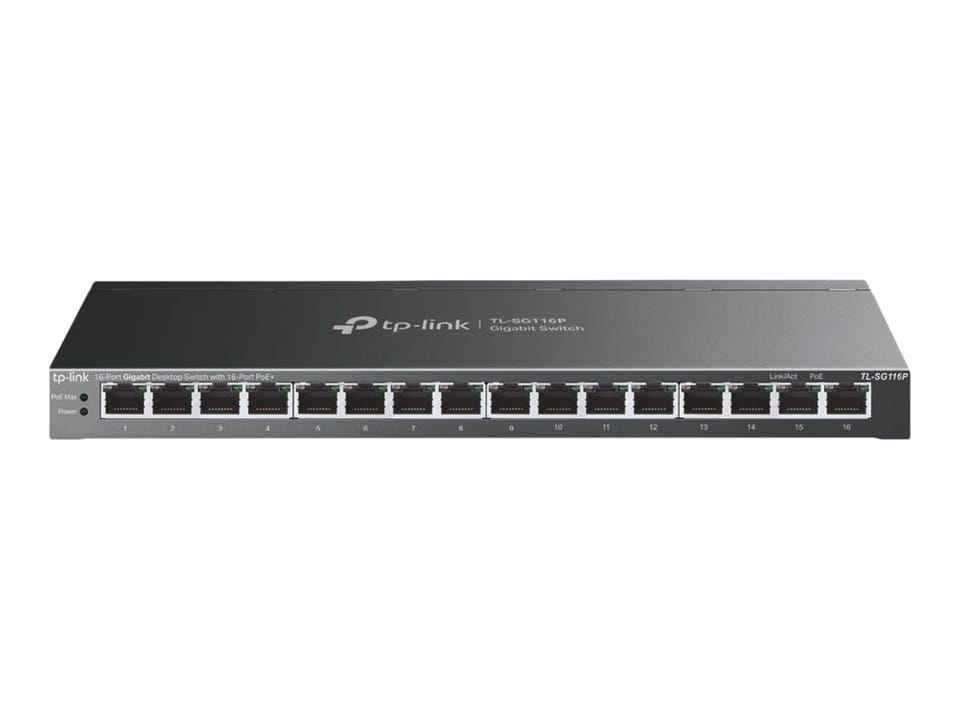

TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+

€171.98
Shipping from warehouse: ⁨N2⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Tp-Link
Product code:
TL-SG116P / 4895252500301

Specification

Ac input frequency:50 Hz
Ac input voltage:220 V
Auto mdi/mdi-x:Yes
Auto-negotiation:Yes
Basic switching rj-45 ethernet ports quantity:16
Basic switching rj-45 ethernet ports type:Gigabit Ethernet (10/100/1000)
Broadcast storm control:Yes
Cable length detection:Yes
Cable types supported:Cat4, Cat6, Cat3, Cat5, Cat5e
Cables included:AC
Copper ethernet cabling technology:10BASE-T, 1000BASE-T, 100BASE-TX
Dc input voltage:9 V
Depth:111.7 mm
Flow control support:Yes
Forwarding rate:23.81 Mpps
Full duplex:Yes
Gigabit ethernet (copper) ports quantity:16
Heat dissipation:490.55 BTU/h
Height:25.4 mm
Housing material:Metal
Igmp snooping:Yes
Input current:0.6 A
Jumbo frames:9000
Jumbo frames support:Yes
Led indicators:Yes
Link aggregation:Yes
Loop protection:Yes
Mac address table:8000 entries
Networking standards:IEEE 802.3u, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p
Number of queues:4
Number of vlans:32
Operating relative humidity (h-h):10 - 90%
Operating temperature (t-t):0 - 40 °C
Package depth:434 mm
Package height:70 mm
Package weight:2 kg
Package width:227 mm
Packet buffer memory:4.1 MB
Port mirroring:Yes
Power consumption (max):144.28 W
Power consumption (typical):11.72 W
Power over ethernet (poe):Yes
Power supply included:Yes
Product colour:Black
Quality of service (qos) support:Yes
Quick start guide:Yes
Rate limiting:Yes
Stackable:Yes
Storage relative humidity (h-h):5 - 90%
Storage temperature (t-t):-40 - 70 °C
Store-and-forward:Yes
Switch type:Unmanaged
Switching capacity:32 Gbit/s
Virtual lan features:Protocol-based VLAN, Tagged VLAN
Vlan support:Yes
Wall mountable:Yes
Width:286 mm

Desktop switch, 16 gigabit ports, including 16 PoE+ ports

  • 16 Gigabit RJ45 ports
  • 16 PoE+ ports, power and data transfer via one cable
  • Compatibility with PoE-powered devices operating in IEEE 802.3af/at standards. Up to 30 W of PoE power on each PoE port
  • PoE power supply support up to 120W for all PoE ports
  • Up to 250m of data and power transmission in Extend mode

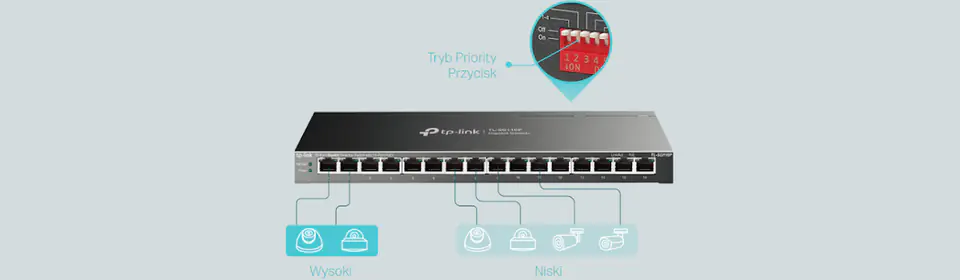

  • Priority mode provides high priority for ports 1-4
  • Isolation Mode enables one-click separation of client traffic for improved security and performance.
  • Automatic restart of PoE-powered devices that are dead or unresponsive thanks to the PoE Auto Recovery function.
  • Plug and play connection, no configuration or complicated installation required.

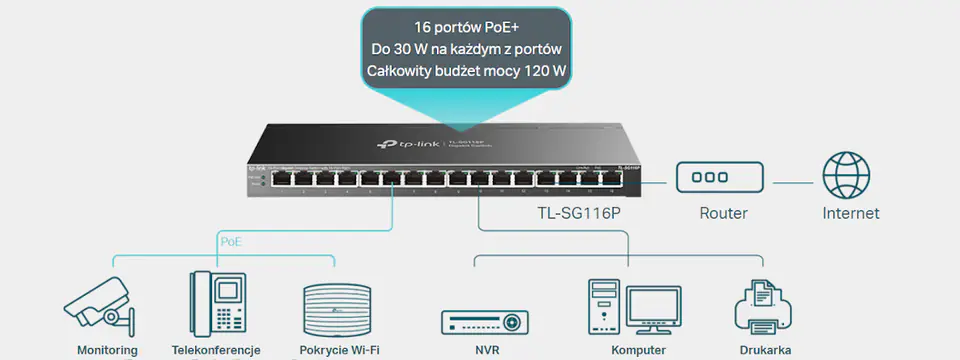

Dedicated 16 PoE+ ports (120 W budget) for many applications

Compatibility with the 802.3af/at PoE+ standard provides up to 30 W of power on each PoE port. A total PoE power budget of 120W* for 16 PoE+ ports opens up a wide range of applications such as surveillance in offices, dorms and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers and more

Perfect for monitoring - Up to 250 m of transmission

Thanks to the Extend mode, the transmission distance can reach up to 250m, perfect for installing IP cameras in large areas.

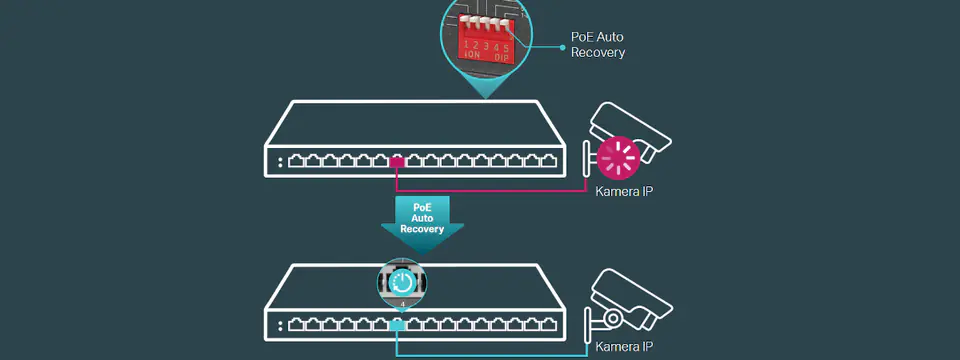

Auto lifting system with PoE Auto Recovery

The switch automatically detects and restarts PoE-powered devices such as cameras and access points when they stop working or become unresponsive, ensuring stable device operation without the need for manual monitoring and restarting.

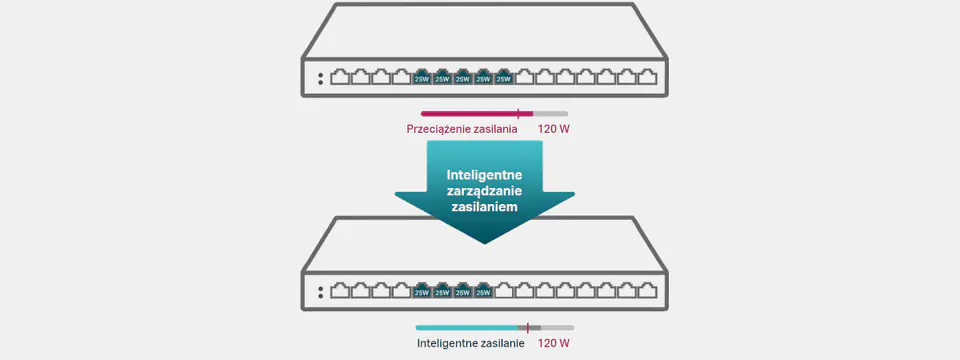

Intelligent power management

When total power consumption exceeds 120W, Intelligent Power Management turns off power to the lowest priority port to provide power to higher priority ports and thus protect the device from overload. It also enables automatic detection of the PoE power required by a given device and protects non-PoE devices from damage.

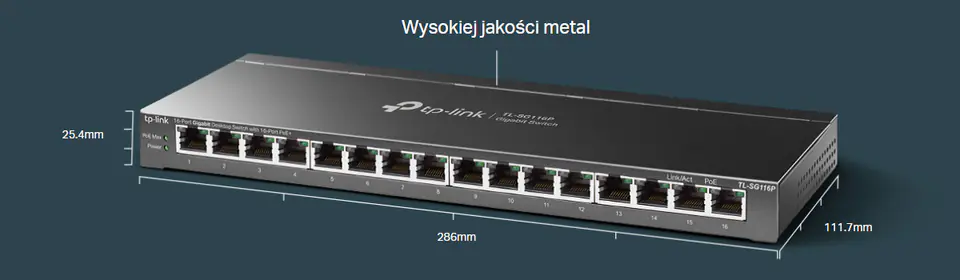

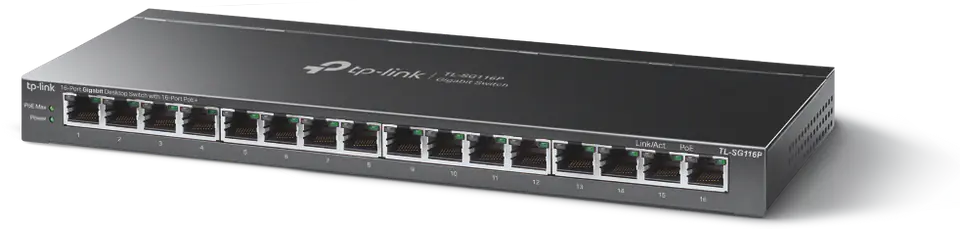

Durable metal housing

The internal components of the TL-SG116P switch are protected by a high-quality metal housing ensuring a long product life. After passing a series of rigorous reliability tests, the TL-SG116P delivers switching performance you can rely on.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
