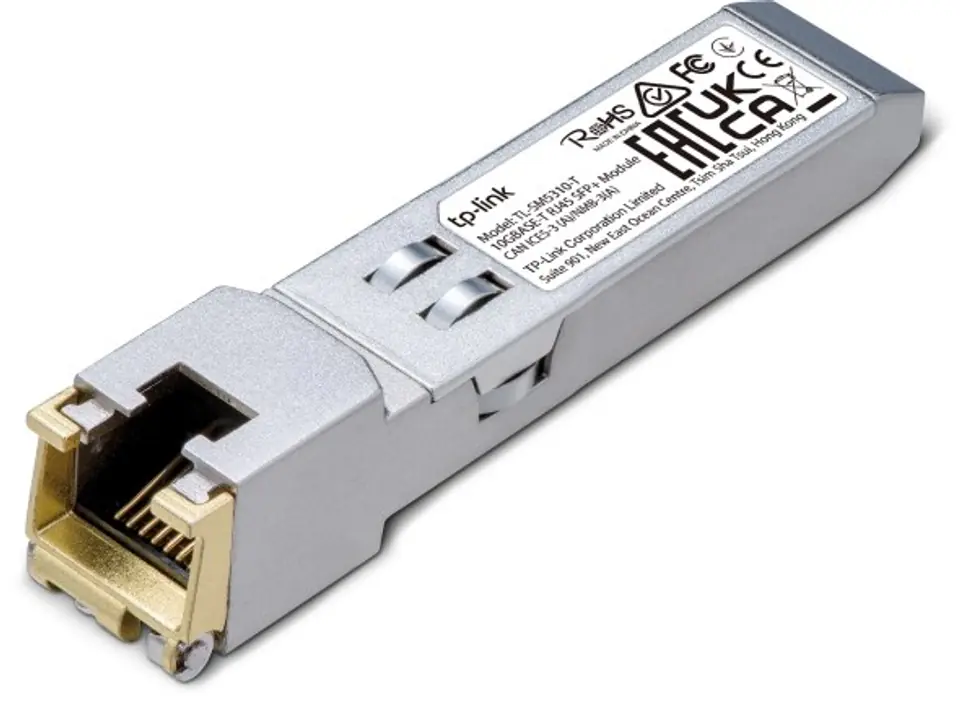

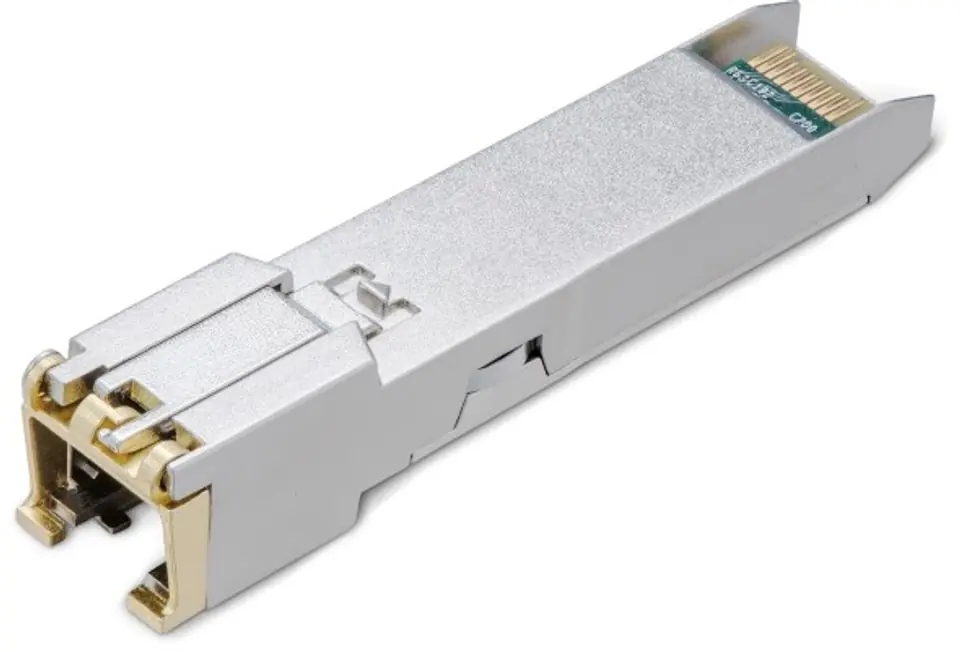

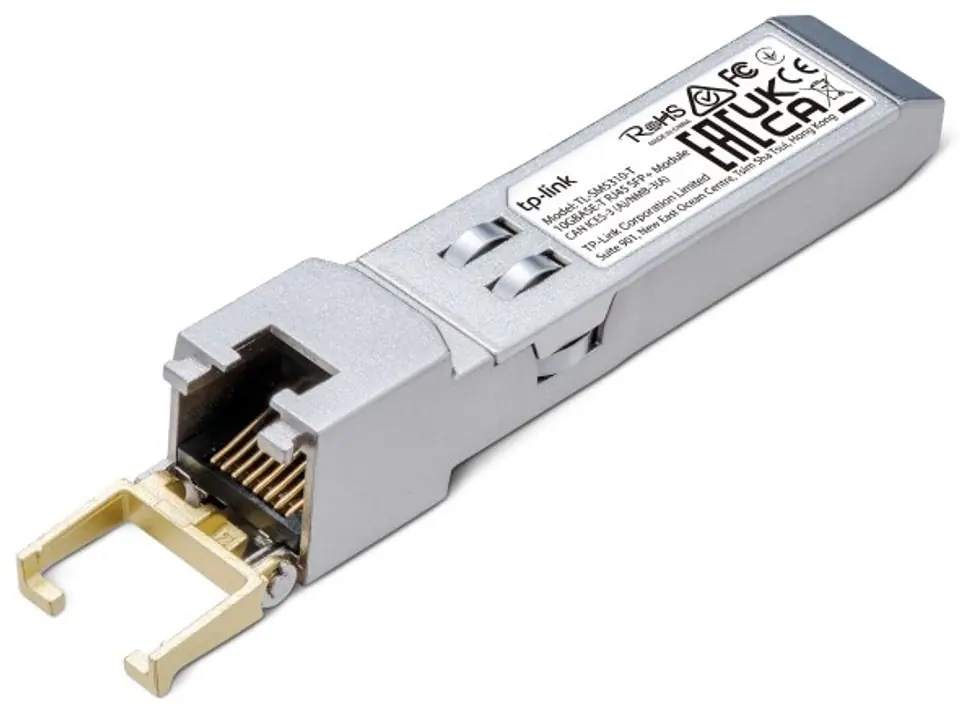

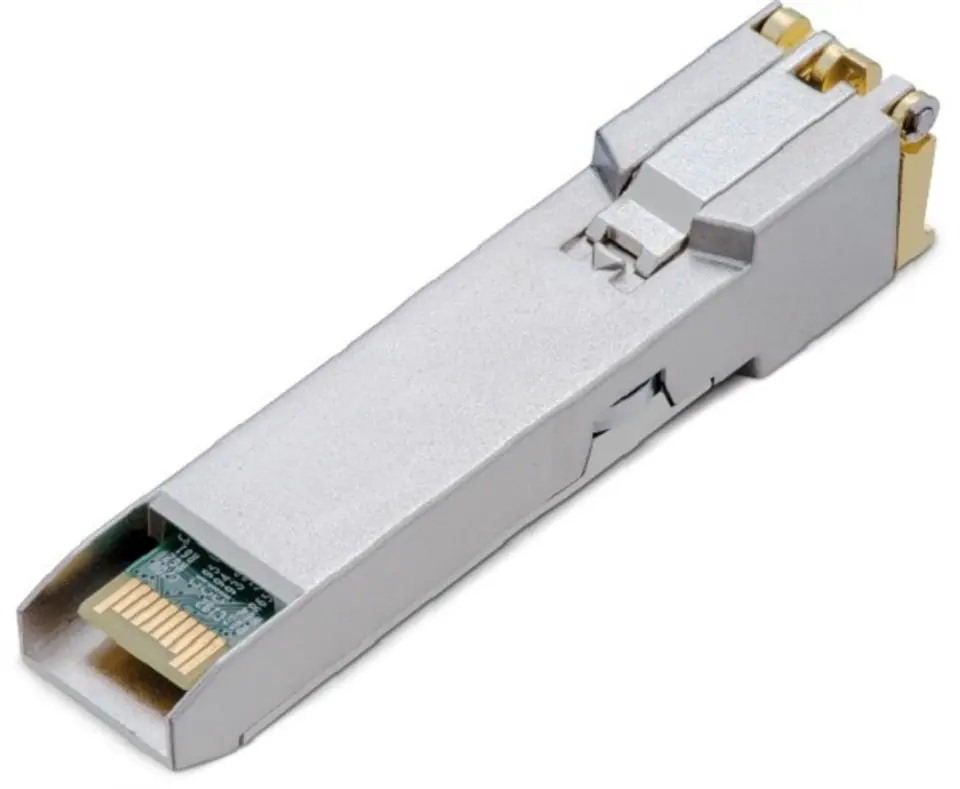

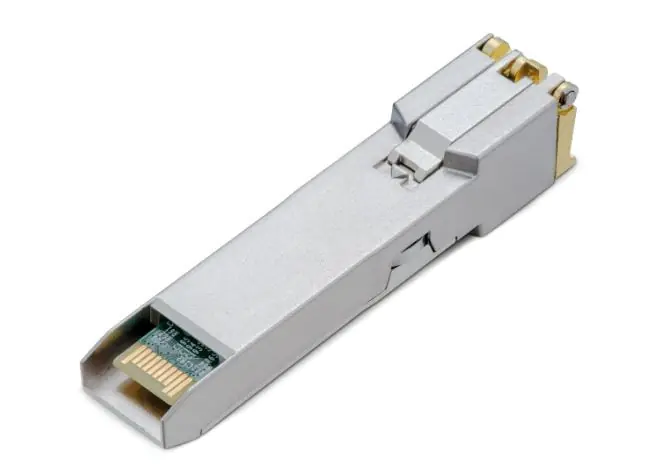

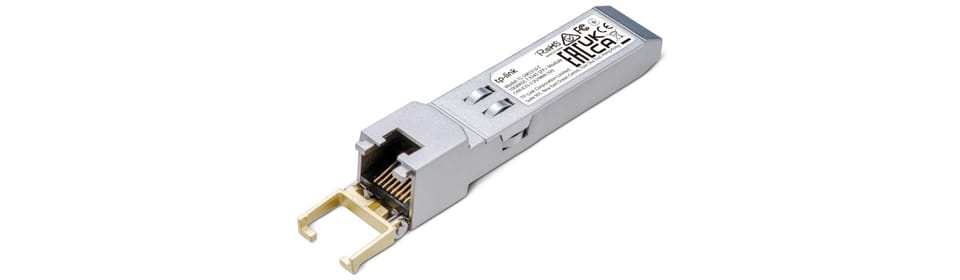

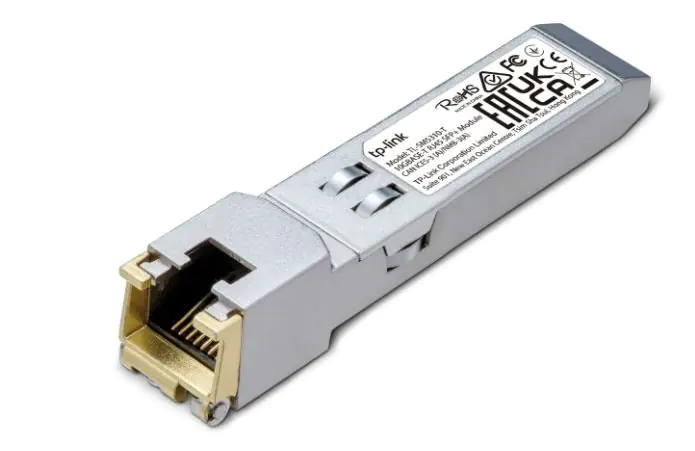

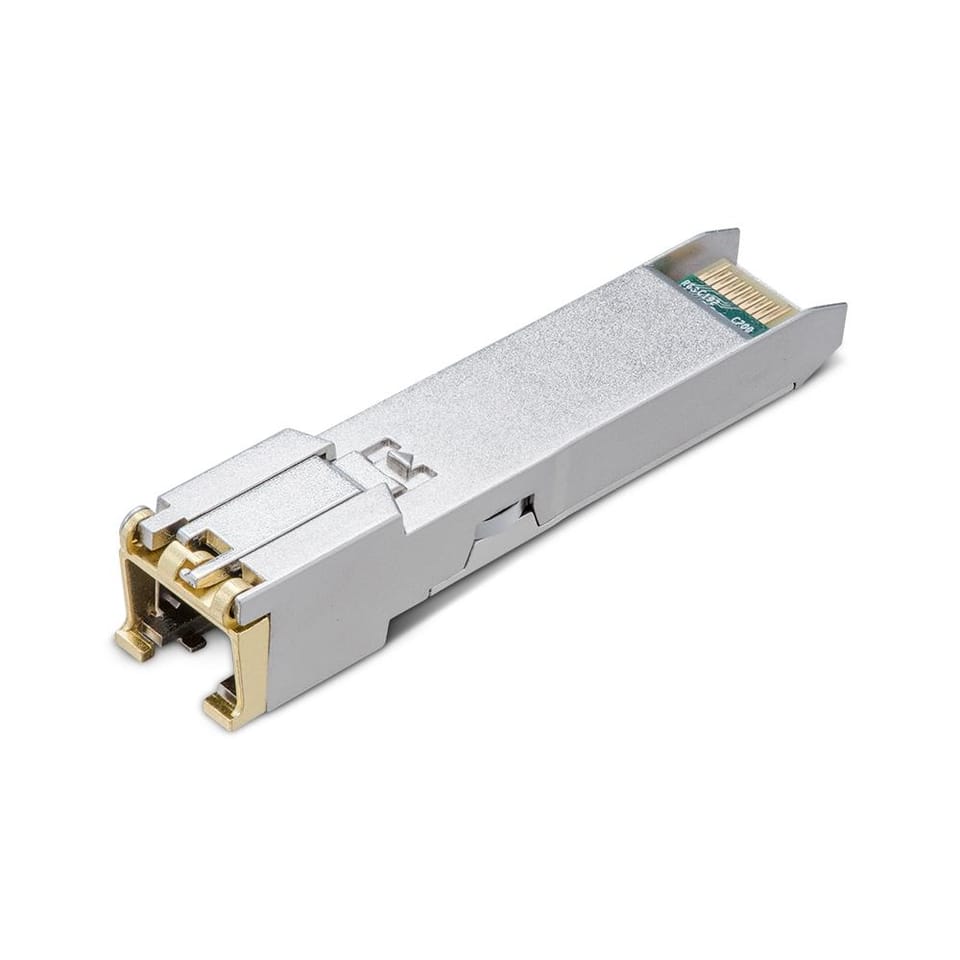

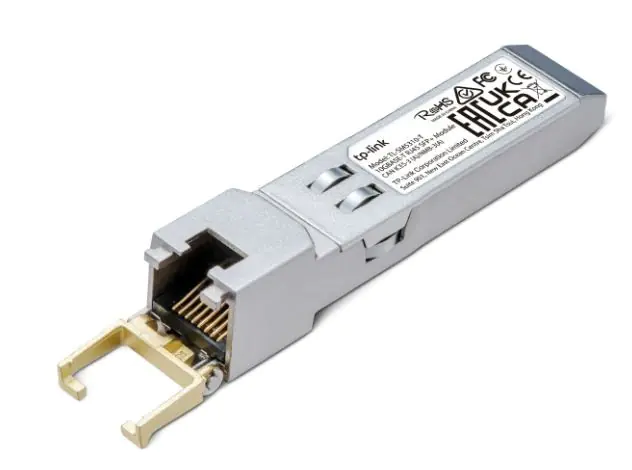

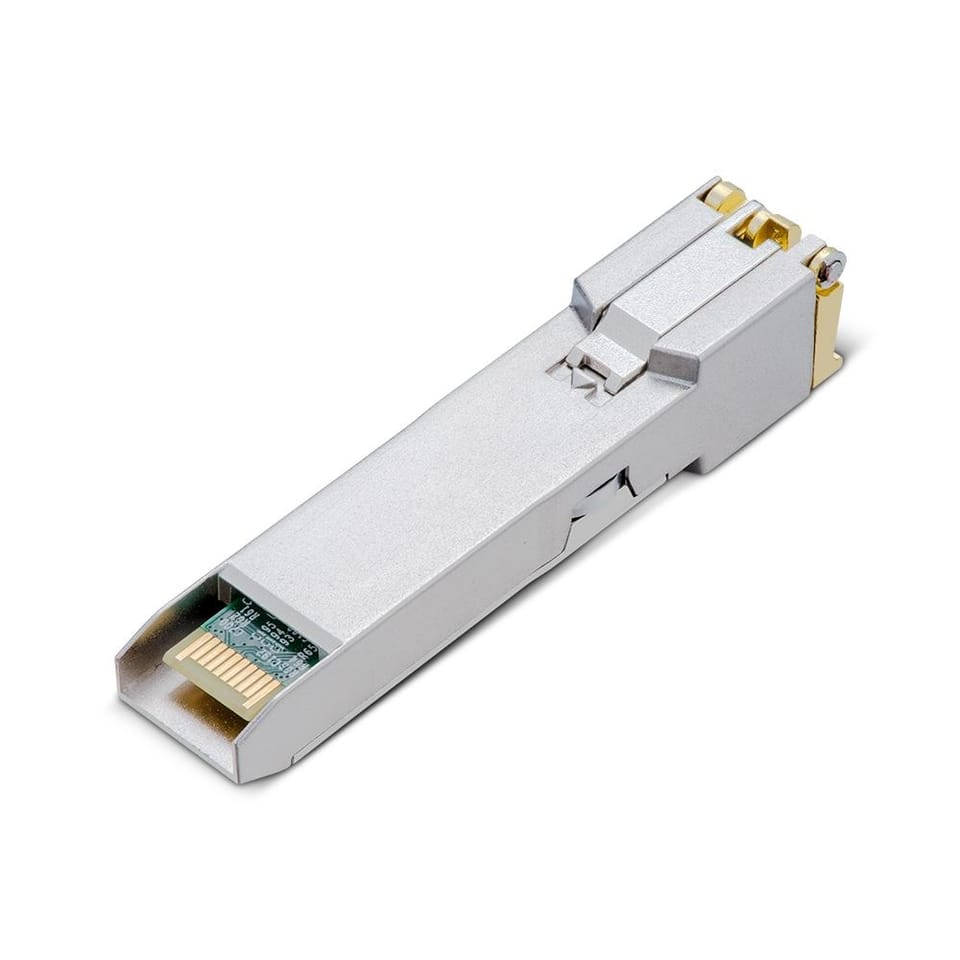

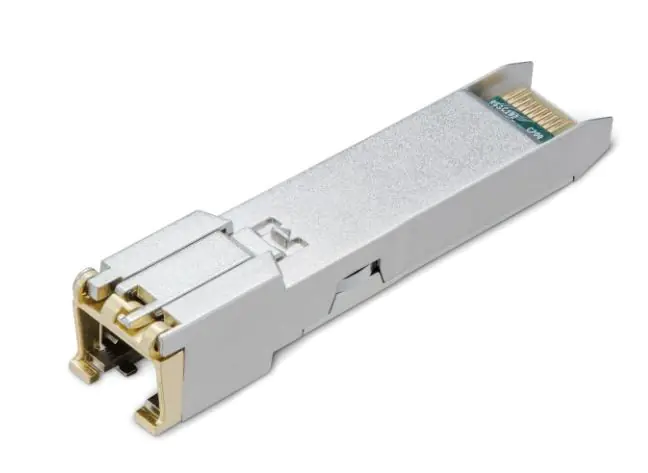

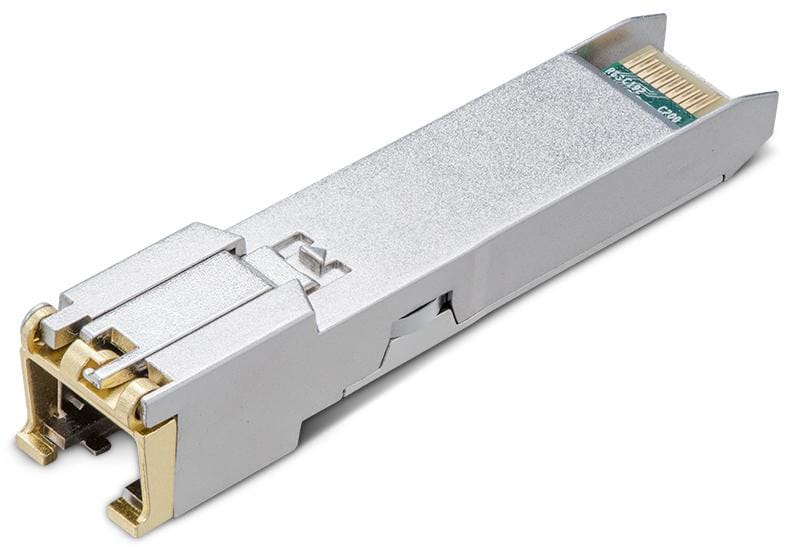

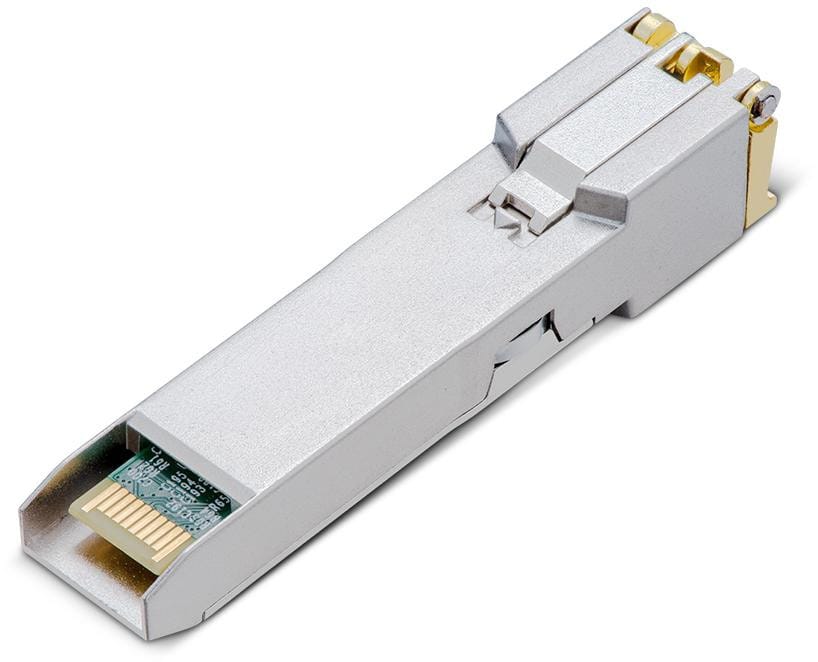

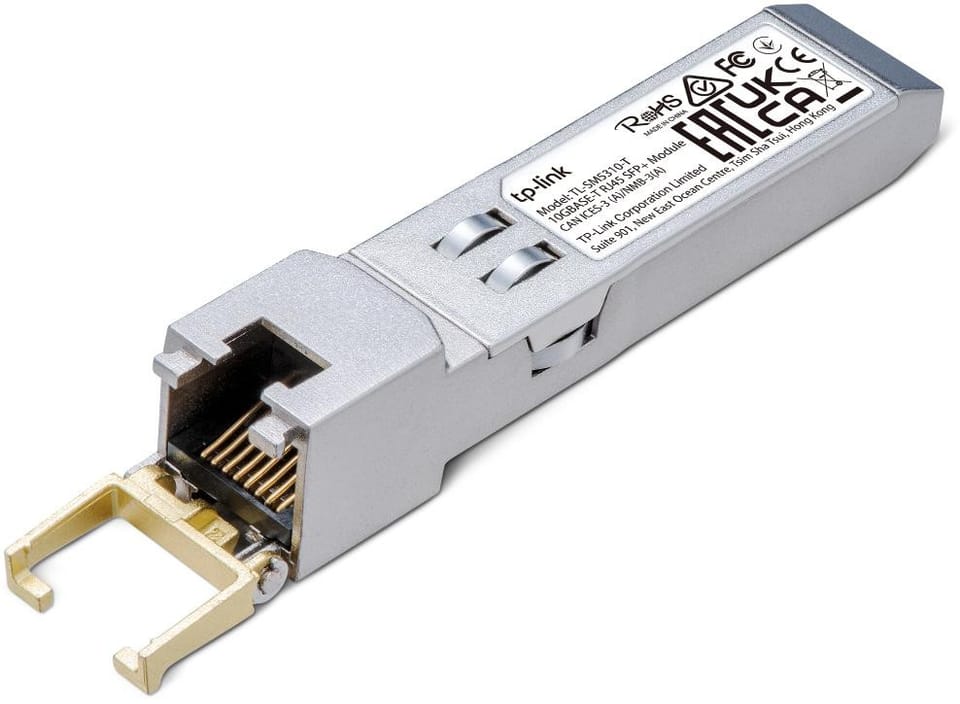

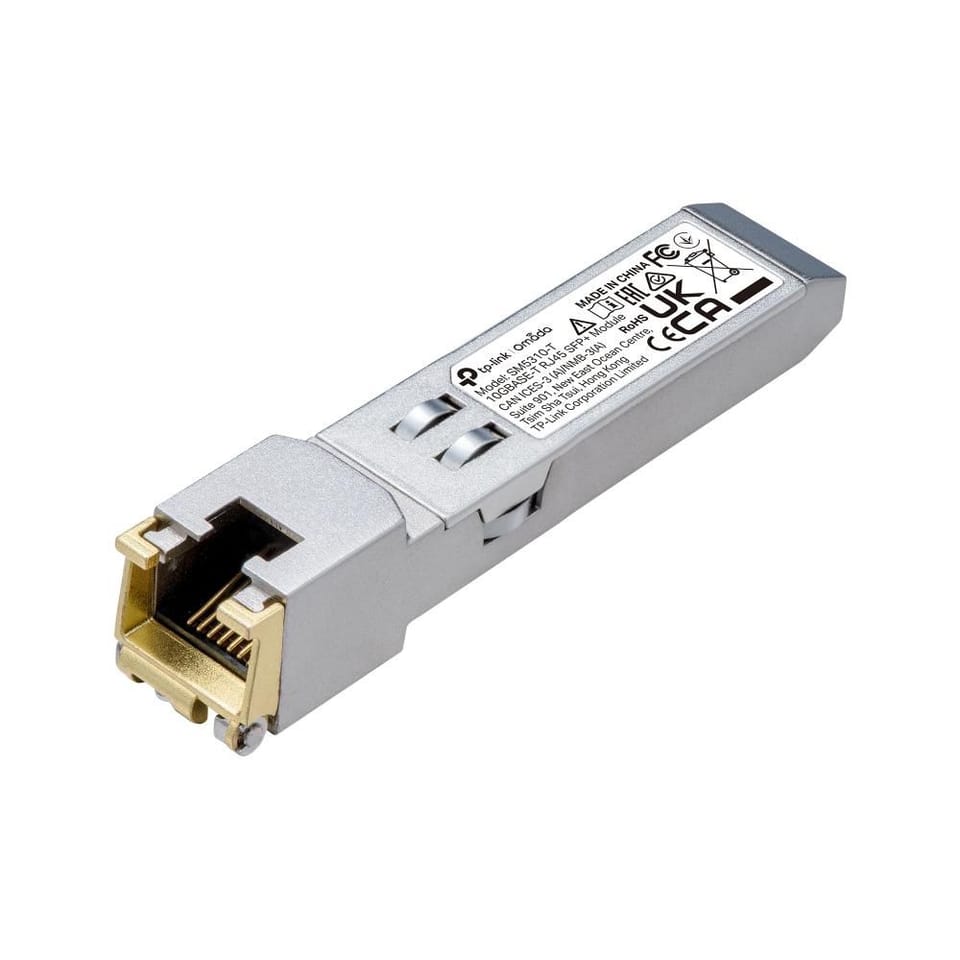

TP-Link 10G BASE-T RJ45 SFP+ Module

€64.32
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Wed, Nov 6 - Mon, Nov 11
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Tp-Link
Product code:
TL-SM5310-T / 4897098687758

Specification

Compliance certificates:RoHS, CE, Federal Communications Commission (FCC)
Copper ethernet cabling technology:10GBASE
Easy to install:Yes
Ethernet interface type:10 Gigabit Ethernet
Ethernet lan:Yes
Form factor:SFP+
Harmonized system (hs) code:85369010
Hot-plug support:Yes
Housing material:Metal
Input voltage:3.3 V
Interface type:RJ-45
Maximum data transfer rate:10300 Mbit/s
Maximum operating temperature:70 °C
Maximum transfer distance:100 m
Networking standards:IEEE 802.3an, IEEE 802.3bz, IEEE 802.3, IEEE 802.3ab
Number of products included:1 pc(s)
Operating temperature (t-t):0 - 70 °C
Package depth:122.5 mm
Package height:38.5 mm
Package weight:2.87 kg
Package width:81.5 mm
Product colour:Silver
Quantity per pack:1 pc(s)
Sfp transceiver type:Copper
Storage temperature (t-t):-40 - 85 °C
Sustainability certificates:Federal Communications Commission (FCC), CE, RoHS
Sustainability compliance:Yes

SFP+ 10G BASE-T RJ45 module

  • Supports 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T and 100BASE-TX operations
  • 10Gb/s data transmission up to 30m* (UTP cat.6a or higher cable)
  • Support for DDM (Temperature and Voltage) function
  • Hot-Plug SFP+ Footprint function
  • TX function disable support
  • Commercial product operating temperature range: 0-70°C
  • All-metal housing for low EMI

Product application

The TL-SM5310-T provides superior 10G performance with a simple and fast combination of SFP+ interface and RJ45 port. It offers a range of up to 30m at 10Gbps (UTP cat.6a or higher cable). Plug-and-Play operation enables easy installation and does not require calling in a specialist. The high-quality metal housing ensures durability and reliability over a long period of time, while maintaining stable performance over a wide range of environmental factors.
