| 10g support: | No |
|---|---|
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |

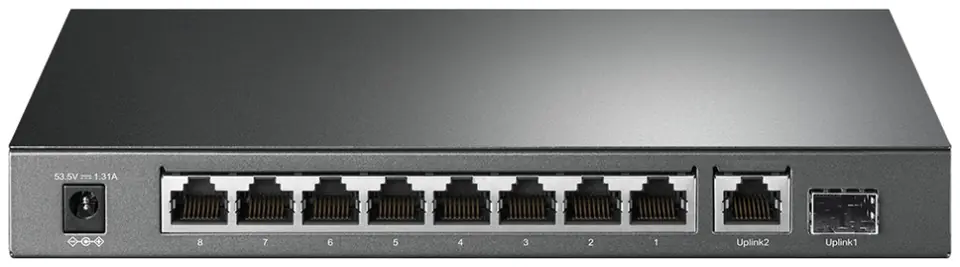

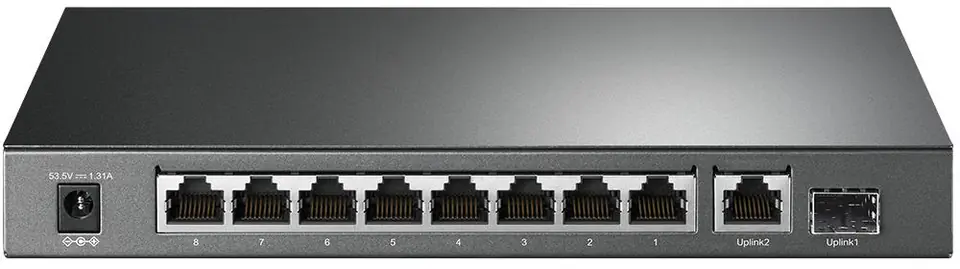

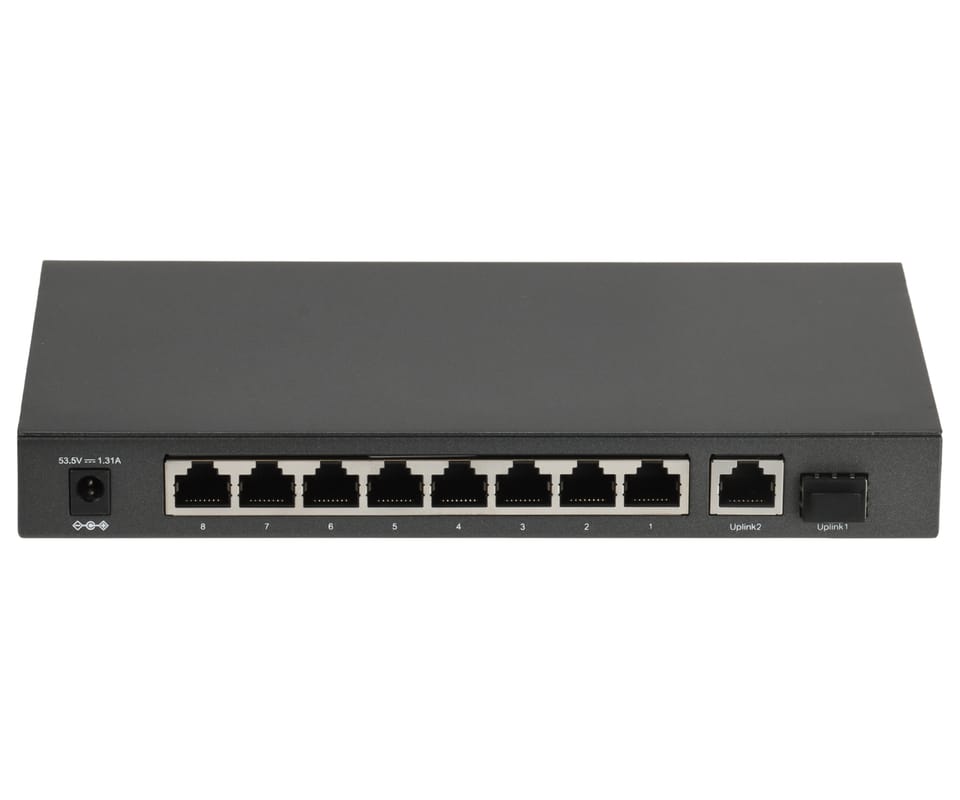

| Basic switching rj-45 ethernet ports quantity: | 9 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |

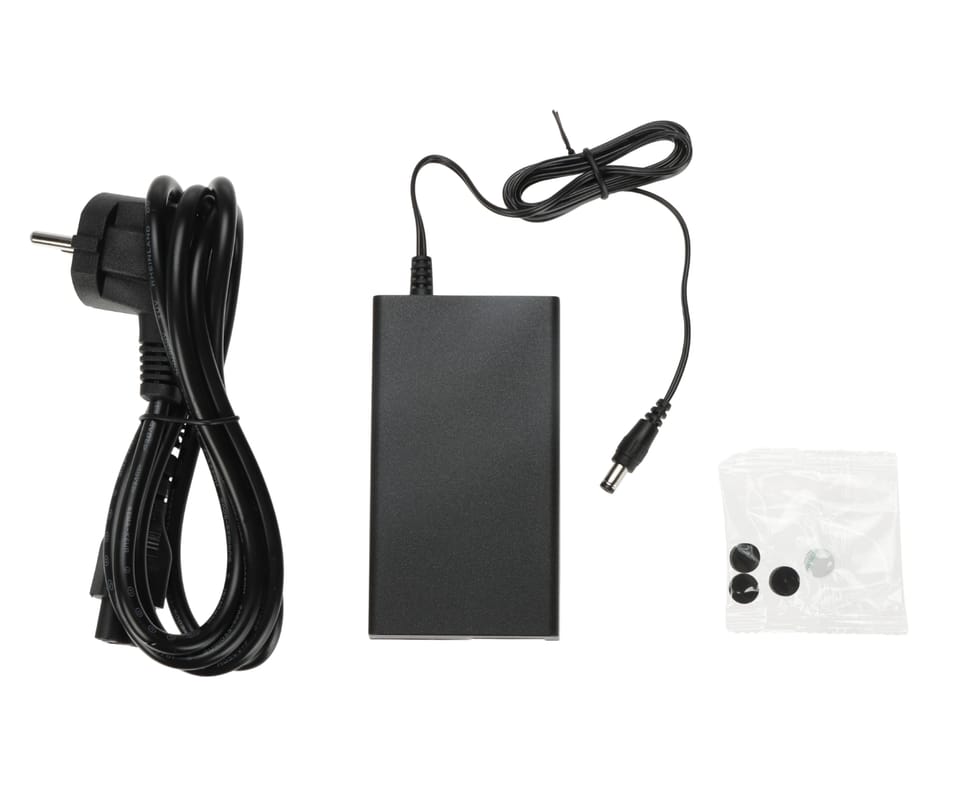

| Cables included: | AC |
| Copper ethernet cabling technology: | 10BASE-T, 1000BASE-T, 100BASE-TX |
| Dc input voltage: | 53.5 V |
| Depth: | 126 mm |
| Fanless: | Yes |
| Fiber ethernet cabling technology: | 1000BASE-X |
| Fiber type: | Single-mode |
| Gigabit ethernet (copper) ports quantity: | 9 |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 266.42 BTU/h |
| Height: | 26 mm |
| Housing material: | Metal |
| Igmp snooping: | Yes |
| Input current: | 1.31 A |
| Input voltage: | 53.5 V |

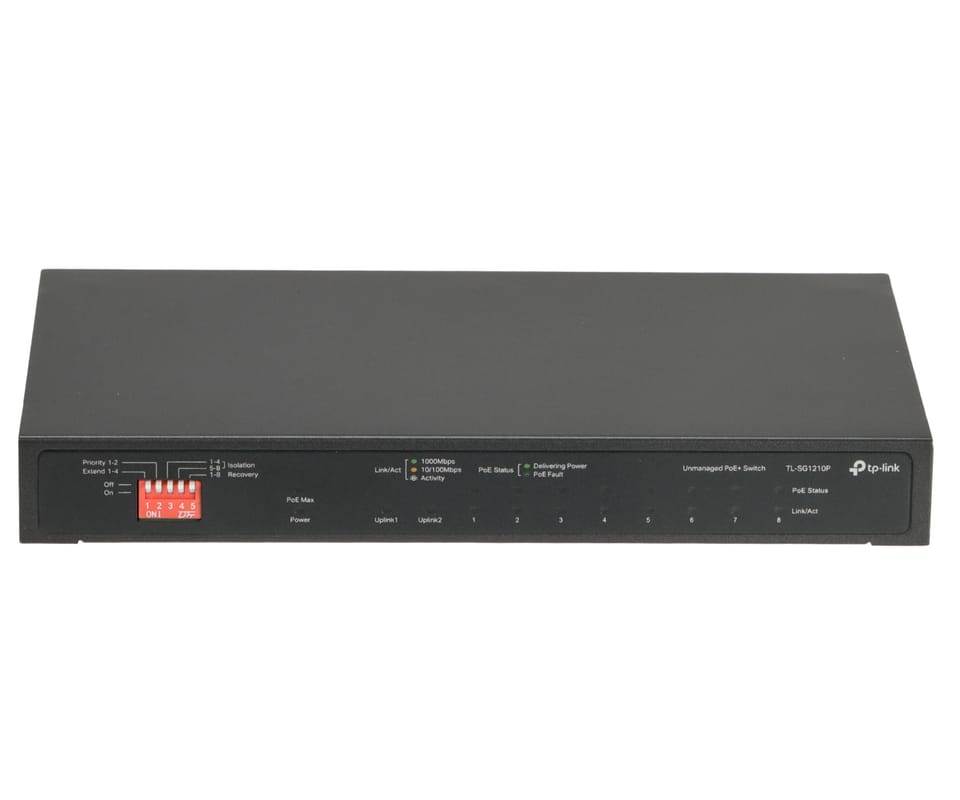

| Led indicators: | Yes |
| Mac address auto-aging supported: | Yes |
| Mac address auto-learning supported: | Yes |
| Mac address table: | 4000 entries |
| Manual: | Yes |
| Networking standards: | IEEE 802.3af, IEEE 802.3x, IEEE 802.1p, IEEE 802.3at |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 50 °C |
| Package depth: | 315 mm |
| Package height: | 70 mm |
| Package weight: | 1.24 kg |
| Package width: | 240 mm |
| Packet buffer memory: | 14.88 MB |
| Power consumption (max): | 78.13 W |
| Power consumption (typical): | 7.11 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet plus (poe+) ports quantity: | 8 |
| Power source: | DC |
| Power supply included: | No |
| Product colour: | Grey |
| Quality of service (qos) support: | Yes |
| Quick start guide: | Yes |
| Sfp module slots quantity: | 1 |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Store-and-forward: | Yes |
| Switch type: | Unmanaged |
| Switching capacity: | 20 Gbit/s |
| Total power over ethernet (poe) budget: | 63 W |
| User guide: | Yes |
| Wall mountable: | Yes |
| Width: | 209 mm |
